Brand	YURAKU
Model	YUR.GAMING V-MAX16
Product type	Video game console with wireless controllers and sports accessories
Main unit power supply	6V DC / 100 mA (4 AA batteries) or 9V DC / 150 mA AC adapter
Wireless controller power supply	3V DC / 15 mA (2 AAA batteries)
Geniecon power supply	4.5V DC / 15 mA (3 AAA batteries)
Main unit battery life	8 to 10 hours
Wireless controller battery life	12 to 24 hours
Geniecon battery life	20 to 30 hours
Communication type	Infrared (IR)
Main unit reception angle	±30°
Controller and Geniecon emission angle	±45°
Operating distance	1 to 4 meters
TV connectivity	Video (yellow) and audio (white) jacks
Number of players	2 (Geniecon P1 and P2)
TV compatibility	PAL TV only
Included accessories	Ping-pong rackets, tennis rackets, baseball bat, golf clubs, football transmitter, game cartridge, AC adapter
Main functions	Sports games (ping-pong, tennis, baseball, golf, football, boxing, bowling), racing games, archery, fighting
Safety	Not suitable for children under 36 months, adult supervision required, remove batteries if not used for a long time
Maintenance and cleaning	Clean with a soft, dry cloth; avoid moisture

Frequently Asked Questions - YUR.GAMING V-MAX16 YURAKU

How to install batteries in the main unit?

Open the battery compartment located at the back of the main unit and insert 4 AA batteries respecting polarity. Close the cover.

How to connect the main unit to the TV?

Use the provided A/V cable: plug the yellow connector into the TV's video input and the white connector into the audio input. Then plug in the AC adapter.

What is the maximum distance between the controller and the main unit?

The operating distance is between 1 and 4 meters. The main unit reception angle is ±30° and the controller emission angle is ±45°.

What to do if the controller does not respond?

Check the batteries, ensure no obstacles between the controller and the main unit, and move away from bright light sources. Press the reset button on the controller if necessary.

Can I use the AC adapter and batteries at the same time?

No, it is recommended to remove the batteries from the main unit when using the AC adapter. Use one or the other.

How to insert a game cartridge?

Set the main unit switch to Off, insert the cartridge into the slot, then set the switch to On. The games will appear on the screen.

What accessories are included with the console?

The set includes: removable ping-pong and tennis rackets, removable baseball bat, removable golf clubs, football transmitter, game cartridge, and AC adapter.

How to clean the console?

Use a soft, dry cloth to clean surfaces. Avoid contact with water or liquid products. Store in a dry place.

Is the device compatible with NTSC TVs?

No, this device is designed to work only with PAL format TVs.

Can I use rechargeable batteries?

Yes, you can use rechargeable AA and AAA batteries. Make sure to recharge them under adult supervision and respect polarity.

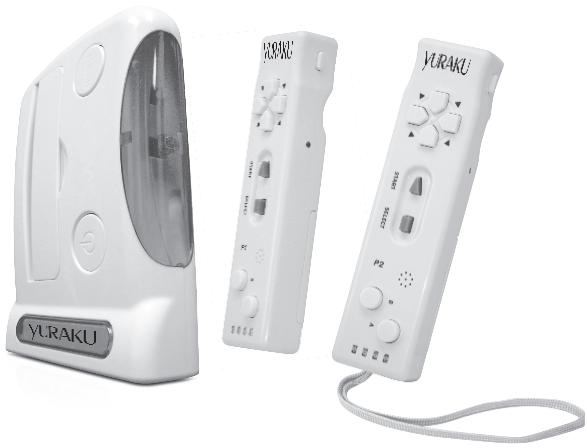

USER MANUAL YUR.GAMING V-MAX16 YURAKU

Three white YURAKU remote control devices with buttons and a strap, displayed against a plain background (no text or symbols visible on the devices themselves)

YUR.GAMING V-MAX16

Five circular grayscale images showing different movie posters or scenes, including a bicycle, group of characters, and a motorcycle (no visible text or symbols)

INSTRUCTION MANUAL

Ver 1.00

Open your Package and check for the following items:

White electronic device labeled 'YURAKU' with control buttons and a clear screen (no readable text beyond brand name)

Main Console

White YURAKU game controller with control buttons (no visible text or symbols on device body)

Wireless Gamepad

White handheld electronic device with control buttons and a coiled cable (no visible text or symbols)

Geniecon ---- P1 (L)

White YURAKU remote control device with buttons and a strap, no visible text or symbols on the device itself.

Geniecon ---- P2 ®

Soccer Transmitter

A/V Cables

User's Guide

Ping Pong Bats, Detachable

Tennis Racquet, Detachable

Baseball Bat, Detachable

Game Cartridges

Power adaptor

Golf Club, Detachable

Make sure the AA batteries are remove from the main console while using the power adapter as the power source.

Batteries requirement:

* Main Console: "AA" x 4
* Wireless Gamepad: "AAA" x 2.
* Geniecon: "AAA" x 6
* Soccer Transmitter: "AAA" x 2.

Power adapter information

* Only use with the included power adapter.
* Power adapter
Output Power: DC 9V / 150 mA
* Polarity ⊕—●—-

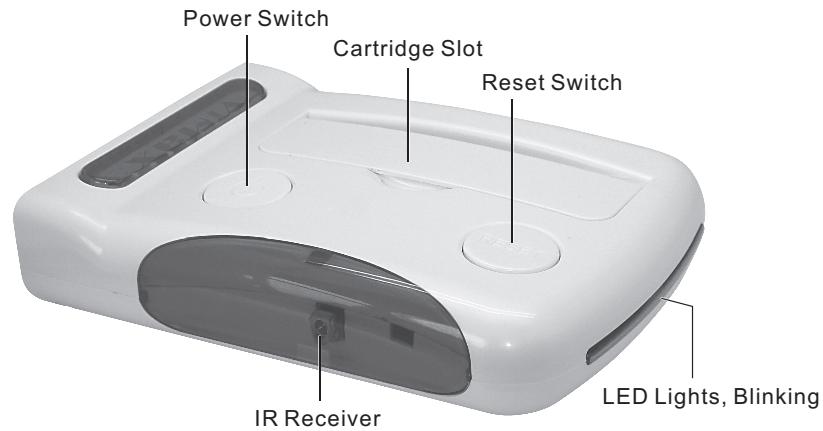

Main Console Front View

Power Switch Cartridge Slot Reset Switch IR Receiver LED Lights, Blinking

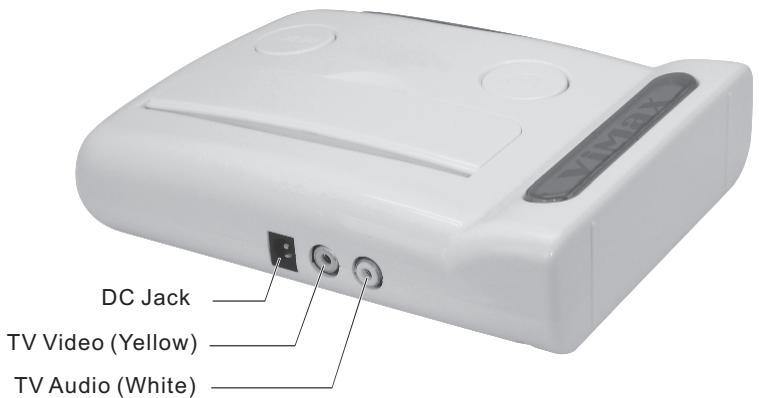

Main Console Rear View

DC Jack TV Video (Yellow) TV Audio (White)

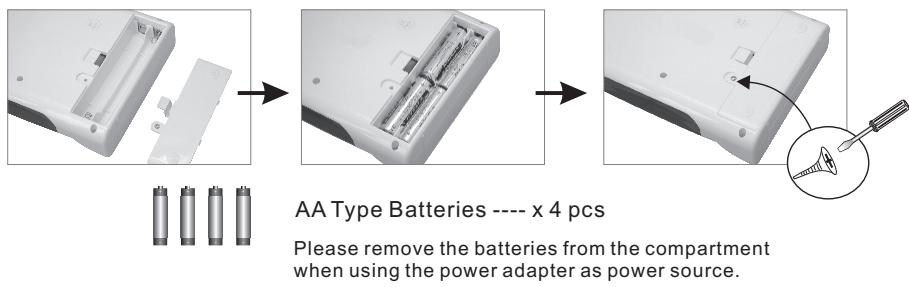

Main Console Battery Compartment

AA Type Batteries ---- x 4 pcs Please remove the batteries from the compartment when using the power adapter as power source.

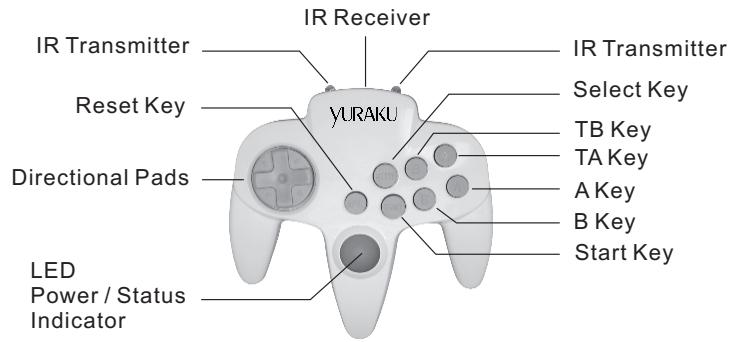

Wireless Gamepad Key Functions

IR Receiver IR Transmitter Reset Key Directional Pads YURAKU Select Key TB Key TA Key A Key B Key Start Key LED Power / Status Indicator

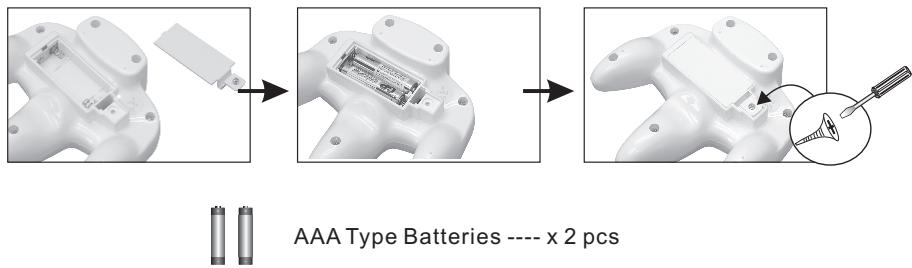

Wireless Gamepad Battery Compartment

AAA Type Batteries ---- x 2 pcs

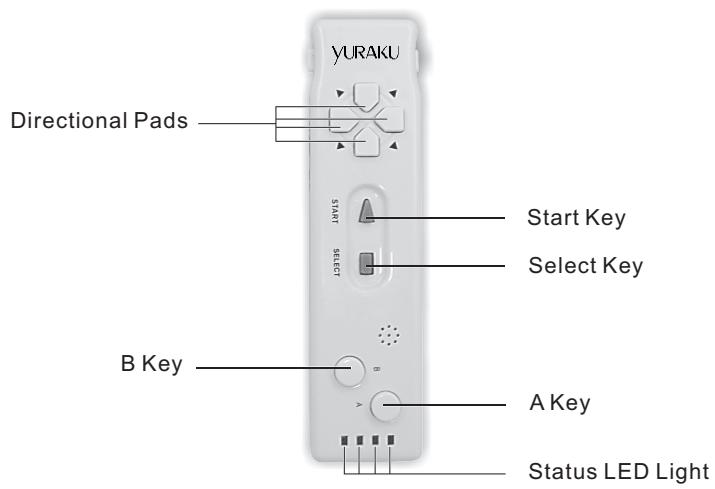

Geniecon Key Functions

yURAKU Directional Pads START SELECT B Key Start Key Select Key A Key Status LED Light

Wrist Strap

Illustration of a white electronic device with a coiled cable, no text or symbols visible

Wrist Strap to prevents Geniecon from dropping while playing.

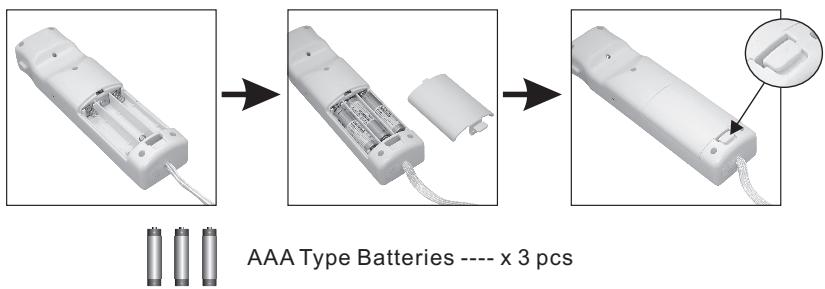

Batteries Compartment

AAA Type Batteries ---- x 3 pcs

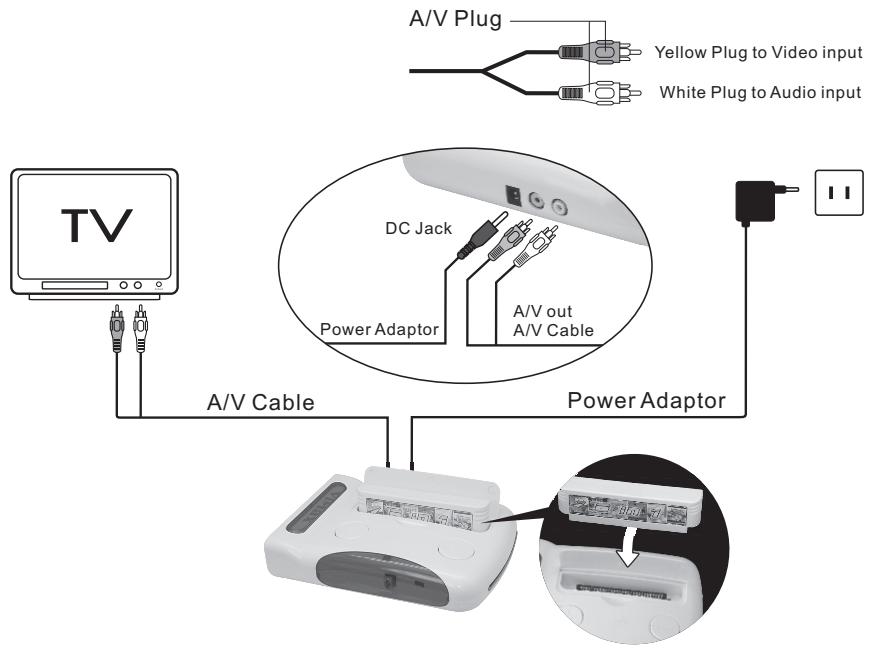

A/V Plug Yellow Plug to Video input White Plug to Audio input DC Jack Power Adaptor A/V out A/V Cable Power Adaptor A/V Cable

White remote control device with indicator lights and a 'YUMO' label, emitting sound waves (no readable text beyond branding)

Geniecon ---- P1 (L)

Wireless Gamepad

Illustration of a remote control with indicator lights and a '100kW' label (no text or symbols on the device itself)

Geniecon ---- P2 (R)

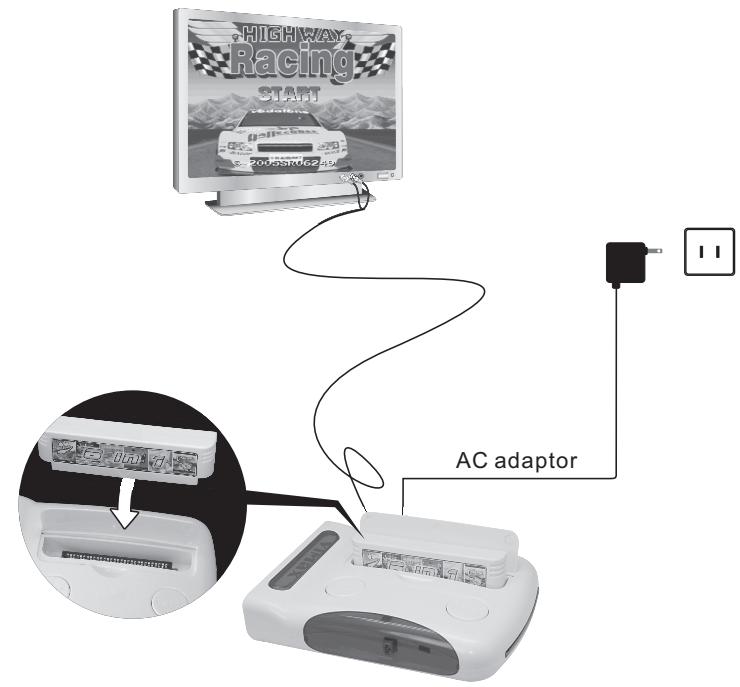

Instruction:

1. Insert the Games Cartridge,

-Ensure the power is "Off"

-Insert the Cartridge and power "On".

-TV will display the Games in the Cartridge.

1. Ensure the power is "Off" before inserting the games cartridges.

Then, depress the power "On" to play.

HIGHWAY Racing START AC adaptor AC adaptor

White remote control with indicator lights and a 'VIRAND' label, emitting sound waves (no readable text beyond labels)

Geniecon ---- P1 (L)

Wireless Gamepad

White remote control device with indicator lights and a 'VORM' label, emitting sound waves (no readable text beyond label)

Geniecon - P2 (R)

1. Main Console operating angles: +/- 30 degree.
2. Operating distance : 1 meters to 4 meters.
3. Geniecon and Wireless Gamepad transmission angles: +/- 45 degree.

No obstruction and bright light

* Make sure that there are no objects between the Main Console and the Wireless Gamepad or Geniecon.
* Too brightly lit overhead light or a light source in the area near the Main Console may also interfere with the IR sensor.

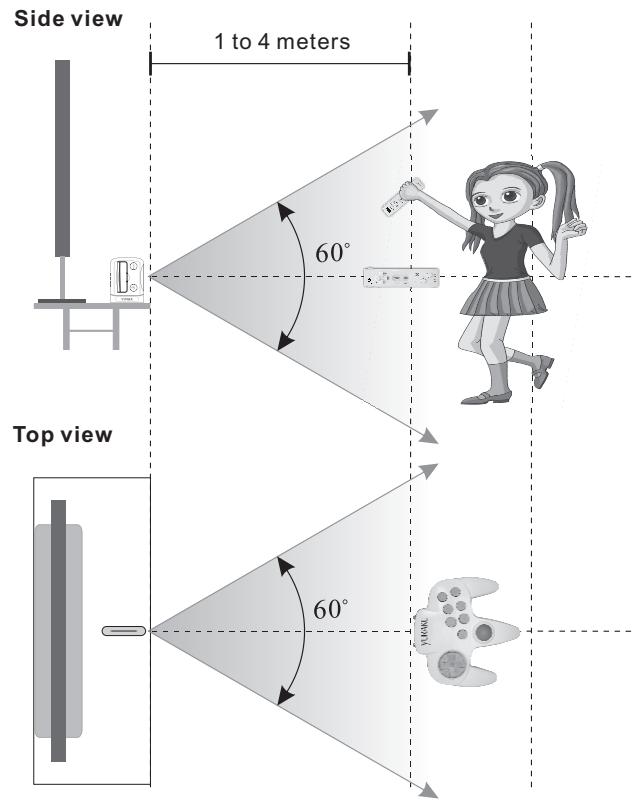

Play Distances & Angles

Side view 1 to 4 meters 60° Top view 60°

1. Main Console need to face the player vertically.
2. Operating angles : 60 degrees vertically and horizontally.
3. Operating distance : 1 to 4 meters between unit and the player.

Extra Accessories

* Geniecon features many plugins with various fun accessories
* This will bring more fun and interesting play.

Detachable Accessories in this set

Detachable PingPong Bats		Detachable Tennis Racquet
Detachable Baseball Bat		Soccer Transmitter
			AAA Batteries x 2(Batteries not included)
		Detachable Golf Club

Note to the Player

1. For use with the power adapter, supervision is required with an adult.
2. Cartridge slot: do not try to insert any metal object(s) which will short-circuit and damage the unit.
   -- Similarly to the game cartridges, do not insert any metal object (s) between the external contacts.
3. Please remove the batteries if the product is not used for long period of time.
4. Ensure all the connectors and accessories are well connected before use.
5. Use with PAL TV system only.
6. Operation note:
   a. Do not stand too close to your TV screen to avoid eye strain.
   b. Adjust the contrast, brightness and colour level on your tv to a comfortable level.
   c. Operate the V-MAX16 in well-lit room environment.
   d. Take 10\~15 minutes break if you feel tired or sleepy.
   e. Keep a careful watch while the child (children) play with the V-MAX16.
   f. Make sure there is ample room between the player and other people while playing the Geniecon and Wireless Gamepad. This is to avoid knocking to each other.
7. Battery Notice:
8. Non-rechargeable batteries are not to be charged.
9. Rechargeable batteries are only to be charged under adult supervision.
10. The supply terminals are not to be short-circuited.
11. The V-MAX16 is not to be connected to more than the recommended number of power supplies.
12. The V-MAX16 is not intended for children under 3 years old.
13. The V-MAX16 must only be used with the included power adapter (transformer).
14. The power adapter (transformer) is not a toy.
15. Keep the packing box and blister well and do not dispose of it. Use it for storage after play.

PINGPONG

TENNIS

BASEBALL

GOLF

BOXING

HIGHWAY

HIGHWAY Racing START 2005S306249

SCORE 00:000 400 KOH 031 EYES

SCORE 3000 400 KON 188 EYES

TANK

TANK™

Top-down map of a historical settlement with labeled locations and furniture layout

Top-down map of a historical military or military complex with labeled locations and numbered markers

SHUDU

SHUDU PUSH START © 2005SR14321

SHUDU FASY MODE HAND HOLD 00:00:01 PAUSE 1 2 3 4 5 6 7 8 9

SHUDO FASY MOOLE HAND HSLD 00:00:01:01 7 2 6 0 3 3 9 9 8 1 4 2 6 5 2 4 0 5 2 1 9 4 8 3 8 0 4 3 0 1 1 5 3 2 1 7 0 0 1 3 4 3 5 0 3 2 2 1 9 4 3 -3 5 5 2 1 2 3 4 5 6 7 8 9

FIREMAN

FIRE MAN 1PLAYER € 2005SR11689 2PLAYERS

1 PLAYER 3 1P 00000 2P 00000 S-2

Illustration of a multi-story building with windows and people, set against a cloudy sky (no text or symbols)

LAWN PURGE

470 00000 BROCU

Top-down view of a game board layout with numbered move markers and flower motifs (no readable text or symbols)

427 00000

SQUARE

Black and white decorative border with diamond pattern and small geometric cutouts (no text or symbols)

NEXT SCORE 0.000 RIMES 0.000 LEVEL 02 P London Tower

12:0000 11:0000 2P:0000 EDACTY SNAKES 1 Player 2 Players 2003SR06209

Top-down view of a game board with numbered player positions (no readable text or symbols)

Top-down view of a game board with multiple rectangular units and circular patterns (no readable text or symbols)

STAGE:06 MOVES:000 5 A BACK B RETRY S NEXT

STAGE:07 MOVES:000 E25 BACK RETRY S NEXT

STAGE:05 MOVES:000 A BACK F RETRY S NEXT

OVERSPEED

OVER SPEED RACING WALAWAR 2005SR1764 © 2005SR1764

Monochrome image of a moon partially obscured by a textured surface, with a small cluster of layered structures in the foreground (no text or symbols)

READY 120 100.00 100.00

DIAMOND

DIAMOND ©2005SR05467 player1 eplayers1

DIAMONO 10000 STAFF 1 p SCORE 00020 2 p SCORE 00000

DIAMANO 10000 10000 1p SCORE 00390 2p SCORE 0000

ARCHERY

ARCHERY ©2005SR09423

1P 000000 3P 002000 2P 000000 1P START 0 <<0> 24/08

Wind @ 4 m/s ARCHERY LEE 3200 1. tgy 0 JOY 2700 2. tgy 0 TJF 2200 3. tgy 0 RANKING

FIGHTING

WP 00000 START

Black-and-white illustration of a landscape with flowers, trees, and birds (no text or symbols)

Black-and-white illustration of a cartoon character with wings and butterfly on a hillside, surrounded by flowers and clouds (no text or symbols)

FISH WAR

FISH WAR PUSH START © 2005/05/462

Black-and-white illustration of a dinosaur in a forest setting with trees and rocks (no text or symbols)

Black-and-white photo of two dinosaurs in a natural setting with trees and foliage (no visible text or symbols)

SHOOTING BALLONS

Hue -00000 READY 2UP -00000 HI -00000

Black-and-white game scene with a character on water, mountains in background, and UI controls (no readable text or symbols)

7TH NATIONAL STORM PRESS START © 2003BRL054

COURSE HI 00'00"0

00:00 00:00 READY

WELCOME! ZUMA © 2007SR01489

Items	Electrical Specifications
Main Unit	1. Operating voltage & current: 6V / 100mA2. Wireless technology: Infrared Band3. DC socket for power adapter connection.4. AA batteries x 45. Estimated batteries operating duration: 8 - 10 Hours6. Receiving angles: +/- 30 degrees7. Receiving distances: 1 to 4 meters
Wireless	1. Operating voltage & current: 3V / 15mA2. Wireless transmission: Infrared Band3. AAA batteries x 24. Estimated batteries operating period: 12 - 24 Hours5. With 2 LED status indicator6. Transmitting angle: +/- 45 dgrees7. Transmitting distances: 1 to 4 meters
Geniecon	1. Operating voltage & current: 4.5V / 15mA2. Wireless transmission: Infrared Band3. 3 x AAA batteries per controller, total: 6 pcs4. Estimated batteries operating period: 20 - 30 Hours5. With 4 LED status indicator6. Transmitting angle: +/- 45 dgrees7. Transmitting distances: 1 to 4 meters

WARNING: CHOKING HAZARD. NOT SUITABLE FOR CHILDREN UNDER 36 MONTHS DUE TO SMALL PARTS.

YURAKU®

Three white YURAKU remote control devices with buttons and a strap, displayed against a plain background (no text or symbols visible on the devices themselves)

YUR.GAMING V-MAX16

Five circular grayscale images showing different scenes: a factory, industrial, and agricultural activities, with no visible text or symbols.

MANUEL DE L'UTILISATEUR Ver1.00

http://www.yuraku.com.sg

White electronic device labeled 'YLRAKU' with control buttons and a clear screen (no readable text beyond brand name)

Console principale

White gaming controller with control buttons and a gray top (no visible text or symbols)

Manette sans fil

White handheld electronic device with four ports and a coiled cable, no visible text or symbols on the device body.

Geniecon ---- P1(G)

White YURAKU remote control device with buttons and a coiled cable (no visible text or symbols on the device body)

Geniecon ---- P2(D)

Émetteur football

Câble A/V

* Geniecon : "AAA" x 6

Illustration of a handheld electronic device with a coiled cable (no text or symbols visible)

Illustration of a remote control device with indicator lights and a 'VRAMS' label (no text or symbols on the device itself)

Geniecon ---- P2(D)

OVER SPEED RACING WALAWAR 2005SR1764 © 2005SR1764

Monochrome image of a moon partially obscured by a textured surface, with no visible text or symbols.

READY

DIAMOND

DIAMOND © 2005SR05461 player eplayers

DIAMONO 10000 50% OF 10000 SCORE 99920 2 P SCORE 99998

DIAMONO 10000 5000 2000 10 SCORE 00390 2 P SCORE 00000

ARCHERY

ARCHERY © 2005SR09423

WP 00000 START

Grayscale landscape illustration with white flowers, clouds, and birds (no text or symbols)

Game scene with character icons and floating objects on a snowy landscape (no readable text or symbols)

FISH WAR

FISH WAR PUSH START © 2005R05462.

Underwater scene with dinosaur, rocks, and plants (no visible text or symbols)

Illustration of a dinosaur in a prehistoric landscape with trees and rocks (no text or symbols)

SHOOTING BALLONS

UP - 00000 READY 2UP - 00000 Hi - 00000

Black-and-white game scene with a character in a boat on water, mountains and sky in background (no readable text or symbols)

JX MOTOR STORM PRESS START © 2005BLR334

COURSE HI 00'00"

03:00 10 POMO READY

WELCOME ZUMA © 2007SR01489

Circular emblem with a central figure, surrounded by decorative elements and a small icon (no readable text or symbols)

Three white YURAKU remote control devices with buttons and a coiled cord, displayed against a plain background (no text or symbols visible on the devices themselves).

YUR.GAMING V-MAX16

Five circular grayscale images showing different scenes: a car, airplane, motorcycle, bicycle, and airplane (no text or symbols)

BEDIENUNGSANLEITUNG

Ver1.00

http://www.yuraku.com.sg

White electronic device labeled 'YURAKU' with control buttons and a clear glass interior (no readable text beyond label)

Hauptkonsole

White gaming controller with control buttons and a gray top (no visible text or symbols)

Wireless Controller

White handheld electronic device with control buttons and a coiled cable, no visible text or symbols on the device body.

Geniecon ---- P1 (L)

White YURAKU remote control device with buttons and a strap, no visible text or symbols on the device itself.

Geniecon ---- P2 (R)

Fußball-Sender

AV-Kabel

Illustration of a handheld electronic device with a coiled cable (no text or symbols visible)

White remote control device with indicator lights and a 'VRAMU' label, emitting sound waves (no readable text beyond branding)

Geniecon ---- P1 (L)

Wireless Controller

Illustration of a remote control with indicator lights and a 'M-DRD' label (no text or symbols on the device itself)

Geniecon ---- P2 (R)

Anmerkungen:

White remote control with indicator lights and a 'YUMA' logo, emitting sound waves (no text or symbols on device)

Geniecon ---- P1 (L)

Wireless Controller

White remote control with indicator lights and a 'X400U' label, no readable text or symbols beyond the label.

Geniecon ---- P2 (R)

OVER SPEED RACING WALAWAR 2005SR1764 © 2005SR1764

Monochrome image of a moon partially obscured by a textured surface, with a small tree-like structure visible in the foreground (no text or symbols)

READY 120 100.00 100.00 120 100.00

DIAMOND

DIAMOND ©2005SR05467 player1 eplayers1

DIAMONO 10000 STAFF 1 p SCORE 00020 2 p SCORE 00000

DIAMANO 10000 10000 1p SCORE 00390 2p SCORE 0000

ARCHERY

ARCHERY ©2005SR09423

1P 000000 3P 002000 2P 000000 1P START 0 <<0> 24768

Wind 4 m/s ARCHERY LCE 3200 1. tgy 0 JOY 2700 2. tgy 0 TUE 2200 3. tgy 0 RANKING

FIGHTING

WP 00000 START

Black-and-white illustration of a landscape with flowers, trees, and birds (no text or symbols)

Black-and-white illustration of a cartoon character with wings and butterfly on a hillside, surrounded by flowers and clouds (no text or symbols)

FISHWAR

FISH WAR PUSH START © 2005/05/462

Black-and-white illustration of a dinosaur in a forest setting with trees and rocks (no text or symbols)

Black-and-white photo of two dinosaurs in a natural setting with trees and foliage (no visible text or symbols)

SHOOTING BALLONS

Hue -00000 READY 2UP -00000 HI -00000

Black-and-white game scene with a character on water, mountains in background, and UI controls (no readable text or symbols)

JAX MORON STORM PRESS START © 2018SR.LUSH

COURSE HI 00'00"0

00:3000 00:4000 READY

WELCOME! ZUMA © 2007SR01489

Three white YURAKU remote control devices with buttons and a coiled cord, displayed against a plain background (no text or symbols visible on the devices themselves).

YUR.GAMING V-MAX16

Five circular grayscale images showing different movie or event scenes, including cars, landscapes, and a person (no visible text or symbols)

GEBRUIKERSGIDS
Ver1.00

http://www.yuraku.com.sg

White electronic device labeled 'YURAKUJ' with control buttons and a clear glass interior (no readable text beyond label)

Hoofdconsole

White game controller with gray buttons and a black top (no visible text or symbols)

Draadloze controller

White handheld electronic device with control buttons and a coiled cable, no visible text or symbols on the device body.

Geniecon ---- P1(L)

White YURAKU remote control device with buttons and a coiled cable (no visible text or symbols on the device body)

Geniecon ---- P2(R)

Voetbalzender

A/V-kabel

Gebruikersgids

Illustration of a handheld electronic device with a coiled cable (no text or symbols visible)

White remote control device with indicator lights and sound waves (no text or symbols visible)

Geniecon ---- P1(L)

Draadloze Controller

White remote control with indicator lights and a 'USBAN...' label, no readable text or symbols beyond the label.

Geniecon ---- P2(R)

Opmerkingen:

White remote control with indicator lights and a 'MAYAMU' label, emitting sound waves (no readable text beyond label)

Geniecon - P1(L)

Wireless Controller

Illustration of a remote control with indicator lights and a 'X8400' label (no text or symbols on the device itself)

Geniecon - P2(R)

Top-down map of a traditional Chinese town square with labeled locations and furniture layout

Floor plan or layout diagram with labeled rooms and furniture, showing room numbers and spatial arrangement

SHUDU

SHUDU PUSH START © 2005SR14321

SHUDU EASY MIDDLE HARD MELD 00:00:01 PAUSE 1 2 3 4 5 6 7 8 9

SHUDO FASY MOOLE HAND HSLD 00:00:01:01 7 2 6 0 3 3 9 9 8 1 4 2 6 5 2 4 0 5 2 1 9 4 8 3 8 0 4 3 0 1 1 5 3 2 1 7 0 0 1 3 4 3 5 0 3 2 2 1 9 0 4 -3 5 9 2 1 2 3 4 5 6 7 8 9

FIREMAN

FIRE MAN 1PLAYER € 2005SR11689 2PLAYERS

1 PLAYER 3 1P 00000 2P 00000 S-2

Illustration of a multi-story building with windows and people, set against a cloudy sky (no text or symbols)

LAWN PURGE

470 00000 BROU

Top-down view of a game board layout with numbered move markers and flower motifs (no readable text or symbols)

427 00000

SQUARE

Decorative frame with diamond pattern and ornamental border (no text or symbols)

NEXT SCORE & KEY 1000 TIME 000 LEVEL 02 Pojaya Tower

12:0000 11:0000 2P:0000 EDACTY SNAKES 1 Player 2 Players 2003SR06209

Top-down view of a game board with numbered player positions (no readable text or symbols)

Top-down view of a game board with multiple rectangular units and circular patterns (no readable text or symbols)

STAGE:06 MOVES:000 5 A BACK B RETRY S NEXT

STAGE:07 MOVES:000 BACK RETRY S NEXT

STAGE:05 MOVES:000 A BACK F RETRY S NEXT

OVER SPEED

OVER SPEED RACING WALAWAR 2005SR1764 © 2005SR1764

Monochrome image of a moon partially obscured by a textured surface, with a small cluster of layered structures in the foreground (no text or symbols)

READY 120 100.00 100.00 120 100.00

DIAMOND

DIAMOND ©2005SR05462 player eplayers

MINIMO 10000 STAGE 0.01 1p SCORE 00020 2p SCORE 00000

DIAMONO 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

ARCHERY

ARCHERY ©2005SR09423

1P 000000 3P 002000 2P 000000 1P START 0 <<0> 24/08

Wind @ 4 m/s ARCHERY LEE 3200 1. tgy 0 JOY 2700 2. tgy 0 TJF 2200 3. tgy 0 RANKING

FIGHTING

WP 00000 START

Black-and-white illustration of a landscape with flowers, trees, and birds (no text or symbols)

Black-and-white illustration of a cartoon character with wings and butterfly on a hillside, surrounded by flowers and clouds (no text or symbols)

FISH WAR

FISH WAR PUSH START © 2005/05/462

Black-and-white illustration of a dinosaur in a forest setting with trees and rocks (no text or symbols)

Black-and-white photo of two dinosaurs in a natural setting with trees and foliage (no visible text or symbols)

SHOOTING BALLONS

TUP -00000 READY 2UP -00000 HI -00000

Game scene with a character on water, mountains in background, and UI icons (no readable text or symbols)

JMX JMX PRESST START © 2005SR1234

COURSE HI 00'00"0

COSOO Ready

WELCOME! ZUMA THE AGE 2 © 2007SR01489
