YV216WB2 - Monitor YURAKU - Free user manual and instructions

Product Type	Monitor
Brand	Yuraku
Model	YV216WB2
Screen Size	21.6 inches
Resolution	1920 x 1080 (Full HD)
Aspect Ratio	16:9
Display Technology	LCD (TFT)
Brightness	300 cd/m²
Contrast Ratio	1000:1
Response Time	5 ms
Viewing Angle (H/V)	170° / 160°
Connectivity	VGA, DVI-D, Audio In
Power Consumption (Typical)	25 W
Power Supply	AC 100-240V, 50/60 Hz
Stand Adjustments	Tilt only
VESA Mount Compatible	100 x 100 mm
Weight (with stand)	4.5 kg
Dimensions (with stand)	515 x 380 x 180 mm
Security	Kensington lock slot
Energy Star Certified	Yes
Included Accessories	Power cable, VGA cable, DVI cable, audio cable, user manual
Cleaning	Use a soft dry cloth; avoid chemicals.
Repairability	Spare parts available through authorized service centers; repair by qualified technicians recommended.

Frequently Asked Questions - YV216WB2 YURAKU

How do I adjust the screen resolution?

Right-click on your desktop and select Display settings (Windows) or System Preferences > Displays (Mac). Choose the recommended resolution of 1920x1080 for optimal clarity.

How should I clean the monitor screen?

Turn off the monitor and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. Do not apply liquid cleaners directly; if needed, slightly dampen the cloth with water.

What should I do if the monitor displays 'No Signal'?

Ensure the video cable (VGA or DVI) is securely connected to both the monitor and the computer. Check that the computer is powered on. If using a desktop, try a different cable or port.

How can I connect multiple devices to this monitor?

This monitor has VGA and DVI-D inputs. Connect one device per input. Use the monitor's Source button to switch between inputs.

How do I enable power saving mode?

Go to your computer's Power Options (Windows) or Energy Saver (Mac) settings. Set the display to turn off after a period of inactivity. The monitor automatically enters standby when it receives no signal.

Can I wall-mount this monitor?

Yes, it supports VESA 100x100 mm mounting. Use a compatible wall mount kit and follow the instructions. Ensure the mount can support the monitor's weight (4.5 kg).

What should I do if I notice a dead pixel?

Dead pixels are typically a manufacturing defect if multiple are present. Check the warranty policy. A single pixel may be acceptable; run a pixel test to confirm. Contact Yuraku support if covered.

How do I adjust brightness and contrast?

Press the Menu button on the monitor to open the On-Screen Display (OSD). Use the navigation buttons to find Brightness and Contrast settings. Adjust to your preference.

Is this monitor suitable for gaming?

With a 5 ms response time, this monitor is adequate for casual gaming. For competitive gaming, consider a model with faster response and higher refresh rate.

What does the OSD menu include?

The On-Screen Display (OSD) allows you to adjust brightness, contrast, color settings, input source, and other display parameters. Press the Menu button to access it. Use the arrow keys to navigate.

USER MANUAL YV216WB2 YURAKU

Operation Instructions

Thank you for purchasing this monitor, a high-resolution multi-scan color monitor.

Please read this guide thoroughly before installation.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS)

This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide proper protection against harmful interference to a residential installation. This monitor generates, uses, and can radiate radio frequency energy. Harmful interference to radio communication may be led as a result if it's not properly installed and used. However, there is no guarantee that interference will not occur in a particular installation. If this monitor does cause serious interference to radio or television reception, resetting the monitor may determine it. Moreover, users are encouraged to correct interference by doing one or more of the following:

● Reorient or relocate the receiving antenna.
- Move the monitor and the receiver further away from each other.
- Connect the monitor into an outlet on a circuit different from that to which the receiver is connected.
- Consult your local dealer or an qualified technician

FCC Warning:

To assure a continued FCC compliance, a user must use a grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores. Also, any unauthorized changes or modifications to this monitor would void the user's authority to operate this device.

Note: If necessary, shielded interface cables and AC power cord must be used to meet the emission level limits.

According to WEEE regulation, this monitor can't be handled as normal trash in Europe when it is out of usage. Please refer to the recycle information from our website to handle it.

Content

Safety Precautions....1

First Setup 2

Quick Installation....2

Front View of the Product ....3

Rear View of the Product....3

Using On Screen Display (OSD) Functions ....4

Supporting Timing Modes 7

Technical Information......8

Care and Maintenance....9

Troubleshooting 9

Safety Precautions

This monitor is manufactured and tested on a ground principle that a user's safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy.

WARNINGS:

This monitor should be operated only at the correct power sources indicated on the label on the rear end of the monitor. If you're unsure of the power supply in your residence, consult your local dealer or power company.
Do not try to repair the monitor yourself as it contains no user-serviceable parts. The monitor should only be repaired by a qualified technician.
Do not remove the monitor cabinet. There is high-voltage parts inside that may cause electric shock to human bodies, even when the power cord is disconnected.
◆ Stop using the monitor if the cabinet is damaged. Have it checked by a service technician.
◆ Put your monitor only in a clean, dry environment. Unplug the monitor immediately if gets wet and consult your service technician.
◆ Always unplug the monitor before cleaning it. Clean the cabinet with a clean, dry cloth. Apply non-ammonia based cleaner onto the cloth, not directly onto the glass screen.
◆ Keep the monitor away from magnetic objects, motors, TV sets, and transformer.
◆ Do not place heavy objects on the cable or power cord.
◆ For PLUG CABLE EQUIPMENT, the Socket-outlet shall be installed near the equipment and shall be easily accessible.

First Setup

Congratulations for purchasing this monitor of high performance!

This monitor comes with the following accessories :

• Power Cable
  D-Sub Cable (15 pin)
• Audio Cable
• Warranty Card
• User's Manual

Quick Installation

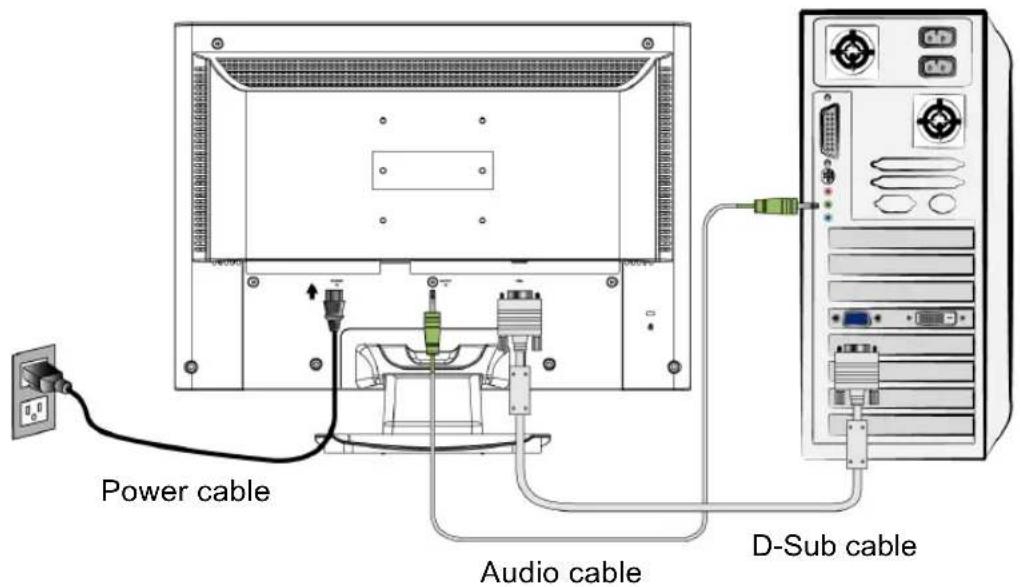

1. Connect video cable (D-Sub cable)

Make sure both monitor and computer are powered OFF. Connect the video cable (D-Sub cable) to the computer, then to the monitor.

2. Connect power cord

Connect the power cord to a properly grounded AC outlet, then to the monitor.

3. Power-ON computer and monitor

Power-ON the computer, then Power-ON the monitor.

4. Windows usersSetting the Timing Mode (Resolution and Refresh Rate)

Example: 1680 x 1050 @ 60 Hz

Resolution Right-click on the Windows desktop > Properties > Settings > "Desktop Area". Set the resolution.

Refresh Rate (vertical frequency) See your graphic card's user guide for instructions.

Example:

Power cable Audio cable D-Sub cable

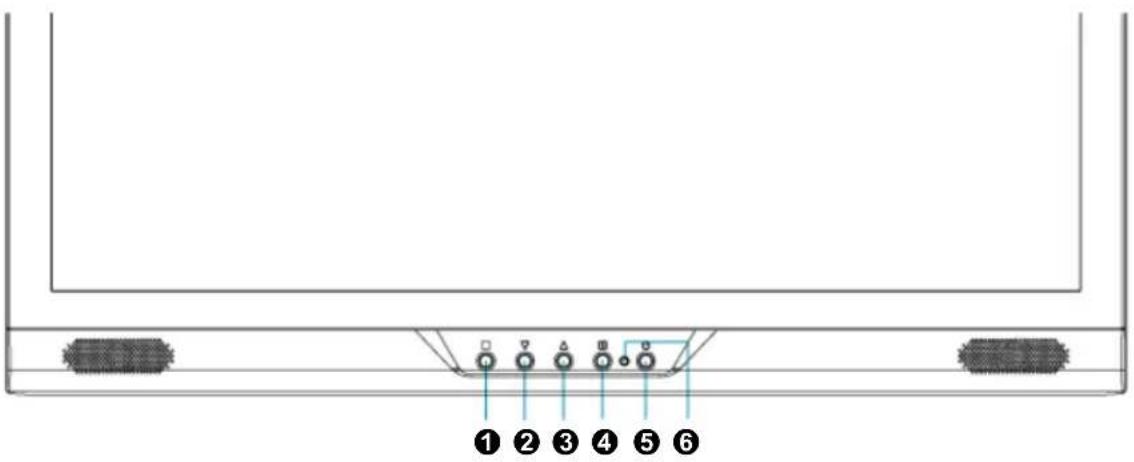

Front View of the Product

① ② ③ ④ ⑤ ⑥

① OSD TURN ON/OFF ④ CONFIRM SELECTION
② SCROLL DOWN/DECREASE ⑤ POWER ON/OFF
③ SCROLL UP/INCREASE ⑥ LED INDICATER

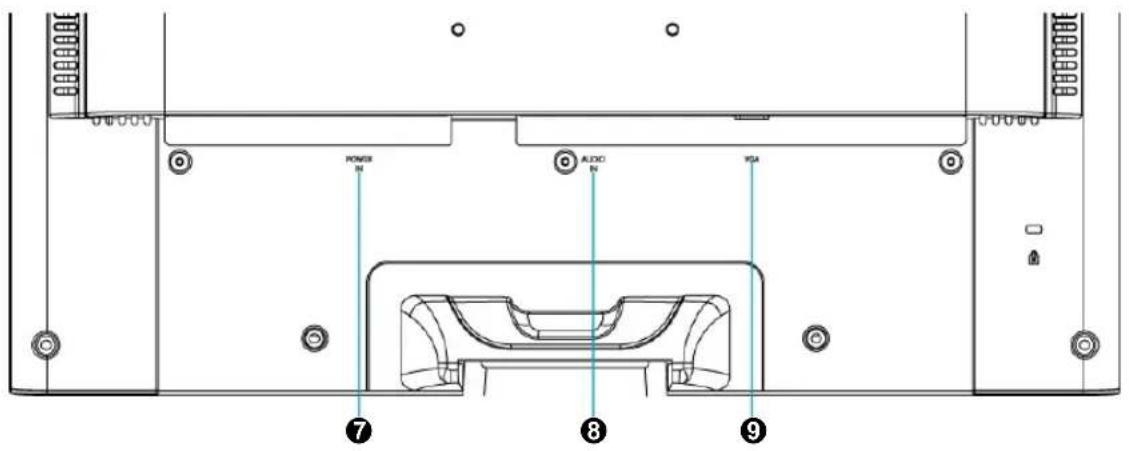

Rear View of the Product

POWER AUDIO TGA ⑦ ⑧ ⑨

⑦ POWER INPUT ⑨ VGA INPUT (D-SUB 15 PIN)
⑧ AUDIO INPUT

Using On Screen Display (OSD) Functions

	Display main menu. 1
	Exit from OSD menu.
	Auto adjust the image when at root menu. 2
	Confirm the selection.
▲ or ▼	Select the desired item when in OSD menu.
	When not in OSD menu, it is to immediately activate Contrast/ Brightness. It should be change to Contrast/ Brightness by pressing button▲ or ▼
▼ + ▲	Recall both of Contrast and Brightness.
1 + ▼	Power Lock (when not in OSD menu)
1 + ▲	OSD Lock (when not in OSD menu)

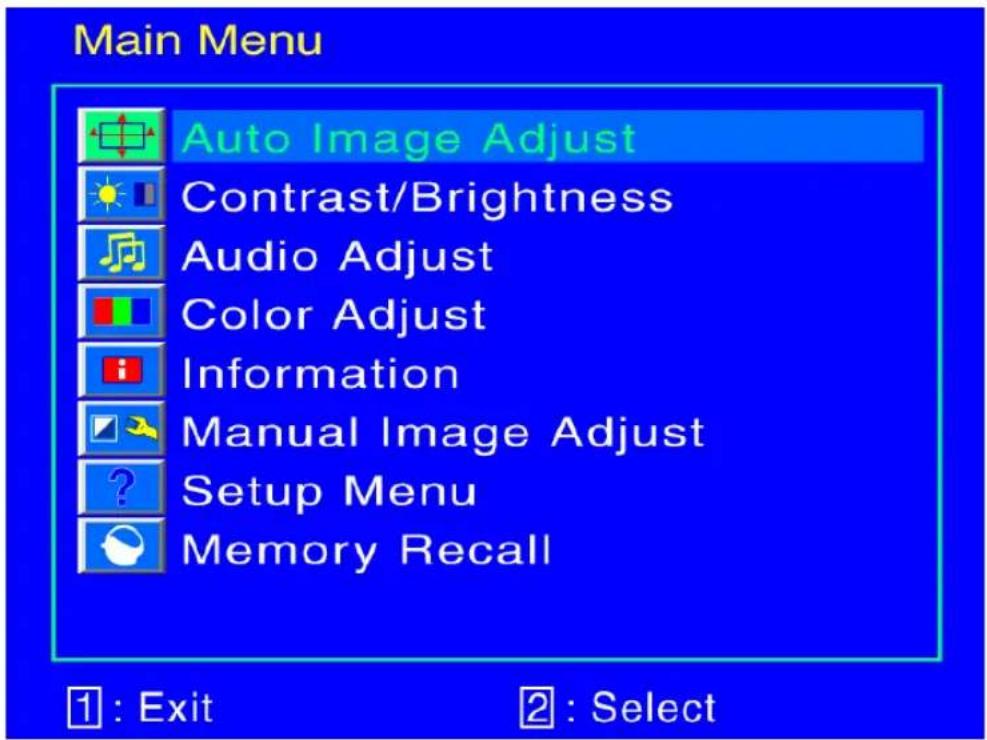

Main Menu

Main Menu Auto Image Adjust Contrast/Brightness Audio Adjust Color Adjust Information Manual Image Adjust Setup Menu Memory Recall ① : Exit ② : Select

Short Cuts Function from the button(s)

Auto Image Adjust : To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. Size) of the screen.

Contrast : To adjust the foreground white level of screen image.

▲ : increase contrast, ▼: decrease contrast.

Brightness : To adjust the luminance of the video.

▲ : increase brightness, ▼ : decrease brightness.

Audio Menu : To adjust the audio functions.

Volume : To adjust the volume of speaker output.

Mute : To turn the Mute ON/OFF.

Color Adjust : To select the color for improving brightness and color saturation between 9300K, 6500K, 5400K, and User Color.

9300K : Adds blue to screen image for cooler white.

6500K : Adds red to screen image for warmer white and richer red.

5400K : Adds green to screen image for a darker color.

User Color : Individual adjustments for red (R), green (G), blue (B).

1. Press button 2 to select the desired color.

2. Press ▼ or ▲ button to adjust selected color.

Information : To display the information, regarding the current input signal coming from the graphic card in your computer.

Note: See your graphic card user guide for more information about changing the resolution and refresh rate.

Horizontal Size : To adjust the width of the screen image.

▼ : decrease the width of screen image, ▲ : increase the width of screen image.

H./V. Position : To adjust the horizontal and vertical position of the video.

H. Position : ▲ : move screen to the right, ▼ : move screen to the left.

V. Position : ▲ : move screen up, ▼ : move screen down.

Fine Tune : To adjust the delay time of data and clock.

Press ▼ or ▲ to adjust to your preference.

Sharpness : To adjust the clarity of a non-WSXGA (1680x1050 @ 60Hz) signal with ▼ or ▲ button.

Setup Menu : To set up Language Select, Resolution Notice, OSD Position, OSD Time Out, and OSD Background off.

Language Select : To allow users to choose from available languages.

Resolution Notice : Resolution Notice is to remind you set the best quality for the image.

• Choose “Enable”: Every 30 seconds, it will show a window “For best picture quality change resolution to 1680 x 1050” to remind you set the best quality for the image.
• Choose "Disable": It will not show a window to remind you set the best quality for the image if the resolution is lower than 1680 x 1050.

OSD Position : Press 2 button to select between horizontal and vertical OSD Position adjustment.

Horizontal OSD Position : To horizontally adjust the OSD position.

▲ : move OSD to the right, ▼ : move OSD to the left.
Vertical OSD Position : To vertically adjust the OSD position.
▲ : move OSD up, ▼ : move OSD down.

OSD Time Out : To automatically turn off On Screen Display(OSD)after a preset period of time.

OSD Background : Allows the user to turn the OSD background On or Off.

Memory Recall : To recall factory settings for Video & Audio controls. Press button 2 to select the Memory Recall menu option.

Supporting Timing Modes

VGA	720 x 400 @ 70Hz
VGA	640 x 480 @ 60Hz
MAC	640 x 480 @ 67Hz
VESA	640 x 480 @ 75Hz
VESA	800 x 600 @ 56Hz
VESA	800 x 600 @ 60Hz
VESA	800 x 600 @ 72Hz
VESA	800 x 600 @ 75Hz
MAC	832 x 624 @ 75Hz
VESA	848 x 480 @ 60Hz
VESA	1024 x 768 @ 60Hz
VESA	1024 x 768 @ 70Hz
VESA	1024 x 768 @ 75Hz
VESA	1152 x 864 @ 75Hz
VESA	1280 x 720 @ 60Hz
VESA	1280 x 960 @ 60Hz
VESA	1280 x 768 @ 60Hz
VESA	1280 x 768 @ 75Hz
VESA	1280 x 1024 @ 60Hz
VESA	1280 x 1024 @ 75Hz
VESA	1440 x 900 @ 60Hz
VESA	1440 x 900 @ 75Hz
VESA	1680 x 1050 @ 60Hz

Warning : Do not set the graphic card in your computer to exceed these maximum refresh rates. Doing so may result in permanent damage to your monitor.

Technical Information

Technical Specification

LCD Panel 21.6" TFT
Power Management	Energy Star compliant VESADPMS compatible< 2 W
Displayable Resolution	WSXGA 1680 x 1050 max. Vertical Frequency 60Hz max.
Pixel Dimension	0.277 x 0.277 mm
LCD Display Color 16.7M
Tilt 0°~20°
Active Display Area	464.94 mm x 290.59 mm
Temperature Operating: 0°C ~ +40°CStorage: -20°C ~ + 60°C
Compliance CE, FCC, TCO'99
Power Input Voltage AC100-240 V
Speaker 2W x 2

Care and Maintenance

Care

• Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare.
  ● Put your monitor in a well ventilated area.
• Do not place any heavy things on top of your monitor.
  ● Make certain your monitor is installed in a clean and moisture-free area.
• Keep your monitor away from magnets, motors, transformers, speakers, and TV sets.

Note

• Move the LCD out of the package and take off the plastic bag and Polystyrene Foam.
• Pull the base from Parallel versus Panel to Vertical.
• Adjust the Panel within 0 degree leaning forward and 20 degree leaning backward. You must bend harder to exceed 20 degree backward but this range is for packing the unit to a small size for storage only.

Safety Tips

• If smoke, abnormal noise or odor came out from your monitor, caution you should remove the power cord immediately and call your service center.
• Never remove the rear cover of your monitor cabinet. The display unit inside contains high-voltage parts and may cause electric shock to human bodies.
• Never try to repair your monitor yourself. Always call your service center or a qualified technician to fix it.

Troubleshooting

No power

• Make sure A/C power cord is securely connected to the power adapter and the power supply is firmly connected to the monitor.
• Plug another electrical device into the power outlet to verify that the outlet is supplying proper voltage.
  ● Make sure all signal cables are installed.

Power on but no screen image

• Make sure the video cable supplied with the monitor is tightly secured to the video output port on back of the computer. If not, tightly secure it.
• Adjust brightness.

Wrong or abnormal colors

• If any colors (red, green, blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection.
• Connect the monitor to another computer.
