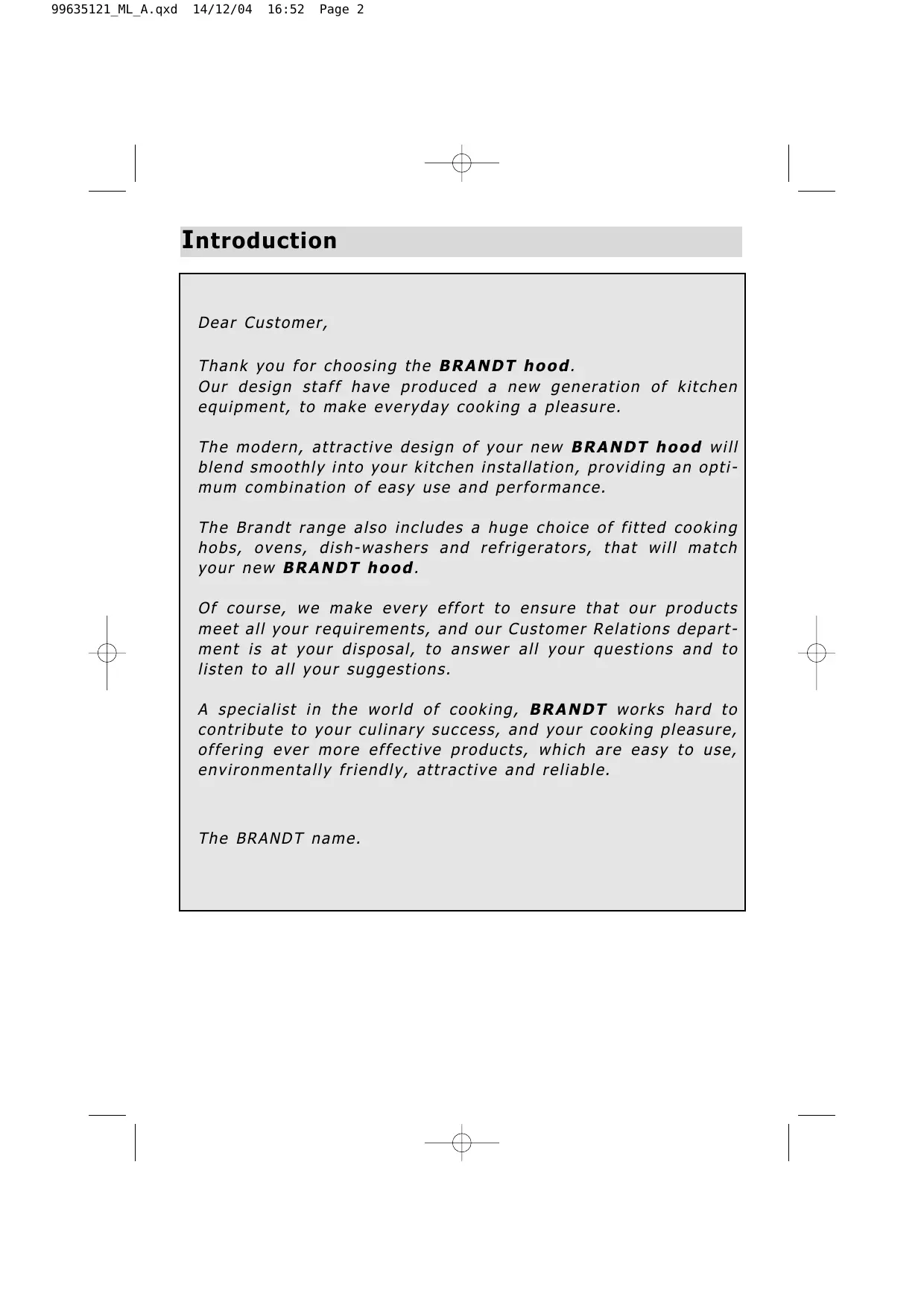

Le guide d’utilisation - Hotte box 99635121_ML_A.qxd 14/12/04 16:52 Page 2 I ntroduction Dear Customer, Thank you for choosing the BRANDT hood. Our design staff have produced a new generation of kitchen equipment, to make everyday cooking a pleasure. The modern, attractive design of your new BRANDT hood will blend smoothly into your kitchen installation, providing an optimum combination of easy use and performance. The Brandt range also includes a huge choice of fitted cooking hobs, ovens, dish-washers and refrigerators, that will match your new BRANDT hood. Of course, we make every effort to ensure that our products meet all your requirements, and our Customer Relations department is at your disposal, to answer all your questions and to listen to all your suggestions. A specialist in the world of cooking, BRANDT works hard to contribute to your culinary success, and your cooking pleasure, offering ever more effective products, which are easy to use, environmentally friendly, attractive and reliable. The BRANDT name. 99635121_ML_A.qxd 14/12/04 16:52 Page 3 S afety instructions - You should never "flambé" dishes under the hood or operate gas rings under the hood without cooking utensils being placed on them (the flames sucked up into the hood can damage the appliance). - When frying food under the appliance, a careful watch must be kept on this at all times. - Repairs must only be carried out by an approved specialist. - You should regularly clean the filter cartridge. - The hood should never be used over a combustible fuel burning stove (wood, coal, etc).

These hoods have been designed for non-commercial use in private homes. With a view to constantly improving our products, we reserve the right to modify their technical, functional or aesthetic characteristics, making any changes to their features considered necessary or desirable in view of technical progress. These hoods are designed exclusively for cooking foodstuffs and drinks. These products do not contain any asbestos based components. Throughout this manual, indicates safety recommendations, indicates advice to help you make the best use of your oven 99635121_ML_A.qxd 14/12/04 16:52 Page 4 T he controls on your hood Fig.1 3-speed model 1 Slow speed 2 Medium speed 3 Fast speed Lighting Important: When several speed buttons are pressed-in, the highest speed applies. The hood turns off when none of the buttons are pressed-in. In the case of a kitchen heated by a device connected to a chimney (for example a stove) the "recycling" version of the hood should be installed. Do not use the hood without metal filters. Suitable ventilation should be ensured for the room when the suction hood is used at the same time as appliances using gas or another combustible fuel. 99635121_ML_A.qxd 14/12/04 16:52 Page 5 I nstalling your hood ? If you possess an outlet to the exterior: fig. 4 Your hood can be connected to this using a flue (minimum Ø 125 mm, enamelled, made from aluminium, flexible or made from a non-flammable material). If your flue is below 125 mm in diameter, you must obligatorily use the "recycling" mode. If you do not possess an outlet to the exterior: fig. 5 All of our appliances can be used in recycling mode. In this case, you should add an active carbon filter which will keep in odours.

A ssembling your hood The hood must be installed in conformity with the applicable regulations concerning the ventilation of premises. In France, these regulations are detailed in DTU 61.1 from the CSTB. In particular, the evacuated air must not be channelled into a duct used to evacuate fumes from appliances using gas or other combustible fuels. Disused ducts may only be used after approval from a competent specialist. The minimum distance between the cooking surface and the lowest part of the hood must be 70 cm. If the instructions for the hob installed under the hood specify a distance of more than 70 cm, this requirement must be respected. - Draw a horizontal line 70 cm minimum from the cooktop. - Draw a vertical line on the wall running from the ceiling to the lower edge of the hood. - Place the mounting hole template against the wall (fig. 2). - Drill the 6 holes. Insert the 6 wall plugs. - Screw up the top two screws of the hood, but not completely - allow them to protrude by 5 mm. - Remove the metal filter. - Attach the suction hood to the two screws (fig. 3). - Screw up the two screws at the bottom. Adjust the level of your hood before fully tightening up all four screws. C onnecting up your hood This appliance is delivered with a H 05 VVF power cable with 2 conductors

mm2 (neutral, live). This must connected to the 220-240 V single phase mains network via a CEI 60083 standard plug which must remain accessible following installation. We will not be liable in the event of an accident arising following incorrect installation. The fuse for your installation must be 10 or 16A. If the power cable is damaged, call the after sales service department in order to avoid danger. 99635121_ML_A.qxd 14/12/04 16:52 Page 6 A ssembling the chimney Hood to be used with external evacuation : fig. 4 and 8 - Attach the metal chimney bracket to the wall, also placing this against the ceiling (fig. 6). Take care in aligning the 2 triangular slots on the metal bracket with the vertical line on the wall. - In the case of a flue with a diameter of 125 mm, use the adapter supplied (fig. 8). If your exterior duct is below 125 mm, you must obligatorily connect your hood in recycling mode - Prepare your telescopic chimney taking care to block off the vents (fig. 8). Fit the chimneys into one another as far as they will go. - Fit the upper part to the metal bracket. - Adjust the length of the telescopic chimney by bringing down the lower part and fitting it to the top of the hood. To ensure optimal use of your device, we advise that you connect a flue with a diameter of 150 mm (not supplied). Limit the number of angles and bends as far as possible, and keep the length of the flue to a minimum. In the event that the hood will be functioning using exterior evacuation, you should ensure a sufficient inlet of fresh air to avoid a pressure deficiency in the room. Hood to be used in "recycling" mode: fig. 5 and 9 - It is possible to remove the back flow valves. - Fit the plastic smoke deflector to the wall also placing this against the ceiling. Take care to centre the deflector vis-à-vis the vertical line drawn on the wall (fig. 7). - Prepare your chimney taking care to place the vents toward the top to ensure that they are visible (fig. 9). - Fit the upper part to the plastic deflector. - Adjust the length of the telescopic chimney by bringing down the lower part and fitting it into the top of the hood. Changing the lamp ? Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch,

2. Unscrew then change the E14-40W bulb (fig. 11).

99635121_ML_A.qxd 14/12/04 16:52 Page 7 C leaning your hood ? The power supply to the hood must be turned off either by removing the plug or by using the circuit breaker switch before you remove the metal filters. After cleaning, the metal filters must be refitted in conformity with the instructions. FILTER CARTRIDGE

ACTIVATED CARBON FILTER

Remove the protective film before using the For filter cartridge for the first time. "recycling" mode.

MAINTENANCE hoods installed

To avoid all risks of fire. WHY? This filter traps fatty vapours and dust. This This filter traps odours and must be component plays an important part in changed at least once a year ensuring the effectiveness of your hood. depending on your level of use. Use a commercial household cleaning product then rinse abundantly and dry. This cleaning can be HOW ? carried out in your dishwasher in the vertical position (ensure that the cartridge never comes into contact with dirty crockery or silver tableware). You should order these filters from your dealer (quoting the reference shown on the ID plate located inside the hood) and note the date the filter was changed. Never use metal scouring pads, abrasive products or excessively stiff brushes. To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth. Dismantling the filter cartridge Assembling the carbon filter

(fig. 10) (fig. 12) Remove the cartridges. Place the carbon filter on the cartridge, on the inner side of the hood. Fit the 2 fastener clips. Repeat this operation on all of the cartridges. 99635121_ML_A.qxd 14/12/04 16:52 Page 8 Who should I contact ? Blemishes on the hood caused by abnormal use or cleaning with abrasive products which do not cause the appliance to cease functioning or which do not cause it to become unsuitable for use will not be dealt with by the manufacturer. Any repairs must be carried out by a qualified technician. Only the distributors of our brand :

• Are fully familiar with your appliance and its operation, operation,
• Fully apply our adjustment, maintenance and repair methods,
• Use only original parts. To submit a complaint or to order spare parts from your distributor, please be sure to give him the complete reference for your appliance (type of appliance and serial number). You can find this information on the identification plate fitted inside the appliance. The descriptions and characteristics featuring in this booklet are provided for information purposes only, and are not binding upon us. Indeed, as part of our ongoing commitment to improving the quality of our products, we reserve the right to make any modifications or improvements necessary, without notice.
