USER MANUAL HUG ISOFIX COSATTO

IMPORTANT: RETAIN FOR FUTURE

GB REFERENCE. READ CAREFULLY.

YOUR CHILD’S SAFETY MAY BE

AFFECTED IF YOU DO NOT

FOLLOW THESE INSTRUCTIONS

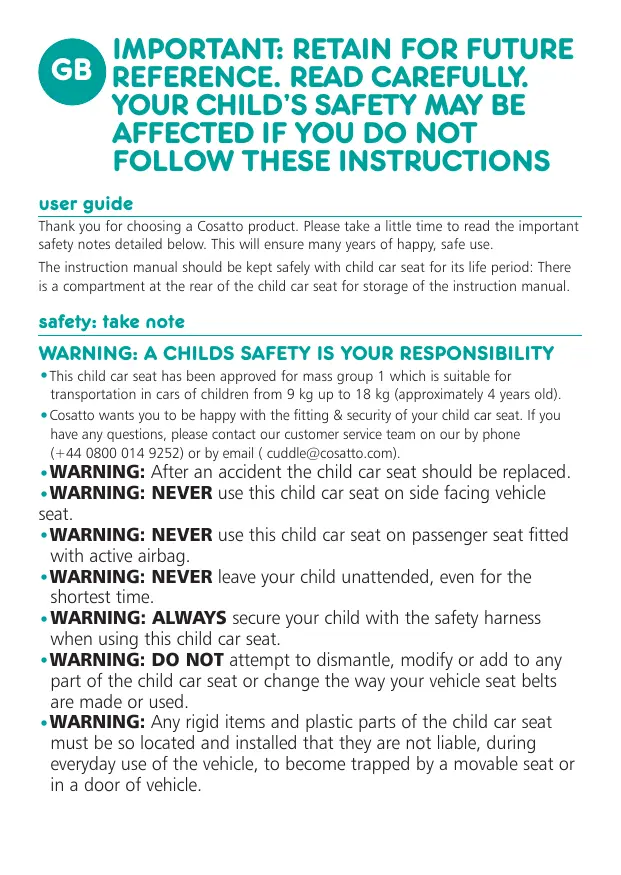

user guide Thank you for choosing a Cosatto product. Please take a little time to read the important safety notes detailed below. This will ensure many years of happy, safe use. The instruction manual should be kept safely with child car seat for its life period: There is a compartment at the rear of the child car seat for storage of the instruction manual. safety: take note

WARNING: A CHILDS SAFETY IS YOUR RESPONSIBILITY

• This child car seat has been approved for mass group 1 which is suitable for transportation in cars of children from 9 kg up to 18 kg (approximately 4 years old).

• Cosatto wants you to be happy with the fitting & security of your child car seat. If you have any questions, please contact our customer service team on our by phone (+44 0800 014 9252) or by email ( cuddle@cosatto.com).

• WARNING: After an accident the child car seat should be replaced.
• WARNING: NEVER use this child car seat on side facing vehicle seat.
• WARNING: NEVER use this child car seat on passenger seat fitted with active airbag.
• WARNING: NEVER leave your child unattended, even for the shortest time.
• WARNING: ALWAYS secure your child with the safety harness when using this child car seat.
• WARNING: DO NOT attempt to dismantle, modify or add to any part of the child car seat or change the way your vehicle seat belts are made or used.
• WARNING: Any rigid items and plastic parts of the child car seat must be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of vehicle.

• WARNING: If any load bearing points other than those described in the instructions are used, this can significantly reduce the protection factor of the child car seat.
• WARNING: DO NOT use the child car seat in the home. It has not been designed for home use and should only be used in your car.
• Always make sure that the child car seat harness and vehicle belt are correctly tensioned to ensure maximum protection for your child.

• The buckle has been designed to be released quickly in an emergency. IT IS NOT CHILD PROOF. More inquisitive children might learn to undo the buckle. Children should be told never to play with it or any other part of the child car seat.
• If the vehicle seat backrest has a recline function, place the vehicle seat in the most upright position when using the child car seat.
• Never use replacement parts other than those approved by Cosatto.
• The lap belt must be used well down in such a way as to properly secure the pelvis of the child.
• Never use the child car seat without its fabric cover because the seat cover constitutes as an integral part of the child car seat performance. The seat cover should not be replaced with any other than the ones recommended by Cosatto.
• Safely secure any luggage and other objects that might cause injury to the occupant of the child car seat in the event of a crash.
• After an accident, replace your child car seat and the vehicle seat belts. Although they may look undamaged, they may not protect your child as well as they should.
• Cosatto advise that child car seats should not be brought or sold second-hand. Many seats sold through local advertising and car-boot sales have been found to be dangerous.
• Prevent harness/vehicle belt from getting trapped between car doors or rubbing against sharp parts of the seat or body.
• If the harness/vehicle belts becomes cut or frayed, replace it before travelling.
• If the vehicle has been left in the sun for a long time, check the seat cover and make sure it is not too hot before placing the child in the child car seat.
• Security is only guaranteed if the child car seat is fitted in accordance with these instructions.
• Failure to comply with the above instructions will automatically void the warranty and exempt Cosatto from any liability. storage of instruction manual The instruction manual should be kept safely with child car seat for its life period: There is a compartment at the rear of the child car seat for storage of the instruction manual. notice: 1 This is a “Universal” child restraint .It is approved to Regulation No.44,04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats. 2 A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a “Universal” child restraint for this age group. 3 This child restraint has been classified as “Universal” under more stringent conditions as those which applied to earlier designs which do not carry this notice. 4 This child restraint is only suitable if the vehicle is fitted with a type approved lap/3 point/static/with retractor safety belt, in compliance with standard UN / ECE Regulation No.16 or other equivalent standards. 5 If in doubt, consult either the child restraint manufacturer or retailer. operation:
