WIRELESS SOLAR KEYBOARD K760 - Gaming Keyboard LOGITECH - Free user manual and instructions

Product Type	Solar Wireless Keyboard
Brand	Logitech
Model	K760
Connection Technology	Wireless via Logitech Unifying receiver
Power Supply	Solar panels + integrated rechargeable battery
Battery Life	Up to 3 months in darkness after full charge
Function Keys	12 F keys with multimedia and application functions (via FN key)
Compatible Software	SetPoint (optional), Solar App
System Compatibility	Windows, Mac OS
Box Contents	Keyboard, Unifying receiver, wireless extender, documentation
Dimensions (L x W x H)	Approximately 430 x 140 x 20 mm
Weight	Approximately 500 g
Color	Black
Material	Plastic
Warranty	2 years
Repairability	Battery not user-replaceable; recycling procedure provided
Maintenance	Clean with a soft, dry cloth

Frequently Asked Questions - WIRELESS SOLAR KEYBOARD K760 LOGITECH

How to charge the K760 keyboard?

The keyboard recharges via solar panels. It requires moderate light (indoor or indirect lighting). In case of prolonged darkness, a full charge provides 3 months of autonomy. You can also use the Solar App to monitor the charge.

What is the keyboard's battery life in darkness?

With a full charge, the keyboard can operate for up to 3 months in total darkness before needing a recharge.

How to connect the Unifying receiver?

Plug the Unifying receiver into a USB port on your computer. For desktop PCs, use the included wireless extender to reduce interference. Remove the battery tab, then turn on the keyboard. The connection is established automatically.

What to do if the keyboard does not work?

Check that the receiver is properly connected, try another USB port. Make sure the keyboard is turned on (switch to ON). Check the light: press the light check button. If the indicator does not light up, the energy reserves are depleted: expose the keyboard to a stronger light for a few hours to a day. You can also reset the connection via the Unifying software.

How to use the FN keys?

Hold down the FN key, then press the corresponding F key (e.g., FN+F1 for Internet home). Advanced functions (yellow icons) are accessed this way. You can reverse the behavior in the SetPoint software settings.

How to check the light level?

Press the light check button on the keyboard. If the indicator flashes green, the light is sufficient. If it flashes red, the keyboard needs more light. If it does not light up, the batteries are depleted.

Can I replace the battery myself?

The battery is not user-replaceable. At end of life, you can open the keyboard with a screwdriver to remove the battery and recycle it according to local regulations. However, this is not recommended during the warranty period.

How to recycle the keyboard at end of life?

Follow the manual instructions: use a screwdriver to open the battery compartment, remove the battery, dispose of it at a battery collection point, then recycle the keyboard at a WEEE recycling center.

What is the warranty for the K760 keyboard?

Logitech offers a 2-year warranty from the date of purchase. For more details, visit the Logitech website.

Where to download the Solar App or SetPoint software?

Solar App: www.logitech.com/k750/solarapp. SetPoint: www.logitech.com/downloads. The Unifying software is accessible from Start menu > All Programs > Logitech > Unifying.

USER MANUAL WIRELESS SOLAR KEYBOARD K760 LOGITECH

Getting started with

www.logitech.com/support

19

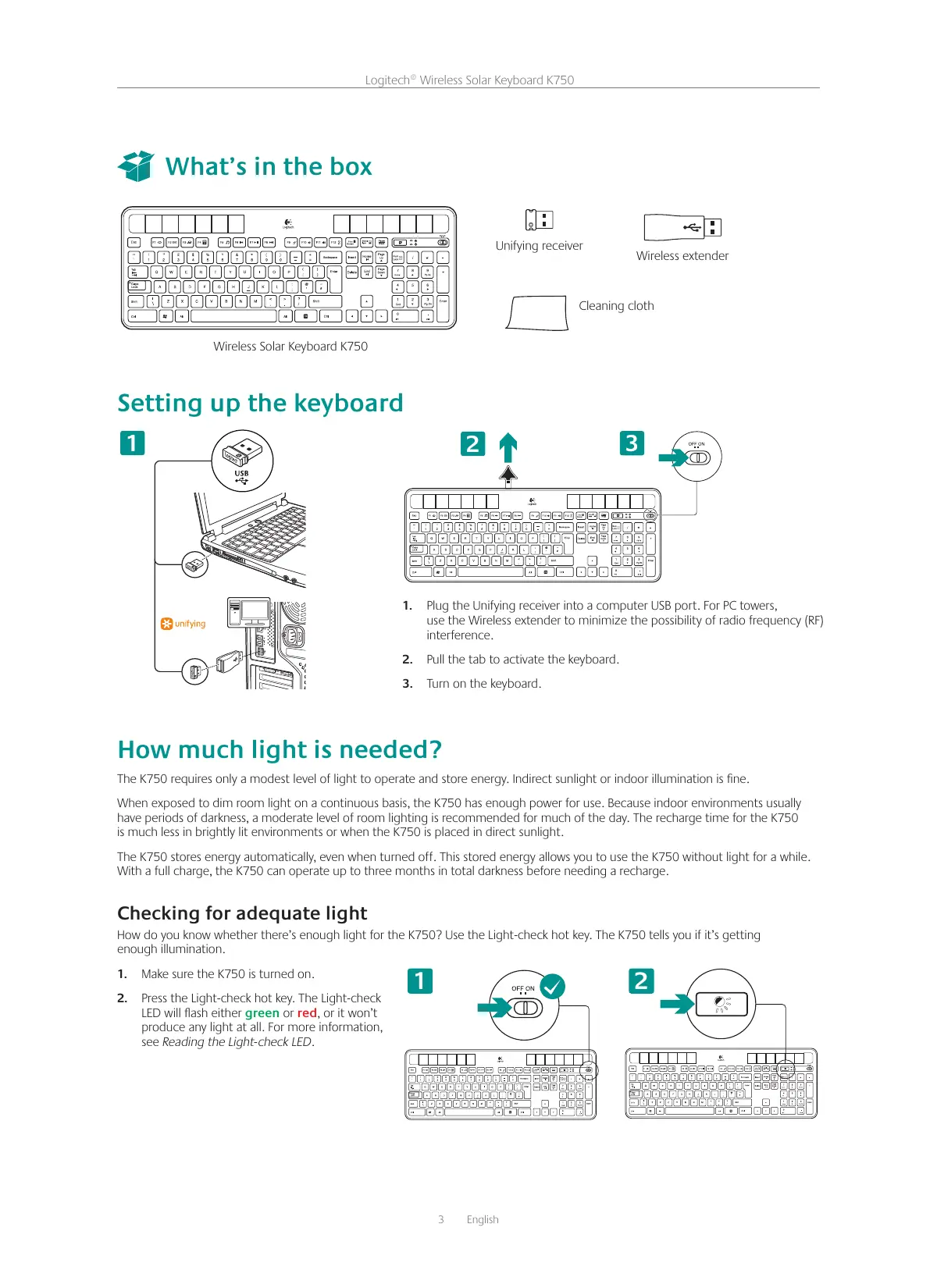

What's in the box

Wireless Solar Keyboard K750

Unifying receiver

Wireless extender

Cleaning cloth

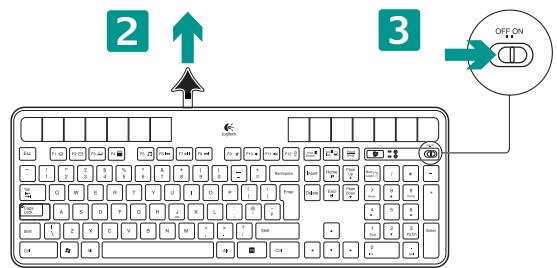

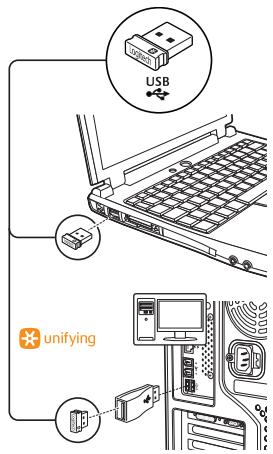

Setting up the keyboard

1

1. Plug the Unifying receiver into a computer USB port. For PC towers, use the Wireless extender to minimize the possibility of radio frequency (RF) interference.
2. Pull the tab to activate the keyboard.
3. Turn on the keyboard.

How much light is needed?

The K750 requires only a modest level of light to operate and store energy. Indirect sunlight or indoor illumination is fine.

When exposed to dim room light on a continuous basis, the K750 has enough power for use. Because indoor environments usually have periods of darkness, a moderate level of room lighting is recommended for much of the day. The recharge time for the K750 is much less in brightly lit environments or when the K750 is placed in direct sunlight.

The K750 stores energy automatically, even when turned off. This stored energy allows you to use the K750 without light for a while. With a full charge, the K750 can operate up to three months in total darkness before needing a recharge.

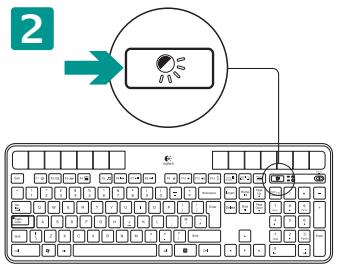

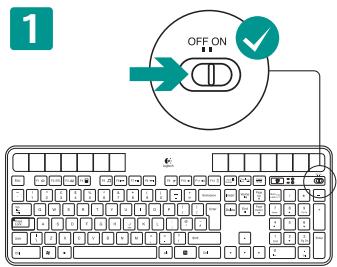

Checking for adequate light

How do you know whether there's enough light for the K750? Use the Light-check hot key. The K750 tells you if it's getting enough illumination.

1. Make sure the K750 is turned on.
2. Press the Light-check hot key. The Light-check LED will flash either green or red, or it won't produce any light at all. For more information, see Reading the Light-check LED.

Reading the Light-check LED

Light-check LED flashes green. The K750 is receiving enough light and is ready for use. Light-check LED flashes red. The K750 requires more light to continue working on a long-term basis.

Note: If the Light-check LED produces no light, please see Help with setup for more information.

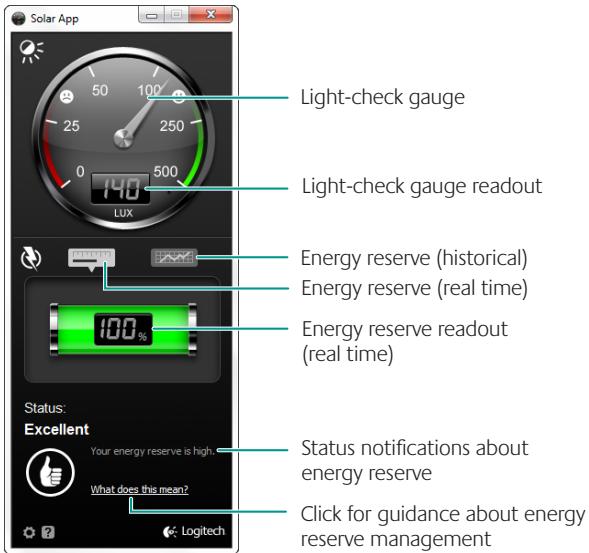

Using the Solar App

Want an easy and more visual way of checking the available light falling on the K750 while keeping track of the keyboard's energy reserve? Download and install the Solar App from www.logitech.com/k750/solarapp

• The Solar App operates in the background and notifies you whenever there is a change (up or down) in the K750's energy reserve.
• Try to keep the Light-check gauge pointing at 100 lux or higher to make sure the K750 will have plenty of energy.
• To bring the Solar App to the foreground, press the Light-check hot key on the keyboard. The Solar App will pop up, and the Light-check gauge will activate immediately.

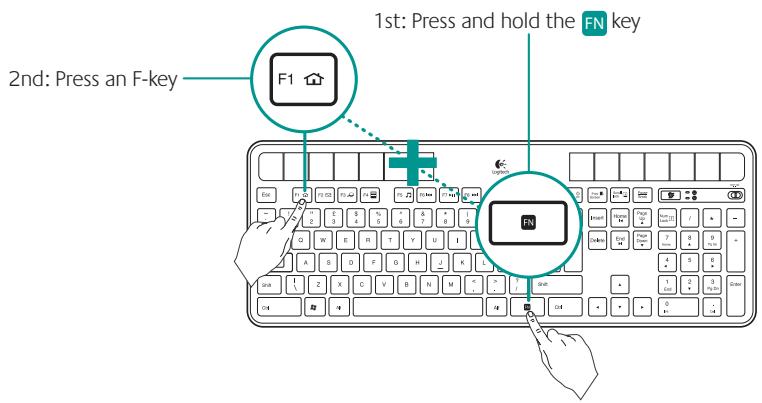

Using the keyboard F-key

User-friendly enhanced F-keys let you launch applications easily. To use the enhanced functions (yellow icons), first press and hold the FN key; second, press the F-key you want to use.

Tip: In the software settings, you can invert the FN mode if you prefer to access the enhanced functions directly without having to press the FN key.*

• Requires SetPoint™ Software (available for download at www.logitech.com/downloads).

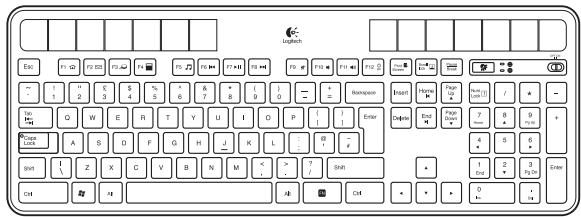

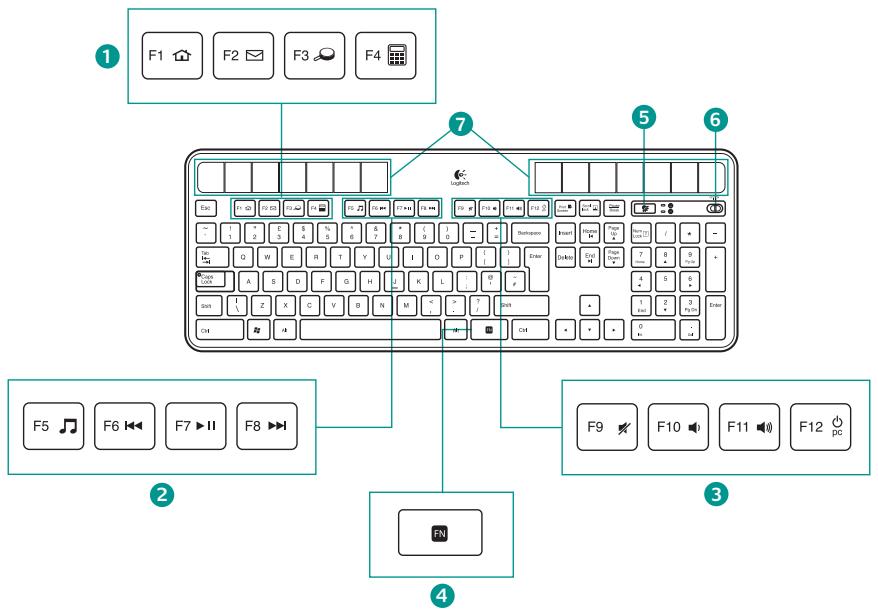

Keyboard features

1. Application zone

FN + F1: Internet home FN + F2: Launch e-mail application FN + F3: Launch Windows Search* FN + F4: Launch calculator

2. Multimedia navigation zone

FN + F5: Launch media application FN + F6: Previous track FN + F7: Play/Pause FN + F8: Next track

3. Multimedia volume zone

FN + F9: Mute FN + F10: Volume down FN + F11: Volume up FN + F12: Sleep mode

1. FN key
2. Light-check hot key
3. Keyboard power switch
4. Solar cells
5. One Touch Search if the SetPoint® software is installed.

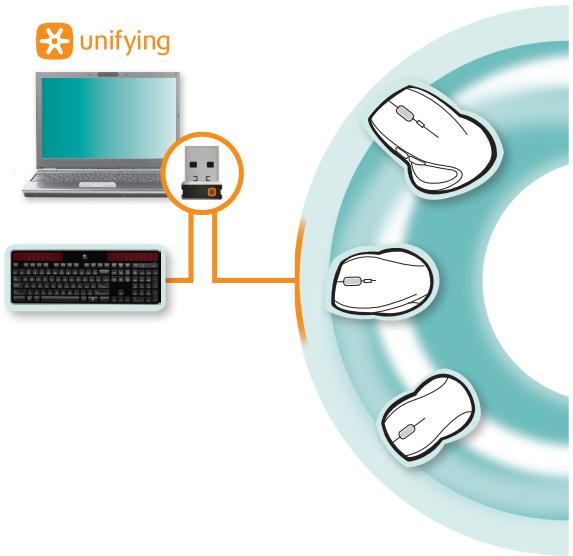

Plug it. Forget it. Add to it.

You've got a Logitech® Unifying receiver. Now add a compatible wireless keyboard or mouse that uses the same receiver.

It's easy. Just start the Logitech® Unifying software* and follow the onscreen instructions.

For more information and to download the software, visit www.logitech.com/unifying

*Go to Start / All Programs / Logitech / Unifying / Logitech Unifying Software

Help with setup: keyboard not working

• Check the Unifying receiver. Also, try changing USB ports.
• Move closer? Try moving the K750 closer to the Unifying receiver, or plug the Unifying receiver into the Wireless extender if you are using a tower PC.
• Is the K750 turned on? Slide the keyboard Off/On switch to Off and then to On position.
• Re-establish the connection. Use the Unifying software to reset the connection between the K750 and Unifying receiver. Refer to the Unifying section in this guide for more information.
• Restart the computer.
• Press the Light-check hot key. If the Light-check LED produces no light, the K750 is out of energy. To use the K750 again, significantly increase the amount of light over the keyboard to a level you might see in a brightly lit office. It may take a day or two for the K750 to recharge when exposed to this increased level of illumination, but only several hours if the K750 is placed in direct sunlight.

Note: Any time the Light-check LED flashes red automatically, the K750 is nearly out of energy and needs more light to keep working on a long-term basis.

• Download and use the Solar App. This handy widget gives you an easy and more visual way of checking the available light hitting the K750 while keeping track of the keyboard's energy reserve. Download the Solar App from www.logitech.com/k750/solarapp

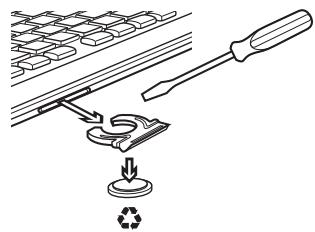

Handling the product at end of life

When you have made the decision to stop using your product, recycle it according to your local laws. Follow the instructions below to remove the battery (not user replaceable) from the keyboard, and then recycle both the keyboard and battery as recommended in steps 3 and 4.

1. Use a screwdriver to open the battery tray.
2. Carefully remove the battery from the tray.
3. Hand over the spent battery to the appropriate collection point for the recycling of batteries.
4. Hand over the product to the appropriate collection point for the recycling of electrical and electronic equipment.

What do you think?

Please take a minute to tell us. Thank you for purchasing our product.

www.logitech.com/ithink

Wireless Solar Keyboard K750

Extensorinalambrico

Bayeta

www.logitech.com/ithink

Contenu du coffret

Wireless Solar Keyboard K750

Cleaning cloth

www.logitech.com/ithink

What the box contains

Wireless Solar Keyboard K750

Unifying receiver

Wireless extender

Cleaning cloth

www.logitech.com/ithink
