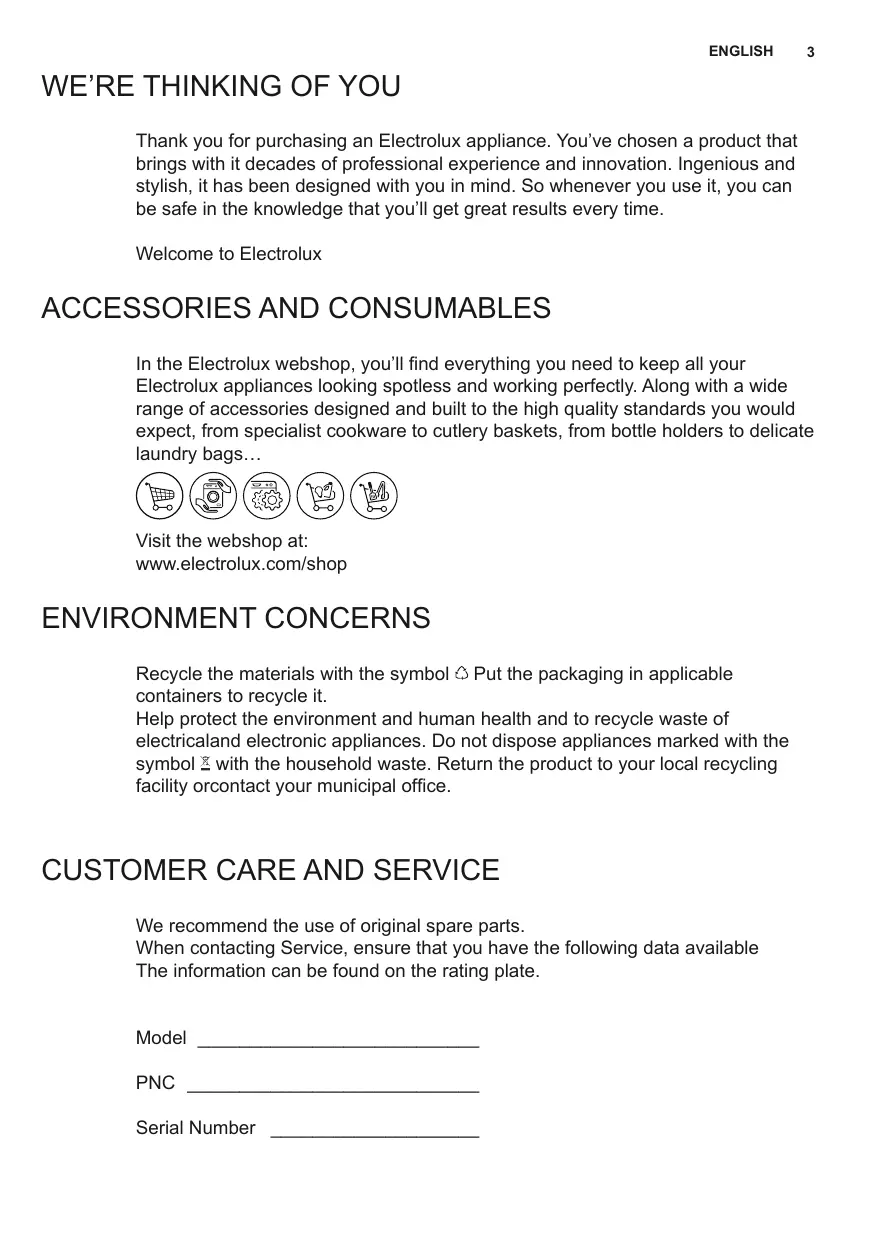

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux

ACCESSORIES AND CONSUMABLES

In the Electrolux webshop, you'll find everything you need to keep all your Electrolux appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags...

Visit the webshop at: www.electrolux.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility orcontact your municipal office.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available
The information can be found on the rating plate.

Model

PNC

Serial Number

RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the

bottom of the pan only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• “CAUTION: Accessible parts may become hot when used with cooking appliances”.

MAINTENANCE

• 1. Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

• Clean and/or replace the Filters after the specified time period (Fire hazard).

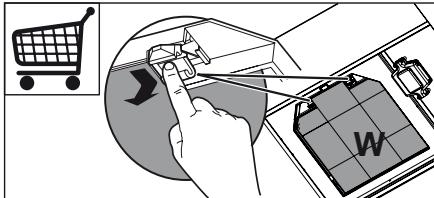

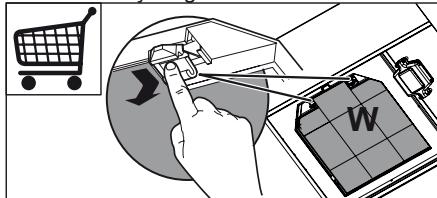

• Activated charcoal filter W These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

• Grease filters Z The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

• Control lights, if present.

• Clean the hood using a damp cloth and a neutral liquid detergent.

CONTROLS

8

Button	Function	Display
T1	Turns the suction motor on and off at speed one.	Displays the set speed
	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on/off.	- C flashes once , A.C. Filter alarm Activated - C flashes twice, A.C. Filter alarm Deactivated
T2	Decreases the working speed.	Displays the set speed
	When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approximately 3 seconds. These indications are only visible when the motor is turned off.	F indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours. C indicates the need to change the activated char-coal filters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours.
T3	Increases the working speed.	Displays the set speed
T4	Activates Power speed from any other speed, including motor off. This speed is set to operate for 10 minutes, after which the system returns to the speed that was set before. Suitable to deal with maximum levels of cooking fumes.	Displays P.
L	Turns the lighting system on and off at maximum intensity.

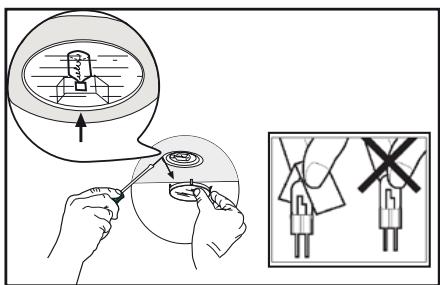

LIGHTING

WIR DENKEN AN SIE

Voyants commandes si presents.

WE'RE THINKING OF YOU

WE'RE THINKING OF YOU

TpeToe MaCIO MOKET BOCTNAMEMHTbCR.

He roTOBbTe 6JIIOdaФIaMBoPe NOJ KxOHHoB BbTAKKO; ONACHOCT Bo3HINHOBEHmIPOKapa.
3aPpeLaaeTcIIOB3OBaTBcR PnIPbOpom IIOdAM (INETAM) C OpaHnHEHHbIMN IOAIXHECKIMM, OeHoOpHbIMN UYMCTBEHHbIMN CTOOoBHOCHTMM, a TAKKEIILZAM, HEoJIaDAHOLLIM ONbITOM N HeoBXoDMMbIM 3HAHMAIM, Ee3 KOHTPONI INpeDbapNTeJIbHOO OByHeHIAI POIb3OBaHMc PnIPbOpac CO CTOpObIHOTBTCTBEHHbIX 33 IV6E03NlAChOCTbIINI.
IeTNIOJIKHbI HAXOINTBcRAIIOHAD3OpOM B3PocJIbIX IN He IIRPATb C pNIbOPOM.
BHIMAHHE! Detanu, doctynbIe Ira KOthakTa, MoryT CInbHO HapReBaTcB CStyAae POnlb3OBAHn BbITRAKIO OJHOBepeMeHHo C pNIBOpamI DnIpyrTOBHeHH NILUN.

yXoI

IpekdeemnpictytaB KIOboOnonepaunno yXOdy,OTOEiINHTB BbITRAKyOTcETN,BbIHVB 3JIeKTPnHECKYIOBVNIYINBbIKTIOHIB ITABHBb BBIKTHOATEIb.
ПюИЗВODИТБ TUIATeIbHbI N CBOEВPemeHbIyUxOД 3aФINlTbpAMN B PekOMeHdYEmbIe INHTepBaJIb BVpeMeHn (ОпаСоctb IoxKapa).

-ФитгсаakTINHmUytbemW.OBnФитгп HeMorydace nepu nperehepiu na Mopajy Da ce 3amehe OTPnTNIke Ha CBaKx4 Meoela paDa,a y cIyaujy uyeCTanJe yIOTpebe n YeuJHe.

-ФИNTeRn 3a MaCt Z.ФИNTeRn Mopajy da ce YIcTcE CBaka 2 MeceLa pada NITN YeUHne y CStYcHJy BeOMa INHTeH3INBHe yIOTpe6e, a MORY ce npatn yMaLInHn 3a IpaHBe nocyjA.

• Hndikatopbl (rdeectb) yctpoictb ynpabneHnA.

ДлгуборкIMПОБЕХСОТЕВьИТКМПОЛБ3OBATB-CAВТАЖСНТРЯПКИИЖIDKMHEITPAPJIbHIMMbIOM.

OPTAHbIyYPABJIeHnI
