USER MANUAL ERGOMIXX MSM66110 BOSCH
Congratulations on the purchase of your new BOSCH appliance. In doing so, you have opted for a modern, high-quality domestic appliance. You can find further information about our products on our web page.

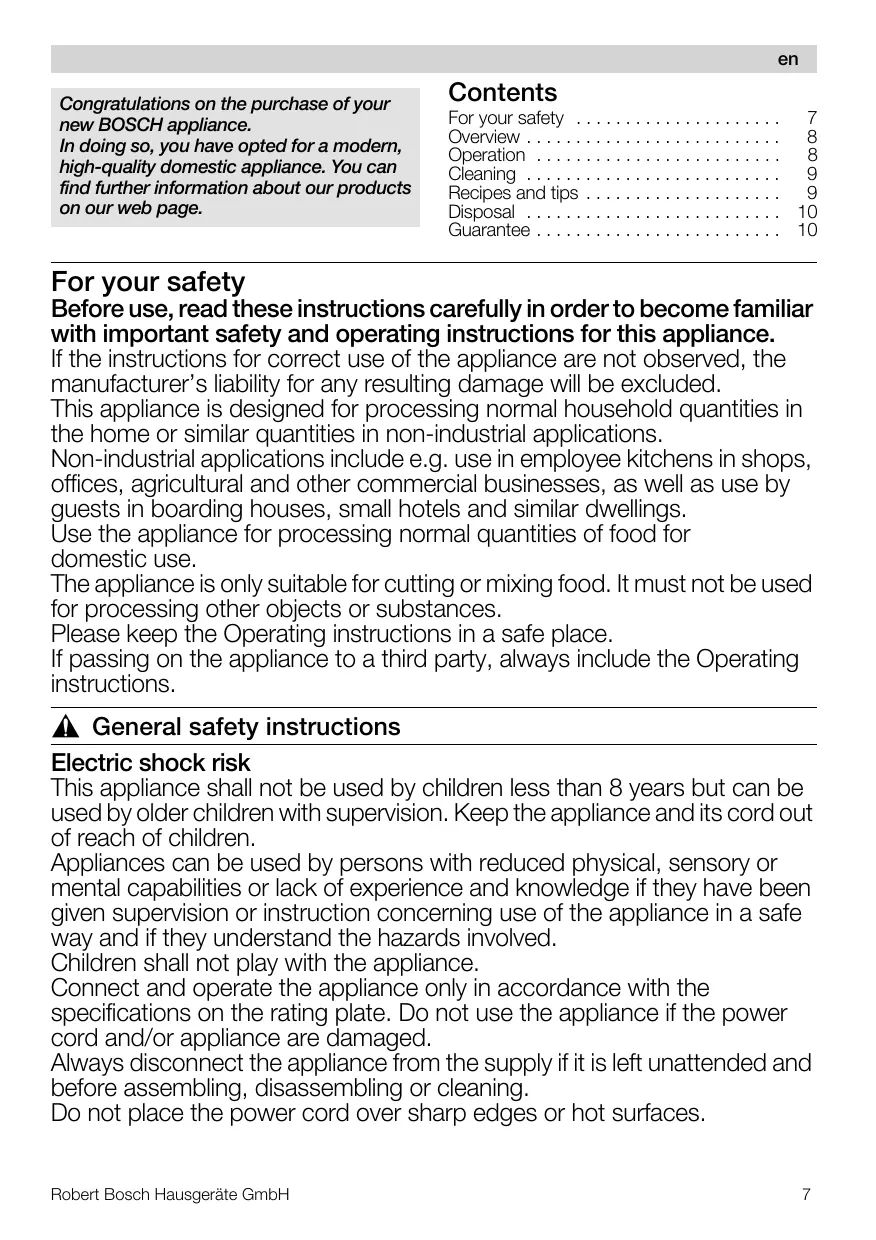

Contents
| For your safety | 7 |
| Overview | 8 |
| Operation | 8 |
| Cleaning | 9 |
| Recipes and tips | 9 |
| Disposal | 10 |
| Guarantee | 10 |
For your safety
Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.
If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.
This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications.
Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings.
Use the appliance for processing normal quantities of food for domestic use.
The appliance is only suitable for cutting or mixing food. It must not be used for processing other objects or substances.
Please keep the Operating instructions in a safe place.
If passing on the appliance to a third party, always include the Operating instructions.
General safety instructions
Electric shock risk
This appliance shall not be used by children less than 8 years but can be used by older children with supervision. Keep the appliance and its cord out of reach of children.
Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
Children shall not play with the appliance.
Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged.
Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
Do not place the power cord over sharp edges or hot surfaces.
To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person. Only our customer service may repair the appliance.
Safety instructions for this appliance
Risk of injury
Electric shock risk
Do not use the hand blender with damp hands and do not operate it at no load.
Do not immerse the appliance in liquid above the blender foot-base unit connection point.
Never immerse the base unit in liquids and do not clean in the dishwasher.
Caution when processing hot liquids. Liquids may splash during processing.
Never place blender foot on hot surfaces or use in very hot food. Leave hot food to cool down to at least 80 °C before processing with the blender! Operate the hand blender with original accessories only.
Do not attach or remove tools until the appliance is at a standstill.
Recommendation: Never switch on the appliance for longer than you need to process the ingredients.
Risk of injury from sharp blades/rotating drive!
Never grip the blade in the blender foot.
Never clean the blades with bare hands. Use a brush.
These operating instructions refer to various models. An overview of the different models can be found on the illustrated pages (Fig. ②).
Overview
Please fold out the illustrated pages.
Fig. A
1 Base unit 2 Power cord 3 ON button
a Normal speed b Turbo speed
The hand blender remains switched on as long as the On button (a or b) is pressed.
The turbo speed is used for the universal cutter (if included in delivery).
4 Release buttons To remove the blender foot, simultaneously press both release buttons. 5 Blender foot Plastic or metal (depending on model). Attach the blender foot and lock into position. 6 Blender blade
7 Blender jug
Using the blender jug will prevent the ingredients from splashing.
8 Universal cutter
A universal cutter can be ordered from customer service (order no. 657247).
With the universal cutter, use the appliance at full power to prepare honey spread (according to the recipe). You can find the recipe in the instructions for use of the universal cutter.
Operation
The appliance is suitable for blending mayonnaise, sauces, mixed drinks, baby food, cooked fruit and vegetables.
For puréeing soups.
Use the universal cutter for cutting/chopping raw food (onions, garlic, herbs)!
It is recommended to use the supplied blender jug. However, other suitable receptacles can also be used.
Attention!
The bottom of the receptacle which you use must not have any bumps or recesses.
- Before using the appliance for the first time, clean all parts of it.
Fig. B
- Completely unwind the power cord.
- Place the blender foot on the base unit and lock into position.
- Insert the mains plug.
- Place food in the blender jug or another tall receptacle.
The appliance works better if there is some liquid in the ingredients. - Firmly hold the hand blender and jug. - Switch on the hand blender by pressing the required On button (Normal speed/Turbo speed).
In general, Turbo speed is recommended for the processing of food. Use Normal speed for liquids and hot food.
i When switching on the hand blender, hold it at a slight angle to prevent it from "sticking" to the bottom of the blender jug. The hand blender remains switched on as long as the On button is pressed. To prevent the ingredients from splashing, do not press the On button until the blender foot has been immersed in the ingredients. Always switch off the hand blender before taking it out of the processed food. - Release the On button after processing. After using the appliance: - Remove mains plug. - Press the release buttons and remove the blender foot from the base unit.
Cleaning
Attention!
Never immerse the base unit in liquids and do not clean in the dishwasher.
Do not use a steam cleaner!
Surfaces may be damaged. Do NOT use abrasive cleaning agents.
If processing e.g. red cabbage and carrots, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil. Pull out the mains plug! - Wipe the base unit with a damp cloth and then wipe dry. - The blender jug can be cleaned in the dishwasher.
- Clean the blender foot in the dishwasher or with a brush under running water.
- Dry the blender foot in an upright position (blender blade face up) so that any trapped water can run out.
Recipes and tips
Mayonnaise
1 egg (egg yolk and egg white) 1 tbs. mustard 1 tbs. lemon juice or vinegar 200-250 ml oil
Salt, pepper to taste
Ingredients must be at the same temperature!
- Put the ingredients in the jug.
- Place hand blender at the bottom of the jug and switch on (turbo speed) until the mixture emulsifies.
- Slowly raise the switched on blender as far as the upper edge of the mixture and lower again until the mayonnaise is ready.
Tip: According to this recipe you can also make mayonnaise with egg yolk only. However, use only half the amount of oil.
Vegetable soup
300 g potatoes
200 g carrots
1 small stick of celery
2 tomatoes
1 onion
50 g butter
2 | water
Salt, pepper to taste
- Skin and seed the tomatoes.
- Chop up cleaned and washed vegetables and sauté in the hot butter.
- Add water and salt.
- Leave to cook for a good 20–25 min. Take the pan off the cooker.
- Purée the soup in the pan with the blender.
- Season with salt and pepper.
Crèpes dough
250 ml milk
1 egg
100g flour
25 g melted cooled butter
- Put all ingredients in the jug in the indicated sequence and blend to a smooth dough.
Blended milk drinks
1 glass of milk 6 large strawberries
or
10 raspberries or
1 banana (sliced)
- Put the ingredients in the jug and blend.
- Add sugar to taste.
Tip:
For a milk shake add a scoop of ice cream or use very cold milk.
Disposal
This appliance has been identified in accordance with the European directive 2002/96/EG on Waste Electrical and Electronic Equipment - WEEE.
The Directive paves the way for effective EU-wide withdrawal and utilization of waste appliances.
Please ask your dealer or inquire at your local authority about current means of disposal.
Guarantee
The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.
Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.
The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
Subject to alterations.
fr
salt, pepper to taste
All ingredients must be at the same temperature!
salt, pepper to taste
The blender jug is not suitable for use in a microwave oven.
Danger of injury from sharp blades/rotating drive!
Never put your hands into the blender jug while it is in operation. Never clean the blades with bare hands. Use the brush for this purpose.
This instruction manual describes various models.
Pages with illustrations are located at the beginning of the manual (Figure C).
Short description
Unpack and unfold the pages
with illustrations.
Figure A
1 Main unit 2 Power cord 3 On/off button
and pulse function in turbo mode
Before switching on, press the switch (a or b).
Turbo mode is used with the universal chopper (if included in the delivery set).
4 To release the blender jug, press both release buttons simultaneously. 5 The blender jug is made of plastic or metal (depending on the model). Insert the blender jug so that it fits securely into the base. 6 The blender jug lid. 7 The blender jug handle.
Pre-processing of products with the blender jug allows you to avoid splashes.
8 Universal chopper
The universal chopper can be ordered through the service department (order number 657247).
The universal chopper ensures maximum power of the appliance when preparing mayonnaise, baby food, sauces (according to the instructions given in the recipe). You will find the recipe in the instructions for the universal chopper.
Use
The attachment is intended for chopping nuts, sauces, cocktails, baby food, cooked fruits and vegetables. For making soups and purees.
The blender will process products better if you add a little liquid to them.
Hold the blender jug and the base. Switch on the blender by pressing the power button (normal/turbo mode). For processing products, turbo mode is recommended. For soft and delicate products, switch on normal mode.
When switching off the blender, hold it slightly tilted so that it does not "jump" to the bottom of the blender jug. The blender is switched off when the power button is released. To avoid splashes, press the power button only after the blender jug has been immersed in the products. Remove the blender jug before removing it from the products. - After processing, release the power button.
After work:
Unplug the appliance from the socket. Press the release buttons and remove the blender jug from the main unit.
Cleaning
The blender jug should never be immersed in liquid or washed in the dishwasher.
Do not use abrasive cleaners!
Scratches may appear on surfaces. Do not use any abrasive cleaning agents.
When processing celery, carrots, and similar foods, a foam may form on the lid parts, which can be removed with a few drops of cooking oil. Pull the measuring cup out of the lid! - Wipe the base with a damp cloth, then dry it. - The jug can be washed in the dishwasher. The blender leg can be washed in the dishwasher or under running water with a brush. The blender leg should be stored vertically (with the blade facing up) so that water from the inside can drain.
Recipes and tips
Mayonnaise
Disposal recommendations
This appliance complies with Directive 2002/96/EC of the European Union on waste electrical and electronic equipment (WEEE).
Changes are not included.
From the bottom of our hearts, we congratulate you on the purchase of your new BOSCH appliance. You have acquired a modern, high-quality household appliance. Additional information about our products can be found on our website on the Internet.
Contents
For your safety 72
Comprehensive overview 74
Operation 70
Cleaning 75
Recommendations 71
Disposal instructions 76
Warranty conditions 77
There is a risk of injury.
There is a risk of electric shock.
The immersion blender must not be switched on with wet hands or allowed to run idle.
Do not immerse the electric drive in liquid beyond the connection point of the blending attachment with the main unit.
Never immerse the main unit in any liquid, nor rinse it under running water.
Be careful when blending hot liquids.
Liquids may splash during blending.
The blending attachment must never be placed on hot surfaces or used to stir hot products.
Before processing hot products with the immersion blender, let them cool to at least 80°C!
The immersion blender may only be used with the supplied accessories.
It is forbidden to attach or remove the immersion blender until its motor has come to a complete stop.
It is recommended not to leave the immersion blender switched on longer than necessary for processing food.
Danger of injury from the sharp knife/blade!
Never touch the knife located on the blender blade.
Never hold the knife with your hand. Use a brush for this purpose.
This instruction manual describes various blender models. On the pages with figures, you will find an overview of the immersion blenders of different models (see figure C).
Complete overview
Please open the pages with figures.
Figure A
1 Main unit 2 Power cord 3 On/off switch
a On/off switch for normal speed b On/off switch for turbo speed The immersion blender remains switched on until the on/off switch (a or b) is pressed.
Turbo speed is used for the universal chopper (if included in the delivery set).
4 Unlocking buttons
These buttons are used to remove the blender.
They must be pressed simultaneously.
Depending on the model, the knife blade is plastic or metal.
Attach the blender knife and secure it.
6 Knife on the blender knife
7 Blender jar
Processing food in the jar prevents splashing of the liquid.
8 Universal chopper
The universal chopper can be ordered through the service department (order no.: 657247).
The universal chopper allows you to use the maximum power of the appliance when preparing thick masses (see instructions and examples provided). You will find recipes in the operating instructions for the universal chopper.
Control
The programmable blender is intended for preparing purees, various sauces, jams, and baby food, as well as for processing cooked vegetables and fruits.
For chopping raw food products (onions, garlic, herbs, etc.), use the universal chopper!
For operation, it is recommended to use the blender jar that is included in the delivery set. You can also use other suitable containers.
Attention!
The container used must be free of protrusions and protruding irregularities.
(waste electrical and electronic equipment - WEEE)
.
