Product type	Cordless brush cutter (edger)
Brand	Bosch
Model	ART 26 Li
Article number	3 600 H78 L..
Power supply	Lithium-Ion battery 18 V
Battery capacity	1.3 Ah
Charging time	180 min
Charger supplied	AL 2204 CV (230 mA)
Cutting diameter	26 cm
No-load speed	7,400 rpm
Weight (according to EPTA 01/2003)	2.4 kg
Sound pressure level	80 dB(A)
Sound power level	88 dB(A)
Guaranteed sound power level	< 94 dB(A)
Hand/arm vibration	< 2.5 m/s²
Runtime (easy conditions)	up to 1,000 m
Runtime (medium conditions)	up to 440 m
Runtime (hard conditions)	up to 75 m
Adjustments	Adjustable handle, head angle, edger length
Blade type	Plastic blade (replaceable, Bosch original)
Included accessories	Edger, protective hood, adjustable handle, plate, blade, charger, instructions
Charging temperature range	0 °C to 45 °C
Charger weight	0.7 kg
Battery protection	Electronic Cell Protection (ECP) against deep discharge

Frequently Asked Questions - ART 26 LI BOSCH

How to charge the battery of the Bosch ART 26 Li brush cutter?

Insert the battery 15 into the charger AL 2204 CV by pushing it first forward and then down. Plug the charger into a mains socket. The charging process is indicated by the flashing of the LED indicator 13. When the indicator stays on continuously, the battery is fully charged or its temperature is out of range (0-45°C).

What type of battery does the Bosch ART 26 Li use?

It uses a Lithium-Ion battery of 18 V and 1.3 Ah (part number 2 607 336 039).

Can metal blades be used on the Bosch ART 26 Li?

No, never use metal blades. Only original Bosch plastic blades are permitted for safety and performance reasons.

How to adjust the cutting head angle?

Press the pedal 12 fully and turn the shaft 7 to the desired position. Release the pedal to lock the angle. For edging, position the shaft at the lowest and turn the head.

What is the battery runtime?

The runtime depends on conditions: up to 1,000 m in easy conditions, 440 m in medium conditions, and 75 m in hard conditions (tall grass, uneven ground).

How to change the worn blade?

Remove the battery. Push the blade 10 inward until it comes off the pin 17. Clean the pin with a knife. Fit the new blade onto the pin, push it down and pull it outward until it clicks into place.

The brush cutter does not start, what to do?

Check that the battery is charged and inserted correctly. If the battery is too hot or too cold, wait until it returns to the 0-45°C range. If the problem persists, contact Bosch after-sales service.

Is it possible to work in the rain with the Bosch ART 26 Li?

No, never use the device in rainy weather and do not leave it outside in the rain. Moisture can damage the device and pose a risk of electric shock.

What safety equipment is recommended?

Wear safety goggles, sturdy closed shoes, and long trousers. Use hearing protection (sound level 88 dB(A)). Keep people and animals at a safe distance.

How to maintain the brush cutter after use?

Remove the battery. Clean the external parts with a soft brush and a dry cloth. Do not use water or solvents. Remove trapped grass under the protective hood with a piece of wood or plastic. Regularly check the condition of the blade and guards.

USER MANUAL ART 26 LI BOSCH

Power Tools Division

70745 Leinfelden-Echterdingen

www.bosch-pt.com

F016 L70 510 (2007.11) O / 279

ART

23 LI | 26 LI

BOSCH

de Originalbetriebsanleitung en Original instructions fr Notice originale es Manual original pt Manual original it Istruzioni originali nl Oorspronkelijke gebruiksaanwijzing da Original brugsanvisning sv Bruksanvisning i original no Original driftsinstruks fi Alkuperäiset ohjeet

Ukrainian page 188

Romanian page 199

Bulgarian........................................................... 209

Serbian page 221

Slovenian page 231

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Ströttgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Warning! Read these instructions carefully, be familiar with the controls and the proper use of the cordless trimmer. Please keep the instructions safe for later use!

Explanation of symbols on the cordless trimmer

General hazard safety alert.

Read instruction manual.

Wear eye protection.

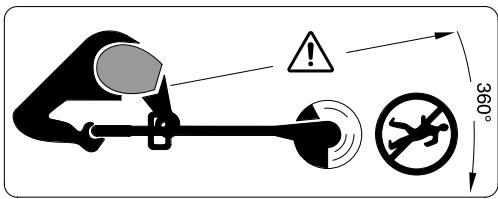

Pay attention that bystanders are not injured through foreign objects thrown from the machine.

Keep bystanders a safe distance away from the machine.

Remove battery before adjusting or cleaning, and before leaving the machine unattended for any period.

Do not work in the rain or leave the cordless trimmer outdoors whilst it is raining.

• Never operate the cordless trimmer with damaged guards or shields or without guards or shields in position.

Do not use the charger if the cord is damaged.

Before using the machine and after impact, check for signs of wear or damage, and repair if necessary.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Do not operate the cordless trimmer when barefoot or wearing open sandals; always wear substantial footwear and long trousers. - Never allow children or people unfamiliar with these instructions to use the cordless trimmer. Local regulations may restrict the age of the operator. When not in use store the trimmer out of reach of children. - Never work with this trimmer while people, especially children or pets are nearby. The operator or user is responsible for accidents or hazards occurring to other people or their property. Wait until the blade has completely stopped before touching it. The blade continues to rotate after the trimmer is switched off; a rotating blade can cause injury. - Work only in daylight or in good artificial light. - Avoid operating the cordless trimmer in wet grass, where feasible. - Switch off when transporting the cordless trimmer to and from the area to be worked on. - Switch on the cordless trimmer with hands and feet well away from the rotating blade. Do not put hands or feet near the rotating blade. Never use a metal blade in this trimmer. Inspect and maintain the cordless trimmer regularly. Have the cordless trimmer repaired only by an authorised customer service agent. Always ensure that the ventilation slots are kept clear of debris.

- Switch off and remove the battery:

• whenever you leave the machine unattended for any period
• before replacing the blade
• before cleaning or working on the cordless trimmer.
• Store the machine in a secure dry place out of the reach of children. Do not place other objects on top of the machine. Replace worn or damaged parts for safety. - Ensure replacement parts fitted are Bosch approved.
• Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into machines that have the switch on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use only battery packs intended specifically for the machine. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause skin irritation or burns.

Functional Description

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Intended Use

The machine is intended for the cutting of grass and weeds under bushes, as well as on slopes and edges that cannot be reached with the lawn mower.

Intended use is related to operation within 0°C and 40°C ambient temperature.

Delivery Scope

Carefully remove the machine from its packaging and check if the following parts are complete:

• Cordless trimmer
• Blade guard
• Adjustable handle (fitted) Cutting disc
• Blade Battery Charger
• Operating instructions

When parts are missing or damaged, please contact your dealer.

Product Features

The numbering of the components shown refers to the representation of the machine on the graphic pages.

1 On/Off switch 2 Lock-off button for On/Off switch 3 Handle 4 Handle screw 5 Adjustable handle 6 Adjusting collar 7 Shaft 8 Ventilation slots 9 Trimmer head

10 Blade 11 Blade guard 12 Foot pedal for trimmer-head angle adjustment 13 LED indicator 14 Battery charger 15 Battery 16 Cutting disc 17 Pin 18 Plant protector 19 Serial number

The accessories illustrated or described are not included as standard delivery.

Technical Data

Cordless Trimmer		ART 23 Li	ART 26 Li
Article number		3 600 H78 K..	3 600 H78 L..
No-load speed	rpm	7500	7400
Adjustable handle		●	●
Trimmer-head angle adjustment/edging adjustment		●	●
Cutting diameter	cm	23	26
Weight according to EPTA-Procedure 01/2003	kg	2.3	2.4
Serial number	See serial number 19 (type plate) on the machine
Battery		Li-lon	Li-lon
Article number		2 607 336 037	2 607 336 039
Rated voltage	V=	14.4	18
Capacity	Ah	1.3	1.3
Charging period (battery discharged)	min	180	180
Battery Charger		AL 2204 CV	AL 2204 CV
Article number		2 607 225 2..	2 607 225 2..
Charging current	mA	230	230
Allowable charging temperature range	°C	0-45	0-45
Weight according to EPTA-Procedure 01/2003	kg	0.7	0.7

Noise/Vibration Information

Measured values determined according to 2000/14/EG (1.60 m height, 1.0 m clearance) and EN 28 662.

Typically the A-weighted noise levels of the product are: Sound pressure level 80 dB(A); Sound power level 88 dB(A). Uncertainty K = 5 dB.

Wear hearing protection!

The hand-arm acceleration is typically below 2.5m / s²

Declaration of Conformity C

We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 786, EN 60 335 according to the provisions of the directives 89/336/EWG, 98/37/EG, 2000/14/EC.

2000/14/EC: The guaranteed sound power level LWA is lower than 94 dB (A). Conformity assessment procedure according to Annex VI.

Notified body: SRL, Sudbury England

Notified body identifications number: 1088

Technical file at:

Robert Bosch GmbH, PT/ESC,

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For Your Safety

Switch off and remove battery from machine before adjusting or cleaning.

The blade continues to rotate for a few seconds after the cordless trimmer is switched off.

Caution - do not touch the rotating blade.

Assembly

Battery Charging

Observe correct mains voltage: The voltage of the power source must agree with the voltage specified on the nameplate of the unit. Equipment marked with 230V can also be connected to 220V or 240V.

Use only the charging unit supplied. Only this charging unit is matched to the lithium-ion battery used in the product.

The battery is equipped with temperature monitoring that allows charging only in the temperature range between 0°C and 45°C. In this manner, a high battery service life is achieved.

Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.

The lithium ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

Removing the Battery A

Press the battery unlocking button and pull out the battery 15 toward the rear.

Charging Procedure

The charging procedure starts as soon as the mains plug is plugged into the socket and the battery is then inserted into the battery charger 14.

Firstly, place the battery 15 as shown in the figure onto the front of the battery charger (0) and then press the battery 15 down at the rear (2). To remove the battery, proceed in reverse order.

Due to the intelligent charging method, the charging condition of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage.

This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage.

Note: The charging procedure is only possible when the battery temperature is within the allowable charging temperature range, see section "Technical Data".

Flashing Battery Charge Indicator 13

The charging procedure is signalled by a flashing battery charge indicator 13.

Continuous Lighting of the Battery Charge Indicator 13

Continuous lighting of the battery charge indicator 13 indicates that the battery is fully charged or that the temperature of the battery is not within the allowable charging temperature range, and cannot be charged for this reason. The battery is charged as soon as the allowable charging temperature range is reached.

The battery is charged as soon as the allowable charging temperature range is reached.

When the battery is not inserted, continuous lighting of the battery charge indicator 13 indicates that the mains plug is inserted in the socket and that the battery charger is ready for operation.

Charging Advice

With continuous or several repetitive charging cycles without interruption, the charger can warm up. This is not meaningful and does not indicate a technical defect of the battery charger.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

The Electronic Cell Protection (ECP) protects the lithium ion battery against deep discharging. When the battery is run down or discharged, the machine is shut off by means of a protective circuit: The blade no longer rotates.

Do not continue to press the On/Off switch after an automatic shut-off of the machine.

The battery can become damaged.

Product Assembly

Do not insert the battery until the cordless trimmer is completely assembled.

Ensure that the cordless trimmer is assembled in the following order:

Mounting the Blade Guard

Place the blade guard 11 on the trimmer head 9.

Hook the blade guard onto the trimmer head and push it toward the rear. Press the blade guard downward until securely latched (click).

Mounting the Cutting Disc/Blade

Press the cutting disc 16 onto the drive shaft (click).

Position the blade 10 onto the pin 17, push it down and pull it outward until it engages.

Operation

Starting

Remove stones, loose pieces of wood and other objects from the cutting area.

The blade continues to rotate for a few seconds after the cordless trimmer is switched off. Allow the motor/blade to stop rotating before switching "on" again.

Do not rapidly switch off and on.

Inserting the Battery

Insert the battery into the machine as shown. The battery must be felt to engage.

Switching On

Press the lock-off button 2 and hold while actuating the On/Off switch 1.

Release the lock-off button 2 again.

Switching Off

Release the On/Off switch 1.

Note: There is a short delay in the motor starting after engaging the on/off switch 1.

Adjustment

Using the Adjustable Handle

The adjustable handle 5 can be set in various positions:

To change the position, loosen the handle screw 4 and move the adjustable handle 5. Tighten the handle screw 4 securely to fix the adjustable handle 5 in the adjusted position.

Adjusting the Trimmer Length F

Turn the adjusting collar 6 by 90°. Pull the shaft out to increase the height, or push the shaft in to decrease the height. Re-tighten the adjusting collar 6.

Adjusting the Trimmer-head Angle G

To change the cutting angle, press the foot pedal 12 down and move the shaft 7 to the requested position.

Release the foot pedal 12.

Adjusting for Edging Mode

H Adjusting the trimmer-head angle:

Press the foot pedal 12 down. Move the shaft 7 to the lowest position. Release the foot pedal 12 again.

Moving the trimmer head: Loosen the adjusting collar 6. Turn the shaft 7 by 90° to adjust the trimmer head 9 for trimming/edging as shown. Re-tighten the adjusting collar 6.

Working Advice

Protect the battery from heat, for example, also the continuous exposure to sun radiation and fire.

Product will not function if temperature is below 0°C or above 45°C

Cutting Grass

Move the cordless trimmer left and right, keeping it well away from the body.

The trimmer can efficiently cut grass up to a height of 15 cm. Cut higher grass in stages.

Trimming Edges

Guide the cordless trimmer along the edge of the lawn. Avoid contact with paved surfaces, stones or garden walls, as this will wear the blade rapidly.

For better control, use the plant protector 18 (accessory) as a guide.

Cutting Around Trees and Bushes

Carefully cut around trees and bushes so that they do not come into contact with the blade.

Plants can die if you damage the bark.

For better control, use the plant protector 18 (accessory) as a guide.

Battery Duration

The battery duration is dependent on the working conditions:

Light conditions:

up to 800 metres (ART 23 Li)

up to 1000 metres (ART 26 Li)

Medium conditions:

up to 350 metres (ART 23 Li)

up to 440 metres (ART 26 Li)

Tough conditions:

up to 60 metres (ART 23 Li)

up to 75 metres (ART 26 Li)

Changing the Blade D

Before any work on the machine itself, remove the battery from the machine.

To remove the worn blade 10, push it inward until it snaps off of the pin 17.

Clean the pin 17 of any residual plastic/debris with a sharp knife.

To mount a new blade 10, place the blade 10 onto the pin 17, push it down and pull it outward until it engages.

Note: Only use Bosch replacement blades. They have been developed specially for improved cutting and feed performance. The use of other blades will lead to a deterioration in performance.

Troubleshooting

The following chart lists problem symptoms, possible causes and corrective action, if your machine does not operate properly. If these do not identify and correct the problem, contact your service agent.

Warning: Switch the machine off and remove the battery prior to any troubleshooting.

Problem	Possible Cause	Corrective Action
Blade guard can not be mounted over cutting disc	Incorrect assembly	Remove cutting disc and mount blade guard again; also see "Assembly"
Trimmer fails to operate	Battery discharged	Recharge battery; also see "Battery Charging"
	Battery too hot/cold	Allow to cool/warm
Trimmer runs intermittently	Internal wiring of machine damaged	Contact Service Agent
	On/Off switch defective	Contact Service Agent
Excessive vibrations/noise	Machine defective	Contact Service Agent
	Blade broken	Replace the blade
Cutting time per battery charge too low	Battery has not been used for long period or only for short terms	Fully charge battery; also see "Battery Charging"
	Grass too high	Cut in stages
	Battery dead or defective	Replace the battery
Blade will not move	Battery discharged	Recharge battery; also see "Battery Charging"
	Machine defective	Contact Service Agent
Machine does not cut	Blade broken	Replace the blade
	Battery not fully charged	Recharge battery; also see "Battery Charging"
	Grass entangled around cutting disc	Remove grass
Continuous lighting of the battery charge indicator 13	Battery not (properly) inserted	Properly insert battery into battery charger
No charging probedure possible	Battery contacts contaminated	Clean the battery contacts (e.g. by inserting and removing the battery several times) or replace the battery
	Battery defective	Replace the battery
Battery charge indicator 13 does not light up	Mains plug of battery charger not plugged in (properly)	Insert mains plug (fully) into the socket outlet
	Socket outlet, mains cable or battery charger defective	Check the mains voltage; have the battery charger checked by an authorised after-sales service agent for Bosch power tools

Maintenance and Service

Maintenance and Cleaning

Before any work on the machine itself, remove the battery from the machine.

Note: To ensure long and reliable service, carry out the following maintenance regularly.

Regularly check for obvious defects such as loose fixings, and worn or damaged components.

Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

If the machine should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer service agent for Bosch garden products.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the machine.

After Trimming/Storage

Switch the machine off and remove the battery. Ensure battery is removed before storage.

Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots 8.

Turn the machine on its side and clean the cutting guard 11 inside. If grass cuttings are compacted, remove with a wooden or plastic implement.

Check if guards and protective devices are undamaged and properly mounted. Before using, carry out possibly necessary maintenance and repairs.

The battery should be stored between 0°C and 45°C.

After-sales service and customer assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer consultants answer your questions concerning best buy, application and adjustment of products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 95HJ

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Transport

The battery is tested according to UN document ST/SG/AC.10/11/Rev.3 Part III, subsection 38.3. It has effective protection against internal overpressure and short circuiting as well as devices for the prevention of violent rupture and dangerous reverse current flow.

The lithium-equivalent content in the battery is below applicable limit values. Therefore, the battery is not subject to national or international regulations pertaining to dangerous mediums, neither as an individual component nor when inserted into a machine. However, the regulations governing dangerous goods may be relevant when transporting several batteries. In this case, it can be necessary to comply with special conditions (e.g., concerning the packaging). For more information, please refer to the instruction sheet (in English) under the following Internet address: http://purchasing.bosch.com/en/start/Allgemeines/Download/index.htm.

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of power tools into household waste!

According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right,

power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Li-ion:

Please observe the instructions in section "Transport", page 26.

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should be collected, recycled or disposed of in an environmental-friendly manner.

Only for EC countries:

Defective or dead out battery packs/batteries must be recycled according the guideline 91/157/EEC.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB9 5HJ

Tel. Service: [phone]

Fax: [phone]

Subject to change without notice.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Robert Bosch (France) S.A.S.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Ströttgen Head of Product Certification

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Voor uweiligheid

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product

Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Tel. Service Center: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

The battery has been tested in accordance with the UN manual.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Only for EU countries:

Only for EU countries:

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For safety reasons

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Do not operate the machine outside of its intended use and remove the battery before any adjustment, cleaning, or maintenance.

The machine continues to run for a few seconds after it has been switched off. Wait until it has come to a complete standstill before putting it down.

Caution: Do not touch the rotating saw blade.

Assembly

Battery charging

Pay attention to the mains voltage: The voltage of the power source must match the voltage specified on the rating plate of the machine. Machines with a rated voltage of 230 V can also be operated with 220 V/240 V.

Use only the charger supplied with the tool. Only this charger is suitable for the lithium-ion battery used in your machine.

The battery is equipped with a temperature monitoring device that permits charging only in the temperature range between 0 °C and 45 °C. This ensures a long battery life.

Note: The battery is supplied partially charged. To ensure full battery capacity, charge the battery fully in the charger before using it for the first time.

Always switch the tool off before making any adjustments. Press the ON/OFF switch 1.

After releasing the switch, the tool switches off automatically.

Switching off

Press the ON/OFF switch 1.

Note: When the ON/OFF switch 1 is pressed, the motor starts at minimum speed.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools DivisionD-70745 Leinfelden-Echterdingen

For your safety

Up to 350 meters (ART 23 Li)

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Customer Service: [phone]

Customer Service Line: [phone]

Shipping

Dr Egbert Schneider Senior Vice President Engineering

Dr Eckerhard Ströttgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Robert Bosch Sp. z o.o.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Bosch Service Center PT

K Vapence 1621/16

692 01 Mikulov

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch.cz

Transport

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mo Tu We Th Fr So Su

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For safety

Do not work in the rain and do not leave the battery-powered trimmer standing in the rain.

Never work with the trimmer with damaged protective devices or without them.

Do not use the charging device with a damaged power cord.

After impact, check the tool for wear or damage and, if necessary, have it repaired before using it again. This power tool is not intended for use by persons (including children) with limited physical, sensory, or mental capabilities or with insufficient experience and/or insufficient knowledge, unless they are under the supervision of a person responsible for their safety and receive instructions from them on how to use this power tool.

Children should be supervised to ensure that they do not use the power tool for purposes other than its intended use.

Do not mow with the battery-powered trimmer barefoot or in open shoes. Always wear sturdy, closed shoes and long trousers. Never allow children or persons unfamiliar with these instructions to use the battery-powered trimmer. Local regulations may restrict the operator's age. Store the trimmer out of reach of children. Do not work with the tool if people, especially children, or domestic animals are in the immediate vicinity. The operator is responsible for accidents and damage to other persons or their property. Do not touch the rotating blade until it has come to a complete stop. The blade continues to rotate after the motor is switched off and can cause injury. Work only in daylight or with good artificial lighting. If possible, do not operate the battery-powered trimmer on wet grass.

Switch off the battery-powered trimmer when transporting it to and from the area to be worked on. Switch on the battery-powered trimmer only when the rotating blade is at a sufficient distance from your hands and feet. Maintain a safe distance from your hands and feet to the rotating blade. Do not use metal blades for this trimmer. Regularly check and maintain the battery-powered trimmer. Have the battery-powered trimmer repaired only by authorized service workshops. Keep the ventilation slots clean. Remove the battery from the trimmer:

Improvements made while following the instructions and safety regulations can become the cause of electric shock

or serious injury.

Intended use

This tool is intended for cutting grass and weeds on lawns, as well as on slopes and for trimming edges that cannot be reached with a lawn mower.

Intended use extends to an ambient temperature range of 0°C to 40°C.

Delivery scope

Carefully spread out and check the following parts:

Illustrated components

The numbering of the components corresponds to the illustration on the illustration page.

1 On/off switch 2 Locking button 3 Handle 4 Auxiliary handle screw 5 Auxiliary handle 6 Clamping lever 7 Tube 8 Ventilation slots 9 Trimmer head

10 Blade 11 Protective cover 12 Trimmer head adjustment 13 Signal indicator 14 Charger 15 Battery 16 Cutting blade 17 Wrench 18 Protective bracket 19 Serial number

Illustrated and described accessories are not included in the standard delivery.

Technical data

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Safety instructions

Switch off the tool and remove the battery before adjusting or cleaning.

After switching off the battery-powered trimmer, the blade continues to rotate for a few seconds.

Caution - Do not touch the rotating blade.

C6opka

3apAkaakyMaTopa

YuHTbIbAaTe HApJxHeHcetn:HaPjxHeHne HCTOUYHkA TOKa DOAnKHO COOTBeTCTBOBaTb DaHHbIM Ha TINTOBoI Ta6AnuKe HNCTpyMeHTa. 3LeKtpOnHCTpyMeHTbI Ha 230 B pa6oTaIOT n Ipi HApJxKeHnn B 220 B.

ПпмениToIbko NocTaBaeHoe BmecTe c Инстчим entom 3apdHoe yctpoiCTBO.ToIbko ЗTO 3apdHoe yctpoiCTBO corlaacobHo C СИNTHEBO-инhhim akKymyIaTOpom Baшero Инстчим enta.

AkkymyIaTOP Oshaen YcTPOINCTBOM KOHTPOAN TeMTpepaTybl, KOTOPOE IO3BOANET IPOUN3BOADtB 3apnky ToIbKO B IIpeDeIax TempepaTypbl OT 0°C Do 45°C .3TmM DOCTHraETCAIPOAOXHTeAbHbI CpOK cAYK6bl AKKMyIaTOPa.

Yka3aHne: AkkymyIaTOp TIOCTaBIAeTcH He IIOHOCbI 3apJxKeHHbIM. AIA o6ecIeueHnI IOHO MOUHOCTn aKKymyIaTopa 3apJAnTe ero IIOHOCTbIO TEpeI TePbIM IIPmHeHHeM.

IHTNEBO-NOHHbI aKKyMaIaTOp MoKet 6bITb 3apJxH B AIO6oe BpeM 6e3 cOKpaIeHn Cpoka C LyX6bl. IpeKpaIeHne IpoUecca 3apAKN He HaHOcNT BpeDa aKKyMaIaTOpY.

CHaTHe aKKyMylAToPa A

Haxmte Ha KaBnuy pa36oKnpoBkn H BbITaHTe aKKyMaIToP 15 nNHCptymeHa.

Tpocecc 3aprakn

ПюцeccЗардн haunHaeTc ca3yпocle BkluoehnBnKn shHypa 3apdHOrO yctpoNCTBa B lTePceIbHyIO p03eTKU n IocLeyIOse yCTaHOBKn aKKymyTATopa B 3apdHoe yctpoNCTBO 14.

Посавыт eakумларop 15 coflachno pncyHky chauala cpeaHn Ha 3aprdnoe yctpoiCTBO (）и 3aTeM haxmnte Ha akyyuIarTop 15 c3aHn Do ynpa (2). Chmaite akyyuIarTop c 3aprdHoro yctpoiCTBa B O6paTHO TIOcAeDobateAhoCTN.

HHTeIHHErTHbIM MeToD 3apAaN aBTOMaTHeeCKN OITpeEJIeT COCTOHNHe 3apAa AKKyMylTopa N B 3aBNCnMOCTN OT eTO TemIepaTypbl HAnpJxKeHn3 apAka OcyueCTBAreTC C OTTHMaAbHbIM TOKOM.

3TMMdoCTnraetcbepexHoe o6paueHne c aKkymyAToPOMIpi CoXpAHENB 3apAHOm yCtpoCTBe OH BcERda TIOHOCbTO 3apJKeH.

Yka3aHne: 3apRdKa BO3MOXHa TOIbKO IpiN TeMIIepaType aKKyMylTopa B IIpeDeIax DnApa3OHa 3apRdKN, CM. pa3deI «TexHueckne DaHHble>.

Battery charge indicator light 13

Battery charge indicator 13 signals the charging process.

Intermittent light of battery charge indicator 13

Intermittent light

of battery charge indicator 13 indicates that the battery is being charged

or that the charging process is interrupted due to the battery temperature being outside the permissible range. As soon as the temperature is within the permissible range, charging of the battery will resume.

Without battery, the intermittent light of charge indicator 13 means that the plug is inserted into the socket and the charging device is in working condition.

Charging instructions

With intermittent or repeated charging without interruption, the charging device may heat up. This, however, does not pose any danger and does not indicate a technical defect of the power tool.

A significant reduction in operating time after charging indicates that the batteries are aging and need to be replaced.

The lithium-ion battery is equipped with an "Electronic Cell Protection (ECP)" against deep discharge. The protection circuit switches off the power tool when the battery is discharged. The tool will not rotate.

After automatic switch-off of the tool, do not press the switch again. The battery may be damaged.

Assembling the tool

Insert the battery only after the battery compartment is properly assembled.

The battery compartment must be assembled in the following sequence:

Protective cap

Put the protective cap 11 on the trimmer head 9.

Turn the protective cap on the trimmer head until it clicks into place. Press the protective cap down until it is fixed (click).

Installing the cutting blade/knife

Press the cutting blade 16 onto the drive pin (click). Then install the knife 10 on the pin 17, press the knife and pull it out until it clicks into place.

Working with the tool

Switching on

Remove the protective cover intended for the cutting area of the blade and other protective devices.

After switching on the battery trimmer, the blade will continue to rotate for a few seconds due to inertia. Wait for the motor/blade to stop before switching on again.

Do not switch the tool on and off without a pause.

Installing the battery

Insert the battery into the tool as shown. The battery must click noticeably into place.

Switching off

Press the lock-off button 2 and, in this position, activate the switch 1.

Release the lock-off button 2.

Press the switch 1.

Note: The motor starts when the switch 1 is activated with a slight delay.

Tool adjustment

Using the adjustable handle

The adjustable handle 5 can be set in different positions:

To change the position, release the handle 4 and set the handle 5. Then tighten the handle 4 to lock the adjustable handle 5 in the set position.

Adjusting the depth stop

1. Turn the locking sleeve 6 by 90 degrees. 2. Pull the depth stop out or push it in. 3. Tighten the locking sleeve 6.

Changing the angle of the trimmer head

To change the cutting angle, press the lever 12 and turn the head 7 to the desired position. Release the lever 12.

Position for edge trimming

Adjusting the trimmer head angle

Press the lever 12. Bring the head 7 to the lowest position. Release the lever 12.

Application instructions

Do not use the battery trimmer at high temperatures, for example, in direct sunlight. The tool does not work at temperatures below 0°C or above 45°C!

Grass trimming

Move the battery trimmer left and right, keeping a sufficient distance from your body.

The battery trimmer effectively trims grass up to 15 cm high. Taller grass should be trimmed gradually.

Edge trimming

Guide the battery trimmer along the edge of the lawn. To avoid rapid wear of the blade, do not contact hard surfaces or brick or stone walls. For edge trimming, use the blade guard as an auxiliary cutting device (accessory).

Trimming grass around trees and bushes

Carefully trim grass around trees and bushes to avoid contact with the bark.

1000 meters (ART 26 Li)

Average conditions

30-350 meters (ART 23 Li)

400 meters (ART 26 Li)

Heavy conditions

600 meters (ART 23 Li)

70-5 meters (ART 26 Li)

Replacing the blade

Clean the blade 17 with a sharp knife from the remains of the adhesive mass on all sides.

Insert the new blade 10 onto the blade 17, press down and pull outwards until it clicks into place.

Note: Use only Bosch blades. This special development has improved cutting properties. Blades from other manufacturers have a shorter service life.

Troubleshooting

The following table lists the signs and possible remedies for malfunctions in case of improper operation of the device. If you cannot locate and fix the problem with this help, contact your service workshop.

Attention! Before troubleshooting, switch off the tool and remove the battery.

The battery should be stored at a temperature between 0°C and 45°C.

Service and customer advice

The service department will answer all your questions regarding repair and maintenance of your product as well as spare parts. You can also find exploded views and information on spare parts at the address:

www.bosch-pt.com

The Bosch consulting team will gladly help you with questions regarding purchase, application, and adjustment of products and accessories.

Russia

OOO «Robert Bosch»

Service center for maintenance

Electroinstrument

ul. Akademika Koroleva 13, stroenie 5

129515, Moskva

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

OOO «Robert Bosch»

Service center for maintenance

Electroinstrument

ul. Zaitseva, 41

198188, Sankt-Peterburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Robert Bosch LLC

Service Center for Power Tools

Power Tools

Gorky Microdistrict, 53

630032, Novosibirsk

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Robert Bosch LLC

Service Center for Power Tools

Power Tools

Fonvizina Street, 14,

620017, Yekaterinburg

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Belarus

ACU YT-18

220064 Minsk, st. Kupyatova, 7

Tel.: [phone]

Fax: [phone]

Transport

The battery has been tested according to the UN ST/SG/AC.10/11/Rev.3, Part III, Section 38.3. The battery is equipped with effective protection against internal overpressure, short circuit, and devices to prevent static discharge under the influence of shock loads and dangerous reverse current. The equivalent amount of lithium in the battery is below the corresponding limit values. Therefore, the battery, both as a separate part and when built into the instrument, is not subject to the rules for dangerous goods. However, the regulations for dangerous goods may become relevant when transporting several batteries. In such a case, it may be necessary to observe special conditions (e.g., for packaging). You can find details in the English brochure at the following address on the Internet: http://purchasing.bosch.com/en/start/ Allgemeines/Download/index.htm.

Disposal

Power tools, accessories, and packaging should be sorted for environmentally friendly recycling.

Only for EU countries:

Do not dispose of power tools into household waste! According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in national law, power tools that have reached the end of their service life must be collected separately and returned to an environmentally compatible recycling facility.

Regarding the implementation of this Directive in national law, power tools that have reached the end of their service life must be collected separately and returned to an environmentally compatible recycling facility.

Batteries:

Li-ion:

See the section "Transport", p. 186.

Do not dispose of batteries in household waste, do not throw them into fire or water. Batteries must be collected and handed in for recycling or environmentally sound disposal.

Subheading for EC:

Defective or worn-out batteries must be disposed of in accordance with Directive 91/157/EEC.

We reserve the right to make changes.

Safety instructions

Warning! Carefully read the following instructions. Familiarize yourself with the controls and proper use of the sprayer with battery. Keep the operating instructions for future use.

Symbols on the sprayer with battery

General safety warning.

Read the operating instructions.

Wear protective gloves.

Illustrated components

The numbering of the illustrated components refers to the illustration on the fold-out page.

1 Trigger 2 Lock button 3 Handle 4 Adjustable handle 5 Adjustable handle 6 Locking sleeve 7 Tube 8 Ventilation holes 9 Sprayer head

10 Nozzle 11 Protective cover 12 Sprayer tube holder 13 Fill level indicator 14 Charging socket 15 Battery 16 Disc nozzle 17 Filter 18 Lock button 19 Serial number

The figure or description is not part of the standard delivery scope.

Technical data

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Safety instructions

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

After removing the battery from the tool, wait a few seconds before handling it.

Caution - Do not touch the blade, it is sharp.

Mounting

Charging the battery

Note the mains voltage: The voltage of the power source must match the voltage given on the rating plate. Tools rated for 230 V can also operate at 220 V/240 V.

Use only the charger supplied with the tool. This charger is designed for the rechargeable battery used in your tool.

The battery is equipped with temperature monitoring that allows charging only in the temperature range between 0°C and 45°C. This ensures a long battery service life.

Battery: The battery must be fully charged before first use. To ensure the battery reaches its full capacity, before first use with the device, the battery must be fully charged in the charger.

The battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery.

Removing the battery

Press the battery release button, pull the battery pack back and remove it from the device.

Charging

After the device has been switched off, it is no longer possible to remove the battery.

Installing the device

Insert the battery pack only when the trimmer with battery pack is fully assembled.

Assemble the trimmer with battery pack in the following order:

Installing the protective cover

Place the protective cover 11 on the trimmer head 9.

Push the protective cover into the recess of the trimmer head and press it down. The protective cover clicks into place.

Installing the disc blade/knife

Place the disc blade 16 on the drive shaft, pressing it down (click). Place it on the shaft 17, press it down and turn it until it locks into place.

Operation

Prepare the tool, accessories and other items you will need to perform the work.

After performing the example with the battery, wait a few seconds before turning it on again. If you turn it on again immediately, the motor may not start.

Do not turn it on immediately after turning it off.

Installing the battery

Install the battery as shown. The battery must click into place.

Turning on

Press the on/off switch 2 and, while holding it, press switch 1.

Release the on/off switch 2.

Turning off

Release switch 1.

Note: After pressing switch 1, the motor will start with a slight delay.

Adjusting the tool

Using the adjustable handle

The adjustable handle 5 can be set in different positions.

1. Loosen the locking screw 4 and move the adjustable handle 5. Tighten the handle 4 to fix the adjustable handle 5 in the set position.

Adjusting the trimmer height

1. Turn the locking knob 6 by 90 degrees to release the tube, insert the tube to the required length. Then tighten the locking knob 6 again.

Adjusting the trimmer head angle

To change the cutting angle, press the release button 12 and tilt the tube 7 to the desired position.

Release the release button 12.

Adjusting the cutting of grass with the wheels

For adjusting the trimmer head angle: press the release button 12. Move the tube 7 to the desired position. Then release the release button 12.

1. Adjust the trimmer head: 1. Release the locking knob 6. 2. Turn the tube 7 by 90 degrees to adjust the trimmer head 9 for cutting grass with the wheels, as shown. Then tighten the locking knob 6 again.

Operating instructions

Keep the battery away from glass, especially from sunlight, and also from fire. Do not operate at temperatures below 0°C or above 45°C!

Trimming grass

Hold the trimmer with the battery in the right hand, keeping it in a stable position.

Example with the battery in a state of charge: trim grass up to 15 cm high. Taller grass should be trimmed gradually.

Trimming grass with the trimmer

Before using the power tool, read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

For safe operation, read the operating instructions before using the tool.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Maee i.v. Nogcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Switch off the power tool and remove the battery before making any adjustments or cleaning.

Bosch Service Center

Str. Horia Macelariu Nr. 30-34, 013937 Bucharest

Tel. Power tool service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Tel. Technical consultation: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-romania.ro

Transport

The battery is tested according to the UN Manual of Tests and Criteria, ST/SG/AC.10/11/Rev.3, Part III, Subsection 38.3. It has adequate protection against internal overpressure and short circuit, and is also equipped with protective devices that prevent forced rupture and dangerous reverse current.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Safety Warnings

Before adjusting the power tool or before cleaning it, remove the battery.

Remove the battery from the power tool.

When removing the battery, the tool must be turned off and the battery must be removed only after the tool has come to a complete stop.

Caution - Do not look into the beam.

Mounting

Charging the battery

The charger maintains the voltage: The voltage of the charging source must match the data printed on the nameplate of the power tool. Power tools equipped with 230 V can also be charged with 220 V/240 V.

Use only the charger supplied with the power tool. It is suitable for the lithium-ion battery of your power tool.

The battery has a temperature monitoring system that allows charging only in the range between 0°C and 45°C. This increases the service life of the battery.

Note: The battery is supplied partially charged. To achieve full battery capacity, fully charge the battery in the charger before first use.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery.

Removing the battery

Press the battery release button and pull the battery out of the power tool.

Charging

The charging process begins as soon as the charger plug is inserted into the socket and the battery is placed in the charger.

Place the battery in the charger as shown in the figure, first at the front (1) and then press the battery into the charging slot (2). The battery is removed in reverse order.

Thanks to the intelligent charging process, the battery status is recognized and it is charged with the optimal current and voltage for the current temperature.

This extends the battery life, and when stored on the charger, the battery is always fully charged.

Note: The battery is charged only if the temperature is within the permissible range, see section "Technical Data".

Charging indicator of the battery 13

The charging process is indicated by the lighting of the LED 13.

The battery charge indicator lights up.

The charge indicator on the battery charger lights up, indicating that the battery is fully charged.

The battery temperature is outside the permissible charging interval, so the battery is not being charged at the moment. When the temperature falls within the permissible temperature interval, the charging process begins.

The charge indicator on the battery charger lights up when a battery is inserted, indicating that the battery is being charged and the device is ready for operation.

Charging indication

During continuous charging or repeated sequential charging of the battery without prior discharge, the device may heat up. This is normal and does not indicate a technical defect in the charging device.

Significantly reduced operating time after charging indicates that the battery is worn out and must be replaced.

The lithium-ion battery is protected against deep discharge by "Electronic Cell Protection (ECP)". When the battery is discharged, the power tool switches off via a protective circuit: the tool stops turning.

After automatic switch-off of the power tool, do not continue to press the On/Off switch.

The battery may be damaged.

Removing the battery

Remove the battery from the tool only after the tool has come to a complete stop.

Removing the battery must be done in the following sequence:

Mounting the front cap 3

Place the front cap 11 on the tool head 9.

Press the trigger switch to start the tool. Press the trigger switch until you hear a click.

Mounting the disc/brush

Press the spindle lock button (KINK). Place the wrench on the nut 17, press it down and turn it clockwise until you hear a click.

Operation

Switching on

Keep away from stones, nails, and other hard objects.

After switching off the tool, the accessory continues to rotate for a while. Before switching on again, wait until the accessory has come to a complete stop.

Do not switch the power tool on immediately after it has been switched off.

Charging the battery

Insert the battery into the power tool as shown in the figure. You should hear a click.

Switching on

Press and hold the lock-off button for the trigger switch 2, then press the trigger switch 1.

Release the lock-off button for the trigger switch 2.

Switching off

Release the trigger switch 1.

Adjusting the tool to the required pressure.

Adjusting the power tool

Adjusting the auxiliary handle

The auxiliary handle 5 can be placed in different positions:

To change the position, loosen the handle screw 4 and move the auxiliary handle 5. Then tighten screw 4 to lock the auxiliary handle 5 in the selected position.

Adjusting the depth of the drill bit F

Turn the depth stop 6 to 90° to release the depth stop, then set the desired drilling depth.

Then tighten the depth stop 6 again.

Adjusting the angle of the tool head C

To change the angle of the head, press the release button 12 and turn the head 7 to the desired position.

Release the button 12.

Adjusting for drilling in close proximity

Adjust the angle of the tool head:

Press the button 12. Place the head 7 in the starting position. Then release the button 12.

1 Changing the tool head:

Remove the battery cover. Turn the device 90° clockwise as shown in the figure. Then close the cover.

Operating instructions

The battery alarm triggers, e.g., due to a low battery or a loose connection.

The power tool does not work at temperatures below 0°C or above 45°C!

Cutting wood

Before cutting, pay attention to the safety distance from the body.

The battery alarm can effectively warn at a distance of up to 15 cm. If the warning is louder, reduce the distance.

Cutting near the ground

When the battery alarm accelerates the cutting of the wood, to avoid rapid wear of the blade, avoid contact with hard surfaces or walls.

For better control, use the guide shoe for cutting wood as a guide for cutting (not included in the kit).

Cutting around wood and bushes

Cut carefully around wood and bushes to avoid damaging them with the cutting blade. If the bark of the plants is damaged, they may die.

For better control, use the guide shoe for cutting wood as a guide for cutting (not included in the kit).

Battery life

The operating time of the battery depends on the working conditions:

Working word:

Δ 0800 meters (ART 23 Li)

Δ 01000 meters (ART 26 Li)

Average working conditions:

Δ 0350 meters (ART 23 Li)

Δ 0440 meters (ART 26 Li)

Current working conditions:

Δ 060 meters (ART 23 Li)

Δ 075 meters (ART 26 Li)

Blade length D

Before starting any work on the electrically driven equipment, disconnect the battery.

To remove the worn blade 10, press it inward until it pops out of the slot 17.

Clean slot 17 with a sharp blade from any debris along its parts.

To install a new blade 10, place the blade 10 into slot 17, press it inward and then release it outward, until it locks into place.

Warning: Use only original spare blades, manufactured by us. They are specially designed and have better properties than others. Use of other blades may affect the warranty and performance.

Troubleshooting

The troubleshooting table shows symptoms of defects and how you can help yourself if the power tool stops working normally. If you cannot find the problem, follow the instructions in the table, contact the authorized service center for power tools.

Warning: Before troubleshooting, disconnect the power tool and remove the battery pack.

Before performing any work on the power tool, remove the battery pack.

Note: Follow the procedures in order to ensure correct and safe operation of the power tool.

Regularly check the power tool for damage, e.g., loose connections, worn parts, or damaged components.

Check that the accessories and attachments are correctly and securely mounted. Perform necessary maintenance before starting work with the power tool.

If the power tool is damaged despite careful manufacturing and testing, repair must be carried out by the authorized service center for power tools.

When contacting the representatives, please quote the 10-digit serial number from the nameplate of the power tool.

Following the operation/storage

Disconnect the power tool and remove the battery pack. Before storing the power tool, ensure that the battery pack is removed.

Clean the exterior of the tool carefully with a soft brush and cloth. Do not use water, solvents, or abrasive cleaners. Remove all accumulated dust and debris, especially from the ventilation openings.

Place the power tool in the storage case and store it in a dry place. Remove the compact dust and debris from the tool with a brush or compressed air.

Ensure that the accessories and attachments are not damaged and function properly. Perform necessary maintenance before starting work with the power tool.

The battery pack must be stored at a temperature between 0°C and 45°C.

Service will answer your questions regarding repair and maintenance of your product, as well as regarding spare parts. Spare parts information can be found at www.bosch-pt.com.

The consultants at your Bosch service center will be happy to help you with any questions regarding purchase, application, and adjustment possibilities of the various products from the manufacturer's range of your Bosch power tools and accessories.

Robert Bosch EOOD - Bulgaria

Bosch Service Center

Warranty and repair service

ul. Srebarna 3-9

1907 Sofia

Tel.: [phone]

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Transport

The battery has been tested according to the UN ST/SG/AC.10/11/3 edition, Part III, Section 38.3. It has effective protection against internal overpressure and short circuit, and is protected against mechanical damage and reverse current. The equivalent lithium content contained in the battery is below the permitted limit values. Therefore, the battery is not subject to national or international regulations for handling dangerous goods/substances. However, when transporting multiple batteries, these regulations may become applicable. In such cases, it may be necessary to comply with special requirements (e.g., regarding packaging). You can find details in the leaflet (in English) at the following internet address: http://purchasing.bosch.com/en/start/ Allgemeines/ Download/index.htm.

Disposal

The device, accessories and packaging must be disposed of properly for recycling in accordance with the regulations in force.

For EU countries only:

Do not dispose of power tools in household waste! In accordance with EU Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in national law, power tools that are no longer usable must be collected separately and disposed of in an environmentally sound manner.

As required by national law, power tools that can no longer be used must be collected separately and handed over to a suitable recycling facility for environmentally sound recycling of the raw materials they contain.

Batteries and rechargeable batteries:

Li-Ion:

Please follow the instructions in the "Transport" section, page 219.

Do not dispose of batteries in household waste, fire, or water. Batteries and rechargeable batteries must be collected, recycled, or disposed of in an environmentally sound manner.

For EU countries only:

In accordance with Directive 91/157/EEC, defective or worn-out batteries or rechargeable batteries must be recycled.

Subject to change without notice.

Safety instructions

Caution! Read the following instructions carefully. Familiarize yourself with the working elements and the correct use of the cordless grass trimmer. Please keep the operating instructions safe for later use.

Explanation of symbols on the cordless grass trimmer

General safety instructions.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Switch off the device and remove the battery before making any adjustments or cleaning.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Before starting or cleaning the device, switch it off and remove the battery.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Before making any adjustments or cleaning, switch off the device and remove the battery.

After the cordless grass trimmer is switched off, the blade continues to rotate for a few seconds.

Caution - do not touch the rotating blade.

Assembly

Charging the battery

Observe the mains voltage: The voltage of the power source must match the data on the rating plate of the device. Devices marked with 230 V can also operate on 220 V/240 V.

Use only the supplied charger. Only this charger is compatible with the Li-ion battery installed in your device.

The battery is equipped with a temperature control that allows charging only in the temperature range between 0°C and 45°C. This ensures a long battery life.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Safety instructions

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Always switch off the tool and remove the battery before adjusting or cleaning.

After switching off the grass trimmer, the cutting blade continues to rotate for a few seconds.

Be careful - do not touch the rotating cutting blade.

Assembly

Battery charging

Supply the correct mains voltage!

The mains voltage must match the value indicated on the charger's rating plate. Chargers designed for 230 V can also be operated from 220 V or 240 V mains.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety
