Brand	Moulinex
Model	MO2521PA City Space Cyclonic
Vacuum type	Bagged vacuum cleaner
Technology	Cyclonic
Power (W)	750 W (estimated)
Power supply	230 V ~ 50 Hz
Reservoir capacity	Dust box
Filtration type	HEPA (ref. MT0056.01) + microfilter
Cord length (m)	Approximately 8 m
Operating radius (m)	Approximately 10 m
Noise level (dB)	76 dB (estimated)
Weight (kg)	4.5 kg (estimated)
Dimensions (L x D x H cm)	30 x 40 x 25 cm (estimated)
Cord rewinder	Yes, pedal
Parking	Horizontal and vertical
Power control	Mechanical on handle
Included accessories	Hose, telescopic tube, all-floor nozzle, parquet nozzle*, upholstery nozzle*, crevice tool convertible to brush, turbo brush*, mini turbo brush*
Filter maintenance	Clean black foam after each emptying, clean HEPA monthly, replace every 6 months
Spare parts	Ref. MT0056.01 (HEPA cassette, microfilter, 3-in-1 accessory)
Safety	Thermal protection, automatic shutdown in case of overheating
Warranty	Domestic use, warranty voided if used improperly
Usage	Indoor only
Standards	Compliant with Low Voltage, Electromagnetic Compatibility, Environment directives

Frequently Asked Questions - MO2521PA CITY SPACE CYCLONIC MOULINEX

How to assemble the hose and accessories?

Press the hose firmly into the suction opening and turn until it locks (fig.1). To remove, turn in reverse and pull (fig.2). For the telescopic tube, push the adjustment button forward, adjust the length, then release (fig.3). Attach the desired accessories to the end of the tube or handle.

How to empty the dust container and clean the filters?

Turn off and unplug the vacuum. Remove the hose (fig.2). Remove the dust container by the handle (fig.14). Press the opening lever and remove the cover (fig.15). Empty into a trash can (fig.16). Clean the black foam filter under running water, squeeze and let dry for 12h (fig.21). Clean the HEPA filter by tapping then rinsing under warm water, let dry for 24h (fig.37-38). Reassemble by positioning the filters correctly under the container (fig.22).

How often to change the filters?

Replace the HEPA filter cassette (ref. MT0056.01) every 6 months. Replace the microfilter also every 6 months. The black foam filter must be cleaned after each emptying of the dust container.

What to do if the vacuum does not suck or sucks less?

Check that the hose and accessories are not blocked. Ensure the dust container is properly placed in its compartment. If the container is full, empty it. If the filtration system is saturated, clean the HEPA cassette. Open the power control if necessary.

How to use the all-floor nozzle on different surfaces?

For carpets and rugs, push the brush down (fig.5). For parquet and smooth floors, pull the brush out (fig.6). You can also use the optional parquet nozzle for delicate floors.

The vacuum stops during use, what to do?

The thermal safety has activated. Check that the tube and hose are not obstructed and that the filters are not saturated. Let the device cool down for 30 minutes before restarting. If the problem persists, contact an Authorized Service Center.

How to use the included 3-in-1 accessory?

The 3-in-1 accessory (ref. MT0056.01) includes a brush for cleaning the air/dust separator (18a), a scraper for the HEPA filter, and an unlocking tool (18b). Use it to clean the separator, scrape the HEPA filter, and unlock the separator support.

How to store the vacuum?

After use, turn off and unplug the vacuum. Store the cord by pressing the rewinder pedal (fig.11). Use the vertical parking (under the device, fig.12) or horizontal parking (at the back, fig.13). Carry it by the handle (6).

Can I use the vacuum without the dust container or HEPA filter?

No, never operate the vacuum without the dust container (13) and the HEPA filter cassette (14). This would damage the device and reduce air quality.

Where can I find replacement accessories and filters?

Use only original Moulinex accessories and filters. The HEPA cassette (ref. MT0056.01) and microfilter are available from retailers or Authorized Service Centers. Contact Moulinex consumer service if needed.

USER MANUAL MO2521PA CITY SPACE CYCLONIC MOULINEX

city space cyclonic™

FR

EN

NL

DE

AR

FA

fig. 1

fig. 2

fig. 3

fig. 4

fig. 5

fig. 6

fig. 7

fig. 8

fig. 9

fig. 10

fig. 11

fig. 12

fig. 13

fig. 14

fig. 15a

fig. 15b

fig. 16

fig. 17a

fig. 17b

fig. 18

fig. 19

fig. 20

fig. 21

fig. 22

fig. 23

fig. 24

fig. 25

fig. 26

fig. 27

fig. 28

fig. 29

fig. 30

fig. 31

fig. 32

fig. 33

fig. 34

fig. 35

fig. 36

fig. 37

fig. 38

fig. 39

fig. 40

fig. 41

fig. 42

fig. 43

fig. 44

fig. 45

fig. 46

1. CONSEILS DE SECURITE

1. SAFETY INSTRUCTIONS

For your safety, this appliance complies with all applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Environmental directives, etc.)

• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capacities or lack of experience and knowledge, unless they are supervised or have been given instructions beforehand concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure they do not play with the appliance.
• This appliance can be used by children provided that they are at least 8 years old, as well as by people lacking experience and knowledge or whose physical, sensorial or mental abilities are reduced, if they have been properly trained and duly informed of the incurred risks. Children must not play with the appliance. Cleaning and maintenance of this appliance must not be carried out by children unless they are at least 8 years old and supervised by a responsible person. Keep the appliance and its cord away from children under 8 years old.
• Do not use the appliance if the power cord is damaged. To avoid danger the cord winding system and cord for your vacuum cleaner must be replaced by a Moulinex Approved Service Centre only.

Conditions for use

• Your vacuum cleaner is an electrical appliance: it should only be used under normal conditions.
• Use and store the appliance out of the reach of children. Never leave the vacuum on when unattended.
• Do not place the nozzle or the end of the tube near the eyes or ears.
• Do not vacuum surfaces that are wet with water or any other liquid whatsoever, hot substances, supersmooth substances (plaster, cement, ashes...), large sharp waste (glass), harmful products (solvants, abrasives...), aggressive products (acids, cleaning products...), flammable or explosive products (gasoline or alcohol based).
• Never immerse the appliance in water; do not spill water on the appliance and do not store it outside.
• Do not use the appliance if it has been dropped and there is visible damage to it, or if it fails to function normally.

In this case, do not open the appliance but send it to the nearest Approved Service Centre or contact Moulinex Customer Services.

Electric power source

• Check that your vacuum cleaner voltage corresponds to that of your domestic power supply: you will find this information on the appliance.
• Switch off and unplug the appliance:
• immediately after each use,
• before every change of accessories,
• before every cleanup or maintenance procedure, and before changing the filter.

Repairs

Repairs should only be performed by specialists using original spare parts.

Repairs carried out by the user can be dangerous.

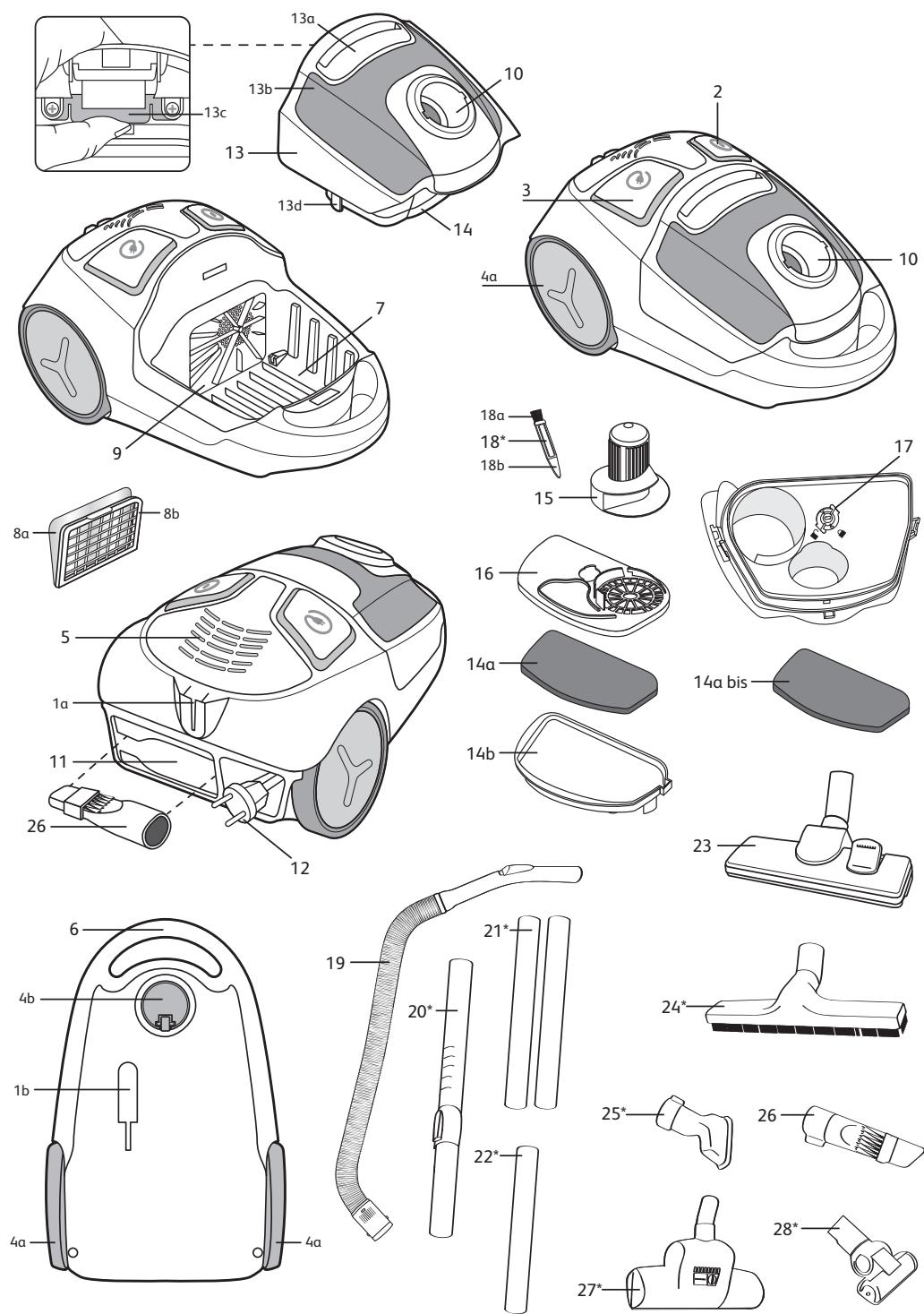

2.DESCRIPTION

1. a - Horizontal parking

b - Vertical parking

1. ON/OFF pedal

2. Cord winding pedal

3. a-Wheel

b - Multidirectional wheel

1. Air outlet grill

2. Transport handle

3. Dust tray compartment

4. a - Microfilter (ref MT0056.01)

b - Motor protection grill

1. Microfilter compartment

2. Vacuum opening

3. Storage compartment for crevice/brush nozzle

4. Power cord

5. Dust tray

a - Dust tray handle

b-Lid

c - Lid opening lever

d - Extraction clips for the HEPA filter case

1. HEPA filter case (ref. MT0056.01):

a - Black foam filter (14a bis : replacement black foam filter)

b - HEPA filter

1. Air/dust separator

2. Air/dust separator base

3. Air/dust separator base bolt

18.3 in 1 accessory* (ref.MT0056.01) :

a - Air/dust separator cleaning brush

b - HEPA filter scraper + unscrewing accessory for the air/dust separator

Standard accessories :

1. Tube with grip and mechanical power control
2. Telescopic tube*
3. Tubes*
4. Tube extension*
5. Multi-surface nozzle
6. Parquet nozzle*
7. Unholstery nozzle*
8. Crevice/brush nozzle
9. Turbobrush*
10. Mini turbobrush*

3. BEFORE FIRST USE

Unpacking

• Unpack your appliance and remove all possible labels.
• Keep your guarantee form and read the instructions carefully before using your appliance for the first time.

Safety precautions

Each time before use, unwind the power cord completely.
- Do not jam it or allow it to rub against sharp edges.
- If you need to use an extension cord, make sure that it is in perfect condition and that it corresponds to your mains voltage.
- Your vacuum cleaner is fitted with a safety device which prevents the motor from overheating. In certain cases (when used on chairs, sofas, etc.) the safety device may be tripped and the appliance may make an unusual noise that is not serious.
- Do not move the vacuum cleaner by pulling on the power cord, the appliance must only be moved using its transport handle.
- Do not use the power cord to lift the appliance.
- Never unplug the appliance by pulling on the power cord.
- Never activate the vacuum cleaner without its dust tray (13) or without its HEPA filter case (14) (black foam filter (14a) and HEPA filter (14b)).
- Use original Moulinex filters only.
- Use original Moulinex accessories only.
- If you have any difficulties in finding accessories or filters for this vacuum cleaner, contact the Moulinex Customer Service.
- Switch off and unplug your vacuum cleaner each time after use.
- Always switch off and unplug your vacuum cleaner before maintenance or cleaning.

4. USE

Assembling the appliance

• Firmly place the tube (19) in the vacuum opening (10) and turn to screw on - fig.1. To withdraw the tube, turn in the opposite sense and pull - fig.2.
• If your vacuum cleaner is equipped with a telescopic tube (20): push the adjustment button forward, pull out the tube as much as necessary and then release the button to block it - fig. 3. Otherwise, assemble both tubes (21) by turning them slightly - fig. 4.
• Attach the tube extension* (22) if necessary.
• Fit the corresponding accessory to the end of the tube or butt:

WARNING: Always switch off and unplug your vacuum cleaner before changing any accessories.

• For rugs and carpets: use the multi-surface nozzle (23) in the retracted brush position (fig. 5) or the Turbobrush (fibers and animal hairs) (27^ or 28^*) .
• For wood and hard floors: use the multi-surface nozzle (23) in the exterior brush position (fig. 6) or, for best results, use the parquet nozzle* (24).
• For corners and hard to reach spots: use the crevice/brush nozzle (26) in the flat position.
• For upholstery and delicate surfaces: use the brush side of the crevice/brush nozzle (26) or the upholstery nozzle* (25).

Plugging in the power cord and starting the appliance

• Unwind the power cord completely, plug in your vacuum cleaner (fig. 7) and press the ON/OFF pedal. On/OFF (2) - fig. 8.
• Set the suction power using the manual power control located on the grip: increase the control opening in order to manually diminish the vacuuming power, for example on fragile surfaces... - fig. 9.

Storing and transporting the appliance

After use, switch off your vacuum cleaner by pressing the ON/OFF pedal (2) -fig. 8- and unplug it (fig. 10).
- Rewind the power cord by pressing the power cord rewind pedal (3) - fig. 11.
- In the vertical position, place the nozzle (23) in its compartment under the appliance (1b) - fig. 12.
- In the horizontal position, place the nozzle (23) in its compartment at the back of the appliance (1b) - fig. 13.
- Transport your vacuum cleaner easily thanks to its transport handle (6).

5. CLEANING AND MAINTENANCE

Important: Always switch off and unplug your vacuum cleaner before maintenance or cleaning. Warning: remember to stand over a bin every time you clean the dust tray.

Remove the dust tray (13)

• Withdraw the tube (19) from the vacuum opening (10) - Fig.2.
• Remove the dust tray (13) from its housing (7): take the tray handle (13a) and remove the tray - fig. 14.

1. EMPTY THE DUST TRAY

Important: Empty the dust tray (13) after each use.

• Press on the opening lever (13c) - fig. 15a—and then remove the lid - fig. 15b.
• Empty the tray over a bin - Fig. 16.
• Make sure that no dust remains inside the tray.
• Place the lid back: place the stops in their slots - fig. 17a - and close the lid - fig. 17b.
• Replace the tray (13) in its compartment (7) - Fig. 18.

2. CLEANING THE BLACK FOAM FILTER (14a)

Important! To optimise the performance of your vacuum cleaner, make sure you clean the foam (14a) each time you empty the dust tray (13).

• Pull simultaneously on the opening clips (13d) of the HEPA filter case - Fig.19.
• Separate the black foam filter (14a) from the HEPA filter (14b) - Fig. 20.
• Wash the black foam filter (14a) under the tap, squeeze it out like a sponge and leave to dry for 12 hours - fig. 21.

*Depending on model: it means special equipment for some models or optional accessories.

• Once the foam is completely dry, assemble the HEPA filter case (14): black foam filter (14a) and HEPA filter (14b) under the dust tray (13) - Fig. 22, then replace the dust tray inside its compartment (7) - Fig. 18.

Warning!

The black foam filter (14a) should only be put back into the appliance when it is completely dry. You can use your vacuum cleaner while the black foam filter (14a) is drying by using the replacement black foam filter (14abis).

3. CLEAN THE DUST TRAY (13) AND THE AIR/DUST SEPARATOR (15)

Important: Clean the dust tray (13) and the dust separator (15) every month.

• Press on the opening lever (13c) - fig. 15a—and then remove the lid - fig. 15b.
• Empty the tray over a bin - Fig. 23.
• Unlock the HEPA filter case (14) by simultaneously pulling on the opening clips (13d) located at either end of the dust tray - Fig. 24.
• Remove the HEPA filter case (14) - Fig. 25.
• Turn the compartment over and place the accessory (18b) into the lock slot of the air/dust separator base (17) - fig 26.
• Open, making sure to turn in the proper sense for unlocking (■) - Fig.27.
• Remove the dust separator base (16) - Fig. 28.
• Unclip then remove the air/dust separator (15) by turning it in the unlocking direction (■) - Fig.29.
• Then rinse the dust tray (13), the air/dust separator base (16) and the air/dust separator (15) with soapy water - Fig. 30.
• Dry them with a cloth - Fig. 31.
• Once dry, replace then clip the air/dust separator (15) on the air/dust separator base (16), following the right sense for locking () - Fig.32.
• Place them back on the dust tray (13) - fig 33.
• Place the accessory (18b) into the lock slot of the air/dust separator base (16) - fig 34.
• Close, making sure to turn in the proper sense for locking (■) - Fig.35.
• Clip the HEPA filter case (14) (black foam filter (14a) + HEPA filter (14b)) onto the tray - Fig. 36.
• Replace the tray (13) in its compartment (7) - Fig. 18.

4. CLEANING THE HEPA FILTER (14b)

The air we breathe contains particles that can be allergenic: lava and dust mite faeces, mould, pollen, smoke, and animal waste (hair, skin, saliva, urine). The finest of these particles penetrate deeply into the respiratory system, where they can cause inflammation and alter the respiratory function as a whole.

(H)EPA ([High] Efficiency Air Particle Filter) filters retain even the smallest particles. Thanks to the (H)EPA filter, the air that is expelled back into the room is cleaner than the air vacuumed.

Important!

Remember to clean the HEPA filter case (14) [black foam filter (14a) and HEPA filter (14b)] every month.

• Pull simultaneously on the opening clips (13d) of the HEPA filter case - Fig.19.
• Separate the black foam filter (14a) from the HEPA filter (14b) - Fig. 20.
• Turn the HEPA filter (14b) over and tap the dust into a dustbin - fig. 37.
• Then scrape the HEPA filter under warm water using the accessory (18b), then leave the HEPA filter to dry for 24h - Fig. 38.
• Once the foam is completely dry, assemble the HEPA filter case (14): black foam filter (14a) and HEPA filter (14b) under the dust tray (13) - Fig. 22, then replace the dust tray inside its compartment (7) - Fig. 18.
• Ensure that the HEPA filter (14b) is completely dry before you put it back in the appliance.

Warning! Make sure that the whole filter system is well placed before starting your appliance again.

5. REPLACE THE FILTERING SYSTEM

5.1. HEPA FILTER CASE (14) - Ref. MT0056.01

Important: Change the HEPA filter case (14) every 6 months.

The HEPA filter case (ref. MT0056.01 is available at your local retail store or at one of our Authorized Service Centres.

• Pull simultaneously on the opening clips (13d) of the HEPA filter case - Fig.19.
• Separate the black foam filter (14a) from the HEPA filter (14b) - Fig. 20.

• If the HEPA filter case (14) (black foam filter (14a) and HEPA filter (14b)) is damaged, throw it in the bin - Fig. 39 - and replace it with a new HEPA filter case (ref. MT0056.01).

• Assemble the HEPA filter case (14): black foam filter (14a) and HEPA filter (14b) under the dust tray (13) - Fig. 22, then replace the dust tray inside its compartment (7) - Fig. 18.

5.2.MICROFILTER (8A)-Ref.MT0056.01

Important: Change the microfilter* every 6 months.

The microfilter ref. MT0056.01 is available at your local retail store or at one of our Authorized Service Centres.

• Remove the motor protection grill (8b) - Fig. 40.
• Remove the microfilter (8a) - Fig. 41 - and keep the motor protection grill (8b).
• Throw the microfilter (8a) in the bin - Fig. 42.
• Place a new microfilter (8a) on the motor protection grill (8b) - Fig. 43.
• Slide the ledges into the slots - fig. 44.
• Screw on the motor protection grill (8b) - Fig. 45.
• Before placing back the dust tray, make sure that the motor protection grill is placed properly.

Cleaning the vacuum cleaner

• Wipe the body of the vacuum cleaner and accessories with a soft damp cloth, then dry.
• Wipe the lid with a dry cloth - fig. 46.
• Do not use any detergents, or corrosive or abrasive products.

6. TROUBLESHOOTING

Important: If you notice that your vacuum cleaner is not operating well, switch it off using the ON/OFF pedal before carrying out any checks.

If your vacuum cleaner will not start

• The appliance is not plugged in : check that the appliance is correctly plugged in.

If your vacuum cleaner has no suction power

• Either an accessory or the hose tube is partially blocked: unblock the accessory or the hose.
• Check that the dust tray is placed properly inside its compartment.

If your vacuum cleaner is not working properly, makes noise or whistles

• Either an accessory or the hose tube is partially blocked: unblock the accessory or the hose.
• The dust tray is full: empty it (see chapter on CLEANING AND MAINTENANCE).
• The filtration system is saturated: clean the HEPA filter case (14) (see chapter on CLEANING AND MAINTENANCE). If the problem persists, change the filtration system (see chapter on CLEANING AND MAINTENANCE).
• Make sure that the dust tray (13) is well positioned in the dust tray compartment (7).
• The manual vacuum power regulator on the grip is open: close it.

If it is difficult to move the nozzle

• Open the regulator on the handle in order to decrease suction power.
• Make sure that the position of the all-surface nozzle (23) corresponds to the floor being vacuumed:
• for rugs and carpets, use the nozzle in the retracted brush position,
• for parquets and smooth grounds, use the nozzle in the exterior brush position.

If the power cord does not wind completely

• The cord slowed down as it was winding up: pull the power cord out again and press the power cord wind button.

If your vacuum cleaner stops during vacuuming

• The thermal security system has been activated. Make sure that the hose or tube are not blocked and that the filters are not saturated. Let cool for 30 minutes before restarting the vacuum cleaner.

If a problem persists, take your vacuum cleaner to your local Moulinex Approved Service Centre or contact a Moulinex customer service office.

GUARANTEE

This appliance is for domestic use only; any misuse or use that does not conform to the instructions will release the brand from all liability and the guarantee will be cancelled.
- Always read the instructions carefully before using your appliance for the first time: use that does not conform to the instructions will release Moulinex from all liability.

1. ACCESSORIES*

ACCESSORIES*	USE	INSTALLING THE ACCESSORY	PLACES OF PURCHASE
Upholstery nozzle	For cleaning upholstery.	Fit the upholstery nozzle to the end of the tube.	Authorized Moulinex Service Centres
Crevic tool convertible into brush	For corners and hard to reach spots.	Fix the crevice tool convertible into brush to the end of the butt or tube.
Parquet nozzle	For delicate floors.	Fit the parquet nozzle to the end of the tube.
Mini turbo-brush	To deeply clean upholstery fabrics.	Fit the mini turbo-brush to the end of the tube.
Turbo-brush	For removing animal hairs and fibres embedded in rugs and carpets.	Fit the turbo-brush to the end of the tube.

8. ENVIRONMENT

According to current regulations, every device that is out of use must be made definitively unusable: Therefore, disconnect and cut the cord before throwing out the device.

Think of the environment!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

1. VEILIGHEIDSVOORSCHRIFTEN

aalal aalal alalal alalal

Jb cI 6

aI 1 aI I aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI

JaaJI Jc duiuiso aoo

ylll Jk jyj yjj

J 10

1 1

.37K- -Lalalalalalalalalalalalalalalalalalalalalalalalalal

.38K- -eLwYsJolal Jg.(18b) jall JaaaWlaaiaI aai HePA jis I

HEPA (14a)

1. - (7) 22 K- (13)

J 14b) HEPA

a:

5

MT0056.01 - (14) HEPA jia jia jia jia jia jia. 5.1

J (14b) HEPA Jg

a 0000000000000000000000000000000000000000000000000000000000000

19 Js-HEPA jilssb(13b)

.20J- (14b)HEPA jdsjgss

Lio jie jie (14b) HEPA 14a) (14d) (14) HEPA

.(MT0056.01：）HEPA j3a-39k-（13)HEPAj(14b)HEPAj(14a)J(14)HEPAj(14)

1. • (7) 423

MT0056.01 - (8a) jLgJs. 5.2

yj17 jbjgso Jj

. 1000000000000000000000000000000000000000000000

1. J_山 - (8b) 1

(8b)JdA 41. (8a)

1. - 8a

2. - (8b) duolal aLos 8a 8a

44.

1. J - (8b)

a

.

1. j_ -i__

14g j 1000000000000000000000000000000000000000000000000000000

(13)

1. - (10) 191

2. Jk- aill 13a) aill j: (7) (j: (13) jll

1

JLAAUJS JSEJULIJIILIJIIOO

15b. K一cb一g一p一 -15a.K一cb一 -13c)

1. J = 0

J 1

.17b.Jk-1blllglj-17aJk-1gauoaiiaaiaiaiaii

1. 山 山 - ( 7 )

(14a)

(14a)

(13) jLJI 1111111111111111111111111111

19 Jk-HEPA (13b)

.20K- (14b) HEPA jilj e jilj jilj jilj

21 Jk- aclv 17dol g k jg yiaiaa 14a

HEPA (14a) (14) HEPA (14)

1. J - (7) 432 Jk- (f3) 22 Jk- (f3)

1

i (14abis) jlll gwlj 14a

3

j58o(15) jll Jolag (13) jll a: pL

15b. K一一 [ 巴尔 ] 一 - 15 a . K一 (13 c) 一 [ 巴尔 ] 一 巴尔 ]

23.

1. k-100 jlll (13d) jk 100 100

2. (14) HEPA

3. JLI - (17)^ LI / Igg^ _LIIIIIIIIIIIIIIIIIIIII(18b)

4. -()

5. (16)

29K-（）cillaloljgljg15)ll/ogll"Jlaa

.30K-2yJLl (15)"J/ll/1gJ (16)J/ll/1gJ (13)JJ

31 J. -Jus 2023 2023 2023

alghbllg (16) Jalil lcl 15) "Jalil/ogll" Jalil bgl y k S. Iolai gnnl

1. k-（）JLssy

2. • (13)

3. (16) "Jz/0g" JzalaljIzai (18b)

4. k- (a) JlssuLJUurJgAolal aIgAul gauo

36 J-14b)HEPA j+14a) (14) HEPA j

1. (7) (13)

.

iie iie

1. 1

Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu

IaIbIySslll lllll jao aaiiaaij

y

(14) HEPA jiaaagbgsg (13) jaiiie aie gao gao aie aie aie aie

((14b)HEPA jIg (14a)Jg

MOULINEX

MOULINEX

MOULINEX Jauil duiu kaiol jldg o

JLaxiwl Jx yiljyll jg Lgol g 1

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

jlll lllllllllllllllllllllllllllllllllllllllllllll

(28g27) (Lulj gJgU) (5.

1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

(24) *LJI Jai jai (6.5u)

26) 1/5Jaa: Jll Jgll

.25* sall 1.26) sll jll /gjll sll jll sll jll Jaa: aagll bssll gk

a

J-2)ON/OFF 1g lge bgs.7. (7. k) ylll jy

.8.

aai jn jkaii sl baiil a gai i: jaiall gle ygssall ayll jyabwgl ydbsal a gds

1. k - a1 且 k a2 且 k a3 且 k a4 等于大自位

aill jg

1. 1. (2) ON/OFF a w d g e b i j t Jia jil Jie a y jy Sll

2. j_k = -j_k

3. - (3) allll alalwulgdu lalwbll bllllll

4. (23)

5. J - (1a) 20

(6. Jii) 1gJkuJauI 1aJauI aJauI aJauI aJauI aJauI aJauI aJauI

.5

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

ailll jae aale Jaa Jai Jlaal Jlaia aee

lll jlaaiaai llalil aai lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll

Joull MOULINEX

JL

. 1

L

jnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

1a aalg al gall. 0g jgl ggl ggl

Jai Jai Jai Jai Jai Jai Jai Jai Jai Jai Jai Jai Jai Jai Jai Jai Jai Jai Jai Jai

JiJjIaJUgauu JI Jmoulinex

\*

26 1-143 (17) Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz

27 y

28 - (16)

29 yj 15 (15) j/5/1g j

J (15) J (16) J (13)

30

31

(16) jzj/1gjwJyJ (15) jzj/1gjwJyJ,

32 yuai - 0 jL Jaa JyBwuaaiaaJiu

33-（13）

34 16-16

35 1

36 1- (14b)HEPA jla+14a) (14) HEPA

18 yai - 24 25 (7) j 143000000000000000000000000000000000000000000000000

(14b) HEPA jnnnns 4

1. jIe 2. JEE 3. JEE 4. JEE 5. JEE 6. JEE 7. JEE 8. JEE 9.

a 1

HEPA 1500000000000000000000000000000000000000000000000

a

p = 3

J 14b) HEPA g (14a) o w g (14) HEPA

19 y - 13d) 13d

20 1 (14b) HEPA 1 (14a)

37 -d- 14b)HEPA

24 1HEPA 18b) HEPA

38 ygai - 1s S i L a C

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

9y-…0iiicgbsyssyjy jyjdyjdy

okwJgSjLoo

1-8 20golal (2) golal/

(10

11 3(3)

12-（1b）

13 1 (23)

(6)

5

a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

i 1

（13）

1.2 10) (19)

14 -- 13a) (7) (13)

1

13)

HEPA jzbs 0s1rjzck-d

(MT0056.01:8) HEPA 14

3

Sduuus

a a a a a a a a a a a a a a a a a a a a a a a a a a a a

bla

j 1 j

15

aIbLaLdJzjgZdUgDgOgJdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUdUd

S OBC = S ABC + S_ BOC

jolajalalalalalalalalalalalalalalalalalalalalalalal

Jg 100000000000000000000000000000000000000000000000

A = B = C = 2 C = 23

(14a)HEPA (14)HEPA

Lc (14b) HEPA (14)

Moulinex Jl j 1

Moulinex Jolj jb

Moulinex

1

1

a 1

. 120

jla jla jla jla jla jla

1

aai i aai yai bai jaiiuiu laiaaa

sly sljbs jy jls bssj 1 aai
