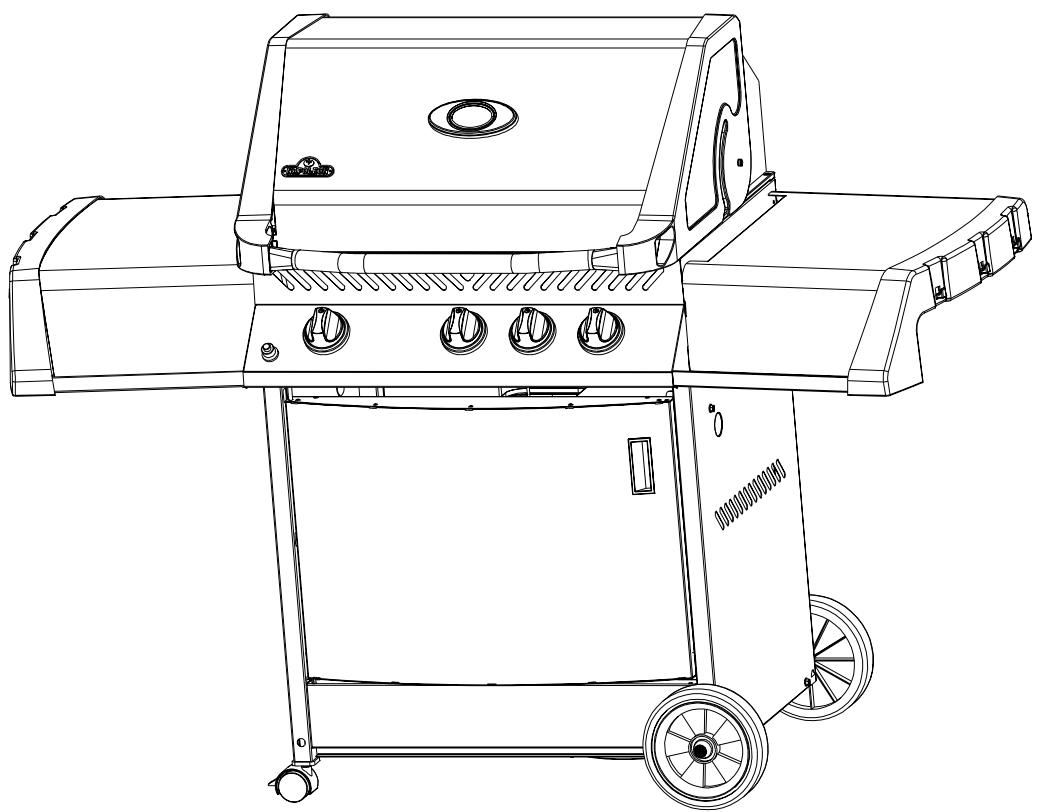

PRESTIGE II 308/450

MANUFACTURED BY / MANUFACTURE PAR / VERVAARDIGD DOOR: NAPOLEON APPLIANCE CORP.

214 Bayview Dr., BARRIE, ONTARIO, CANADA L4N 4Y8 PHONE: [phone]

FAX: [phone] email: [e-mail] WEB SITE: www.napoleongrills.com

CE

RETAIN THIS MANUAL FOR FUTURE REFERENCE
GARDER CE LIVRE POUR RÉFERENCES FUTURES
BEWAAR DEZE HANDLEIDING VOOR REFERENTIE
BITTE BEWAHREN SIE DIESE ANLEITUNG AUF
CONSERVARE ILPRESENTE MANUALE PER RIFERIMENTI FUTURI

GOURMET GRILLS

Award Winning Products

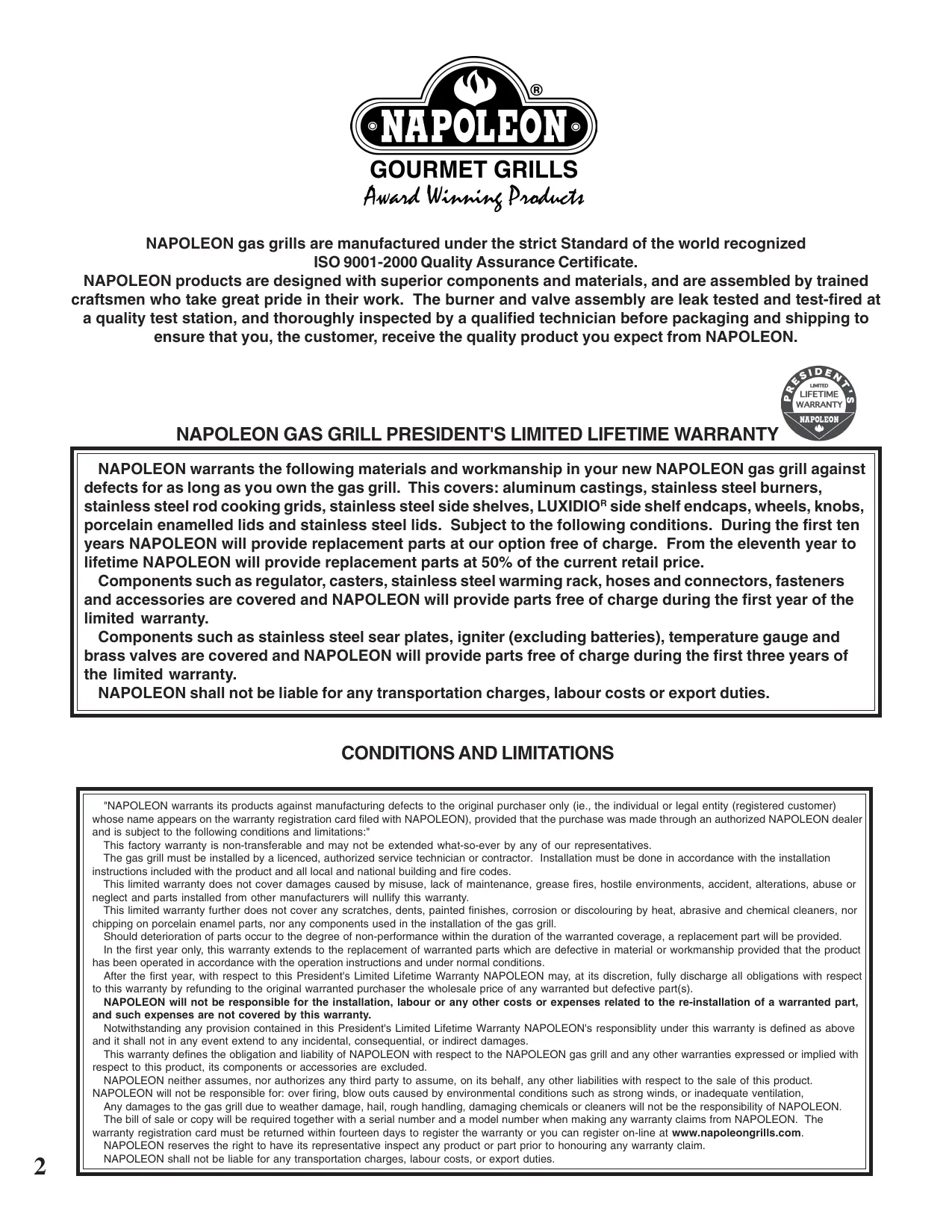

NAPOLEON gas grills are manufactured under the strict Standard of the world recognized ISO 9001-2000 Quality Assurance Certificate.

NAPOLEON products are designed with superior components and materials, and are assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak tested and test-fired at a quality test station, and thoroughly inspected by a qualified technician before packaging and shipping to ensure that you, the customer, receive the quality product you expect from NAPOLEON.

NAPOLEON GAS GRILL PRESIDENT'S LIMITED LIFETIME WARRANTY

NAPOLEON warrants the following materials and workmanship in your new NAPOLEON gas grill against defects for as long as you own the gas grill. This covers: aluminum castings, stainless steel burners, stainless steel rod cooking grids, stainless steel side shelves, LUXIDIO® side shelf encaps, wheels, knobs, porcelain enamelled lids and stainless steel lids. Subject to the following conditions. During the first ten years NAPOLEON will provide replacement parts at our option free of charge. From the eleventh year to lifetime NAPOLEON will provide replacement parts at 50% of the current retail price.

Components such as regulator, casters, stainless steel warming rack, hoses and connectors, fasteners and accessories are covered and NAPOLEON will provide parts free of charge during the first year of the limited warranty.

Components such as stainless steel sear plates, igniter (excluding batteries), temperature gauge and brass valves are covered and NAPOLEON will provide parts free of charge during the first three years of the limited warranty.

NAPOLEON shall not be liable for any transportation charges, labour costs or export duties.

CONDITIONS AND LIMITATIONS

"NAPOLEON warrants its products against manufacturing defects to the original purchaser only (ie., the individual or legal entity (registered customer) whose name appears on the warranty registration card filed with NAPOLEON), provided that the purchase was made through an authorized NAPOLEON dealer and is subject to the following conditions and limitations:"

This factory warranty is non-transferable and may not be extended what-so-ever by any of our representatives.

The gas grill must be installed by a licenced, authorized service technician or contractor. Installation must be done in accordance with the installation instructions included with the product and all local and national building and fire codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, grease fires, hostile environments, accident, alterations, abuse or neglect and parts installed from other manufacturers will nullify this warranty.

This limited warranty further does not cover any scratches, dents, painted finishes, corrosion or discolouring by heat, abrasive and chemical cleaners, nor chipping on porcelain enamel parts, nor any components used in the installation of the gas grill.

Should deterioration of parts occur to the degree of non-performance within the duration of the warranted coverage, a replacement part will be provided.

In the first year only, this warranty extends to the replacement of warranted parts which are defective in material or workmanship provided that the product has been operated in accordance with the operation instructions and under normal conditions.

After the first year, with respect to this President's Limited Lifetime Warranty NAPOLEON may, at its discretion, fully discharge all obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).

NAPOLEON will not be responsible for the installation, labour or any other costs or expenses related to the re-installation of a warranted part, and such expenses are not covered by this warranty.

Notwithstanding any provision contained in this President's Limited Lifetime Warranty NAPOLEON's responsibility under this warranty is defined as above and it shall not in any event extend to any incidental, consequential, or indirect damages.

This warranty defines the obligation and liability of NAPOLEON with respect to the NAPOLEON gas grill and any other warranties expressed or implied with respect to this product, its components or accessories are excluded.

NAPOLEON neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product.

NAPOLEON will not be responsible for: over firing, blow outs caused by environmental conditions such as strong winds, or inadequate ventilation,

Any damages to the gas grill due to weather damage, hail, rough handling, damaging chemicals or cleaners will not be the responsibility of NAPOLEON.

The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from NAPOLEON. The warranty registration card must be returned within fourteen days to register the warranty or you can register on-line at www.napoleongrills.com.

NAPOLEON reserves the right to have its representative inspect any product or part prior to honouring any warranty claim.

NAPOLEON shall not be liable for any transportation charges, labour costs, or export duties.

Do not try to light this appliance without reading "LIGHTING" instructions section of this manual.

WARNING

Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance. A gas cylinder not connected for use must not be stored in the vicinity of this or any other appliance. If the information in these instructions is not followed exactly, a fire or explosion may result, causing property damage, personal injury or death.

DANGER

IF YOU SMELL GAS:

• Shut off gas to the appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department

CAUTION

During unpacking and assembly it is recommended that you wear work gloves and safety glasses for your protection. Although we make every effort to make the assembly process as problem free and safe as possible, it is characteristic of fabricated steel parts that the edges and corners may be sharp and can cause cuts if handled incorrectly.

SAFE OPERATING PRACTICES

• This gas grill is not intended to be installed in or on recreational vehicles and/or boats.
• This gas grill must only be used outdoors in a well-ventilated space and must not be used inside a building, garage or any other enclosed area.
• Keep any electrical supply cord and fuel supply hose away from any heated surfaces.
• Inspect the fuel supply hose before each use. If there is evidence of excessive abrasion or wear or the hose is cut, it must be replaced, prior to using the gas grill, with a replacement hose assembly specified by the manufacturer.
• When the gas cylinder is not disconnected from the appliance, the gas grill and cylinder must be stored outdoors in a well ventilated space.

• Do not locate in windy settings. High winds adversely affect the cooking performance of the gas grill.

• Adults and especially children should be alerted to the hazards of high surface temperatures. Young children should be supervised near the gas grill.

• Under no circumstances should this gas grill be modified.
• Gas must be turned off at the gas cylinder when the gas grill is not in use.
• When the gas grill is to be stored indoors, the connection between the gas cylinder and the gas grill must be disconnected and the cylinder removed and stored outdoors in a well ventilated space out of reach of children. Disconnected cylinders must not be stored in a building, garage or any other enclosed area.
• The top lid is to be closed during the gas grill preheat period
• Do not use the condiment tray to store lighters, matches or other flammable materials.
• This gas grill is designed for outdoor use only.

IMPORTANT DO'S AND DON'TS

DO'S

• Read the entire instruction manual before operating the gas grill.
• Maintain proper clearance to combustibles (410mm to rear of unit, 180mm to sides). Additional clearance is recommended near vinyl siding or large panes of glass.
• Leak test the unit before initial use, annually and whenever any gas components are replaced.
• Follow lighting instructions carefully when operating grill. Burner controls must be off when turning supply cylinder valve on.
• Ensure sear plates are positioned properly according to sear plate installation instructions. The holes must be towards the front of the gas grill.
• Clean grease tray and sear plates regularly to avoid buildup which may lead to grease fires.
• Remove warming rack before lighting rear burner. (The extreme heat will damage the warming rack.)

DON'TS

• Do not route hose underneath drip pan - proper hose clearance to bottom of unit must be maintained.
• Do not use condiment tray to store lighters, matches or any other combustibles.
• Do not locate unit under unprotected combustible construction.
• Do not operate rear burner with main burners operating.
• Do not leave grill unattended when operating.
• Do not light burners with lid closed.
• Do not move grill when hot or operating.
• Do not use water to control flare-ups.
• Do not use a pressure washer to clean any part of the unit.

GAS CYLINDER

Use only gas cylinders which meet national and regional codes. The minimum cylinder size for butane units is 13kg , and for propane units is 6kg . Ensure that the cylinder can provide enough fuel to operate the appliance. If in doubt, check with your local gas supplier.

• Use caution when handling the cylinder valve.
• Never connect a cylinder which does not meet local codes.
• All cylinders 7kg or larger must be placed outside the enclosure (under the right side shelf) on level ground. Cylinders smaller than 7kg may be placed inside the enclosure, in the hole in the bottom shelf. Only cylinders connected to the appliance may be stored in the enclosure, or close to the appliance. Spare cylinders must not be stored in close proximity of an operating unit. Cylinders must not be exposed to extreme heat or direct sunlight.

IMPORTANT: Ensure that the hose is routed to maintain proper clearance to the underside of the unit. Hoses that contact high temperature surfaces may melt and leak, causing a fire.

CYLINDER CONNECTION: Ensure that the gas regulator hose is kink free. Remove the cap or plug from the cylinder fuel valve. Tighten regulator to cylinder valve. Leak test all joints prior to using the barbecue. A leak test must be performed annually, and each time a cylinder is hooked up, or if a part of the gas system is replaced.

GAS HOSE

• If the hose and regulator are not included by the manufacturer, then only hoses and regulators which meet national and regional codes are to be used.
• Do not connect the appliance to a permanent gas installation.
• Ensure that the hose does not come into contact with grease, other hot drippings, or any hot surfaces on the appliance.
• Check hose regularly. In the case of rips, melting or wear, replace hose before using the appliance.
• The recommended hose length is 0.5 m . The hose must not be longer than 1.5 m .
• Ensure that the hose is twist and kink free when installed.
• Replace the hose before expiry date printed on the hose.

DO NOT USE A FLAME TO LEAK TEST.

LEAK TESTING: This must be done before initial use, annually and whenever any gas components are replaced or serviced. No smoking while performing this test, and remove all sources of ignition. See Leak Testing Diagram for areas to check.

1. Turn all burners controls to off. Turn supply valve on.
2. Brush a half and half solution of liquid soap and water onto all joints and connections of the regulator, hose, manifolds and valves.
3. Bubbles will indicate a gas leak. Either tighten the loose joint or replace the part with one recommended by the dealer.
4. If the leak cannot be stopped, shut off the gas supply, disconnect it and have the barbecue inspected by your gas supplier or dealer. Do not use the appliance until the leak has been corrected.
5. Turn off gas supply.

REGULATOR

The following tables lists input values for the appliance.

308 UNITS	BURNER	ORIFICE SIZE		(GROSS) HEAT INPUT (TOTAL)	GAS USAGE (TOTAL)
		I	II
	MAIN	60	64	8.8 kW	640 g/h
	BACK	60	64	4.4 kW	320 g/h
	SIDE	61	66	4.0 kW	291 g/h
450 UNITS	BURNER	ORIFICE SIZE		(GROSS)HEAT INPUT (TOTAL)	GAS USAGE (TOTAL)
		I	II
	MAIN	61	65	12.3 kW	894 g/h
	BACK	58	63	4.7kW	342 g/h
	SIDE	61	66	4.0 kW	291 g/h

Certified Gases / Pressures - Check rating plate to ensure that it corresponds with following list.

Gas Category	I3B/P(30)	I3+(28-30/37)	I3B/P(50)
Orifice Sizes (see above)	I	I	II
Gases / Pressures	Butane 30mbar Propane 30mbar	Butane 28-30mbar Propane 37mbar	Butane 50mbar Propane 50mbar
Countries	DK, FI, NL, NO, SE	BE, ES, FR, GB, IE, IT, PT	DE, AT

The regulators for both butane and propane 308 units must have a rating of at least 1000g / h . The regulators for both butane and propane 450 units must have a rating of at least 1500g / h . Do not tamper with or modify regulator. Use only regulators which supply the pressure listed in the table above.

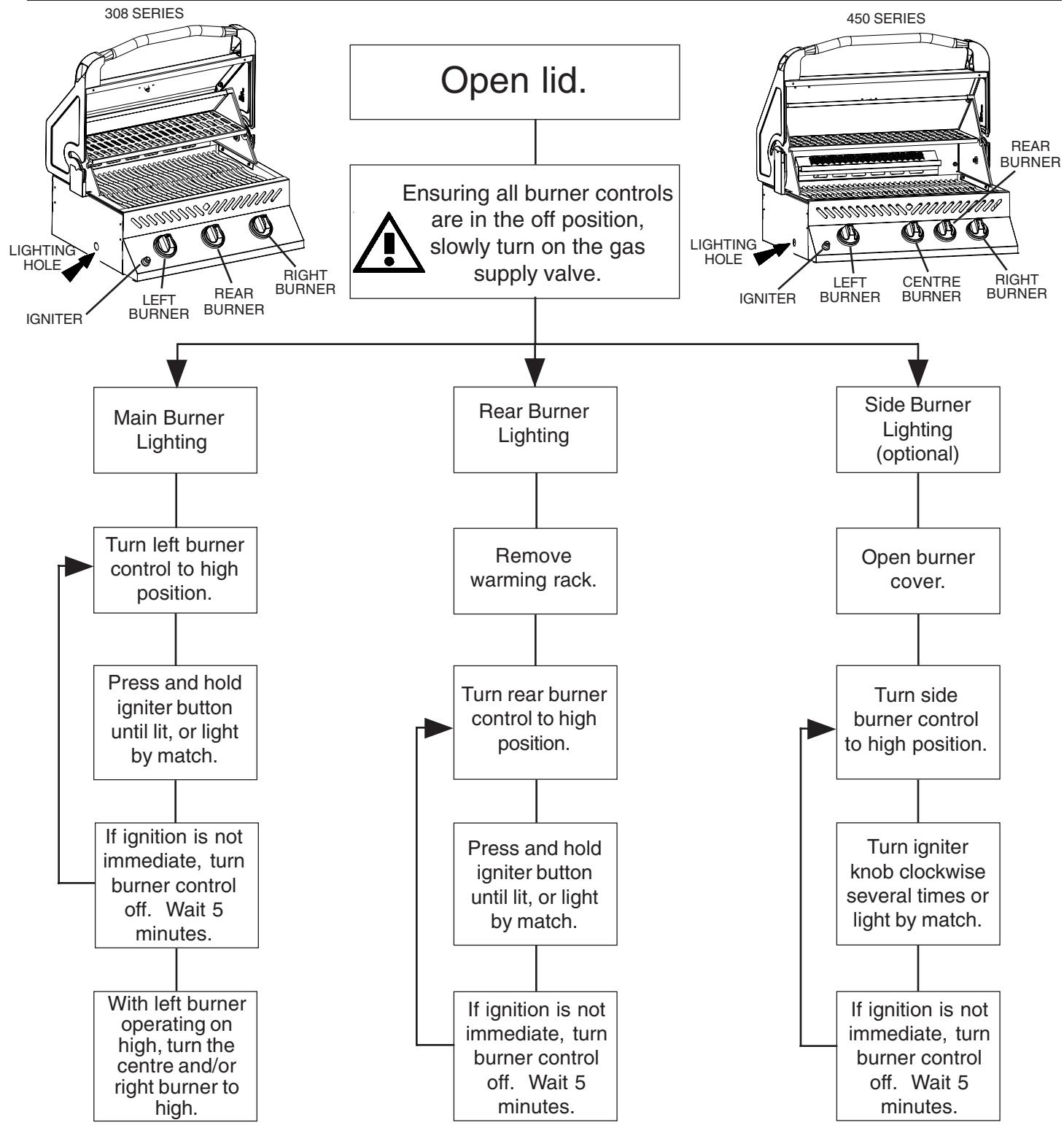

LIGHTING INSTRUCTIONS

Do not use back burner while operating main burner.

COOKING INSTRUCTIONS

When lit for the first time, the gas grill will emit a slight odour. This is a normal temporary condition caused by the "burn-in" of internal paints and lubricants used in the manufacturing process and will not occur again. Simply run the main burners on high for approximately 12 hour. When cooking very lean meats, such as chicken breasts, or lean pork, the grids can be oiled before pre-heating to reduce sticking. Cooking meat with a high degree of fat content, may create flare-ups. Either trim some fat or reduce temperatures to prevent this. Should a flare-up occur, move food away from flames, reduce heat. Leave the lid open. See 'Your All Season Grill' cookbook by Napoleon for more detailed instructions.

MAIN BURNER USE: When searing foods, preheating is recommended by operating all main burners in the high position with the lid closed for approximately 10 minutes. Food cooked for a short period of time (fish, vegetables) may be grilled with the lid open. Cooking with the lid closed will ensure higher, more even temperatures that will reduce cooking time and cook meat more evenly. Food that has a cooking time longer than 30 minutes, such as roasts, may be cooked indirectly (with the burner lit opposite to the food placement). When cooking very lean meats, such as chicken breasts, or lean pork, the grids can be oiled before pre-heating to reduce sticking. Cooking meat with a high degree of fat content, may create flare-ups. Either trim some fat or reduce temperatures to prevent this. Should a flare-up occur, move food away from flames, reduce heat. Leave the lid open. See 'Your All Season Grill' cookbook by Napoleon for more detailed instructions.

REAR BURNER USE: Remove the warming rack prior to use. Cooking grids should also be removed if they interfere with the rotisserie. This gas grill is equipped with a 4.4KW rear burner (308) and 4.7KW rear burner (450). The rear burner is designed to be used in conjunction with the rotisserie kit (included with rear burner units) available from your dealer. See the rotisserie kit assembly instructions. To use the counterbalance, remove the rotisserie motor from the gas grill. Place the spit with meat being cooked across the hangers inside the grill. The meat will naturally hang with the heavy side down. Tighten the counterbalance arm and weight, so that the arm is facing up. Slide the counterweight in or out to balance the load, and tighten in place. Re-install the motor and begin cooking. Place a dish underneath to collect drippings for basting and naturally delicious gravy. Basting liquid may be added as required. To seal in juices, first operate rear burner on high until brown, then reduce the heat to thoroughly cook foods. Keep the lid closed for best results. Your roasts and fowl will brown perfectly on the outside and stay moist and tender on the inside. For example, a 3 pound chicken on the rotisserie will be done in approximately 112 hours on medium to high. See 'Your all Season Grill' cookbook by Napoleon for more detailed instructions.

SIDE BURNER USE: The side burner can be used like any range top burner, for gravies, soups etc. The gas grill should be located so that the side burner is protected from the wind, because the wind will adversely affect it's performance. The recommended pan diameter is 200 to 250mm.

CLEANING INSTRUCTIONS

Ensure that the burners are turned off prior to cleaning. Avoid unprotected contact with hot surfaces. Clean grill in an area where cleaning solutions will not harm decks, lawns or patios. Do not use oven cleaner to clean any part of this gas grill. Do not use a self cleaning oven to clean cooking grids or any other parts of the gas grill. Barbecue sauce and salt can be corrosive and will cause rapid deterioration of the gas grill components unless cleaned regularly.

GRIDS AND WARMING RACK - The grids and warming rack are best cleaned during the pre-heat period with a soft brass wire brush. Steel wool can be used for stubborn stains. Stainless grids will discolour permanently from normal usage, due to the high temperature of the cooking surface.

CLEANING INSIDE THE GAS GRILL - Remove cooking grids. Use a soft brass wire brush to clean loose debris from casting sides and insides of the lid. Scrape sear plates with a putty knife or scraper, and use a wire brush to remove ash. Remove sear plates and brush debris off of burners with a brass wire brush. Brush all debris from inside the gas grill into the removable drip pan. Ensure that the sear plates are placed properly when they are reinstalled (Check assembly instructions for proper orientation).

DRIP PAN - Slide the drip pan out for easy cleaning. It should be cleaned frequently (every 4-5 uses) to avoid grease buildup. Grease and excess drippings pass through to the drip pan, located under the gas grill, and accumulate in the disposable grease tray below the drip pan. Accumulated grease can cause a fire hazard. Do not line the drip pan with aluminum foil or sand, as it can prevent the grease from flowing properly. The pan should be scraped out with a putty knife or scraper, and all the debris should be scraped into the disposable grease tray. This tray should be replaced every two to four weeks, depending on gas grill usage. For supplies, see your Napoleon Gas Grill dealer.

CLEANING THE OUTSIDE OF THE GAS GRILL - Do not use abrasive cleaners to clean any painted, porcelain or stainless steel parts. Porcelain enamel components must be handled with additional care. The baked on enamel finish is glass like, and will chip if struck. Touch-up enamel is available from your Napoleon Gas Grill dealer. Exterior grill surfaces should be cleaned while warm to the touch, with warm soapy water. To clean stainless surfaces, use a stainless steel cleaner or a non-abrasive cleaner. Always wipe in the direction of the grain. Do not use steel wool, as it will scratch the finish. Stainless steel parts will discolour when heated, usually to a golden or brown colour. This discolouration is normal and will not affect the performance of the grill.

MAINTENANCE INSTRUCTIONS

It is recommended that this gas grill be thoroughly inspected and serviced annually by a qualified service person.

Turn off the gas at the source and disconnect unit before servicing. Maintenance should only be done when the grill is cool, to avoid the possibility of burns. A leak test must be performed annually, and whenever any component of the gas train is replaced.

HOSE - Check for abrasion, melting, cuts and cracks. If any of these conditions exist, do not use gas grill. Have part replaced by your gas grill dealer, or qualified gas installer.

BURNER - The burner is made from heavy wall 304 stainless steel, but due to the extreme heat and corrosive environment, surface corrosion will occur. Use a brass wire brush to remove surface corrosion. Clean any blocked

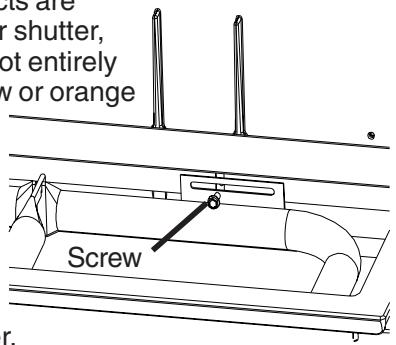

ports using an opened paper clip. Do not enlarge the burner ports. Spiders and insects are attracted to the smell of gas. The burner is equipped with an insect screen on the air shutter, which will reduce the likelihood of insects building nests inside the burner, but does not entirely eliminate the problem. The nest or web will cause the burner to burn with a soft yellow or orange

flame or cause a fire (flashback) at the air shutter underneath the control panel. To clean the inside of the burner, it must be removed from the gas grill. Remove the screw(s) located either in the center of the burner on 308 models, or above the burn to the left and right of the centre of the burner on 450 models. Lift back of burner upwards to remove. Use a flexible venturi tube cleaning brush to clean out the inside of the burner. Shake any loose debris out of the burner, through the gas inlet. Ensure that the insect screen is clean, tight, and free of any lint or other debris. Check also that the valve orifices are clean. Do not enlarge the orifices. Re-install the burn

Check that the valve enters the burner when installing. Replace burner cover and mounting screws to complete installation.

ALUMINUM CASTINGS - Clean castings periodically with warm soapy water. Aluminum will not rust, but due to high temperatures and weathering, oxidation can occur on aluminum surfaces. This will appear as white spots on the castings. To refinish the castings, clean them and sand lightly with fine sandpaper. Wipe surface to remove any residue, and paint with high temperature barbecue paint. Protect surrounding areas from over-spray. Follow curing directions found on the can.

TROUBLESHOOTING

Problem	Possible Causes	Solution
Low heat / Low flame when valve turned to high.	For propane - improper lighting procedure.	Ensure lighting procedure is followed carefully. All gas grill valves must be in the off position when the tank valve is turned on. Turn tank on slowly to allow pressure to equalize. See lighting instructions.
	For natural gas - undersized supply line.	Pipe must be sized according to installation code.
	For both gases - improper pre-heating.	Pre-heat grill with both main burners on high for 10 to 15 minutes.
Excessive flare-ups/uneven heat.	Sear plates installed incorrectly.Improper pre-heating.Excessive grease and ash build up on sear plates and in drip pan.	Ensure sear plates are installed with the holes towards the front, and the slots on the bottom. See assembly instructions.Pre-heat grill with both main burners on high for 10 to 15 minutes.Clean sear plates and drip pan regularly. Do not line pan with aluminum foil. Refer to cleaning instructions.
Burners burn with yellow flame, accompanied by the smell of gas.	Possible spider web or other debris, or improper air shutter adjustment.	Thoroughly clean burner by removing. See general maintenance instructions. Open air shutter slightly according to combustion air adjustment instructions.
Flames lift away from burner, accompanied by the smell of gas, and possibly difficulties in	Improper air shutter adjust-	Close air shutter slightly according to combustion air adjustment instructions.
Burner will not light with the igniter, but will light with a match.	Dead battery / or installed incorrectly.Loose electrode wire.Wrong replacement igniter.Improper gap at electrode tip.Lifting flames on burner.	Replace with heavy duty 'AAA' battery. Install with positive terminal up.Yes:Check that electrode wire is firmly pushed onto the terminal on the back of the igniter.One spark systems must use a one spark igniter.Ensure that the collector box is tight, and the gap between the electrode end and the collector box is between 1/8 - 3/16". The gap can be adjusted by bending the box in or out.Close air shutter slightly - see previous problem.
Humming regulator.	Normal occurrence on hot days.	This is not a defect. It is caused by internal vibrations in the regulator, and does not affect the performance or safety of the gas grill. Humming regulators will not be replaced.
Burners will not crosslight each other.	Plugged ports along back of burner.	Clean burner ports. See burner maintenance instructions.
"Paint" appears to be peeling inside lid or hood.	Grease build up on inside surfaces.	This is not a defect. The finish on the lid and hood is porcelain, and will not peel. The peeling is caused by hardened grease, which dries into paint-like shards, that will flake off.Regular cleaning will prevent this. See cleaning instructions.

ORDERING REPLACEMENT PARTS

Before contacting the customer service department, check the NAC web site for more extensive cleaning, maintenance, troubleshooting and part replacement instructions at www.napoleongrills.com. Contact the factory directly for replacement parts and warranty claims. The customer service department is available between 9 AM and 5 PM (Eastern standard time) at 1-705-725-4258 or fax at 1-705-727-4282. In order to process a claim, we must be provided with the following information:

1. Model and serial number of the unit.
2. Part number and description.
3. A concise description of the problem ('broken' is not sufficient).
4. Proof of purchase (photocopy of the invoice).

In some cases the customer service representative may request to have the parts returned to the factory for inspection, before providing replacement parts. The parts must be shipped prepaid to the attention of the customer service department with the following information:

1. Model and serial number of the unit.
2. A concise description of the problem ('broken' is not sufficient).
3. Proof of purchase (photocopy of the invoice).
4. Return Authorization number - provided by the customer service representative.

Before contacting customer service, kindly note that the following items are not covered by the warranty:

-costs for transportation, brokerage or export duties
-labor costs for removal and re-installation
-costs for service calls to diagnose problems
-discoloration of stainless steel parts
-part failure due to lack of cleaning and maintenance, or use of improper cleaners (ovencleaner).

GOURMET GRILLS

Award Winning Products

CONDITIONS ET LIMITATIONS

Award Winning Products

GOURMET GRILLS Award Winning Products

Award Winning Products

WITH A RUBBER Mallet.

SI NÉCESSAIRE, LE BARRE DE

TRAVERSE PEUT ETRE ENFONCE

AVEC UN MAILLET EN CAOUTCH-OUC.

HET DWARSBALK KAN INDIEN

NODIG METEEN RUBBEREN

TWO PEOPLE ARE REQUIRED FOR THIS STEP.

DEUX PERSONNNES SON NÉCESSAIRES POUR CETTE ÉTAPPE.

VOOR DEZE STAP ZIJN TWEE MENSEN NODIG

x-standard ac-accessory

x - compris

ac - accessoires

x - standard

ac - accessoire

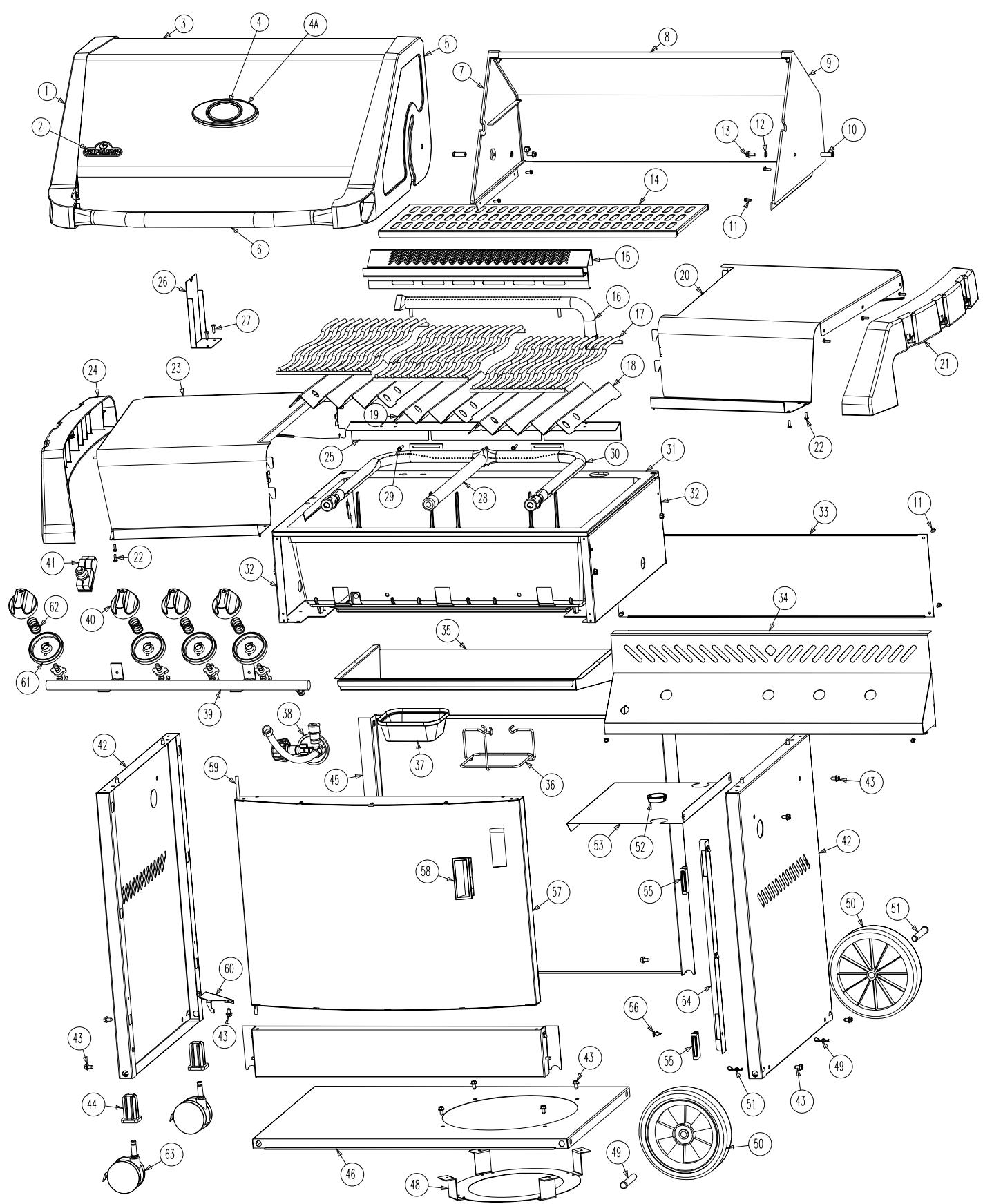

ITEM	308 PART #	450 PART #	DESCRIPTION
49	n485-0011	-	clevis pin / clavette en	x
	-	n015-0004	axe / essieu	x
	-	n450-0023	axe cap /,enjoliveur	x
50	n745-0007	n745-0007	wheel - each / roue (unité)	x
51	n485-0012	-	cotter pin / clavette d'arrêt	x
52	n105-0002	n105-0002	snap bushing / bague à pression	x
53	n585-0026p	n585-0025p	heat shield / pare-chaleur	x
54	n080-0131p	n080-0131p	magnet bracket / support à aiment	x
55	n430-0002	n430-0002	magnetic catch / loquet magnétique	x
56	n485-0009	n485-0009	push pin / clavette à pression	x
57a	n010-0395k	n010-0392k	cart door - black / portepour chariot - noir	x
57b	-	n010-0392b	cart door - blue / portepour chariot - bleu	x
57d	n010-0395ss	n010-0392ss	cart door - stainless steel / portepour chariot - en acier inoxydable	x
58	n325-0016	n325-0016	snap-in door handle / poignée de portepaur pression	x
59	n555-0012	n555-0012	door pivot rod / tige-pivot de porte	x
60	n080-0130p	n080-0130p	door stop bracket / support d'arrêt de porte	x
61	n051-0001	n051-0001	control knob bezel / monture de bouton de commande	x
62	n630-0003	n630-0003	bezel retaining spring / ressort de retenue de monture	x
63	n130-0010	n130-0010	caster - each / roulettes (unité)	x
	n240-0001	n240-0001	rear burner electrode / électrode du brûleur arrêté	x
	n240-0016	n240-0016	main burner electrode / électrode du brûleur principal	x
	n350-0054	n350-0054	collector box - main burner / boite du collecteur du brûleur principal	x
	n020-0118	n020-0114	main assembly baggie / prinical sac d'accessories pour le montage	x
	n370-0337	n370-0337	rotisserie kit / ensemble de la rôtissoire	x
	n555-0007	n555-0006	rotisserie spit / spit	x
	n435-0004	n435-0004	rotisserie motor DE/FR/NL / moteur de rôtissoire DE/FR/NL	x
	n435-0003	n435-0003	rotisserie motor - UK / moteur de rôtissoire UK/	x
	63161	63169	vinyl cover / housse en vinyle	ac
	56016	56018	stainless steel griddle / plaque de cuisson en acier inoxydable	ac
	67308	67450	charcoal tray / support à charbon	ac

x-standard ac-accessory

x - compris ac - accessoires

x - standardac - accessoire

Item	Onderdeelnr 308	Onderdeelnr 450	Omschrijving
1	n135-0018p	n135-0020p	gietwerk deksel, linkerzijde / Linke Seite des Deckelgussteils	x
2	n385-0129	n385-0129	NAPOLEON-Logo	x
	w 450-0005	w 450-0005	borqueren logo / Logohalterung	x
	n510-0002	n510-0002	zw arte silicone stootrand deksel / Deckelanschlag aus schw arzem Silicon	x
3a	n335-0018k	n335-0021k	zw art dekselinzetstuk /Deckeleinsatz aus Schw arzes	x
3b	-	n335-0021b	blauw dekselinzetstuk /Deckeleinsatz aus Blau	x
3d	n010-0480	n010-0435	roestvrijstalen dekselinzetstuk / Deckeleinsatz aus Rostfreiistahl	x
4	n685-0003	n685-0003	temperatuermeter / Thermometer	x
4a	n051-0002	n051-0002	ring bedieningsknop / Deckring für thermomter	x
5	n135-0019p	n135-0021p	gietwerk deksel, rechterzijde / Rechte Seite des Haubengussteils	x
6	n325-0025	n325-0026	handgreep deksel / Haubengriff	x
7	n135-0012p	n135-0015p	gietwerk deksel, linkerzijde kap / Linke Seite des Deckelgussteils Haube	x
8	n335-0017k	n335-0020k	kap / Haube	x
9	n135-0013p	n135-0016p	gietwerk deksel, rechterzijde kap / Rechte Seite des Haubengussteils Haube	x
10	n570-0015	n570-0015	scharnierschroeif deksel / Deckeldrehstift	x
11	n570-0008	n570-0008	#8 x 1/2" schroeif / Schraube #8 x 1/2 Zoll	x
12	n735-0002	n735-0002	1/4" sluitrig / Sicherungsscheibe, 1/4 Zoll	x
13	n570-0024	n570-0024	1/4-20 x 1/2" schroeif / Schraube 1/4-20 x 1/2 Zoll	x
14	n520-0017	n520-0018	warmhoudrek / Warmhaltefläche	x
15	n350-0025	n010-0229	behuiizing achterste brandier / Gehäuse des hinteren Brenners	x
16	n100-0003	n100-0003	achterste brandier / Hinterer Brenner	x
17	n305-0031	n305-0026	grillroosters - roestvrijstalen stang / Grillroste - Stangen aus Rostfreiistahl	x
18	n305-0055/56	n305-0021	kookplaat -linke/rechter / Anbratplatte Linke/Rechter	x
19	-	n305-0022	kookplaat -middeste / Anbratplatte Mittlerer	x
20	n590-0137	n590-0139	roestvrijstalen zijrek, rechts / Seitenablage aus Rostfreiistahl, rechts	x
21	n120-0005	n120-0007	LUXIDIO-zijrek, eindstop, rechts / LUXIDIO-Endkappe der Seitenablage, rechts	x
22	n570-0076	n570-0076	schroeif #8 x 1/2" / Schraube #8 x 1/2 Zoll	x
23	n590-0136	n590-0138	roestvrijstalen zijrek, links / Seitenablage aus Rostfreiistahl,links	x
24	n120-0004	n120-0006	LUXIDIO-zijrek, eindstop, links / LUXIDIO-Endkappe der Seitenablage, links	x
25	n200-0026	n200-0028	afscheming gegen vet, brander / Fettschild für den Brenner	x
26	n475-0053	n475-0056	spit, montage / Drehspießhalter	x
27	n570-0039	n570-0039	#10 x 3/4" schroeif / Schraube, #10 x 3/4 Zoll	x
28	-	n100-0010	middeste brandier / Mittlerer Raubrenner, Haupt	x
29	n570-0021	n570-0021	#8 x 1" schroeif / Schraube, #8 x 1Zoll	x
30	n100-0005	n100-0009	buisbrander / Rohrbrenner, Haupt	x
31	n135-0011p	n135-0014p	basis / Grundrahen	x
32	n080-0136p	n080-0132p	beugel, montage apparaat / Haltew inkel	x
33	n200-0064p	n200-0063p	deksel achteraan / Rückw and	x
34	n475-0135	n475-0131	bedieningspaneel / Bedienbrett	x
35	n710-0037	n710-0038	lekbak / Troppfanne	x
36	n160-0006p	n160-0006p	houver vekkommetje / Halter der Fettschale	x
37	62007	62007	reservevetakommetjes (5 stufs) / Einweg-Fettschalen (5 Stück)	ac
38	n530-0012	n530-0012	gasslang / Gastroevoerslang /regelaar UK	x
	n345-0004	n345-0004	gasslang / Gastroevoerslang NL	x
	n345-0006	n345-0006	gasslang / Gastroevoerslang FR	x
	n345-0004	n345-0004	gasslang / Gastroevoerslang DE	x
	n725-0009	n725-0009	klep hoofbrander / Haupt Brennerventil	x
	n725-0007	n725-0007	klep anschterste brandier / Hinterer Brennerventil	x
	n455-0017	n455-0013	nr.60 opening hoofdbrander / #61Düse, Haupt brenner (30 mbar)	x
	n455-0014	n455-0023	nr.64 opening hoofdbrander / #65 Düse, Haupt brenner (50 mbar)	x
	n455-0021	n455-0024	opening achterste brandier (nr. 60) / #58Düse, hinter brenner (30 mbar)	x
	n455-0001	n455-0005	opening achterste brandier (nr. 64) / #63 Düse, hinter brenner (50 mbar)	x
	n432-0007	n432-0008	buis verdeelstuk met beugels / Verteilerrohr mit Halterung	x
Item	Onderdeelin r 308	Onderdeelnr 450	Omschrijving
	n255-0001	n255-0001	elleboogstuk (90 garden) / 90 Grad Biegung 3/8 F bis 1/2 FP	x
	n720-0023	n720-0026	toevoerbuis anschterste brander / Hinterers Brennesufuhrrohr	x
40	n380-0009	n380-0009	bedieningsknop, hoofdbrander / Einstellknopf, Hauptbrenner	x
41	n357-0014	n357-0014	elektronische ontsteking / Elektronische Zündung	x
42	n475-0163p	n475-0205p	karbehuizing, links/rechts / Wagenumfassung, links / rechts	x
43	n570-0026	n570-0026	#14 x 1/2" schroef / Schraube, #14 x 1/2 Zoll	x
44	n510-0006	n510-0006	w ieltjes / Rolle Stecker	x
45	n475-0133p	n475-0129p	achterste paneel - kar / Wagenrückw and	x
46a	n590-0108p	n590-0155p	onderste rek - propaan / Bodenregal - Propan	x
47	n525-0007p	n525-0006p	dw arsbalk vooraan/achteraan / Querträger hinteren / vorn	x
48	n010-0491p	n010-0491p	steun flesring / Flaschenmontageklammern	x
49	n485-0011	n485-0011	Trekhaak speld	x
	-	n015-0004	as / Achse	x
	-	n450-0023	asdop / Achsemutter	x
50	n745-0007	n745-0007	w iel / Rad	x
51	n485-0012	n485-0012	Splitpen	x
52	n105-0002	n105-0002	bus klikverbinding / Einsetzbuchse	x
53	n585-0026p	n585-0025p	hitteschem / Hitzeschild	x
54	n080-0131p	n080-0131p	beugel, magneet / Türstopper magnet	x
55	n430-0002	n430-0002	magnetische sluiting /Magnetverschluss	x
56	n485-0009	n485-0009	duw stift / drücken Sie Stift	x
57a	n010-0395k	n010-0392k	zw art deur karretje / Wagentür Schw arzes	x
57b	-	n010-0392b	blauw deur karretje / Wagentür Blau	x
57d	n010-0395ss	n010-0392ss	roestvrijstalen deur karretje / Wagentür	x
58	n325-0016	n325-0016	inklkbare deurhandgreep / Türgriff	x
59	n555-0012	n555-0012	scharnierstang deur / Türscharnierstange	x
60	n080-0130p	n080-0130p	beugel deurstuiter / Türstopper	x
61	n051-0001	n051-0001	bus klikverbinding / Einsetzbuchse	x
62	n630-0003	n630-0003	ring opsluitveer / Haltefeder für Deckring	x
63	n130-0010	n130-0010	zw enkw ieltje / Rolle	x
	n240-0001	n240-0001	elektrode,achterste brander / Hinterer Brenner-Elektrode	x
	n240-0016	n240-0016	elektrode, buisbrander / Haupt Brenner-Elektrode	x
	n350-0054	n350-0054	behuzing - hoofdbrander / Sammelbehälter - Hauptbrenner	x
	n020-0118	n020-0114	hoofdconstructie - zakje / Packbeutel	x
	n370-0337	n370-0337	spit / Drehspieß-Baugruppe	x
	n555-0007	n555-0006	spitstang / Spießstange	x
	n435-0004	n435-0004	Drehspieß-Baugruppe Motor DE/FR/NL	x
	n435-0003	n435-0003	Drehspieß-Baugruppe Motor UK	x
	63161	63169	vinyl afdekhoeis / Vinylabdeckung	ac
	56016	56018	roestvrijstalen kookplaat / Grillblech aus Rostfreiistahl	ac
	67308	67450	bakje houtskool / Holzkohlenkorb	ac

X - Standard

ac-accessorie/Zubehör

ARTICOLO	MOD. 308	MOD. 450	DESCRIZIONE
1	n135-0018p	n135-0020p	PARTE LATERALE SINISTRA COPERCHIO	x
2	n385-0129	n385-0129	LOGO NAPOLEON	x
	w 450-0005	w 450-0005	FISSAGGIO LOGO	x
	n510-0002	n510-0002	MANIGLIA IN SILICONE NERO COPERCHIO	x
3a	n335-0018k	n335-0021k	POMELLO NERO COPERCHIO	x
3b	-	n335-0021b	POMELLO BLU COPERCHIO	x
3d	n010-0480	n010-0435	POMELLO IN ACCIAIO INOX COPERCHIO	x
4	n685-0003	n685-0003	MISURA TORE DI TEMPERATUREA	x
4a	n051-0002	n051-0002	MONTATURA PER TERMOMETRO	x
5	n135-0019p	n135-0021p	PARTE LATERALE DESTRA COPERCHIO	x
6	n325-0025	n325-0026	MANIGLIA COPERCHIO	x
7	n135-0012p	n135-0015p	GANCIO DELLA PARTE SINISTRA	x
8	n335-0017k	n335-0020k	GANCIO POMELLO	x
9	n135-0013p	n135-0016p	GANCIO PARTE DESTRA	x
10	n570-0015	n570-0015	VITE COPERCHIO PIVOT	x
11	n570-0008	n570-0008	VITE 8 x 1/2"	x
12	n735-0002	n735-0002	RONDELLA A U 1/4"	x
13	n570-0024	n570-0024	VITE 1/4-20 x 1/2"	x
14	n520-0017	n520-0018	GRIGIA DI RISCLAMENTO	x
15	n350-0025	n010-0229	ALLOGGIO DEL BRUCIatore POSTERIOINFRA ROSSI	x
16	n100-0003	n100-0003	BRUCIatore POSTERIOREXX	x
17	n305-0031	n305-0026	GRIGIE DI COTTURA IN ACCIAIS INROSSIDABILE	x
18	n305-0055/56	n305-0021	PIASTRA BRUCIatore SINISTRO / DESTRO	x
19	-	n305-0022	PIASTRA BRUCIatore CENTRALE	x
20	n590-0137	n590-0139	TAVOLETTA DESTRA IN ACCIAIO INOX	x
21	n120-0005	n120-0007	CAPUCchio IN LUXIDIO TAVOLETTA LATERALE DESTRA	x
22	n570-0076	n570-0076	VITE 8 x 1/2"	x
23	n590-0136	n590-0138	TAVOLETTA LATERALE SINISTRA IN ACCIAO INOX	x
24	n120-0004	n120-0006	CAPPUCCIO IN LUXIDIO TAVOLETTA LATERALE SINISTRA	x
25	n200-0026	n200-0028	PLACCA DEL FORNO	x
26	n475-0053	n475-0056	SUPPORTO PER IL GRILL	x
27	n570-0039	n570-0039	VITE 10 x 3/4"	x
28	-	n100-0010	BRUCIatore CENTRALE PRINCIPALE	x
29	n570-0021	n570-0021	VITE 8-32 x 3/4"	x
30	n100-0005	n100-0009	BRUCIatore SINISTRO/DESTRO PRINCIPALE	x
31	n135-0011p	n135-0014p	COPERCHIO BASE	x
32	n080-0136p	n080-0132p	SUPPORTO PER SFISSAGGIO DELL'UNITA'	x
33	n200-0064p	n200-0063p	COPERCHIO POSTERIORE	x
	n385-0025	n385-0025	PLACCA DI OMLOGAZIONE	x
34	n475-0135	n475-0131	PANELLO DI CONTROLLO	x
35	n710-0037	n710-0038	SGOCCIOLATOIO	x
36	n160-0006p	n160-0006p	VASSOI IN SOSTITUTZIONE (5 PEZZI)AC	x
37	62007	62007	VASSOI IN SOSTITUTZIONE (5 PEZZI)AC	ac
38	n345-0005	n345-0005	TUBO FLESSIBLE DELL'APPROVVISIONALimento DI GAS	x
	n725-0009	n725-0009	VALVOLA PRINCIPALE DEL BRUCIatore	x
	n725-0007	n725-0007	VALVOLA POSTERIORE DEL BRUCIatore	x
	n455-0017	n455-0013	BOCCA DEL BRUCIatore PRINCIPALE (30MBAR)	x
	n455-0021	n455-0024	BOCCA DEL BRUCIatore POSTERIORE (30MBAR)	x
	n432-0007	n432-0008	COLLETTORE	x
	n255-0001	n255-0001	90 GOMITO (3/8 F to 1/2 FP)	x
	n720-0023	n720-0026	TUBO DI RIFORNIMENTO POSTERIORE DEL BRUCIatore	x
40	n380-0009	n380-0009	PULSANTE DI CONTROLLO BRUCIatore	x
41	n357-0014	n357-0014	ACCENDione ELETTRONICA-2 SCINTILLE	x
42	n475-0163p	n475-0205p	PANELLO PER CARRELLINO SINISTRO/DESTRO	x
43	n570-0026	n570-0026	VITE 14 x 1/2"	x
43	n570-0026	n570-0026	VITE 14 x 1/2"	x
44	n510-0006	n510-0006	ATTACCO PER SPIEDO - UNITA	x
45	n475-0133p	n475-0129p	PANNELLO DI CHIUSURA FRONTALE PER CARRELLO	x
46a	n590-0108p	n590-0155p	TAVOLETTA INFERiore	x
47	n525-0007p	n525-0006p	BARRA TRAVERSALE POSTERiore	x
48	n010-0491p	n010-0491p	SUPPORTO PER BOMBOLA PP	x
49	n485-0011	-	CHIAVETTA A U	x
	-	n015-0004	ASSE	x
	-	n450-0023	PROTEZIONE DELL'ASSE	x
50	n745-0007	n745-0007	RUOTA ( UNITA')	x
51	n485-0012	-	CHIAVETTA PERNO	x
52	n105-0002	n105-0002	BOCCOLA A PRESSIONE	x
53	n585-0026p	n585-0025p	PARA-CALORE PP	x
54	n080-0131p	n080-0131p	SUPPORTO MAGNETICO	x
55	n430-0002	n430-0002	BLOCCO MAGNETICO	x
56	n485-0009	n485-0009	PERNO A PRESSIONE	x
57a	n010-0395k	n010-0392k	PORTELLO CARRELLO-NERO	x
57b	-	n010-0392b	PORTELLO CARRELLO-BLU	x
57d	n010-0395ss	n010-0392ss	PORTELLO CARRELLO IN ACCIAIO INossIDABILE	x
58	n325-0016	n325-0016	PIGNONE A PRESSIONE PER PORTELLO	x
59	n555-0012	n555-0012	ASTA PORTELLO PIVOT	x
60	n080-0130p	n080-0130p	SUPPORTO FERMO PORTELLO	x
61	n051-0001	n051-0001	MONTANTE DEL PULSANTE COMANDO	x
62	n630-0003	n630-0003	INCASTONATURA PER MONTANTE	x
63	n130-0010	n130-0010	ROTELLA - UNITA'	x
	n240-0001	n240-0001	ELETTRODO DEL BRUCIatore POSTERiore	x
	n240-0016	n240-0016	ELETTRODO DEL BRUCIatore PRINCIPALE	x
	n350-0054	n350-0054	SCATOLA COLLETTORE-BRUCAITORE PRINCIPALE	x
	n020-0118	n020-0114	SACCHETTO ACCESSORI PER MONTAGGIO	x
	n370-0337	n370-0337	KIT PER SPIEDO	x
	n555-0007	n555-0006	SPUTO ROD DI ROTISSERIE	x
	n435-0004	n435-0004	MOTORE DI ROTISSERIE	x
	63161	63169	COPERCHIO IN VINILE	ac
	56016	56018	GRIGLIA IN ACCIAIO INOX	ac
	67308	67450	VASSOIO PER CARBONELLA	ac

x-standard ac-accessori

NAPOLEON APPLIANCE CORPORATION ACCESSORIES / PARTS ORDER FORM

FAX TO: 1-705-727-4282

PLEASE PRINT CLEARLY

CUSTOMER NAME: DATE:

ADDRESS: MODEL #:

SERIAL #:

TELEPHONE:

VISA OR MASTERCARD #: EXPIRY DATE:

QUANTITY	PRODUCT NUMBER	DESCRIPTION

TAXES & SHIPPING CHARGES MAY APPLY
