USER MANUAL BI32, BI12 & BI10, BIG32, BIG38 & BIG44, BIB10, BIB12 & BIB18 NAPOLEON GRILLS

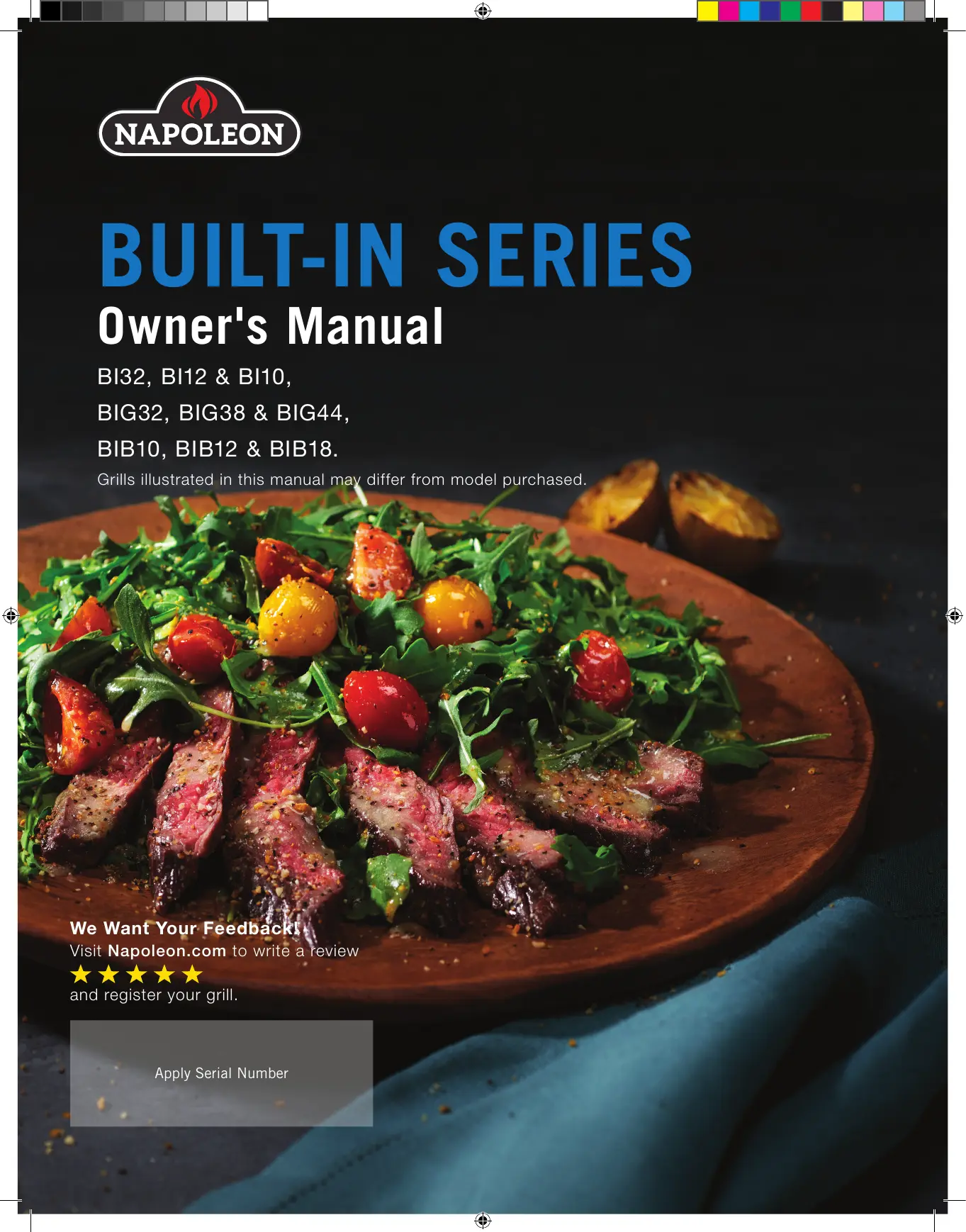

BUILT-IN SERIES Owner's Manual B132, BI12 & B110, BIG32, BIG38 & BIG44, BIB10, BIB12 & BIB18. Grills illustrated in this manual may differ from model purchased. Visit Napoleon.com to writ kHkHRkkX and register your grill. Apply Serial Number

DANGER! à WARNING! à IF YOU SMELL GAS: Do not try to light this appliance without reading the “LIGHTING” instructions section of this manual e__ Shut off gas to the appliance Do not store or use gasoline, or other flammable liquids o_ EtnguiEh any een EME or vapors in the vicinity of this or any other appliance o Genltl A gas cylinder not connected for use must not be + __lf odor continues, keep away from the appliance stored in the vicinity of this or any other appliance and immediately call your gas supplier, or fire : : : . department. If the information in these instructions is not followed exactly, a fire or explosion may result and cause property damage, personal injury, or death U PE À Alert adults and children about the hazard of hot surface temperatures. Supervise young children near the grill. NOTICE TO INSTALLER: Leave these instructions with the grill owner for future reference. NOTICE TO CONSUMER: Keep these instructions for future reference. 2 Welcome Napoleon.com | BUILT-IN Series

À | | | & Welcome to Napoleon! SareTy FIRST CONTENTS À WARNING! General Information This grill should be installed in conformity with local codes. Welcome to Napoleon! 3 A WARNING! Electrical Precautions Keep all electrical supply cords and fuel supply hoses away from Safety First all heated surfaces. Full System Features 4 First connect all electrical components to appliance, then plug into outlet. Use only a Ground Fault Interrupter (GFI) protected circuit with Getting Started 5 this outdoor cooking appliance. Never remove the grounding plug. Use only extension cords that have Cut-Out Dimensions been rated for the power of the equipment and approved for outdoor use with W-A marking. Gas Connections Leak Test WARNING! Installation & Assembly Assemble this grill exactly as instructed in the Assembly Operation 10 Guide. If the grill was assembled in-store, review the assembly instructions to ensure it is done correctly. Lighting your grill Perform the required Leak Test before operating the grill. Grilling Instructions Do not modify this grill under any circumstances. How to use the Rear Burner & Rotisserie Only use the pressure regulator and hose assembly supplied with this grill or replacement parts specifically recommended by Napoleon. Pi WARNING! Operation The Grilling Experience Checklist How to season cast iron cooking grids Read this entire Owner's Manual before operating this grill. Infrared Grilling Guide 16 Leak Test this grill before each use, annually and when any gas components are replaced. Cleaning Instructions 17 & Follow the lighting instructions carefully. À WARNING! Storage & Disuse Maintenance Instructions 20 Turn off gas at the supply valve. Combustion in air adjustment Disconnect the hose between the gas cylinder and grill. Stainless in harsh environments Remove the gas cylinder and store outdoors in a well-ventilated space . away from children. Troubleshooting 22 DO NOT store gas cylinders in a building, garage, shed, or any other enclosed space. WARNING! Correct Product Disposal Warranty 25 This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to EE promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Diagram for Electrical Connections

Full System Features ACCU-PROBE” Temperature Gauge to easily read the temperature for perfect results Dual Rear Infrared Rotisserie Burner. Perfect for high heat searing and slow spit roasting Construction for flawless installation and long lasting quality Dual Range Top Burner for versatile grilling options to create delicious side dishes, sauces and more Instant JETFIRE lgnition for quick and ease start-up Heavy Gauge Stainless Steel Q—_ | Large chrome plated g————— Warming Rack for increased cooking area Large stainless steel Iconic WAVE” rod Seamless Stainless Steel ç——— cooking grids with dual position for those distinctive sear marks Dual-level Stainless Steel Sear Plates for consistent even heating and vaporizing drippings for more flavourful food Cooking system with dedicated Dual infrared SIZZLE ZONE” Burner for perfectly grilled steaks Rotisserie mount brackets for Burners for long LL, convenient assembly on both lasting quality Collapsible rotisserie forks pack neatly in the e— sides of grill Back-lit Control Knobs storage compartment for late night entertaining Integrated storage for rotisserie KES —— Easy access to drip pan with for more * stainless steel roller bearings convenience 4 | Features for efficient maintenance 1 le grills illustrated in this Owner's Manual may differ from the model you purchased. Featured model: BIG 44 Napoleon.com | BUILT-IN Series

DANGER / WARNING! Advises of a hazard that A could result in a fire, explosion, death or serious physical injury. WANING / CAUTION! Advises of a hazard that could result in minor physical injury or property damage. Wear protective gloves. © Wear safety glasses. & CAUTION! Hot surface. AoDiTIONAL SAFE OPERATING PRACTICES + Do not route the hose underneath the drip pan. Maintain proper hose clearance to the bottom of the unit. + Ensure sear plates are positioned properly according to sear plate installation instructions. + Burner controls must be off when turning the propane cylinder valve on. + Do not light burners with the lid closed. + Do not operate the rear burner(s) with the main burners. + Do not close the side burner lid when operating or hot. + Do not deep fry food on the side burner. + Do not adjust the cooking grids when operating or hot. + Maintenance should only be done when the grill is cool. + Do not store lighters, matches or any other combustibles in the condiment tray. + Keep all electrical supply cords and fuel supply hoses away from all heated surfaces. + Clean the grease tray, drip pan, and sear plates regularly to avoid build-up and grease fires. Important information Do not smoke while performing a gas leak test. Sparks or flames will cause a fire, explosion, damage to property, serious physical injury, or death. Never use an open flame to check for gas leaks. Sparks or flames will cause a fire, explosion, damage to property, serious physical injury, or death. DANGER! immediately shut off the gas supply and disconnect. Keep the infrared burner and main burner venturi tubes free from spider webs and other obstructions by inspecting and cleaning it regularly. Do not allow cold water (rain, sprinkler, hose etc.) to contact the heated grill. An immediate temperature change will chip the porcelain and crack the ceramic burners. Do not use a pressure washer to clean any part of the grill. Do not locate this grill where it can be exposed to high winds, especially when the wind can come from directly behind the grill. Never cover more than 75% of the cooking surface with solid metal Always maintain à minimum wall distance to combustibles of 17" (431mm) to the rear and 9" (228.6mm) to the sides. BIB18PB requires a minimum of 17" (431mm) to the rear and 20" (508mm) to the sides. Always maintain a minimum distance of 17" (431mm) between other additional appliances. CAUTION! The hook-up and installation of the gas and hose connection must be performed by a licensed gas fitter, and leak tested before operating the grill. CAUTION! Ensure the hoses do not contact any high temperature surfaces of the grill. CAUTION! Do not move the grill when operating and hot. Napoleon.com | BUILT-IN Series Getting Started | 5 [eq]

Minimum 10 sq.in. of ventilation (64.5 cm) Ur A = 6.5" (16.5 CM) li : un B= 6.5" (16.5 CM) WARNING! The cabinet frame, the cabinet and the counter top MUST be made from non-combustible material when the appliance is not installed with the Zero Clearance Liner corresponding to your unit. Refer to the parts list in your Assembly Guide for specific information. (| 6 1 Getting Started Napoleon.com | BUILT-IN Series

Gas ConNECTIONS Gas Cylinder Use a propane cylinder of minimum 6 kg or a butane cylinder of 13 kg constructed and marked in accordance with national and regional codes. Ensure that the cylinder can provide enough fuel to operate the appliance. If in doubt, check with your local gas supplier. Note: For optimal performance, operate the grill on propane gas. Only cylinders connected to the appliance may be stored in the enclosure. Only place cylinders within the maximum width and height dimensions in the built in enclosure. Spare cylinders must not be stored in the enclosure, or in close proximity with an operating unit. paye]S Sue) Gas Hose Use a gas pressure regulator and hose supplied by Napoleon: if not included, use a regulator and hose that meet national and regional codes. ‘applicable to: The recommended length of the hose is 0.9 m. The hose must never be longer na) than 1.5 m. Check the hose regularly for rips melting or wear. Replace if needed. Note: The hose should be replaced before the expiry date printed on it. WARNING! The connectors must be of rigid pipe, copper tube or approved flexible metal which must comply with Z21.24/CSA 6.10 or ANSI Z21.75/CSA 6.27 Hook-up and Installation

1. Check the cylinder for dents or rust, and have it inspected by your

propane supplier. Never use a cylinder with a damaged valve. . Place the cylinder in its designated area in the enclosure. . Ensure the gas regulator hose has no twists or kinks. . Remove the cap or plug from the cylinder fuel valve. . Tighten the regulator to the cylinder valve. o uw & & D . Ensure the hose does not contact with the drip pan or any high temperature surfaces of the grill because it will melt and cause a fire.

7. Ensure the cylinder is not left exposed to extreme heat or direct (Cane)

sunlight. (B1B 18/2/10)

8. Leak test all joints prior to operating the grill. See “Leak Test”.

Applicable to: (BIB 18/12/10) WARNING! Do not store a spare gas cylinder below the grill head or side burners. WARNING! Never use a gas cylinder that is beyond 80% full. WARNING! Follow all specifications and instructions exactly to prevent fire, explosion, property damage, personal injury, or death. WARNING! Disconnect the grill and its individual shutoff valve from the gas supply piping system during any pressure testing in excess of 72 psi (3.5 kPa).

Napoleon.com | BUILT-IN Series Getting Started 1 7

Built-in Enclosure be leak tested inside. or hazardous materials. surface. + The design of the enclosure should allow for the gas cylinder to be connected, disconnected, and the connections inspected and tested outside of it. The connections that could possibly be disturbed when installing the cylinder in the enclosure can + The cylinder must be isolated from the grill enclosure, and protected from radiation, flames, hot drippings, and other foreign + A door on the enclosure to access the cylinder is acceptable if it is non-locking and can be opened without using tools. + There must be a minimum clearance of 2 in (5.08 cm) between the floor of the cylinder enclosure and the ground. + Ensure there are at least two unobstructed ventilation openings on the exposed exterior side of enclosure, one within 5 inches (12.7 cm) of the top of the enclosure, and another within 1 inch (2.54 cm) of the cylinder opening's bottom + The top opening must have a total free area of more than 20 in” (130 cm°) for a 20 Ib (9.1 kg) cylinder and 30 in” (195 cm) for a 30 Ib (13.6 kg) cylinder + The bottom opening must have a total free area of more than 10 in” (65 cm‘) for a 20 Ib (9.1 kg) cylinder and 15 in (100 cm) for a 30 Ib (13.6 kg) cylinder. + The upper edge must be no more than 5 in (127 mm) above the floor level. + Every opening must be large enough to permit the entrance of a 1/8 in (3.2 mm) rod. + The opening must have a free area depending on the cylinder size: Maximum Cylinder Dimensions «306 mm

WARNING! Close the individual shutoff valve to isolate the grill from the gas supply piping system during any pressure testing equal to or less than 2 Psi (3.5 kPa). WARNING! Check the hose for evidence of excessive abrasion, melting, cuts or cracks. If the hose is damaged, it must be replaced with an assembly specifically recommended by Napoleon. 8 1 Getting Started Napoleon.com | BUILT-IN Series

LEak TEST Why and When to Leak Test? A leak test confirms no gas is escaping after you connect the hose to the gas supply. Each time the tank is refilled and reinstalled, ensure that there are no leaks in the fitting where the regulator connects to the tank. Leak test this grill before use, annually, and when any gas components are replaced. Leak Test Steps

1. Do not smoke while performing the test.

. Remove all sources of ignition. . Turn all burner controls to the off position. . Turn the gas supply valve on. ü PB &w D . Brush a half-and-half solution liquid soap and water onto all joints and connections of the regulator, hose, manifolds, and valves.

Tighten any loose joints. If the leak cannot be stopped, immediately shut off the gas supply and disconnect the grill. . Have the grill inspected by a certified installer, or dealer. . Do not use the grill until the leak has been fixed. WARNING! Never use an open flame to check for gas leaks. Sparks or flames will cause a fire, explosion, damage to property, serious physical injury, or death. WARNING! Only use the pressure regulator and hose assembly supplied with the grill, or one in conformi local codes. Napoleon.com | BUILT-IN Series Getting Started | 9 [eq]

Is it the very first time? Perform a Burn-off Remove warming rack and run the main burners on high for [==] - -1s 30 minutes. It is normal for the grill to emit an odor the first D = Grer time it is lit. This odor is caused by the “burn-off” of internal Burner l EE | Burner paints and lubricants used in the manufacturing process and ë ( F TETE will not occur again. \ | in hi ju il Main Burner Lighting

1. Open grill lid. lgniter

2. Push and slowly turn any main burner knob counter

clockwise to HIGH position until pilot lights. Continue to push down on the control knob until the burner lights and Le Centre Rim Cnte then release. L. Le Burner Left Burner Bumer _R. Right Burner A ve HOCCOO Lights

3. If the pilot does not light - immediately turn the control

knob clockwise to the OFF position. Repeat step 2.

4. If the pilot and burner will not light in 5 seconds - turn the

control knob clockwise to the OFF position. Wait 5 minutes for gas to dissipate. Repeat steps 2 and 3, or light with a match. (Fig. 1) » AN » AN (asus Do not use the rear burner while operating the main burner. (] Rear Burner Lighting (if equipped) & 1. Open grill lid.

2. Remove warming rack.

3. Push and slowly turn rear burner knob counter clockwise to HIGH

4. Press and hold igniter button until the burner lights, or light by match.

5. If the burner will not light — turn burner control knob clockwise to the

1. Open burner cover.

2. Push and slowly turn side burner knob counter clockwise to HIGH

3. Press and hold igniter button until the burner lights, or light by match.

4. If the burner will not ignite — turn burner control knob clockwise to the

OFF position. Wait 5 minutes. Repeat step 2 and 3. (Fig. 2) Lighting with a match

1. Clip the match into the supplied lighting rod.

2. Insert the lit match through the cooking grids and sear plates

3. While turning the corresponding burner knob to high. (Fig. 3)

WARNING! Ensure all burner controls are in the OFF position before slowly turning on gas supply valve. WARNING! Follow the lighting instructions carefully. WARNING! Make sure the lid of the grill is OPEN while igniting. WARNING! Do not adjust the cooking grids while the grill is hot, or operating. !

10 1 Operation Napoleon.com | BUILT-IN Series

GRILLING INSTRUCTIONS Main Burner Use + Preheat the grill before searing food by operating all main * Food that takes longer than 30 minutes such as roasts can be burners on high with the lid closed for approximately 10 cooked indirectly with the burner lit opposite the food. See Indirect minutes. Grilling. + Food cooked for only a short time such as fish and + Trim excess fat off meat to prevent flare-ups, or reduce the © vegetables can be grilled with the lid open. temperature of the grill. D + Grilling with the lid closed ensures higher and consistent *Flare ups — move food away from the flames and reduce the heat. S temperatures that cook meat more evenly and can reduce Leave the lid open. + cooking times. le]

+ The cooking grids can be oiled before preheating to reduce sticking when grilling lean meat such as chicken breast, or pork. Direct Grilling This method is often used for searing, or food cooked for only a short time such as hamburgers, steaks, chicken, or vegetables. [| bé 6 6 [| Place food on the cooking grids directly over the heat. Sear meat first to trap-in the juices and flavor. NSNSN2272777 ; : Ce Lower the grill temperature to finish cooking to your preference. : (e) Ce) (e) © @2© }

LL Tr Indirect Grilling This method uses lower temperatures and circulates heat around the & food cooking it slowly and evenly. Use this method to cook larger cuts [| of meat, or food prone to flare-ups such as roast, chicken, or turkey. [| bé bé bé Turn one or more burners on and place food on the cooking grid where there is no flame, or burner on. ANNXKXKXKXKX4 Grilling at a lower temperature and slower cooking time results in more CE CO) © 82 ° e tender meats. |

Infrared Main Burner Use (If equipped) BE Follow the “Main Burner Lighting” Instructions and operate on high for CAREFUL! 5 minutes with the lid closed or until the ceramic burners glow red. es Cook the food directly on the grid(s) following the directions on the Tue did of the ent and “Infrared Grilling Guide". Food can be seared on the infrared burner es Te and then transferred to the main burners of the grill to finish cooking become very hot when over direct or indirect heat, depending on your taste and preference. in use. WARNING! Never grill food directly on the flame side burner. It is designed for use with pots and pans only. WARNING! Do not close side burner lid while it is operating or hot. WARNING! Do not deep fry food on the side burner. Cooking with oil can be dangerous. WARNING! Regularly clean grease out of the entire unit, including the grease tray and the sear plates, to avoid build-up and grease fires. A) Napoleon.com | BUILT-IN Series Operation | 11

Et 1] & n 2 __ Hs! Flame Side Burner (If equipped) The flame side burner can be used like a stove top to make gravy or soups. The recommended pot or pan diameter is 10" (25 cm). Be sure your grill is in a location protected from the wind, or the performance of the side burner will be affected. Infrared Side Burner (If equipped) To operate, follow the “Side Burner Lighting” instructions. The infrared heat provides an even cooking area for searing food when it's set to high. To cook like a stove top use a lower temperature with pans of 10” (25 cm) to 12” (30 cm) in diameter, being careful to not cover more than 75% of the surface Some side burner models have a height-adjustable cooking grid. Power Burner (If Equipped) The power burner has 2 concentric burners. Use pots with a minimum of 10" (25 cm) diameter when using the center burner, and a minimum of 14" (35.5 cm) diameter when using the outer burner. For wok cooking , remove the center ring from the cooking grate. Respect the minimum pot sizes for inner and outer burners. Note: Never leave a burner on without a filled pot or pan above it Grilling at Night (If applicable) Illuminate the control knobs by pushing the light bulb icon on the control panel. When a burner is operating, the corresponding knob will glow red, while the rest will remain blue. GRILLING PRO TIP! GRILLING PRO TIP! Add a Napoleon smoker accessory to your gril to check the internal temperature of meat to flavor your eat. to ensure it is cooked perfectiy. WARNING! Do not leave food unattended on any lit burners. WARNING! Keep the lid open if main infrared burner is set on high to prevent accidentally burning food. ! 12 1 Operation Napoleon.com | BUILT-IN Series

the mounting bracket(s). Some models have pre-mounted brackets.

2. Once the bracket has been fastened to the grill, slide the

rotisserie motor onto the bracket.

3. Slide the first rotisserie fork just past the middle of the spit

rod and tighten into place. Thread the meat onto the spit rod and push the meat into the fork. Slide the second rotisserie fork on the opposite end of the spit rod and push the fork into the meat until secure. Tighten the fork into place. BIG 44 Spit Rod: Option 1 + The rotisserie motor can be mounted on either side of the . grill using the mounting bracket. + __Be sure to remove the warming rack depending on which . side you wish to cook on. BIG 44 Spit Rod: Option 2 + With the purchase of the rotisserie add-on accessory, you are able to have two rotisseries operating at the same time for more cooking convenience. + Be sure to remove both warming racks and install the additional rotisserie motor to the opposite side. + Follow instructions 3-4 from ‘Using the Rear Burner and Rotisserie Kit' to load both spit rods. + Place a metal dish under the meat to collect the drippings. Napoleon.com | BUILT-IN Series

4. Carefully insert the pointed end of the spit rod into

the rotisserie motor and set the opposite end across the hangers. The heavy side of the meat will naturally hang down to balance the load.

5. Slide the stop bushing onto the spit rod until it is past

the inside of the hood. This will secure the side to side movement of the spit rod.

6. Tighten the stop bushing and spit rod handle. Place a

metal dish under the meat to collect the drippings. IMPORTANT! Always wear gloves when handling components of the grill. Follow instructions 3-4 from ‘Using the Rear Burner and Rotisserie Kit’. Place a metal dish under the meat to collect the drippings. Operation | 13

Spit Rod: Option 3 After removing both warming racks and installing the rotisserie motor, you need to remove the Rotisserie Support Arm. Carefully remove the two fasteners securing the Rotisserie Support Arm to the grill. Once the Rotisserie Support Arm has been removed, install the rod extension by inserting the threaded end and turning clockwise into the corresponding end of the spit rod. Follow steps 3-6 from "Using the Rear Burner and Rotisserie Kit'. Tips about using the Rotisserie: Operate the rear burner on high until the meat browns. Reduce heat. Keep lid closed. Use a thermometer to check the internal temperature of the meat. Roasts and poultry should brown on the outside and stay tender on the inside. Use drippings to baste and make gravy. À 3-pound chicken takes approximately 1 12 hours on medium to high. Be mindful of your rotisserie motor capacity. Never overload your equipment. Be sure to always set an evenly balanced load on your rotisserie. How to cook multiple chickens

3. Thread first chicken onto spit rod until

it is held into place by the rotisserie fork. Tighten. . Thread next 2 chickens onto spit rod 50 all the chickens are close together. . Slide second rotisserie fork onto spit rod and push into chicken until all 3 chickens are squeezed together tightly. Tighten.

Removing Support Arm DID YOU KNOW? You can remove the cooking grids if they interfere with cooking larger cuts of meat. WARNING! Disassemble rotisserie components when finished cooking, wash with warm soapy water, and store indoors. WARNING! Use heat resistant grilling gloves when handling the hot rotisserie components. WARNING! Disconnect rotisserie plug from the outlet when the grill is not in use. fsss\ 14 1 Operation Napoleon.com | BUILT-IN Series

Refer to this list every time you grill Q Read Owner’s Manual Be sure to have read the owner's manual and all the safety instructions. Q Clean grease tray Always ensure you clean the grease tray prior to grilling to avoid fires and flare-ups. Q Check the hose Ensure the grill is off and cool. Check the hose for evidence of excessive abrasions, or cuts. Have the hose replaced before use if the hose is damaged. Q Preheat and clean grids Coat the grids with vegetable shortening and preheat your grill to burn off excess residue and prevent sticking. Clean cast iron grids with a brass wire brush and stainless steel grids with a stainless brush. See "Cleaning Instructions". NOTE: Stainless steel cooking grids are corrosion resistant and require less maintenance than cast iron grids. Q Prep area Make sure everything you need while grilling such as your utensils, seasonings, sauces, and dishes are within your reach. Don't leave your food unattended, or it could burn. Q Don't peek and flip once Try not to open the lid and peek too much, or heat will escape and throw your temperature and cooking times off. Flip your food only once, especially steak and chicken. Q Leave space Leave some space on the grill and between food, so you have room to move food around if you need to. Q Use a thermometer Use a thermometer to ensure food is cooked thoroughly. Follow the appropriate temperatures guidelines for all types of meat, especially poultry. GRILLING PRO TIP!

recipes and grilling techniques at www.napoleon.com and Napoleon's cookbooks. GRILLING PRO TIP! Always preheat the grill before cooking to burn off leftover residue and prevent food from sticking to the grate.

SUGGESTION! Grapeseed Oil Sunflower Oil Soybean Oil Extra Virgin Olive Oil + Canola Oil M not available, select an oil or fat that has a high smoke point. Do not use salted fats like butter or margarine.

1. Remove cast iron grids from the grill.

This procedure MUST be done prior to first use and repeated every 3-4 uses to keep grids looking new.

5. Install cooking grids and cook for 30 minutes.

2. Wash grids with warm soapy water and soft cloth.

Pat dry and allow grids to completely dry.

6. Apply a second even coat of fat/oil on cooking grids,

and keep cooking for 30 more minutes.

3. Apply fat/oil evenly using a silicone brush on both 7. Grids are now seasoned.

sides. NOTE: If rust has formed on the cast iron grids, remove the rust with scouring pad or brass brush and repeat the seasoning process. U ss Napoleon.com | BUILT-IN Series

4. Preheat appliance to

Infrared Grilling Guide COOKING TIME SUGGESTIONS Steak 1 inch (2.54 cm) thick Hamburger Ye inch (1.27 cm) thick HIGH - 2 minutes each side HIGH to MEDIUM - High heat 2 minutes each side then turn to medium heat HIGH - 2 minutes each side HIGH -— 2 12 minutes each side HIGH -— 3 minutes each side Rare — 4 minutes Medium — 6 minutes Ask for marbled fat in cut. Fat is a natural tenderizer -{ and keeps meat juicy. Well done - 8 minutes Rare — 4 minutes Medium — 5 minutes Well done - 6 minutes Keep patties all the same thickness for equal cooking times. Patties 1 inch thick or more should be grilled using {indirect heat. Pork Chops

HIGH, MEDIUM, LOW - 2

minutes each side then medium-low to low heat MEDIUM

6 minutes each side Slice joint connecting the thigh and leg %4 through for the meat to lie flat on the burner and cook evenly. Choose thick cuts for more tender meat. Trim off excess fat. Spare Ribs HIGH to LOW -— High for 5 minutes then low until finished 20 minutes each side turning often Choose lean meaty ribs. Grill until meat pulls easily from the bone. Lamb Chops HIGH to MEDIUM - High for 5 minutes then Medium until finished 15 minutes each side Choose thick cuts for more tender meat. Trim off excess fat

Hot dogs MEDIUM to LOW 4-6 minutes Select larger wieners and slit lengthwise before grilling 16 1 Grilling Guide Napoleon.com | BUILT-IN Series

À | | | & Cleaning Instructions First Time Use

1. Wash grids by hand with water and mild dish soap to remove

any residue from the manufacturing process. DO NOT wash in a dishwasher.

2. Rinse thoroughly with hot water and dry completely with a soft cloth

to prevent moisture from entering the cast iron. Cast Iron Grids + Season your grids to add a protective coating to prevent corrosion See Grilling Tips - How to Season your Cast Iron Cooking Grids.

Stainless Steel Grids + Stainless steel cooking grids can be cleaned by preheating the grill and using a wire brush to remove residue. + Stainless steel grids will permanently discolor from regular use because of high temperatures when grilling. Infrared Side Burner +. Most drippings and food particles that fall on the infrared burner surface incinerates immediately because of the high intensity heat. + Do not clean the ceramic tile with a wire brush. + Do not use water or other liquids to clean the burner. An immediate change in temperature will cause cracking of the ceramic tile. + Light burner and operate on high for 5-10 minutes to remove any left-over residue. Inside of the Grill LA 1. Remove the cooking grids.

2. Use a brass wire brush to clean loose debris from the sides and

3. Scrape the sear plates with a putty knife or scraper. Use a wire

brush to remove the ash.

4. Remove the sear plates and brush debris from the burners with a

5. Sweep debris from inside the grill into the drip pan.

WARNING! Always wear protective gloves and safety glasses when cleaning your grill. WARNING! Accumulated grease is a fire hazard. WARNING! Cleaning should only be done when the grill is cool to avoid the possibility of = e)(2) À Napoleon.com | BUILT-IN Series Cleaning | 17

Drip Pan Every grill head, side burner and drop-in burner have a corresponding drip pan. It is easily accessible through doors or openings. + Grease and excess drippings collect in the drip pan located beneath the grill and accumulate in the disposable grease tray below the drip pan {if applicable). + Only use Napoleon approved liners on the drip pan. Never use aluminum foil, sand or any other unapproved material. This can prevent grease from flowing properly. + Clean frequently to avoid grease build-up — approximately every 4-5 uses. Cleaning steps:

1. Slide the drip pan from the grill to access the

disposable grease tray or to clean the drip pan.

2. Scrape the drip pan out with a putty knife or scraper.

3. Replace the disposable grease tray every 2-4 weeks

depending on grill usage (if applicable).

4. See your Napoleon Grill dealer for supplies.

Control Panel ONLY use warm soapy water. Text is printed directly on the control panel and will gradually rub off if abrasive or stainless steel cleaners are used. Proper cleaning of the control panel will ensure the text remains dark and legible. Aluminum Castings Clean with warm soapy water. Aluminum doesn't rust, but high temperatures and weathering can cause oxidization on the surface of the castings that look like white spots. See “Maintenance Instructions” for more information on how to prevent oxidized aluminum. Outside Grill Surface + Only use a stainless steel non-abrasive cleaner. Abrasive cleaners or steel wool will scratch the finish. + Always wipe in the direction of the grain. + Handie porcelain enamel components with care. + The baked-on enamel finish is glass-like and will chip if struck. + Stainless steel parts discolor overtime when heated and will turn a golden or brown hue. This is normal and won't affect the performance of the grill. WARNING! Ensure all burners are turned off and grill is cool before cleaning. Do not use oven cleaner to clean any part of the grill. Do not put cooking grids or any other parts of the grill in a self-cleaning oven to clean. Clean the grill in an area where cleaning solution won't harm decks, lawns, or patios. WARNING! Barbecue sauce and salt can be corrosive and will cause rapid deterioration of the grill components unless cleaned regularly. ! 18 1 Cleaning Napoleon.com | BUILT-IN Series

Insect Screen and Burner Ports Spiders and insects are attracted to small enclosed spaces. Napoleon has equipped the burner with an insect screen on the air shutter. This reduces the likelihood of insects building nests inside the burner, but doesn't eliminate the problem. A nest or web can cause the burner flame to burn a soft yellow or orange and cause a fire or flashback at the air shutter underneath the control panel.

1. Remove the screw (s) that attaches the burner to the back

wall of the grill. Slide the burner back and upwards to remove.

2. Use a flexible venturi tube brush to clean the inside of the

3. Shake loose debris from the burner through the gas inlet.

4. Check the burner ports and valve orifices for blockages:

burner ports can close over time because of cooking debris and corrosion.

5. Use an opened paper clip, or the supplied port maintenance

bit to clean burner ports.

6. Drill out blocked ports using the supplied drill bit in a small

cordless drill: this can be done with the burner attached to the grill, but it's easier if removed from the grill.

7. Do not flex the drill bit when drilling the ports because the

drill bit will break.

8. This drill bit is for burner ports NOT for brass orifices that

regulate the gas flow to the burner.

9. Do not enlarge the holes

10. Ensure the insect screen is clean, tight, and free of any lint

11. Reverse the procedure to reinstall the burner.

12. Ensure the valve enters the burner when installing.

13. Replace sear plate mount and tighten screws to complete

re-installation. Always wear protective gloves and safety glasses when servicing your grill. WARNING! It is very important the valve/orifice enters the burner tube when reinstalling the burner after cleaning and before lighting your grill, or a fire or explosion could occur. WARNING! Avoid unprotected contact with hot surfaces. WARNING! Do not use abrasive cleaners or steel wool on any painted, porcelain, or stainless steel parts of your grill because it will scratch the finish. Napoleon.com | BUILT-IN Series Cleaning | 19

Maintenance Instructions Recommendations This grill should be thoroughly inspected and serviced annually by a qualified service person. +. Do not obstruct the flow of ventilation and combustion air. + Keep the cylinder enclosure ventilation openings located on the side of the cart or enclosure and front and back of the bottom shelf clear from debris. (arme: Keep the grill away from combustible materials, gasoline, and other flammable vapors and liquids.

FLAME APPEARANCE ! IMPORTANT! Orifice changes and air shutter adjustments must :J always be done by a qualified gas installer. Light Blue Yellow Tip + The flames should always look dark blue, tipped with light blue and occasionally yellow. € € Dark Blue + Too little air flow to the burner will produce soot and lazy yellow flames. + Too much air flow to the burner will cause flames to lift erratically and cause igniting difficulties. See “Troubleshooting”. + The air shutter is factory set and should not require adjusting under normal conditions. Adjustments might be required under extreme field conditions. Note: Infrared burners have no air adjustment. 11 11 11 Burner Port TECHNICAL Data The following table lists Gross heat input and Gas usage values per unit:

À | | | & n 2 __ Hs! The following table lists all certified gases and pressures. Verify the information on the rating plate corresponds with this list. Note: Only use regulators that supply the pressure listed here. Gas Category Larao Issesaonn Iran Lamsor Butane and Propane at | Butane 28-30 mbar "Butane 50 mbar Propane 37mbar FI, FR, GB, HR, HU, | FR, GB, GR, IE, IT, | GB, GR, HR, HU, IE, IS, IT, LT, LU, MT, N, | LT, LU, LV, PL, PT, Si, (IT, LT, Ni, PL, PT, RO,| AT: CH, DE, SK NO, RO, SE, SI, Sk, TR] "SK TR | "si, 8k,TR Gases / Pressures Countries Orifice Sizes The following table lists the orifice size corresponding to each burner. Use this as reference when servicing the grill MAIN REAR BIG 32 RB #60 1.25 mm BIG 44 RB BIB 12 RT 1.20 mm BIBIBIR 1.20 mm BI IORT #64

and chrome surfaces every 3-4 weeks. Clean with warm soapy water. Burner Maintenance heavy wall 304 stainless steel. Maintenance and Protection of Infrared Burners surfaces. Fractures will cause the burners to malfunction. ! IMPORTANT! Damage resulting from by failure to follow these :_J instructions is NOT covered by your grill warranty. Steps to Avoid Damaging Ceramic Surfaces Never douse a flame or control flare-ups with water. Stainless steel oxidizes or stains in the presence of chlorides and sulfides, especially in coastal regions, warm and highly humid areas, and around pools and hot tubs. These stains look like rust, but they can be easily removed or prevented. Wash stainless + Extreme heat and a corrosive environment can cause surface corrosion to occur even though the burner is made from Your infrared burners are designed to provide a long service life, but you must be careful to prevent cracking of their ceramic Do not allow cold water (rain, sprinkler, hose etc.) to come in contact with hot ceramic burners. An immediate change in temperature will cause cracking of the ceramic tile. A ceramic burner that becomes wet before use will create steam when operated later and produce pressure that will crack the ceramic. Repeated soaking of the ceramic can cause it to swell and expand producing pressure that will make the ceramic crack and crumble. Inspect the ceramic for possible water soaking if you find standing water in the grill. Remove the burner if the ceramic is wet. Turn it upside down to drain the excess water. Bring ceramic indoors to dry thoroughly. Do not allow hard objects to impact the burner. Take care when inserting or removing cooking grids and using accessories. Clearance Ventilation of hot air + Hot air must have a way to escape the grill for the burners to function properly. + The burners can become deprived of oxygen if the hot air is not allowed to escape causing them to back-flash. The ceramic can crack if this occurs repeatedly.

FIRST! Never cover more than 75% of any main or side burner cooking surface with any solid metal e.g. griddles or pans) WARNING! Turn off gas at the source and disconnect the unit before servicing. WARNING! Maintenance should only be done when the grill is cool to avoid the possibility of burns. WARNING! A leak test must be performed annually and when any component of the gas train is replaced, or when the smell of gas is present. 22 | Maintenance Napoleon.com | BUILT-IN Series

À | | | & Troubleshooting Lighting Problems (Clean or ‘replace: as required. Replace with premium heavy- duty battery. :

+ Main, rear or side burners will not light with the igniter, but will light with a match. ô

+ Burners will not cross light each other. [© Possible causes Solution g < 5 | JETFIRE" outlet is dirty o or clogged Clean JETFIRE®" outlet with 2 a soft bristle brush. a S £ _— 2& a

Check electrode wire is firmly pushed onto the terminal on the back of the igniter. Check the lead wires from the module to the ignition switch (if equipped) are firmly pushed onto their respective terminals Rear and Side Burners Close air shutter according to “Maintenance Instructions”- Lifting flames on burner. Combustion Air Adjustment section in this Owner's Manual. IMPORTANT! This must be done by a qualified gas installer. Noises and Flare-ups + Humming regulator. + Excessive flare-ups and uneven heat. Possible causes Solution This isn't a defect. It's caused by internal vibrations in the Normal humming noise on hot days. regulator and doesn't affect the performance or safety of the grill. Humming regulators WILL NOT be replaced. & The cylinder valve was opened too quickly. Open cylinder valve slowly Ensure sear plates are installed with holes towards the front, and Sear plates installed incorrectly. the slots on the bottom. See Assembly Instructions Guide. | Improper heating. . a oo (Preheat grill with “both main “burners on high for 10 to 15 “minutes. L Excessive grease and ash build on sear plates and in drip Clean sear plates and drip pan regularly. Do not line pan with pan. aluminum foil. Refer to "Cleaning Instrui s" Gas Flow + Low heat or low flame when valve is turned to high. + Burners burn with yellow flame, accompanied by the smell of gas. + Flames lift away from burner, accompanied by the smell of gas, and possible lighting difficulties. + Burner output on HIGH, but setting is LOW. Rumbling noise and fluttering blue flame at burner surface. Possible causes Solution Ensure lighting procedure is followed carefully. All gas valves must be in the OFF position when the tank valve is turned on. Turn tank on slowly to allow pressure to equalize. See Operation — "Lighting Instructions" Propane - improper lighting procedure Natural gas - undersized supply line. Pipe must be sized according to installation code. Allow burner to cool and inspect very closely for cracks. Contact your authorized Napoleon dealer to order replacement burner assembly if any cracks are found. Leaking gasket surrounding the ceramic tile, or a weld failure in the burner housing. Both gas propane ‘and natural gas - improper preheating. | Preheat grill with both main burners on high for 10 to 15 minutes. : Napoleon.com | BUILT-IN Series Troubleshooting | 23

Possible causes Solution Possible spider web or other debris. Improper air shutter adjustment. “Lack of gas L Propane regulator in low flow state. Thoroughly clean nest or webs out of your burner orifice by removing it and following instructions in this manual. "Leak Test”. " or close : air shutter slightiy according | to this manual. See "Maintenance Instructions". IMPORTANT! This must be done by a qualified gas installer. le burners off and close the tank valve, wait a minute before Turn fully re-opening the valve, allow a few seconds for the pressure to equalize before following the Lighting Instructions to start the grill. Ensure igniting procedure is followed carefully every time you cook. All gas valves must be OFF when the tank valve is turned Infrared Burner Flashes Back + During operation the burner abruptly makes a loud whoosh sound, followed by a continuous blow-torch type sound and grows dim or has a large flame on start up. Possible causes Solution Ceramic tiles overloaded with grease drippings and build- up. Ports are clogged Turner burner OFF and allow to cool for at least 2 minutes. Reignite burner and burn on HIGH for at least 5 minutes, or until the ceramic tiles are evenly glowing red. Burner overheated because inadequate ventilation. Too much grill surface covered by griddle or pan. Ensure no more than 75% of the grill surface is covered by objects or accessories. Turn burner OFF and allow to cool for at least 2 minutes. Reignite Leaking gasket surrounding the ceramic tile, or a weld failure in the burner housing. Allow burner to cool and inspect very closely for cracks. Contact your authorized Napoleon dealer to order replacement burner assembly if any cracks are found. Improper heating. pan. Preheat grill with both main burners on high for 10 to 15 minutes. Clean sear plates and drip pan regularly. Do aluminum foil. Refer to "Cleaning Instructions’ Peeling Paint + Paint appears to be peeling inside lid or hood. Possible causes Solution Grease build-up on inside surfaces. 24 | Troubleshooting WE WANT TO HELP! Napoleon is hé ensure your grilling experience is memorable. Contact us if you require additional help. This is not a defect. The finish on the lid and hood is porcelain or stainless steel and will not peel. The peeling is caused by hardened grease, which dries into paint-like shards, that flake off. Regular cleaning will prevent this. See REGISTER YOUR GRILL! Register your grill! Go to Napoleon.com or your Assembly Guide for replacement parts instructions. Napoleon.com | BUILT-IN Series

the customer, receive the quality product you expect from NAPOLEON workmanship from the date of purchase, for the following period Aluminum castings / stainless steel base ifetime Stainless steel lid. Lifetime Porcelain enamel li -Lifetime . Lifetime ifetime Stainless steel cooking grid. Stainless steel liners... Stainless steel tube burners.. Porcelain-enameled cast iron cooking grids Stainless steel sear plates. . Stainless steel infrared rotisserie burner Ceramic infrared/Range burners (excluding screer All other parts … .. 2 years “Conditions and Limitations This Limited Warranty creates à wamanty period as specified in the aforementioned tabl, or any product purchased through an authorzed NAPOLEON dealer, and entitles the original purchaser to the specified coverage in respect of any component replaced within the warranty period, either by NAPOLEON or an authorized APOLEON dealer, to replace à component of such product that has failed in normal private use as à result of a manufacturing defect. The “50% off” indicated in the table means the component is made available to he purchaser at a 50% discount off the regular retail price of the component for the period indicated. This Limited Warranty does not cover accessories or bonus items. For greater certaint, “normal private use” of à product means that the product: has been installed by a licensed, authorized service techmician or contractor, in accordance with the installation instructions included with the product and al local and national building and fre codes; has been properiy maintained and has not been used as à communal amenity or in a commercial application. Similar, “failure” does not include: ower-fing, blow outs caused by environmental conditions such_as strong winds or inadequate ventilation, scratches, dents, corrosion, deteroration of painted and plated inishes, discoloration caused by heat, abrasive or chemical cleaners or UV exposure, chipping of porcelin enameled parts, or damages caused by misuse, accident, hal, grease fes, lack of maintenance, hostile environments such as salt or chlorine, alterations, abuse, neglect or parts installed from other manufacturers. Napoleon President's Limited Lifetime Warranty NAPOLEON products are designed with superior components and materials, and are assembled by trained craftsmen who take great pride in their work, The burner and valve assembly are leak tested and test-fired at a quality test station. This grill has been thoroughly inspected by a qualified technician before packaging and shipping to ensure that you, NAPOLEON warrants that components in your new NAPOLEON product will be free from defects in material and 10 years full coverage, plus 50% off for life .10 years full coverage, plus 50% off for life 5 years full coverage, plus 50% off for life 5 years full coverage, plus 50% off for life 5 years full coverage, plus 50% off for life Should détérioration of parts occur to the degree of non-performance (rusted through or bumt through) within the duration of the warranted coverage, à replacement part will be provided. The replacement component is the. sole responsibility of AMPOLEON defined by this Limited Warranty, in no event will NAPOLEON be responsible for installation, labor or any other costs or expenses related to he re-installaton of a warranted par, for any incidental, consequential, or indirect damages or for any transportation charges, labor costs or export duties. This Limited Warranty is provided in addition to any rights afforded to you b local laws. Accordingh, this Limited Warranty imposes no obligation upon NAPOLEON to keep parts in stock. Based on the availabilty of parts, NAPOLEON may at its discretion discharge all obligations by providing à customer a prorated credit towards a new product. After the fist year, with respect to this Limited Warranty NAPOLEON may, t ts discrétion, fully discharge ll obligations with respect t this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s) The bill of sale or copy will be required together with a serial number and à model number when making any warranty claims from NAPOLEON MAPOLEON reserves the right to have its representative inspect any product or part prior to honoring any warranty claim. You must contact MAPOLEON Customer Service or an authorized NAPOLEON dealer to obtain the benefit of the warranty coverage. 26 ! Warranty Napoleon.com | BUILT-IN Series

NAPOLEON Napoleon products are protected by one or more US. and Canadian and/or foreign patents or patents pending. De Riemsdijk 22, 4004 LC, Tiel, The Netherlands 10-12 Home Farm, Meriden Road, Berkswell, CV7 7SL, United Kingdom 24 Napoleon Road, Barrie, Ontario, LAM GB, Canada PHONE: +31 345 588655 wanw.napoleon.com eu.info@napoleon.com Last Revision | A | September 16, 2020 Napoleon.com | BUILT-IN Series N415-0601 5-0 -GB CE-
