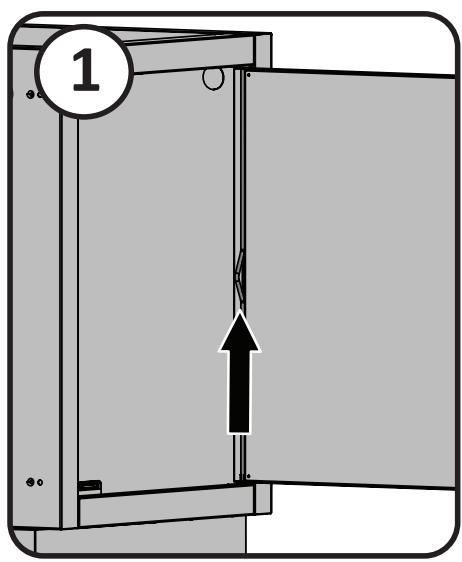

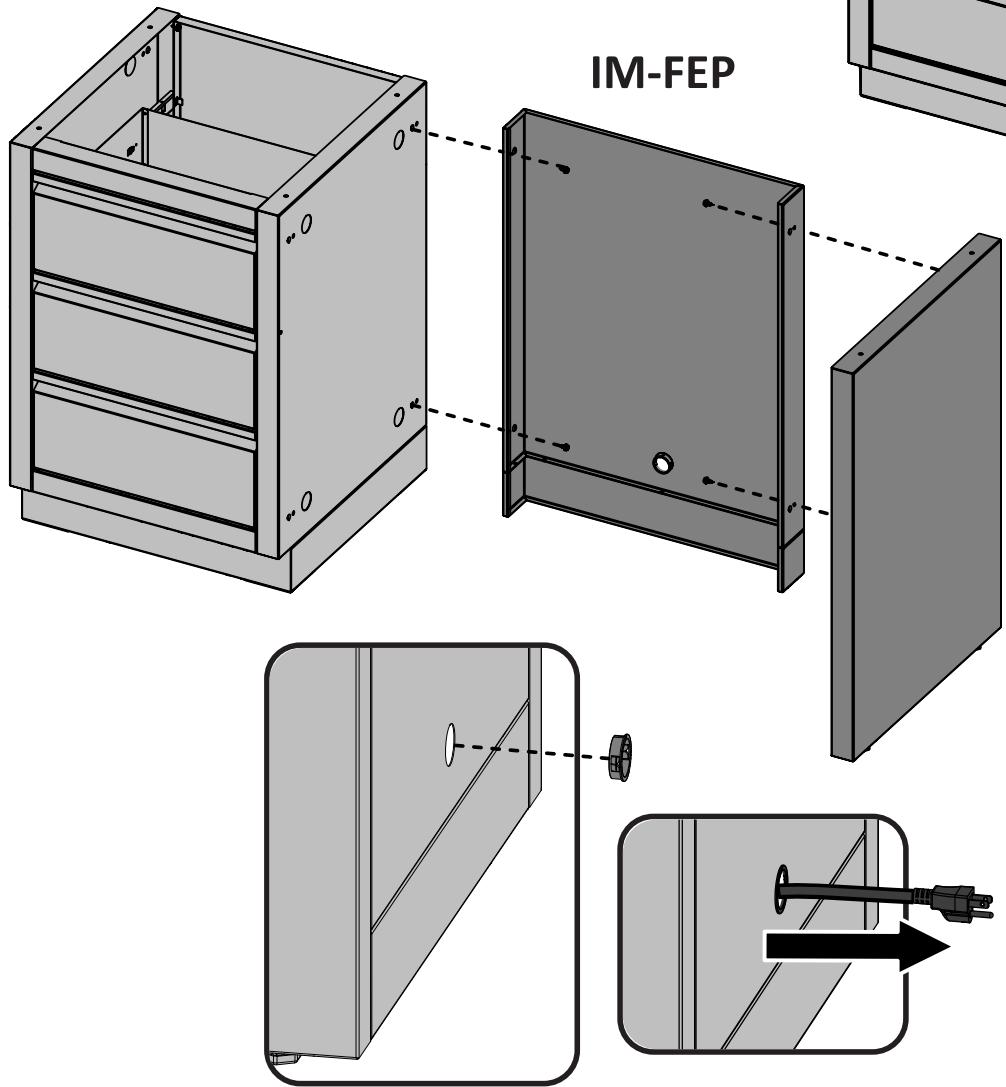

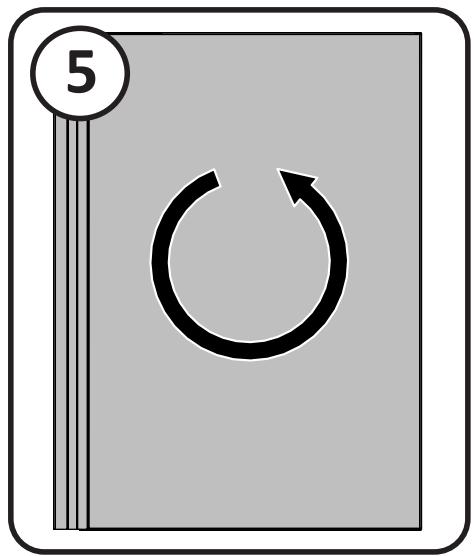

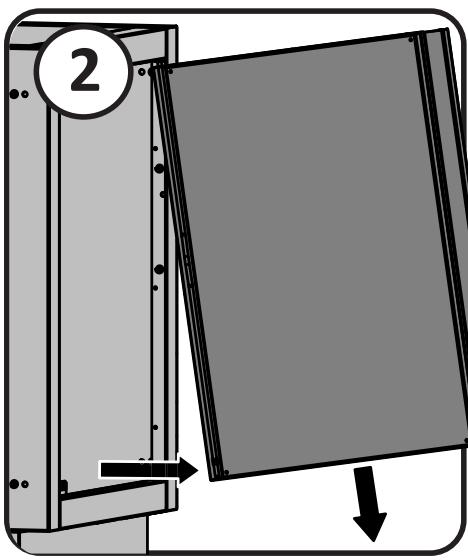

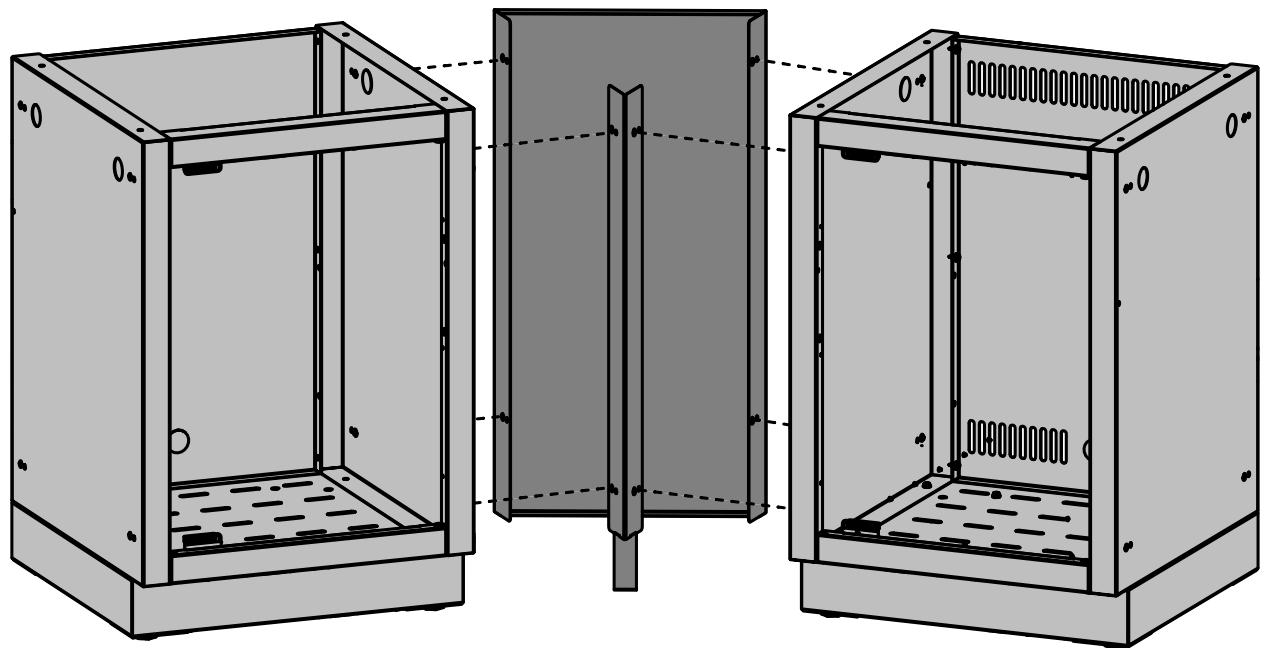

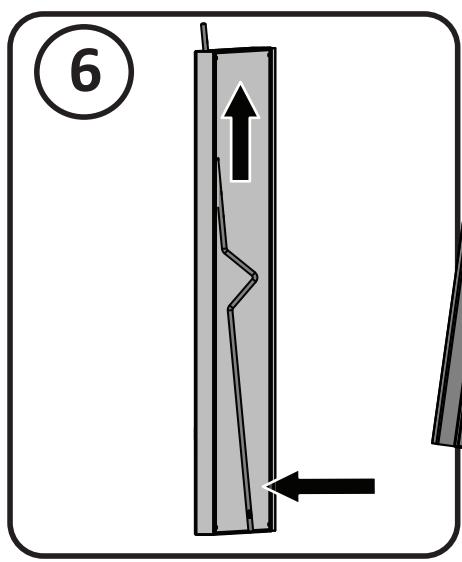

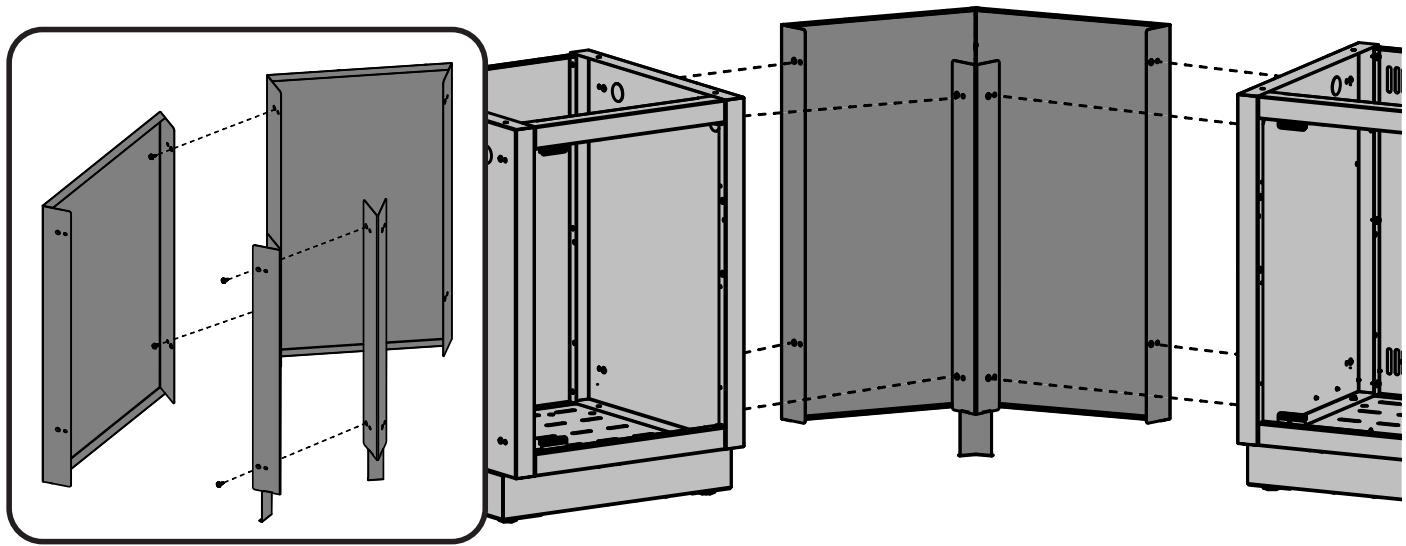

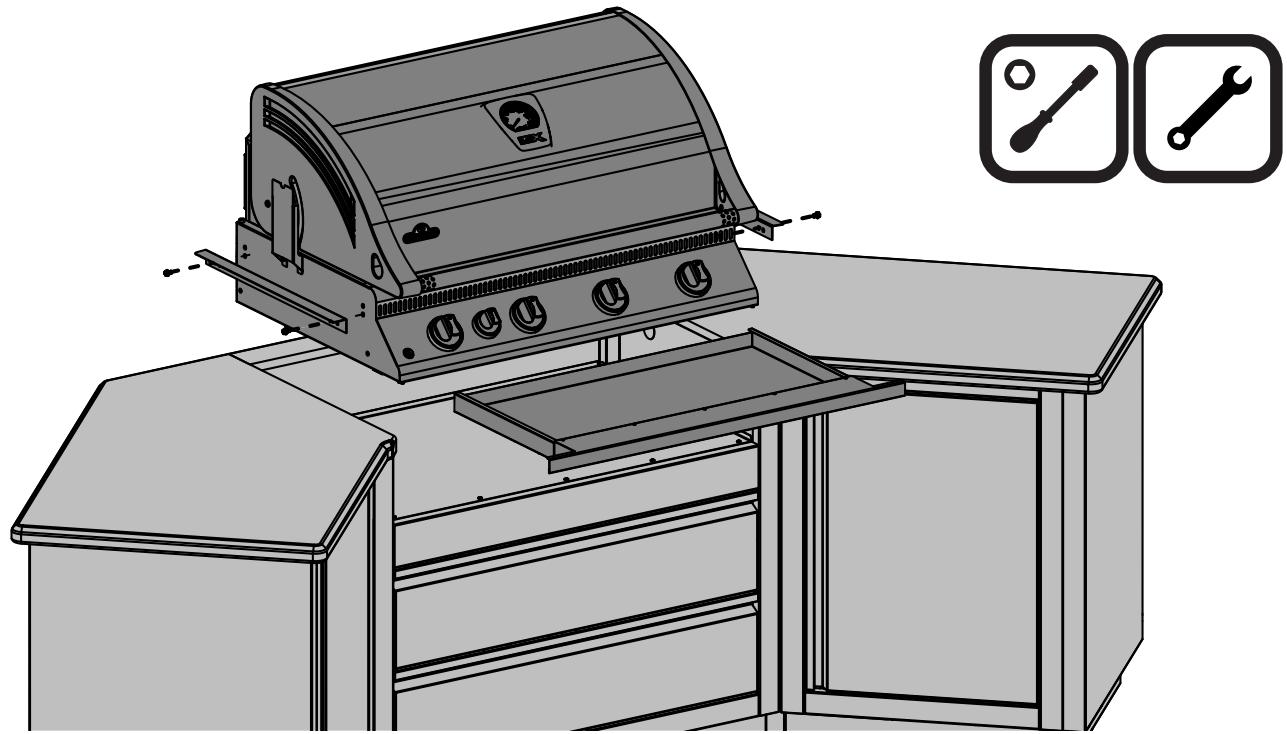

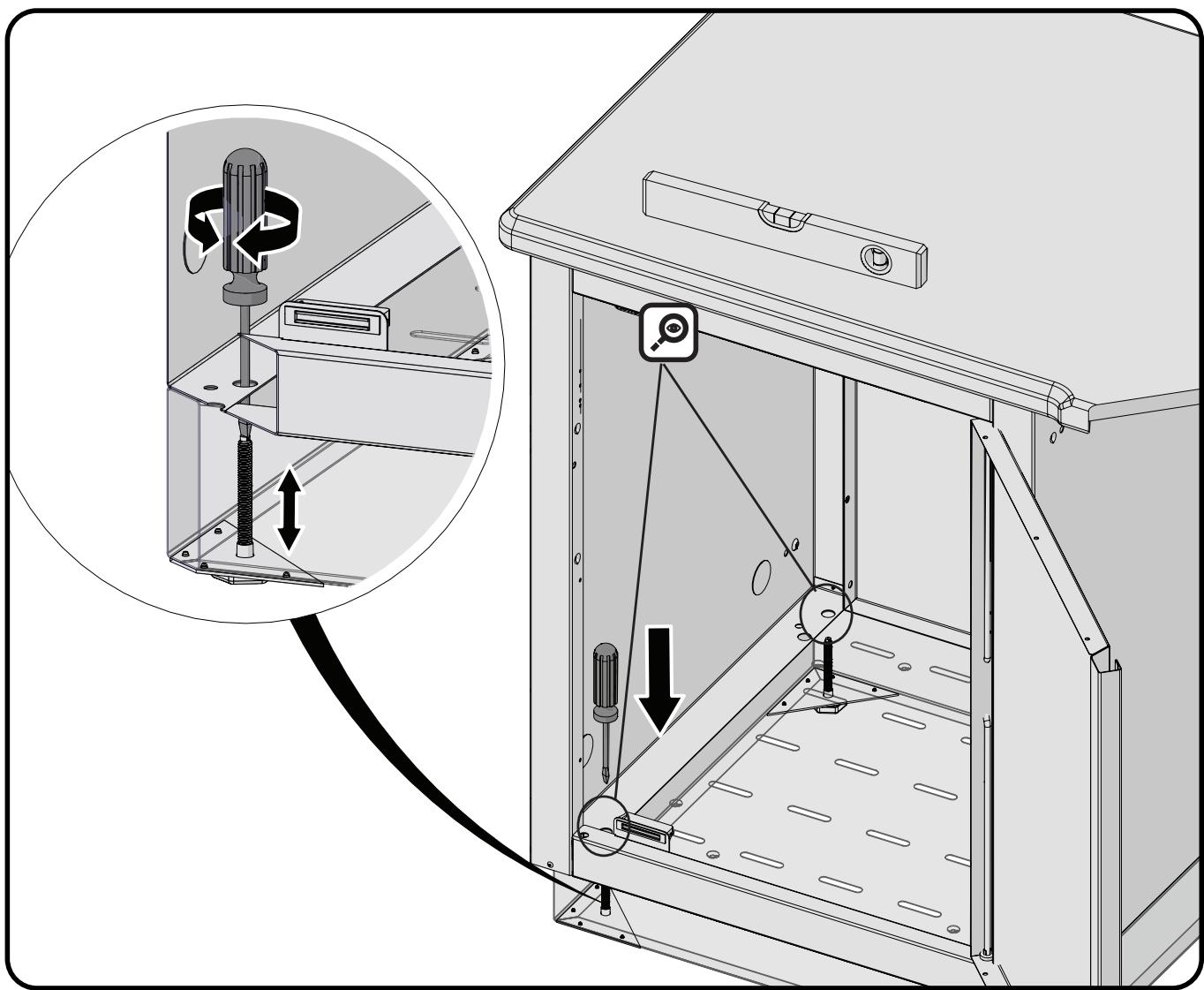

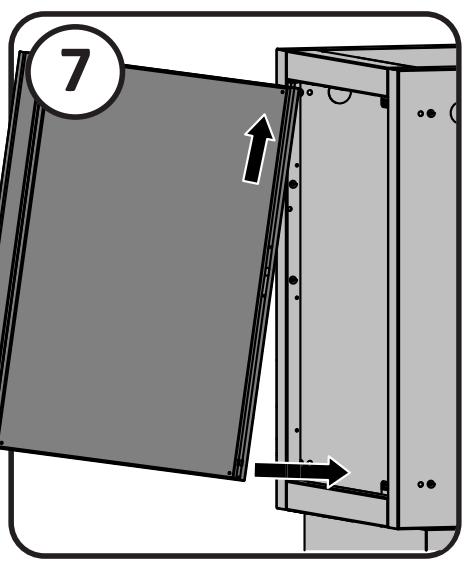

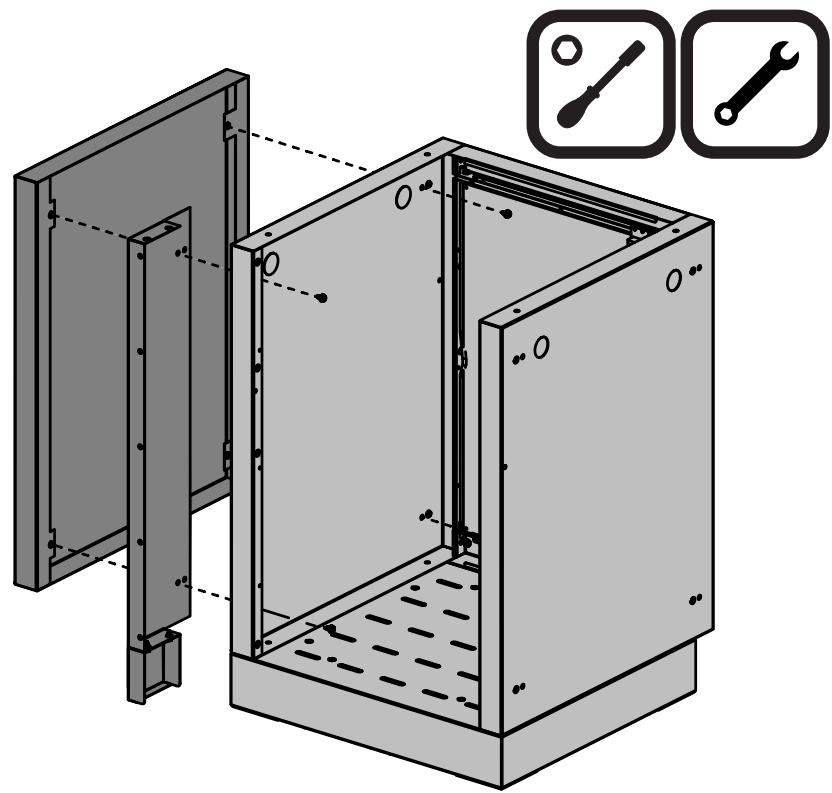

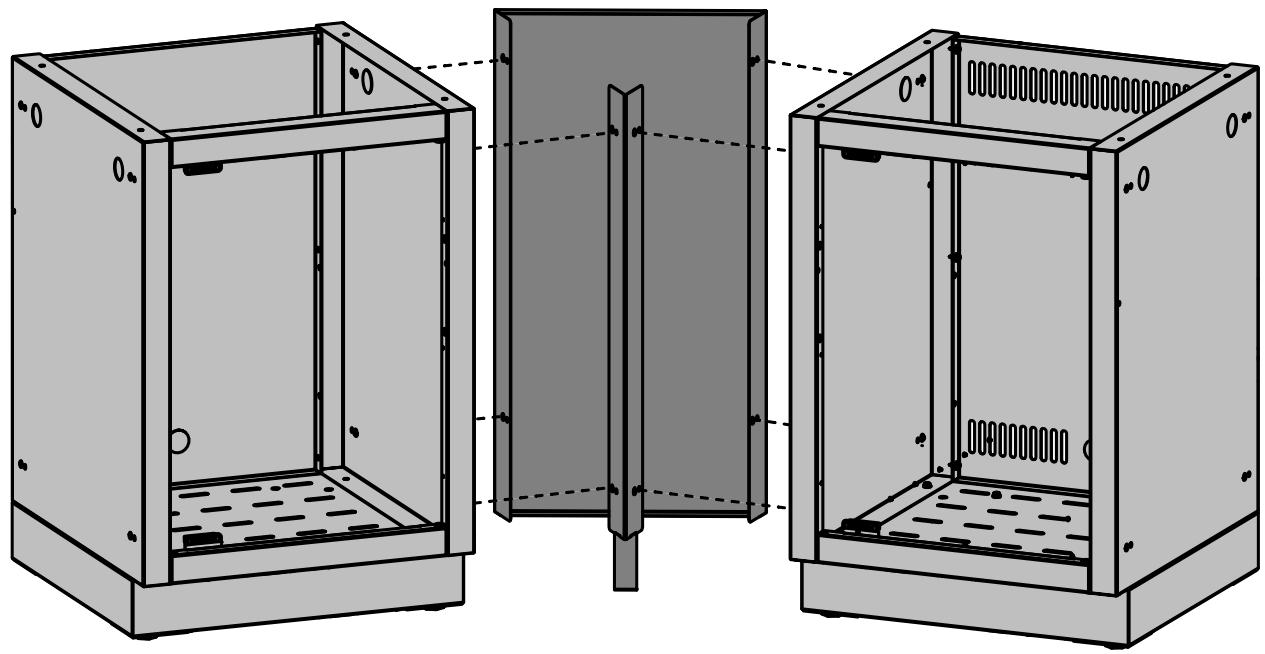

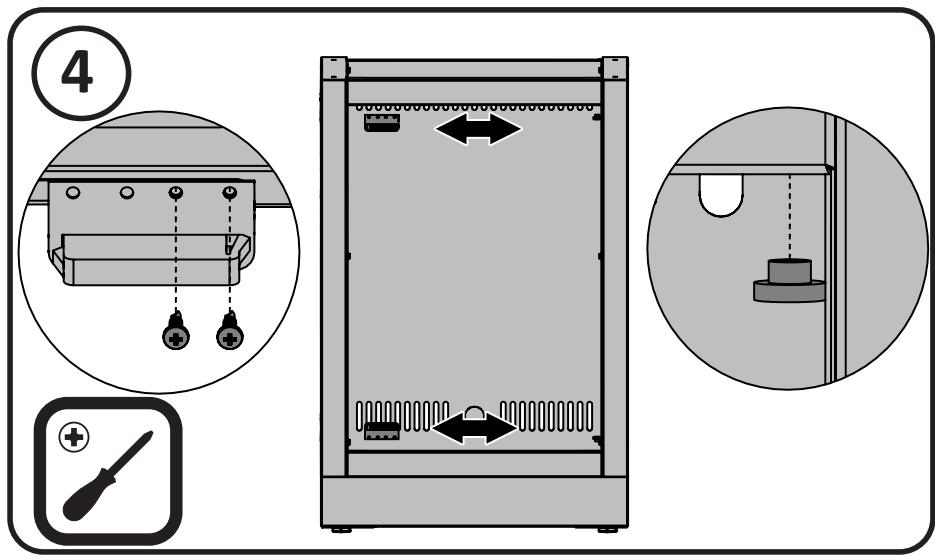

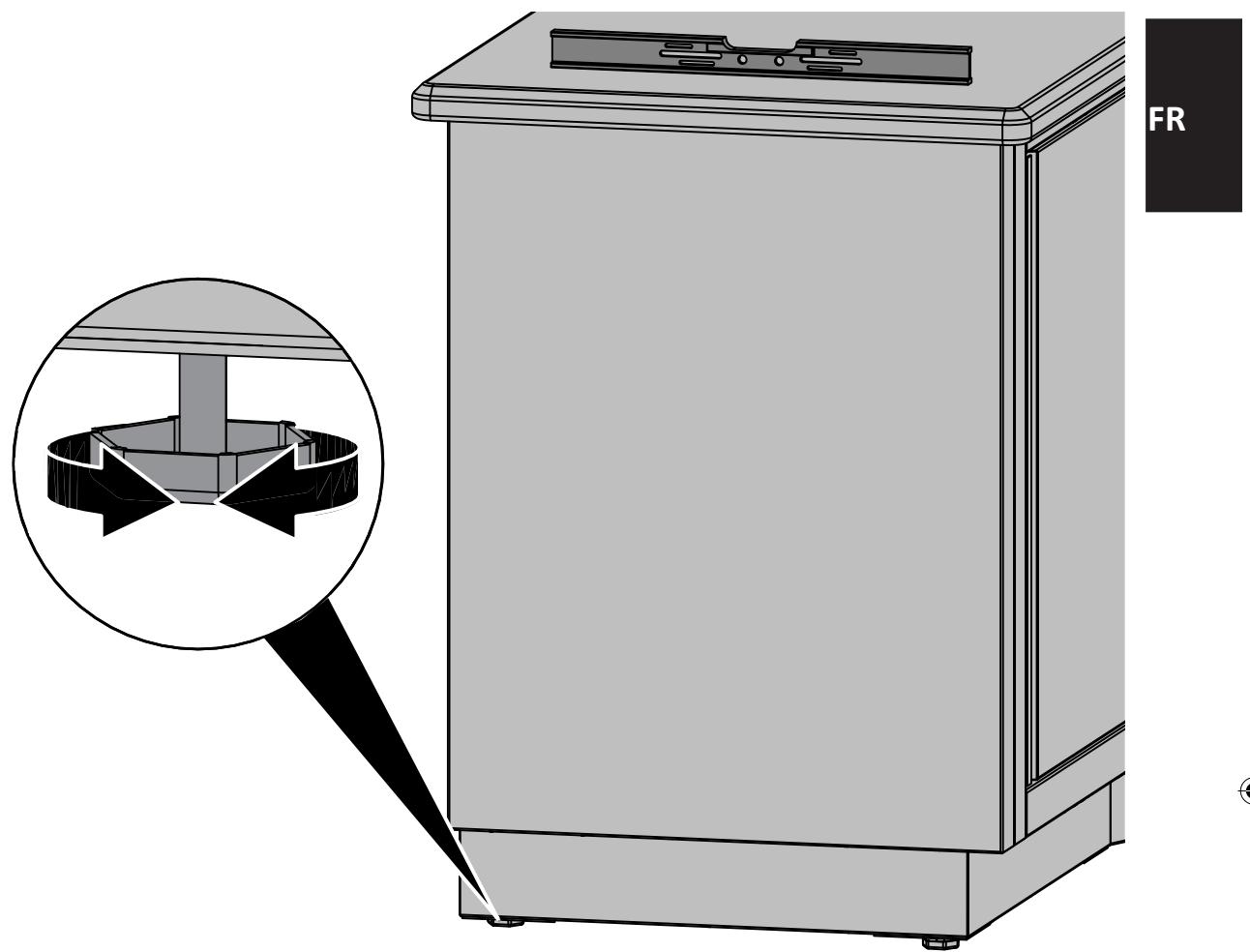

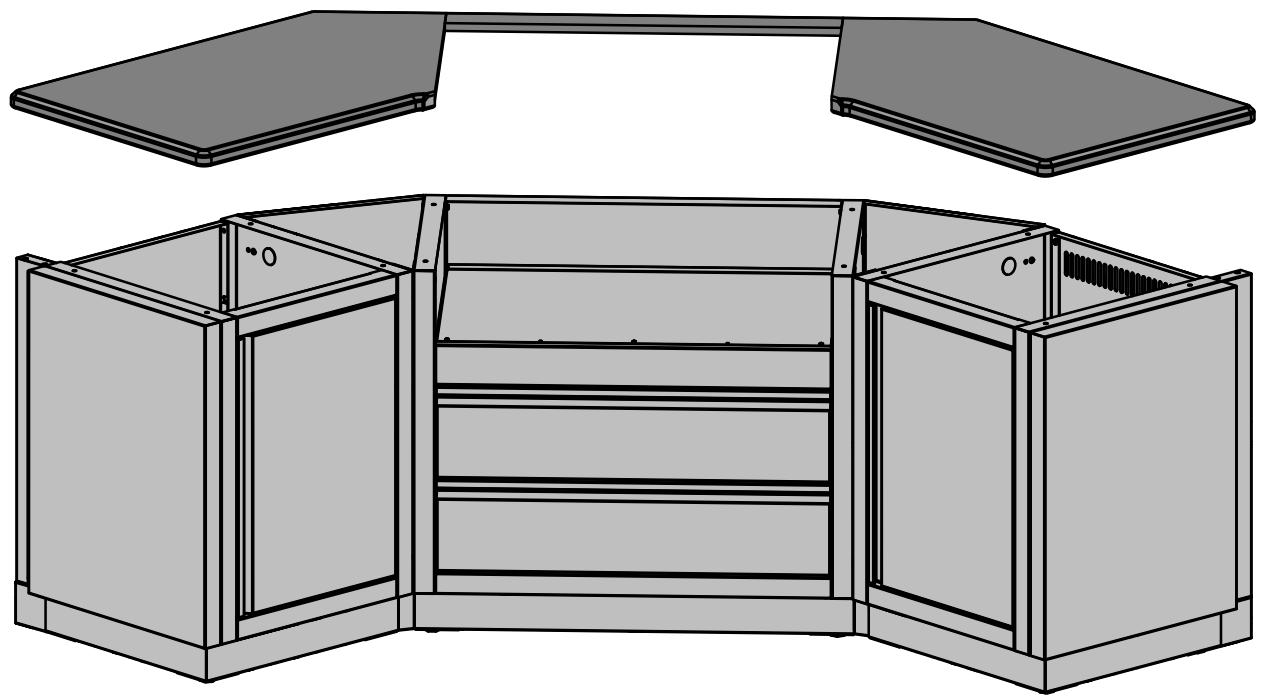

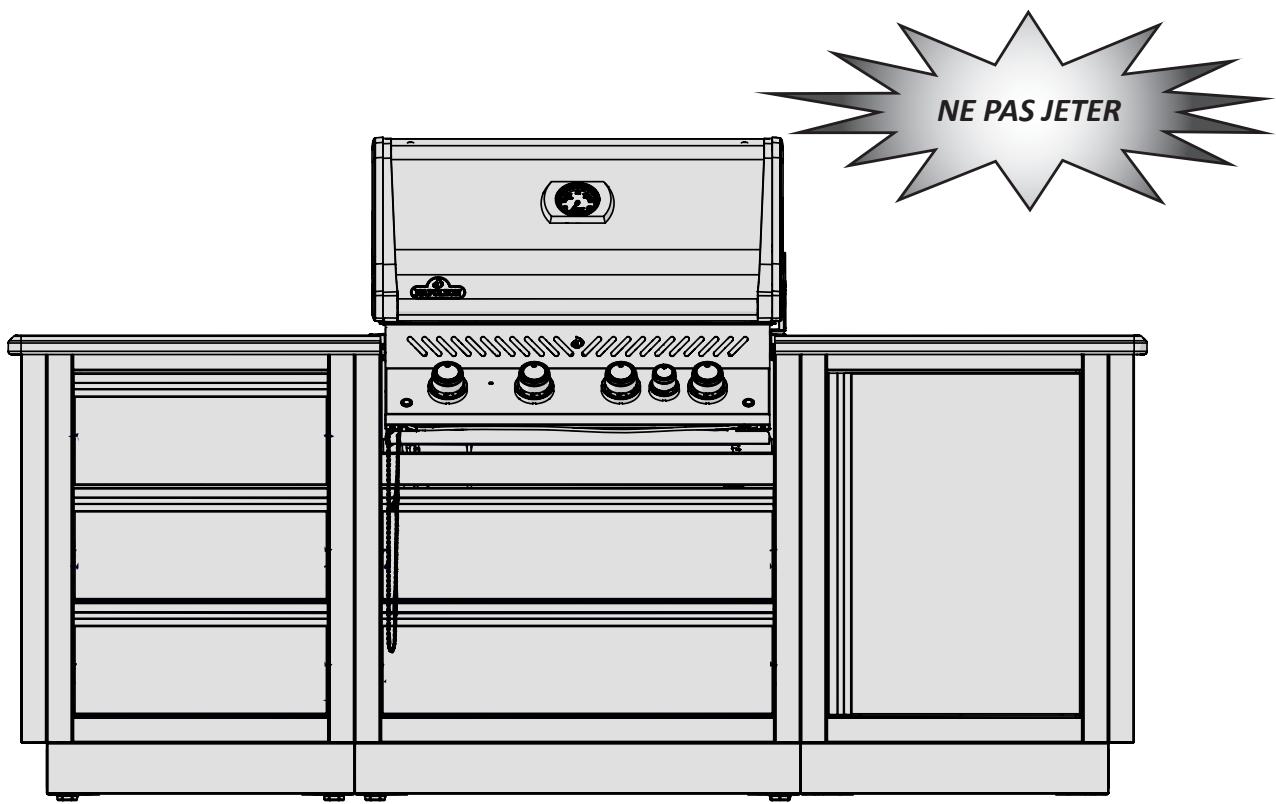

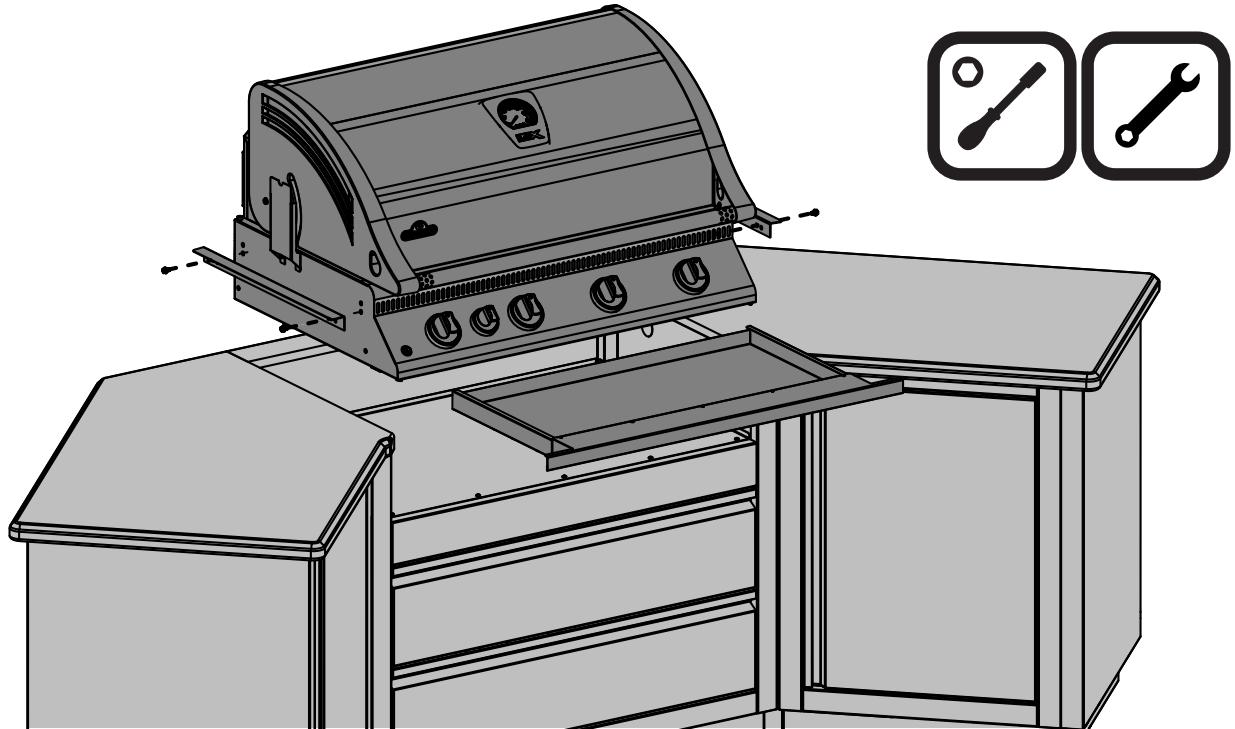

With the Napoleon Outdoor Modular Islands, you can transform your backyard into a true barbecue oasis. The versatile modules can be arranged in a way that fits your grilling needs. The modules can be freestanding as an outdoor kitchen or mounted against a non-combustible wall. The cabinets are designed to be easy to assemble and install by either the home owner or private contractor. Consider the following: + _ All cabinets are 35” (889 mm) tall by 24” (610 mm) deep and 24” (610 mm) wide, except for the BUILT-IN grill cabinets whose width correspond to the width of the grill head unit it was designed for. + The fridge cabinet has a removable panel which allows access to the temperature control located at the back of the fridge. Access to the panel must be ensured when the cabinet is installed. + Each cabinet has 4 leveling feet for adjustment on even surfaces. + The 2 drawer cabinets are made to fit the Napoleon BUILT-IN series of grills only, which are available in different sizes. Grill head installation and operation instructions are detailed in the Owner’s Manual that comes with it. + The BUILT-IN series of grills can be ordered in either propane or natural gas configuration. Knockouts are present in the side and rear panels for easy piping and installation. For those who order a propane grill, a propane tank cabinet is available. + The cabinets can be installed against a NON-COMBUSTIBLE wall of a house, a masonry or stucco half-wall, or freestanding in an island configuration. + Ensure there is adequate ventilation behind the fridge cabinet — a minimum gap of 6” (150 mm) is required between the back of the cabinet and adjacent structures. + An optional 4” (102 mm) spacer panel can be purchased and installed to ensure enough clearance for the grill lid to open when installing against a wall. It also prevents debris or rodents from entering behind the cabinets. + A powder-coated 2” (51 mm) wide end panel can be purchased to cover the knockouts and mounting holes in the outside panels in a run of cabinets, offering a finished look. WARNING! Never block the vents located on the back of the fridge cabinet. Failure to do so can result in the fridge overheating. WARNING! Never place the fridge and fridge cabinet next to the grill head and grill head cabinet. î WARNING! an gas modifications and/or installations must be done by a qualified gas installer. Itis recommended to use the false top-drawer module IM-2DC when: + Doors and drawers get in the way of each other if placed next to a 450 or 900 transition. +__A drawer, door, or paper towel/garbage module is placed next to the grill and the control panel prevents them from fully opening and possible damages them. + _A side burner kit (optional through your Napoleon Gas Grill dealer), or a sink will be installed. The space be- hind the false drawer offers enough clearance for the side burner valve and hose routing and for the sink’s piping. Counter top: must be ordered and supplied locally by the homeowner. + _It must be made of NON-COMBUSTIBLE material for a grill to be installed into it. + _It can be ordered in advance by drawing out the cabinets arrangement floor plan and adding up the width measurements, allowing 1-2 inches (25 mm - 51 mm) of counter top overhang. TIP! Most counter top manufacturers are ing to come and take measurements after assembling the cabinets to ensure a perfect fit. Granite or Corian are recommended choices of counter top materials. + Forthe drip pan to slide in and out properly, the grill head must be supported by a counter top with a thick- ness between Z” (13 mm) and 1 %” (38 mm). + The built-in grill head comes with stainless steel brackets and hardware that allow the unit to rest on the counter top above the corresponding island cabinet. Decorative counter tops made of ceramic tile set on top of cement tiling board can be made to match your sur- rounding backyard furniture colors. WARNING! this product can expose you to chemicals including nickel, which are known to the State of California to cause cancer, and chemicals including bisphenol A, which are known to the State of C: rnia to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. N415-0416 APR 30.20 www.napoleon.com

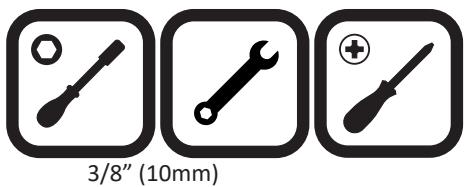

À | | | æ En 2 __ Hs! TOOLS REQUIRED FOR ASSEMBLY (tools not included)

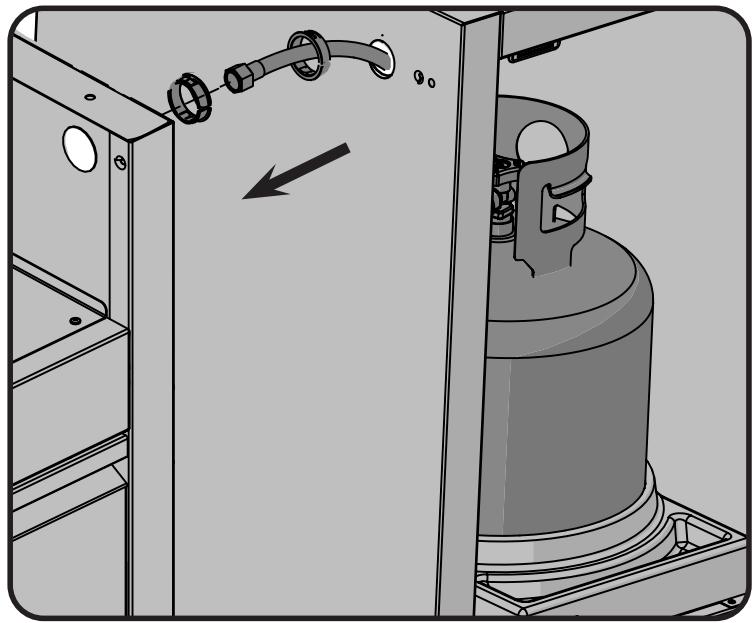

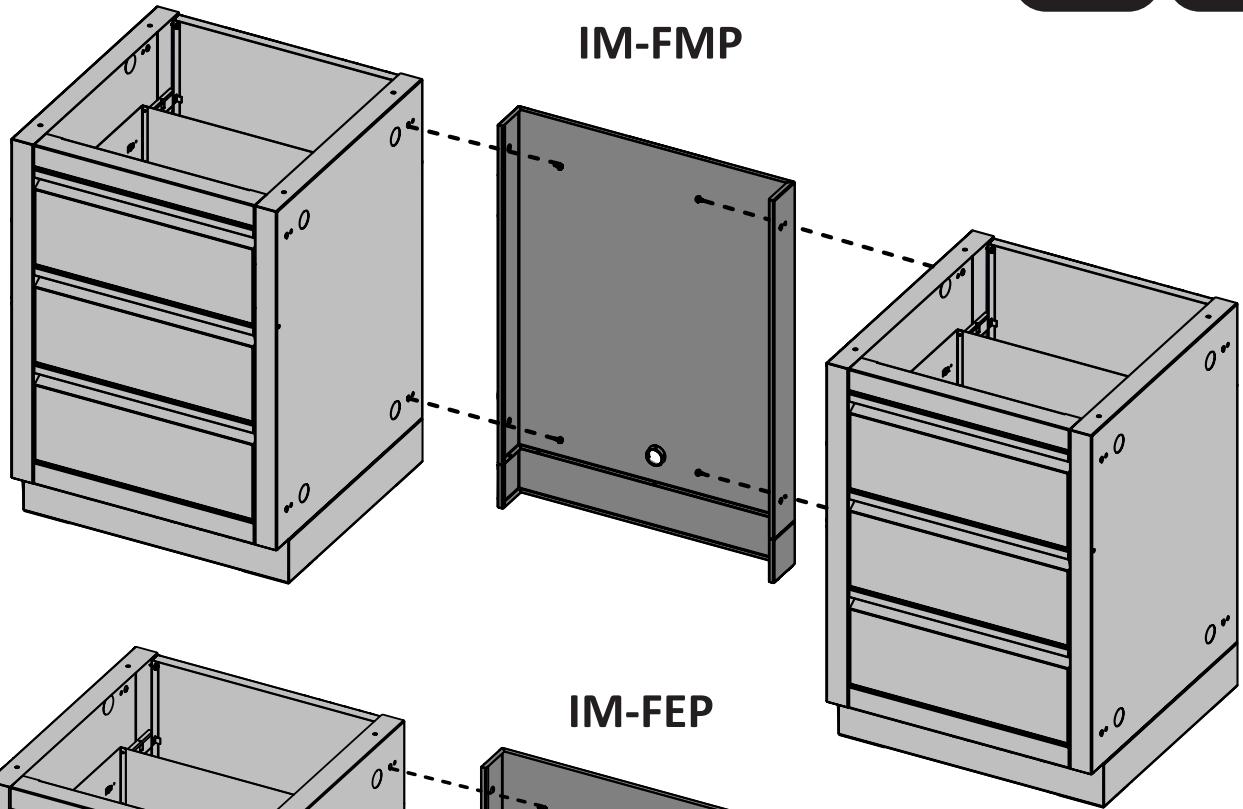

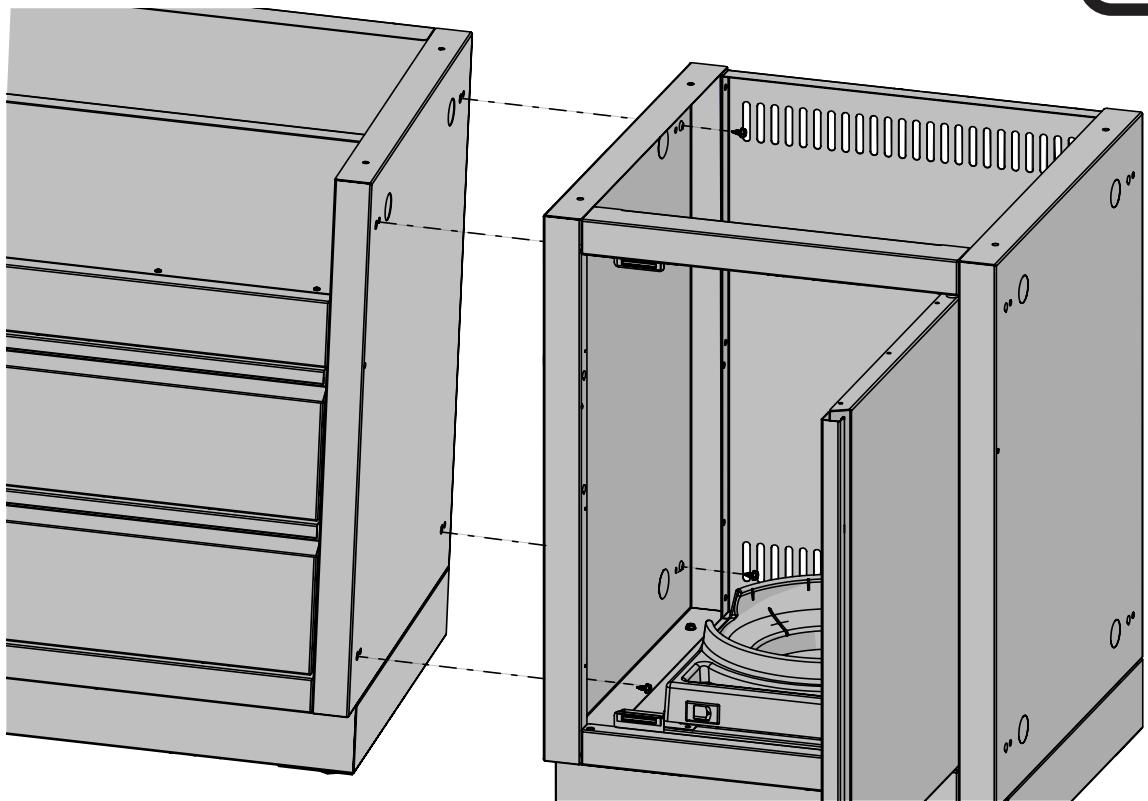

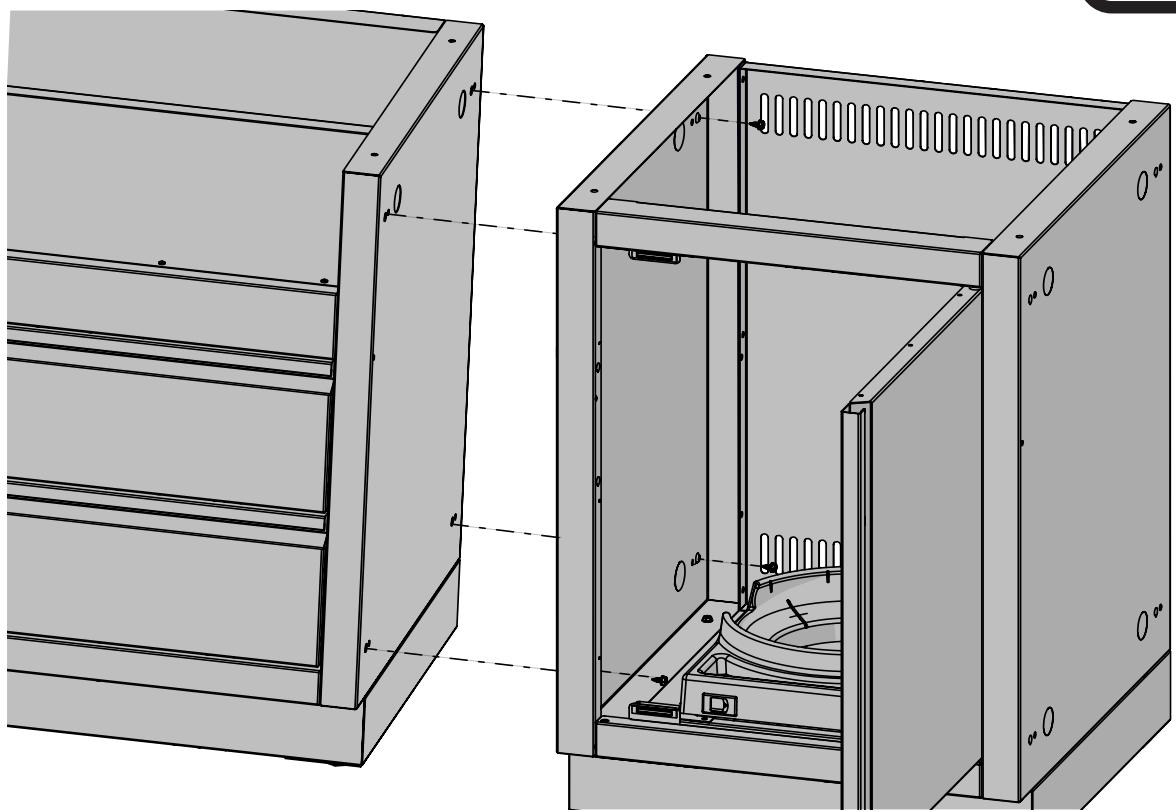

The piping up to the gas grill is the responsibility of the installer and piping should be located as shown in the built-in instructions. Do not use hose to connect the unit. It must be connected with either rigid pipe, copper tube or an approved flexible metal connector. The installation must comply with CAN B149.1 Natural Gas and Propane installation code in Canada, or to the National Fuel Gas code, ANSI Z223.1 in the United States. The minimum recommended piping size is NPS 1/2” for rigid pipe, and 1/2” OD for copper tubing (based on a 20 ft run). Longer runs may require larger sizes to conform with CAN B149.1. Propane Gas Installation Code in Canada or to the National Fuel Gas Code, ANSI Z223.1 in the United States. Look to the manual that came with the gas grill for further instructions. To ease installation and piping, removable knockouts have been provided in the side panels and in the center of each backpanel. The knockouts in the side panels should be removed before the cabinets are bolted in a row. Only remove the knockouts that are required for the piping of any gas, plumbing or electrical lines. KNOCKOUTS www.napoleon.com N415-0416 APR 30.20

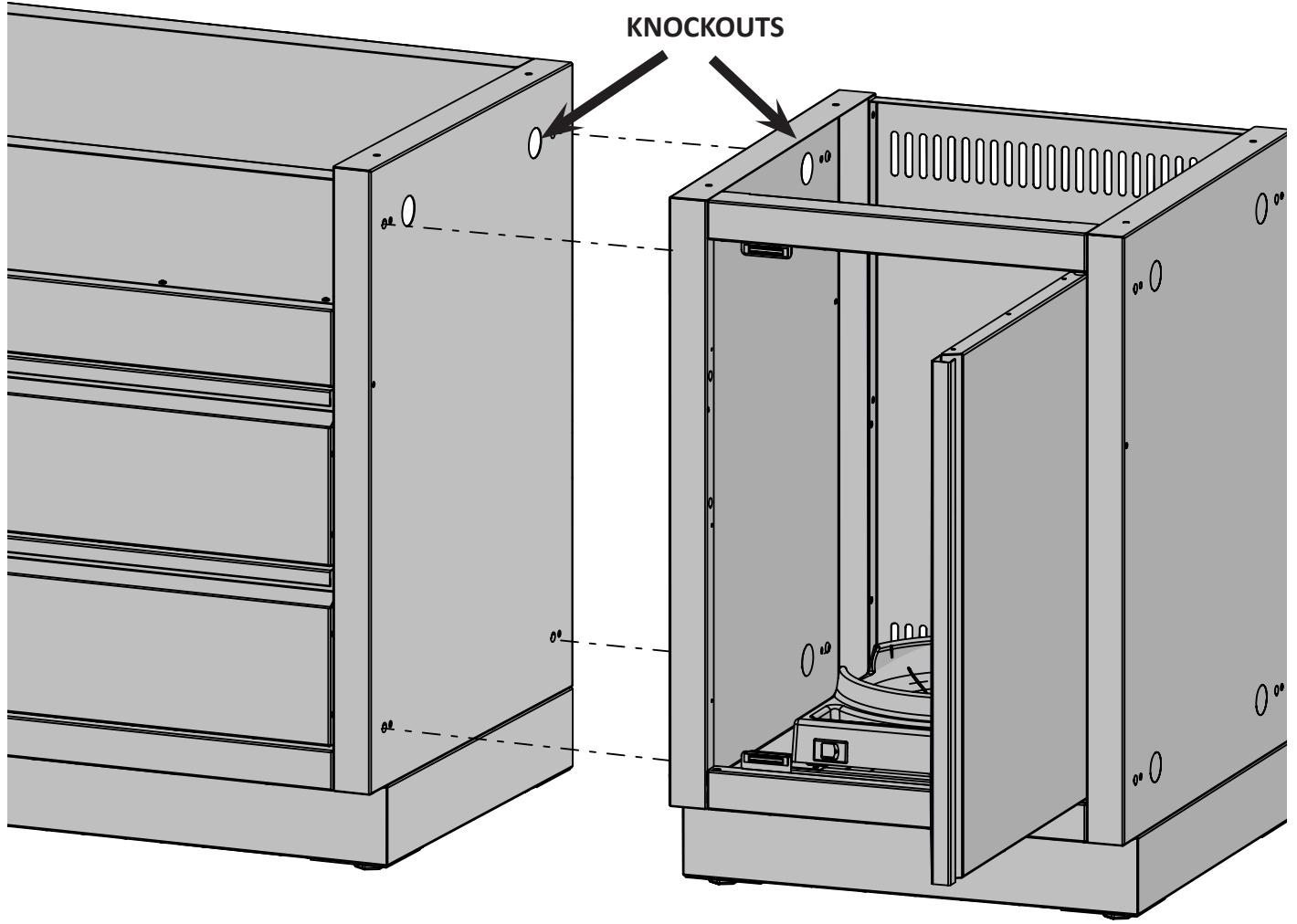

N105-0012 Knockouts have been punched in the sides and back panels to provide easy routing of gas or electrical piping. Once the knockout has been removed a bushing must be installed to prevent the gas or electrical line being cut on the edge of the hole. Gas piping and installation must be done by a qualified gas installer.

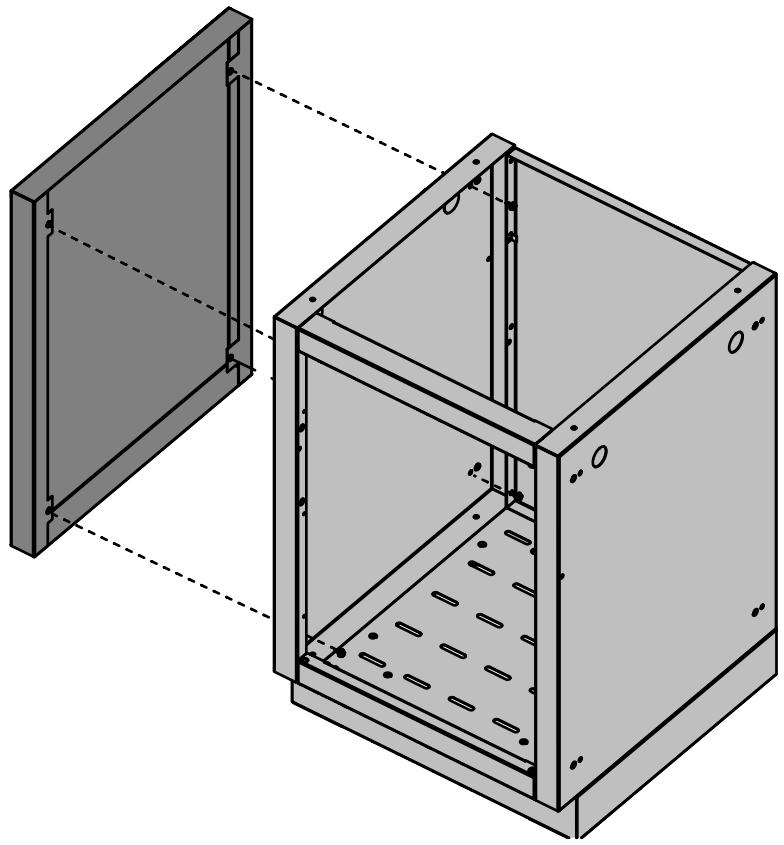

SHOWN WITH REAR PANEL REMOVED

Notes KEEP YOUR RECEIPT AS PROOF OF PURCHASE TO VALIDATE YOUR WARRANTY. Warranty Information MODEL: DATE OF PURCHASE: SERIAL NUMBER: (Record information here for easy reference) For replacement parts and warranty claims, contact the Napoleon dealer where the product was purchased. Before contacting the dealer, check the Napoleon Grills Website for more extensive cleaning, maintenance, troubleshooting and parts replacement instructions at www.napoleon.com. To process a claim, the following information is required:

1. Model and serial number of the unit.

2. Part number and description.

3. A concise description of the problem (‘broken’ is not sufficient).

4. Proof of purchase (photocopy of the invoice).

In some cases, Napoleon could request to have the parts returned to the factory for inspection before providing replacement parts. Before contacting Napoleon dealer, please note that the following items are not covered by the warranty: + Costs for transportation, brokerage or export duties. + Labour costs for removal and reinstallation. + Costs for service calls to diagnose problems. + Discolouration of stainless steel parts. + Part failure due to lack of cleaning and maintenance, or use of improper cleaners (oven cleaner or other harsh chemicals). www.napoleon.com N415-0416 APR 30.20
