You have just purchased a BRANDT product and we thank you for your trust.

We designed and manufactured this product with you, your lifestyle and your needs in mind, in order to best meet your expectations. We have put into it our expertise, our spirit of innovation and all the passion which has driven us for over 60 years.

We make every effort to ensure our products better meet your requirements, and our Customer Relations Department is at your disposal and will be happy to hear any questions or suggestions you may have.

You may also visit our website www.brandt.com where you will find our latest innovations, as well as useful and complementary information.

BRANDT is happy to assist you in your daily life and hopes you will fully enjoy your purchase.

Important: Before switching on your appliance, please read this user guide carefully in order to familiarise yourself more quickly with its operation.

CONTENTS

1. FOR THE USER'S ATTENTION 4
   Safety and warning information 4
   Disposal 5
   Installation 6
2. Introduction to your appliance 8
   Installing your new appliance. 8
   Description of the appliance. 13
3. USING YOUR APPLIANCE 14
   Display control. 14
   Controlling the temperature 15
   Using your appliance. 16
   Helpful hints and tips 18
4. CLEANING AND MAINTENANCE 19
   Cleaning and care 19
   Troubleshooting 20

1. FOR THE USER'S ATTENTION

This appliance is in accordance with the EU guidelines

Safety and warning information

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings.

To avoid to do damage, mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety instructions.

Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that a using it throughout its life will be properly informed on its correct appliance usage and safety.

Manufacturer cannot be responsible for damages caused by omission.

GENERAL SAFETY AND WARNINGS

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;

• Bed and breakfast type environments;

• Catering and similar non-retail applications

Safety for children and others are vulnerable people:

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Keep all packaging away from children as there is risk of suffocation
• Do not let children play with the appliance, keep pets away.
• Old appliances must immediately be operated as unusable. Unplug and turn off the power cable flush with the appliance. Make the door lock inoperable, or better yet, remove the door to prevent such a child or animal may remain trapped inside while playing.

If problems occur, and that you cannot solve with the following advice we give you (see "Troubleshooting"), use only the approved customer service centres or to a qualified professional.

WARNING

• To avoid a hazard due to instability of the appliance, it must be installed, fixed if necessary, in accordance with the instructions.
• Maintain clear of obstruction ventilation openings in the appliance enclosure or in the built-in structure.
• Do not use mechanical devices or other means to accelerate the defrosting process than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are clearly recommended by the manufacturer.
• Do not store explosive substances inside this appliance such as aerosols containing flammable gases propellants.
• Do not place the appliance in direct sunlight.
• Do not expose to flame.
• Stop the appliance and unplug it before cleaning or moving it.
• For models equipped with a water dispenser or ice maker compartment, fill or connect only with a drinking water supply.
• If the supply cord is damaged, it must be replaced by the manufacturer, its after sales service or similarly qualified persons in order to avoid a hazard.

Cooling agents and insulation used in this product contain flammable gases. When you scrap the appliance, do it from an authorized collection point. Do not expose to flame

Refrigerant

Refrigerant isobutene (R600a) is contained within the refrigerant circuit of the

appliance; it is a gas more environmentally friendly, which is nevertheless flammable.

During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit is damaged.

Caution: risk of fire

If the refrigerant circuit should be damaged:

• Avoid opening flames and any source of ignition.

-Thoroughly ventilate the room in which the appliance is located.

It is dangerous to alter the specifications or modify this product in any way.

Any damage to the electric cord may cause short-circuit, fire, and/or electric shock.

Disposal

This symbol indicates that this product should not be treated as household waste.

Your appliance contains recyclable materials. It is marked with this logo to indicate that used appliances must be delivered to an authorized collection point.

Check with your dealer or technical services in your area to find out the points for used appliances closest to your home. The appliance recycling organized by your manufacturer will be done under the best conditions, according to the European

directive on waste electrical and electronic equipment.

Thank you for your help in protecting the environment.

Some packing materials of this device are also recyclable. Recycle them and play a role in protecting the environment by depositing them in the containers provided for this purpose.

In accordance with the most recent legislation on the protection and respect for the environment, your appliance does not contain HFC's, but a refrigerant called R600a. The exact type of refrigerant used in your appliance is also clearly indicated on the rating plate located inside the appliance, on the left wall down. R600a is a non-polluting gas that does not harm the ozone layer and whose contribution to the greenhouse effect is virtually zero.

Installation

WARNING: Correct installation of your device complying with the rules that are given in this installation guide and use will allow you to keep your food in good conditions and with optimized energy consumption.

• If your appliance has wheels, remember that they are only used to facilitate small movements. Do not move on longer distance.
• Make an initial cleaning before connecting your device to the mains. Before any maintenance, disconnect your device. Do not pull the power cord but directly enter the profile.
• Place the unit in a dry and ventilated room.
• Avoid balconies, porches, decks;

excessive heat in summer and cold in winter could prevent proper operation of your device, or even damage.

• Do not place it near a heat source such as radiator or oven for example.
• Keep a minimum distance between your refrigerator and other furniture: 3 to 5cm on the sides and 10cm above for good air circulation around the unit.
• Place the appliance at a suitable distance from the wall using the spacers if they provided in the accessory bag.
• Your appliance has been designed for optimum performance in a room temperature. We then say that it is designed for a special "climate class". This climate class is clearly stated on the rating plate located inside your appliance, on the left wall down. Beyond these temperatures, the performance of your appliance may be reduced.

Classe	Temperature
SN	from + 10°C to + 32°C
N	from + 16°C to + 32°C
ST	from + 16°C to + 38°C
T	from + 16°C to + 43°C

Advice:

After installation of your appliance, set its feet so that it is slightly tilted backwards, it will facilitate the closing of the door.

Before putting food, clean the interior and exterior of your appliance with bicarbonate of soda dissolved in water (1 tablespoon of bicarbonate for 4 litres of water). Do not use alcohol, abrasive powders or detergents which could damage the surfaces. (See chapter "Cleaning your appliance").

ELECTRICAL CONNECTION

The electrical installation must comply with the applicable standards and must be

able to withstand the maximum power indicated on the rating plate. The plug must be properly grounded. We cannot be held responsible for any incident caused by defective electrical installation.

Electrical Installation Tips

• Do not use extension cable or adapter or power strip.
• Never remove the grounding.
• The socket must be easily accessible but out of reach of children.

In case of doubt, ask to your installer. Your device is compliant with EU directives and their modifications.

ENERGY SAVING

To reduce the power consumption of your appliance:

• Install it in a suitable location (see "Installing your appliance").
• Keep doors open for as short time as possible.
• Do not put hot food in your refrigerator or freezer, particularly if they are soups or preparations which emit a large amount of steam.
• Ensure the optimal functioning of your device by not letting accumulate too much frost in the freezer (defrost it when the ice thickness exceeds 5-6 mm) and periodically cleaning the condenser (see "Maintenance your device").
• Regularly check the door seals and make sure that they always close effectively. If this is not the case, please contact service after sales service.
• Do not let it set at too low a temperature.
• Not fulfilling with drawers, bins and shelves arrangement could lead to increased energy consumption.

2. Introduction to your appliance

Installing your new appliance

Before using the appliance for the first time, you should be informed of the following tips.

Ventilation of appliance

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.

Suggestion: It is advisable for there to be at least 75mm of space between the back of the appliance and the wall, at least 100mm from its top, at last 100mm between its sides and the wall, and a clear space in front to allow the doors to open at a 135^ angle. As shown in the following diagrams.

Note:

• This appliance performs well within the climate class shown in the table below.

Installing your new appliance

It may not work properly if left at a temperature above or below the indicated range for a long period of time.

Climate	Ambient
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

• Place your appliance in a dry place to avoid high moisture.
• Keep the appliance out of direct sunlight, rain or frost. Keep the appliance away from heat sources such as stoves, fires or heaters.

Leveling of appliance

• For the appliance to be sufficiently leveled, and the air to circulate correctly in the lower rear section of the appliance, the bottom feet may need to be adjusted. You can adjust them manually by hand or by using a suitable spanner.

To allow the doors to selfclose, tilt the top backwards by about 10mm.

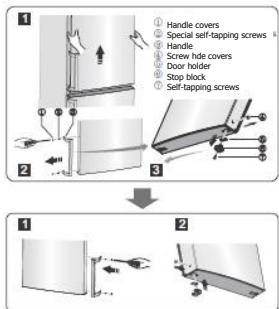

Installing the door handles

For the convenience of transportation, the door handles are separately provided in a plastic bag, you can install the door handles as follows.

1. Lever screw covers on the left side of the door, and then put them back to the plastic bag.
2. Match the handle on the left side of the door, keeping axes of screw holes in the handle and the door in a line, as shown in the following picture.

1. Fix the handle with the special screws provided in the plastic bag. And then install the handle covers.

Reversing the door

The side at which the door opens can be changed, from the right side (as supplied) to the left side, if the installation site requires.

Warning! When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket.

Tools you will need:

8mm socket wrench	Cross shaped screwdriver
Thin-blade screwdriver	8mm wrench

Note: Before you start, lay the refrigerator on its back in order to gain access to the base. You should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator. To reverse the door, the following steps are generally recommended.

1. Stand the refrigerator upright. Open the upper door to take out all door racks (to avoid damaging the rack) and then close the door.

Installing your new appliance

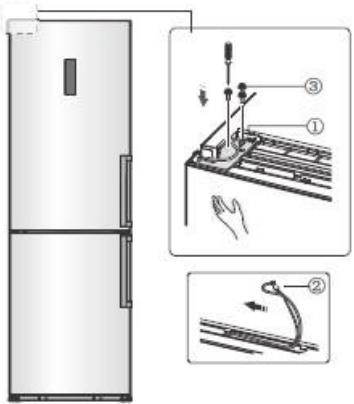

1. Lift part ① from the top of the refrigerator body from the right side and then take down part ③ and part ④ of the upper door in the same way. Take down part ② and put it back into the plastic bag.

1. Disconnect electrical connector ① as well as electrical connector ② and then take down part ③.

1. Remove the screws ① , loose wire ② , and remove par ③ .

Note: Please hold the upper door by hand during step 4 to prevent the door from dropping.

1. Remove the upper door and place it on a smooth surface with its panel upwards. Lever part ① and part ④ then loose screws ②, as shown in the picture. Change handle ③ to the right side, then install screws ②, part ① and part ④ in turn. Loosen screws ⑦, detach part ⑥ and part ⑤ then install part ⑤ and another part ⑥ (in the plastic bag)to the left side with screws ⑦. Put part ⑥ just detached back to plastic bag.

1. Loose screws used to fix the middle hinge and remove middle hinge. Then remove the lower door.

1. Place the lower door on a smooth surface with its panel upwards.

Change the handle to the right side according to step 5. Loose screws ⑦ , detach part ⑥ and part ⑦ .Turn part ⑤ by 180^ and then install part ⑤ and part ⑥ to corresponding position on left side together with screws ⑦ .

Installing your new appliance

1. Change screw hole covers on middle cover plate from left to right (as shown in figure below).

1. Place refrigerator flatwise, remove part ③ and then loose screws ④ . Remove part ② and part ① .

1. Unscrew the lower hinge, change it to the near hole site, and then screw up and mount the washer.
2. Repeat the step 9, change part ① to left and part ② to right and then fix them with screws ④ . Finally install part ③ .

1. Move the lower door and adjust its position to align lower hole site and upper hinge axis. Turn the middle hinge by 180, change the washer on the axis to the upper side, adjust the middle hinge to the appropriate position and then install it.

Note: washer may stick to lower door

1. Unscrew the upper hinge axis, turn the upper hinge over and fix axis on it. Then place it at side for use.

1. Exchange wires both in the left and right slots of refrigerator body

1. Move the upper door to appropriate position, adjust part ① and upper door, Move the connecting wire ② in the slot of upper door from right to left, and then fix part ① and wire ② with screws ③.

(Pleases hold upper door by hand when installing)

Installing your new appliance

1. Connect electrical connector ① in accordance with step 3 and then install part ② (which is in the plastic bag).

1. Reverse part ① by 180^ and install it onto the right corner of upper door, then mount part ②. (both of which are taken down in step 2)

1. Take the reed switch out of the coping block(part ③ 6 in step 3) and mount it on another block for use (marked "R" in the plastic bag). Place the removed coping block back into the plastic bag.

Note: Be sure character side of reed switch fits well with coping block.

1. Install part ① connect the wire connector ②, and then install part ③.

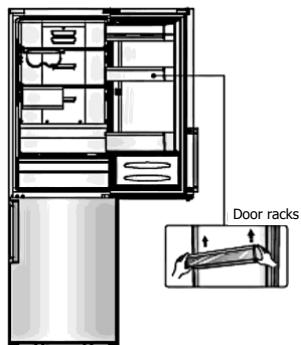

1. Open the upper door, mount door racks and then close it.

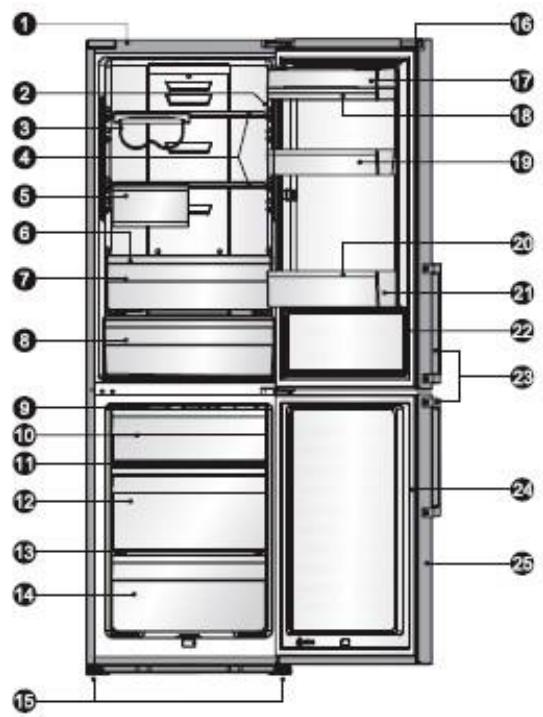

Description of the appliance

1. Cabinet
2. LED light
3. Flexible wine rack
4. Glass shelf
5. Flexi-fresh box
6. Crisper cover
7. Fruit and vegetables crisper
8. Multifresh
9. Integrative ice maker
10. Upper freezer drawer

11. Upper freezer glass shelf
    12.Middle freezer drawer(huge box)
    13.Middle freezer glass shelf

12. Lower freezer drawer

13. Adjustable bottom feet
14. Fridge door
15. Covered dairy rack
16. Egg tray
    19.Middle rack
17. Bottle holder
18. Bottle rack
19. Fridge door seal
20. Handle
21. Freezer door seal
22. Freezer door

Description of the appliance

Note: Due to unceasing modification of our products, your refrigerator may be slightly different from this instruction manual, but its functions and using methods remain

the same. To get more space in the freezer, you can remove drawers (except lower freezer drawer), installation bracket and integrative ice maker/twistable ice tray.

3. USING YOUR APPLIANCE

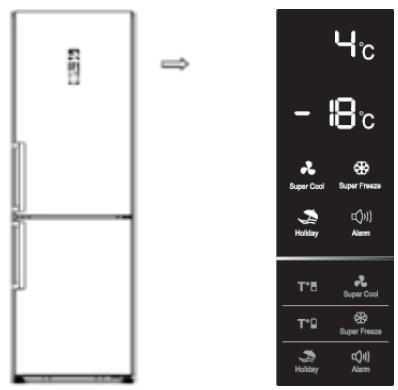

Display control

Use your appliance according to the following control regulations. The corresponding functions and modes at the control panel are shown in the picture below. When the appliance is powered on

for the first time, the backlighting of the icons on display panel starts working. If no buttons have been pressed and the doors are closed, the backlighting will turn off.

Controlling the temperature

We recommend that when you start your refrigerator for the first time, the temperature for the refrigerator is set to 4^ and the freezer to -18^ . If you want to change the temperature, follow the instructions below. Caution! When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperatures inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you

store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance.

1. Fridge

Press "Fridge" to set fridge temperature between 20^ C and 80^ C as needed. The control panel will display the corresponding values according to the following sequence.

or

2. Super Cool

Super Cool can refrigerate your food much faster, keeping food fresh for a longer period.

• Press" Super Cool" button to activate this function. The light will be illuminated.
• Super cool automatically switches off after 6 hours and the refrigerator temperature setting displays 2^ C .
• When super cool function is on you can switch it off by pressing "Super Cool" or "Refrigerator" button and the refrigerator temperature setting will revert back to the previous setting.

3. Freezer

Press "Freezer" to set freezer temperature between -14^ and -24^ as needed, and the control panel will display corresponding value according to the following sequence.

or

4. Super Freeze

Super Freeze will quickly lower the temperature within the freezer so food will freeze vita

mins and nutrients of fresh food and keep food fresh longer.

• Press «Super Freeze» button to activate the super freeze function. The light will come on.
• In case of the maximum amount of food to be frozen, please wait about 24h .
  Super freeze automatically switches off after 26 hours and the freezer temperature setting displays -24^
• When super freeze function is on you can switch off super freeze function by pressing «Super Freeze» or «Freezer» button and the freezer temperature setting will revert back to the previous setting.

5. holiday

If you are going to be away for a long period of time, you can activate this function by pressing

«Holiday» button for 3 seconds until the light comes on.

• When the holiday function is activated, the temperature of the refrigerator is automatically switched to 15^ C to minimize the energy consumption.

Display control

Important! Do not store any food in the fridge during this time.

• When the holiday function is on, you can switch it off by pressing any of these three buttons: «Holiday», «Fridge» and «Super Cool». The fridge temperature setting will revert back to the previous setting.

6. Alarm

The door ajar alarm feature sounds an alarm when the appliance door is open for 2 minutes and the product cooling is turned on.

The alarm will repeat every 1 minute 3 times and automatically stop after 10 minutes. Close the door to turn it off.

Door Alarm

• To mute the audible alarm while keeping the doors open, such as while cleaning the inside of the refrigerator, press the "alarm" button on the control panel. The "alarm" icon will be turned off.
• To save energy, please avoid keeping the door open for a long time when using the appliance.

Temperature alarm

• If freezer temperature is too high due to power failure or other reasons, there will be a temperature alarm and the freezer temperature setting displays "--".
• In case of temperature alarm, buzzer will sound constantly for 10 times and then stop automatically.
• In case of temperature alarm, press "Alarm" button for 3 seconds to check the highest freezer temperature. The temperature value and "Alarm" icon will simultaneously flash for 5 seconds. This function may not be available according to the model.

Caution! When power is restored, it is normal that the temperature alarm appears, this can be cleared by pressing "Alarm".

Using your appliance

Refer back to the section "description of the appliance" to see the appliance's list of accessories.

Door rack

• It is suitable for the storing eggs, canned liquids, bottled drinks, package food, etc. Do not place too many heavy things in the racks.
• The middle door shelf can be placed different heights according to your requirements.

Please take food out of the shelf before lifting vertically to reposition.

Note: There are egg trays in the upper shelf and bottle holder in the lower shelf.

Using your appliance

Shelf in Refrigerator chamber

• The shelves in the refrigerator chamber, can be taken out to be cleaned.

Folded shelf (optional)

• It is made up of fixed part and flexible part.
• It can be adjusted and folded to achieve different storage volume as you need.

See the picture below:

Note: If you want to spread out the folded shelf, please press the outer verge of the flexible part first.

Flexible-fresh box (optional)

• It is suitable for storing small items of food including eggs, cheese, jam, butter, small cakes and fruits as well as vegetables.
• It can slide along the shelf.

Note: Please use gentle pressure on left or right side face to move the box along the shelf. If required the flexible fresh box can be taken out with its hanger allowing you to adjust the shelf at different heights and save space.

Bottle rack (optional)

• It is for storing bottled wine or drinks.
• It can also slide along the shelf if required.

Note: Please use gentle pressure on left or right side face to move the Bottle rack along the shelf.

• Wine rack can be folded up to save space.

• If required, it can also be taken out with its hanger allowing you to adjust the shelf at different heights and save space.

Crisper cover

• Controls the temperature of the crisper and avoids the vegetables from losing moisture.

Crisper of refrigerator chamber

• It is suitable for the storage of fruits and vegetables.

Multifresh drawer

• The temperature there is about 2 - 3^ lower than that in the refrigerator chamber.

Helpful hints and tips

Energy saving tips

Energy saving tips. We recommend that you follow the tips below to save energy.

• Try to avoid keeping the door open for long periods of time in order to conserve energy.
• Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.)
• Don't set the temperature colder than necessary.
• Don't store warm food or evaporating liquids in the appliance.
• Place the appliance in a well ventilated, humidity free, room. Please refer to "Installing your new appliance" chapter.
• If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration.

Hints for fresh food refrigeration

• Avoid putting norm food into the refrigerator or freezer, as the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.
• Do cover or wrap the food, particularly if it has a strong flavor.
• Properly place the food so that air can circulate freely around it.

Hints for refrigeration

• Meat (All Types):
  Wrap and place on the glass shelf above the vegetable drawer. Always refer to food storage times and use by dates suggested by manufacturers.
• Cooked food, cold dishes, etc.: They should be covered and may be placed on any of the shelves.
• Fruits and vegetables: They should be stored in the special drawer provided.
  Butter and cheese: Should be wrapped in airtight foil or plastic film wrap.
• Milk bottles: Should have a lid and be stored in the door racks.

Hints for freezing

• When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment.
• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
• Wrap up the food in aluminum foil or poly-ethylene food wraps which are airtight,
• Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter.
• Iced products, if consumed immediately after removal from the freezer compartment, will probably cause frost burns to the skin.
• It is recommended to label and date each frozen package in order to keep track of the storage time.

Hints for the storage of frozen food

• Ensure that frozen food has been stored correctly by the food retailer
• Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer.

Switching off your appliance

If the appliance needs to be switched off for an extended period, of time the following steps should be taken to prevent mould from forming in the appliance.

1. Remove all food.
2. Remove the power plug from the mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly to allow air to circulate.

4. CLEANING AND MAINTENANCE

Cleaning and care

For hygienic reasons, the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months.

Caution! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.

Exterior cleaning

Clean your appliance regularly to maintain its good appearance.

• Wipe the digital panel and display panel with a clean, soft cloth.
• Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.
• Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth. Caution!
• Don't use sharp objects as they are likely to scratch the surface.
• Don't use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire.

Interior cleaning

You should clean the appliance interior regularly. It will be easier to clean when food stocks are low.

Wipe the inside of the fridge freezer with a weak solution of sodium bicarbonate, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets.

Thoroughly dry all surfaces and removable parts.

Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, choose a time when of food stocks are low and proceed as follows:

1. Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the thawing process.
2. When defrosting is completed, clean your freezer as described above.

Caution! Don't use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket.

Door seals cleaning

Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash the seal with a mild detergent and warm water.

Rinse and dry it thoroughly after cleaning.

Caution! Only after the door seals are completely dry should the appliance be powered on.

Replacing the LED light:

Warning: The LED light must not be replaced by the user! If the LED light is damaged, contact the customer helpline for assistance. To replace the LED light, the below steps can be followed:

1. Unplug your appliance.
2. Remove light cover by pushing up and out.
3. Hold the LED cover with one hand and pull it with the other hand while pressing the connector latch.
4. Replace LED light and snap it correctly in place.

Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service.

warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

Problem	Possible cause & Solution
Appliance is not working correctly	Check whether the power cord is plugged into the power outlet properly.
	Check the fuse or circuit of your power supply, replace if necessary.
	The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem.
	It is normal that the freezer is not operating during the automatic defrost cycle, or for a short time after the appliance is switched on to protect the compressor.
Odours from the compartments	The interior may need to be cleaned
	Some food, containers or wrapping cause odours.
Noise from the appliance	The sounds below are quite normal: • Compressor running noises. • Air movement noise from the small fan motor in the freezer compartment or other compartments. • Gurgling sound similar to water boiling. • Popping noise during automatic defrosting. • Clicking noise before the compressor starts.
	Other unusual noises are due to the reasons below and may need you to check and take action: The cabinet is not leveled. The back of appliance touches the wall. Bottles or containers have fallen or are rolling.
The motor runs continuously	It is normal to frequently hear the sound of the motor, it will need to run more when in following circumstances: • Temperature setting is set colder than necessary • Large quantity of warm food has recently been stored within the appliance. • The temperature outside the appliance is too high. • Doors are kept open too long or too often. • After your installed the appliance or it has been switched off for a long time.

Troubleshooting

A layer of frost occurs in the compartment	Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation. Ensure that door is fully closed. To remove the frost, please refer to cleaning and care chapter.
Temperature inside is too warm	You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top
Temperature inside is too cold	Increase the temperature by following the «Display controls" chapter.
Doors cannot be closed easily	Check whether the top of the refrigerator is tilted back by 10-15mm to allow the doors to self close, or if something inside is preventing the doors from closing.
Water drips on the floor	The water pan (located at the rear bottom of the cabinet) may not be properly leveled, or the draining spout (located underneath the top of the compressor depot) may not be properly positioned to direct water into this pan, or the water spout is blocked. You may need to pull the refrigerator away from the wall to check the pan and spout.
The light is not working	· The LED light may be damaged. Refer to replace LED lights in cleaning and care chapter. · The control system has disabled the lights due to the door being kept open for too long. Close and reopen the door to reactivate the lights.

Installation of apparatus 6
