USER MANUAL TX-NR1010 ONKYO

Controlling Other Components.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

[WARNING |] AVIS SK EC Sho | RSQUE DE CIO ELCIRIQUE GONG oral NEMS OUR The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the Â\ presence of uninsulated “dangerous voltage” within the products enclosure that may be of sufficient

magnitude to constitute a risk of electric shock 10 persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

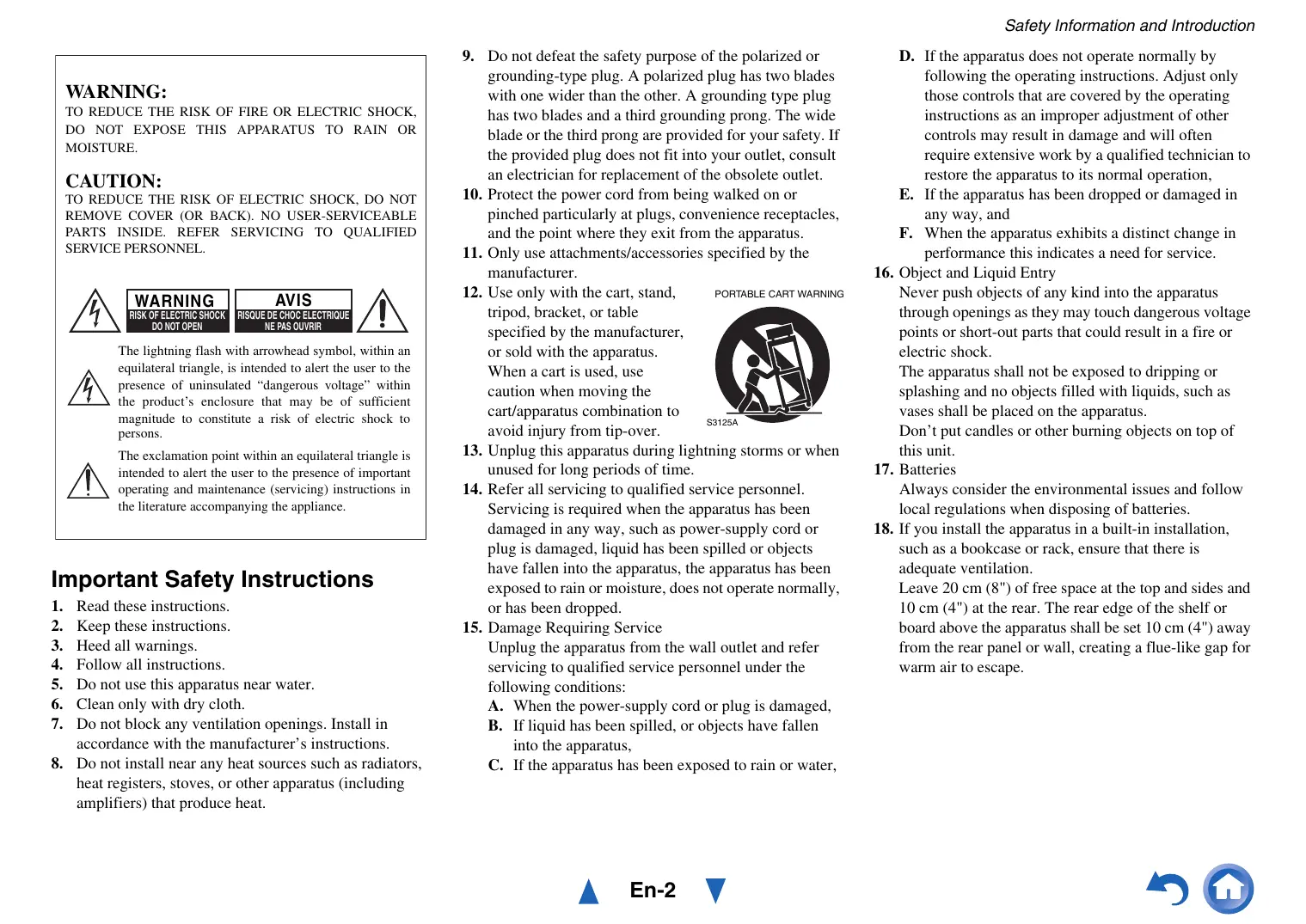

Important Safety Instructions

SPRhPRHRE Read these instructions.

Keep these instructions.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

. Use only with the cart, stand,

Do not defeat the safety purpose of the polarized or

grounding-type plug. À polarized plug has two blades

with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If

the provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

Only use attachments/accessories specified by the

PORTABLE GART WARNING

tripod, bracket, or table

specified by the manufacturer,

or sold with the apparatus.

When a cart is used, use

caution when moving the

cart/apparatus combination to

avoid injury from tip-over.

Unplug this apparatus during lightning storms or when

unused for long periods of time.

Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally,

or has been dropped.

Damage Requiring Service

Unplug the apparatus from the wall outlet and refer

servicing to qualified service personnel under the

following conditions:

A. When the power-supply cord or plug is damaged,

B. If liquid has been spilled, or objects have fallen into the apparatus,

C. If the apparatus has been exposed to rain or water,

Safety Information and Introduction

D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in any way, and

F. When the apparatus exhibits a distinct change in performance this indicates a need for service.

Object and Liquid Entry

Never push objects of any kind into the apparatus

through openings as they may touch dangerous voltage

points or short-out parts that could result in a fire or electric shock.

The apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such as

vases shall be placed on the apparatus.

Don't put candles or other burning objects on top of

Always consider the environmental issues and follow

local regulations when disposing of batteries.

If you install the apparatus in a built-in installation,

such as a bookcase or rack, ensure that there is

adequate ventilation.

Leave 20 cm (8") of free space at the top and sides and

10 cm (4") at the rear. The rear edge of the shelf or

board above the apparatus shall be set 10 cm (4") away

from the rear panel or wall, creating a flue-like gap for warm air {0 escape.

1. Recording Copyright—Unless its for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not user- serviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don't use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

For models with [POWER] button, or with both [POWER] and [ON/STANDBY] buttons:

Pressing the [POWER] button to select OFF mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

For models with [ON/STANDBY] button only: Pressing the [ON/STANDBY] button to select Standby mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

Preventing Hearing Loss Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

Batteries and Heat Exposure

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer. Handling Notes

If you need to transport this unit, use the original packaging to pack it how it was when you originally bought it.

Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case.

This unit’s top and rear panels may get warm after prolonged use. This is normal.

If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.

À En3 Y Safety Information and Introduction

The user changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation.

This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more

of the following measures:

+ Reorient or relocate the receiving antenna.

+ Increase the separation between the equipment and receiver.

+ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

+ Consult the dealer or an experienced radio/TV technician for help.

NOTE: THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

For models having a power cord with a polarized plug: CAUTION: TO PREVENT ELECTRIC SHOCK,

Sur les modèles dont la fiche est polarisée: ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

For British models Replacement and mounting of an AC plug on the power

supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Blue: Neutral

Brown: Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT The plug is fitted with an appropriate fuse. If the fuse needs 10 be replaced, the replacement fuse must approved by ASTA or BSI to BS1362 and have the same ampere rating as that indicated on the plug. Check for the ASTA mark or the BSI mark on the body of the fuse.

If the power cord’s plug is not suitable for your socket outlets, cut it off and fit a suitable plug. Fit a suitable fuse in the plug.

Declaration of Conformity

We, ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY

declare in own ility, that the ONKYO product described in this à ion manual is in compliance with the corresponding technical standards such as EN60065, EN55013, ENS5020 and EN61000-3-2, -3-3.

GROEBENZELL, GERMANY K. MIYAGI ONKYO EUROPE ELECTRONICS GmbH

À En4 Y Safety Information and Introduction

Supplied Accessories

Make sure you have the following accessories:

Indoor FM antenna (> page 21)

AM loop antenna (> page 21)

(North American models) Two AM loop antennas and two Indoor FM antennas are supplied.

Speaker cable labels (> page 14)

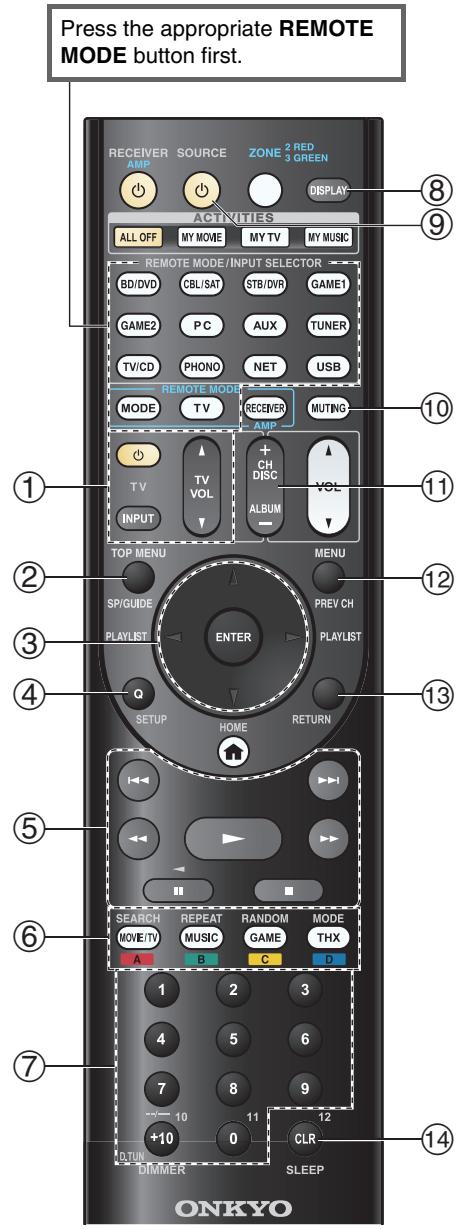

Remote controller (RC-840M) and two batteries (AA/R6)

* In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color.

+ Ifthe remote controller doesn't work reliably, try replacing the batteries.

+ Don’t mix new and old batteries or different types of batteries.

+ If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.

+ Remove expired batteries as soon as possible to prevent damage from leakage or corrosion.

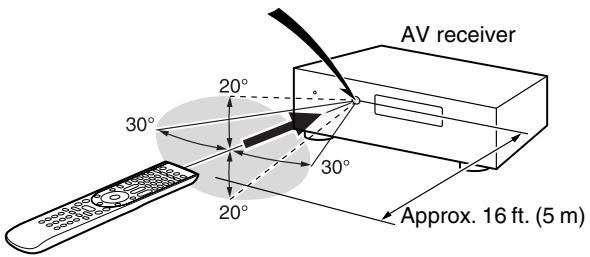

B Aiming the remote controller To use the remote controller, point it at the AV receiver’s remote control sensor, as shown below.

Remote control sensor

Approx. 16 ft. (5 m)

Thank you for purchasing an Onkyo AV Receiver. Please read this manual thoroughly before making connections and plugging in the unit.

Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver. Please retain this manual for future reference.

À Ens5 Y Safety Information and Introduction

Important Safety Instructions . Precautions . Supplied Accessories. Table of Content: Features Front & Rear Panels. Remote Controller.

Connecting Your Speakers . About AV Connections. Connecting Components with HDMI Connecting Your Components Connecting the Antennas. Connecting Onkyo RI Components. Connecting the Power Cord…

Turning On/Off the AV Receiver

Turning On urning Off Setu Selecting the Language

for the Onscreen Setup Menus... Audyssey MultEQ XT32: Auto Setup 24 Source Connection. Remote Mode Setup . Network Connection. Terminating the Initial Setup

Playback. Playing the Connected Component. Controlling Contents of USB or Network Devices Understanding Icons on the Display Playing an iPod/iPhone via USB... Playing a USB Device... Listening to Tuner Internet Radio Registering Other Internet Radio Changing the Icon Layout

on the Network Service Screen... Playing Music Files on a Server (DLNA) Remote Playback Playing Music Files on a Shared Folder . 33 Listening to AM/FM Radio .… Playing Audio and Video from Separate Sources.

Using Basic Functions… Using the Automatic Speaker Setup Using the Listening Modes . Using the Home Menu Using the Sleep Timeï Settng the Display Brightness: Displaying Source Information Changing the Input Display. Using the Whole House Mode Selecting Speaker Layout.… Muting the AV Receiver Using Headphones . Using Easy Macros.

À En6 Y Safety Information and Introduction

Multi Zone . Making Multi Zone Connections . Controlling Multi Zone Components . Using the Remote Controller in

Zone and Multiroom Control Kits …

Controlling Other Components

iPod/iPhone Playback via Onkyo Dock Using the Onkyo Dock... Controlling Your iPod/iPhone . Controlling Other Components. Preprogrammed Remote Control Codes . Looking up for Remote Control Codes Entering Remote Control Codes. Remapping Colored Buttons . Remote Control Codes for Onkyo Components Connected via RI Resetting the REMOTE MODE Button Resetting the Remote Controller Controlling Other Components Learning Commands . Using Normal Macros

Troubleshooting.. Firmware Update Connection Tips and Video Signal Path Using an RIHD-compatible TV, Player, or Recorder

License and Trademark Information Specifications.

To reset the AV receiver to its factory defaults, turn it on and, while holding down CBL/SAT, press GON/STANDBY (> page 97).

+ 140 Watts/Channel @ 8 ohms (FTC) + 200 Watts/Channel @ 6 ohms (IEC) + WRAT-Wide Range Amplifier Technology (5 Hz to 100 kHz bandwidth) + Linear Optimum Gain Volume Cireuitry + HLC.P.S. (High Current Power Supply) Massive High Power Transformer

+ 3 Stage Inverted Darlington Amplifier Design

+ Music Optimizer for Compressed Digital Music files

+ 192 kHz/24-bit D/A Converters

+ Powerful and Highly Accurate 32-bit Processing DSP

+ Jitter Cleaning Circuit Technology

+ Digital Processing Crossover Network

+ Component Video Switching (2 Inputs/1 Output)

+ Banana Plug-Compatible Speaker Posts * In Europe, using banana plugs to connect speakers to an audio

amplifier is prohibited.

+ Bi-Amping Capability for FL/FR with FHL/FHR

+ Analog RGB Video Input (D-sub 15) for PC

+ 2 Independent Subwoofer Pre Outs

+ (North American models) HD Radio Capability

+ Internet Radio Connectivity

+ Network Capability for Streaming Audio Files

+ 2 USB Inputs (Front/Rear) for Memory Devices and iPod®/iPhone® models

* Only the front-panel USB input is compatible with iPod/Phone.

+ MHL-Enabled AUX Front Input

+ Audyssey MultEQ® XT32 to correct room acoustic problems

+ Audyssey Dynamic EQ® for loudness correction

+ Audyssey Dynamic Volume® to maintain optimal listening level and dynamic range

+ Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/200 Hz)

+ On-Screen Display via HDMI

+ Preprogrammed (with onscreen display setup) RI-Compatible Learning Remote with 4 Activities and Mode-Key LEDs

+ ISF (Imaging Science Foundation) Video Calibration

+ VLSC (Vector Linear Shaping Cireuitry) for AI Channels

Safety Information and Introduction

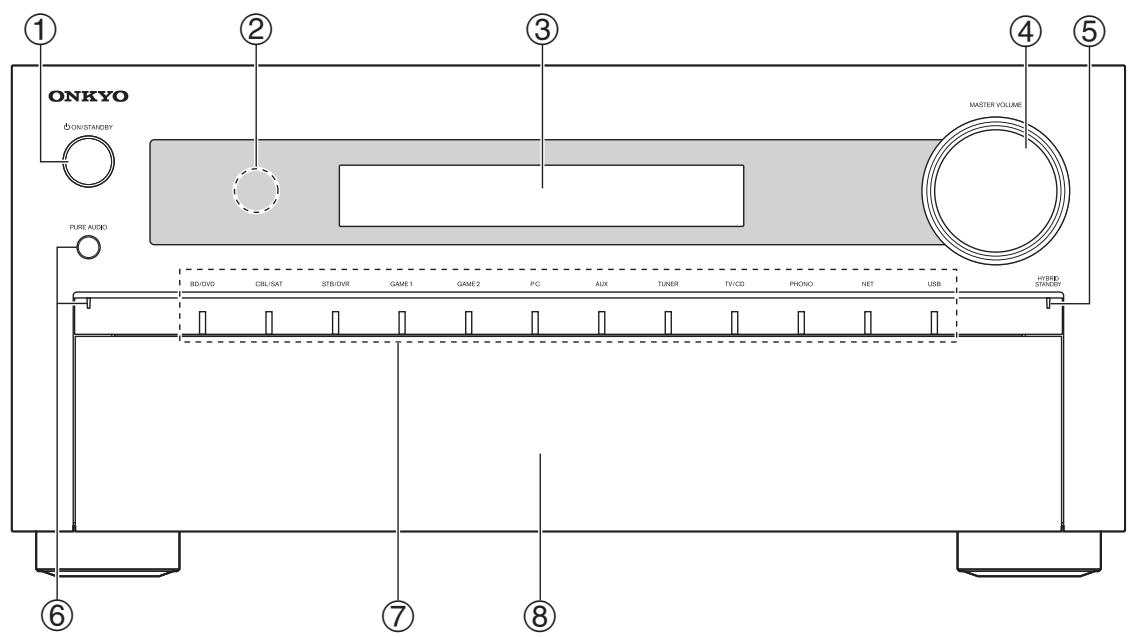

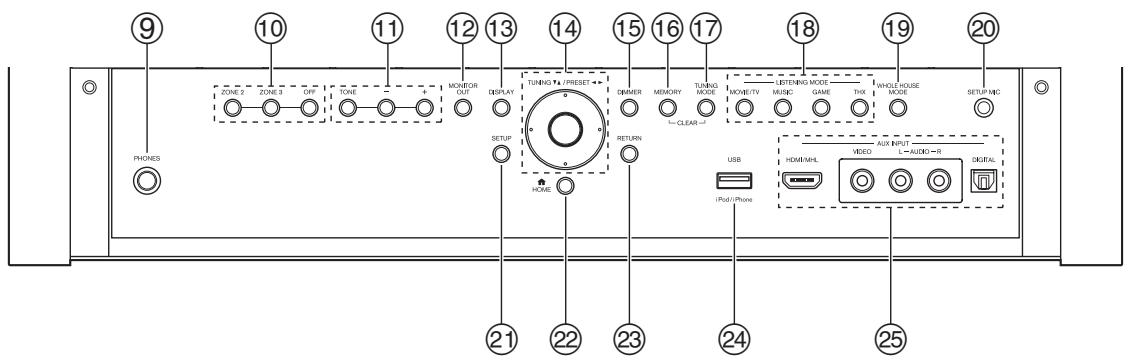

@ Remote control sensor (5)

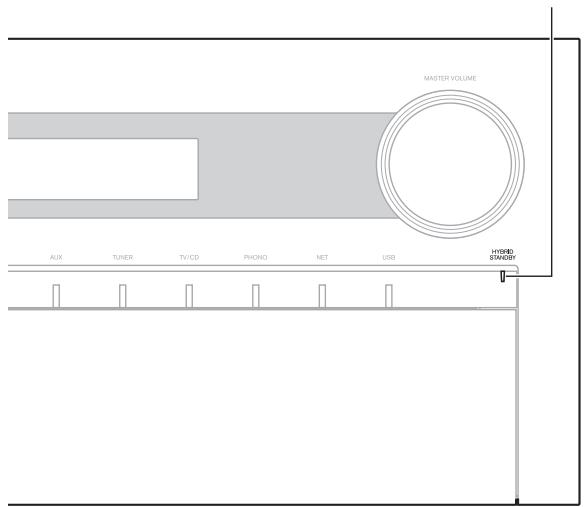

@ MASTER VOLUME control and indicator (26, 51) @ HYBRID STANDBY indicator (59)

@ PURE AUDIO button and indicator (42)

@ Input selector buttons (26)

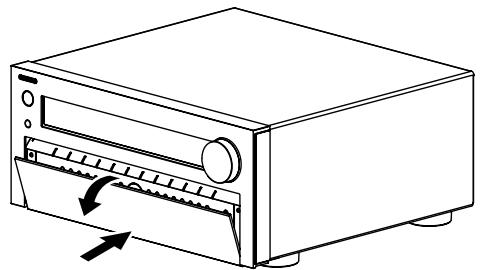

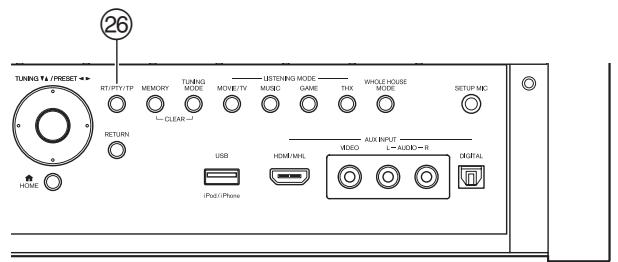

Front flap Gently push on the lower end of the front panel to open the flap.

ZONE 2, ZONE 3, and OFF buttons (85) @ TONE and Tone Level buttons (55)

@ MONITOR OUT button (60)

@ DISPLAY button (51)

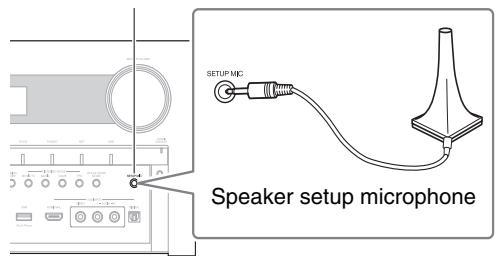

@ SETUP MIC jack (40)

For detailed information, see the pages in parentheses. @ Speaker/channel indicators © 22 (Zone 2) indicator (85) @® 23 (Zone 3) indicator (85) @ Listening mode and format indicators (42, 77) ® M.Opt indicator (57) © æ-, 11 and cursor indicators (28) @ NET indicator (29 to 33, 82) Tuning indicators HD indicator (North American models) (35) SPS indicator (North American models) (35)

RDS indicator (excluding North American models) (36)

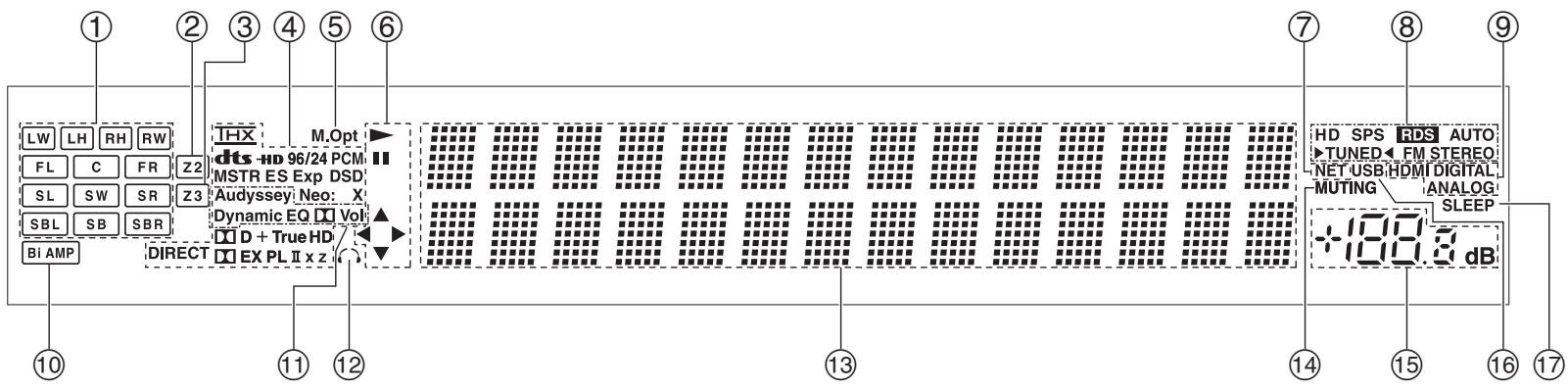

AUTO indicator (34) TUNED indicator (34) FM STEREO indicator (34)

@ Headphone indicator (52)

@ SLEEP indicator (51)

(North American models)

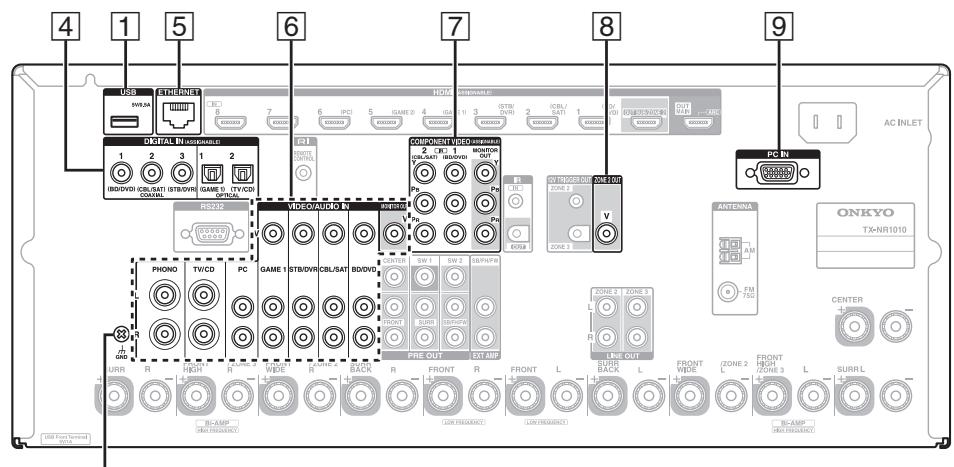

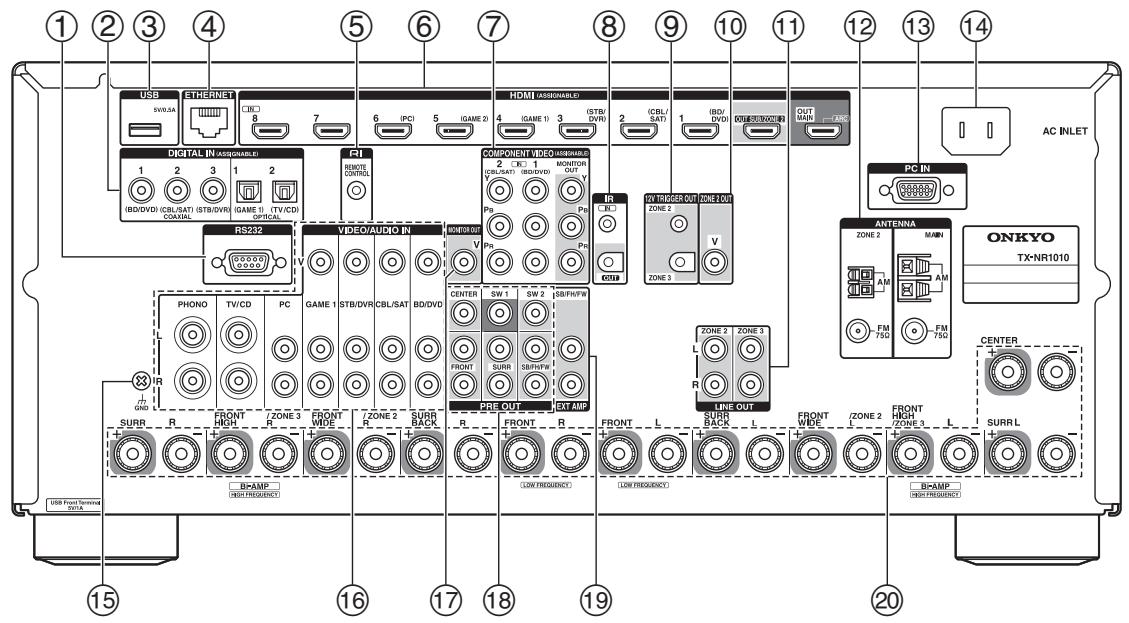

jus Ru © © © © | @© RS232 port © ZONE 2 and ZONE 3 LINE OUT jacks @ PRE OUT jacks

Terminal for control. @ DIGITAL IN COAXIAL and OPTICAL jacks @ USB port @ ETHERNET port @ RI REMOTE CONTROL jack

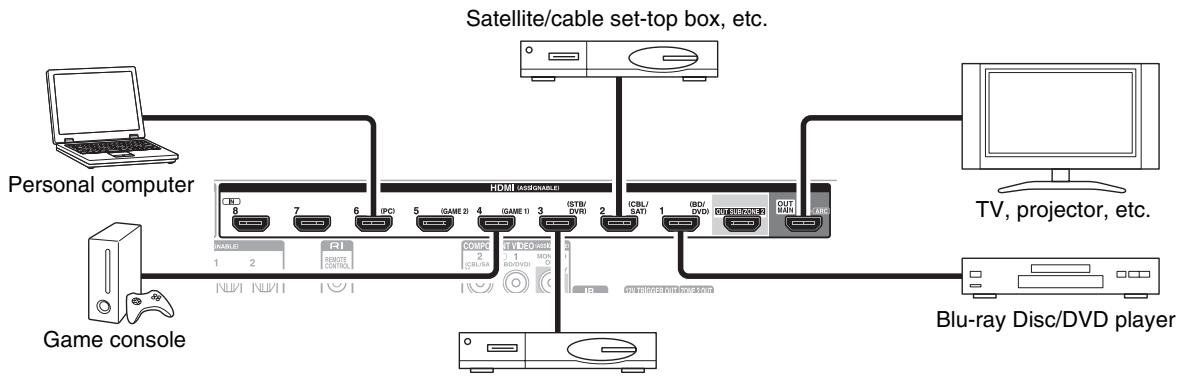

© HDMI IN and HDMI output (HDMI OUT MAIN and HDMI OUT SUB/ZONE 2) jacks

@ COMPONENT VIDEO IN and MONITOR OUT jacks

IR IN and OUT jacks @ ZONE 2 and ZONE 3 12V TRIGGER OUT jacks @ ZONE 2 OUT V jack

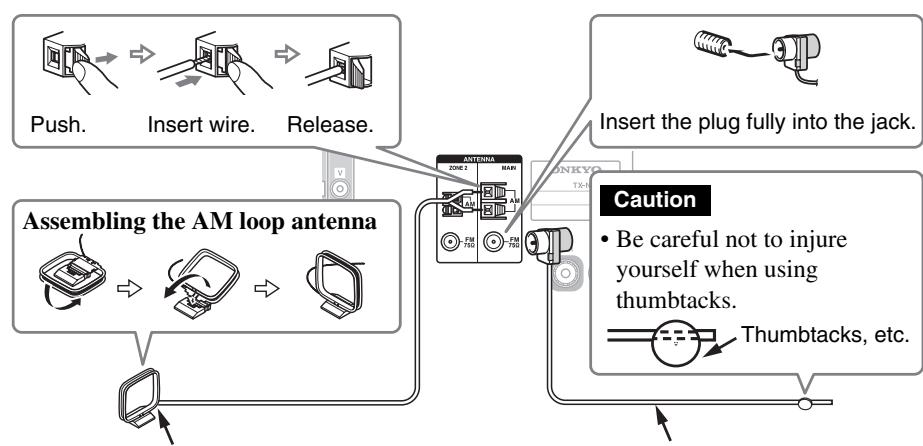

@ MAIN/ZONE 2 FM ANTENNA jacks and MAIN/ZONE 2 AM ANTENNA terminals

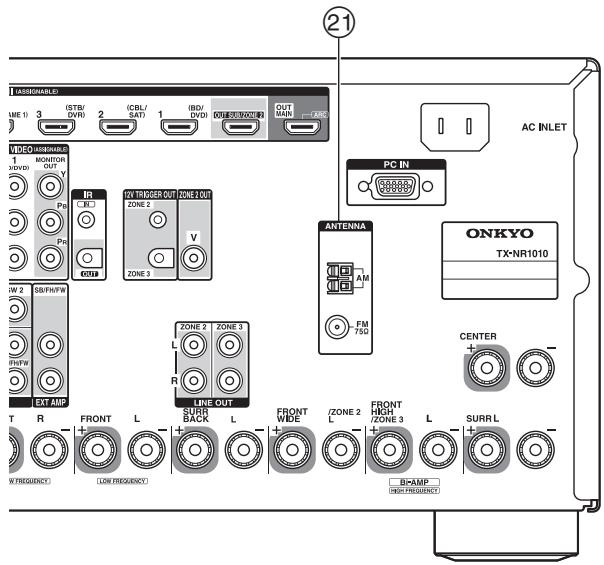

© PCIN jack AC INLET © GND screw

@ Composite video and analog audio jacks

(BD/DVD IN, CBL/SAT IN, STB/DVR IN, GAME 1 IN, PC IN, TV/CD IN and PHONO IN)

@ MONITOR OUT V jack

(FRONT L/R, CENTER, SURR L/R, SB/FH/FW'° L/R, SW1 and SW2) “1 SB.-Surround Back, FH...Front High, FW...Front Wide SB/FH/FW'1 EXT AMP jacks @ Speaker Terminals

(FRONT L/R, CENTER, SURR L/R, SURR BACK L/R, FRONT HIGH/ZONE 3 L/R and FRONT WIDE/ZONE 2 L/R)

€) FM ANTENNA jack and AM ANTENNA terminal

See “Connecting the AV Receiver” for connection

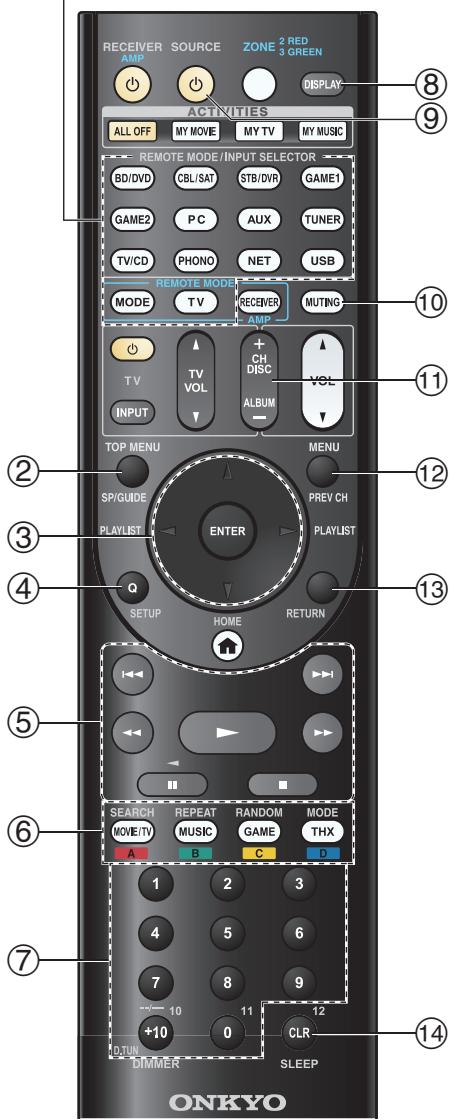

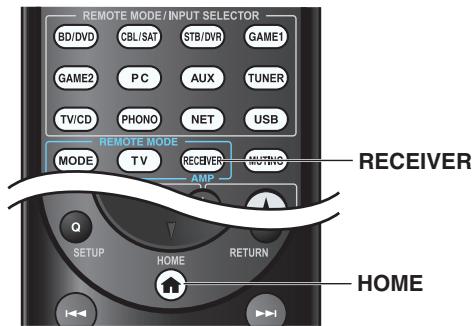

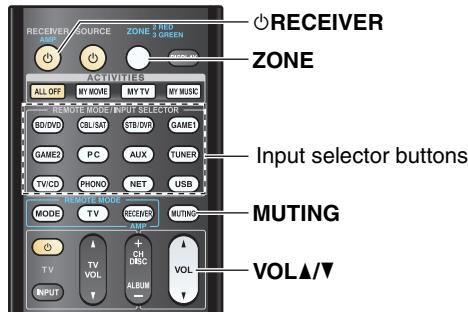

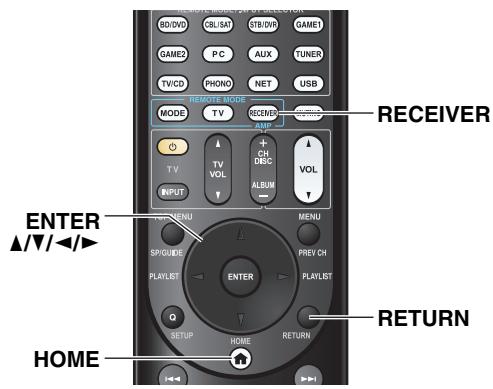

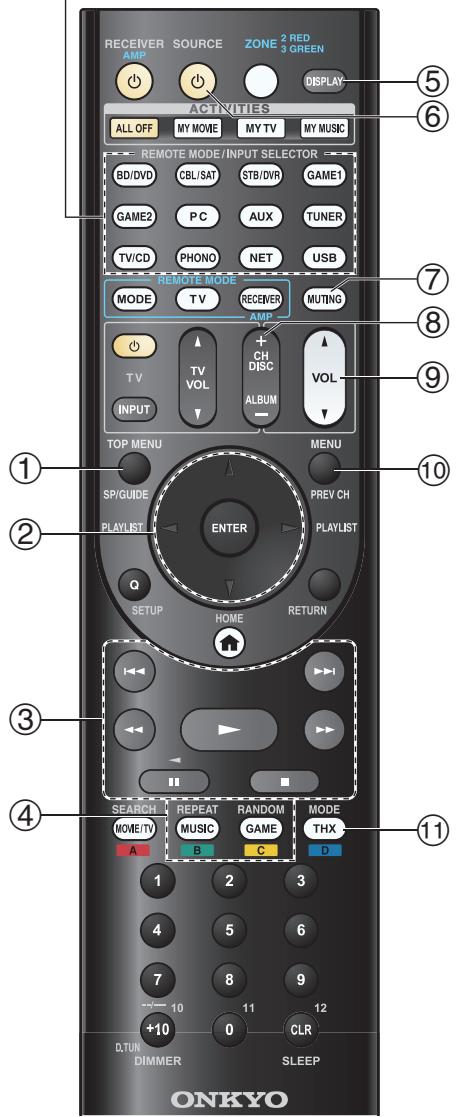

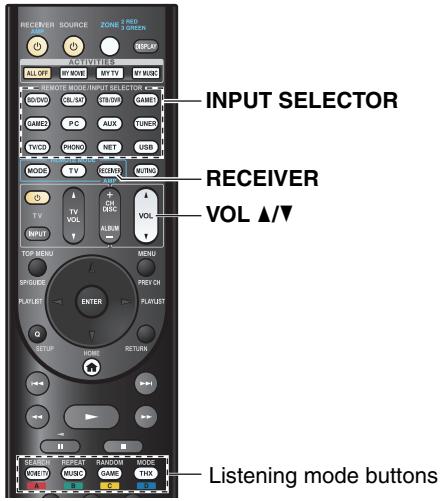

To control the AV receiver, press RECEIVER to select Receiver mode.

You can also use the remote controller to control Onkyo Blu-ray Disc/DVD player, CD player, and other components.

See “Entering Remote Control Codes” for more details (> page 91).

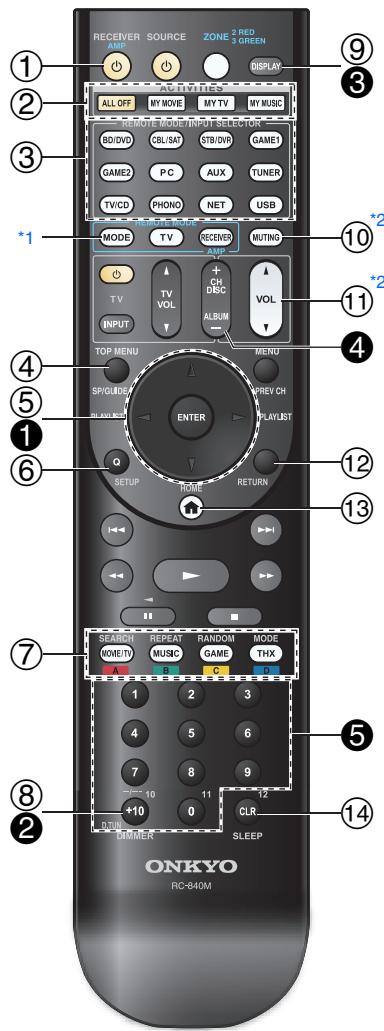

© Q SETUP button (54)

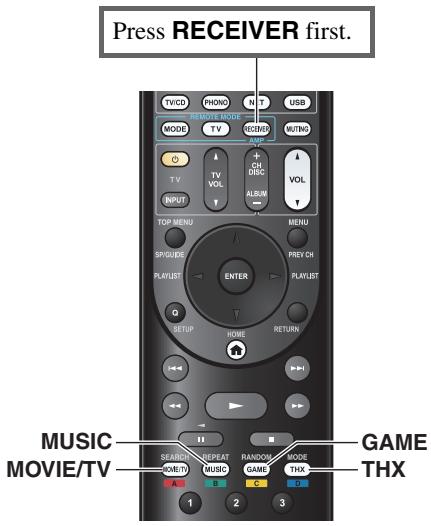

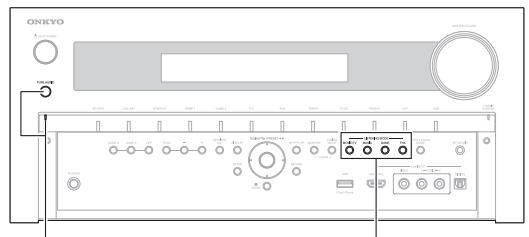

@ Listening Mode buttons (42)

@ DISPLAY button (51)

© VOL 4/Y button (26)

E Controlling the tuner

To control the AV receiver’s tuner, press TUNER (or RECEIVER).

You can select AM or FM by pressing TUNER repeatedly.

© D.TUN button (34) © DISPLAY button

© CH +/- button (35) © Number buttons (34)

“1 When you want to change the remote controller mode (target component) without changing the current input source, press MODE and within about 8 seconds, press REMOTE MODE. Then, using the same AV receiver’s remote controller, you can control the component corresponding to the button you pressed.

These buttons can also be used when a REMOTE MODE other than Receiver mode is selected.

Connecting the AV Receiver

Connecting Your Speakers

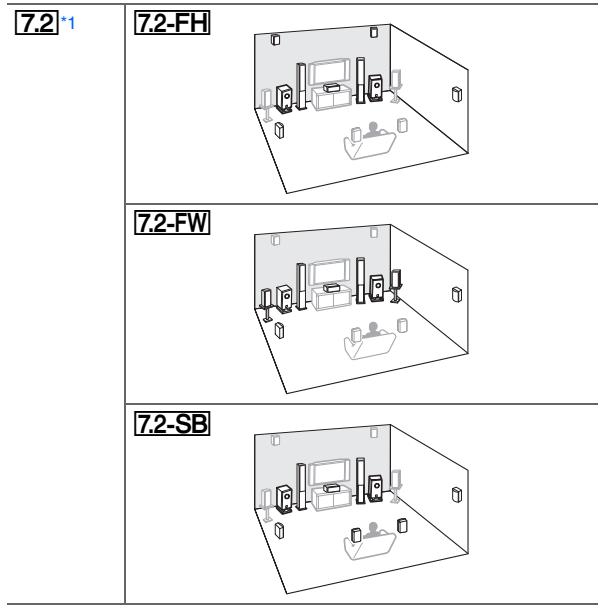

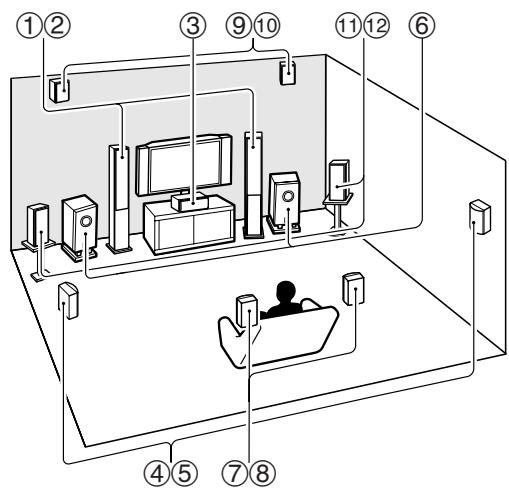

Speaker Configuration

The following table indicates the channels you should use depending on the number of speakers that you have.

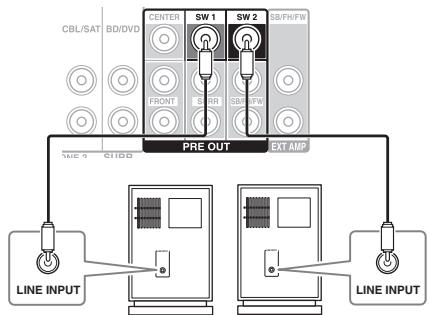

No matter how many speakers you use, 2 powered subwoofers are recommended for a really powerful and solid bass.

To get the best from your surround sound system, you need 10 set the speaker settings automatically (> page 39) or manually (> page 64).

Connecting the Speaker Cables

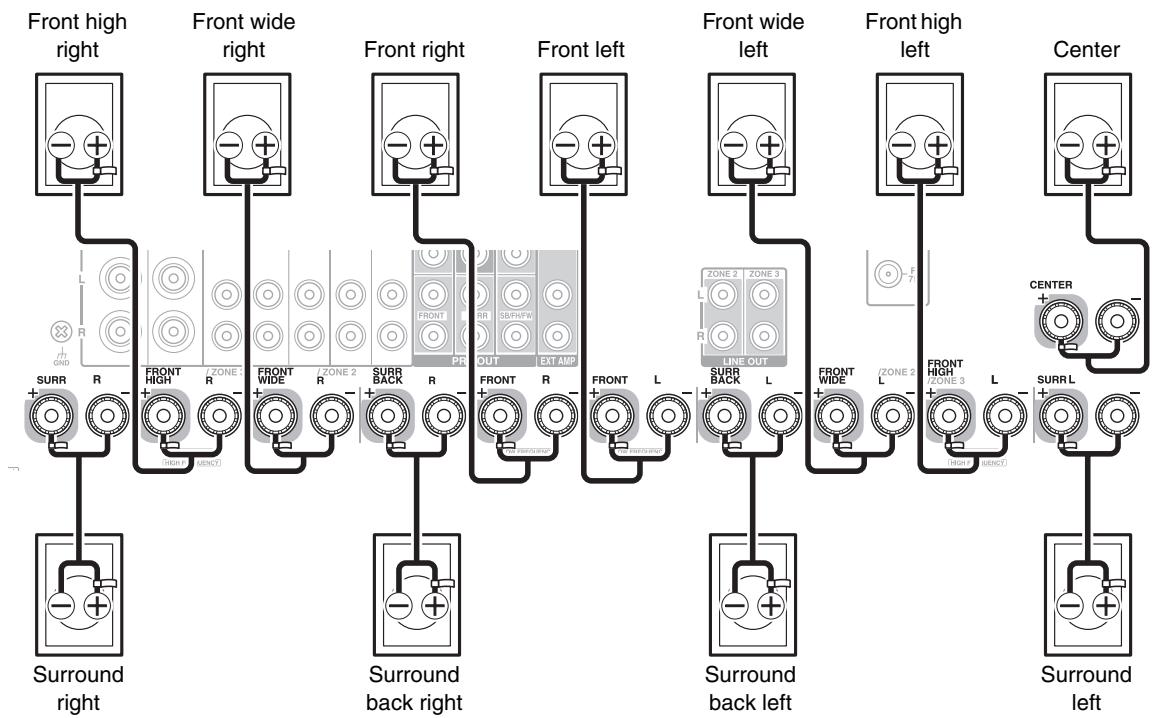

27.2-channel playback

The following illustration shows how to connect the speakers to each pair of terminals. If you’re using only one surround back speaker, connect it to the SURR BACK L terminals. Select the speakers (surround back, front high, front wide) you want to use for 7.2-channel playback. You can set which speakers you want to use by priority. See “Selecting Speaker Layout” (> page 52).

Front high Front wide Front wide Fronthigh right right Front right Front left left left Center = mn ca © ©

Numberof [|2]314/5/6/7|7/7|8|8lololo tot

Center speaker | WA even

Front high CRE TETArZ

Front wide LL Le Lee Le Surround Surround Surround Surround speakers right back right back left left

“If you're using only one surround back speaker, connect it to the SURR BACK L terminals.

= Screw-type speaker terminals

Strip 1/2" to 5/8" (12 to 15 mm) of insulation from the ends of the speaker cables, and twist the bare wires tightly, as shown.

B Banana Plugs (North American models)

+ If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.

+ Do not insert the speaker code directly into the center

1/2" to 5/8" (12 to 15 mm) hole of the speaker terminal.

5e ? sm LE. À En-:13 Y

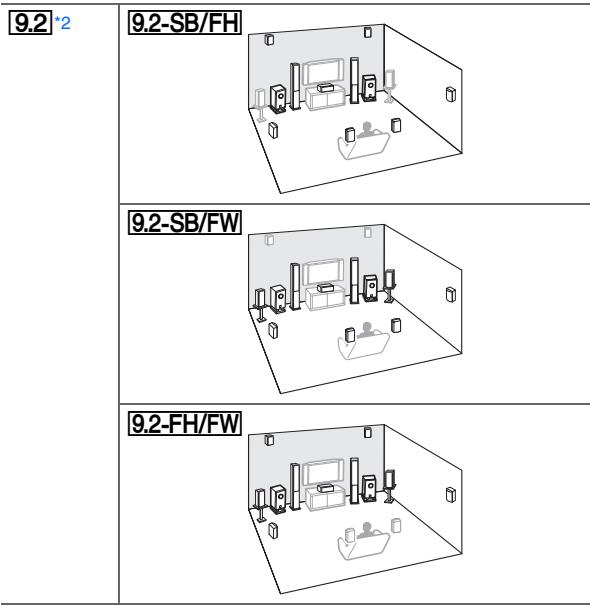

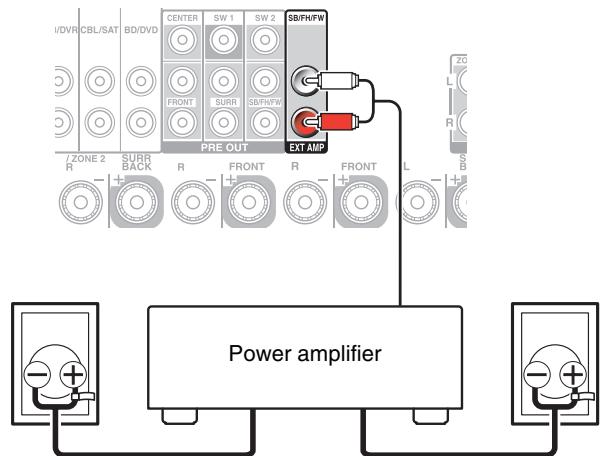

M9.2-channel playback

By adding an external amplifier to the 7.2-channel configuration, you can enjoy 9.2-channel playback. Connect your power amplifier’s analog audio input jacks to the AV receiver’s SB/FH/FW'1 EXT AMP jacks with audio cables. To use the SB/FH/FW EXT AMP jacks, you must specify their channel with the “Preout to External Amplifier” setting (> page 64).

You can set which speakers you want to use by priority. See “Selecting Speaker Layout” (> page 52). “SB.-Surround Back, FH.Front High, FW...Front Wide

Surround back left/ Front high left” Front wide left

Surround back right/ Front high right/ Front wide right

Attaching the Speaker Cable Labels

Speaker Connection Precautions

The speaker terminals are color-coded for identification purpose.

Front left, Front high left, Front wide left, | White Zone 2 left, Zone 3 left

Front right, Front high right, Front wide [Red right, Zone 2 right, Zone 3 right

Center Green Surround left Blue Surround right Gray Surround back left Brown Surround back right Tan

The supplied speaker cable labels are also color-coded and you should attach them to the positive (+) side of each speaker cable in accordance with the table above. Then all you need to do is to match the color of each label to the corresponding speaker terminal.

À Ent4 Y Read the following before connecting your speakers:

+ You can connect speakers with an impedance of between

4 and 16 ohms. If the impedance of any of the connected

speakers is 4 ohms or more, but less than 6 ohms, be sure

to set the minimum speaker impedance to “4ohms”

(> page 63). If you use speakers with a lower

impedance, and use the amplifier at high volume levels

for a long period of time, the built-in protection circuit may be activated.

Disconnect the power cord from the wall outlet before

making any connections.

Read the instructions supplied with your speakers.

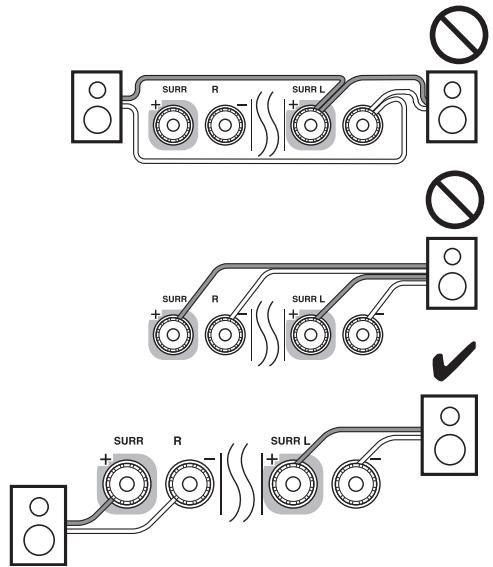

+ Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (-—) terminals only to negative (—) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.

+ Unnecessarily long, or very thin speaker cables may affect the sound quality and should be avoided.

+ Be careful not to short the positive and negative wires. Doing so may damage the AV receiver.

+ Make sure the metal core of the wire does not have contact with the AV receiver’s rear panel. Doing so may damage the AV receiver.

+ Don't connect more than one cable to each speaker Using Dipole Speakers Using Powered Subwoofers terminal. Doing so may damage the AV receiver. + Don't connect one speaker to several terminals. LT LT = © CD Tvecreen | SOU ÿ Èë & E

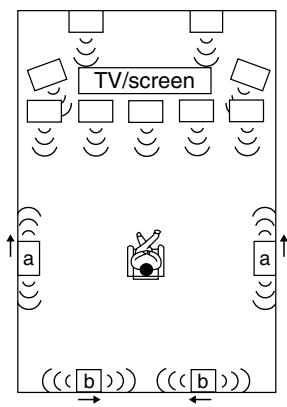

You can use dipole speakers for the surround and surround back speakers. Dipole speakers output the same sound in two directions.

Dipole speakers typically have an arrow printed on them to QU position indicate how they should be positioned. The surround |

dipole speakers (a) should be positioned so that their arrows point toward the TV/screen, while the surround back dipole speakers (b) should be positioned so that their arrows point toward each other, as shown.

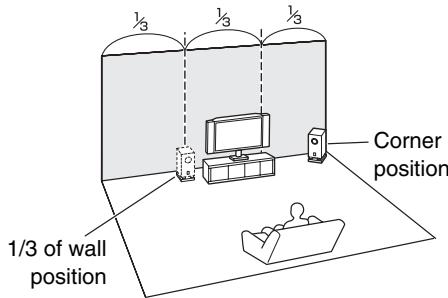

1/8 of wall position

To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various positions within the room, and choose the one that provides the most satisfying results. You can connect the powered subwoofers with SW1 PRE OUT and SW2 PRE OUT respectively. The level and distance can be set individually for each output. If you're using only one subwoofer, connect it to SW1 PRE OUT. Tip + If your subwoofer is unpowered and you're using an external amplifier, connect the subwoofer pre out jack to an input on the amplifier.

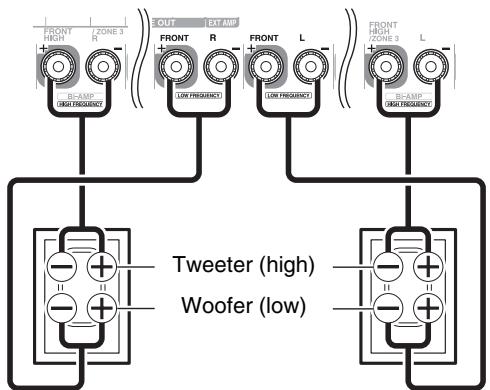

+ When making the bi-amping connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low) terminals.

+ Bi-amping can be used only with speakers that support bi- amping. Refer to your speaker manual.

Bi-amping provides improved bass and treble performance.

When bi-amping is used, the AV receiver is able to drive up to a 5.2 speaker system in the main room.

Once you’ ve completed the bi-amping connections as shown and turned on the AV receiver, you must set the speaker setting to enable bi-amping ( page 63).

+ Speakers without crossover network are speakers with no built-in crossover network.

+ With speakers without crossover network, be careful NOT to connect tweeters and woofers the wrong way around, as this may damage your speakers.

+ With speakers without crossover network, be careful NOT to set “Speakers Type(Front)” to “Bi-Amp” as this may damage your speakers. Make sure that this setting is set 10 “Digital Crossover”.

+ Confirm that your speakers are without crossover network by referring to your speaker manual.

Connecting speakers without crossover network provide a fine, three-dimensional sound field that extends bass and treble performance to the fullest extent. When speakers without crossover network are used, the AV receiver is able to drive up to a 5.2 speaker system in the main room. You must enable “Digital Crossover” in “Speakers Type(Front)” (> page 63) and make the settings of “Digital Processing Crossover Network” ( page 67).

+ You need to make the setting before connecting the speakers.

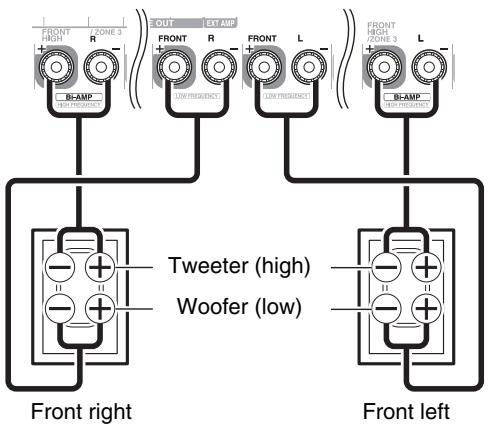

e& Tweeter (high) Re] Woofer (low) | Front right Front left

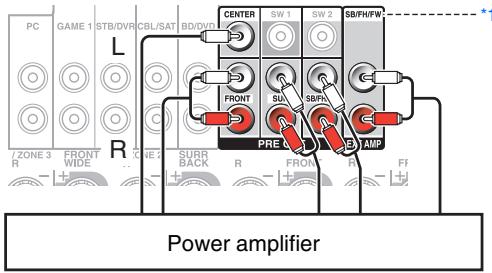

À En-:16 Y If you want to use a more powerful power amplifier, you

can use the AV receiver as a preamp. Connect all speaker outputs to the power amplifier. See the manuals supplied

with your amplifier for details.

“1 SB--Surround Back, FH--Front High, FW.Front Wide Note

+ Specify “None” for any channel that you don’t want to output G page 64).

+ When connecting to the SB/FH/FW EXT AMP jacks, you must set the “Preout to External Amplifier” setting (> page 64).

About AV Connections

Connecting AV components

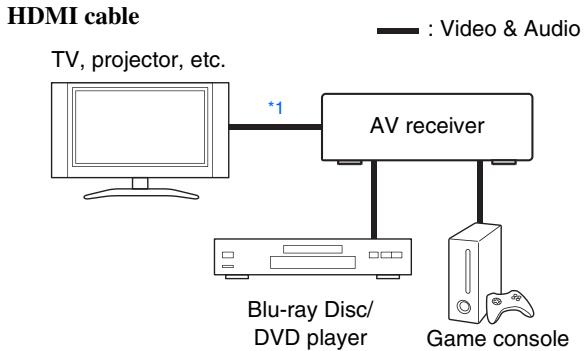

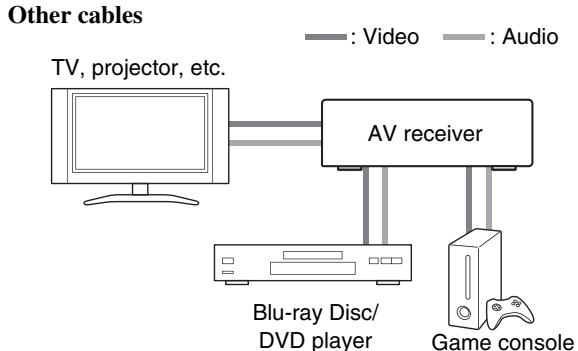

HDMI cable — : Video & Audio

“4 | AV receiver | =. Blu-ray Disc/ DEN DVD player Game console Other cables —: Video : Audio TV, projector, etc. AV receiver

Blu-ray Disc/ DVD player

“1° If your TV doesn't support Audio Return Channel (ARC), you need to connect an optical digital cable together with the HDMI cable to the AV receiver.

+ Before making any AV connections, read the manuals

supplied with your AV components.

+ Don't connect the power cord until you’ve completed and

double-checked all AV connections.

+ Push plugs in all the way to make good connections (loose connections Can cause noise or malfunctions).

+ To prevent interference, keep audio and video cables away from power cords and speaker cables.

HDMI HDMI connections can carry digital video and audio. D— à

Component video separates the luminance (Y) and color difference signals (PB, PR), providing the best picture quality (some TV manufacturers label their component video sockets slightly differently).

E Analog RGB This is a conventional analog interface to connect a PC and a display device (also called D-Sub or D-subminiature).

E Composite video Composite video is commonly used on TVs, DVDs, and other video equipment.

À Eni7 Y Connections

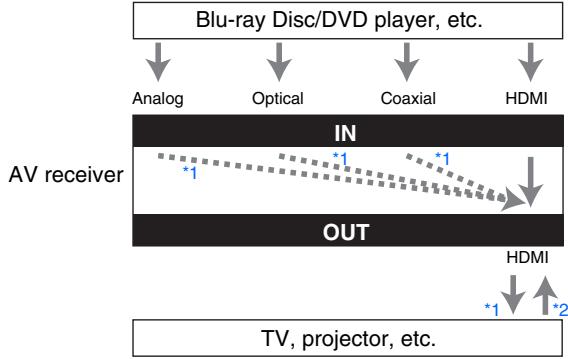

Optical digital connections allow you to enjoy digital sound such as PCM”, Dolby Digital or DTS. The audio quality is the same as coaxial.

H Coaxial digital audio

Coaxial digital connections allow you to enjoy digital sound such as PCM”, Dolby Digital or DTS. The audio quality is the same as optical.

2 For PCM signals, the supported sampling rates are 32/44.1/48/88.2/96 kHz. With HDMI connections, 176.4 and 192 KHz are also supported.

+ The AV receiver does not support SCART plugs.

+ The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when its removed. Push plugs in all the way.

+ To prevent shutter damage, hold the optical plug straight when inserting and removing.

Connecting Components with HDMI Satellite/cable set-top box, etc.

18) TV, projector, etc.

E Blu-ray Disc/DVD player

Set top box/digital video recorder, etc.

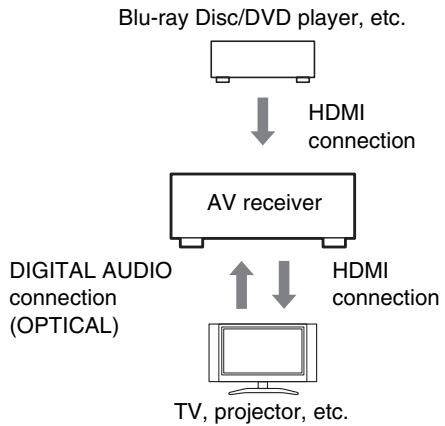

© If your TV doesn’t support Audio Return Channel (ARC), you need to connect an optical digital cable together with the HDMI cable to the AV receiver.

* When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV screen (on the TV, select the input of the HDMI component connected to the AV receiver). Ifthe TV power is off or the TV is set to another input source, this may result in no sound from the AV receiver or the sound may be cut off.

Connect your components to the appropriate jacks. The default input assignments are shown below. W: Assignment can be changed ( page 61).

Jack Components INI Blu-ray Disc/DVD player v IN2 Satellite/cable set-top box, etc. v IN3 Set top box/digital video recorder, etc. v IN4 Game console v INS Game console v IN6 Personal computer v INT Other components v INS Other components v Front Camcorder, etc.

OUT MAIN |TV OUTSUB |Projector, etc.

À En18 Y Connections

+ To listen to the audio of a component connected via HDMI through your TV's speakers, enable “HDMI Through” (> page 80) and set the AV receiver to standby mode.

+ In the case of Blu-ray Disc/DVD players, if no sound is output despite following the above-mentioned procedure, set your Blu- ray Disc/DVD players HDMI audio settings to PCM.

B Audio Return Channel (ARC) function The Audio Return Channel (ARC) function enables an HDMI capable TV to send the audio stream to HDMI OUT MAIN on the AV receiver. + This function can be used when:

— Your TV is ARC capable, and

— The TV/CD input selector is selected, and

— “HDMI Control(RIHD)" is set to “On”( page 79), and

— “Audio Return Channel” is set to “Auto” (> page 80).

BE MHL (Mobile High-Definition Link)

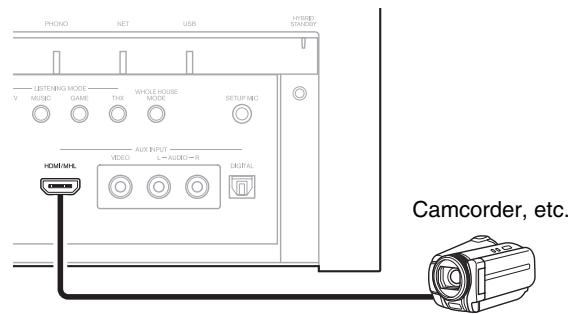

With its support for MHL (Mobile High-Definition Link), the AUX (Front) input allows you to deliver high- definition video from a connected mobile device.

Connecting Your Components Connect your components to the appropriate jacks. The default input assignments are shown below. See

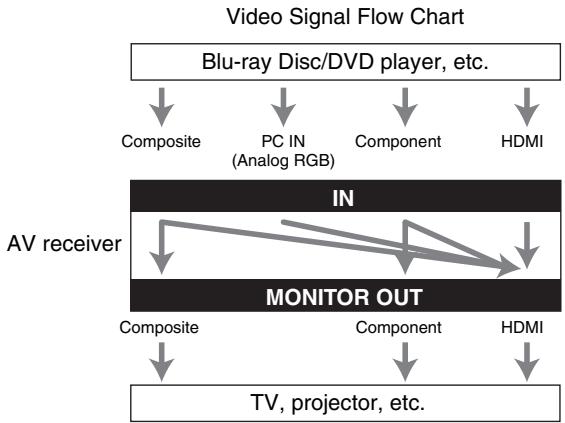

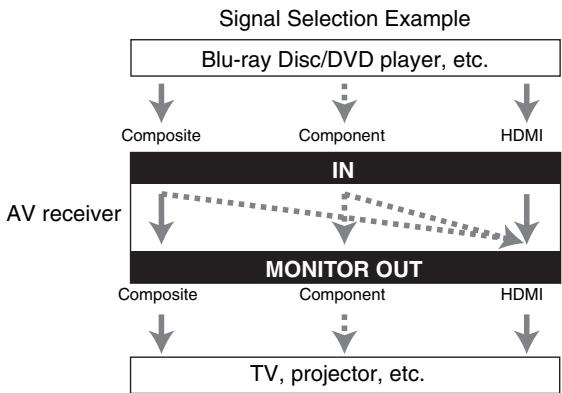

“Connection Tips and Video Signal Path” for more

The on-screen menus appear only on a TV that is connected to HDMI OUT MAIN. If your TV is connected to other information (> page 107). video outputs, use the AV receiver’s display when changing settings. V': Assignment can be changed (-> page 62, 63). No.|Jack/Port Components USB 12 iPod/Phone, MP3 player, O QG D USB ah dive E) |USB, AUX INPUT iPod/Phone (video VIDEOS playback) AUX INPUT VIDEO Camcorder, ete AUDIO LR L DIGITAL [

DIGITAL IN COAXIAL 1 (BD/DVD) |Blu-ray Disce/DVD player |w

COAXIAL 2 (CBL/SAT) |Satellite/cable set-top box, |# etc.

COAXIAL 3 (STB/DVR) |Set top box/digital video |# recorder, etc

OPTICAL 1 (GAME 1) | Game consoles La OPTICAL 2 (TV/CD) TV, CD player La (5) | ETHERNET Router [6] |MONITOR OUT TV, projector, etc. A BD/DVD IN Blu-ray Disc/DVD player CBL/SAT IN Satellite/cable set-top box, etc. STB/DVR IN Set top box/digital video recorder, etc GAME 1 IN Game console, RI dock PCIN Personal computer TV/CD IN TV, CD player, cassette tape deck, MD, CD-R, Turntable'#, RI dock PHONO IN Turntable'4 w 2 enD Lou L+ To be continued

. [Vack/Port Components COMPONENT VIDEO MONITOR OUT TV. projector, etc. IN 1 (BD/DVD) Blu-ray Disc/DVD player, |W RI dock IN 2 (CBL/SAT) Satellite/cable set-top box, |w RI dock, etc. ZONE 2 OUT TV. projector, etc. [8] [PCINS Personal computer Note

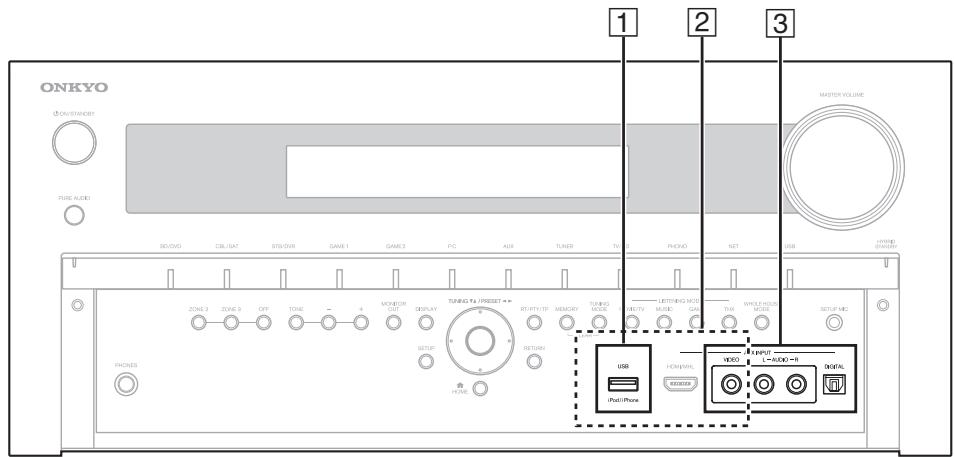

1° Do not connect the AV receiver's USB port to a USB port on your computer. Music on your computer cannot be played through the AV receiver in this way

2 Only the front-panel USB input is compatible with iPod/iPhone.

‘3 When the USB input is selected, you can input video signals from the AUX INPUT VIDEO jack. Video signals input from AUX INPUT VIDEO will be output from MONITOR OUT V, COMPONENT VIDEO MONITOR OUT, and the HDMI output jacks.

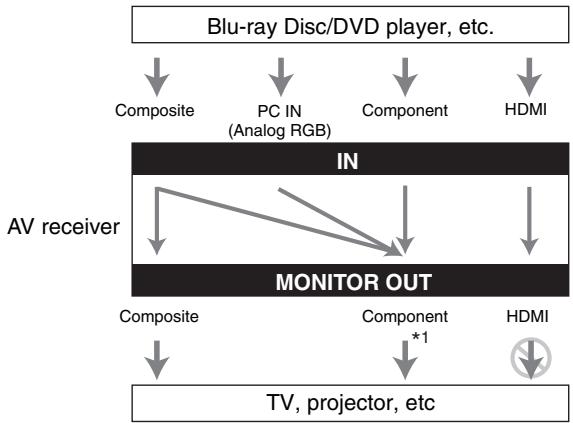

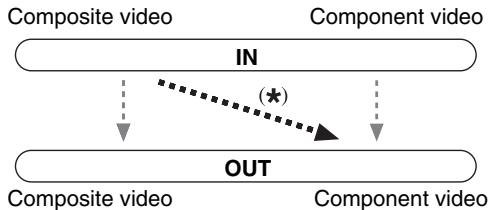

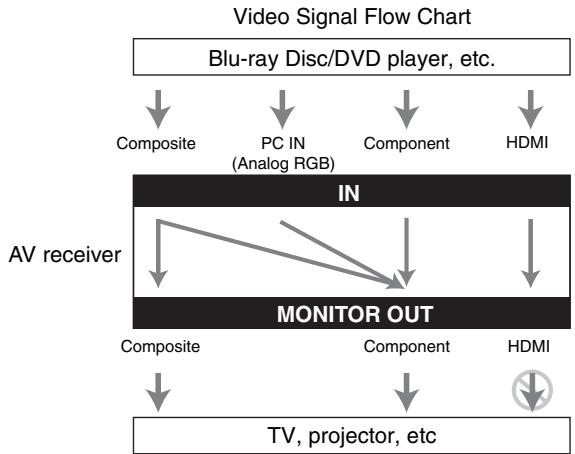

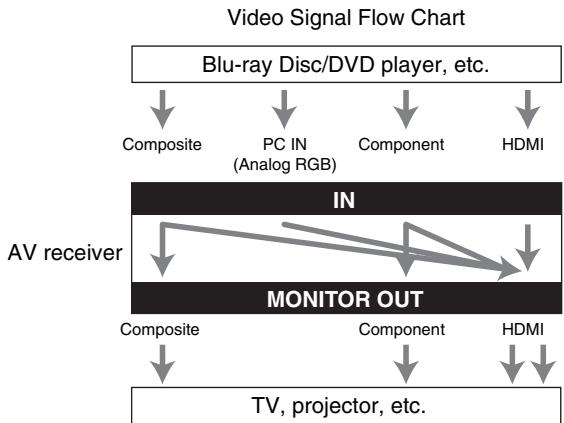

Select which of COMPONENT VIDEO MONITOR OUT and the HDMI output jacks will output the video signal in the “Monitor Out” setting ( page 60).

“4° Connect a turntable (MM) that has a built-in phono preamp to

TV/CD IN, or connect it to PHONO IN with the phono

preamp turned off. If your turntable (MM) doesn't have a

phono preamp, connect it to PHONO IN. If your turntable has

a moving coil (MC) type cartridge, you'll need a commercially

available MC head amp or MC transformer to connect 10

PHONO IN. See your turntable’s manual for details.

If your turntable has a ground wire, connect it to the AV.

receiver’s GND screw. With some turntables, connecting the

ground wire may produce an audible hum. If this happens, disconnect it.

When you connect your personal computer to PC IN and select

the PC input selector, the video of the personal computer is

output from the HDMI outputs. However, if you have assigned the HDMI inputs to the PC input selector, the AV receiver will output signals received from the HDMI inputs instead of signals from PC IN, based on the priority order of HDMI > component video > PC IN (analog RGB). To have the signals

=" for “PC® in the “HDMI

output from PC IN, select “- - - Input” setting (> page 61). + With connection [4], you can enjoy Dolby Digital and DTS. (To listen in Zone 2/3 as well, use [4] and (6].) + With connection [6], you can enjoy analog video from external components while you are in Zone 2.

+ With connection [6], you can enjoy audio from external components while you are in Zone 2/3.

+ With connection [6], if your Blu-ray Dise/DVD player has both the main stereo and multichannel outputs, be sure to connect the main stereo.

À En20 Y Connections

Connecting the Antennas

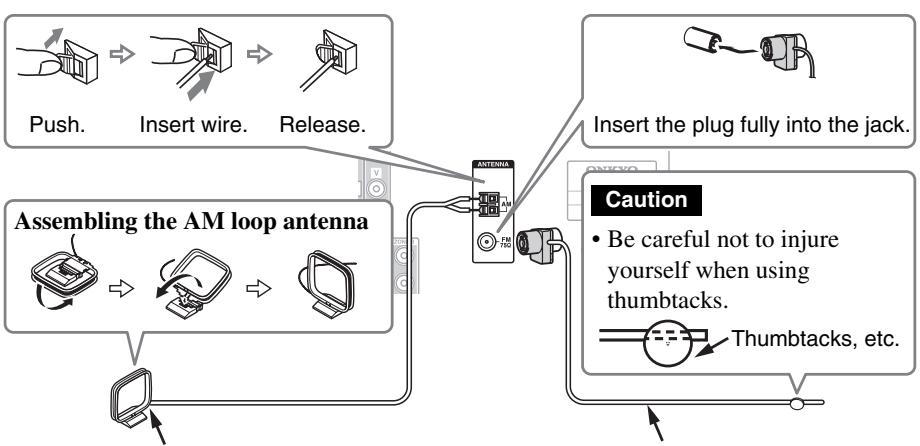

This section explains how to connect the supplied indoor FM antenna and AM loop antenna.

The AV receiver won't pick up any radio signals without any antenna connected, so you must connect the antenna to use the tuner.

(North American models)

Insert the plug fully into the jack.

Insert wire. Release.

Insert the plug fully into the jack.

D: Push. Insert wire. Release.

+ Be careful not to injure yourself when using thumbtacks.

Assembling the AM loop antenna

AM loop antenna (supplied) Indoor FM antenna (supplied) Tip + If you want to select different radio stations for the main room and Zone 2 respectively, connect the

indoor FM antenna or AM loop antenna 10 the ZONE 2 FM ANTENNA jack or the ZONE 2 AM ANTENNA terminal.

Assembling the AM loop antenna

+ Be careful not to injure yourself when using thumbtacks.

\ : AM loop antenna (supplied) Indoor FM antenna (supplied)

+ Once your AV receiver is ready for use, you’Il need to tune into a radio station and position the antenna to achieve the best possible reception. + Keep the AM loop antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.

+ If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead. + If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM antenna.

Y Connecting Onkyo RI Components

1 Make sure that each Onkyo component is connected with an analog audio cable (connection [6] in the hookup examples) (> page 19).

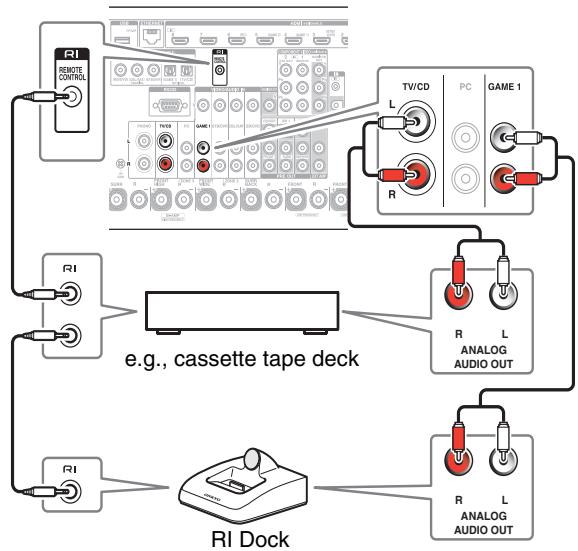

2 Make the RI connection (see the illustration).

3 M you’re using an RI Dock, or cassette tape deck, change the Input Display (> page 51).

With RI (Remote Interactive), you can use the following special functions:

B Auto Power On When you start playback on a component connected via RL while the AV receiver is on standby, the AV receiver will automatically turn on and select that component as the input source.

B Direct Change When playback is started on a component connected via

RL the AV receiver automatically selects that component as the input source.

E System Off When you turn off the AV receiver, the components turn off automatically.

Remote Control You can use the AV receiver’s remote controller to control your other RI-capable Onkyo components, pointing the remote controller at the AV receiver’s remote control sensor instead of the component. You must enter the appropriate remote control code first (> page 92).

e.g., cassette tape deck aim our

Connecting the Power Cord

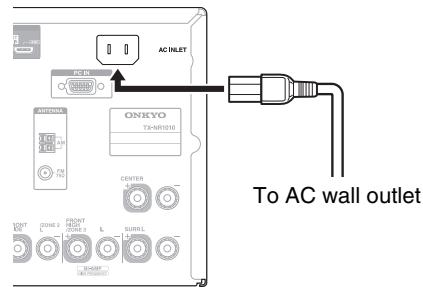

Connect the supplied power cord to the AV receiver”s AC INLET.

+ Use only fRI cables for RI connections. I cables are supplied with Onkyo components.

+ Some components have two FRI jacks. You can connect either one to the AV receiver. The other jack is for connecting additional RI-capable components.

+ Connect only Onkyo components to FI jacks. Connecting other manufacturer s components may cause a malfunction.

+ Some components may not support all I functio: manuals supplied with your Onkyo components.

+ While Zone 2/3 is on, the System Off, Auto Power On and Direct Change RI functions do not work.

2 Plug the power cord into an AC wall outlet.

+ Before connecting the power cord, connect all of your speakers and AV components.

+ Turning on the AV receiver may cause à momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the AV receiver into a different branch circuit.

+ Do not use a power cord other than the one supplied with the AV

receiver. The supplied power cord is designed exclusively for use

with the AV receiver and should not be used with any other equipment.

Never disconnect the power cord from the AV receiver while the

other end is still plugged into a wall outlet. Doing so may cause

an electric shock. Always disconnect the power cord from the wall outlet first, and then the AV receiver.

Turning On/Off the AV Receiver

OGON/STANDBY RECENER source

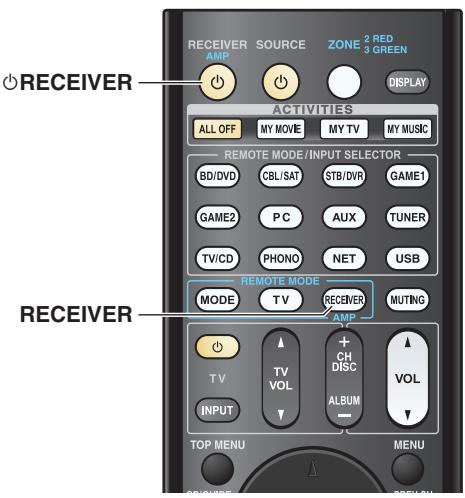

Press RECEIVER followed by ORECEIVER on the remote controller. The AV receiver comes on and its display lights.

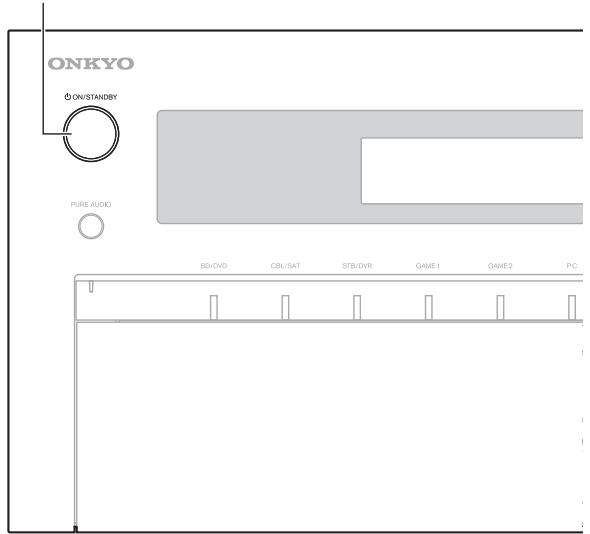

1 Press OON/STANDBY on the front panel. or

Press RECEIVER followed by ORECEIVER on the remote controller.

The AV receiver will enter standby mode. To prevent any loud surprises when you turn on the AV receiver, always turn down the volume before you turn it off.

À En23 Y Turning On & Basic Operations

HE Smooth Operation in a Few Easy Steps (Initial Setup)

To ensure smooth operation, here’s a few easy steps to

help you configure the AV receiver before you use it for

the very first time. These settings only need to be made

once. See “Initial Setup” for details (> page 24).

Mif the “Firmware Update Available” window appears. When a new version of the firmware is available, the notification window “Firmware Update Available” pops up. This notification only appears when the AV receiver is connected to your home network (> page 114). To perform the firmware update, follow the instructions on screen. Use A/Y and ENTER on the AV receiver or remote controller to select one of the options. } Update Now: Starts the firmware update. Refer to “Firmware Update” (> page 103). > Remind me Later: The update notification will pop up again the next time you turn the AV receiver on. > Never Remind me: Disables the automatic update notification. Tip + The update notification window can be enabled or disabled in “Update Notice” (> page 82).

This section explains the settings that we recommend you 10 make before using the AV receiver for the very first time. À setup wizard is launched upon first-time use to let you perform those settings.

The on-screen menus appear only on a TV that is connected to HDMI OUT MAIN.

Selecting the Language for the Onscreen Setup Menus

This step determines the language used for the onscreen

setup menus. See “Language” in “OSD Setup”

+ Pressing HOME will close the setup wizard. To restart the initial setup, select “Initial Setup” in the “Hardware Setup” menu @ page 82).

After selecting the language for on-screen setup menus, a

welcome screen is displayed.

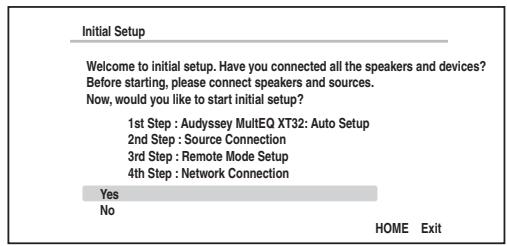

Welcome nl setup. Have you connected al the speakers and devices? Bolre starting passe connect speakers and sources. ou ou you ke o start Ina setup? 11 Step : Ads MuEQ XT32: Auto Sup 204 Sep: Source Connection Sr Step: Remote Hode Setup At Step: Natwrk Connection vs mn

1 Use 4/Y on the AV receiver or remote controller to select one of the following options, and then press ENTER.

»Yes: Continues to “Audyssey MultEQ XT32: Auto Setup”.

» No: Skips the settings and terminates the initial setup. The setup wizard goes to “Terminating the Initial Setup” ( page 25). You can always restart the initial setup by selecting “Initial Setup” in the “Hardware Setup” menu (> page 82).

À En24 Y Turning On & Basic Operations

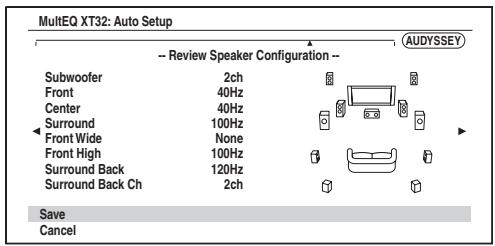

Audyssey MultEQ XT32: Auto Setup

This step performs the automatic speaker setup.

À Use A/Y to select one of the following options, and then press ENTER.

> Do it Now: The automatic speaker setup is performed following instructions on screen. Refer to step 2 of “Using the Automatic Speaker Setup” ( page 39). When this setting is complete, the setup wizard continues to “Source Connection”.

> Doit Later: Skips this setting. Press ENTER and continue to “Source Connection”.

This step checks the connection of source components.

À Use A/Y to select one of the following options, and then press ENTER. Yes, Continue: Performs the checkings. > No, Skip: Skips this step and continues to “Remote Mode Setup”.

2 Select the input selector for which you want to check the connection and press ENTER. The picture of the corresponding source should appear on screen With a verification prompt.

3 When prompted, use A/Y to select one of the following options and then press ENTER.

PYes: Confirms that the source is properly displayed.

» No: Displays an error report. Follow the troubleshooting instructions and recheck the source.

Æ4 Use A! to select one of the following options, and then press ENTER. »Yes: Returns to step 2. > No, Done Checking: The setup wizard continues to “Remote Mode Setup”.

With this step, you can enter remote control codes for the components you want to operate.

À Use A/Y to select one of the following options, and then press ENTER.

»Yes: Performs the remote control code input. Refer to step 5 of “Looking up for Remote Control Codes” (> page 90).

» No, Skip: Skips this step and continues to “Network Connection”.

2 When you're finished, select one of the following options and press ENTER. » Yes, Done: The setup wizard continues to “Network Connection”. » No, not yet: You can enter other remote control codes.

This step checks your network connection.

À Use A/Y to select one of the following options, and then press ENTER. »Yes: Performs the checkings. > No, Skip: Skips this step and terminates the initial setup.

À En25 Y Turning On & Basic Operations

2 Follow the instructions on screen to perform the network checking. The checking is complete when the message “Successfully connected.” appears at the middle of the screen. Press ENTER to terminate the initial setup. Tip + If you have selected “Wireless (Option)”, you need to configure the optional wireless adapter. For further details, see the instruction manual provided with the wireless adapter (UWE-1).

3 Ian error message appears, select one of the following options and press ENTER.

> Retry: Performs the checking again.

» No, Doit Later: Skips this step and terminates the initial setup. The setup wizard goes to “Terminating the Initial Setup”.

Terminating the Initial Setup

This step ends the initial setup process.

1 Press ENTER. To restart the initial setup, select “Initial Setup” in the “Hardware Setup” menu (+ page 82).

The on-screen information appears only on a TV that is connected to HDMI outputs. If your TV is connected to other video outputs, use the AV receiver”s display when changing settings.

This section describes the procedure for using the remote controller, unless otherwise specified.

Playing the Connected Component

M Operating with the remote controller

E — INPUT SELECTOR RECEIVER VOL A/Y Listening mode buttons

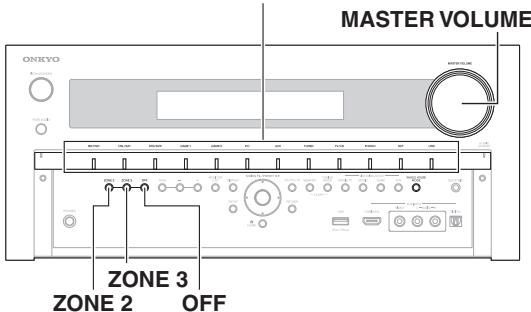

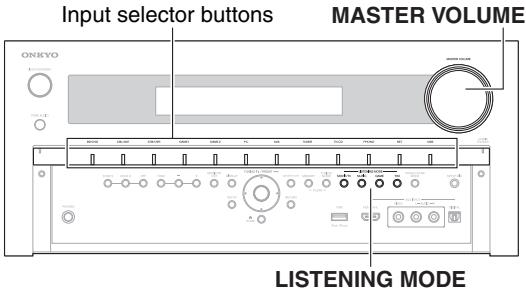

À En26 Y Turning On & Basic Operations B Operating on the AV receiver

Start playback on the source component.

To adjust the volume, use the MASTER VOLUME control.

Select a listening mode and enjoy!

& Screen Saver If there is no video signal on the current input source and no operation for a specific time (three minutes by default), a screen saver automatically comes on.

Tip + The time until the screen saver activates itself can be changed

in the “Screen Saver” setting (> page 79). + The screen will return to its previous state if the AV receiver is

Controlling Contents of USB or Network Devices

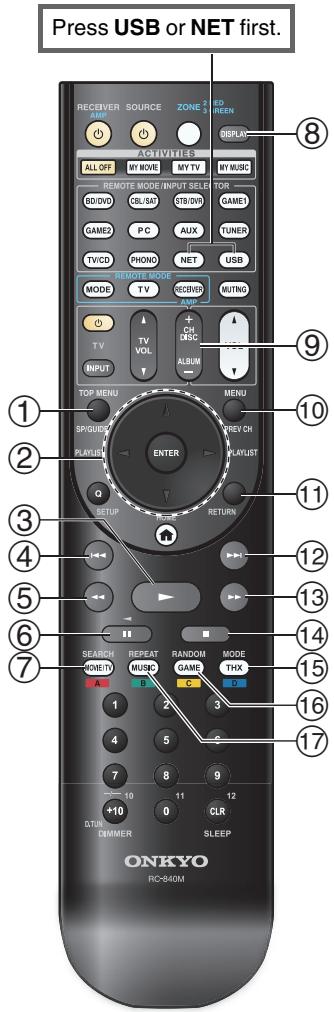

Press USB or NET first

Turning On & Basic Operations

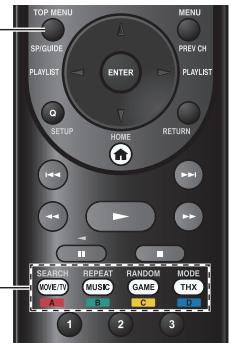

@ | TOP MENU CI This button displays the top menu for each media or service. This button stops playback. A/Y and ENTER @ |MODE These buttons navigate through the menus. You can switch between Standard Mode and Extended Mode Te GPod/iPhone). This button cycles through pages. © | RANDOM PLAYLIST 4» Thu performs random playback. In Standard Mode (iPod/iPhone), this button selects ® playlis Press this button repeatedly to cycle through the repeat modes. 9» This button starts playback. Tip @® |re«

This button selects the beginning of the current song. Pressing this button twice selects the previous song.

© | -«« This button fast-reverses the current song.

This button pauses playback.

@ |SEARCH You can toggle between the playback screen and the list screen during playback.

DISPLAY This button switches between song information during playback.

Press this button while the list screen is displayed to return to the playback screen.

ALBUM +/- In Standard Mode (iPod/iPhone), this button selects albums.

MENU This button displays the menu of Internet radio services.

RETURN This button returns to the previous menu.

>> This button selects the next song.

>> This button fast-forwards the current song.

+ See “Controlling Other Components” about the operation of other components (> page 90).

+ The buttons you can use will differ depending on the devices and media used for playback.

Turning On & Basic Operations

3 Press MODE repeatedly to switch to Extended

Understanding Icons on the Display Playing an iPod/iPhone via USB This section describes icons that appear on the AV receiver’s display during media playback.

Repeat Folder (USB Device)

Shuffle Album (iPod/iPhone)

The on-screen information appears only on a TV that is connected to HDMI outputs.

This section explains how to play musicWideo files on the iPod/Phone.

Compatible iPod/iPhone models

iPod touch (1st, 2nd, 3rd and 4h generation), iPod classi iPod nano (2nd, 3rd, 4th, 5th and 6th generation), iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPhone

1 Press USB repeatedly to select the “USB(Front)”

+ The same operation can be done by selecting “USB” in the Home menu.

2 Connect the USB cable that comes with the iPod/iPhone to the USB port on the front of the AV receiver.

While reading the contents of your iPod/iPhone, the message “Connecting...” appears on the AV receiver’s display. The USB indicator lights. It will flash if the AV receiver cannot read the iPod/iPhone. Tip + When connecting your iPod/iPhone with a USB cable, we recommend you use an official USB cable from Apple Inc.

+ While the message “Connecting

Mode (Music) or Extended Mode (Video).

A list of your iPod/iPhone model’ contents appears. Tip

+ If you want to operate using the iPod/iPhone or the remote controller, press MODE repeatedly to switch to Standard mode.

+ When you disconnect the iPod/iPhone, the AV receiver remembers the current mode. This means that if you disconnect when in Extended Mode (Music), the AV receiver will start in Extended Mode (Music) the next time you connect the iPod/iPhone.

4 Use A/T to select a folder, and then press ENTER to

+ You can also use the A/, enter (middle) and TUNING MODE buttons on the front panel. TUNING MODE allows you to switch modes.

5 Use A/Y to select a music/video file, and press

ENTER or = to start playback.

‘appears on the AV receivers display, do not disconnect the USB cable supplied with your iPod/iPhone or the USB device from the USB port.

+ If you connect an iPod or iPhone to the USB port, no sound will

be output from the headphones jack.

Extended Mode (Music) Control

The music content information is displayed (lists are displayed), and you can control the music content while looking at the screen.

Playlists, Artists, Albums, Genres, Songs, Composers, Shuffle Songs, Now Playing.

+ In this mode, video contents are not displayed, even if they are input from the AUX INPUT VIDEO jack on the AV receiver's front panel.

Extended Mode (Video) control

The video content information is displayed (lists are displayed), and you can control the video content while looking at the screen.

Movies, Music Videos, TV Shows, Video Podcasts, Rentals.

+ To view the video contents of your iPod/iPhone, connect it to the USB port and AUX INPUT VIDEO jack on the AV receiver's front panel, using the official Apple Composite AV Cable.

+ Depending on your iPod/Phone model and generation, the displayed items may vary and the support for Extended Mode (Video) is not guaranteed.

Standard Mode Control

The content information is not displayed, but can be operated using the iPod/iPhone or the remote controller.

Playing a USB Device

The on-screen information appears only on a TV that is connected to HDMI outputs.

This section explains how to play music files from a USB device (e.g, USB flash drives and MP3 players).

+ “Network/USB Features” (> page 114).

1 Press USB repeatedly to select the “USB(Front)” or “USB(Rear)” input.

2 Plug your USB device into the AV receiver’s USB port. The USB indicator lights. It will flash if the AV receiver cannot read the USB device.

3 Press ENTER. A list of the device’s contents appears. To open a folder, use A/Y to select it, and then press ENTER.

4 Use A/Y to select a music file, and press ENTER or »- to start playback.

+ While the message “Connecting...” appears on the AV receiver's display, do not disconnect the USB cable supplied with your iPod/Phone or the USB device from the USB port.

À En29 Y Turning On & Basic Operations

Listening to VTuner Internet Radio

You need to connect the AV receiver to your home network (> page 114). The on-screen information appears only on a TV that is connected to HDMI outputs.

The vTuner Internet Radio Service is a portal site featuring radio stations from all over the world.

You can search for stations by categories such as genre or location. The AV receiver is preinstalled with this service.

1 Press NET. The network service screen appears, and the NET indicator lights. If it flashes, verify that the Ethernet cable is firmly connected to the AV receiver.

Tip + The same operation can be done by selecting “Network Service” in the Home menu. Use A/Y/</> to select “yTuner Internet Radio” and then press ENTER.

3 Use A/T to select a program and then press

ENTER. Playback starts.

+ You can find stations similar to the one being played During playback, press MENU on the remote controller, select “Stations like this” and press ENTER.

B Adding vTuner Internet Radio Stations to Favorites

There are two ways you can register specific Internet radio stations (programs) from the vTuner Internet Radio.

Adding to My Favorites

The selected program will be added to “My Favorites”

on the network service screen, which appears when

pressing NET on the remote controller.

1. Press MENU with the station selected or while a Station is playing.

2. Use A/Y to select “Add to My Favorites”, and press ENTER.

> to select “OK”, and press ENTER. Tip

+ You can rename the stations saved in “My Favorites”.

Adding to vTuner Internet Radio’s Favorites Select “Tuner Internet Radio” and press ENTER to display the “Favorites” folder that appears on the same screen as “Stations By Genre”, “Stations By Location”, etc. This is where your favorite Internet radio bookmarks will be stored.

To register your favorite stations using a personal computer, you need to connect your PC to the same network as the AV receiver. Enter the ID# (MAC address) of your unit on http://onkyo.vtuner.com/. You can then register your favorite radio programs. The ID# is shown at the bottom of the “vTuner Internet Radio” top menu, and the AV receiver’s MAC address is shown on “Network” of the Setup menu (+ page 81).

Registering Other Internet Radio

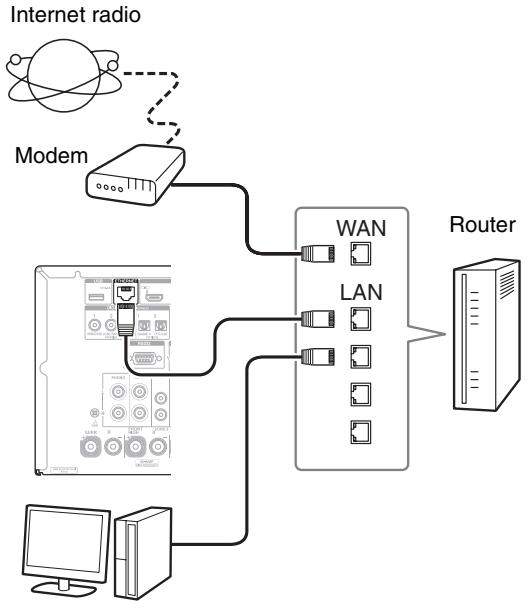

You need to connect the AV recciver to your home network (> page 114). The on-screen information appears only on a TV that is connected to HDMI outputs.

Internet radio URLS in the following formats are supported: PLS, M3U, and podcast (RSS). However, depending on the type of data or audio format used by the Internet radio station, you may not be able to listen to some stations.

To listen to other Internet radio stations, you must register your station in “My Favorites” of the network service screen, as described below.

+ Services available may vary depending on the region. See the separate instructions for more information.

1 Seect “Network” on the Setup menu to verify your IP address (> page 81). Take a note of the IP address.

On your computer, start your web browser.

ND Enter the AV receiver’s IP address in the browser’s Internet address (URL) field.

If you are using Internet Explorer®, you can also enter the URL by selecting “Open...” on the “File” menu. Information on the AV receiver is then shown on your Internet browser (Web Setup).

4 Click on the “My Favorites” tab, and enter the Internet radio station’s name and URL.

À En30 Y Turning On & Basic Operations

5 Click “Save” to save the Internet radio station.

The Internet radio station is then added to “My Favorites”. To play the registered station, press NET, and then select “My Favorites” on the network service screen. A list of registered Internet radio stations appears. Select the one that you saved and press ENTER.

+ If you want to add a new station directly from “My Favorites”,

select an empty slot in the list and press MENU. Then, select “Create New Station” and press ENTER.

Pressing ENTER again will display the keyboard screen. Use that Keyboard to enter the station’s name and URL respectively, and then press ENTER.

+ If you want to delete a station saved in “My Favorites”, press

MENU with the station selected or while the station is playing. Then, use A/Y to select “Delete from My Favorites” and press ENTER. You can also delete stations from the Web Setup.

+ If you want to rename a station, select the desired station and

press MENU. Then, use À/Y to select “Rename this station” and press ENTER.

+ You can save up 10 40 Internet radio stations.

Changing the Icon Layout on the Network Service Screen You need to connect your TV to the HDMI output

(HDMI OUT MAIN) to make the following on-screen setting.

The layout of icons can be customized by switching their positions on the network service screen.

1 Press NET. The network service screen appears, and the NET indicator lights. If it flashes, verify that the Ethernet cable is firmly connected to the AV receiver.

Tip + The same operation can be done by selecting “Network Service” in the Home menu.

Press MODE/D (blue) on the remote controller.

3 Use A/Y/<» to select an icon to move, and then press ENTER.

Use A/Y/</»> to select another icon as the destination, and then press ENTER.

The icons switch positions and the message “Completed!” appears.

Playing Music Files on a Server (DLNA)

You need to connect the AV recciver to your home network (> page 114). The on-screen information appears only on a TV that is connected to HDMI outputs.

This section explains how to play music files on a computer or media server through the AV receiver (Server Playback).

1 Start your computer or media server.

2 Press NET. The network service screen appears. The NET indicator lights. If it flashes, confirm the network connection.

Tip + The same operation can be done by selecting “Network Service” in the Home menu.

3 Use A/Y/</» to select “DLNA”, and press ENTER.

Use 4/Y to select a server, and then press ENTER. The menu is displayed according to the server functions.

+ The search function does not work with media servers which do not support this function.

+ Photos and movies stored on a media server cannot be accessed from the AV receiver.

+ Depending on the sharing settings in the media server, the AV receiver may not able to access the content. See the instruction manual of the media server.

Aristname ly favorite album

+ Depending on the media server, 4/»»/18 may not work.

+ Ifthe message “No Item.” appears, this means that no information can be retrieved from the server. In this case, check your server, network, and AV receiver connections.

Windows Media Player 11 Setup

This section explains how to configure Windows Media Player 11 so that the AV receiver can play the music files stored on your computer.

Start Windows Media Player 11.

On the “Library” menu, select “Media Sharing”. The “Media Sharing” dialog box appears.

Select the “Share my media” check box, and then click “OK”.

A list of the supported devices appears.

Select the AV receiver in the list, and then click “Allow”.

The corresponding icon will be checked.

5 Click “OK” to close the dialog box. This completes the Windows Media Player 11 configuration.

You can now play the music files in your Windows Media Player 11 library through the AV receiver. Tip + Windows Media Player 11 can be downloaded for free from the Microsoft web site.

You need to connect the AV receiver to your home network (> page 114). The on-screen information appears only on a TV that is connected to HDMI outputs.

Remote Playback means you can play the music files stored on a media server or personal computer with the AV receiver by operating the controller device in the home network.

Windows Media Player 12 Setup

This section explains how to configure Windows Media Player 12 so that the AV receiver can play the music files stored on your personal computer.

1 Start Windows Media Player 12.

2 On the “Stream” menu, select “Turn on media streaming”. A dialog box appears. Tip + Ifthe media streaming is already activated, clicking on “More streaming options.” in the “Stream” menu will

display a list of the playback devices connected to the network. You can skip step 3.

3 Move your cursor and click on “Turn on media streaming”. A list of media server appears. Wording may vary slightly depending on the network location.

4 On the “Media streaming options”, select the AV receiver and confirm that it is set to ‘“Allow”.

Click “OK? to close the dialog box. This completes the Windows Media Player 12 configuration. You can now play the music files in your Windows Media Player 12 library. Tip + On the “Stream” menu, confirm that “Allow remote control of my Player...” is checked.

Using Remote Playback

1 Turn on the AV receiver.

2 Start Windows Media Player 12. To enable remote playback, you must first configure Windows Media Player 12. 3 On Windows Media Player 12, right-click on a music file. The right-click menu appears. Tip + For selecting another media server, select the desired media server from the “Other Libraries” menu on Windows Media Player 12. 4 Select the AV receiver in “Remote playback”. The “Play to” window appears and playback on the AV receiver starts. Operations during remote playback can be made from the “Play to” window of Windows 7 on your personal computer. A playback screen will be displayed on the connected TV.

À En32 Y Turning On & Basic Operations

5 Adjusting the Volume. You can adjust the volume by adjusting the volume bar in the “Remote playback” window. The default maximum volume level is 82 (0dB). If you wish to change this, enter the value from the Web Setup in your browser. Refer to step 3 of “Registering Other Internet Radio” for details (> page 30).

The volume value of the remote window and the volume value of the AV receiver may not always match.

Adjustments you make to the volume in the AV receiver will not be reflected in the “Remote playback” window.

+ Remote playback cannot be used in any of the following cases: — Nenwork services are being used. — Contents are being played from a USB device or iPod/iPhone. — Zones are turned on.

Playing Music Files on a Shared Folder

This section explains how to play music files on a computer or NAS (Network Attached Storage) through the AV receiver.

B Setting the sharing options

À Select “Choose homegroup and sharing options” on the Control Panel. Tip + Ifthis option is not available, verify that “View by:" is setto “Category”.

Select “Change advanced sharing settings”.

3 Under “Home or Work”, verify that the following items are checked: “Turn on network discovery”, “Turn on file and printer sharing”, “Turn on sharing so anyone with network access can read and write files in the Public folders”, and “Turn off password protected sharing”.

4 Select “Save changes” and click “OK” on the confirmation screen.

E Creating a shared folder

Right-click the folder that you want to share. Select “Properties”.

On the “Sharing” tab, select “Advanced Sharing”.

Check the check box of “Share this folder” and then click “OK”.

Under “Network File and Folder Sharing”, select “Share”.

O Où À À N Select and add “Everyone” from the pull-down menu and then click “Share”.

+ With this setting, everyone is allowed to access the folder. If you want to assign a user name and password to the folder, make the corresponding settings for “Permission” in “Advanced Sharing” of the “Sharing” tab.

+ Verify that “Workgroup” is properly set. Note

+ When using NAS (Network Attached Storage), refer to the instruction manual provided with your NAS unit.

À Ens33 Y Turning On & Basic Operations

Playing music files on a shared folder

In order to enjoy Home Media, you must first create a shared folder on your computer.

1 On the remote controller, press RECEIVER followed by NET. The network service screen appears. The NET indicator lights. If it flashes, confirm the network connection. Tip + The same operation can be done by selecting “Network Service” in the Home menu.

Use A/Y/</> to select “Home Media”, and press ENTER.

3 Use A/T to select a server, and then press ENTER. Tip + The server name of your computer can be viewed on the computer properties screen.

4 Use 4/Y to select the desired shared folder and then press ENTER.

When asked for a user name and password, enter the necessary login information. Tip + The login information will be remembered for the next time you log in. + The login information is that of the user account set when creating a shared folder. 6 Use A/T toselect a music file and then press ENTER or. The playback of the selected file starts.

Listening to AM/FM Ra

This section describes the procedure of using the buttons on the front panel, unless otherwise specified.

With the built-in tuner you can enjoy AM and FM radio Stations. You can store your favorite stations as presets for quick selection.

You can also change the frequency steps ( page 79).

1 Press TUNER to select either “AM? or “FM”. In this example, FM has been selected. Each time you press TUNER, the radio band changes between AM and FM.

(Actual display depends on the country.)

Tuning into Radio Stations

1 Press TUNING MODE so that the AUTO indicator lights on the AV receiver’s display.

2 Press TUNING 4/Y. Searching stops when a station is found.

When tuned into a station, the TUNED indicator lights. When tuned into a stereo FM station, the FM STEREO indicator lights as shown.

+ Tuning into weak FM stereo stations If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, switch 10 manual tuning mode and listen to the station in mono.

BE Manual tuning mode In manual tuning mode, FM stations will be in mono.

1 Press TUNING MODE so that the AUTO indicator goes off on the AV receiver’s display. 2 Press and hold TUNING 4/Y.

The frequency stops changing when you release the button.

Press the buttons repeatedly to change the frequency one step at a time.

À En34 Y Turning On & Basic Operations

B Tuning into stations by frequency You can tune into AM and FM stations directly by entering the appropriate frequency.

1 Onthe remote controller, press TUNER repeatediy to select “AM” or “FM”, followed by D.TUN.

(Actual display depends on the country.) 2 Within 8 seconds, use the number buttons to enter

the frequency of the radio station.

For example, to tune to 87.5 (FM), press 8, 7, 5 or 8,

If you have entered the wrong number, you can retry

Presetting AM/FM Stations

You can store a combination of up to 40 of your favorite AM/FM radio stations as presets.

1 Tune into the AM/FM station that you want to store as a preset. See the previous section.

2 Press MEMORY. The preset number flashes.

(Actual display depends on the country.)

3 While the preset number is flashing (about 8 seconds), use PRESET <> to select a preset from 1 through 40.

4 Press MEMORY again to store the station or channel. The station or channel is stored and the preset number tops flashing. Repeat this procedure for all of your favorite AM/FM radio stations.

El Selecting Presets

1 To select a preset, use PRESET </> on the AV receiver, or the remote controller’s CH +/-. Tip + You can also use the remote controller’s number buttons to select a preset directly.

À Select the preset that you want to delete. See the previous section.

2 While holding down MEMORY, press TUNING MODE. The preset is deleted and its number disappears from the AV receiver’s display.

Listening to HD RadioT" Stations (North American models)

HD Radio technology brings digital radio to conventional analog AM and FM radio stations, with improved sound quality, better reception, and new data services. HD Radio technology provides CD-quality sound for FM stations, and FM-quality sound for AM stations. In addition,

FM HD Radio stations can transmit multiple programs on the same frequency by using multicast channels. Text data display includes station name, song title, artist name, and so on.

For more information about HD Radio technology, visit: www.ibiquity.com

M About HD Radio Stations

HD Radio stations broadcast on the same AM and FM

frequencies they” ve always used, and you can receive them

by tuning into your favorite station as normal. If the current

AM or FM station supports HD Radio technology, the

HD Radio indicator lights up. When an HD Radio

transmission is received, the HD SPS indicator appears or

“HD Radio” appears on the display.

+ Ifthe current AM or FM station supports HD Radio technology, the station’s name will be displayed instead of the band and frequency.

+ When music data is received, song title and artist name

information will be displayed next to the “HD” indicator.

+ If the current HD Radio station supports multicast channels, the currently selected multicast channel will be displayed to the right of the “HD” indicator.

À En35 Y Turning On & Basic Operations

BE Selecting Multicast Channels

FM HD Radio stations can transmit multiple programs on the same frequency by using what are called multicast channes.

1 Press TUNER on the remote controller repeatedly to select “FM” and use the </> buttons to select multicast channel.

If you select a multicast channel that is not currently broadcasting, a plus “+” symbol or period “,” will appear next to the “HD” indicator, indicating that the channel has been reserved. When broadcasting commences, that channel will be selected automatically.

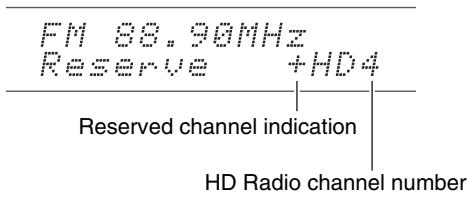

Reserved channel indication

HD Radio channel number

Note + Multicast channels are not available on AM.

Bi Setting the Blend Mode

HD Radio transmissions contain analog and digital signals. If available, the digital signal is used automatically. In areas with poor reception, you may want to choose the analog signal.

1 Press ENTER repeatedly to select Auto or Analog.

The options are: + Auto: Select to use the digital signal when available. } Analog: Select to use the analog signal.

+ Multicast channels 2 through 8 are digital only, so you must select multicast channel #1 before you can change the Blend mode.

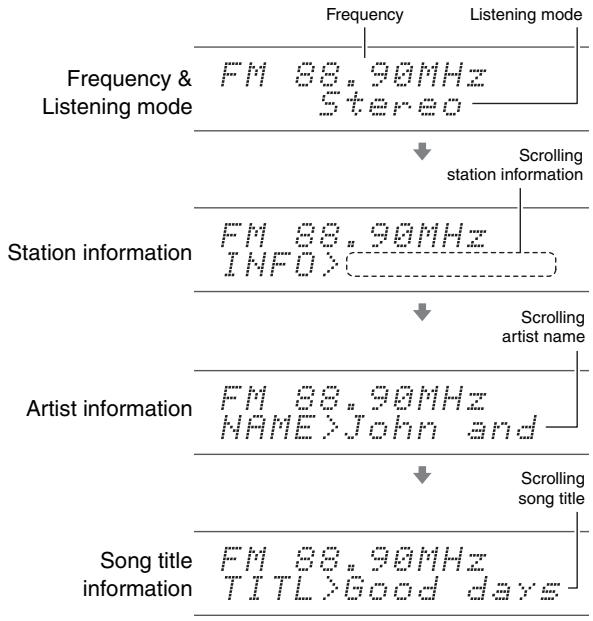

B Displaying HD Radio Information Press the DISPLAY button repeatedly to cycle through the available information.

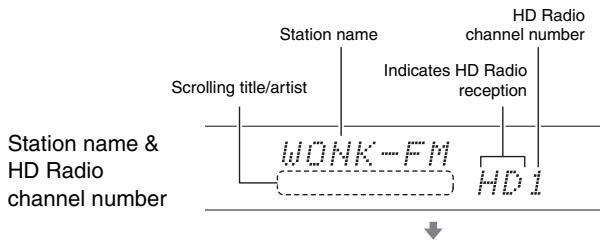

Station name channel number

Indicates HD Radio Scroling titie/artist reception

HD channel, Artist name, and Song title are displayed in the 2nd line if the AV receiver has a two-line display.

Frequency Listening mode

+ Scroling station inormaton

+ The exact information displayed depends on your AV receiver. + This information is displayed only when receiving HD Radio.

Song title information

À En36 Y Turning On & Basic Operations

Using RDS (excluding North American models)

RDS works only in areas where RDS broadcasts are available.

When tuned into an RDS station, the RDS indicator lights. When the station is broadcasting text information, the text can be displayed.

RDS stands for Radio Data System and is a method of transmitting data in FM radio signals. It was developed by the European Broadcasting Union (EBU) and is available in most European countries. Many FM stations use it these days. In addition to displaying text information, RDS can also help you find radio stations by type (e.g., news, sport, rock, etc.).

The AV receiver supports four types of RDS information: PS (Program Service)

When tuned to an RDS station that’s broadcasting PS information, the station’s name will be displayed. Pressing DISPLAY will display the frequency for 3 seconds.

When tuned to an RDS station that's broadcasting text information, the text will be shown on the AV receiver's display as described in the next section.

This allows you to search for RDS radio stations by type. TP (Traffic Program)

This allows you to search for RDS radio stations that broadcast traffic information (> page 37).

+ In some cases, the text characters displayed on the AV receiver may not be identical to those broadcast by the radio station. AIso, unexpected characters may be displayed when unsupported characters are received. This is not a malfunction.

+ Ifthe signal from an RDS station is weak, RDS data may be displayed intermittently or not at all.

B Displaying Radio Text (RT)

1 Press RT/PTY/TP once. The RT information scrolls across the AV receivers display. Note

+ The message “Waiting” may appear while the AV receiver waits for the RT information.

+ Ifthe message “No Text Data” appears, no RT information is available.

BFinding Stations by Type (PTY) You can search for radio stations by type.

1 Press RT/PTY/TP twice. The current program type appears on the AV receiver’s display.

2 Use PRESET </»> to select the type of program you want. See the table shown later in this chapter.

3 To Start the search, press the enter button. The AV receiver searches until it finds a station of the type you specified, at which point it stops briefly before continuing with the search.

4 When a station you want to listen to is found, press the enter button. If no stations are found, the message “Not Found” appears.

Æ Listening to Traffic News (TP)

You can search for stations that broadcast traffic news.

1 Press RT/PTY/TP three times. If the current radio station is broadcasting TP (Traffic Program), “[TP]” will appear on the AV receiver’s display. If “TP” without square brackets appears, this means that the station is not broadcasting TP.

2 To locate a station that is broadcasting TP, press the enter button. The AV receiver searches until it finds a station that’s broadcasting TP. If no stations are found, the message “Not Found” appears.

À Ens37 Y Turning On & Basic Operations

RDS program types (PTY)

Type Display None None News reports News Current affairs Affairs Information Info Sport Sport Education Educate Drama Drama Culture Culture Science and technology Science Varied Varied Pop music Pop M Rock music Rock M Middle of the road music Easy M Light classics Light M Serious classics Classics Other music Other M Weather Weather Finance Finance Children's programmes Children Social affairs Social Religion Religion Phone in Phone In Travel Travel Leisure Leisure Jazz music Jazz Country music Country National music Nation M Oldies music Oldies Folk music Folk M Documentary Document Alarm test TEST Alarm Alarm!

Playing Audio and Video from Separate Sources

You can listen to the audio of one input source while watching the video of another. This function takes advantage of the fact that when an audio-only input source (TV/CD, PHONO) is selected, the video input source remains unchanged. The following procedure shows how 10 listen to a CD players audio source connected to TV/CD IN while watching a Blu-ray Disc/DVD player’ s video source connected to BD/DVD.

2 Press TV/CD. The audio output changes to the CD source, but the video of previously-selected BD/DVD is retained.

3 Start playback on your Blu-Ray Disc/DVD and CD players. You can now enjoy watching your Blu-ray Disc/DVD with the sound of your CD player.

À Ens38 Y Turning On & Basic Operations

Using Basic Functions

With the supplied calibrated microphone,

Audyssey MultEQ® XT32 automatically determines the

number of speakers connected, their size for purposes of

bass management, optimum crossover frequencies to the subwoofer (if present), and distances from the primary listening position.

Audyssey MultEQ XT32 then removes the distortion

caused by room acoustics by capturing room acoustical

problems over the listening area in both the frequency and time domain. The result is clear, well-balanced sound for everyone. Audyssey MultEQ XT32 can be used with

Audyssey Dynamic EQ® and

Audyssey Dynamic Volume® (> pages 72, 73).

Before using this function, connect and position all of your

Audyssey MultEQ XT32 offers two ways of measuring:

the “Audyssey Quick Start” and

“Audyssey MultEQ XT32 Full Calibration”.

+ “Audyssey Quick Start” uses the measurement from one position to perform the speaker setting only.

+ “Audyssey MultEQ XT32 Full Calibration” uses the measurement from eight positions to correct room response in addition to the speaker setting.

The more positions are used in measuring, the better the

listening environment will become. We recommend using

a measurement from eight positions to create the best

listening environment.

The Quick Start takes 2 minutes and Full Calibration takes

Total measurement time varies depending on the number

Measurement procedure

To create a listening environment in your home theater that all listeners will enjoy, Audyssey MultEQ XT32 takes measurements at up to eight positions within the listening area. Position the microphone at ear height of a seated listener with the microphone tip pointed directly at the ceiling using a tripod. Do not hold the microphone in your hand during measurements as this will produce inaccurate results.

B First measurement position Also referred to as the Main Listening Position, this refers to the most central position where one would normally sit within the listening environment. Audyssey MultEQ XT32 uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.

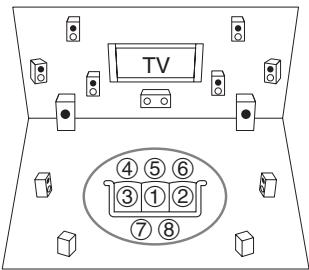

E Second-eighth measurement positions These are the other listening positions (1.e., the places where the other listeners will sit). You can measure up 10 eight positions.

: Listening area @ to @: Listening position

À En39 Y Turning On & Basic Operations

+ Make the room as quiet as possible. Background noise and Radio Frequency Interference (RFI) can disrupt the room measurements. Close windows, televisions, radios, air conditioners, fluorescent lights, home appliances, light dimmers, or other devices. Turn off the cell phone (even if it is not in use) or place it away from all audio electronics.

+ The microphone picks up test tones played through each speaker as Audyssey MultEQ XT32 Room Correction and Speaker Setup runs

+ Audyssey MultEQ XT32 Room Correction and Speaker Setup cannot be performed while a pair of headphones is connected.

À Turn on the AV receiver and the connected TV. On the TV, select the input to which the AV receiver is connected.

2 Set the speaker setup microphone at the Main Listening Position ®, and connect it to the SETUP MIC jack.

Speaker setup microphone

The speaker setting menu appears.

+ The on-screen menus appear only on a TV that is connected 10 HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver”’s display when changing settings.

3 When you’ve finished making the settings, press ENTER.

QE) Speakers ypelFront) Norma 4» Powered Zone 2 te Pouered Zone à rm Preoutlo Enteral Amplfier ke Submeoter 2h

Perform the “Speaker Setup” according to your speaker configuration:

If “Speakers Type(Front)” is set 10 “Digital Crossover”, a confirmation screen appears. Select “Next (2-7. Digital Processing Crossover Network)” to display the screen for Digital Processing Crossover Network (> page 67). Continue with the settings.

Adjust the subwoofer volume level to 75 dB, and then press ENTER.

Test tones are played through the subwoofer. Use the volume control on the subwoofer.

When the “Subwoofer” setting is set to “Ich” only, the left-hand subwoofer (SW1) will be measured. When the “Subwoofer” setting is set to “Lch” with two subwoofers connected, the right-hand subwoofer (SW2) will not be measured and no sound will be output.

An error will occur if you set “Subwoofer” to “2ch” without connecting any subwoofers, or with only one subwoofer connected.

+ If your subwoofer does not have a volume control, disregard the displayed level and press ENTER to proceed 10 the next step.

+ If you set the subwoofer’s volume control to its maximum and the level displayed is lower than 75 dB, leave the subwoofer’s volume control at its maximum and press ENTER to proceed 10 the next step.

+ If you use nvo subwoofers, perform this step twice.

Use 4/Y to select “Audyssey Quick Start” or “Audyssey MultEQ XT32 Full Calibration”, and then press ENTER.

À En-40 Y Turning On & Basic Operations

Audyssey MultEQ® XT32 Room Correction and Speaker Setup starts.

Test tones are played through each speaker as Audyssey MultEQ XT32 Room Correction and Speaker Setup runs. This process takes a few minutes. Please refrain from talking during measurements and do not stand between speakers and the microphone.

Do not disconnect the speaker setup microphone during Audyssey MultEQ XT32 Room Correction and Speaker Setup, unless you want to cancel the setup. If you select “Audyssey Quick Start”, you will go to step 9.

Place the speaker setup microphone at the next position, and then press ENTER.

Audyssey MultEQ XT32 performs more measurements. This takes a few minutes.

8 When prompted, repeat step 7.

© Use A/Y to select an option, and then press ENTER.

Save the calculated settings and exit Audyssey MultEQ® XT32 Room Correction and Speaker Setup.

» Cancel: Cancel Audyssey MultEQ XT32 Room Correction and Speaker Setup.

+ You can view the calculated settings for the speaker configuration, speaker distances, and speaker levels by using 4».

10 Use A/Y to select a target, and use </> to change the setting. After the results of Audyssey MultEQ XT32 have been saved, the menu will display the “Audyssey” ( page 72), “Dynamic EQ” (> page 72), “Dynamic Volume” (> page 73) settings.

+ When “Audyssey Quick Start” has been used for measurement, “Audyssey” cannot be selected. + These settings are applied to all input selectors.

12 Disconnect the speaker setup microphone.

+ You can cancel Audyssey MultEQ XT32 Room Correction and Speaker Setup at any point in this procedure simply by disconnecting the setup microphone.

+ Do not connect or disconnect any speakers during Audyssey MultEQ XT32 Room Correction and Speaker Setup.

+ Ifthe AV receiver is muted, it will be unmuted automatically when Audyssey MultEQ XT32 Room Correction and Speaker Setup starts.

+ Changes to the room after Audyssey MultEQ XT32 Room Correction and Speaker Setup requires you run Audyssey MultEQ XT32 Room Correction and Speaker Setup again, as room EQ characteristics may have changed.

À En4ai Y Turning On & Basic Operations

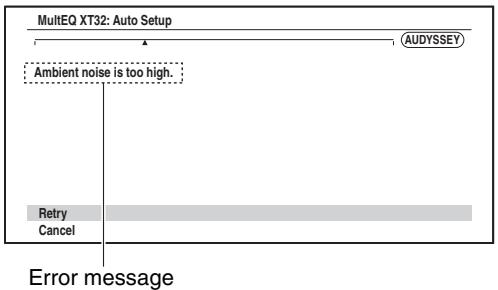

While Audyssey MultEQ XT32 Room Correction and Speaker Setup is in progress, one of the error messages below may appear.

The options are: > Retry: Try again. } Cancel: Cancel Audyssey MultEQ XT32 Room Correction and Speaker Setup. + Ambient noise is too high. The background noise is too loud. Remove the source of the noise and try again. + Speaker Matching Error! The number of speakers detected was different from that of the first measurement. Check the speaker connection. + Writing Error! This message appears if saving fails. Try saving again. If this message appears after 2 or 3 attempts, contact your Onkyo dealer. + Speaker Detect Error This message appears if a speaker is not detected. “No” means that no speaker was detected. Tip

+ See “Speaker Configuration” for appropriate settings

Changing the Speaker Setup Manually

You can manually make changes to the settings found during Audyssey MultEQ® XT32 Room Correction and Speaker Setup.

+ Please note that THX recommends any THX main speakers be set to “80HZ(THX)". If you set up your speakers using Audyssey MultEQ XT32 Room Correction and Speaker Setup, please make sure manually that any THX speakers are set 10 “80Hz(THX)” crossover (> page 64).

+ Sometimes due to the electrical complexities of subwoofers and the interaction with the room, THX recommends setting the level and the distance of the subwoofer manually.

+ Sometimes due to interaction with the room, you may notice irregular results when setting the level and/or distance of the main speakers. If this happens, THX recommends setting them manually.

Using a Powered Subwoofer

If you’re using a powered subwoofer and it outputs very low-frequency sound at a low volume level, it may not be detected by Audyssey MultEQ XT32 Room Correction and Speaker Setup.

If the “Subwoofer” appears on the “Review Speaker Configuration” screen as “No”, increase the subwoofer’s volume to the half-way point, set it to its highest crossover frequency, and then try running Audyssey MultEQ XT32 Room Correction and Speaker Setup again. Note that if the volume is set 100 high and the sound distorts, detection issues may occur, so use an appropriate volume level. If the subwoofer has a low-pass filter switch, set it to Off or Direct. Refer to your subwoofer’s instruction manual for details.

Using the Listening Modes

Selecting Listening Modes

This button selects the listening modes intended for use with movies and TV.

This button selects the listening modes intended for use with music.

This button selects the listening modes intended for use with video games.

This button selects the Pure Audio listening mode.

When this mode is selected, the AV receiver’s display and analog video circuitry are turned off. Only video signals input through HDMI input can be output from the HDMI output. The indicator lights when this mode is selected. Pressing this button again will select the previous listening mode.

+ The Dolby Digital and DTS listening modes can only be selected if your Blu-ray Disc/DVD player is connected to the AV receiver with a digital audio connection (coaxial, optical, or HDMI).

+ The listening modes you can select depends on the format of the input signal. To check the format, see “Displaying Source Information” (> page 51).

+ While a pair of headphones is connected, you can select the following listening modes: Pure Audio, Mono, Direct, and Stereo.

About Listening Modes

The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound.

@ ® Surround speakers

@ ® Surround back speakers © @ Front high speakers

© @ Front wide speakers

Listening mode buttons —#}

Input Source The following audio formats are supported by the listening modes.

This is mono (monophonic) sound.

SEE | This is sterco (stercophonic) sound. Two independent audio signal channels are reproduced through two speakers.

This is 5.1-channel surround sound. This surround system has five main channels of sound and a sixth subwoofer channel (called the point-one channel).

LAC This is 7.1-channel surround sound, This is a further sound enhancement to 5.1-channel sound with two additional speakers that provide greater sound envelopment and more accurate positioning of sounds.

This is DTS-ES surround sound. This surround system can produce a discrete or a matrix-encoded sixth channel from existing DTS 5.1 encoded material.

This is Dolby Digital EX surround sound. This provides a center back surround channel from 5.1- channel sources.

À En-43 Y Turning On & Basic Operations

The illustration shows which speakers are activated in each channel. See “Speaker Configuration” for the speaker setup @ page 64).

After enabling the corresponding speakers, press RECEIVER followed by SP (speaker layout) repeatedly to select the speakers you want to use: front high, front wide, or surround back.

After enabling the corresponding speakers, press RECEIVER followed by SP (speaker layout) repeatedly to select the layout you want to use. These layouts are only available when “Preout to External Amplifier” (> page 64) is enabled.

À En-44 Y Turning On & Basic Operations

MB Onkyo-Original DSP Listening Modes

Listening Mode Description Speaker Listening Mode Description Input |Speaker Layout Source |Layout All Ch Stereo Ideal for background musie, this mode fills 5262 Orchestra Suitable for classical or operatic music, this [MN 52172102 AmBCrmsremeon |" crie listening area with stereo sound @2 mode emphasizes the surround channels in from the front, surround, and surround back CHeRee order to widen the stereo image, and lErcn | speakers simulates the natural reverberation of a large Full Mono In this mode, all speakers output the same hall. sound in mono, so the sound you hear is the DTS-ES Eutr Mono same regardless of where you are within the Unplugged Suitable for acoustic instruments, vocals and S 8: s youa

jazz, this mode emphasizes the front stereo image, giving the impression of being right in front of the stage.

Suitable for rock or pop music, listening to music in this mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert.

TV Logic This mode adds realistic acoustics to TV _ shows produced in a TV studio, surround ogie effects to the entire sound, and clarity to voices. Game-RPG In this mode, the sound has a dramatic feel with a similar atmosphere to Orchestra Game-RPG mode. Game-Action In this mode, sound localization is distinct

with emphasis on bass.

In this mode, sound pressure is emphasized to heighten live feel

In this mode, reverberation is increased and sound localization decreased slightly.

T-D (Theater- Dimensional)

T-D With this mode you can enjoy à virtual surround sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears. Good results may not be possible if there’s 100 much reverb, so we recommend that you use this mode in an environment with little or no natural reverb.

À En45 Y Listening Modes

In this mode, audio from the input source is output without surround-sound processing. The speaker configuration (presence of speakers), crossover frequency, speaker distance, A/V Sync and much of the processing set via the audio setup are enabled. See “On-screen Setup” for more details (> page 54).

DTS 96/24'5 DTS 96/24

This mode is for use with DTS 96/24 sources. This is high-resolution DTS with a 96 kHz sampling rate and 24-bit resolution, providing superior fidelity. Use it with DVDs that bear the DTS 96/24 logo.

Listening Mode Description Input |Speaker Source |Layout Pure Audio"! In this mode, the display and video circuiry [MEN 226252 FAT are turned off, minimizing possible noise STEREO 282] sources for the ultimate in high-fidelity |REEETE audio reproduction. (As the analog video cireuiry is tumed off, only video signals | GENE input through HDMI IN can be output from the HDMI output.) DUEX Direct In this mode, audio from the input source is output without surround-sound processing. Dirost The speaker configuration (presence of speakers) and speaker distance settings are enabled, but much of the processing set via the audio setup is disabled. See “On-screen Setup” for more details (> page 54). Stereo Sound is output from the front left and right speakers and subwoofer. Stereo Mono Use this mode when watching an old movie E with a mono soundtrack, or use it with the ona foreign language soundtracks recorded in the left and right channels of some movies. It can also be used with DVDs or other sources containing multiplexed audio, such as Karaoke DVDs. Multichannel This mode is for use with PCM multichannel sourc DA D à On ec [ER] DSD3 In this mode, audio from the input source is mes output without surround-sound processing. The speaker configuration (presence of Dolby Digital speakers), crossover frequency, speaker DETTE distance, A/V Syne and much of the

Dolby Digital Plus"4

processing set via the audio setup are enabled. See “On-screen Setup” for more details (> page 54).

This mode is for use with DTS-ES Discrete soundtracks, which use a discrete surround back channel for true 6.1/7.1-channel playback. The seven totally separate audio channels provide better spatial imaging and 360-degree sound localization, perfect for sounds that pan across the surround channels. Use it with DVDs that bear the DTS-ES logo, especially those with a DTS- ES Discrete soundtrack.

This mode is for use with DTS-ES Matrix soundtracks, which use a matrix-encoded back-channel for 6.1/7.1-channel playback. Use it with DVDs that bear the DTS-ES logo, especially those with a DTS-ES Matrix soundtrack.

Turning On & Basic Operations

Listening Mode Description Input |Speaker Listening Mode Description Input |Speaker Source |Layout Source |Layout

Dolby Pro Logic IIx7 |Dolby Pro Logic IIx expands any 2-channel DTS Neo:X°® This mode expands various sources and Dolby Pro Logic Il |source for 7.1-channel playback. It provides various inputs up to 9.1 channel.

_ à very natural and seamless surround-sound DTS Neo:X provides semi-spherical sound REAMOPRIE) experience that fully envelops the listener. field adding heightAvide speakers to create a

_ As well as music and movies, video games natural, immersive and spacious surround REAMVEPIS can also benefit from the dramatic spatial soundscape. —— effects and vivid imaging. + DTS Neo:X Cinema

If you're not using any surround back STEREO RECENT This mode is suitable for movie viewing.

Use this mode with video games, especially those that bear the Dolby Pro Logic II logo.

This mode is suitable for any music source. + DTS Neo:X Game

This mode is suitable for video games.

Audyssey DSX Dolby PLIX Movie Dolby PLIIX Music

These modes use the Dolby Pro Logic Lx modes to expand 5.1-channel sources for 7.1-channel playback.

Dolby Pro Logic llz Height

Dolby Pro Logie Iz Height is designed to more effectively use existing program material when height channel speaker outputs are present. Dolby Pro Logic Iz Height can be used 10 upmix a variety of sources from movies and musie, but are particularly well-suited to upmix game content.

Dolby EX Dolby EX Dolby D EX These modes expand 5.1-channel sources for 6.1/7.1-channel playback. They re especially suited to Dolby EX soundtracks that include à matrix-encoded surround back channel. The additional channel adds an extra dimension and provides an enveloping surround sound experience, perfect for rotating and fly-by sound effects.

+ Audyssey DSX Audyssey DSX® is a scalable system that adds new speakers to improve surround impression. Starting with a 5.1 system Audyssey DSX first adds Wide channels for the biggest impact on envelopment. Research in human hearing has proven that information from the Wide channels is much more critical in the presentation of a realistic soundstage than Back Surround channels found in traditional 7.1 systems. Audyssey DSX then creates a pair of Height channels to reproduce the next most important acoustical and perceptual cues. In addition to these new Wide and Height channels, Audyssey DSX applies Surround Envelopment Processing 10 enhance the blend between the front and surround channels.

Turning On & Basic Operations

Listening Mode Description Input [Speaker Listening Mode Description Input |Speaker Source |Layout Source |Layout + Dolby Pro Logic IL/IIx°7 Movie + STEREO + THX Cinema EX E272102 PLI Movie DSX | Audyssey DSX FZFWE2 DER Cinema THX Cinema mode corrects theatrical + Dolby Pro Logie H/AIx7 Music + soundtracks for playback in a home theater PLI Music DSX | Audyssey DSX THX Music environment. In this mode, THX Loudness |fÿe[=4 + Dolby Pro Logie I/Ix7 Game + Plus is configured for cinema levels and PLI Game DSX Audyssey DSX THX Games Re-EQ, Timbre Matching, and Adaptive The combination of Dolby Pro Logic H/IIx Decorrelation are active. PLIxX Movie DSX| and Audyssey DSX® modes can be used. + THX Music + Dolby Pro Logic Lx Movie + EN CSA THX Music mode is tailored for listening to PLixOMusHeNDSX| Audyssey DSX R2-SEFN] music, which is typically mastered at + Dolby Pro Logic IIx Music + significantly higher levels than movies. In PL TC amenDsx0 | Audyssey DSX this mode, THX Loudness Plus is The combination of Dolby Pro Logic Ix configured for music playback and only and Audyssey DSX modes can be used. TR Gene is active. - 5 . sames Dolby EX DSx | Ten DE Day EX ad Fa [Enr THX Games mode is meant for spatially Audyssey DSX modes can be used, accurate playback of game audio, which is often mixed similarly to movies but in a THX Founded by George Lucas, THX develops smaller environment. THX Loudness Plus stringent standards that ensure movies are re is configured for game audio levels, with reproduced in movie theaters and home Timbre Matching active. theaters just as the director intended. THX Modes carefully optimize the tonal and + Dolby Pro Logic IW/IIx'7 Movie+ THX |SEX] spatial characteristics of the soundtrack for Cinema reproduction in the home-theater + Dolby Pro Logic WII? Music + THX environment. They can be used with 2- Music channel matrixed and multichannel sources. + Dolby Pro Logic IIIx7 Game + THX Surround back speaker output depends on Games the source material and the selected listening The combination of Dolby Pro Logic H/Ix mode. and THX Cinema/Music/Games modes can be used. The PLH/PLHIX and THX indicators light on the AV receiver's display. + Dolby Pro Logic IIx Movie + THX C5.1ch | Cinema

À En48 Y Dolby Pro Logic 1x Music + THX Music The combination of Dolby Pro Logic IIx and THX Cinema/Music modes can be used.

The PLIIx and THX indicators light on the AV receiver’s display.

Turning On & Basic Operations

Listening Mode Description Input [Speaker Listening Mode Description Input |Speaker Source |Layout Source |Layout + Dolby Pro Logic I1z Height + THX STEREO) + Dolby Pro Logic II Game + THX Ultra? |SIE:E Cinema EX 62S57F4 Games + Dolby Pro Logic I1z Height + THX G2-FHFW The combination of Dolby Pro Logic II Music DTS-ES) Game and THX Ultra2 Cinema modes can + Dolby Pro Logic IIz Height + THX TDEX be used. The PLII and THX indicators Games light on the AV receiver’s display. The combination of Dolby Pro Logic Ilz + Dolby Pro Logic Iz Heïght + THX SEE |(62-SB/FH) Height and THX Cinema/Music/Games Ultra2 Games C5:1ch | modes can be used. The combination of Dolby Pro Logic IIz The PLIz and THX indicators light on the Height and THX Ultra? Games modes can AV receiver's display. be used. + DTS Neo:X Cinema + THX Cinema + Dolby Pro Logic Iz Height + THX [5.ich | + DTS Neo:X Music + THX Music Ultra2 Cinema + DTS Neo:X Game + THX Games + Dolby Pro Logic Iz Height + THX The combination of DTS Neo:X Ultra2 Music Cinema/Music/Game and THX Cinema/ The combination of Dolby Pro Logic IIz Music/Games modes can be used. The Height and THX Ultra? Cinema/Music Neo:X indicator lights on the AV modes can be used. receiver”s display. + THX Ultra? Cinema ET Note THX U2 Cinema | This mode expands 5.1-channel sources for @2-SB/FH] 7.1 channel playback. I does his by BA SSEN 1. Pure Audio cannot be selected when Zone 2/3 is active. Et UE UMOIO analyzing the composition of the surround Besides, if you activate Zone 2/3 while Pure Audio is selected, the listening mode will source, optimizing the ambient and : automatically switch to Direct. FAX UF ane directional sounds to produce the surround Based on the audio channel signal contained in the source, the corresponding speakers will output back channel output. : the sound- TH Sur CEx 00 |+ THX Ultra? Music The AV receiver can input the DSD signal from HDMI IN. Depending on the player, setting the

This mode is designed for use with music. It expands 5.1-channel sources for 7.1- channel playback.

This mode is designed for use with video games. It can expand 5.1-channel sources for 6.1/7.1-channel playback.

THX Surround EX This mode expands 5. 1-channel sources for 6.1/7.1- channel playback. Ils especially suited to Dolby Digital EX sources. THX Surround EX, also known as Dolby Digital Surround EX, is a joint development between Dolby Laboratories and THX Ltd.

output on the player side to PCM might bring better sound.

“4 For the Blu-ray Discs, Dolby Digital is used in a 3.1/5.1-channel speaker system.

‘5 DTS is used depending on the configuration of the AV receiver.

*6 If there are no surround back speakers, DTS is used

7° If there are no surround back speakers, Dolby Pro Logic II is used.

‘8 DTS Neo:X cannot be selected in the case of 192 KHZz input signals.

“9. This listening mode can be selected only when all the following conditions are satisfied: — Center speaker is connected. — Either the front high or front wide speakers are connected.

+ The listening modes cannot be selected with some source formats.

The Home menu provides quick access to frequently used menus.

The Home menu appears only on a TV that is connected to HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver”s display when changing settings.

1 Press RECEIVER followed by HOME. The Home menu will be superimposed on the TV screen. Tip + Alternatively, you can use HOME on the AV receiver.

2 Use <> or A/Y and ENTER to make the desired selection. Press HOME to close the menu.

You need to connect the AV receiver to your home network (> page 114).

> With this selection, you can use various Internet radio services or play the contents stored in media connected to your home network (DLNA) (+ pages 29 to 32). Note that this selection will be grayed out for a short

while after the AV receiver is turned on. Please wait

until it becomes operable. Press ENTER to display the network service screen. If you want to use the Internet radio services, use A/Y//» 10 select the desired service. Pressing ENTER again switches to that selection. If you want to play music files on a server, use A/V//» to select “DLNA” and then press ENTER.

EUSB } With this selection, you can play contents of portable players (iPod, etc.) and USB storage devices connected to the AV receiver’s USB port (> pages 28, 29). Note that this selection will be grayed out for a short while after the AV receiver is turned on. Please wait until it becomes operable. First, press USB repeatedly to select the “USB(Front)” or “USB(Rear)” input. Then, press ENTER to select a drive or browse the contents of the media connected, followed by A/Y to select the desired folder or track. Pressing ENTER as a track is selected will start playback.

Note + Only the front-panel USB input is compatible with iPod/iPhone.

MinstaPrevue » With this selection, you can preview audio/video

streams coming from HDMI inputs (HDMI IN 1/2/3/4/AUX INPUT). Even with multiple

components connected through HDMI, you can easily

switch between inputs as their previews are displayed

on a single screen. Press ENTER to display the main preview (currently selected HDMI input) and the additional previews (other HDMI inputs). Using A/Y or <Æ/> to select a preview thumbnail and pressing ENTER will switch the AV receiver to that input source.

À En-50 Y Turning On & Basic Operations

+ Ifno video signals are present, the thumbnails will be filled in black.

+ You can specify the number of preview thumbnails as well as their positioning on screen (> page 81). Note

+ This function cannot be selected when: — HDMI IN 5/6/7/8 is the current HDMI input source, or — No signal is present on the current input source, or — The “Zone 2 HDMI” setting is set to “Use” (> page 60). + Depending on video signals, the picture may not be properly rendered on the preview thumbnails of InstaPrevue.

E Setup > With this selection, you can access the common settings of the on-screen Setup menu. Press ENTER to display the Setup menu (> page 58).

Tip + You can also access frequently used settings from Quick Setup (> page 54).

BFirmware Update } With this selection, you can update the firmware of the AV receiver. Note that this selection will be grayed out for a short while after the AV receiver is turned on. Please wait until it becomes operable. Press ENTER to start the procedure (> page 103).

Using the Sleep Timer

With the sleep timer, you can set the AV receiver to turn off automatically after a specified period.

1 Press RECEIVER once followed by SLEEP repeatedly to select the required sleep time.

The sleep time can be set from 90 to 10 minutes in 10

The SLEEP indicator lights on the AV receiver's

display when the sleep timer has been set. The

specified sleep time appears for about 5 seconds, then the previous display reappears. Tip

+ If you need to cancel the sleep timer, press SLEEP repeatedly until the SLEEP indicator goes off.

+ To check the time remaining until the AV receiver sleeps, press SLEEP. Note that if you press again on SLEEP as the time being displayed is 10 minutes or less, the sleep timer will go off.

Setting the Display Brightness

You can adjust the brightness of the AV receivers display, and switch the MASTER VOLUME indicator off and on in conjunction.

1 Press RECEIVER once followed by DIMMER

repeatedly to cycle through the following patterns:

+ Normal brightness + indicator off.

+ Dim brightness + indicator off.

+ Dimmer brightness + indicator off.

+ Normal brightness + indicator on (default). Tip

+ (North American models) Alternatively, you can use DIMMER on the AV receiver.

Displaying Source Information

You can display various information about the current input source as follows.

1 Press RECEIVER once followed by DISPLAY repeatedly to eycle through the available information.

Tip + Alternatvely, you can use DISPLAY on the AV receiver. The following information can be typically displayed.

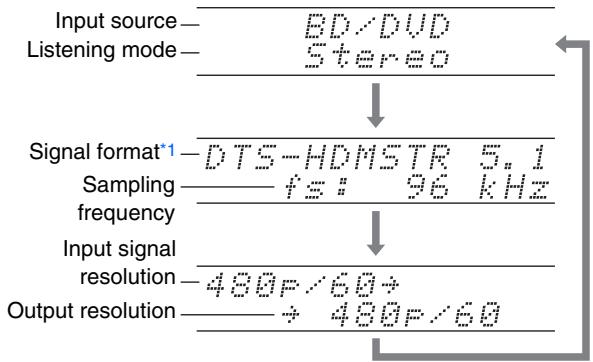

Input source Listening mode —

Signal format'1 — Sampling frequency

Input signal resolution _?

“1° Ifthe input signal is digital, the signal format is displayed. Information is displayed for about three seconds, then the previously displayed information reappears.

À Ens51 Y Turning On & Basic Operations

Changing the Input Display

When you connect an FRI-capable Onkyo component, you must configure the input display so that RI can work properly.

This setting can be done only from the front panel.

1 Press TV/CD or GAME1. “TV/CD” or “GAME” appears on the AV receiver’s display. 2 Press and hold down the same button (about 3 seconds) to change the input display. Repeat this step to select the desired input display.

mTV/CD: TV/CD — DOCK L TAPE € MGAME: GAMEI <> DOCK Note

+ “DOCK” can be selected for the “TV/CD”, input selector, but not at the same time.

+ Enter the appropriate remote control code before using the remote controller for the first time (> page 92).

Using the Whole House Mode

The Whole House Mode is useful when you want to add extra background music to your home party: this allows you to enjoy the same stereo music as the main room in separate rooms (Zone 2/3).

The Whole House Mode selects the same input source for Multi Zone as the main rooms.

+ The Whole House Mode only supports analog audio. + To adjust the volume of Multi Zone, switch the AV receiver 10 Multi Zone control. See “Adjusting the Volume for Zones” (> page 85) for the volume adjustment of Multi Zone. + The Whole House Mode is not available in the following cases: — The “Audio TV Out” setting is set to “On” @ page 80). — “HDMI Control(RIHD)" is set to “On” (> page 79) and you’”re listening through your TV speakers. — Digital Processing Crossover Network is used @ page 67).

Selecting Speaker Layout

You can set which speakers you want to use by priority.

1 Press RECEIVER followed by SP (speaker layout) repeatedly to select:

+ The following layouts are only available when the “Preout to External Amplifier” setting (> page 64) and all corresponding speakers are enabled.

> Speaker Layout:SB/FH: The sounds from surround back and front high speakers are output by priority.

> Speaker Layout:SB/FW: The sounds from surround back and front wide speakers are output by priority.

» Speaker Layout:FH/FW: The sounds from front high and front wide speakers are output by priority.

» Speaker Layout:FH: The sound from front high speakers is output by priority.

> Speaker Layout:FW: The sound from front wide speakers is output by priority.

> Speaker Layout:SB: The sound from surround back speakers is output by priority.

+ This setting is not available in either of the following cases:

“Speakers Type(Front)” setting is set to “Bi-Amp'

— The “Powered Zone 2/3” setting is set to “Yes” and Zone 2/3 is turned on.

À Ens52 Y Turning On & Basic Operations

+ Playback conditions may be limited depending on the set- tings in “Speaker Settings” (> page 63) and “Speaker Configuration” ( page 64).

+ When a listening mode which doesn't support front high, front wide or surround back speakers is used, this setting cannot be selected.

Muting the AV Receiver

You can temporarily mute the output of the AV receiver.

1 Press RECEIVER followed by MUTING. The output is muted and the MUTING indicator flashes on the AV receiver’s display. Tip + To unmute, press MUTING again or adjust the volume.

+ Muting is automatically cancelled when the AV receiver is set to standby.

1 Connect a pair of stereo headphones with a Standard plug (1/4 inch or 6.3 mm) to the PHONES jack.

While the headphones plug is inserted in the PHONES jack, D indicator, speaker/channel indicator FL and FR lights.

+ Always turn down the volume before connecting your headphones.

+ While the headphones plug is inserted in the PHONES jack, the speakers are turned off. (The Powered Zone 2/3 speakers are not turned off.)

+ When you connect a pair of headphones, the listening mode is set to Stereo, unless it's already set to Stereo, Mono, Direct, or Pure Audio.

+ If you connect an iPod or iPhone to the USB port on the AV receiver, no sound will be output from the headphones jack.

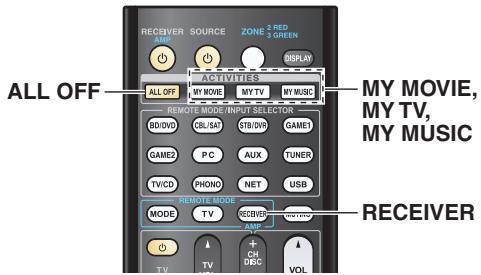

By using ACTIVITIES in Easy macro mode, you can sequentially operate Onkyo components via simple commands from a single-button press.

These commands are user-definable. See “Using Normal Macros” (> page 96).

1 Press ACTIVITIES (MY MOVIE, MY TV, or MY MUSIC) to start the Easy macro command. The default sequences of actions are described below. To change the related source component, see “Changing the Source Components” shown later in this chapter.

BMY MOVIE First, the TV, the Onkyo Blu-ray Disc player, and the AV

receiver are turned on. The input selector is set to

“BD/DVD”. Finally the player starts playback."

“1. Depending on the start-up time of your Blu-ray Disc/DVD player, the AV receiver may not activate this playback command. In this case, press = on the remote controller.

BMYTV First, the TV, the cable set-top box, and the AV receiver are turned on. Then the input selector is set to “CBL/SAT”.

E MY MUSIC The Onkyo CD player and the AV receiver are turned on. The input selector is set to “TV/CD”. Finally, the player Starts playback.

+ While the Easy Macro command is being processed, you cannot use other ACTIVITIES. If you want to operate other components, first press ALL OFF and use the desired ACTIVITIES.

Turning On & Basic Operations

This button turns off all components activated by the Easy Macro mode.

First, the related components stop and turn off. Second, the AV receiver turns off. Finally, the TV turns off (or enters standby mode). 12

“1° This step doesn't apply to MY MUSIC, with the default settings.

With some televisions, the power may not be turned off (or enter standby mode).

S Changing the Source Components

You can change the source components activated by the Easy Macro mode.

1 While holding down REMOTE MODE for the playback component you wish to assign, press and hold down the ACTIVITIES to be changed (MY MOVIE, MY TV, or MY MUSIC) (about 3 seconds).

ACTIVITIES flashes twice, indicating that the change is complete.

If you wished to use MY MUSIC to start the Onkyo cassette recorder, you would press and hold down

MY MUSIC (about 3 seconds) while holding down TV/CD until it flashes twice.

À En-53 Y You can restore ACTIVITIES to the default settings.

1 While holding down HOME, press and hold down ALL OFF until ALL OFF lights (about 3 seconds). 2 Release HOME and ALL OFF, and press ALL OFF again. ALL OFF flashes twice.

With the AV receiver connected to a TV, there are two ways of changing the settings on-screen: using the Quick Setup or the Setup menu (HOME).

The Quick Setup provides quick access to frequently used settings. You can change settings and view the current information.

BE Setup menu (HOME)

The Setup menu (HOME) provides a convenient way to change the AV receiver’s various settings. Settings are organized into 9 categories.

The on-screen menus appear only on a TV that is connected to HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

This section describes the procedure for using the remote controller unless otherwise specified.

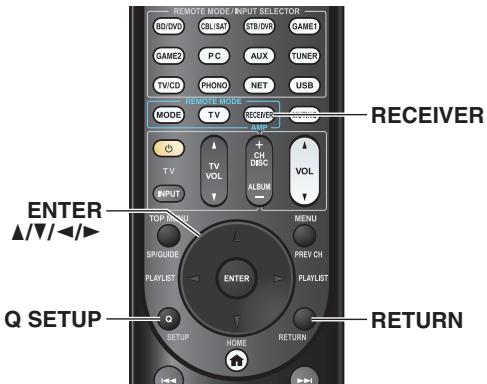

Using the Quick Setup

RECEIVER AN Q SETUP RETURN

1 Press RECEIVER followed by Q SETUP. The Quick Setup will be superimposed on the TV screen.

2 Use A/Y and ENTER to make the desired selection.

Press Q SETUP to close the menu. Press RETURN to return to the previous menu.

Binput } You can select input sources and view the following information: the name of input selectors, input assignments, radio information, and ARC function setting. In addition, previews of the video streams coming from HDMI inputs (HDMI IN 1/2/3/4/AUX INPUT) are displayed." Use A/Y to select an input source and view the related information. Pressing ENTER switches to the selected input source.

? You can change the following settings: “Sound Program”, “Bass (Front)”, “Treble (Front)”, “Bass (Front Wide)”, “Treble (Front Wide)”, “Bass (Front High)”, “Treble (Front High)”, “Bass (Center)”, “Treble (Center)”, “Bass (Surround)”, “Treble (Surround)”, “Bass (Surround Back)”, “Treble (Surround Back)”, “Bass (Subwoofer)”, “Subwoofer 1”, “Subwoofer 2”, “Center”, “Dolby Volume?”, “Audyssey”, “Dynamic EQ "2, “Dynamic Volume ?"?”, “Late Night”, “Music Optimizer”, “Re-EQ”, “Re-EQ(THX)” and “Screen Centered Dialog”.

H Video‘ + } You can change the following settings: “Wide Mode” and “Picture Mode'5”. See also: + “Picture Adjust” (> page 74) information‘

} You can view the information of the following items: “Audio”, “Video” and “Tuner”.

Listening Mode 7 } You can select the listening modes that are grouped in the following categories: “MOVIE/TV”, “MUSIC”, “GAME”, and “THX”. Use A/Y to select the category and Æ/» to select the listening mode. Press ENTER to switch to the selected listening mode.

+ The video preview is not displayed when:

— No signal is present on the current input source, or

— The “Zone 2 HDML” setting is set to “Use” (> page 60).

+ The video of the currentiy-selected input is displayed on the

main screen, not on a preview thumbnail.

“Dolby Volume”, “Dynamic EQ" and “Dynamic Volume”

cannot be selected when any of the THX listening modes is

selected, with “Loudness Plus” set 10 “On” or “Preserve

et to “Yes” (> page 67)

When “Dynamie EQ" is set to “On” or “Dynamic Volume”

is set to anything else than “OfP”, “Dolby Volume” will be

switched to “Off” ( page 70).

+ When the “Monitor Out” setting is set 10 “Sub”, “Video”

cannot be selected (> page 60).

+ This setting cannot be used with the NET input selector.

Only when you have selected “Custom” in the “Picture

Mode” (> page 75), pressing ENTER allows you to adjust

the following items via the Quick Setup: “Brightness”,

“Contrast”, “Hue” and “Saturation”. Press RETURN to

return to the “Picture Mode” setting.

Depending on the input source and listening mode, not all

channels shown here output the sound.

‘7 + This setting is not available in either of the following cases: — The “Audio TV Out” setting is set to “On” ( page 80). — “HDMI Control(RIHD)" is set to “On” (> page 79) and

you’re listening through your TV speakers.

Using the Audio Settings of Quick

You can change various audio settings from the Quick Setup (> page 54). Note

+ These settings are not available in either of the following cases: — The “Audio TV Out” setting is set 10 “On” ( page 80). — “HDMI Control(RIHD)" is set 10 “On” ( page 79) and you”re listening through your TV speakers.

E Sound Program } Stereo Source 1, Stereo Source 2, Stereo Source 3, Multich Source 1, Multich Source 2, Multich Source 3 »orr With this setting, you can select the combination of settings that you registered in “Sound Program Edit” (> page 71). Note

+ Ifthe input selector is changed, the “Sound Program” setting is switched back 10 “ONF”.

À En55 Y Advanced Operations

BBass »-10dB to 0dB to +10dB in 2 dB steps. You can boost or cut low-frequency sounds output.

mTreble »-10dB to 0dB to +10dB in 2 dB steps.

You can boost or cut high-frequency sounds output. You can adjust the bass for the front, front wide, front high, center, surround, surround back and subwoofer speakers and treble for the front, front wide, front high, center, surround and surround back speakers, except when the Direct, Pure Audio or THX listening mode is selected.

Operating on the AV receiver

Press TONE repeatedly to select either “Bass” or “Treble” for each speaker or subwoofer.

2 Use - and + to adjust.

Note + Speakers that are set to “No” or “None” in “Speaker Configuration” (> page 64) cannot be adjusted. + When “Sound Program” is enabled, “Subwoofer 1° and bwoofer 2” cannot be used if the “Subwoofer” setting is set to “No” in “Sound Program Edit” ( page 71).

E Subwoofer 1 »-15.0dB to 0.0dB to +12.0dB in 0.5 dB steps.

H Subwoofer 2° »-15.0dB to 0.04B to +12.0dB in 0.5 dB steps.

> -12.0dB to 0.04B to +12.0dB in 0.5 dB steps. You can adjust the volume of each speaker while listening to an input source. These temporary adjustments are cancelled when the AV receiver is set to standby. To save the setting you made here, go to “Level Calibration” (> page 66) before setting the AV receiver to standby.

+ You cannot use these function while the AV receiver is muted.

+ These settings cannot be used while a pair of headphones is connected.

+ Speakers that are set to “No” or “None” in “Speaker Configuration” ( page 64) cannot be adjusted.

+ When “Sound Program” is enabled, “Subwoofer 1° and “Subwoofer 2” cannot be used if the “Subwoofer” setting is set to “No” in “Sound Program Edit” (> page 71).

“1 Ifthe “Subwoofer” setting is set to “Leh”, this setting cannot

be selected (> page 64).

B Dolby Volume See “Dolby Volume” of “Audio Adjust” (> page 70).

+ This setting cannot be used in either of the following cases:

— The Pure Audio or Direct listening mode is selected.

— Any of the THX listening modes is selected, with “Loudness Plus” set to “On” or “Preserve THX Settings” set 10 “Yes” @ page 67).

+ When “Dolby Volume” is set 10 “On”, the “Dynamic EQ” and “Dynamic Volume” settings of all input selectors are switched to “OP.

+ When “Sound Program” is enabled, the setting must be made with “Sound Program Edit” ( page 71).

+ These technologies can be used when all the following conditions

— Room Correction and Speaker Setup is completed. Note that “Audyssey” requires the “Audyssey MultEQ XT32 Full Calibration” method.

— Any listening mode other than Direct or Pure Audio is selected.

— À pair of headphones is not connected.

The setting is stored individually for each input selector.

“Dynamic EQ” and “Dynamic Volume” cannot be selected

when any of the THX listening modes is selected, with

“Loudness Plus” set to “On” or “Preserve THX Settings” set to

+ When “Sound Program” is enabled, the setting must be made with “Sound Program Edit” (> page 71).

À En:56 Y Late Night For Dolby Digital and Dolby Digital Plus sources, the options are: »or > Low: Small reduction in dynamic range. > High: Large reduction in dynamic range.

For Dolby TrueHD sources, the options are: » Auto: The Late Night function is set to “On” or “Off” automatically. »Off >On Turn this setting on to reduce the dynamic range of Dolby Digital material so that you can still hear quiet parts even when listening at low volume levels—ideal for watching movies late at night when you don't want to disturb anyone.

+ The effect of the Late Night function depends on the material that you are playing and the intention of the original sound designer, and with some material there will be little or no effect when you select the different options.

+ The Late Night function can be used only when the input source is Dolby Digital, Dolby Digital Plus, or Dolby TrueHD.

+ The Late Night function is set to “Off” when the AV receiver is set to standby. For Dolby TrueHD sources, it will be set to “Auto”.

+ With Dolby TrueHD sources, the Late Night function cannot be used when “TrueHD Loudness Management” is set 10 “Off”

Re-EQ Advanced Operations

On The Music Optimizer function enhances the sound quality of compressed music files. When set to “On”, the M.Opt indicator lights on the AV receiver’s display.

+ The Music Optimizer function only works with PCM digital audio input signals with a sampling rate below 48 KHz and analog audio input signals.

+ The Music Optimizer is disabled when the Direct or Pure Audio listening mode is selected.

+ The setting is stored individually for each input selector.

+ When “Sound Program” is enabled, the setting must be made with “Sound Program Edit” (> page 71).

With the Re-EQ function, you can compensate a soundtrack whose high-frequency content is too harsh, making it more suitable for home theater viewing.

M Re-EQ(THX) »or On This function can be used with the following listening modes: THX Cinema, THX Surround EX, and THX Ultra? Cinema.

+ These settings are stored individually for each input selector. In THX listening mode however, the setting will return to “On” when the AV receiver is turned off.

+ These settings cannot be used while a pair of headphones is connected.

À Ens57 Y By using the front high speaker, this function moves the center image of dialogs etc. upwards, so that the image of dialogs is fixed to the display height.

BE Screen Centered Dialog As the value increases, the center image moves upwards. 0 bltos: Screen Centered Dialog on. Note

+ The “Screen Centered Dialog” can be used when a compatible listening mode is selected.

+ This setting cannot be used while a pair of headphones is connected.

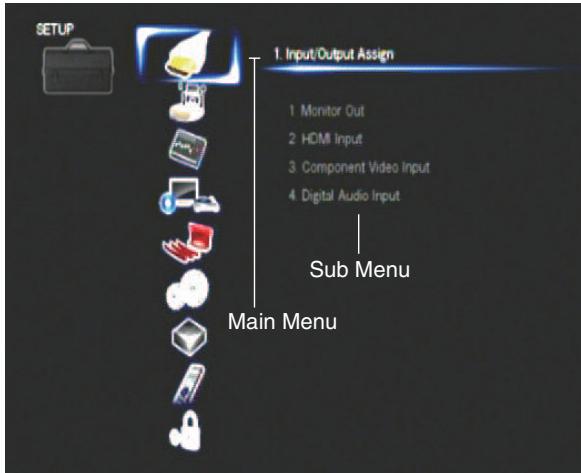

Using the Setup Menu (HOME) H Screen Saver Explanatory Notes If there is no video signal on the current input source and no operation for a specific time (three minutes by Spears) default), a screen saver automatically comes on. @ Speaker Configuration Tip RECEIVER + The time until the screen saver activates itself can be changed @—-# Subwoofer in the “Screen Saver” setting (> page 79). » Ich: + The screen will return to its previous state if the AV receiver is Audio signal is outputted from SW1 jack operated. only. ANA» d »2ch: Audio signal is outputted from SW1 and RETURN SW jacks. @ Main Menu @ Sub Menu Setting target 1 Press RECEIVER followed by HOME. ® PE UrE - @ Seting options (default setting underlined) 2 Use <> to select “Setup”, and then press ENTER. 3 Use A/Y to select a main menu item, and then press ENTER. 4 Use AT to select a sub menu item, and then press ENTER. 5 Use A/Y to select a setting target, and use </» to change the setting. Ÿ Press HOME to close the menu. ® odne Press RETURN to return to the previous menu. y Main Menu Note # + This procedure can also be performed on the AV receiver by 4

using SETUP, the cursor and enter (middle) buttons.

+ During Audyssey MultEQ® XT32 Room Correction and Speaker Setup, messages, etc., that are displayed on the TV screen will appear on the AV receiver’s display.

À Ens58 Y 4 O About the HYBRID STANDBY Indicator

By way of optimized cireuitry, this function reduces power consumption when the AV receiver is in standby mode. The HYBRID STANDBY indicator will light in either of the following conditions: “HDMI Through” is enabled (the HDMI indicator is off). —“Network Standby” is enabled (the NET indicator is off).

+ If Zones are turned on or, if a mobile device connected to the Front Input (MHL) is charging, the HYBRID STANDBY indicator won’t light.

Speaker Settings Speaker Configuration Speaker Distance Level Calibration Settings THX Audio Setup

LFE Level Direct Sound Program Edit

Input/Output Assign 25 @ “sur @

On the “Monitor Out” settings, you can select whether or not to have the video sources” images output through the HDMI output.

If you connect your TV to the HDMI output, the “Monitor Out” setting is automatically set and composite video and component video sources are upconverted” and output.

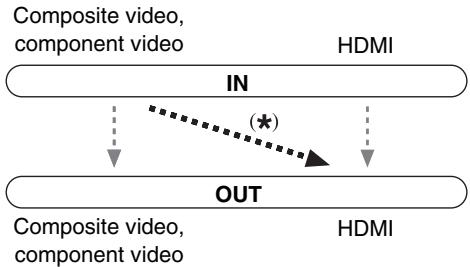

component video HDMI D OUT D) Composite video, HDMI

If you connect your TV to the COMPONENT VIDEO MONITOR OUT (not the HDMI output), “Monitor Out” setting is automatically set and composite video source is upconverted” and output.

+ See “Video Connection Formats” ( page 107) for charts showing how the “Monitor Out” and “Resolution” settings affect the video signal flow through the AV receiver.

» Analog: Select this if your TV is connected to the COMPONENT VIDEO MONITOR OUT or MONITOR OUT V.

> Main: Select this if your TV is connected to HDMI OUT MAIN.

> Sub: Select this if your TV is connected to HDMI OUT SUB.

> Both: Select this if your TVs are connected to HDMI OUT MAIN and HDMI OUT SUB. Video signals are output from both HDMI outputs at the resolution supported by both TVs.

Changing the “Monitor Out” setting manually

1 Press MONITOR OUT on the front panel. The current setting is displayed.

2 Press MONITOR OUT on the AV receiver repeatedly to select: } Analog, HDMI Main, HDMI Sub or Both.

À En-60 Y Advanced Operations

BZone 2 HDMI » Not Use » Use When this setting is enabled, the TV connected to HDMI OUT ZONE 2 can be used as the TV of Zone 2. Tip + On the connected component, select the mode in which the delay between the video and audio does not occur much if the video signal delay occurs during the playback on the video component connected to the AV receiver. Note

+ This setting cannot be selected if the “Monitor Out” setting is set to “Sub” or “Both”.

> Through" Select this to pass video through the AV receiver at the same resolution and with no conversion.

» Auto? Select this to have the AV receiver automatically convert video at resolutions supported by your TV.

> 480p (480p/576p), 720p, 1080i: Select the desired output resolution.

»1080p°2: Select this for 1080p output and video conversion as necessary.

» 1080p/242: Select this for 1080p output at 24 frames per second.

» 4K Upscaling”?: Select this for an output resolution four times that of 1080p. Depending on the resolution supported by your TV, it will result in either 3840 x 2160 or 4096 x 2160 pixels.

> Source: Select this for an output following the resolution level set in “Picture Adjust” (> page 74).

You can specify the output resolution for HDMI OUT MAIN and COMPONENT VIDEO MONITOR OUT so that the AV receiver upconverts the picture resolution as necessary to match the resolution supported by your TV.

Tip + You can see the picture by pressing ENTER to check the

“Resolution” setting for HDMI OUT MAIN (excluding NET input source).

+ Depending on the incoming video signal, the video playback may not be smooth or the vertical resolution may be lowered. In this case select anything other than “1080p/24”

+ With some Ts, there may be no picture when this setting is set to “4K Upscaling”.

+ Ifthe “Monitor Out” setting is set to “Sub”, this setting is fixed to “Through”.

+ Ifthe “Monitor Out” setting is set to “Both”, this setting is fixed to “Auto”.

“1 PCIN (Analog RGB input) signal is output at 480p (480p/576p), 720p, 1080 resolution when the “Monitor Out” setting is set to “Analog” (> page 60) and the “Resolution” setting is set to “Through”

“2 These settings are not available when the “Monitor Out” setting is set to “Analog” (> page 60).

If you connect a video component to an HDMI input, you must assign that input to an input selector. For example, if

you connect your Blu-ray Dise/DVD player to HDMI IN 2,

you must assign “HDMI2” to the “BD/DVD” input selector.

If you’ ve connected your TV to the AV receiver with an HDMI cable, composite video and component video sources can be upconverted” and output by the HDMI output. You can set this for each input selector by selecting the “- - - - =” option. See “Video Connection Formats” for more information on video signal flow and upconversion (> page 107).

Composite video, component video

Composite video, HDMI

“This applies only when “Monitor Out” setting is set to other than “Analog” ( page 60).

Here are the default assignments.

Input selector Default assignment

BD/DVD HDMI CBL/SAT HDMI2

“2 If you connect your personal computer to PC IN (Analog RGB), you must assign to the “PC” input selector.

À En61 Y Advanced Operations

B BD/DVD, CBL/SAT, STB/DVR, GAME1, GAME2, PC, TV/CD, PHONO > HDMI, HDMI2, HDMI3, HDMI4, HDMIS, HDMI6, HDMI7, HDMIS8: Select the input to which the component has been connected.

Output composite video and component video sources from the HDMI output. The video output signal from the HDMI output is the one configured in “Component Video Input”. Each HDMI input cannot be assigned to two input selectors or more. When HDMI - HDMIS have already been assigned, you must first set any unused input selectors to - -’or you will be unable to assign HDMI1 - HDMI8 10 other input selectors.

+ For composite video and component video upconversion for the HDMI output, the “Monitor Out” setting must be set to other than “Analog” ( page 60), and the “HDMI Input” setting must be set 10 “- - = - =”. See “Connection Tips and Video Signal Path” for more information on video signal flow and upconversion (> page 107).

The assignment of input selector selected for Zone 2 cannot be changed when the “Zone 2 HDML”is set to “Use” (> page 60). If no video component is connected to the HDMI input (even if the HDMI input is assigned), the AV receiver selects the video source based on the setting of “Component Video Input”.

When an HDMI IN is assigned to an input selector as explained here, the same HDMI IN will be set as a priority in the “Digital Audio Input” ( page 63). In this case, if you want to use the coaxial or optical audio input, make the appropriate selection in the “Audio Selector” setting (> page 77).

Do not assign an HDMI IN to the TV/CD selector while “HDMI Control(RIHD)" is set to “On” (> page 79), otherwise appropriate CEC (Consumer Electronics Control) operation will not be guaranteed.

+ If you assign “----” ” 10 an input selector that is currently selected in “HDMI Through” (> page 80), the “HDMI Through” setting will be automatically switched to “Of”

+ “AUX” is used only for input from the front panel.

Component Video Input

If you connect a video component to a component video input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to COMPONENT VIDEO IN 2, you must assign “IN2” to the “BD/DVD” input selector.

If you've connected your TV to the AV receiver with a component video cable, you can set the AV receiver so that composite video source is upconverted” and output by the COMPONENT VIDEO MONITOR OUT 1. You can set this for each input selector by selecting the “- - - - - option.

Composite video Component video

Composite video Component video

“1° This applies only when “Monitor Out” setting is set 10 “Analog” (> page 60).

Here are the default assignments.

Input selector Default assignment

BD/DVD INI CBL/SAT STB/DVR GAME!

À En62 Y Advanced Operations

B BD/DVD, CBL/SAT, STB/DVR, GAME1, GAME2, PC, AUX, TV/CD, PHONO »INI, IN2: Select the input to which the component has been connected.

Output composite video sources from the HDMI output.

+ For composite video upconversion for the COMPONENT VIDEO MONITOR OUT, the “Monitor Out” setting must be set to “Analog” (> page 60), and the “Component Video Input” setting must be set 10 = - - - -”, See “Connection Tips and Video Signal Path” for more information on video signal flow and upconversion (> page 107).

If you connect a component to a digital audio input, you must assign that input to an input selector. For example, if you connect your CD player to the OPTICAL IN 1, you must assign “OPTICAL1” to the “TV/CD” input selector. Here are the default assignments.

GAMEI OPTICALI GAME2 -

AUX FRONT (Fixed) TV/CD OPTICAL2

B BD/DVD, CBL/SAT, STB/DVR, GAME1, GAME2, PC, TV/CD, PHONO } COAXIALI, COAXIAL2, COAXIAL3, OPTICAL1, OPTICAL2: Select the input to which the component has been connected.

Select if the component is connected to an analog audio input.

+ When an HDMI IN is assigned to an input selector in “HDMI Input” (> page 61), the same HDMI IN will be set as a priority in this assignment. In this case, if you want to use the coaxial or optical audio input, make the appropriate selection in the “Audio Selector” (> page 77).

+ Supported sampling rates for PCM signals (stereo/mono) from a digital input (optical and coaxial) are 32/44.1/48/88.2/96 kHz/16, 20, 24 bit.

+ “AUX? is used only for input from the front panel.

Speaker Setup © @ “sur » @

Some of the settings in this section are set automatically by Audyssey MultEQ® XT32 Room Correction and Speaker Setup (> page 39).

Here you can check the settings made by

Audyssey MultEQ XT32 Room Correction and Speaker Setup function, or set them manually, which is useful if you change one of the connected speakers after using Audyssey MultEQ XT32 Room Correction and Speaker Setup function.

+ These settings are not available in either of the following cases: — a pair of headphones is connected. —the “Audio TV Out” setting is set to “On” (> page 80). — “HDMI Control(RIHD)" is set 10 “On” ( page 79) and you”re listening through your TV speakers.

If you change these settings, you must run Audyssey MultEQ XT32 Room Correction and Speaker Setup again (> page 39).

If the impedance of any speaker is 4 ohms or more but less than 6, set the minimum speaker impedance to 4 ohms.

If you bi-amp the front speakers, you must change the “Speakers Type(Front)” setting. For details on speaker wire connection, see “Bi-amping the Front Speakers”

( page 16). When connecting speakers without crossover network, you need to change the “Speakers Type(Front)” setting beforehand. For details on

À En563 Y Advanced Operations

connection, refer to “Using Speakers Without Crossover Network” (+ page 16).

+ When bi-amping is used, the AV receiver is able to drive up to 5.2 speakers in the main room. + Before you change these settings, turn down the volume.

E Speaker Impedance }> 4ohms: Select if the impedance of any speaker is 4 ohms or more but less than 6. } 6ohms: Select if the impedances of all speakers are between 6 and 16 ohms.

E Speakers Type(Front)

» Norm: Select this if you've connected your front speakers normally.

» Bi-Amp: Select this if you’ ve bi-amped your front speakers.

> Digital Crossover: Select this if you’re using speakers without crossover network.

> Surr Back, Front High, Front Wide For 9.2-channel playback, select the channel output by SB/FH/FW EXT AMP jacks. If you select speakers whose setting in Speaker Configuration is set to “None”, it will be automatically switched to “80Hz (THX)”.

+ Ifthe “Speakers Type(Front)" setting is set to “Bi-Amp” or “Digital Crossover”, Powered Zone 2 cannot be used.

+ When the “Powered Zone 2” setting is set to “Yes” and Zone 2 is turned on, the surround back and front high speakers cannot be used.

+ When the “Powered Zone 2” setting is set to “Yes”, the front wide speakers cannot be used.

+ Ifthe “Powered Zone 2” setting is set to “No”, the “Powered Zone 3° setting cannot be selected.

+ “Preout to External Amplifier” is not available in either of the following cases:

— The “Speakers Type(Front)" setting is set to “Bi-Amp” or “Digital Crossover”. — The “Powered Zone 2” setting is set to “Yes”.

Speaker Configuration

This setting is set automatically by Audyssey MultEQ® XT32 Room Correction and Speaker Setup (> page 39).

With these settings, you can specify which speakers are connected and a crossover frequency for each speaker. Specify “Full Band” for speakers that can output low frequency bass sounds adequately, for example, speakers with a good sized woofer. For smaller speakers, specify a crossover frequency. Sounds below the crossover frequency will be output by the subwoofer instead of the speaker. Refer to your speaker’s manuals to determine the optimum crossover frequencies. If you set up your speakers using Audyssey MultEQ XT32 Room Correction and Speaker Setup, please make sure manually that any THX speakers are set to “80HzZ(THX)” crossover.

H Subwoofer bich: Audio signal is outputted from SW1 jack only. »2ch:

Audio signal is outputted from SW and SW2 jacks.

“_ “Full Band” can be selected only when “Full Band” is selected in the “Front” setting.

When the “Powered Zone 3” setting is set to “Yes” and

Zone 3 is turned on, this setting cannot be selected.

This setting cannot be selected if the “Speakers Type(Front)” setting is set to “Bi-Amp” or “Digital Crossover”. When the “Powered Zone 2” setting is set to “Yes”, this setting cannot be selected.

When the “Powered Zone 2” setting is set to “Yes” and

Zone 2 is turned on, this setting cannot be selected.

Ifthe “Surround” setting is set to “None”, this setting cannot be selected.

When the “Powered Zone 3° setting is set to “Yes”, this setting cannot be selected.

Ifthe “Preout to External Amplifier” setting is enabled for these speakers, “None” cannot be selected.

& Surround Back Ch bich: Select if only one surround back speaker L is connected. >2ch Select if two (left and right) surround back speakers are connected.

Note + If the “Surround Back” setting is set to “None”, this setting cannot be selected. BLPF of LFE (Low-Pass Filter for the LFE Channel) > 80Hz, 90Hz, 100Hz, 110Hz, 120Hz »off: Low-Pass Filter is not applied. With this setting, you can specify the cutoff frequency of the LFE channel’s low-pass filter (LPF), which can be used to filter out unwanted hum. The LPF only applies to sources that use the LFE channel. Note + If you're using THX-certified speakers, select “80Hz". & Subwoofer Phase »® »180°: Moves the subwoofer phase. Note

+ Ifthe “Subwoofer” setting is set to “No”, this setting cannot be selected.

This setting is NOT set automatically by Audyssey MultEQ® XT32 Room Correction and Speaker Setup (> page 39).

Turn this setting on to boost bass output by feeding bass sounds from the front left, right, and center channels to the subwoofer.

+ When the “Subwoofer” setting is set to “No” or the “Front” setting to anything other than “Full Band”, this setting is fixed to

+ This setting is set to “On” automatically when the “Subwoofer” setting is set to “Ich” or “2eh” and the “Front” setting is set to “Full Band” for the first time.

+ If you’re using THX-certified speakers, select “OM(THX)”.

À En565 Y Advanced Operations

This setting is set automatically by Audyssey MultEQ XT32 Room Correction and Speaker Setup (> page 39).

Here you can specify the distance from each speaker to the listening position so that the sound from each speaker arrives at the listener”’s ears as the sound designer intended.

) feet: Distances can be set in feet. Range: 0.2ft to 30.0ft in 0.2 foot steps.

} meters: Distances can be set in meters. Range: 0.06m to 9.00m in 0.06 meter steps.

(The default setting varies from country to country.)

B Left, Front Wide Left, Front High Left, Center, Front High Right, Front Wide Right, Right, Surround Right, Surround Back Right, Surround Back Left, Surround Left, Subwoofer 1, Subwoofer 2° » Specify the distance from each speaker to your

+ Speakers that you set to “No” or “None” in “Speaker Configuration” cannot be selected (> page 64).

+ When the “Powered Zone 2” setting is set to “Yes” and Zone 2 is turned on, the surround back and front high speakers cannot be used.

+ When the “Powered Zone 3” setting is set to “Yes” and Zone 3 is turned on, the surround speakers cannot be used.

“1° Ifthe “Subwoofer” setting is set to “Ich”, this setting cannot

be selected (> page 64).

This setting is set automatically by Audyssey MultEQ® XT32 Room Correction and Speaker Setup (> page 39).

Here you can adjust the level of each speaker with the built-in test tone so that the volume of each speaker is the Same at the listening position.

B Left, Front le Left, Front High Left, Center", Front High Right, Front Wide Right, Right, Surround Right, Surround Back Right, Surround Back Left, Surround Left »-12.0dB to 0.04B to +12.0dB in 0.5 dB steps.

BE Subwoofer 1°1, Subwoofer 2'1°2 »-15.0dB to 0.04B to +12.0dB in 0.5 dB steps.

+ These settings cannot be calibrated when the AV receiver is muted.

+ Speakers that you set to “No” or “None” in “Speaker Configuration” cannot be selected (> page 64).

+ When the “Powered Zone 2” setting is set to “Yes” and Zone 2 is turned on, the surround back and front high speakers cannot be used.

+ When the “Powered Zone 3” setting is set to “Yes” and Zone 3 is turned on, the surround speakers cannot be used.

+ The test tone is output at the standard level for THX, which is 0 dB (absolute volume setting 82). If you normally listen at volume settings below this, be careful because the test tone will be much louder.

1 For the center speaker and subwoofer, the level settings made

by using the Quick Setup are saved in this menu (> page 56).

“2 Ifthe “Subwoofer” setting is set to “Leh”, this setting cannot be selected (> page 64). Tip + If you're using a handheld sound level meter, adjust the level of

each speaker so that it reads 75 dB SPL at the listening position, measured with C-weighting and slow reading.

With the Equalizer settings, you can adjust the tone of speakers individually with a 7-band equalizer. The volume of each speaker can be set (> page 66).

BE Manual Equalizer > On: You can adjust the equalizer for each speaker manually. Continue with the following procedure:

À Press Y to select “Channel”, and then use 4/> to select a speaker.

2 UseA/Y to select a frequency, and then use the >

to adjust the level at that frequency.

The volume at each frequency can be adjusted from

—6dB to OdB to +6dB in 1 dB steps. Tip

+ You can sele “2500Hz", “6300H: subwoofer, “25Hz”, “40Hz”, “63Hz", “160Hz".

+ Low frequencies (e.g.. 63 Hz) affect bass sounds; high frequencies (e.g.. 16000 Hz) affect treble sounds.

63Hz”, “160Hz”, “400Hz”, “1000Hz”, or “16000Hz”. And for the 100Hz", or

SZ Use À to select “Channel”, and then use 4/> to select another speaker. Repeat steps 1 and 2 for each speaker. You cannot select speakers that you set to “No” or “None” in the “Speaker Configuration” ( page 64).

» of: Tone off, response flat. Note

+ When the Direct or Pure Audio listening mode is selected, the equalizer settings have no effect.

+ If “Audyssey” is enabled, it prevails over this setting @ page 72).

» >4ft (>1.2m) You can specify the distance between your surround back speakers.

+ This setting is not available in any of the following cases: S et to “None” (> page 64). G page 65). — “Powered Zone 2” is set to “Yes” (> page 63) and Zone 2 tumed on (> page 85).

M THX Ultra2/Select2 Subwoofer »No Yes

If you’re using a THX-certified subwoofer, set this setting 10 “Yes”.

Note + If the “Subwoofer” setting is set 10 “No”, this setting cannot be selected (> page 64). BBGC > On You can apply THX’s Boundary Gain Compensation (BGC) to compensate the perceived exaggeration of low frequencies for listeners sitting very close to a room boundary (i.e., wall). Note

+ This setting is only available if “THX Ultra2/Select2 Subwoofer” is set to “Yes”.

+ Ifthe “Subwoofer” setting is set to “No”, this setting cannot be selected (> page 64).

»On When the “Loudness Plus” setting is set to “On”, it is possible to enjoy even subtle nuances of audio expression at low volume. This is only available when the THX listening mode is selected.

BPreserve THX Settings

> No If this setting is set to “Yes”, Dynamic EQ, Dynamic Volume and Dolby Volume have no effect in THX listening mode.

+ This setting is fixed at “Yes” if “Loudness Plus” is set to “On”.

M Metadata Compatible >On: When Metadata Compatible is set to “On”, valid metadata is transmitted via the HDMI connections, and can be used by other devices in the system. > Of: ‘When Metadata Compatible is set to “Off”, metadata is not transmitted via the HDMI connections. The HDMI connection in your system is used to deliver uncompressed digital audio and video information from one device to the next. There is also additional information about this digital content that can be delivered. Such additional information is referred to as “metadata”. Metadata Compatible mode should be used when there are home theater components in your system, such as Blu-ray disc players, set top boxes and displays that use this additional metadata. For example, Metadata Compatible mode should be set to ON when there are THX Media Director! M Enabled devices in the system. This ensures that this additional information can be received by your Onkyo AVR and can be sent to other devices that are connected in your home theater system, with no interruption.

THX Loudness Plus is a new volume control technology featured in THX Ultra? Plus'M and THX Select? Plus'M Certified receivers. With THX Loudness Plus, home theater audiences can now experience the rich details in a surround mix at any volume level. À consequence of turning the volume below Reference Level is that certain sound elements can be lost or perceived differently by the listener. THX Loudness Plus compensates for the tonal and spatial shifts that occur when the volume is reduced by intelligently adjusting ambient surround channel levels and frequency response. This enables users experience the true impact of soundtracks regardless of the volume setting. THX Loudness Plus is automatically applied when listening in any THX listening mode. The new THX Cinema, THX Music, and

THX Games modes are tailored to apply the proper THX Loudness Plus settings for each type of content.

ital Processing Crossover Network

Digital Crossover provides a separate routing system by splitting the audio signal into separate frequency bands optimized for each speaker driver. It provides a fine, three- dimensional sound field that extend each driver’s performance to the uppermost. With its built-in time alignment function, this system also adjusts the sound shifting that occurs when there is a physical offset between sound drivers. At a digital processing level, it corrects this offset by delaying the related audio signal. Although this function is meant for speakers without crossover network, it can also be used with bi-amped speakers. Tip + This setting can be done while listening to an audio source. + Press MODE/D (Blue) to switch from the current audio source to test noïses. Pressing MODE/D (Blue) again or the cursor buttons

will stop the test noises and switch back to the original audio source.

À En67 Y Advanced Operations

+ This setting can only be made when “Speakers Type(Front)” is set to “Digital Crossover” (> page 63).

H Crossover > “250Hz”, “320Hz”, “400Hz”, “500Hz, “630Hz”, “800Hz”, “1000H7”, “1250Hz”, “1600Hz”, “2000Hz”, “2500Hz”, “3200Hz”, “4000H7”, “5000Hz” Output Band for Test

» High + Low, High, Low: Select the output for the audio signal.

+ Pressing MODE/D (Blue) button plays band-limited test noises which center on the specified frequency.

+ We recommend choosing a crossover value that creates no volume difference between “High” and “Low”. Note

+ Refer to your speaker manual when setting without the use of test noises.

Cutoff frequencies of the woofers’ low-pass filter (LPF) and the tweeters” high-pass filter (HPF) are set according to the frequency specified for “Crossover”.

With this setting, a frequency band near the specified

crossover frequency is output by both tweeters and

woofers. Based on the frequency selected for “Crossover”, the cutoff frequency of the low-pass filter (LPF) will be set

10 1/3 octave up and that of the high-pass filter (HPF) to

1/3 octave down. Example: With a “Crossover” of

“3200Hz”, the cutoff frequency of the woofers’ LPF will

be “4000H7”, and the tweeters’ HPF will be “2500Hz”. Tip

+ Sounds processed by Digital Processing Crossover Network are played.

+ You can switch from the current audio source Lo test noises by pressing MODE/D (Blue).

+ In the case of usage of the bi-amped speakers, if there is a difference between the crossover frequency in the speakers" built- in network and the crossover frequency 10 be set on the AV receiver, the frequency dip may be caused. Therefore, it is recommended that this function should be set to “Yes”.

BHigh Level, Low Level > -6.0dB to 0.0dB to +6.0dB in 0.5 dB steps.

With this setting, you can set the volume of tweeters and woofers.

+ Sounds processed by Digital Processing Crossover Network are played.

+ You can switch from the current audio source to test noises by. pressing MODE/D (Blue).

ÆHigh Phase, Low Phase »0 »180°: With this setting, you can adjust the phase of tweeters and woofers. Tip + Sounds processed by Digital Processing Crossover Network are played. + You can switch from the current audio source to test noises by pressing MODE/D (Blue).

BHigh Distance, Low Distance } Oinch(0.0em) to 12inch(30.0cm) in 1 inch (2.5 cm) steps With this setting, you can adjust the virtual position of tweeter and woofer units. Adjusting “High Distance” virtually shifts woofers behind tweeters. Adjusting “Low Distance” virtually shifts tweeters behind woofers.

Tuecter Li !—+ Distance —+{ Distance Wooter 1 : | (Low Distance) {High Distance) Tip

+ Sounds processed by Digital Processing Crossover Network are played.

+ You can switch from the current audio source to test noises by pressing MODE/D (Blue).

À En58 Y Advanced Operations

With the Audio Adjust functions and settings, you can adjust the sound and listening modes as you like.

» Main/Sub This setting determines which channel of a stereo multiplex source is output. Use it to select audio channels or languages with multiplex sources, multilingual TV broadcasts, and so on.

> Right This setting specifies the channel to be used for playing any 2-channel digital source such as Dolby Digital, or 2- channel analog/PCM source in the Mono listening mode.

Output Speaker } Center: Mono audio is output by the center speaker. » Left / Right: Mono audio is output by the front left and right speakers. This setting determines which speakers output mono audio when the Mono listening mode is selected.

+ Ifthe “Center” setting is set to “None” (> page 64), this setting cannot be selected.

BPL Iix Music (2ch Input)

These settings apply to only 2-channel stereo sources.

»or With this setting, you can broaden the width of the front stereo image when using the Dolby Pro Logic IIx Music listening mode. Dimension

».=3 to 0 to +3 With this setting, you can move the sound field forward or backward when using the Dolby Pro Logic IIx Music listening mode. Higher settings move the sound field backward. Lower settings move it forward. If the stereo image feels too wide, or there’s too much surround sound, move the sound field forward to improve the balance. Conversely, if the stereo image feels like it's in mono, or there's not enough surround sound, move it backward.

DO to 3 t07 With this setting, you can adjust the width of the sound from the center speaker when using the Dolby Pro Logic Ix Music listening mode. Normally, if you're using a center speaker, the center channel sound is output from only the center speaker. (If you're not using a center speaker, the center channel sound will be distributed to the front left and right speakers to create a phantom center). This setting controls the front left, right, and center mix, allowing you to adjust the weight of the center channel sound.

> High The Height Gain Control in Dolby Pro Logic Iz enables the listener to select how much gain is applied to the front high speakers. There are three settings, “Low”, “Mid” and “High”, and the front high speakers are accentuated in that order. While “Mid” is the default listening setting, the listener may adjust the Height Gain Control to their personal preference.

+ Ifthe “Front High” setting is set to “None” (> page 64), this setting cannot be selected.

+ Ifthe “Powered Zone 2” setting is set to “Yes” and Zone 2 is turned on, this setting cannot be selected.

À En569 Y Advanced Operations

B Dolby EX > Auto: If the source signal contains a Dolby EX flag, the Dolby EX or THX Surround EX listening mode is used. > Manual: You can select any available listening mode. This setting determines how Dolby EX encoded signals are handled. This setting is unavailable if no surround back speakers are connected. This setting is effective with Dolby Digital, Dolby Digital Plus and Dolby TrueHD only.

+ Ifthe “Surround Back” setting is set to “None” (> page 64), this setting cannot be selected.

+ Ifthe “Powered Zone 2” setting is set to “Yes” and Zone 2 is turned on, this setting cannot be selected.

+ Ifthe “Front High” or “Front Wide” setting is enabled (> page 64), this setting is fixed to “Manual”.

& TrueHD Loudness Management

»On This setting specifies whether or not to apply the Late Night processing on a Dolby TrueHD source.

+ When this setting is set to “Off”, the Late Night function for Dolby TrueHD sources is automatically fixed to “Off”.

+ When this setting is set to “Off”, the Dialogue Normalization information is not available for Dolby TrueHD sources.

On Dolby Volume automatically adjusts the difference in volume levels which can occur between different contents or source components, freeing the user from having to make volume adjustments. Also, by adjusting the frequency balance according to the playback volume, it recreates the original source audio. Dolby Volume therefore provides comfortable listening, effectively controlling the volume level difference without unnatural changes in volume or sound quality to recreate the balance and nuance of the source audio.

+ When the “Dolby Volume” setting is set to “On”,

“Dynamic EQ” and “Dynamic Volume” will be set to “Of”.

+ If you would like to use Dolby Volume in THX listening modes, set the “Loudness Plus” and “Preserve THX Settings” settings to “ONF” and “No”, respectively.

+ When “Dolby Volume” is set to “On”, the Late Night function cannot be set.

& Volume Leveler off > Low: Low Compression Mode activated. > Mid: Medium Compression Mode activated. > High: High Compression Mode activated. This setting affects volume the most, causing all sounds to be of equal loudness. “Volume Leveler” maintains the perceived loudness of all contents, coming from different channels or input sources.

+ Ifthe “Dolby Volume” setting is set to “Of”, this setting cannot be selected.

»On The Half Mode parameter turns Dolby Volume Half Mode processing on and off. In off mode, Dolby Volume applies a bass and treble attenuation to the audio when the system gain exceeds reference level. This enables a more perceptually flat listening experience as human ears are more sensitive to bass and treble at higher levels. Some listeners however, prefer to have more bass and treble performance at higher gain levels.

+ Ifthe “Dolby Volume” setting is set to “Off”, this setting cannot be selected.

+ During Half Mode on playback, Dolby Volume does not apply a bass and treble attenuation when the system volume exceeds reference level, thereby boosting perception of high and low frequencies.

À En70 Y Advanced Operations

Dialogue Normalization

Dialogue Normalization (DialogNorm) is a feature of Dolby Digital, which is used to keep the programs at the same average listening level so the user does not have to change the volume control between Dolby Digital, Dolby Digital Plus and Dolby TrueHD programs. When playing back software which has been encoded in Dolby Digital, Dolby Digital Plus and Dolby TrueHD, sometimes you may see a brief message in the front panel display which will read “DialogNorm: X dB” (X being a numeric value). The display is showing how the program level relates with THX calibration level. If you want to play the program at calibrated theatrical levels, you may wish to adjust the volume. For example, if you see the following message: “DialogNorm: + 4 dB” in the front panel display, to keep the overall output level at THX calibrated loudness, just turn down the volume control by 4 dB. However, unlike a movie theater where the playback loudness is preset, you can choose your preferred volume setting for best enjoyment.

>Otw2to5 The DTS Neo:X Music listening mode creates 9-channel surround sound from 2-channel stereo sources. With this setting, you can specify by how much the front left and right channel output is attenuated in order to create the center channel. Changing the value from “0” to “5” will spread the sound of the center channel to left and right (outwards).

> -3dB to Reference to +3dB With this setting, you can adjust the sound stage when using Audyssey DSX.

tening mode can be selected only when all the following conditions are satisfied:

— The center speaker is connected

— Either the front high or front wide speakers are connected.

— Powered Zone 2 is not in use.

Select if the listening angle is greater than 30 degrees.

Select if the listening angle is less than 30 degrees. With this setting, you can optimize the Theater- Dimensional listening mode by specifying the angle of the front left and right speakers relative to the listening position. Ideally, the front left and right speakers should be equidistant from the listening position and at an angle close 10 one of the two available settings.

Front left speaker Ç) {Front right speaker

là Listening angle: 30°

+ For best results, we recommend setting “Narrow” to 20° and “Wide” to 40°.

B Dolby Digital‘, DTS”2, Multich PCM, Dolby TrueHD, DTS-HD Master Audio, DSD': »-codB, -20dB, -104B, or 0dB With these settings, you can set the level of the LFE (Low Frequency Effects) channel individually for each input sources. If you find that low-frequency effects are too loud when using one of these sources, change the setting to -20 dB or -0c0 dB. “Dolby Digital and Dolby Digital Plus sources ‘2 DTS and DTS-HD High Resolution sources ‘3 DSD (Super Audio CD) sources

B Analog Subwoofer »o > On: Analog audio signals (bass signals) are output. This setting determines whether or not analog audio signals (bass signals) are output from front speakers when the Pure Audio or Direct listening mode is selected. Note + If the “Subwoofer” setting is set to “No” ( page 64), this setting cannot be selected. + When Digital Processing Crossover Network is being used, this setting is not available. BDSD DAC Direct »o > On: DSD signals are not processed by the DSP. This setting determines whether or not DSD (Super Audio CD) audio signals are passed through the DSP for A/V

À En7i Y Advanced Operations

Syne, delay, etc., processing when the Pure Audio or Direct listening mode is selected.

+ When Digital Processing Crossover Network is being used, this setting is not available.

E Sound Program > Stereo Source 1, Stereo Source 2, Stereo Source 3, Multich Source 1, Multich Source 2, Multich Source 3 When playing back different content types on the same source, or when listening to a single content type on different sources, you can pre-register the settings that best suit each content in “Sound Program”. The registered settings can then be called up and modified in one set. Use “Sound Program Edit” to register and modify a combination of settings. Tip + To select the registered settings, see “ @ page 55).

You can assign a default listening mode that will be selected automatically when you select the sound program. The “Last Valid” option means that the listening mode selected last will be used.

The “Straight Decode” option means that straight decoding listening mode (Dolby Digital, DTS, etc.) is selected.

EH Subwoofer » No, Yes You can choose whether or not to use the subwoofer with the sound program. BE Music Optimizer: > Off, On See “Music Optimizer” (> page 57).

M Equalizer' »ofr > Manual: The manual setting in “Equalizer Settings” ( page 66) is applied.

+ “Listening Mode” is only available when the input signal matches the setting of “Sound Program”. + You cannot select the “Subwoofer” setting if you set it to “No” in “Speaker Configuration”. + “Music Optimizer” is only available when “Stereo Source 1”, “Stereo Source 2” or “Stereo Source 3” is selected. + When “Audyssey Quick Start” has been used for measurement, the “Audyssey”setting cannot be selected. “1 This setting cannot be used when the “Listening Mode” setting is set to “Pure Audio” or “Direct” “2 To enable this setting, you must first perform the Room Correction and Speaker Setup.

Source Setup & @ “su » @

Items can be set individually for each input selector.

Preparation Press the input selector buttons to select an input source.

The tone for each speaker is set automatically by Audyssey MultEQ® XT32 Room Correction and Speaker Setup. To enable the following settings, you must first perform the Room Correction and Speaker Setup ( page 39). + These technologies cannot be used when:

a pair of headphones is connected, or

—either Pure Audio or Direct listening mode is selected.

> Movie: Select this setting for movie material. The Audyssey indicator will light.

> Music: Select this setting for music material. The Audyssey indicator will light.

+ When “Audyssey Quick Start” has been used for measurement, “Audyssey” cannot be selected. + Audyssey equalizing does not work with DSD sources.

À En72 Y Advanced Operations

B Dynamic EQ > > On: Audyssey Dynamic EQ® becomes active. The Dynamic EQ indicator will light. With Audyssey Dynamic EQ, you can enjoy great sound even when listening at low volume levels. Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. It does so by selecting the correct frequency response and surround volume levels moment-by-moment so that the content sounds the way it was created at any volume level — not just at reference level.

BReference Level Audyssey Dynamic EQ Reference Level Offset > 0dB: This should be selected for movie contents. > 5dB: Select this setting for content that has a very wide dynamic range, such as classical music. > 104B: Select this setting for jazz or other music that has a wider dynamic range. This setting should also be selected for TV content as that is usually mixed at 10 dB below film reference. »15dB: Select this setting for pop/rock music or other program material that is mixed at very high listening levels and has a compressed dynamic range.

Movies are mixed in rooms calibrated for film reference. To achieve the same reference level in a home theater system each speaker level must be adjusted so that

—30 dBFS band-limited (500 Hz to 2000 Hz) pink noise produces 75 dB sound pressure level at the listening position. A home theater system automatically calibrated by Audyssey MultEQ® XT32 will play at reference level when the master volume control is set to the 0 dB position. At that level you can hear the mix as the mixers heard it. Audyssey Dynamic EQ® is referenced to the standard film mix level. It makes adjustments to maintain the reference response and surround envelopment when the volume is turned down from 0 dB. However, film reference level is not always used in music or other non-film content. Audyssey Dynamic EQ Reference Level Offset provides three offsets from the film level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not Within the standard.

+ If “Dynamic EQ” setting is set to “Off”, this technology cannot be used.

B Dynamic Volume »or > Light: Activates Light Compression Mode. > Medium: Activates Medium Compres » Heavy: Activates Heavy Compression Mode. This setting affects volume the most. It quiets the loud parts, such as explosions, and boosts the quiet parts so they can be heard.

+ If you want to use Audyssey Dynamic EQ or Audyssey Dynamic Volume® with THX listening modes, set the “Loudness Plus” setting to “Off” and set “Preserve THX Settings” to “No” (> page 67).

+ If you make Dynamic Volume active, “Dynamic EQ” is set 10 “On”. The Dynamic Vol indicator will light.

+ When “Dynamic EQ° is set to “Off”, “Dynamic Volume” is automatically switched to “OFF”.

About Audyssey Dynamic EQ® Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Dynamic EQ selects the correct frequency response and surround levels moment-by-moment at any user-selected volume setting. The result is bass response, tonal balance and surround impression that remain constant despite changes in volume. Dynamic EQ combines information from incoming source levels with actual output sound levels in the room, a prerequisite for delivering a loudness correction solution.

»-12dB to 0dB to +12dB in 1 dB steps. With Intelli Volume, you can set the input level for each input selector individually. This is useful if one of your source components is louder or quieter than the others.

Use Æ/# to set the level. If a component is noticeably louder than the others, use to reduce its input level. If it’s noticeably quieter, use æ to increase its input level.

+ IntelliVolume does not work for Zone 2/3.

About Audyssey Dynamic Volume® Audyssey Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Dynamic Volume looks at the preferred volume setting by the user and then monitors how the volume of program material is being perceived by listeners in real time to decide whether an adjustment is needed. Whenever necessary, Dynamic Volume makes the necessary rapid or gradual adjustments to maintain the desired playback volume level while optimizing the dynamic range. Audyssey Dynamic EQ is integrated into Dynamic Volume so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression and dialog clarity remain the same whether watching movies, flipping between television channels or changing from stereo to surround sound content.

} Omsec to 800msec in 5 msec steps When using progressive scanning on your Blu-ray Disc/DVD player, you may find that the picture and sound are out of sync. With this setting, you can correct this by delaying the audio signals. Press ENTER to view the TV picture while setting the delay when the video source is output to HDMI OUT MAIN. To return to the previous screen, press RETURN.

The range of values you can adjust will depend on whether your TV or display supports HDMI Lip Syne and if the “Lip Syne” setting is set to “On” or not (> page 80).

+ AIV Sync is disabled when the Pure Audio or Direct listening mode is used with an analog input source.

+ This setting cannot be used with the NET input selector.

+ The USB input selector can be used only when iPod/iPhone is connected and Standard Mode or Extended Mode (Video) is

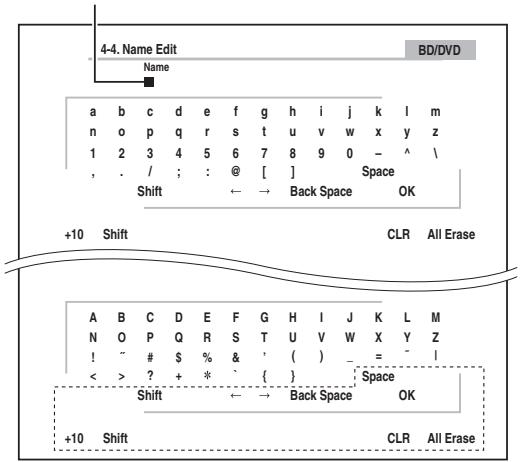

You can enter a custom name for each individual input selector and radio preset for easy identification. When entered, the custom name will appear on the display. The custom name is edited using the keyboard screen.

Ise <«/» to select a character, and then Use A/V/</ lect a ch: d th press ENTER.

Repeat this step to enter up to 10 characters.

2 Tostore a name when you’re done, be sure to select “OK” by using A/V/</», and then press ENTER.

Space: Enters a space character. Shift 1: Toggles between lower and upper case characters. + (Left) — (Right): Moves the cursor left or right in the Name input area. Back Space 2: Moves the cursor backward and deletes one

Using Picture Adjust, you can adjust the picture quality and reduce any noise appearing on the screen. Press ENTER to view the TV picture while setting when

the video source is output to HDMI OUT MAIN. To return

to the previous screen, press RETURN.

EH Wide Mode "2 This setting determines the aspect ratio. »4:3:

character. OK: Confirms your entry. Tip “1° This can also be performed by using +10 on the remote controller.

‘2 Press CLR on the remote controller to delete all the characters you have input.

+ To name a radio preset, use TUNER to select AM or FM, and then select the preset (> page 35).

+ To restore a name to its default, erase all characters with CLR, select “OK? and then press ENTER.

Note + This setting cannot be used for the NET and USB input selectors.

O O ®] O According to the input signals and monitor output setting, the AV receiver automatically selects the “4:3”, “Full”, “Zoom” or “Wide Zoom” mode. See “Monitor Out” for details on the monitor output

setting (> page 60).

B Picture Mode 1: } Custom: AI settings can be performed manually. DISF Day: Select when the room is bright.

ISF Night: Select when the room is dark.

} Cinema: Select when the picture source is a movie or alike. } Game: Select when the video source is a game console. } Streaming: Attempts to reduce the mosquito noise and block artifact effects. > Through: Does not adjust picture quality (changes resolution). > Direct: Does not adjust picture quality (does not change resolution). The video coming from an analog input and output by the HDMI output is processed in the same way as “Through”. With “Picture Mode”, you can change the following settings to be suitable for the movie or game screen by one operation; “Game Mode”, “Film Mode”, “Edge Enhancement”, “Noise Reduction”, “Mosquito NI “Random NR”, “Block NR”, “Resolution”, “Brightness”, “Contrast”, “Hue”, “Saturation”, “Color Temperature”, “Gamma”, “Red Brightness”, “Red Contrast”, “Green Brightness”, “Green Contrast”, “Blue Brightness” or “Blue Contrast”. The receiver has been designed to incorporate setup and calibration standards established by the Imaging Science Foundation (ISF). The ISF has developed carefully crafted, industry-recognized standards for optimal video performance and has implemented a training program for technicians and installers to use these standards to obtain optimal picture quality from the receiver. Accordingly, Onkyo recommends that setup and calibration be performed by an ISF Certified installation technician.

>On If video signal delay occurs during playback on a video component (1.e., game console), select the corresponding input source and set the “Game Mode” setting to “On”. The delay will decrease but in return the picture quality will become poor.

B Film Mode+6 » Video: “Film Mode” detection is not applied and the input signal is handled as a video source. » Auto: Detects whether the input signal is a video or a movie. If it is a movie, the appropriate conversion is applied. The AV receiver will adjust to the picture source, automatically converting it to the appropriate progressive signal and reproducing the natural quality of the original picture.

B Edge Enhancement' 46

> High With this setting, you can make the picture appear sharper. B Noise Reduction‘4"6

> High With this setting, you can reduce noise appearing on the screen. Select the desired level.

> High With Mosquito Noise Reduction, you can remove the shimmering or haziness that sometimes appears around objects in the picture. Mosquito noise can be an issue with overly compressed MPEG content.

> High With Random Noise Reduction, you can remove indiscriminate picture noise, such as film grain.

> High With Block Noise Reduction, you can remove the block distortion that sometimes appears in the picture. Block noise can be an issue with overly compressed MPEG content.

BResolution‘46'8°2"10 > Through: Select this to pass video through the AV receiver at the same resolution and with no conversion. > Auto: Select this to have the AV receiver automatically convert video at resolutions supported by your TV. > 480p (480p/576p), 720p, 1080i, 1080p: Select the desired output resolution. } 1080p/24: Select this for 1080p output at 24 frames per second. » 4K Upscaling: Select this for an output resolution four times that of 1080p. Depending on the resolution supported by your TV, it will result in either 3840 x 2160 or 4096 x 2160 pixels. You can specify the output resolution for the HDMI output and have the AV receiver upconvert the picture resolution

as necessary to match the resolution supported by your TV.

This setting is available only when “Source” has been selected in “Resolution” of the “Monitor Out” setting (> page 60). BBrightness’ 146

With this setting, you can adjust the picture brightness. “-50° is the darkest. “+50” is the brightest.

M Contrast 146 »-50 to 0 to +50 With this setting, you can adjust contrast. “-50° is the least. “+50” is the greatest. BHue' 115 »-50 to 0 to +50

With this setting, you can adjust the color hue between “-50” and “+50”.

D-50 to 0 to +50 With this setting, you can adjust saturation. “-50° is the weakest color. “+50” is the strongest color.

E Color Temperature‘ 46 » Warm > Normal

etting, you can adjust the color temperature.

»-3 to 0 to +3 With this setting, you can adjust the incoming picture’s R (red), G (green), and B (blue) color signal in relation to the output color signal.

BE Red Brightness':5

D-50 to 0 to +50 With this setting you can adjust the brightness of red color. “-50" is the darkest. “+50” is the brightest.

D-50 to 0 to +50 With this setting you can adjust the contrast of red color. “-50" is the least. “+50” is the greatest.

E Green Brightness'5 D-50 to 0 to +50

With this setting you can adjust the brightness of green color. “50” is the darkest. “+50” is the brightest.

B Green Contrast‘ 46

D-50 to 0 to +50 With this setting you can adjust the contrast of green color. “-50" is the least. “+50” is the greatest.

B Blue Brightness 46

D-50 to 0 to +50 With this setting you can adjust the brightness of blue color. “50” is the darkest. “+50” is the brightest.

À En76 Y Advanced Operations

Blue Contrast' 46 »-50 to 0 to +50

With this setting you can adjust the contrast of blue color. “-50" is the least. “+50” is the greatest.

+ “Picture Adjust” cannot be used when: — The NET input selector is selected, or “Monitor Out” is set to “Sub” (> page 60). + “Picture Adjust” can be used when the USB input selector is selected: however, only when iPod/iPhone is connected and Standard Mode or Extended Mode (Video) is selected. This procedure can also be performed on the remote controller by using the Quick Setup (+ page 54). When a 3D video source is input, “Wide Mode” is fixed to “Full”. When “Metadata Compatible” is enabled ( page 67), “Picture Mode” is fixed to “Direct”. When the “Picture Mode” setting is set to anything other than “Custom”, this setting cannot be used. If the “Resolution” setting is set to “4K Upscaling” (3 pages 60, 76), this setting is fixed at “OfP”. Press CLR if you want to reset 10 the default value. When the “Noise Reduction” setting is set 10 anything other than “Off”, this setting cannot be selected. With some TVs, there may be no picture when this setting is set to “4K Upscaling”. When “Resolution” is set to “1080p/24” or “4K Upscaling” while “Monitor Out" is set 10 “Analog”, the video is output in 1080i. “10 When “Resolution” is set to “Auto” while “Monitor Out” is set to “Analog”, the video is output as “Through”.

B Audio Selector } ARC: The audio signal from your TV tuner can be sent to HDMI OUT MAIN of the AV receiver.‘1 With this selection, the TV’s audio can be automatically selected as a priority among other assignments. > HDMI: This can be selected when HDMI IN has been assigned as an input source. If both HDMI (HDMI IN) and digital audio inputs (COAXIAL IN or OPTICAL IN) have been assigned, HDMI input is automatically selected as a priority. } COAXIAL: This can be selected when COAXIAL IN has been assigned as an input source. If both coaxial and HDMI inputs have been assigned, coaxial input is automatically selected as a priority. > OPTICAL: This can be selected when OPTICAL IN has been assigned as an input source. If both optical and HDMI inputs have been assigned, optical input is automatically selected as a priority. } Analog: The AV receiver always outputs analog signals. You can set priorities of audio output when there are both digital and analog inputs.

Note + This setting can be made only for an input source that is assigned to HDMI IN, COAXIAL IN, or OPTICAL IN + This setting cannot be used with the NET and USB input selectors. + When using the Whole House Mode, this setting cannot be selected. + With the GAMEZ input selector, “Analog” cannot be used. “1 You can select “ARC” if you select the TV/CD input selector. But you cannot if you’ ve selected “Off” in the “Audio Return Channel” setting ( page 80).

Setting the Incoming Digital Signal (Fixed Mode)

mFixed Mode » Of. The format is detected automatically. If no digital input signal is present, the corresponding analog input is used instead. > PCM: Only 2-channel PCM format input signals will be heard. If the input signal is not PCM, the PCM indicator will flash and noise may also be produced. >DTS: Only DTS (but not DTS-HD) format input signals will be heard. If the input signal is not DTS, the dts indicator will flash and there will be no sound. ‘When “HDMI”, “COAXIAL" or “OPTICAL" is selected in the “Audio Selector” setting, you can then specify the signal type in “Fixed Mode”. Normally, the AV receiver detects the signal format automatically. However, if you experience either of the following issues when playing PCM or DTS material, you can manually set the signal format to PCM or DTS. + Ifthe beginnings of tracks from a PCM source are cut off, try setting the format to PCM. + If noise is produced when fast forwarding or reversing a DTS CD, try setting the format to DTS.

+ The setting will be reset to “Of” when you change the setting in “Audio Selector”.

Listening Mode Preset

EE Listening Mode Preset

You can assign a default listening mode to each input source that will be selected automatically when you select each input source. For example, you can set the default listening mode to be used with Dolby Digital input signals. You can select other listening modes during playback, but the mode specified here will be resumed once the AV receiver has been set to standby.

À Use A/Y to select the input source that you want to set, and then press ENTER. The following menu appears.

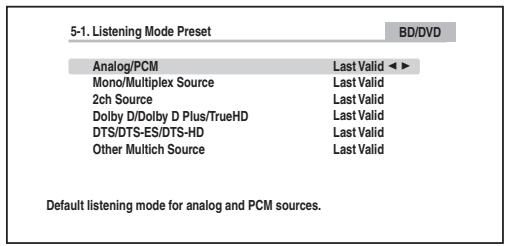

51. Listening Mode Pres Bono AnalogPCU LastValié 4» Monolutipies Source LastVaid 26h Source LastVaid Dolby Dolby D PlurueHD LastVaid DTSDTS-ESIOTS-HD LastVaid Other Hutieh Source LastVaid Delutiteing mode or analag and PCM sources. To be continued

2 Use A/Y to select the signal format that you want to set, and then use </> to select a listening mode. Only listening modes that can be used with each input signal format can be selected ( pages 42 to 49). The “Last Valid” option means that the listening mode selected last will be used.

The “Straight Decode” option means that straight decoding listening mode (Dolby Digital, DTS, etc.) is selected.

+ For the “TUNER input selector, only “Analog” will be available.

+ For the “NET” or “USB” input selector, only “Digital” will be available.

B Analog/PCM/Digital With this setting, you can specify the listening mode used when an analog (CD, TV, LD, VHS, MD, turntable, radio, cassette, cable, satellite, etc.) or PCM digital (CD, DVD, etc.) audio signal is played. Note + For the “GAME2”

input selector, only “PCM" is available.

BE Mono/Multiplex Source With this setting, you can specify the listening mode used when a mono digital audio signal is played (DVD, etc.).

M 2ch Source With this setting, you can specify the listening mode used when 2-channel (2/0) stereo digital sources, such as Dolby Digital or DTS, are played.

B Dolby D/Dolby D Plus/TrueHD With this setting, you can specify the listening mode used when Dolby Digital or Dolby Digital Plus format digital audio signals are played (DVD, etc.). Specifies the default listening mode for Dolby TrueHD sources, such as Blu-ray or HD DVD (input via HDMI).

B DTS/DTS-ES/DTS-HD With this setting, you can specify the listening mode used when DTS or DTS-HD High Resolution format digital audio signals are played (DVD, LD, CD, ete.). Specifies the default listening mode for DTS-HD Master Audio sources, such as Blu-ray or HD DVD (input via HDMI).

M Other Multich Source Specifies the default listening mode for multichannel PCM sources from HDMI IN such as DVD-Audio, and DSD multichannel sources such as Super Audio CD.

Displayed range is Min, 0.5 to 99.5, Max.

Displayed range is codB, -81.5dB to +18.0dB. With this setting, you can choose how the volume level is displayed.

The absolute value 82 is equivalent to the relative value 0 dB.

Note + If the absolute value is set to 82, “82.0Ref” will appear on the display and the THX indicator will flash. BE Muting Level »—codB (fully muted), -504B to -10dB in 10 dB steps.

This setting determines how much the output is muted when the muting function is used (> page 52).

À En78 Y Advanced Operations

» Off, -32dB to +17dB (Relative display) With this setting, you can limit the maximum volume. To disable this setting, select “Of”.

» Last, Min, 1 to 99 or Max (Absolute display)

» Last, -codB, -81dB to +18dB (Relative display) With this preference, you can specify the volume setting to be used each time the AV receiver is turned on.

To use the same volume level that was used when the AV receiver was turned off, select “Last”.

The “Power On Volume” setting cannot be set higher than the “Maximum Volume” setting.

»-12dB to 0dB to +12dB With this setting, you can specify the headphone volume relative to the main volume. This is useful if there’s a volume difference between your speakers and your headphones.

Off This preference determines whether operation details are displayed on-screen when an AV receiver function is adjusted. Even when “On” is selected, operation details may not be output if the input source is connected to an HDMI IN.

Off With this setting, you can set the time until the screen saver activates itself. Once active, the screen saver will go off and the screen will return to its previous state if the AV receiver is operated in any way.

1æ 6 + @ “sur -@ RECU Hardware Setup

BAM/FM Frequency Step (North American models) > 10kKHz/200kKHz: > 9kHz/50kHz: Select the frequency step according to your area.

BH AM Frequency Step (European models) > 10kHz: > 9kHz: Select the frequency step according to your area. For AM/FM tuning to work properly, you must specify the AM/FM frequency step used in your area.

Note + When this setting is changed, all radio presets will be deleted.

Æ HDMI Control(RIHD) »Or >On Turn this setting on to allow R1HD -compatible components connected via HDMI to be controlled by the AV receiver (> page 111).

+ When the setting is set to “On” and the menu is closed, the names of connected RRIHID -compatible components and “RIHD On” are displayed on the AV receiver. “Search...” — “(name)” — “RIHD On” When the AV receiver cannot receive the name of the component, itis displayed as “Player*” or “Recorder*”, etc. (“?” shows up

À En79 Y Advanced Operations

and indicate the number of components, when two or more are received).

When an FRIHD -compatible component is connected to the AV receiver via an HDMI cable, the name of the connected component is displayed on the AV receiver display. For example, while you are watching TV broadcasting, if you operate a Blu-ray Disc/DVD player (being powered on) with the remote control of the AV receiver, the name of the Blu-ray Disc/DVD player will be displayed on the AV receiver.

Set it to “OFF when a connected piece of equipment is not compatible or it is unclear whether the equipment is compatible or not.

If operation is not normal when set 10 “On”, change the setting 10 “Of”.

Refer to the connected component’s instruction manual for details.

When the “HDMI Control(RIHD)" setting is set to “On”, the power consumption on standby mode slightly increases. {Depending on the TV status, the AV receiver will enter standby mode as usual.)

The HDMI component (connected to HDMI IN 1/2/3/AUX INPUT) selected for Zone 2 cannot be operated with the remote controller through the AV receiver using RIHD function and also cannot be operated on the TV connected to HDMI OUT MAIN using CEC function.

The HDMI component (connected to HDMI IN 1/2/3/AUX INPUT) selected for Zone 2 can be operated on the TV in Zone 2 using CEC function.

When the source equipment is connected with the RI connection, it may malfunction if “HDMI Control(RIHD)" is set 10 “On”.

B HDMI Through »ofr > BD/DVD, CBL/SAT, STB/DVR, GAMEI, GAME2, PC, AUX, TV/CD, PHONO: Selects the input source for which the HDMI Through function is enabled. » Last: The HDMI Through function is activated on the input source selected at the time of setting the AV receiver 10 standby mode. When enabling the HDMI Through function, regardless of whether the AV receiver is on or in standby, both audio and video streams from an HDMI input will be output to the TV or other components via HDMI connection. The HDMI indicator will be dimly-lit in standby mode. Note that the indicator may not light under certain conditions (> page 59). This setting is fixed to “Auto” automatically when the above “HDMI Control(RIHD)" setting is set to “On”, resulting in automatic input source selection.

+ Only an input source assigned to an HDMI IN via “HDMI Input” setting is enabled (> page 61).

+ The power consumption in standby mode will increase during the HDMI Through function: however in the following cases, the power consumption can be saved:

— The TV is in standby mode. — You are watching a TV program.

+ Refer to the connected component's instruction manual for details.

+ Depending on the connected component, the correct input source may not be selected with the setting fixed to “Auto”.

+ This setting is set to “OfP” automatically when the “HDMI Control(RIHD)" setting is set to “Off”

>On This preference determines whether the incoming audio signal is output from the HDMI output. You may want to turn this preference on if your TV is connected to the HDMI output and you want to listen to the audio from a connected component through your TV's speakers. Normally, this should be set to “Off”.

+ If “On” is selected and the audio can be output from the TV, the AV receiver will output no sound through its speakers. In this case, “TV Speaker” appears on the AV receiver’s display by pressing DISPLAY.

+ When “HDMI Control(RIHD)" is set to “On”, this setting is fixed to “Auto”.

+ When Digital Processing Crossover Network is being used, this setting is not available.

+ With some TVs and input signals, no sound may be output even when this setting is set to “On”.

+ When “Audio TV Out” or “HDMI Control(RIHD)" is set 10 “On” and you’re listening through your TV's speakers @ page 18). tuming up the AV receiver’s volume control will make the sound be output from the AV receiver’s front left and right speakers. To stop the AV receiver’s speakers producing sound, change the settings, change your TV°s settings, or turn down the AV receiver’s volume.

+ Listening mode cannot be changed when this setting is set 10 “On” and the input source is not HDMI.

À Ens0 Y Advanced Operations

B Audio Return Channel (ARC) >off > Auto: The audio signal from your TV tuner can be sent to HDMI OUT MAIN of the AV receiver. The audio return channel (ARC) function allows an ARC capable TV to send the audio stream to HDMI OUT MAIN of the AV receiver. To use this function, you must select the TV/CD input selector and your TV must be ARC

capable. Default setting: “-- - -

+ This setting is fixed to “- - - =” when the “HDMI Control(RIHD)” setting is set to “OFF”.

+ This setting is set to “Auto” automatically when the “HDMI Control(RIHD)” setting is set to “On’” for the first time.

+ If you set “Audio Return Channel” to “Auto”, the “Audio Selector” settings of the TV/CD input selector will be automatically switched to “ARC” ( page 77).

After changing the settings of the “HDMI Control(RIHD)”, “HDMI Through” or “Audio Return Channel”, turn off the power on all connected pieces of equipment and then turn them on again. Refer 10 the user’s manuals for all connected pieces of equipment.

ÆLip Sync >off »On This function allows the AV receiver to automatically correct any delay between the video and the audio, based on the data from the connected monitor. Note

+ This function works only if your HDMI-compatible TV supports HDMI Lip Sy

BinstaPrevue These settings apply to “InstaPrevue” of the Home menu € page 50) and specify the preview display of HDMI video streams. Sub Window > Multi: Displays preview thumbnails all at once. } Single: Displays preview thumbnails one-by-one. With this setting, you can set the number of preview thumbnails displayed.

Position (with “Sub Window” set to “Multi”)

» Top, Bottom, Left, Right (with “Sub Window” set to “Single”)

> Upper Left, Upper Right, Lower Left, Lower Right With this setting, you can set the position of preview thumbnails on the TV screen.

+ Depending on video signals, the picture may not be properly rendered on the preview thumbnails of InstaPrevue.

>On When “Auto Standby” is set to “On”, the AV receiver will automatically enter standby mode if there is no operation for 30 minutes with no audio and no video signal input. “Auto Standby” will appear on the AV receiver’s display and OSD 30 seconds before the Auto Standby comes on. Default setting: On (European models), Off (North American models)

+ Setto “On”, the Auto Standby function may activate itself during playback with some sources. + The Auto Standby function does not work when Zone 2/3 is on.

After modifying the network settings, you must confirm the changes by executing “Save”.

This section explains how to configure the AV receiver’s network settings manually.

If your router’s DHCP server is enabled, you don't need to change any of these settings, as the AV receiver is set to use DHCP to configure itself automatically by default (i.e., DHCP is set to “Enable”). If, however, your router’s DHCP server is disabled (you’re for example using static IP), you’ Il need to configure these settings yourself, in which case, a knowledge of Ethernet networking is essential.

DHCP (Dynamic Host Configuration Protocol) is used by routers, computers, the AV receiver, and other devices to automatically configure themselves on a network.

À Ensi Y Advanced Operations

The DNS (Domain Name System) translates domain names into IP addresses. For example, when you enter a domain name such as www.onkyousa.com in your Web browser, before accessing the site, your browser uses DNS to translate this into an IP address, in this case 63.148.251.142.

BH MAC Address This is the AV receiver’s MAC (Media Access Control) address. This address cannot be changed.

» Disable This setting determines whether or not the AV receiver uses DHCP to automatically configure its IP Address, Subnet Mask, Gateway, and DNS Server settings.

+ If you select “Disable”, you must configure the “IP Address”, “Subnet Mask”, “Gateway”, and “DNS Server” settings yourself

IP Address } Class A: “10.0.0.0” to “10.255.255.255" } Class B: “172.16.0.0” to “172.31.255.255" » Class C: “192.168.0.0” to “192.168.255.255" Enter a static IP address provided by your Internet Service Provider (ISP). Most routers use Class C IP addresses.

H Subnet Mask Enter the subnet mask address provided by your ISP (typically 255.255.255.0).

E Gateway Enter the gateway address provided by your ISP.

B DNS Server Enter the DNS server address provided by your ISP.

BE Proxy URL To use a Web proxy, enter its URL here.

»ofr This setting enables or disables control over the network. When enabled, the NET indicator will be dimly-lit while the AV receiver is in standby mode. Note that the indicator may not light under certain conditions ( page 59).

+ When set to “On”, the power consumption slightly increases in standby mode.

> Disable When this setting is enabled, you will be notified if a firmware update via network is available.

+ Selecting “Never Remind me” on the notification window will switch this setting to “Disable” (> page 23).

+ For details on the update notification, see “If the “Firmware Update Available” window appears.” (> page 23).

If you skipped the initial setup wizard, for example on first-time use, you can reaccess it from here. See “Initial Setup” (> page 24).

Remote Controller Setup 1@ © @ “sur @

LE L ef L 1 Remote Controller Setup

Remote ID BH Remote ID »1,2,0r3 When several Onkyo components are used in the same room, their remote ID codes may overlap. To differentiate the AV receiver from other components, you can change its remote ID from “1”, to “2” or “3”. Note

+ If you do change the AV receiver”’s remote ID, be sure to change the remote controller to the same ID (see below), otherwise, you won't be able to control it with the remote controller.

Changing the remote controller’s ID

1 While holding down RECEIVER, press and hold down Q SETUP until the RECEIVER lights (about 3 seconds).

2 Use the number buttons to enter ID 1, 2, or 3. RECEIVER flashes twice.

With this preference, you can protect your settings by locking the setup menus.

> Unlocked When “Locked” is selected, the setup menus will be locked and you cannot change any setting.

In addition to the main listening room, you can also enjoy playback in the other room, or as we call Multi Zone. And, you can select a different source for each room.

1g Multi Zone Connections

There are two ways you can connect Zone speakers: 1. Connect them directly to the AV receiver. 2. Connect them to an additional amplifier.

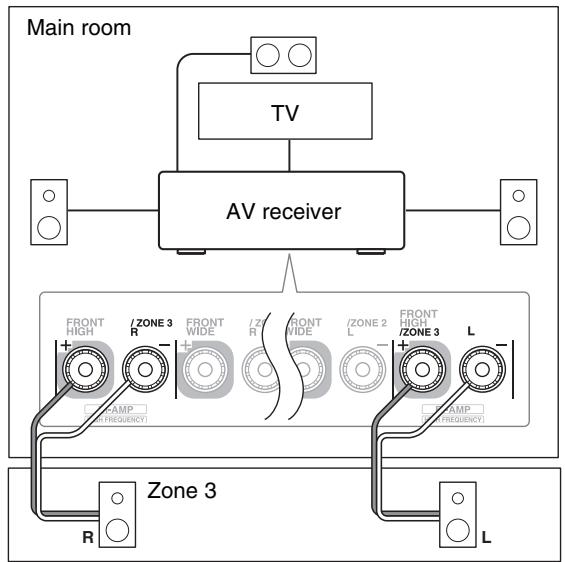

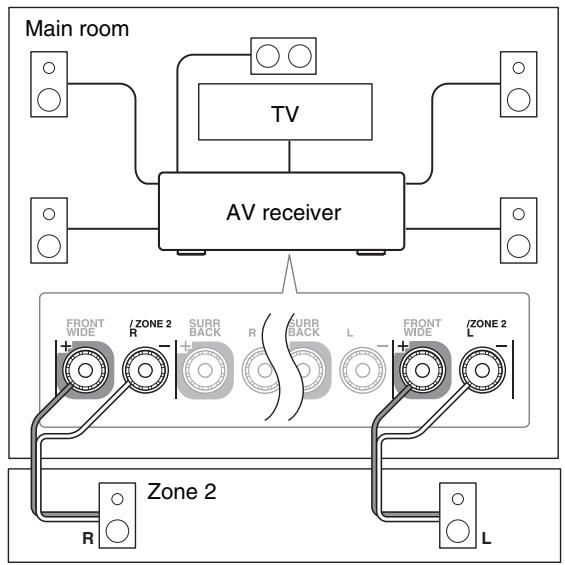

Connecting Your Zone Speakers Directly to the AV receiver

This setup allows you to select different sources for Main room and Zone 2/3. This is called Powered Zone, as the Zone 2/3 speakers are powered by the AV receiver.

To use this setup, you must activate the Powered Zone 2/3 setting (> page 63).

+ With this setup, the volume of Zone 2/3 is controlled by the AV receiver.

+ When Powered Zone 2 is used, playback in the main room is reduced to 5.2 channels.

+ When Powered Zone 3 is used, playback in the main room is reduced to 3.2 channels.

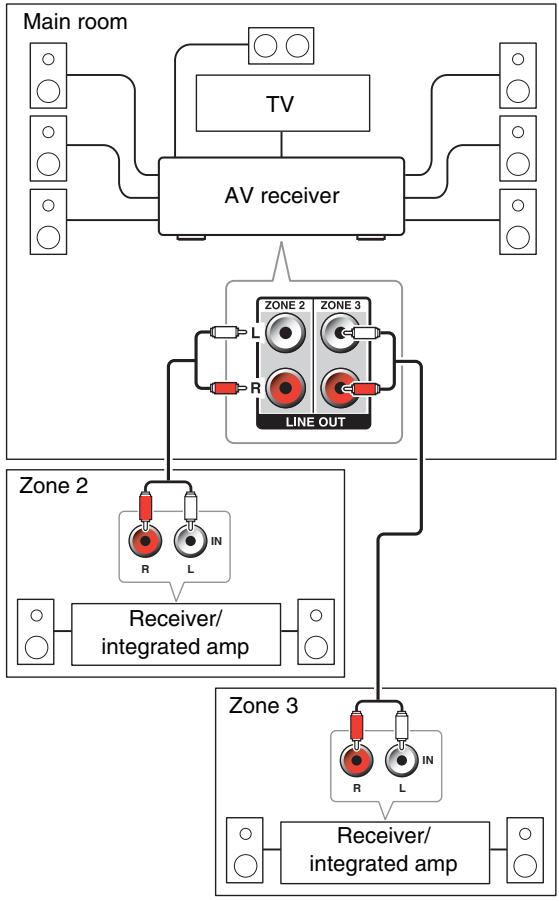

Connecting the Zone Speakers to an Additional Amplifier

This setup allows 7.2-channel playback in your main listening room and 2-channel stereo playback in Zone 2/3.

Main room E : o o O O 5 AV receiver 5

Receiver/ integrated amp

Receive integrated amp

Note + The volume of Zone 2/3 must be set on the Zone 2/3 amplifier.

‘When Zone 2/3 is turned on, the output from the 12V TRIGGER OUT jack goes high (+12 V and max. 150 mA for Zone 2, +12 V and max. 25 mA for Zone 3). Connecting this jack to a 12-volt trigger input on a component in Zone 2/3 will make that component turn on or off as the AV receiver turns on or off the Zone 2/3.

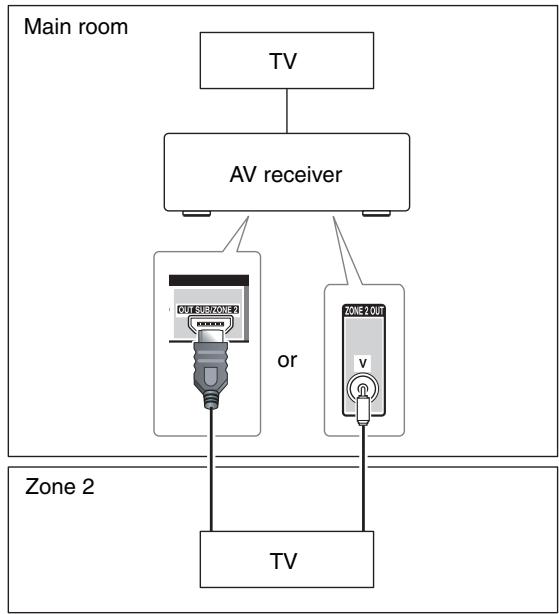

The on-screen information appears on the TV screen in Zone 2 by connecting the TV to HDMI OUT ZONE 2 of the AV recciver with HDMI cable.

The AV receiver allows you to enjoy the composite video and HDMI audio/video in Zone 2 by connecting the TV of Zone 2 to the respective output jacks.

+ Video and audio signals from an HDMI input will be output to HDMI OUT ZONE 2.

+ The ZONE 2 OUT V jack outputs video of components con- nected to composite video only.

+ The information of connected component appears on a TV in Zone 2 by pressing DISPLAY.

Controlling Multi Zone Components

B Operating on the AV receiver

ZONE2 OFF Tip + The Whole House Mode function shares the input source of main room with Multi Zone (> page 52)

1 To turn on Zone 2/3 and select an input source, press ZONE 2 or ZONE 3 followed by an input selector button within 8 seconds.

Zone 2/3 turns on, the Z2 or Z3 indicator lights on the AV receiver’s display.

Tip + The corresponding trigger output goes high (+12 V). To select AM or FM, press ZONE 2 or ZONE 3 and the TUNER input selector repeatedly.

To select the same source as the main room's, press ZONE 2 or ZONE 3 twice. “Zone 2 Selector: Source” or “Zone 3 Selector: Source” appears on the AV receiver’s display.

2 To turn off Zone 2/3, press ZONE 2 or ZONE 3. The 22/73 indicator on the AV receiver”’s display flashes. Press OFF.

The zone is turned off. Tip + The corresponding trigger output goes low (0 volts). E Operating on the remote controller

To control Zone 2/3, you must press ZONE on the remote controller first.

ZONE turns red when Zone 2 is on, and green when Zone 3 is on.

1 Press ZONE repeatedly, then point the remote controller at the AV receiver and press ORECEIVER.

Zone 2/3 turns on, the 2 or Z3 indicator lights on the AV receiver’s display. Tip + The corresponding trigger output goes high (+12 V). 2 Toselect an input source for Zone 2/3, press ZONE

repeatedly, followed by an INPUT SELECTOR button.

To select AM or FM, press ZONE and the TUNER input selector repeatedly.

À Ens5 Y Advanced Operations

3 To turn off Zone 2/3, press ZONE repeatedly, followed by © RECEIVER. The zone is turned off. Tip

+ The corresponding trigger output goes low (0 volts).

Adjusting the Volume for Zones

B Operating on the remote controller 1 Press ZONE repeatedly.

B Operating on the AV receiver

1 Press ZONE 2 or ZONE 3 (the Z2/Z3 indicator on the AV receiver’s display flashes).

2 Use MASTER VOLUME control within 8 seconds.

If your Zone 2/3 speakers are connected to a receiver or integrated amplifier in Zone 2/3, use its volume control to adjust the volume.

B Operating on the remote controller

1 Press ZONE repeatedly, and then press MUTING.

Tip + To unmute, press ZONE followed by MUTING again. Zones can also be unmuted by adjusting the volume.

+ ZONE 2 LINE OUT and FRONT WIDE/ZONE 2 L/R output 2ch PCM and analog input sources. To listen to the PCM source, you need to make an HDMI connection (> page 18). If no sound is heard when an input source is selected, check if the source is connected 10 an analog input and HDMI input.

Only analog input sources are output by the ZONE 3 LINE OUT and FRONT HIGH/ZONE 3 L/R terminals. Digital input sources are not output. If no sound is heard when an input source

is selected, verify that the source is connected to an analog input.

(North American models) You can select different radio Stations for the main room and Zone 2 by connecting the supplied antennas respectively (> page 21).

(North American models) When the main room and Zone 2

Share the same input source, if the input selector of the main room

is TUNER, you cannot select different radio stations for the main

room and Zone 2 respectively.

+ Œuropean models) You cannot select different AM or FM radio Stations for your main room and Zone 2/3. The same AM/FM radio station will be heard in each room. Namely, if you have selected an FM station for the main room, that station will also be output in Zone 2/3.

+ You cannot select different radio stations for Zone 2 and Zone 3

If Zone 2 and the main room share the same input source, only an

analog input signal is output.

If an HDMI component selected in Zone 2 outputs the sound

other than PCM, the sound is not output from FRONT WIDE/ZONE 2 and ZONE 2 LINE OUT.

+ Both audio and video outputs from an HDMI component may

interrupt when the main room and Zone 2 are set 10 share the

+ When you have selected NET or USB as input selector, the last selector selected will be set for Main room and Zone 2/3.

+ When Zone 2/3 is activated and its input selector is selected, the power consumption of standby mode slightly increases.

+ While Zone 2/3 is on, FI functions will not work.

+ The component connected to HDMI input other than HDMI IN 1/2/8/AUX INPUT is selected as an input source for Zone 2, the linked operations of FD may not work properly. In this case, set the linked operations to Off on the source component.

+ When setting the AV receiver to standby mode while Zone 2/3 is active, the Z2 or Z3 indicator is dimly lit.

+ Activating Zones in the main room when the listening mode is set to Pure Audio will automatically switch it to Direct.

+ “GAMEZ” cannot be selected as input sources for Zone 3.

+ When “GAME” is the input source of Main room and Zone 3 is set to share the same source, no sound will be output from Zone 3

+ Even if you repeatedly press the remote controller's ZONE to select zones, the last zone selection will be retained once you have switched 10 other components by pressing other REMOTE MODE after pressing ZONE.

À Ens6 Y Advanced Operations

Using the Remote Controller in

Zone and Multiroom Control Kits

To control the AV receiver with the remote controller while you’re in Zone, you’ Il need a commercially available multiroom remote control kit for each zone.

+ Multiroom kits are made by Niles and Xantech.

These kits can also be used when there isn't a clear line of sight to the AV receiver’s remote sensor, such as when it's installed inside a cabinet.

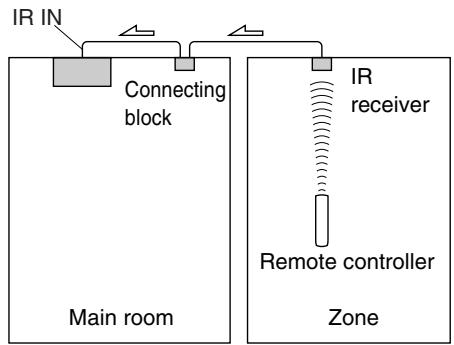

Using a Multiroom Kit with Zone

In this setup, the IR receiver in Zone picks up the infrared signals from the remote controller and feeds them through 10 the AV receiver in the main room via the connecting block.

ET ( Connecting ever block Remoie controller Main room Zone

The miniplug cable from the connecting block should be connected to the AV receiver’s IR IN jack, as shown below.

From the connecting block

AV receiver 2 Signal flowr

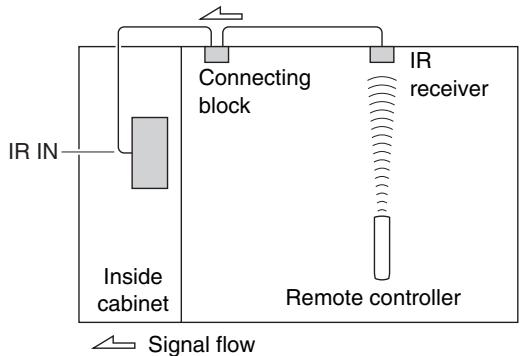

Using a Multiroom Kit with a Cabinet

In this setup, the IR receiver picks up the infrared signals from the remote controller and feeds them to the AV receiver located in the cabinet via the connecting block.

= F7 DJ Connecting block IR IN — Inside Û cabinet Remote controller

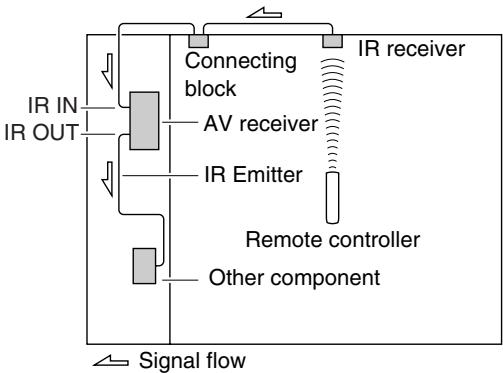

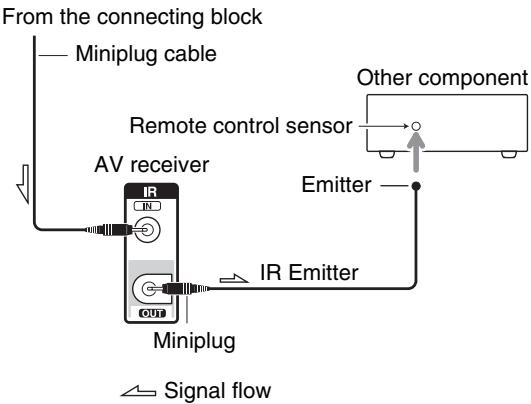

Using a Multiroom Kit with Other Components

In this setup, an IR emitter is connected to the AV receiver’s IR OUT jack and placed in front of the other component’s remote control sensor. Infrared signals received at the AV receiver’s IR IN jack are fed through to the other component via the IR emitter. Signals picked up by the AV receiver’s remote control sensor are not output.

à jun TT ï GConnecting IR receiver

block —— AV receiver

ZS Signal flow The IR emitter should be connected to the AV receiver’s

IR OUT jack, as shown below.

From the connecting block

— Miniplug cable Other component

Remote control sensor

iPod/iPhone Playback via Onkyo Dock

Using the Onkyo Dock

The Dock is sold separately. Models sold are different depending on the region.

For the latest information on the Onkyo Dock components, see the Onkyo web site at: http:/www.onkyo.com

Before using the Onkyo Dock components, update your iPod/Phone with the latest software, available from the Apple web site.

For supported iPod/iPhone models, see the instruction manual of the Onkyo Dock.

With the RI Dock, you can easily play the music of your iPod/iPhone, or watch the slideshows and videos of your iPod/iPhone on a TV. In addition, the on-screen display (OSD) allows you to view, navigate, and select your iPod/iPhone models contents on your TV, and with the supplied remote controller, you can control your iPod/iPhone from the comfort of your sofa. You can even use the AV receiver’s remote controller to operate your iPod/iPhone.

+ Enter the appropriate remote control code before using the AV. receiver”s remote controller for the first time (> page 92).

+ Connect the RI Dock to the AV receiver with an FI cable @ page 22)

+ Set the RI Docks RI MODE switch to “HDD” or “HDD/DOCK”.

+ Serthe AV receiver’s Input Display to “DOCK” (> page 51)

Depending on your iPod/Phone model and generation, some of the linked operations may not be available.

If you press the remote controller’s = (Playback) while the AV receiver is on standby, the AV receiver will automatically turn on, select your iPod/iPhone as the input source, and your iPod/iPhone will start playback.

If you start iPod/Phone playback while listening to another input source, the AV receiver will automatically switch to the input to which the RI Dock is connected.

‘When you turn off the AV receiver, the RI Dock turns off automatically.

À Ens8 Y Controlling Other Components

Other Remote Operations

You can use the remote controller that came with the AV receiver to control other iPod/iPhone functions. The available functionality depends on the AV receiver.

Note + If you use your iPod/iPhone with any other accessories, iPod/iPhone playback detection may not work iPod Alarm If you use the Alarm function on your iPod to start playback, the AV receiver will turn on at the specified time and select your iPod as the input source automatically.

+ This linked operation won't work while a video is being played or when the sound set for the alarm is a built-in sound (Beep).

+ This linked operation won’t work with models on which music files cannot be used to set the alarm sound.

+ Use the AV receiver's volume control to adjust the playback volume.

+ While your iPod/iPhone is inserted in the RI Dock, its volume control has no effect.

+ If you do adjust the volume control on your iPod/iPhone while its inserted in the RI Dock, be careful that it's not set 100 loud

before you reconnect your headphones.

Controlling Your iPod/iPhone

By pressing the REMOTE MODE button that's been programmed with the remote control code for your Dock, you can control your iPod/iPhone in the Dock with the buttons described further in this section.

See “Entering Remote Control Codes” for details on entering a remote control code (> page 91).

See the Dock’s instruction manual for more information.

+ Set the RI Docks RI MODE switch to “HDD” or “HDD/DOCK”.

+ SOURCE may not work with a remote control code (without RI). In this case, make an fRI connection and enter the remote control code 81993 (with RD).

M With the RI Control Make an RI connection and enter the remote control code 81993 (with RD). + Set the AV receiver’s Input Display to “DOCK” ( page 51). & Without the RI Control You must enter the remote control code 82990 first (> page 92).

Press the appropriate REMOTE MODE button first.

@ |TOP MENU‘! © |DISPLAY? © |A/Y/</>, ENTER © |VSOURCE'3 PLAYLIST «> © |MUTING © PPS ALBUM + HA, DD © [VOL 4/v

@ |REPEAT © | MENU RANDOM @ |MODE +

+ With some iPod/iPhone models, generations and RI Docks, certain buttons may not work as expected.

+ For detailed operation of iPod/Phone, please refer to the instruction manual of the RI Dock.

“TOP MENU works as the mode button when used with the

DISPLAY turns on the backlight for a few seconds.

This button does not turn the Onkyo DS-A2 or DS-A2X RI Dock on or off. Also, your iPod/iPhone may not respond the

first time you press this button, in which case you should press

it again, This is because the remote controller transmits the On

and Standby commands alternately, so if your iPod/iPhone is

already on, it will remain on when the remote controller

transmits the On command. Similarly, if your iPod/iPhone is

already off, it will remain off when the remote controller

transmits the Off command.

With the Resume function, you can resume playback of the

song that was playing when you removed your iPod/iPhone

from the Onkyo DS-A2 RI Dock.

Controlling Other Components

You can use the AV receiver’s remote controller to control your other AV components, including those made by other manufacturers. This section explains how to enter the remote control code for a component that you want to control: DVD, TV, CD, etc.

See “Learning Commands” for learning commands directly from another component’s remote controller

See “Using Normal Macros” for programming ACTIVITIES to perform a sequence of remote control actions (> page 96).

Preprogrammed Remote Control Codes

The following REMOTE MODE buttons are preprogrammed with remote control codes for controlling the components listed. You do not need to enter a remote control code to control these components.

For details on controlling these components, see the indicated pages.

BD/DVD Onkyo Blu-ray Disc player ( page 93) TV/CD Onkyo CD player (> page 92)

STB/DVR Apple TV Looking up for Remote Control Codes

You can look up for an appropriate remote control code from the on-screen menu.

You need to connect your TV to the HDMI output (HDMI OUT MAIN) to make the following on-screen setting.

1 Press RECEIVER followed by HOME. 2 Use <> to select “Setup”, and then press ENTER.

3 Use 4/Y to select “Remote Controller Setup”, and then press ENTER.

Æ Use A/Y to select “Remote Mode Setup”, and then press ENTER.

5 Use A/Y to select a remote mode, and then press ENTER. The menu of category selection appears.

6 Use A/Y to select a category, and then press ENTER.

The keyboard screen for brand name input appears.

7 Use A/V/</> to select a character, and then press ENTER.

Repeat this step for the first three characters of the brand name.

When you have entered the 3rd character, select “Search” and press ENTER.

A list of brand names is retrieved.

If the desired brand name is not found:

Use > to select “Not Listed”, and then press ENTER.

The keyboard screen for brand name input appears.

À En90 Y Controlling Other Components

& Use A/ to select a brand, and then press ENTER. A remote control code with its instructions are displayed. Follow the procedure.

© 1f you can control the component, use A/Y to select “OK”, and then press ENTER. The on-screen menu returns to the “Remote Mode Setup” front screen.

If you cannot control the component, use A/Y to select “Try Next Code” and press ENTER. The next code is displayed.

Entering Remote Control Codes

You’Il need to enter a code for each component that you Want to control.

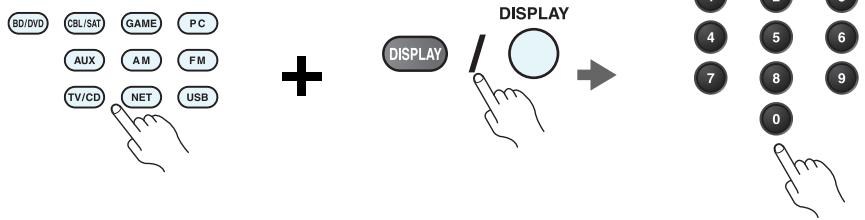

1 Look up the appropriate remote control code in the separate Remote Control Codes list. The codes are organized by category (e. player, TV, etc.).

2 While holding down the REMOTE MODE button to which you want to assign a code, press and hold down DISPLAY (about 3 seconds).

The REMOTE MODE button lights.

+ Remote control codes cannot be entered for RECEIVER and the multi zone button.

+ Only TV remote control codes can be entered for TV.

+ Except for RECEIVER, TV, and the multi zone button, remote control codes from any category can be assigned for the REMOTE MODE buttons. However, these buttons also work as input selector buttons ( page 26), so choose a REMOTE MODE button that corresponds with the input to which you connect your component. For example, if you connect your CD player to the CD input, choose TV/CD when entering its remote control code.

3 Within 30 seconds, use the number buttons to enter the 5-digit remote control code. The REMOTE MODE button flashes twice. If the remote control code is not entered successfully, the REMOTE MODE button will flash once slowly.

+ Though the provided remote control codes are correct at the time of release, they are subject to change.

Remapping Colored Buttons

You can change the configuration of colored buttons, with which REMOTE MODE buttons are preset.

1 While holding down the REMOTE MODE button that you want to program, press and hold down À (Red) until the REMOTE MODE button lights (about 3 seconds).

You can only change colored buttons for components whose codes belong to categories of the Remote Control Codes list (BD/DVD player, TV, cable set-top box, etc).

2 Within 30 seconds, press the colored buttons in the order that you want to reassign them. The button presses are assigned to each button from left to right. The REMOTE MODE button flashes twice, indicating that the sequence has been successfully assigned. If the sequence is not successfully assigned, the REMOTE MODE button will flash once slowly.

+ To reset the REMOTE MODE buttons to their default settings, see “Resetting the REMOTE MODE Buttons” (> page 92). Note

+ If any other button than the colored buttons is pressed, the operation will be cancelled.

+ This operation cannot be done while the AV receiver is in Receiver mode or when ZONE 2/3 is active.

À Ent Y Controlling Other Components

Remote Control Codes for Onkyo

Components Connected via RI Onkyo components that are connected via RI are controlled by pointing the remote controller at the AV receiver, not the component. This allows you to control components that are out of view, in a rack, for example.

1 Make sure the Onkyo component is connected with an RI cable and an analog audio cable (RCA). See “Connecting Onkyo RI Components” for details (> page 22).

2 Enter the appropriate remote control code for a REMOTE MODE button, by referring to the previous section.

Onkyo cassette tape deck with RI » 81993:

3 Press the REMOTE MODE button, point the remote controller at the AV receiver, and operate the component.

Controlling Onkyo components without R1 If you want to control an Onkyo component by pointing the remote controller directly at it, or you want to control an Onkyo component that's not connected via RH, use the following remote control codes: » 30627: Onkyo DVD player without RI » 71817: Onkyo CD player without RI > 32900/33100/33500: Onkyo Blu-ray Disc player » 32901/33104/33504: Onkyo HD DVD player »> 70868: Onkyo MD recorder without I

Onkyo CD recorder without RI » 82990:

Onkyo Dock without RI Resetting the REMOTE MODE Buttons

You can reset a REMOTE MODE button to its default remote control code.

1 While holding down the REMOTE MODE button that you want to reset, press and hold down HOME until the REMOTE MODE button lights (about 3 seconds).

2 Within 30 seconds, press the REMOTE MODE button again.

The REMOTE MODE button flashes twice, indicating that the button has been reset. Each REMOTE MODE button is preprogrammed with a remote control code. When a button is reset, its preprogrammed code is restored.

+ The learning command is also reset.

Resetting the Remote Controller

You can reset the remote controller to its default settings.

1 While holding down RECEIVER, press and hold down HOME until RECEIVER lights (about 3 seconds).

2 Within 30 seconds, press RECEIVER again.

RECEIVER flashes twice, indicating that the remote controller has been reset.

À En9 Y Controlling Other Components

Controlling Other Components

By pressing the REMOTE MODE button that's been programmed with the remote control code for your component, you can control your component as described below.

For details on entering a remote control code for other components, see “Entering Remote Control Codes”

Controlling a TV TV is preprogrammed with the remote control code for controlling a TV that supports the FAHID"! (limited to some models). The TV must be able to receive remote control commands via FRAHLD and be connected to the AV receiver via HDMI. If controlling your TV via FRIHD doesn’t work very well, program your TV’s remote control code into TV and use the TV remote mode to control your TV. Use the following remote control codes:

> 11807/13100/13500:

TV with RIHD Controlling Apple TV By programming the supplied remote controller with the appropriate remote control code, you can use it to operate your Apple TV. Use the following remote control codes: » 02615:

Apple TV Controlling MHL-Enabled Mobile Device

By programming the supplied remote controller with the appropriate remote control code, you can use it to operate your MHL-enabled mobile device. Connect your MHL-enabled mobile device to the AUX INPUT MHL jack. We advise you to program the remote control code on the AUX button. Use the following remote control codes: (North American models) »33101: MHL-enabled mobile device Œuropean models) » 32910: MHL-enabled mobile device

+ With some mobile devices, reliable operation cannot be guaranteed.

Controlling a Blu-ray Disc/DVD Player, HD DVD Player or DVD Recorder

Press the appropriate REMOTE MODE button first.

BD/DVD is preprogrammed with the remote control code for controlling a component that supports the FR1HD"1 (limited to some models). The component must be able to receive remote control commands via FRHHD and be connected to the AV receiver via HDMI. Use the following remote control codes:

» 32910/33101/33501/31612:

Blu-ray Disc/DVD player with RIHD

“1° The RIHID supported by the AV receiver is the CEC system control function of the HDMI standard.

Controlling Other Components

@ |, INPUT, TV VOL 4/7 |@ |Number: 1 109,0 © |GUIDE Number: +10°1 CINE DISPLAY ENTER © |MUTING @ |SETUP GICEZ Om. m<<»», |@/|PREVCH ed mp1 @ |RETURN © |A (Red)! @ |CLR B (Green) 1 C (Yellow)'1 D (Blue)

B Blu-ray Disc/HD DVD player operation

@ [TOP MENU @ [Number: 1 10 9, 0 © (AN Number: +10°1 ENTER DISPLAY

@ |SETUP © |oSOURCE o] Œ<<»»>, |©)MUTING 6 Di © |CH+# © |A Red) DISC +#/-

B (Green) @ [MENU C (Yellow) @ [RETURN D (Blue) @ [CLR Press the appropriate REMOTE MODE button first.

BE DVD player/DVD recorder operation

Controlling Other Components

BE Satellite receiver/Cable receiver operation

@ [TOP MENU @ [Number: 1 10 9, 0 @ |GUIDE @ [Number: 1 10 9, 0 © Av Number: +10°1 CIM AT Number: +10 ENTER DISPLAY ENTER DISPLAY @ |SETUP © |osouRcE @ |SETUP © |CSOURCE ©læ.ILm,<4»>»>, |©|MUTING ©æ.ILm<<>»>, [© |MUTING HA, DD © |CH #- HA, DD © |CH #- © |A (Red) DISC + © |A (Red) @ |PREV CH B (Green) @ |MENU B (Green) @ |RETURN C (Yellow) @ [RETURN C (Yellow) @ |CLR D (Blue) @ [CLR D (Blue) BE VCR/PVR operation E CD player/CD recorder/MD recorder operation Available buttons Available buttons @ |GUIDE DISPLAY CINMPT @ [Number: 1 10 9, 0 © ana © |osouRcE ENTER Number: +10 ENTER @ [MUTING @ |SETUP DISPLAY @ |SETUP © |CH+#- 6] ,4,»>>, [© [OSOURCE ®©lw.Im <<»>»>, |@|PREVCH ns] © [MUTING 6 Di @ [RETURN © SEARCH @ [DISC ++ @ |Number: 1 10 9, 0 CLR REPEAT @ [CLR Number: +10 RANDOM MODE E Cassette tape deck operation Available buttons Note © =, -« (Reverse © |YSOURCE + With some components, certain buttons may not work as Playback), M, 4, >>, |@ |MUTING expected, and some may not work at all. el + See “Controlling Your iPod/iPhone” about the operation of

iPod/iPhone (> page 89)

“The RIHD function is not supported. The FUHID supported by the AV receiver is the CEC system control function of the HDMI standard.

The AV receiver’s remote controller can learn the commands of other remote controllers. By transmitting, for example, the Play command from your CD player’ remote controller, the supplied remote controller can learn it and then reproduce the exact same command when its B is pressed in CD remote mode.

This is useful when some buttons don't work as expected though you entered the appropriate remote control code ( page 91).

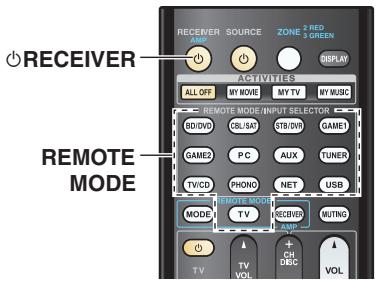

ORECEIVER REMOTE —ÿ:

1 While holding down the REMOTE MODE button for the mode in which you want to use the command, press and hold down ©RECEIVER until the REMOTE MODE button lights (about 3 seconds).

2 On the supplied remote controller, press the button to which you want to assign the new command.

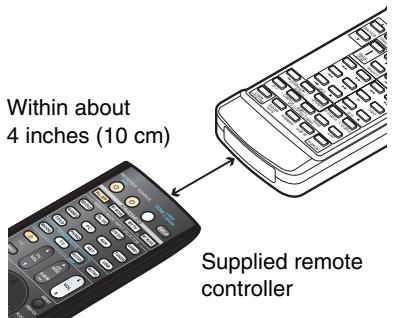

3 Point the remote controllers at each other, within about 4 inches (10 cm) apart, and then press and hold the button whose command you want to acquire until the REMOTE MODE button flashes.

If the command is learned successfully, the REMOTE MODE button flashes twice.

Within about 4 inches (10 cm)

Supplied remote controller

4 To learn more commands, repeat steps 2 and 3.

Press any REMOTE MODE button when you've finished. The REMOTE MODE button flashes twice.

+ The following buttons cannot learn new commands: ORECEIVER, ALL OFF, MY MOVIE, MY TV, MY MUSIC, REMOTE MODE, MODE.

+ The remote controller can learn approximately 70 to 90 command, although this will be less if commands that use a lot of memory are learned.

+ Remote controller buttons such as Play, Stop, and Pause are preprogrammed with commands for controlling Onkyo CD players, cassette decks, and DVD players. However, they can leam new commands, and you can restore the preprogrammed commandé at any time by resetting the remote controller @ page 92).

+ To overwrite a previously acquired command, repeat this procedure.

+ Depending on the remote controller used, some buttons may not respond as expected, or the learning process itself may not be possible.

+ Only commands from infrared remote contrllers can be acquired.

À En95 Y Controlling Other Components

+ When the remote controller runs out of batteries, all commands acquired will be lost and will have to be learned all over again. Therefore, do not discard your other remote controllers.

B Deleting Acquired Commands

1. While holding down the REMOTE MODE button for the mode from which you want to delete a command, press and hold down ÔTV until the REMOTE MODE button lights (about 3 seconds).

2. Press the REMOTE MODE button or the button from which you want to delete the command. The REMOTE MODE button flashes twice. When you press the REMOTE MODE button, all commands learned in that mode will be deleted.

You can program the remote controller’s ACTIVITIES to

perform a sequence of remote control actions.

To play a CD you typically need to perform the following

1. Press RECEIVER to select the Receiver remote controller mode.

2. Press ORECEIVER to turn on the AV receiver.

3. Press TV/CD to select the TV/CD input source.

4. Press = 10 start playback on the CD player.

You can program ACTIVITIES so that all four actions are

performed with just one button press.

Each ACTIVITIES can store one macro, and each macro can contain up to 32 commands.

1 While holding down RECEIVER, press and hold down MY MOVIE, MY TV, or MY MUSIC until MY MOVIE, MY TV, or MY MUSIC lights (about 3 seconds).

2 Press the buttons whose actions you want to program into the macro in the order you want them performed.

For the CD example above, you would press the following buttons: ORECEIVER, TV/CD, »-.

3 When you’ve finished, press ACTIVITIES again. ACTIVITIES button flashes twice. If you enter 32 commands, the process will finish automatically.

+ MODE cannot be operated during the macro-making process.

+ Once you assign new macro commands, the previously registered macro will no longer work. If you wish to retrieve it, you will have to reassign the commands with the macro-making.

1 Press MY MOVIE, MY TV, or MY MUSIC. The commands in the macro are transmitted in the order in which they were programmed. Keep the remote controller pointed at the AV receiver until all of the commands have been transmitted. Macros can be run at any time, regardless of the current remote controller mode.

1 While holding down HOME, press and hold down ALL OFF until ALL OFF lights (about 3 seconds). 2 Press ALL OFF again. ALL OFF flashes twice.

+ When Normal macros are deleted, ACTIVITIES are restored 10 their default settings, namely the Easy macro commands @ page 53).

+ When using Normal macros, Easy macros cannot be used, which includes changing the source components.

À En%6 Y Controlling Other Components

If you have any trouble using the AV receiver, look for a solution in this section. If you can't resolve the issue yourself, contact your Onkyo dealer.

If you can't resolve the issue yourself, try resetting the AV receiver before contacting your Onkyo dealer.

To reset the AV receiver to its factory defaults, turn it on and, while holding down CBL/SAT, press GON/STANDBY. “Clear” will appear on the AV receiver”s display and the AV receiver will enter standby mode.

Note that resetting the AV receiver will delete your radio

presets and custom settings.

REMOTEMODE/INPUT SELECTOR —

Cr) Œ © Cm) == Ce) Ce) Co)

RECEIVER O HOME To reset the remote controller to its factory defaults, while holding down RECEIVER, press and hold down HOME until RECEIVER lights (about 3 seconds). Within 30 seconds, press RECEIVER again.

The on-screen information appears only on a TV that is connected to HDMI outputs. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

B Can't turn on the AV receiver

Make sure that the power cord is properly plugged — into the wall outlet.

Unplug the power cord from the wall outlet, wait five — seconds or more, then plug it in again.

= The AV receiver turns off unexpectedly

The AV receiver will automatically enter standby 81 mode when Auto Standby has been set and launches.

= The AV receiver turns off and after restoring the power, it turns off again

The protection circuit has been activated. Remove the 14 power cord from the wall outlet immediately. Make sure that all speaker cables and input sources are properly connected, and leave the AV receiver with its power cord disconnected for 1 hour. After that, reconnect the power cord and turn the power on. If the AV receiver turns off again, unplug the power cord and contact your Onkyo dealer.

Caution: If “CHECK SP WIRE” appears on the AV receivers display, the speaker cables may be shorting.

WARNING If smoke, smell or abnormal noise is produced by the AV receiver, unplug the power cord from the wall outlet

immediately and contact your Onkyo dealer.

&There’s no sound, or it's very quiet

Make sure that the digital input source is selected 63 properly.

Make sure that all audio connecting plugs are pushed 17. in all the way.

Make sure that the inputs and outputs of all components are connected properly.

Make sure that the polarity of the speaker cables is 14. correct, and that the bare wires are in contact with the metal part of each speaker terminal.

Make sure that the input source is properly selected. 26 Make sure that the speaker cables are not shorting. 14 Check the volume. The AV receiver is designed for — home theater enjoyment. It has a wide volume range, allowing precise adjustment.

If the MUTING indicator is flashing on the AV. 52 receiver’s display, press the remote controller’s MUTING button to unmute the AV receiver.

While a pair of headphones is connected to the 52 PHONES jack, no sound is output from the speakers.

If there's no sound from a DVD player connected to — an HDMIIN, check the DVD players output

settings, and be sure to select a supported audio

Check the digital audio output setting on the = connected device. On some game consoles, such as

those that support DVD, the default setting is off.

With some DVD-Video dises, you need to select an — audio output format from a menu.

If your turntable uses an MC cartridge, you must — connect an MC head amp, or an MC transformer.

Make sure that none of the connecting cables are — bent, twisted, or damaged.

Not all listening modes use all speakers. 42 Specify the speaker distances and adjust the 65 individual speaker levels.

Make sure that the speaker setup microphone is not — still connected.

If the input signal format is set to “PCM” or “DTS”. 77 Set it to “Off”.

BH Only the front speakers produce sound

Make sure the speakers are configured correctly. 64

The front high, front wide and surround back speakers produce no sound

EH Can't get 6.2/7.2 playback

When the Stereo or Mono listening mode is selected, 46 only the front speakers and subwoofer produce

In the Mono listening mode, only the front speakers 69 output sound if the “Output Speaker” setting is set

If you use the Dolby Pro Logic IIx Movie, Dolby Pro — Logic IIx Music, or Dolby Pro Logic IIx Game

listening mode with a mono source, such as an AM

radio station or mono TV program, the sound is concentrated in the center speaker.

In the Mono listening mode, only the center speaker 69 output sound if the “Output Speaker” setting is set

Make sure the speakers are configured correctly. 64

&The surround speakers produce no sound

When the T-D (Theater-Dimensional), Stereo or — Mono listening mode is selected, the surround

speakers produce no sound.

Depending on the source and current listening mode, 42 not much sound may be produced by the surround speakers. Try selecting another listening mode.

Make sure the speakers are configured correctly. 64 When Powered Zone 3 is used, playback in the main — room is reduced 10 3.2 channels and the surround speakers produce no sound.

&The center speaker produces no sound

When the Stereo or Mono listening mode is selected, — the center speaker produces no sound.

In the Mono listening mode, only the front speakers 69 output sound if the “Output Speaker” setting is set

Depending on the current listening mode, no sound 42 may be produced by the front high, front wide and surround back speakers. Select another listening

Depending on the sources, the sound produced by the — front high, front wide and surround back speakers

Make sure the speakers are configured correctly. 64 When Powered Zone 2 is used, playback in the main — room is reduced to 5.2 channels and the front high,

front wide and surround back speakers produce no sound.

When Powered Zone 3 is used, playback in the main — room is reduced to 3.2 channels and the front high,

front wide and surround back speakers produce no

= The subwoofer produces no sound

If no surround back speakers, front wide and front — high speakers are connected, or the Zone 2/3 speakers

are being used, 6.2/7.2 playback is not possible.

Depending on the number of connected speakers, itis 42-49 not always possible to select all of the listening

&The speaker volume cannot be set as required

Check to see if a maximum volume has been set. 78

If the volume level of each individual speaker has 39,66 been adjusted to high positive values, then the

maximum master volume possible may be reduced.

Note that the individual speaker volume levels are set automatically after the Audyssey MultEQ® XT32

Room Correction and Speaker Setup has been

M Noise can be heard

When you play source material that contains no — information in the LFE channel, the subwoofer produces no sound.

Make sure the speakers are configured correctly. 64

There's no sound with a certain signal format

Using cable ties to bundle audio cables with power — cords, speaker cables, and the like may degrade the audio performance, so refrain from doing it.

An audio cable may be picking up interference. Try — repositioning your cables.

&The Late Night function doesn't work

Check the digital audio output setting on the — connected device. On some game consoles, such as

those that support DVD, the default setting is off.

With some DVD-Video discs, you need to select an — audio output format from a menu.

Depending on the input signal, some listening modes 42-49 cannot be selected.

E Can't select the Pure Audio listening mode

The Pure Audio listening mode cannot be selected — while Zone 2/3 is on.

À En98 Y Make sure the source material is Dolby Digital, 56 Dolby Digital Plus, and Dolby TrueHD. Make sure that the “TrueHD Loudness 69

Management” setting is not set 10 “Of”. The Late Night function doesn”t work when this setting is disabled.

When DTS program material ends and the DTS — bitstream stops, the AV receiver remains in DTS listening mode and the dts indicator remains on. This

is to prevent noise when you use the pause, fast

forward, or fast reverse function on your player. If

you switch your player from DTS to PCM, you may

not hear any sound because the AV receiver does not switch formats immediately. In such case, you should stop your player for about three seconds and then

With some CD and LD players, you won't be able to — playback DTS material properly even though your

player is connected to a digital input on the AV.

receiver. This is usually because the DTS bitstream

has been processed (e.g., output level, sampling rate,

or frequency response changed) and the AV receiver doesn't recognize it as a genuine DTS signal. In such cases, you may hear noise.

Playing DTS program material, using the pause, fast — forward, or fast reverse function on your player may produce a short audible noise. This is not a

MB The beginning of audio received by an HDMI IN can't be heard

Since it takes longer to identify the format of an — HDMI signal than it does for other digital audio signals, audio output may not start immediately.

&There’s no sound during Whole House Mode

Make sure you've selected an analog audio input. —

Make sure that all video connecting plugs are pushed 17 in all the way.

Make sure that each video component is properly 18,19 connected.

If your TV is connected to the HDMI output, setthe 60, 61 “Monitor Out” setting other than “Analog”, and

select * - -- -" in the “HDMI Input” setting to

watch composite video, and component video

If your TV is connected to the COMPONENT 60,62

VIDEO MONITOR OUT or MONITOR OUT V, set the “Monitor Out” setting to “Analog”, and select

“=. =" in the “Component Video Input” to watch composite video sources.

If the video source is connected to a component video 19, 62 input, you must assign that input to an input selector,

and your TV must be connected to either the HDMI

output or COMPONENT VIDEO MONITOR OUT.

If the video source is connected to a composite video 19 input, your TV must be connected to the HDMI

output or the corresponding composite video output.

If the video source is connected to an HDMI input, 18, 61 you must assign that input 10 an input selector, and

your TV must be connected to the HDMI output.

While the Pure Audio listening mode is selected, the 42 analog video circuitry is turned off and only video

signals input through HDMI IN can be output.

On your TV, make sure that the video input to which. — the AV receiver is connected is selected.

There's no picture from a source connected to

an HDMI IN Reliable operation with an HDMI-to-DVI adapter is 113 not guaranteed. In addition, video signals from a PC

When the “Monitor Out” setting is set to “Analog”, 60, no video is output by the HDMI output. 108 When the resolution is set to any resolution not 60 supported by the TV, no video is output from the

If the message “Resolution Error” appears onthe — AV receiver's display, this indicates that your TV

does not support the current video resolution and you

need to select another resolution on your DVD

BThe on-screen menus don't appear

On your TV, make sure that the video input to which — the AV receiver is connected is selected.

When the AV receiver is not connected to a TV via — HDMI OUT MAIN, on-screen menus are not displayed.

BThe on-screen information does not appear

Depending on the input signal, the on-screen 54 information may not appear when the input signal

from HDMI IN is output to a device connected to the HDMI output.

BReceptionis noisy, FM stereo reception is noisy, or the FM STEREO indicator doesn't light

Relocate your antenna. —

Move the AV receiver away from your TV or = computer.

Listen to the station in mono. 34

When listening to an AM station, operating the = remote controller may cause noise.

Passing cars and airplanes can cause interference. — Concrete walls weaken radio signals. =

If nothing improves the reception, install an outdoor: — antenna.

m The remote controller doesn't work

Before operating this unit, be sure 10 press —

RECEIVER Make sure that the batteries are installed withthe 5 correct polarity.

Install new batteries. Don't mix different types of 5 batteries, or old and new batteries.

Make sure that the remote controller is not too far 5 away from the AV receiver, and that there's no obstruction between the remote controller and the AV receiver’s remote control sensor.

Make sure that the AV receiver is not subjected to — direct sunshine or inverter-type fluorescent lights. Relocate if necessary.

If the AV receiver is installed in a rack or cabinet — with colored-glass doors, the remote controller may

not work reliably when the doors are closed.

Make sure you've selected the correct remote 12,92

When using the remote controller to control other — manufacturers’ AV components, some buttons may not work as expected.

Make sure you've entered the correct remote control 91 code.

Make sure to set the same ID on both the AV receiver 82 and remote controller.

H Can't control other components

If its an Onkyo component, make sure that the RI 22 cable and analog audio cable are connected properly. Connecting only an FI cable won’t be enough.

Make sure you've selected the correct remote 12,92 controller mode. If you’ ve connected an cassette tape deck to the 51

TV/CD IN jack, or an RI Dock to the TV/CD IN or GAME 1 IN jacks, for the remote controller to work properly, you must set the input display appropriately.

If you cannot operate it, you will need to enterthe 90 appropriate remote control code.

To control another manufacturer’s component, point 91 the remote controller at that component.

To control an Onkyo component that's connected via 92 RI, point the remote controller at the AV receiver.

Be sure to enter the appropriate remote control code

To control an Onkyo component that's not connected 92 via RI, point the remote controller at the component.

Be sure to enter the appropriate remote control code

The entered remote control code may not be correct. — If more than one code is listed, try each one.

B Can't learn commandés from another remote controller

When leaming commands, make sure that the 95 transmitting ends of both remote controllers are

pointing at each other.

Are you trying to learn from a remote controller that — cannot be used for leaming? Some commands

cannot be learned, especially those that contain

several instructions.

RI Dock for iPod/iPhone

Make sure your iPod/iPhone is actually playing. —

Make sure your iPod/iPhone is properly inserted in — the Dock.

Make sure the AV receiver is turned on, the correct — input source is selected, and the volume is turned up.

Make sure the plugs are pushed in all the way. = Try resetting your iPod/iPhone. —

Make sure that your iPod/iPhone models TV OUT — setting is set 10 On.

À En-100 Y Make sure the correct input is selected on your TV or — the AV receiver.

Some versions of the iPod/iPhone do not output _ video.

The AV receiver’s remote controller doesn't control my iPod/iPhone

Make sure your iPod/Phone is properly inserted in — the Dock. If your iPod/Phone is in a case, it may not connect properly to the Dock. Always remove your iPod/iPhone from the case before inserting it into the Dock.

The iPod/Phone cannot be operated while it's = displaying the Apple logo.

Make sure you've selected the right remote mode. 89 When you use the AV receivers remote controller, — point it toward your AV receiver.

If you still can't control your iPod/iPhone, start = playback by pressing your iPod/iPhone model”s Play button. Remote operation should then be possible.

Try resetting your iPod/iPhone. = Depending on your iPod/iPhone, some buttons may — not work as expected.

BThe AV receiver unexpectedly selects my iPod/iPhone as the input source

Always pause iPod/iPhone playback before selecting — a different input source. If playback is not paused, the Direct Change function may select your iPod/iPhone

as the input source by mistake during the transition between tracks.

BiPod/iPhone doesn't work properly

Try reconnecting your iPod/iPhone. —

Only components connected to analog or HDMI (2ch — PCM) inputs can be played in Zone 2.

Only components connected to analog inputs can be — played in Zone 3.

&The Zone 2/3 speakers produce no sound

See “Multi Zone” for the conditions in which 83 Powered Zone 2/3 cannot be used.

To use the Zone 2 speakers, you must set the 63 “Powered Zone 2” setting 10 “Yes”.

To use the Zone 3 speakers, you must set the 63 “Powered Zone 3” setting to “Yes”

Music Server and Internet Radio

B Can't access the server or Internet radio

Check the network connection between the AV 114 receiver and your router or switch.

Make sure that your modem and router are properly — connected, and make sure they are both turned on.

Make sure the server is up and running and 115 compatible with the AV receiver. Check the “Network”settings. 81

Playback stops while listening to music files on the server

Make sure your server is compatible with the AV 115 receiver.

If you download or copy large files on your = computer, playback may be interrupted. Try closing

any unused programs, use a more powerful computer,

or use a dedicated server.

Ifthe server is serving large music files to several — networked devices simultaneously, the network may become overloaded and playback may be interrupted. Reduce the number of playback devices on the

network, upgrade your network, or use a switch

H Can't connect to the AV receiver from a Web browser

If you're using DHCP, your router may not always 81 allocate the same IP address to the AV receiver, so if you find that you can”t connect to a server or Internet radio station, recheck the AV receiver”s IP address on

the “Network” screen.

Check the “Network” settings. 81

H Can't access the music files on a USB device

Make sure the USB device is plugged in properly. — The AV receiver supports USB devices that support 115 the USB mass storage device class. However,

playback may not be possible with some USB devices

even if they conform to the USB mass storage device class.

USB memory devices with security functions cannot — be played.

E Standby power consumption

In the following cases, the power consumption in 79,80, standby mode may reach up to a maximum of 81 12.5 W:

— The “HDMI Control(RIHD)" setting is set to

“On”. (Depending on the TV status, the AV receiver will enter standby mode as usual.)

= The “HDMI Through” setting is set 10 other than “Of.

— The “Network Standby” setting is set 10 “On”.

À En-101 Y If an MHL-enabled mobile device is connected tothe 18 AUX (front) input, the power consumption in standby. mode will increase.

&The sound changes when | connect my headphones

When a pair of headphones is connected, the listening — mode is set to Stereo, unless it's already set to Stereo, Mono, Direct, or Pure Audio.

&The speaker distance cannot be set as required

The values entered may be automatically adjusted — with values best-suited for your home theater.

&The display doesn't work

The display is turned off when the Pure Audio — listening mode is selected.

BHow do | change the language of a multiplex source

Use the “Multiplex” setting in the “Audio Adjust” 68 menu to select “Main” or “Sub”.

mThe RI functions don't work

To use RI, you must make an FRI connection and an 22 analog audio connection (RCA) between the

component and AV receiver, even if they are

connected digitally.

While Zone 2/3 is selected, the I functions don't 22 work.

&The functions System Off/Auto Power On and irect Change don't work for components

connected via RI These functions don't work when Zone 2/3 is turned 22 on.

E When performing Automatic Speaker Setup, the measurement fails and the message “Ambient noise is too high.” is displayed.

This can be caused by a malfunction in your speaker — unit. Check if the unit produces normal sounds.

&The following settings can be made for the composite video inputs You must use the buttons on the unit to make these settings. On the AV receiver, press the input selector for the input source that you want to set and the SETUP button simultaneously. While holding down the input selector button, press SETUP until “Video ATT :On” appears on the AV receiver’s display. Then, release both buttons. To turn the setting off, repeat the above process so that “Video ATT :Off” appears on the AV receiver’s display, and release the buttons.

This setting can be made for the BD/DVD, CBL/SAT, STB/DVR, GAME 1, AUX, or USB input. If you have a game console connected to the composite video input, and the picture isn’t very clear, you can attenuate the gain. Video ATT :Off: The gain is not changed (default). Video ATT :On: The gain is reduced by the values specified below.

—6 dB for the MONITOR OUT V output.

+ With the USB input selector, this setting is only available when an iPod/iPhone is connected and set to Extended Mode (Video) or Standard Mode.

= if the picture on your TV/monitor connected to the HDMI output is unstable, try switching the DeepColor function off To turn off the DeepColor function, simultaneously press the STB/DVR and OON/STANDBY buttons on the AV receiver. While holding down STB/DVR, press GON/STANDBY until “Deep Color:OfT” appears on the AV receiver’s display. Then, release both buttons. To reactivate the DeepColor function, repeat the above process until “Deep Color:On” appears on the AV receiver’s display and release the buttons.

The AV receiver contains a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least five seconds, and then plug it back in.

Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.

Before disconnecting the power cord from the wall outlet, set the AV receiver to standby.

À En-102 Y Appendix Important Note Regarding Video Playback

The AV receiver can upconvert component video and composite video sources for display on a TV connected to the HDMI output. However, if the picture quality of the source is poor, upconversion may make the picture worse or disappear altogether.

In this case, try the following:

1 If the video source is connected to a component video input, connect your TV to COMPONENT VIDEO MONITOR OUT.

If the video source is connected to a composite video input, connect your TV to MONITOR OUT V.

2 Onthe main menu, select “Input/Output Assign”, and then “Component Video Input” (> page 62).

If the video source is connected to COMPONENT VIDEO IN 1, select the relevant input selector, and assign it to “IN1”.

If the video source is connected to COMPONENT VIDEO IN 2, select the relevant input selector, and assign it to “IN2”.

If the video source is connected to a composite video input, select the relevant input selector, and assign it to

+ To by-pass the upconversion, set the “Picture Mode” setting to “Direct” (> page 75).

To update the firmware of the AV receiver, you can choose from the following two methods: update via network, or update via USB storage. Choose the one that best suits your environment. Before proceeding with the update, please read the corresponding explanations carefully.

BE Update via network You need a wired Internet connection to update the firmware.

& Update via USB storage (> page 105) Please prepare a USB storage device such as a USB flash memory stick. You need at least 32 MB of available space to update the firmware.

+ Check the network connection before updating.

+ Do not touch any cable or device connected to the AV receiver during the update process.

+ Do not attempt to access the AV receiver from your PC while it is being updated.

+ Do not shutdowmn the power of the AV receiver while it is being updated.

+ The storage media in the USB card reader may not work.

+ Ifthe USB device is partitioned, each section will be treated as an independent device.

+ Ifthe USB device contains a lot of data, the AV receiver may take a while to read it.

+ Operation is not guaranteed for all USB devices, which includes the ability to power them.

+ Onkyo takes no responsibility whatsoever for the loss or damage of data resulting from the use of a USB device with the AV receiver. Onkyo recommends that you back up your important music files beforehand.

+ If you connect a USB hard disk drive to the USB port, Onkyo recommends that you use its AC adapter to power it.

+ USB hubs and USB devices with hub functions are not supported. Do not connect your USB device via a USB hub.

+ USB devices with security functions are not supported.

Limitation of liability

The program and accompanying online documentation are furnished to you for use at your own risk. Onkyo will not be liable and you will have no remedy for damages for any claim of any kind whatsoever concerning your use of the program or the accompanying online documentation, regardless of legal theory, and whether arising in tort or contract. In no event will Onkyo be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of present or prospective profits, loss of data, or for any other reason whatsoever.

See the Onkyo web site for latest information.

The AV receiver allows you to update the firmware using network connection on the rear panel

+ Make sure your AV receiver and TV are turned on and an Ethernet cable is connected to the rear panel of the AV receiver.

+ Never unplug or turn off the AV receiver while it is being updated.

+ Never plug or unplug an HDMI or Ethernet cable during the update process.

+ Do not attempt to access the AV receiver from your PC while it is being updated.

+ Never unplug the power cord during the update process.

+ It takes up t0 60 minutes to complete the firmware update.

+ The AV receiver will retain all your settings after the update is finished.

+ Set the “HDMI Control(RIHD)" setting to “Off” (> page 79).

+ Turn off the controller device connected via RS232 and network.

+ Turn off Multi Zone if this function is present.

+ Stop playback of contents from Internet Radio, iPod/iPhone, USB or servers, etc.

1 Press RECEIVER followed by HOME on the remote controller.

The Home menu appears on the TV screen.

2 Select “Firmware Update” and press ENTER. Note that the “Firmware Update” option will be grayed out for a short while after the AV receiver is turned on. Please wait until it becomes operable.

3 Select “Update via NET” and press ENTER. Note that this option will not be available if there is no firmware file newer than the currently installed version.

4 Select “Update” and press ENTER. The update process will begin. During the update process, the on-screen display may disappear depending on the updated program. When this occurs, you can still view the update progress on the AV receiver’s display. The on-screen display will reappear after the update is complete, and upon turning the AV receiver off and on again.

5 The message “Completed!” appears on the AV

receiver’s display, indicating that the update has been completed.

6 Turn offthe AV receiver using © ON/STANDBY on the front panel. Do not use ORECEIVER on the remote controller. Once turned off, the AV receiver will automatically turn on again. Congratulations! You now have the latest firmware installed on your Onkyo AV receiver.

If an error occurs, “Error!! *-**” is displayed on the AV receiver’s display. (Alpha-numeric characters on the front display are denoted by asterisks.) Refer to the following table and take appropriate action.

BErrors during an update via network

Error Code Description

*10,*-20 The Ethernet cable was not detected.

Reconnect the cable properly.

“11, 13,21, [Internet connection error.

“28 Check the following items:

+ Make sure the IP address, subnet mask, gateway address, and DNS server are configured properly.

Make sure the router is turned on.

+ Make sure the AV receiver and the router are connected with an Ethernet cable.

Make sure your router is configured properly. See the instruction manual of the router.

If your network allows only one client connection and there is any other device already connected, the AV receiver will not be able 10 access the network. Consult your Internet Service Provider (ISP).

If your modem does not function as a router, you will need a router. Depending on your network, you may need to configure the proxy server if necessary. See the document provided by your ISP. If you are still unable to access the Internet, the DNS or proxy server may be temporarily down. Contact your ISP.

Others Retry the update procedure from the beginning. If the error persists, please contact Onkyo Support (> page 106) and provide the error code.

If an error occurs during the update process, disconnect then reconnect the AC power cord and try again.

Case 3: If you do not have an Internet connection to the network, please contact Onkyo Support (+ page 106).

Updating the Firmware via USB The AV receiver allows you to update the firmware using a USB device.

+ Never unplug or turn off the AV receiver during the update process.

+ Never plug or unplug an HDMI cable or a USB device during the update process.

+ Never unplug the USB storage device containing the firmware file or the AC power cord during the update process.

+ Do not attempt to access the AV receiver from your PC while it is being updated.

+ It takes up 10 60 minutes to complete the firmware update.

+ The AV receiver will retain all your settings after the update is finished.

+ Set the “HDMI Control(RIHD)" setting to “Off” @ page 79).

+ Turn off the controller device connected via RS232 and network.

+ Turn off Multi Zone if this function is present.

+ Stop playback of contents from Internet Radio, iPod/iPhone, USB or servers, etc.

+ If there is any data in the USB device, remove it first.

1 Connect a USB device to your PC. If there is any data in the USB device, remove it first.

2 Download the firmware file from the Onkyo web site. The file name is as follows:

ONKAVRE EE PES zip Unzip the downloaded file. The following six files are created: ONKAVR##E meet of] ONKAVR EEE meme Of ONKAVRE EE mme 03 ONKAVR EEE meme of4 ONKAVR EE meme ofS ONKA VER rene fé

3 Copy the extracted files to the USB device. Be careful not to copy the zip file.

4 Remove the USB device from your PC and connect it to the USB port on the AV receiver.

When the AV receiver has two USB ports, you can use either one.

5 Make sure the AV receiver and TV are turned on. Ifthe AV receiver is in standby mode, press dON/STANDBY on the AV receiver to light up the front display.

6 Select the USB input source.

“Now Initializing.…” appears on the AV receiver’s display and then the name of the USB device is displayed. It takes 20 to 30 seconds to recognize the USB device.

7 Press RECEIVER followed by HOME on the remote controller.

The Home menu appears on the TV screen.

8 Select “Firmware Update” and press ENTER.

Select “Update via USB” and press ENTER.

Note that this option will not be available if there is no firmware file newer than the currently installed version.

Select “Update” and press ENTER. The update process will begin.

During the update process, the on-screen display may disappear depending on the updated program. When this occurs, you can still view the update progress on the AV receiver’s display. The on-screen display will reappear after the update is complete, and upon turning the AV receiver off and on again.

Do not turn off the AV receiver and do not remove the USB device during the update process.

The message “Completed!” appears on the AV receiver’s display, indicating that the update has been completed.

Remove the USB device.

Turn off the AV receiver using OON/STANDBY on the front panel.

Do not use ORECEIVER on the remote controller. Once turned off, the AV receiver will automatically turn on again.

Congratulations! You now have the latest firmware installed on your Onkyo AV receiver.

If an error occurs, “Error!! *-**” is displayed on the AV receiver’s display. (Alpha-numeric characters on the front display are denoted by asterisks.) Refer to the following table and take appropriate action.

BErrors during an update via USB Error Code Description

10,720 The USB device was not detected. Make sure the USB flash memory or USB cable is properly connected to the USB port. If the USB storage device has its own power supply, use it to power the USB device.

“14 The firmware file was not found in the root folder of the USB device, or the firmware file is for another model. Retry and download the file on the support page of the web site, following, the on-site instructions. If the error persists, please contact Onkyo Support and provide the error code.

Others Retry the update procedure from the beginning. If the error persists, please contact Onkyo Support and provide the error code.

If an error oceurs during the update process, disconnect then reconnect the AC power cord and try again.

Onkyo U.S.A. Corporation

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.

For Dealer, Service, Order and all other Business Inquiries: Tel: 201-785-2600

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.

Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.onkyochina.com

Asia, Oceania, Middle East, Africa

Please contact an Onkyo distributor referring to Onkyo SUPPORT site. http://www.intl.onkyo.com/support/irmware/index.html The above-mentioned information is subject to change without prior notice. Visit the Onkyo web site for the latest update.

Connection Tips and Video Signal Path

The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format you choose will depend on the formats supported by your components. Use the following sections as a guide.

The on-sereen setup menus appear only on a TV that is connected to HDMI OUT MAIN. If your TV is connected to other video outputs, use the AV receiver”s display when changing settings.

Video Connection Formats

Video components can be connected by using any one of the following video connection formats: composite video, PC IN (Analog RGB), component video, or HDMI, the latter offering the best picture quality. The AV receiver can upconvert between video formats, depending on the “Monitor Out” setting (> page 60), which generally determines whether video signals are upconverted for the component video output or the HDMI output. Tip + For optimal video performance, THX recommends that video signals pass through the system without upconversion (e.g., component video input passing through to component video output). + To by-pass the upconversion, set the “Picture Mode” setting to “Direct” (> page 75).

& “Monitor Out” set to “HDMI Main” or “HDMI Sub”

Video input signals flow through the AV receiver as

shown, with composite video, PC IN (Analog RGB), and

component video sources all being upconverted for the

HDMI output. Use these settings if you connect either

HDMI OUT MAIN or HDMI OUT SUB of the AV

receiver to your TV.

The composite video and component video outputs pass

through their respective input signals as they are.

When you connect a video component to an HDMI or

COMPONENT, you must assign that input to an input

selector (> pages 61, 62).

Video Signal Flow Chart

[ Blu-ray Disc/DVD player, etc.

M “Monitor Out” set to “Both”

Video input signals flow through the AV receiver as shown, with composite video, PC IN (Analog RGB), and component video sources all being upconverted for both HDMI outputs. Use this setting if you connect both HDMI OUT MAIN and HDMI OUT SUB of the AV receiver to your TV.

Note that video signals are output from both HDMI outputs at the resolution supported by both TVs.

The composite video and component video outputs pass through their respective input signals as they are.

When you connect a video component to an HDMI or COMPONENT, you must assign that input to an input selector (> pages 61, 62).

Video Signal Flow Chart

[ Blu-ray Disc/DVD player, etc. |

+ When “Monitor Out” is set to “Both”, the “Resolution” setting cannot be selected (> page 60).

& “Monitor Out” set to “Analog” Video input signals flow through the AV receiver as shown, with composite video and PC IN (Analog RGB)

sources being upconverted for the component video output.

Use this setting if you connect the AV receiver’s COMPONENT VIDEO MONITOR OUT to your TV. The composite video and component video outputs pass through their respective input signals as they are. This signal flow also applies when the “Resolution” setting is set to “Through” (> page 60).

Video Signal Flow Chart

[ Blu-ray Disc/DVD player, etc. ]

Composite PCIN {Analog RGB)

Component HDMI AV receiver

[ TV, projector, etc ]

“1° For details, refer to “Video Resolution Chart” @ page 110).

Video Signal Flow and the Resolution Setting

When the “Monitor Out” setting is set to “Analog”

( page 60), if the “Resolution” setting is set to anything other than “Through” (> page 60), the video signal flow will be as shown here, with composite video and PC IN (Analog RGB) sources being upconverted for the component video output.

The composite video and component video outputs pass through their respective analog input signals as they are. HDMI input signals are not output.

Video Signal Flow Chart

[ Blu-ray Disc/DVD player, etc. ]

If signals are present at more than one input, the inputs will be selected automatically in the following order of priority: HDMI, component video, composite video.

However, for component video only, regardless of whether a component video signal is actually present, if a component video input is assigned to the input selector, that component video input will be selected. And if no component video input is assigned to the input selector, this will be interpreted as no component video signal being present.

In the Signal Selection Example shown below, video signals are present at both the HDMI and composite video inputs. However, the HDMI signal is automatically selected as the source and the video is output by the HDMI output.

Signal Selection Example

[ Blu-ray Disc/DVD player, etc. ]

Composite Component HDMI Composite

Audio Connection Formats

Audio components can be connected by using any of the following audio connection formats: analog, optical, coaxial, or HDMI.

‘When choosing a connection format, bear in mind that the AV receiver does not convert digital input signals for analog line outputs and vice versa.

If signals are present at more than one input, the inputs will be selected automatically in the following order of priority: HDMI, digital, analog.

Audio Signal Flow Chart [ Blu-ray Disc/DVD player, etc. ]

Analog Optical Coaxial HDMI AV receiver

1° Depends on the “Audio TV Out” setting (> page 80). “2 This is possible when “Audio Return Channel” is set 10 “Auto” ( page 80), the TV/CD input selector is selected, and your TV is ARC capable. Tip + When a signal is input via HDMI and the corresponding input selector is selected, the HDMI indicator lights. In the case of an optical or coaxial connection, the DIGITAL indicator lights. If the analog audio is output, or if neither HDMI nor digital signal inputs are assigned, ANALOG indicator lights.

The following tables show how video signals at different resolutions are output by the AV receiver.

480p/576p |” v vs vs vs Vas vs vs v

Available resolutions: [640 x 480 60 Hz], [800 x 600 60 Hz], [1024 x 768 60 Hz], [1280 x 1024 60 Hz] Supported resolutions: [3840 x 2160 24/25/30 Hz], [4096 x 2160 24 Hz]

When video signals of personal computers connected to PC IN are output from HDMI OUT SUB, they may not display properly on some Ts. Supported resolutions for HDMI OUT SUB (“Monitor Out” Supported resolutions for HDMI OUT SUB (“Monitor Out” The output is limited to 480p/576p for an effective signal in the effect of copy protect. PC IN (Analog RGB) input signal is output at 720p resolution when you select “Analog” in the “Monitor Out” setting (> page 60) and “Through” in the “Resolution” setting ( page 60).

À En-110 Y Using an RIHD- compatible TV, Player, or Recorder

RIHD, which stands for Remote Interactive over HDMI is the name of the system control function found on Onkyo components. The AV receiver can be used with CEC (Consumer Electronics Control), which allows system control over HDMI and is part of the HDMI standard. CEC provides interoperability between various components, however, operation with components other than RAHD-compatible components cannot be guaranteed.

About RIHID -Compatible Components Operations that can be performed with RIHD connection

The following components are FIHID-compatible (As of January 2012).

+ Sharp TV E Players/Recorders

+ Onkyo and Integra FIHID-compatible players

+ Toshiba players and recorders

+ Sharp players and recorders (only when used together with Sharp TV)

* Models other than those mentioned above may have some interoperability if compatible with CEC, which is part of the HDMI Standard, but operation cannot be guaranteed.

+ For proper linked operations, do not connect more FRIHID - compatible components than the quantities specified below, to the HDMI input terminal — Blu-ray Disc/DVD players: up to three.

— Blu-ray Disc/DVD recorders/Digital Video Recorders: up to three. — Cable/Satellite Set-top boxes: up to four.

+ Do not connect the AV receiver 10 another AV receiver/AV amplifier via HDMI.

+ Proper linked operations are not guaranteed when more RIHD -compatible components than the above-mentioned quantities are connected.

B For RIHD-compatible TV The following linked operations are enabled by connecting

the AV receiver to an MIHID-compatible TV.

+ The AV receiver will enter standby mode when the TV is set to standby.

+ You can set on the menu screen of the TV to either output the audio from the speakers connected to the AV receiver, or from the speakers of the TV.

+ Itis possible to output the audio coming from the tuner or auxiliary input of your TV to the speakers of the AV receiver. (A connection such as an optical digital cable or similar is required in addition to the HDMI cable.)

+ Input to the AV receiver can be selected with the remote controller of the TV.

+ Operations such as volume adjustment or similar for the AV receiver can be performed from the remote controller of the TV.

B For RIHD-compatible players/recorders

The following linked operations are enabled by connecting

the AV receiver to an FHID-compatible

+ When playback is started on the player/recorder, AV receiver will switch to the HDMI input of the player/recorder that is playing back.

+ Operation of the player/recorder is possible using the remote controller supplied with the AV receiver.

* Depending on the model used, not all operations may be available.

BHovw to connect and setup

1 Confirm the connection and settings. 1. Connect the HDMI OUT MAIN jack to the HDMI input jack of the TV.

Blu-ray Disc/DVD player, etc.

DIGITAL AUDIO HDMI connection connection (OPTICAL)

2. Connect the audio output from the TV to the OPTICAL IN 2 jack of the AV receiver using an optical digital cable.

+ When the audio return channel (ARC) function is used with an ARC capable TV, this connection is not necessary ( page 80).

3. Connect the HDMI output of the Blu-ray Disc/DVD player/recorder to the HDMI IN 1 jack of the AV receiver.

+ ILis necessary to assign the HDMI input when connecting the Blu-ray Disc/DVD player/recorder to other jacks € page 61). Do not assign an HDMI IN to the TV/CD selector at this time, otherwise appropriate CEC (Consumer Electronics Control) operation will not be guaranteed.

2 Change each item in the “HDMT” menu according to the following settings: + HDMI Control(RIHD): On + Audio Return Channel (ARC): Auto See details of each setting (> pages 79, 80).

3 Confirm the settings.

1. Turn on the power for all connected components.

2. Turn off the power of the TV, and confirm that the power of the connected components is turned off automatically with the link operation.

3. Turn on the power of the Blu-ray Disc/DVD player/recorder.

4. Start playback on the Blu-ray Disc/DVD player/recorder, and verify the following:

+ The AV receiver automatically turns on, and selects the input to which the Blu-ray Disc/DVD player/recorder is connected.

+ The TV automatically turns on, and selects the input to which the AV receiver is connected.

5. Following the operating instructions of the TV, select “Use the TV speakers” from the menu screen of the TV, and confirm that the audio is output from the speakers of the TV, and not from the speakers connected to the AV receiver.

6. Select “Use the speakers connected from the AV receiver” from the menu screen of the TV, and confirm that the audio is output from the speakers connected to the AV receiver, and not from the TV speakers.

+ Perform the above operations when you use the AV receiver for the first time, when the settings of each component are changed, when the main power of each component is turned off, when the power cable is disconnected from the power supply, or when there has been a power outage.

Operate with the remote controller. For buttons that can be operated (> page 93).

Audio from DVD-Audio or Super Audio CD may not output from the TV speakers. You will be able to output the audio from the TV speakers by setting the audio output of the DVD player to 2ch PCM. (It may not be possible depending on the player models.)

Even if you set to output audio on the TV speakers, audio will be output from the speakers connected to the AV receiver when you adjust the volume or switch the input on the AV receiver. To output audio from the TV speakers, re- do the corresponding operations on the TV.

In case of an HD connection with FI and RI audio control compatible components, do not connect the F1 cable at the same time.

On the TV, when you select anything other than the HDMI

jack to which the AV receiver is connected, the input on the

AV receiver will be switched to *TV/CD”.

The AV receiver will automatically power on in conjunction when it determines it to be necessary. Even if the AV receiver is connected to an FIHID compatible TV or player/recorder, it will not power on if it is not necessary. It may not power on in conjunction when the TV is set to output audio from the TV.

Linked functions with the AV receiver may not work depending on the component model connected. In such cases, operate the AV receiver directly.

About HDMI Designed to meet the increased demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, Blu-ray Disc/DVD players, set-top boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals, digital video, and up to eight channels of digital audio (2- channel PCM, multichannel digital audio, and multichannel PCM).

The HDMI video stream (1.e., video signal) is compatible with DVI (Digital Visual Interface) 1, so TVs and displays with a DVI input can be connected by using an HDMI-to- DVI adapter cable. (This may not work with some TVs and displays, resulting in no picture.)

The AV receiver uses HDCP (High-bandwidth Digital Content Protection)"2, so only HDCP-compatible components can display the picture.

The AV receiver s HDMI interface is based on the following:

Audio Return Channel, 3D, x.v.Color, DeepColor, Lip Syne, DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD, Dolby Digital Plus, DSD and Multichannel PCM.

Supported Audio Formats

+ Multichannel linear PCM (up to 7.1 ch, 32-192 KHz, 16/20/24 bit)

Your Blu-ray Disc/DVD player must also support the

HDMI output of the above audio formats.

About Copyright Protection

The AV receiver supports HDCP (High-bandwidth Digital Content Protection)"2, a copy-protection system for digital video signals. Other devices connected to the AV receiver via HDMI must also support HDCP.

DVI (Digital Visual Interface): The digital display interface standard set by the DDWG'3 in 1999.

HDCP (High-bandwidth Digital Content Protection): The video encryption technology developed by Intel for HDMI/DVI. If designed to protect video content and requires a HDCP-compatible device to display the encrypted video. DDWG (Digital Display Working Group): Lead by Intel, Compaq, Fujitsu, Hewlett Packard, IBM, NEC, and Silicon Image, this open industry group's objective is to address the industry”s requirements for a digital connectivity specification for high-performance PCS and digital displays.

+ The HDMI video stream is compatible with DVI (Digital Visual Interface), so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (Note that DVI connections only carry video, so you’Il need to make a Separate connection for audio.) However, reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not supported.

+ The HDMI audio signal (sampling rate, bit length, etc.) may be restricted by the connected source component. If the picture is poor orthere"s no sound from a component connected via HDMI, check its setup. Refer to the connected component's instruction manual for details.

Network/USB Features

The following diagram shows how you can connect the AV receiver to your home network. In this example, it's connected to a LAN port on a router, which has a 4-port 100Base-TX switch built-in.

For the best results, a 100Base-TX switched Ethernet network is recommended. Although i?s possible to play music on a computer that's connected to the network wirelessly, playback may be unreliable, so it is recommended to use wired connections.

À router manages the network, data-routing and supplying

of IP addresses. Your router must support the following:

+ NAT (Network Address Translation). NAT allows several networked computers to access the Internet simultaneously via a single Internet connection. The AV receiver needs Internet access for Internet radio.

+ DHCP (Dynamic Host Configuration Protocol). DHCP supplies IP addresses to the network devices, allowing them to configure themselves automatically.

+ A router with a built-in 100Base-TX switch is recommended.

Some routers have a built-in modem, and some Internet

Service Providers (ISP) require you to use specific routers.

Please consult your ISP or computer dealer if you’re

M CAT5 Ethernet cable Use a shielded CATS Ethernet cable (straight-type) to connect the AV receiver to your home network.

H internet Access (for Internet radio)

To receive Internet radio, your Ethernet network must have Internet access. À narrowband Internet connection (e.g., 56K modem, ISDN) will not provide satisfactory results, so a broadband connection is strongly recommended (e.g., cable modem, xDSL modem, etc.). Please consult your ISP or computer dealer if you’re unsure.

+ To receive Internet radio with the AV receiver, your broadband Internet connection must be working and able to access the Web.

Consult your ISP if you have any problems with your Internet connection.

+ The AV receiver uses DHCP to configure its network settings automatically. If you want to configure these settings manually, see “Network” (> page 81).

+ The AV receiver does not support PPPOE settings, so if you have a PPPOE-type Internet connection, you must use a PPPOE- compatible router.

+ Depending on your ISP, you may need to specify a proxy server to use Internet radio. If your computer is configured to use a proxy server, use the same settings for the AV receiver ( page 82).

The AV receiver can play digital music files stored on a

computer or media server and supports the following

+ Windows Media Connect 2.0

+ DLNA-certified media server

If the operating system of your computer is Windows

Vista, Windows Media Player 11 is already installed.

Windows Media Player 11 for Windows XP can be

downloaded for free from the Microsoft web site.

+ The computer or media server must be on the same network as the AV receiver.

+ Up to 20,000 folders can be displayed, and folders may be nested up to 16 levels deep.

+ Depending on the media server, the AV receiver may not recognize it, or may not be able to play its music files.

Minimum system requirements for Windows Media

Player 11 on Windows XP Operating system

Windows XP Home Edition (SP2), Windows XP Professional (SP2), Windows XP Tablet PC Edition (SP2), Update Rollup 2 for Windows XP Media Center Edition 2005 (KB900325), October 2006 Update Rollup for Windows XP Media Center Edition (KB925766)

Processor: 233 MHz Intel Pentium II, Advanced Micro Devices (AMD), etc.

Memor 64MB Hard disk: 200 MB of free space

Drive: CD or DVD drive

Sound card: 16-bit sound card

Monitor: Super VGA (800 x 600)

Video card: 64 MB VRAM, DirectX 9.0b

Software: Microsoft ActiveSyne (only when

+ Windows Media Player 12

+ DLNA-certified (within DLNA Interoperability Guidelines version 1.5) media server or controller device.

The setting varies depending on the media server or

controller devices. Refer to your devices’ instruction

If the operating system of your personal computer is

Windows 7, Windows Media Player 12 is already installed.

For more information, see the Microsoft web site.

+ USB mass storage device class (but not always guaranteed).

+ FATI6 or FAT32 file system format.

+ If the storage device has been partitioned, each section will be treated as an independent device.

+ Up to 20,000 folders can be displayed, and folders may be nested up to 16 levels deep.

+ USB hubs and USB devices with hub functions are not supported.

+ Ifthe media you connect is not supported, the message “No Storage” will be displayed.

+ If you connect a USB hard disk drive to the AV receiver's USB

port, we recommend that you use its AC adapter to power it.

The AV receiver supports USB MP3 players that support the

USB Mass Storage Class standard, which allows USB devices to

be connected to computers without the need for special drivers or

software, Note that not all USB MP3 players support the USB Mass Storage Class standard. Refer to your USB MP3 players

instruction manual for details.

Protected WMA music files on an MP3 player cannot be played.

Onkyo accepts no responsibility whatsoever for the loss or

damage to data stored on a USB device when that device is used

with the AV receiver. We recommend that you back up your

important music files beforehand.

MP3 players containing music files that are managed with special

music software are not supported.

Operation is not guaranteed for all USB devices, which includes

the ability to power them.

+ Do not connect your USB device via a USB hub. The USB device

must be connected directly to the AV receiver's USB port.

If the USB device contains a lot of data, the AV receiver make

take a while to read it.

+ USB devices with security functions cannot be played.

Supported Audio File Formats

For server playback and playback from a USB device, the AV receive supports the following music file formats. Variable bit-rate (VBR) files are supported. However, playback times may not display correctiy.

+ With remote playback, the AV receiver does not support the following music file formats: FLAC, Ogg Vorbis, DSD and Dolby TrueHD.

+ In the case of server playback, the above-mentioned file formats may not be played depending on the server type.

BE MP3 (.mp3 or .MP3)

+ MP3 files must be MPEG-1/MPEG-2 Audio Layer 3 format with sampling rates of 8 KHz, 11.025 KHz, 12 KHz, 16 kHz, 22.05 KHz, 24 kHz, 32 KHz, 44.1 KHz, 48 kHz and bitrates of between 8 kbps and 320 kbps. Incompatible files cannot be played.

WMA stands for Windows Media Audio and is an audio

compression technology developed by Microsoft

Corporation. Audio can be encoded in WMA format by

using Windows Media® Player.

+ WMA files must have the copyright option turned off.

+ Sampling rates of 8 kHz, 11.025 KHz, 12 KHz, 16 KHz, 22.05 kHz, 24 kHz, 32 KHz, 44.1 KHz, 48 KHz, bitrates of between 5 kbps and 320 kbps, and WMA DRM are supported.

+ WMA Pro/Voice formats are not supported.

B WMA Lossless (.wma or .WMA)

+ Sampling rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz are supported.

+ Quantization bit: 16 bit, 24 bit

E WAV (.wav or .WAV)

WAV files contain uncompressed PCM digital audio.

+ Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 KHz, 32 kHz, 44.1 KHz, 48 KHz, 64 KHz,

88.2 kHz, 96 kHz, 176.4 KHz and 192 KHz are supported.

+ Quantization bit: 8 bit, 16 bit, 24 bit

BAAC (-aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/ .3GP or .3G2)

AAC stands for MPEG-2/MPEG-4 Audio.

+ Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 KHz, 32 kHz, 44.1 KHz, 48 KHz, 64 KHz, 88.2 kHz, 96 kHz and bitrates of between 8 kbps and 320 kbps are supported.

MFLAC (.flac or FLAC)

FLAC is a file format for lossless audio data compression.

+ Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 KHz, 22.05 kHz, 24 kHz, 32 KHz, 44.1 KHz, 48 KHz, 64 kHz,

88.2 kHz, 96 kHz, 176.4 KHz and 192 KHz are supported.

+ Quantization bit: 8 bit, 16 bit, 24 bit

E Ogg Vorbis (.ogg or .0GG)

+ Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 KHz, 32 KHz, 44.1 KHz, 48 KHz and bitrates of between 48 kbps and 500 kbps are supported. Incompatible files cannot be played.

+ Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 KHz, 32 kHz, 44.1 KHz, 48 KHz, 64 KHz, 88.2 kHz and 96 kHz are supported.

+ Quantization bit: 8 bit, 16 bit, 24 bit

* Only for playback via network.

E Apple Lossless (.m4a/.mp4/.M4A/.MP4)

+ Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 KHz, 32 KHz, 44.1 KHz, 48 KHz, 64 KHz, 88.2 kHz and 96 kHz are supported.

+ Quantization bit: 16 bit, 24 bit

M DSD (.dsf or .DSF) + The sampling rate of 2.8224 MH is supported.

& Dolby TrueHD (.vr/.mip/.VR/.MLP) + Sampling rates of 48 kHz, 64 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz are supported.

About DLNA The Digital Living Network Alliance is an international, cross-industry collaboration. Members of DLNA develop a concept of wired and wireless interoperable networks where digital content such as photos, music, and videos can be shared through consumer electronics, personal computers, and mobile devices in and beyond the home. The AV receiver complies with the DLNA Interoperability Guidelines version 1.5.

License and Trademark Information

“xv.Color” is a trademark of Sony Corporation.

Manufactured under license under US. Patent No’s: 5,956,674; 5,974,380: 5,978,762; 6.487.535: 6,226,616; 7.212,87. 7.003.467; 7,272,567:; 7,668,723; 7.392.195; 7.930.184; 7.333,99; 7,548,853; 7.283,634 & other U.S. and worldwide patents issued and pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio is a trademark of DTS, Inc. Product includes software. ODTS, Inc. AII Rights Reserved.

TRUE Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, Surround EX and the double-D symbol are trademarks of Dolby Laboratories.

Music Optimizer® js a trademark of Onkyo Corporation.

THX and the THX logo are trademarks of THX Ltd. which may be registered in some jurisdictions. AI rights reserved.

Before any home theater component can be

THX Ultra? Plus certified, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX Ultra? Plus logo, which is your guarantee that the Home Theater products you purchase will give you superb performance for many years to come. THX Ultra? Plus requirements define hundreds of parameters, including power amplifier performance, and pre-amplifier performance and operation for both digital and analog domains. THX Ultra? Plus receivers also feature proprietary THX technologies (e.g., THX Mode) which accurately translate movie soundtracks for home theater playback.

MER) ME MULTE XTD Dsx

DYNAMIC VOLUME Manufactured under license from Audyssey Laboratories", Inc. US. and foreign patents pending. Audyssey MultEQ® XT32, Audyssey Dynamic EQ®, Audyssey Dynamic Volume® and Audyssey DSX® are registered trademarks of

Audyssey Laboratories, Inc.

HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. HD Radio®" and the HD, HD Radio, and “Arc” logos are proprietary trademarks of iBiquity Digital Corp.

“DLNA®, the DLNA Logo and DLNA CERTIFIED'M are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Windows and the Windows logo are trademarks of the Microsoft group of companies.

Qdeo and QuietVideo are trademarks of Marvell or its affiliates.

HQV® (Hollywood Quality Video) is a trademark of Qualcomm Incorporated.

“Xantech” is a registered trademark of Xantech Corporation.

“Niles” is a registered trademark of Niles Audio Corporation.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.”

InstaPrevue and the InstaPrevue logo are trademarks or registered trademarks of Silicon Image, Inc. in the United States and other countries.

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc. registered in the U.S. and other countries.

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

Re-Equalization and the “Re-EQ” logo are trademarks of THX Lid.

VLSCTM is a trademark of Onkyo Corporation.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

#High-Definition Linie

“MEL, the MHL Logo, and Mobile High-Definition Link are trademark or registered trademarks of MHL LLC in the United States and other counties.”

Apple TV is a trademark of Apple Inc., registered in the U.S. and other countries.

Rated Output Power All chann

140 watts minimum continuous power per channel, 8 ohm loads, 2 channels driven from 20 Hz to 20 kHz, with a maximum total harmonie distortion of 0.05% (FTC) Œuropean)

7 ch x 200 W at 6 ohms, 1 kHz, 1 ch driven of 1% (IEC)

Dynamic Power* * IEC60268-Short-term maximum output power

320 W (3 Q, Front) 270 W (4 Q, Front) 160 W (8 Q, Front)

THD+N (Total Harmonic Distortion+Noise)

0.05% (20 Hz - 20 kHz, half power) Damping Factor 60 (Front, 1 kHz, 8 Q) Input Sensitivity and Impedance (Unbalance)

200 mV/47 kQ (LINE) mV/47 kQ (PHONO MM)

Rated RCA Output Level and Impedance

4Q-16Q Signal to Noise Ratio Speaker Impedance

5 Hz- 100 MHz/+0 dB, -3 dB Tuner Section

FM Tuning Frequency Range

(North American) 87.5 MHz - 107.9 MHz

Œuropean) 87.5 MHz - 108.0 MHz, RDS AM Tuning Frequency Range

(North American) 8.6 A

Weight 23.0 kg (50.7 lbs.)

BHDMI Input INI,IN2,IN3,IN4,INS,IN6,IN 7,IN8,

AUX INPUT Output OUT MAIN, OUT SUB/ZONE 2 OUT Video Resolution 1080p

USB 1 (Front)/1 (Rear)

Specifications and features are subject to change

Onkyo Europe Electronics GmbH (UK Branch) The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK Tel: +44-(0)1628-473-350 Fax: +44-(0)1628-401-700

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.

SN 29401288EN {C) Copyright 2012 Onkyo Sound & Vision Corporation Japan. AI rights reserved.

29401288EN ONKYO Using Internet Radio

Common Procedures in Internet Radio Menu

Note + Available services may vary depending on the region.

1 Press NET. A list of the network services appears, and the NET indicator lights. If it flashes, verify that the Ethernet cable is firmly connected to the AV receiver.

2 Select the desired service and press ENTER. The top page of the selected service appears.

Using Multiple Accounts

The AV receiver supports multiple user accounts, which means you can freely switch between several logins. After registering user accounts, login is performed from the “Users” screen.

1 Press MENU while the Users screen is displayed. The following menu items appear: Add new user: Remove this user: You can either store a new user account, or delete an existing one.

+ Some of the services don't allow the use of multiple user accounts.

+ You can store up to 10 user accounts.

+ To switch between accounts you must first log out from the current account, and log in again on the “Users” screen.

À En1 Y Using Internet Radio

Pandora® internet radio -Getting Started (US. only) .

Using Rhapsody (U.S. only)...

Using the SiriusXM Internet Radio (North American only) … .

Using Last.fm Internet Radio...

Using Slacker Personal Radio

Pandora® internet radio Getting Started (U.S. only)

Pandora is a free, personalized Internet radio service that plays the music you know and helps you discover music you’Il love.

1 Use A/Y to select “I have a Pandora Account” or “L°m new to Pandora” and then press ENTER. If you are new to Pandora select “L°’m new to Pandora”. You will see an activation code on your TV screen. Please write down this code. Go to an Internet connected computer and point your browser to www.pandora.com/onkyo Enter your activation code and then follow the instructions to create your Pandora account and your personalized Pandora Internet radio stations. You can create your stations by entering your favorite songs and artists when prompted. After you have created your account and stations you can return to your Onkyo receiver and press enter to begin listening to your personalized Pandora Internet radio. If you have an existing Pandora account, you can add your Pandora account to your Onkyo receiver by selecting “I have a Pandora Account” and logging in with your email and password.

+ If you want to use multiple user accounts, see “Using

Multiple Accounts” ( page 1). Login can be made from the “Users” screen.

2 To play a station, use A/Y to select the station from your station list, and then press ENTER. Playback starts and the playback screen appears. Create a New Station: Enter the name of a song, artist, or genre and Pandora will create a unique radio station for you based on the musical qualities of that song, artist, or genre.

M Menu ltems Like this song:

Give a song “thumbs-up” and Pandora will play more music like it.

I don't like this song:

Give a song “thumbs-down” and Pandora will ban that song from the current station.

Why is this song playing?:

Discover some of the musical attributes that Pandora uses to create your personal radio stations.

Don't play the song for a month:

If you are tired of a song, you can put the song to sleep and Pandora will not play it for one month.

Create station from this artist:

Creates a radio station from this artist.

À En2 Y Using Internet Radio

Delete this station:

This will permanently delete a station from your Pandora account. AI of your thumbs feedback will be lost should you choose to re-create the station with the same song or artist.

Create station from this song:

Creates a radio station from this song.

Rename this station:

Lets you rename the current radio station.

Bookmark this artist:

Pandora will bookmark your favorite artist for your profile on www.pandora.com.

Pandora will bookmark the current song and allow you to buy them all from Amazon or iTunes in one step!

Add to My Favorites:

Adds a station to My Favorites list.

iametre PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission.

Using Rhapsody (U.S. only)

À Use A/Y to select “Sign in to your account” and then press ENTER. To use Rhapsody, you need an account. If you don't have one yet, you can create a new account at www.rhapsody.com/onkyo If you have an existing Rhapsody account, select “Sign in to your account” and press ENTER. Enter your user name (usually your email) and password in the next keyboard screen, or in Web Setup.

Using the keyboard screen

1. Use 4/V/4/> and ENTER to enter your user name and password.

3. Press ENTER. The “Confirm your entries” screen appears.

Tip + If you want to use multiple user accounts, see “Using

Multiple Accounts” (> page 1). Login can be made from the “Users” screen.

2 Use A/Y to select the menu, then press ENTER. Search:

You can search for music by Artist, Album, or Track.

You can play tracks from Genres, Top Artists, Top Albums, Top Tracks, New Releases, and Staff Picks. Rhapsody Channels:

Listen to radio channels programmed by Rhapsodys top-notch editors.

Play your own personal playlists.

Bookmark your favorite albums and tracks from the Rhapsody catalog using My Library.

Confirm your account information.

Sign out from your Rhapsody account.

À En3 Y Using Internet Radio

3 Use A/Y to select a channel, and press ENTER or »- to start playback. Playback starts and the playback screen appears. You can control the tracks with the buttons on the remote control.

Enabled buttons: m=, E RANDOM, REPEAT Note

+ On Rhapsody Channels, some of the buttons don't work.

Add track to My Library:

Bookmark currently-playing tracks.

Add album to My Library:

Bookmark currently-playing albums.

Add playlist to My Library:

Bookmark currently-playing playlists.

Add channel to My Channels:

Bookmark currently-playing Rhapsody radio channels.

Add to My Favorites:

Adds a track, channel or playlist to My Favorites list. Tip

+ You can remove bookmarked tracks, albums, and Rhapsody Channels from My Library

(North American only)

Your Onkyo AV receiver includes a free trial of SiriusXM Internet Radio. The “Account Info” screen shows how many days are left in your trial. After the trial period expires, if you want to continue listening to the service, you must subscribe. To subscribe go to www.siriusxm.com/internetradio with your computer.

When you subscribe, you will be provided with a username

and password which has to be entered into the AV receiver.

To use SiriusXM Internet Radio, you must have your AV receiver connected to the Internet. Using the remote control, follow these steps:

À Use A/" to select “Sign In”, and then press ENTER.

If you have an existing SIRIUS account, you can sign in by selecting “Sign In”. Enter your user name and password in the next keyboard screen, or in Web Setup. If you don’t know your username or password, call Sirius XM at (888) 539-7474 for assistance.

Tip + If you want to use multiple user accounts, see “Using

Multiple Accounts” ( page 1). Login can be made from the “Users” screen.

M Using the keyboard screen

1. Use 4/V/4/> and ENTER to enter your user name and password.

3. Press ENTER. The “Confirm your entries” screen appears.

“Please wait...” appears and then “SiriusXM Internet Radio” screen appears which displays the

category available for selection.

2 Use A/Y to select the category and then press

ENTER. The channel list screen for the selected category appears.

3 Use A/Y to select the desired channel and then press

ENTER. The playback screen for the selected channel appears and you can listen to SiriusXM Internet Radio.

You can control the tracks with the buttons on the remote control.

Enabled buttons: M M Menu ltems Add to My Favorites: Adds a channel to My Favorites list.

À En4 Y Using Internet Radio

SiriusXM Internet Radio subscriptions are sold separately and are governed by the Sirius Terms and Conditions (see www.sirius.com). Be sure to read this agreement before you purchase your subscription. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All rights reserved.

Using Last.fm Internet Radio

Last.fm is a music service that learns what you love... Your new Onkyo AV receiver is very clever. If you have a free Last.fm account, it will keep track of all the songs you”ve just played. When you visit the Last.fm website, you can see personal charts of the music you’ve enjoyed, Share them with friends and see what they like, too.

With thousands of biographies, reviews and an endless choice of personalised, ad-free radio stations, Last.fm is a great way to discover music. Pick up your free Last.fm account today at www.last.fm/join

Get a subscription and you can enjoy the best of ad-free Last.fm Radio on your Onkyo AV receiver without a computer!

Discover smart personalised recommendations that adapt as your tastes change.

Pick any artist and we’l play you a whole station of music inspired by your choice.

Sit back and enjoy selections from all the music you’ve heard since you joined Last.fm.

Polish funk? Death pop? Think of a style and we’1l entertain you with it for hours.

Start your free trial straight away when you create your account and see for yourself what it's like to have the world’s music at your fingertips. Latest prices and full information are available at www.last.fm/subscribe

À Use A/ to select “Sign in to your account”, and then press ENTER. If you have the existing Last.fm account, you can sign in to your account to select “Sign in to your account”. Enter your user name and password in the next keyboard screen.

M Using the keyboard screen

1. Use A/V/</ and the ENTER to enter your user name and password.

3. Press ENTER. The “Confirm your entries” screen appears.

“Please wait...” appears and then “Last.fm Internet

Radio” screen appears.

Tip + If you want to use multiple user accounts, see “Using

Multiple Accounts” ( page 1). Login can be made from the “Users” screen.

2 Use A/Y to select menu and then press ENTER.

You can search station by Artist, Tag, or User Name.

Top Artists Station:

You can play tracks of top-rated artists.

You can play tracks of top-rated tags.

+ You can play tracks from personalized station (Your Library”, “Your Neighbourhood” and “Your Recommendations”).

À Ens5 Y Using Internet Radio

You can play tracks from “Recently Listened Tracks”, “Library” and “Neighbours”. Account Info:

Confirm your account information.

It signs out from your account.

3 Use A/Y toselect a station, and press ENTER or

to start playback. Playback starts and the playback screen appears.

Track information is saved in Last.fm server, and playback frequency increases.

Track information is saved in Last.fm server, and playback frequency reduces.

Add to My Favorites:

Adds a station to My Favorites list.

B Using scrobbling control Use A/Y to select “Enable”, and then press ENTER.

Internet radio services provided by a third party may be

terminated with or without notice. Internet radio services may not be available in some areas.

Using Slacker Personal Radio

If you do not have an account, create one on the Slacker website (www.slacker.com) with your computer. If you already have a Slacker account, select “Sign in to your account” and then press ENTER. The keyboard screen appears. You can enter information from the remote control or the keys on the main unit. Ifthere are no mistakes in the information you have entered, use A/Y/</» to select “OK” then press ENTER. An account information confirmation screen appears. If you do not have an account, select “Access without Sign In” and press ENTER to use a restricted version of the service. Note that use will be restricted.

Tip + If you want to use multiple user accounts, see “Using

Multiple Accounts” (> page 1). Login can be made from the “Users” screen.

Use A/Y to select a menu item and then press ENTER.

To sign out, use A/Y to select “Sign out” from this screen and then press ENTER.

Use A/Y to select a station and then press ENTER or æ to start playback from the station.

The playback screen appears.

6 You can control the tracks with the buttons on the remote control.

Enabled buttons: me, LE, M, >-2>1

Rate Song as Favorite:

Stores information to server, making it more likely that the song will be played again.

Stores information to server, making it less likely that the song will be played again.

Stores information to server, making it less likely that the songs from this artist will be played again.

Adds the currently playing station to your favorites. Unmark Favorite:

Deletes the currently playing station from your favorites.

Add song to Library:

Adds the currently playing track to your library. Delete song from Library:

Deletes the currently playing track from your library. Add to My Favorites:

Adds a station or song to My Favorites list.

À En6 Y Using Internet Radio

Listen to your music collection on your home stereo in complete digital fidelity without a personal computer plus safely backup all your songs. Here’s how:

Creating an Account on your Computer

From your computer, open a web browser and go to: www.mpâtunes.com/signup

Click the Upload link (www.mpätunes.com/upload) to add files to your Locker.

View, edit and listen to your files by clicking on Player (www.mp3tunes.com/player).

Playing Contents on the AV Receiver

+ Before proceeding, you need to select the MP3tunes service as described in “Common Procedures in Internet Radio Menu” @ page 1).

À Use A/T to select “Sign in to your account”, and then press ENTER. 2 Enter the e-mail address and password you used

when creating your account, select “OK” and press ENTER.

The keyboard screen appears. You can enter your user name and password from the remote controller or the buttons on the AV receiver.

3 If there are no mistakes in the information you have entered, select “OK” and press ENTER.

An account information confirmation screen appears. Tip

+ If you want to use multiple user accounts, see “Using Multiple Accounts” (> page 1). Login can be made from the “Users” screen.

4 Use A/Y to select the menu, then press ENTER. Music:

The place to find your Artists, Albums, and Playlists. Shuffle:

Starts playing a random selection of tracks from your Locker.

Find a specific Album, Artist, or Song.

Your MP3tunes account information.

Log out of your MP3tunes account.

The track at the top of the music list is automatically played back.

À En7 Y Using Internet Radio

5 Use A/Y to select a track and press ENTER or

to start playback. A playback screen appears.

You can control the tracks with the buttons on the remote control.

Enabled buttons: m=, E Len» m Menu ltems

Go to Menu: Displays additional menu options.

You can view or change your MPätunes account settings by going to www.mpätunes.com/account.

Utilisation d’une webradio

I don't like this song :

Rejetez la chanson et Pandora éliminera cette chanson de la station courante. Why is this song playing? Découvrez certains des attributs musicaux que Pandora utilise pour créer vos stations radio personnelles.

Don't play the song for a month :

Permet de créer une station radio à partir de cet artiste.

Delete this station :

Ceci supprimera de façon permanente la station de votre compte Pandora. Au cas où vous décideriez de récréer la station avec les mêmes chansons ou les mêmes artistes, tous vos acceptations/rejets précédents seront perdus.

Create station from this song :

Permet de créer une station radio à partir de cette chanson.

Rename this station :

Add track to My Library :

Marquez les pistes en cours de lecture.

Add album to My Library :

Marquez les albums en cours de lecture.

Add playlist to My Library :

Marquez les listes de lecture en cours de lecture.

Add channel to My Channels :

Top Artists Station :

Rate Song as Favorite :

Add song to Library :

Permet d'ajouter la piste en cours de lecture à votre bibliothèque.

Delete song from Library :

I don't like this song:

Si no aprueba (pulgar abajo) la cancién, Pandora eliminarä dicha cancin de la emisora actual. Why is this song playing? Descubra algunos de los atributos musicales que Pandora utiliza para crear sus emisoras de radio personalizadas.

Don't play the song for a month:

Crea una emisora de radio a partir de este artista.

Delete this station:

Add to My Favorites:

Add track to My Library:

Marca las canciones que se estän reproduciendo actualmente.

Add album to My Library:

Marca los âlbumes que se estän reproduciendo actualmente.

Add playlist to My Library:

Marca las listas de reproduccién que se estän reproduciendo actualmente.

Add channel to My Channels:

Marca las emisoras de Rhapsody que se estän reproduciendo actualmente.

Add to My Favorites:

Top Artists Station:

Add to My Favorites:

Rate Song as Favorite:

Add song to Library:

Añade la canciôn que se estä reproduciendo actualmente a su biblioteca.

Delete song from Librar Elimina la canciôn que se estä reproduciendo actualmente de la biblioteca.

Add to My Favorites:

Common Procedures in Internet Radio Menu

+ Available services may vary depending on the region.

1 Press NET. A list of the network services appears, and the NET indicator lights. If it flashes, verify that the Ethernet cable is firmly connected to the AV receiver.

2 Select the desired service and press ENTER. The top page of the selected service appears.

Using Multiple Accounts

The AV receiver supports multiple user accounts, which means you can freely switch between several logins. After registering user accounts, login is performed from the “Users” screen.

1 Press MENU while the Users screen is displayed. The following menu items appear: Add new user: Remove this user: You can either store a new user account, or delete an existing one.

+ Some of the services don't allow the use of multiple user accounts.

+ You can store up to 10 user accounts.

+ To switch between accounts you must first log out from the current account, and log in again on the “Users” screen.

À En1 Y Using Last.fm Internet Radi

Using Internet Radio

Using Last.fm Internet Radio

Last.fm is a music service that learns what you love... Your new Onkyo AV receiver is very clever. If you have a free Last.fm account, it will keep track of all the songs you”ve just played. When you visit the Last.fm website, you can see personal charts of the music you’ve enjoyed, Share them with friends and see what they like, too.

With thousands of biographies, reviews and an endless choice of personalised, ad-free radio stations, Last.fm is a great way to discover music. Pick up your free Last.fm account today at www.last.fm/join

UK and Germany only: Get a subscription and you can enjoy the best of ad-free Last.fm Radio on your Onkyo AV receiver without a computer!

Discover smart personalised recommendations that adapt as your tastes change.

Pick any artist and we’l play you a whole station of music inspired by your choice.

Sit back and enjoy selections from all the music you’ve heard since you joined Last.fm.

Polish funk? Death pop? Think of a style and we’1l entertain you with it for hours.

Start your free trial straight away when you create your account and see for yourself what it's like to have the world’s music at your fingertips. Latest prices and full information are available at www.last.fm/subscribe

À Use A/ to select “Sign in to your account”, and then press ENTER. If you have the existing Last.fm account, you can sign in to your account to select “Sign in to your account”. Enter your user name and password in the next keyboard screen.

M Using the keyboard screen

1. Use A/V/</ and the ENTER to enter your user name and password.

3. Press ENTER. The “Confirm your entries” screen appears.

“Please wait...” appears and then “Last.fm Internet

Radio” screen appears.

Tip + If you want to use multiple user accounts, see “Using

Multiple Accounts” ( page 1). Login can be made from the “Users” screen.

2 Use A/Y to select menu and then press ENTER.

You can search station by Artist, Tag, or User Name. Top Artists Station:

You can play tracks of top-rated artists.

You can play tracks of top-rated tags.

You can play tracks from personalized station (“Your Library”, “Your Neighbourhood” and “Your Recommendations”).

À En2 Y Using Internet Radio

You can play tracks from “Recently Listened Tracks”, “Library” and “Neighbours”. Account Info:

Confirm your account information.

It signs out from your account.

3 Use A/Y toselect a station, and press ENTER or

to start playback. Playback starts and the playback screen appears. Enabled buttons: æ, Mi, >»

Track information is saved in Last.fm server, and playback frequency increases.

Track information is saved in Last.fm server, and playback frequency reduces.

Add to My Favorites:

Adds a station to My Favorites list.

B Using scrobbling control Use A/Y to select “Enable”, and then press ENTER.

* Internet radio services provided by a third party may be

terminated with or without notice. Internet radio services may not be available in some areas.

Internetradio verwenden

Add to My Favorites:

SN 29401229 {C) Copyright 2012 Onkyo Sound & Vision Corporation Japan. AI rights reserved.

DISPLAY Remote Control Codes

While holding down the REMOTE MODE button to which you want to assign a

code, press and hold down [DISPLAY] (about 3 seconds).

The REMOTE MODE button/Remote indicator lights.

On Integra products, button names are capitalized. For example, “Remote Mode”

button and “Display” button.

+ Remote control codes cannot be entered for [RECEIVER] and the multi zone button.

+ Only TV remote control codes can be entered for [TV].

+ Except for [RECEIVER], [TV], and the multi zone button, remote control codes from any category can be assigned for the REMOTE MODE buttons. However, these buttons also work as input selector buttons, so choose a REMOTE MODE button that corresponds with the input to which you connect your component. For example, if you connect your CD player to the CD input, choose [TV/CD] when entering its remote control code.

Within 30 seconds, use the number buttons to enter the 5-digit remote control

The REMOTE MODE button/Remote indicator flashes twice.

If the remote control code is not entered successfully, the REMOTE MODE

button/Remote indicator will flash once slowly.

+ The flashing element of the remote controller wil differ according to your AV receiver s model.

+ The remote controller is preconfigured with remote controller presets of different components. By entering a code from the Remote Control Code list, you can activate the relevant preset for that component.

+ When there are multiple codes related to one manufacturer, try and enter them one-by-one until it matches your component.

+ Depending on the model and year of your component, compatibility is not guaranteed.

+ With some models, the remote controller may not not work or its compatibility may be limited to part of the components functionality.

+ Besides, it is not possible to add new codes to the existing remote controller presets.

+ Though the provided remote control codes are correct at the time of printing, they are subject to change by the manufacturer.

Codes de télécommande
