COSMOS POWER - Computer Accessories DICOTA - Free user manual and instructions

Product type	Universal travel adapter
Brand	DICOTA
Model	COSMOS POWER
Input voltage	100-240 V~
Maximum current	2.5 A
Maximum power	275 W (110 V) / 550 W (220 V)
Plug types	Europe, United Kingdom, Australia, United States
Fuse	Interchangeable 2.5 A
Child protection	Yes, integrated
Safety feature	Individual plug
Worldwide patent	Yes
Compatibility	Bipolar devices Class II protection
Warranty	2 years
After-sales service	[e-mail]
Maintenance	Clean with a dry cloth, without abrasive products
Precautions	Check voltage before use, do not use as a transformer
Compatible countries	More than 150 countries
Recycling	Separate WEEE collection (do not throw in household waste)

Frequently Asked Questions - COSMOS POWER DICOTA

How to change the fuse of the Cosmos Power adapter?

Ensure the new fuse has the same specifications (2.5 A) and the same size as the original. Replace it by opening the designated compartment.

What plug types are included with Cosmos Power?

Four plugs are provided: Europe, United Kingdom, Australia, and United States. You can slide them selectively according to the country visited.

Can I use Cosmos Power as a voltage transformer?

No, this adapter is not a transformer. It only adapts the shape of the plug. Always check that the voltage of your device is compatible with that of the country.

Is Cosmos Power compatible with my laptop?

Yes, it is designed to power mobile devices such as laptops, PDAs, and phones, provided their supply voltage is between 100 and 240 V.

How to slide a plug to use it?

Press the corresponding button and slide the chosen plug all the way. Make sure the other plugs are in the initial position before sliding the desired one.

What is the maximum power supported by Cosmos Power?

The maximum power is 275 W for a voltage of 110 V and 550 W for 220 V, with a maximum current of 2.5 A.

Is there child protection on Cosmos Power?

Yes, the adapter integrates a child protection that prevents insertion of metal objects into unused sockets.

Does this adapter work in all countries?

It covers more than 150 countries thanks to its four plugs. However, check local regulations regarding the use of travel adapters before each use.

What to do if the adapter does not work?

First check the fuse: replace it if necessary. If the problem persists, contact your retailer or send an email to [e-mail].

How to clean the Cosmos Power adapter?

Use a dry, soft cloth. Never use abrasive products or solvents. Make sure the device is unplugged before cleaning.

USER MANUAL COSMOS POWER DICOTA

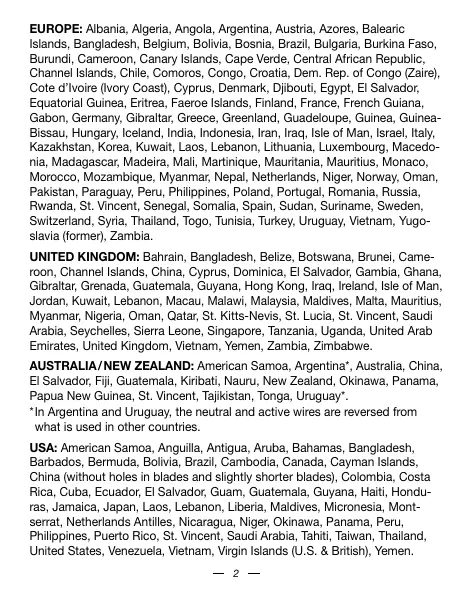

EUROPE: Albania, Algeria, Angola, Argentina, Austria, Azores, Balearic Islands, Bangladesh, Belgium, Bolivia, Bosnia, Brazil, Bulgaria, Burkina Faso, Burundi, Cameroon, Canary Islands, Cape Verde, Central African Republic, Channel Islands, Chile, Comoros, Congo, Croatia, Dem. Rep. of Congo (Zaire), Cote d'Ivoire (Ivory Coast), Cyprus, Denmark, Djibouti, Egypt, El Salvador, Equatorial Guinea, Eritrea, Faeroe Islands, Finland, France, French Guiana, Gabon, Germany, Gibraltar, Greece, Greenland, Guadeloupe, Guinea, Guinea-Bissau, Hungary, Iceland, India, Indonesia, Iran, Iraq, Isle of Man, Israel, Italy, Kazakhstan, Korea, Kuwait, Laos, Lebanon, Lithuania, Luxembourg, Macedonia, Madagascar, Madeira, Mali, Martinique, Mauritania, Mauritius, Monaco, Morocco, Mozambique, Myanmar, Nepal, Netherlands, Niger, Norway, Oman, Pakistan, Paraguay, Peru, Philippines, Poland, Portugal, Romania, Russia, Rwanda, St. Vincent, Senegal, Somalia, Spain, Sudan, Suriname, Sweden, Switzerland, Syria, Thailand, Togo, Tunisia, Turkey, Uruguay, Vietnam, Yugoslavia (former), Zambia.

UNITED KINGDOM: Bahrain, Bangladesh, Belize, Botswana, Brunei, Cameroon, Channel Islands, China, Cyprus, Dominica, El Salvador, Gambia, Ghana, Gibraltar, Grenada, Guatemala, Guyana, Hong Kong, Iraq, Ireland, Isle of Man, Jordan, Kuwait, Lebanon, Macau, Malawi, Malaysia, Maldives, Malta, Mauritius, Myanmar, Nigeria, Oman, Qatar, St. Kitts-Nevis, St. Lucia, St. Vincent, Saudi Arabia, Seychelles, Sierra Leone, Singapore, Tanzania, Uganda, United Arab Emirates, United Kingdom, Vietnam, Yemen, Zambia, Zimbabwe.

AUSTRALIA/NEW ZEALAND: American Samoa, Argentina, Australia, China, El Salvador, Fiji, Guatemala, Kiribati, Nauru, New Zealand, Okinawa, Panama, Papua New Guinea, St. Vincent, Tajikistan, Tonga, Uruguay.

*In Argentina and Uruguay, the neutral and active wires are reversed from what is used in other countries.

USA: American Samoa, Anguilla, Antigua, Aruba, Bahamas, Bangladesh, Barbados, Bermuda, Bolivia, Brazil, Cambodia, Canada, Cayman Islands, China (without holes in blades and slightly shorter blades), Colombia, Costa Rica, Cuba, Ecuador, El Salvador, Guam, Guatemala, Guyana, Haiti, Honduras, Jamaica, Japan, Laos, Lebanon, Liberia, Maldives, Micronesia, Montserrat, Netherlands Antilles, Nicaragua, Niger, Okinawa, Panama, Peru, Philippines, Puerto Rico, St. Vincent, Saudi Arabia, Tahiti, Taiwan, Thailand, United States, Venezuela, Vietnam, Virgin Islands (U.S. & British), Yemen.

Introduction

Thank you for purchasing Cosmos Power from DICOTA. It solves your connection problems all around the world! The patented travel socket adapter has four power plug versions. A safe and easy way to connect your portable devices (Notebook, PDA, Mobile Phone etc.) in more than 150 countries to the electrical outlet.

Please ensure that each plug must be in backward position BEFORE pushing out the desired adapter pins!

Should the need arise to change the fuse please ensure the replacement is of identical size and rating as the one existing in the product!

Caution

• Before use, please read this instruction carefully! This product does not convert voltage, in order to avoid possible damage to your device or other safety hazard, please make sure the power outlet you intend to use has the proper voltage to run your device BEFORE using this adapter.
  Each country has their own regulations regarding the use of travel adapters, please check in each country before use.
• This product is for use with unearthy or double-insulated appliance only.
• Indoor use only.

Features

• Suitable for 2-pole devices in the protection class II (2-pole connectors).
• Power rating 2.5 A max. 100–240 V (110 V max. 275 Watt, 220 V max. 550 Watt).
  Built-in 2.5 A removable fuse.
  Built-in children safety shutter.
• Single plug safety feature.
  Worldwide patents protected.

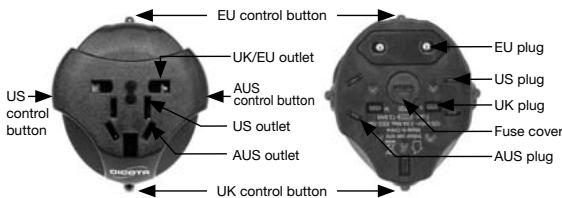

Application

Europe

Slightly press the button and push out the Europe plug completely as shown.

United Kingdom

Slightly press the button and push out the UK plug completely as shown.

Australia/New Zealand

Slightly press the button and push out the Australia plug completely as shown.

USA

Slightly press the button and push out the USA plug completely as shown.

Disclaimer:

Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential, or other damage. No part of this document may be reproduced or transmitted in any form by any means, electronic or mechanical, including photocopying, recording or information recording and retrieval systems without the express written permission of the manufacturer.

Customer service:

If you encounter any problem with your Cosmos Power, please contact our local subsidiary, partner or dealer, or send us your inquiry to [e-mail].

2 years warranty. Please find the complete text in our guarantee on the internet: www.dicota.com.

All the products and software mentioned above are registered trademarks of their respective owners. Errors and omissions excepted.

This symbol (crossed out bin wheelie symbol according to WEEE Annex IV) indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product.
