Speed Wheel 5 Pro/Speed Wheel 5

Software Installation: Install the driver first before you install Speed Wheel 5 Pro to the system. The Wheel will not support the vibration function, if the driver is not installed.

1. Insert the driver CD into your CD-ROM; wait for a few seconds for your PC to load the disc; the auto run program is executed and the opening installation screen appears. Please follow the on-screen instructions.
2. If your system doesn't launch the installation software automatically, you can locate the file in the directory of your CD drive and click on it, then follow the on-screen instruction to install the software.

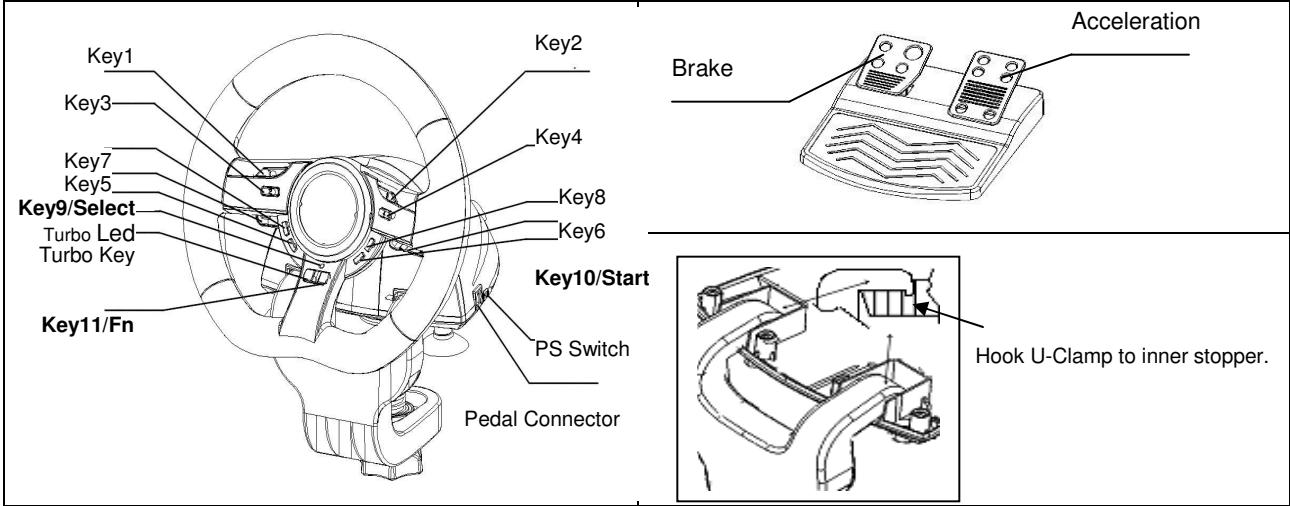

Hardware Installation

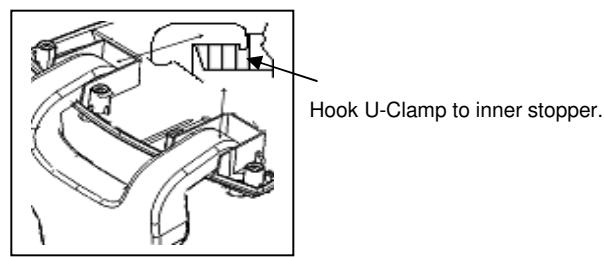

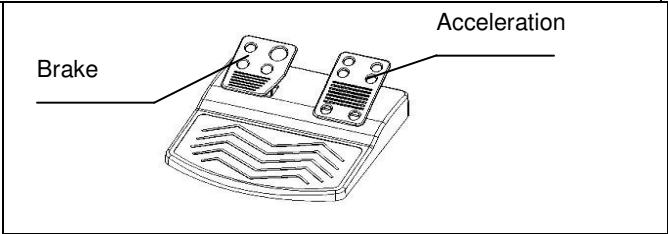

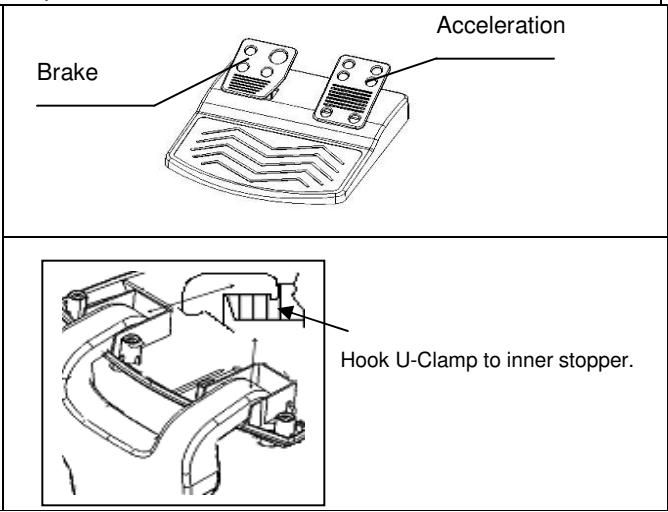

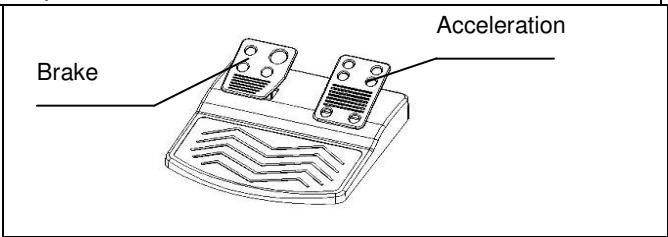

1. Plug the Wheel to an USB port on the PC/PS or a USB Hub. And, connect the Pedal to the main unit with the included cable. After connection, system will "Find a new hardware" and complete the installation.
2. Go to Game Controllers page and select "Advanced". It should work as a wheel. Or a game pad with compatible electrical function design. Check the installation again if it is not correct.

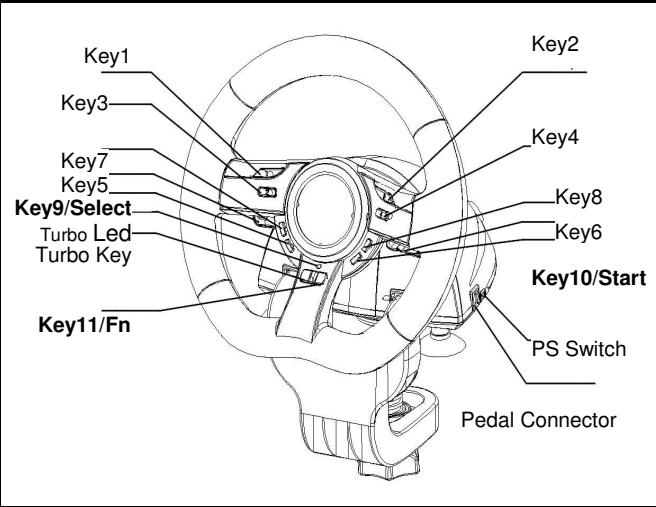

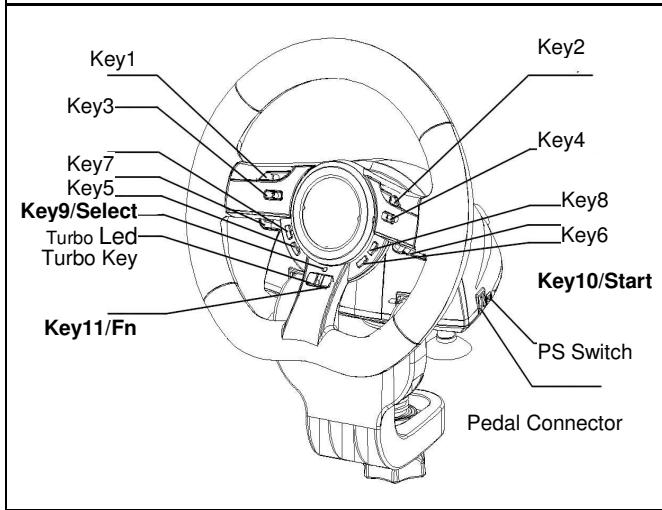

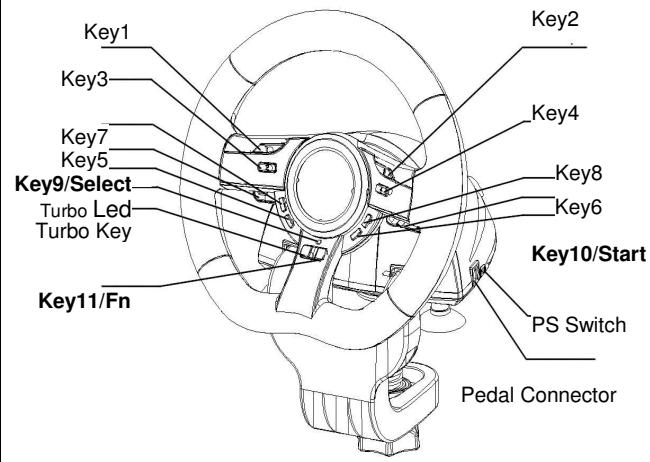

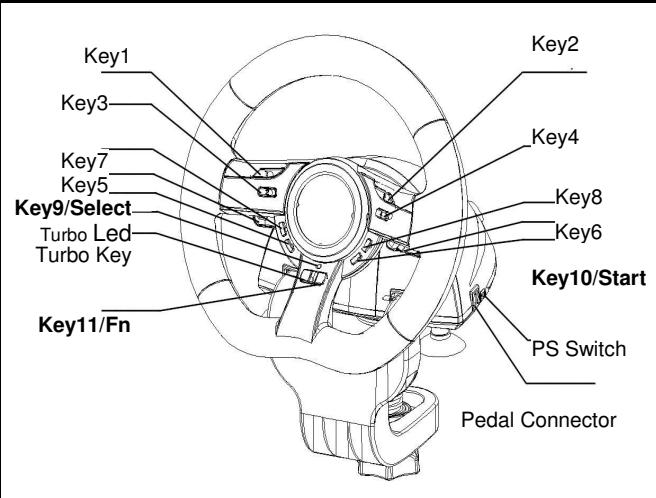

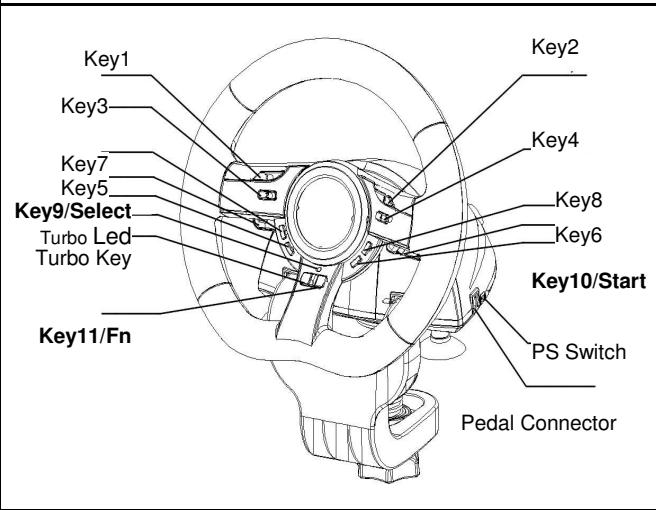

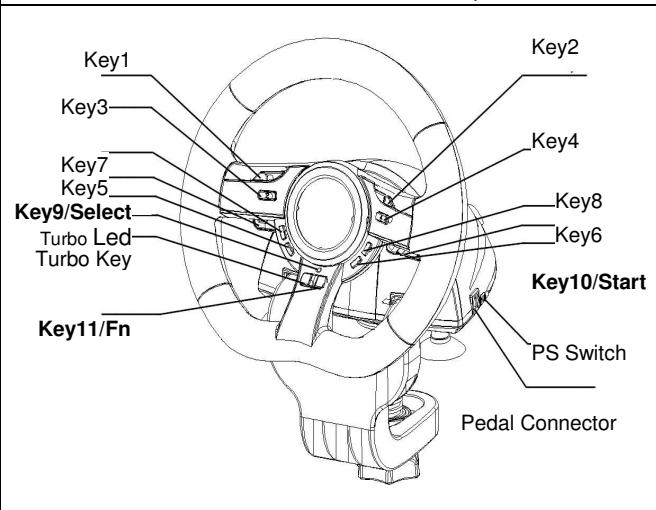

Turbo Speed Setting	Key Remapping Setting	PS3 Mode	Select Key	Start Key	PS Key
Turbo+ Key10/Start	Key_10/START + Turbo	Switch to PS Position	Key_9	Key_10	Key_Fn at PS mode

Turbo Function:

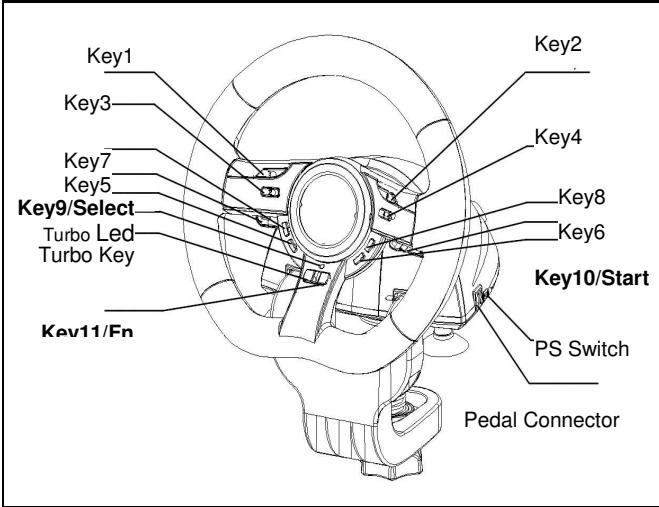

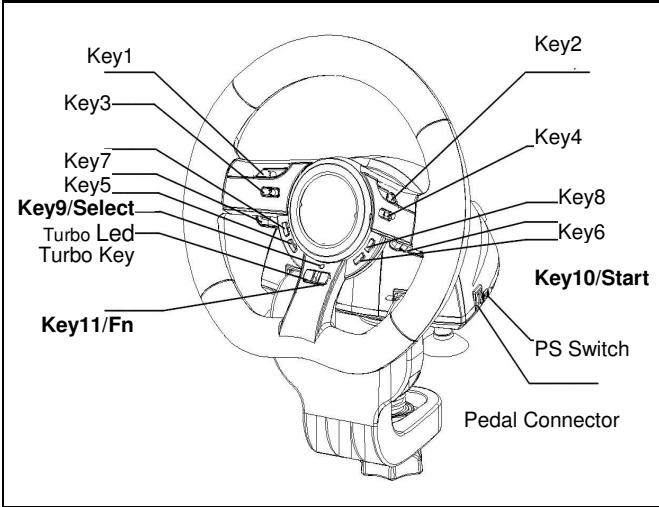

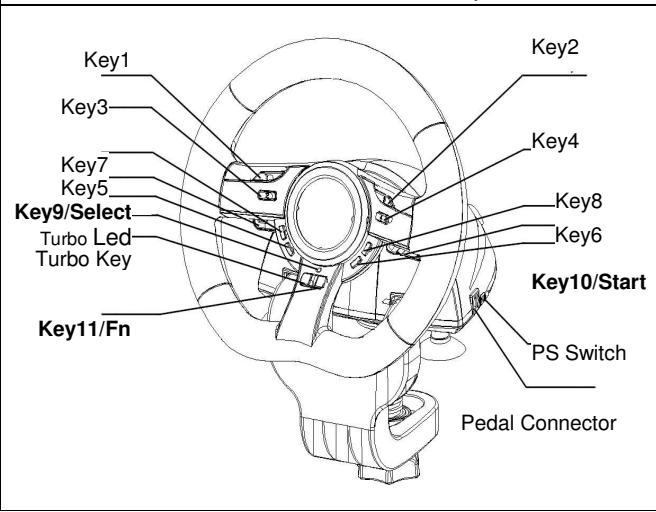

1. Set/Clear Turbo Function: Press and hold the TURBO button, then press any action Key 1,2,3,4,5,6,7,8,11, or Brake Pedal to set the turbo function for it. Turbo LED will flash accordingly. To release the Turbo function, repeat the same procedures.
2. Set Turbo Speed: Press and hold the Turbo button, then press the Key_10/START button only. The Turbo/Macro speed will be adjusted cyclically from 2->4->8->16->2Hz , each time the Key_10/START button is pressed.

Direction Key Function for Game SetUp Page:

1. Press Key9-Select for 2 seconds to set Direction-Key Mode. Turbo LED will be lit to show this mode. The following Key will act as each direction controlling: UP Key 5; DOWN Key 6; RIGHT Wheel Turn to right; LEFT Wheel Turn to left
2. Press Key9-Select 2 seconds again to release Direction_Key Mode. Turbo LED will be at normal status.

Key Mapping Functions: The main purpose of Key Mapping Function is to duplicate the function of SOURCE Key to TARGET KEY. For certain racing game, the brake and acceleration function may be not relative to the BRAKE pedal or ACCELERATION pedal. With the help of Key Mapping, we will be able to duplicate the function to our favor hardware key. Please note that we can only set the Key_Mapping function at Key 5/6/7/8, Brake Pedal and Acceleration pedal. For each Key_Mapping operation, you will only can duplicate one key to another.

1. Set Key Mapping Function: Press and hold Key_10/Start, and press Key_Turbo at the same time. TURBO LED will be fast blinking. Press your favor TARGET key which you would like to copy that function to it. TURBO LED will be slow blinking now. Then, press the SOURCE key to duplicate its function to the TARGET key to complete the procedure. TURBO LED will be off to indicate the function duplication is complete. Proceed the procedures again for another function duplication.
2. Release Key Mapping Function: Press and hold Key_10/Start, and press Key_Turbo at the same time. TURBO LED will be fast blinking. Press theTARGET key which you would like to release that function. TURBO LED will be slow blinking now. Then, Press and hold Key_10/Start, and press Key_Turbo at the same time to release the function. TURBO LED will be off to indicate the releasing is complete. Proceed the procedures again for each function releasing.
3. The hardware function of the wheel buttons may vary in different games. Before proceeding to game settings from the OPTION inside the game, always read your game's manual carefully to set the best game settings.
