Product Type	Network Switch
Brand	AirLive
Model	LIVE-FSH8SB
Number of Ports	8 Ethernet 10/100 Mbps ports
Port Type	RJ-45 with auto-MDI/MDI-X
Supported Speed	10/100 Mbps
Power Supply	External power adapter (5V DC, 1A)
Power Consumption	Approximately 5 W
Dimensions (W x D x H)	20 x 12 x 4 cm
Weight	Approximately 300 g
Status LEDs	Power, Link/Act, FDX/Col, 100M
Main Features	Auto-negotiation, flow control, collision detection, full/half duplex
VLAN Support	No (available on higher models)
Recommended Cabling	Category 5 UTP/STP, max distance 100 m
Installation	Plug-and-play, no configuration required
Maintenance	Clean with a dry, lint-free cloth
Safety Precautions	Do not expose to water or heat source; unplug before cleaning
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% non-condensing
Repairability	Spare parts not provided; contact customer support in case of malfunction

Frequently Asked Questions - LIVE-FSH8SB AIRLIVE

How to connect the LIVE-FSH8SB switch to my network?

Plug the power adapter into the switch and a power outlet. Connect your devices (computers, router, etc.) using RJ-45 Ethernet cables to the switch ports. The Power LED should light up and the Link/Act LEDs corresponding to each port should light up or blink during activity.

What does the 'FDX/Col' LED mean when it blinks?

The FDX/Col (yellow) LED blinks in case of a collision on the network in half-duplex mode. If it is off, the port is operating in half-duplex without collision. If it is solid on, the port is in full-duplex.

Can I use a crossover cable with this switch?

Yes, the switch supports Auto-MDI/MDI-X on all ports. You can use either a straight-through or crossover cable to connect any device.

How to enable VLAN function on the LIVE-FSH8SB?

The LIVE-FSH8SB model does not have a VLAN selector. This function is only available on the LIVE-FSH16T+ model. For the FSH8SB, all ports are on the same network.

What is the maximum cabling distance between the switch and a device?

The maximum distance is 100 meters with Category 5 UTP or STP cable.

What to do if the Power LED does not light up?

Check that the power adapter is properly connected to the switch and a powered outlet. Try another outlet. If the LED remains off, the adapter or switch may be defective.

How to avoid a network loop?

Do not connect two ports of the switch together with a cable, and avoid connecting the switch to another switch redundantly without a spanning tree protocol. A loop can paralyze the network.

Can I connect a device at 10 Mbps full-duplex?

Yes, but ensure the device supports auto-negotiation. Otherwise, the switch may not detect the duplex mode correctly.

How to clean the switch?

Unplug the power before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquid or abrasive products.

What to do if a computer does not see others on the network?

Check that all devices are on the same IP segment (e.g., 192.168.0.x). Use the ipconfig command (Windows) or ifconfig (Linux) to verify IP addresses.

USER MANUAL LIVE-FSH8SB AIRLIVE

Live Series Switches

Live-FSH5PS, Live-FSH8PS, Live-FSH5R, Live-FSH8SB, Live-FSH8R, Live-FSH16T+, Live-GSH5T, Live-GSH8T

Quick Setup Guide

English 1

Espanol 4

Deutsch 7

François 10

13

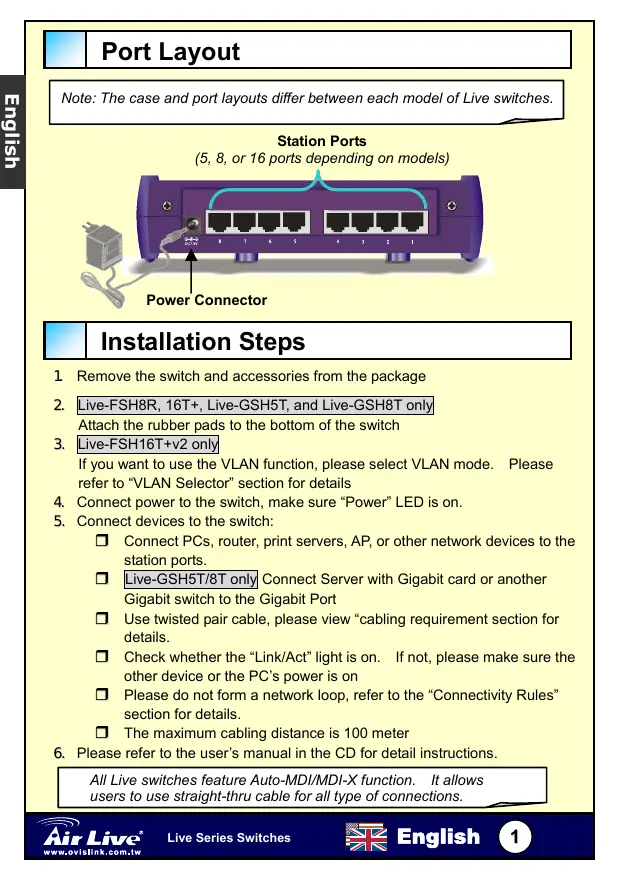

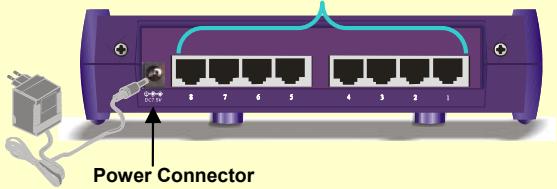

Port Layout

Note: The case and port layouts differ between each model of Live switches.

Station Ports
(5, 8, or 16 ports depending on models)

Installation Steps

1. Remove the switch and accessories from the package
   Live-FSH8R, 16T+, Live-GSH5T, and Live-GSH8T only Attach the rubber pads to the bottom of the switch
   Live-FSH16T+v2 only If you want to use the VLAN function, please select VLAN mode. Please refer to "VLAN Selector" section for details
2. Connect power to the switch, make sure "Power" LED is on.

3. Connect devices to the switch:

4. Connect PCs, router, print servers, AP, or other network devices to the station ports.
   Live-GSH5T/8T only Connect Server with Gigabit card or another Gigabit switch to the Gigabit Port
   Use twisted pair cable, please view "cabling requirement section for details.
   Check whether the "Link/Act" light is on. If not, please make sure the other device or the PC's power is on
   Please do not form a network loop, refer to the "Connectivity Rules" section for details.
   The maximum cabling distance is 100 meter

5. Please refer to the user's manual in the CD for detail instructions.

All Live switches feature Auto-MDI/MDI-X function. It allows users to use straight-thru cable for all type of connections.

LED & Cabling Rules

LED indicator	Color	Status	Meaning
All Models
Power	• Green	ON OFF	Power ON Power OFF
Link/Act	• Green	ON Blinking OFF	Connection is made Transmitting/Receiving No connection is made
FDX/Col	• Yellow	ON OFF Blinking	Full Duplex Half Duplex Collisions (in half duplex)
100M	• RED	ON OFF	100 Mbps Connection 10 Mbps Connection
Live-FSH16T+
VLAN	• Yellow	ON	VLAN Mode On
VLAN	• Yellow	OFF	VLAN Mode OFF
Live-GSH5T/ Live-GSH8T
• 1000/ACT • 100/ACT • 10/ACT	• Green • Green • Green • Green	ON ON ON Blinking	FDX 1000Mbps Connection FXD 100Mbps Connection FXD 10Mbps Connection Transmitting/Receiving

Port Type	10/100 Ports	Gigabit Port (Live GSH5T/8T)
Cable to use	100Mbp :CAT5 UTP/STP 10Mbps: Cat 3, 4, 5 UTP/STP	10/100/1000Mbps Cat 5 UTP/STP
To PC	Straight-through	Straight-through
To hub/switch	Straight-through	Straight-through
Maximum distance	100m	100m

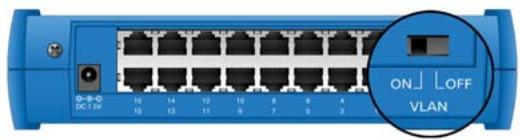

VLAN Selector (Live FSH16T+ only)

For normal operation, please make sure your VLAN switch is in "OFF" Position

Live-FSH16T+ is equipped with VLAN selector switch in the back panel. When activated, each port will be in its own VLAN group with 2 sharing ports. Ports in different VLAN groups cannot see each other. However, everyone can see the sharing port. Please make sure your VLAN selector is in "OFF" position if you are not using the VLAN function.

ON: Every port in its own VLAN group sharing Port 8 and 16
OFF: VLAN function off, the switch operates in normal mode

Connectivity Rules

Please avoid forming a network loop (see the diagram on the right) when connecting the cables. A network loop can cause the network to shutdown..
The maximum cable distance is 100 meter
Always check the LED lights for trouble shooting
Computers and network devices must be in the same IP subnet in order to see each other. For example, 198.168.0.1 can not see 192.192.1.1 for Class C subnet. You can find out the computer's IP address by typing "IPCONFIG" in WinNT/2000/XP's command line. For Win9x, run "WINIPCFG".
- Avoid operating device in 10Mbps full duplex mode if the device does not have auto-negotiation function.
