USER MANUAL LIVE-FSH8R AIRLIVE

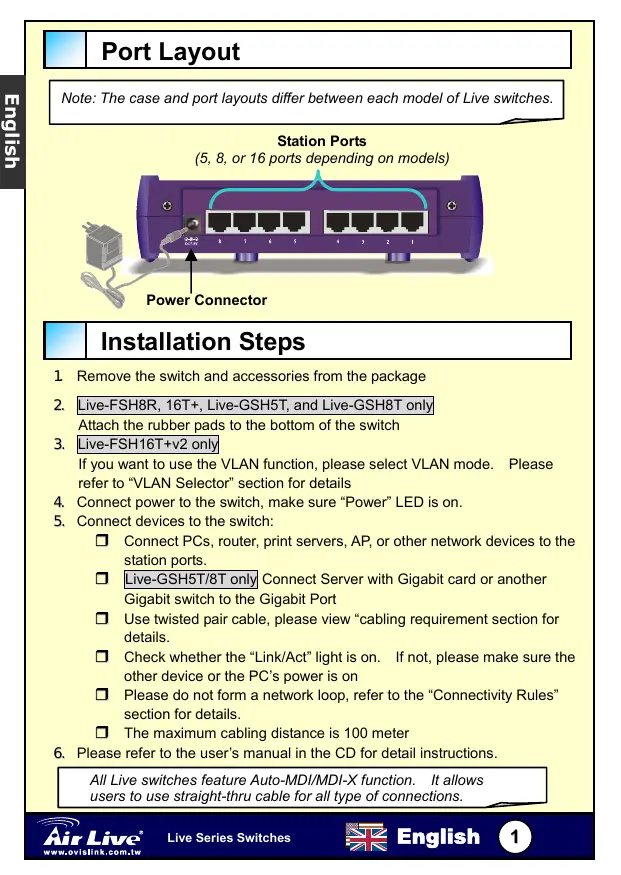

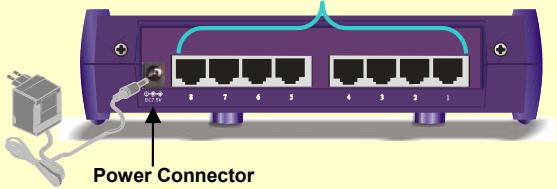

Port Layout English Note: The case and port layouts differ between each model of Live switches. Station Ports (5, 8, or 16 ports depending on models)

Remove the switch and accessories from the package

2. Live-FSH8R, 16T+, Live-GSH5T, and Live-GSH8T only

Attach the rubber pads to the bottom of the switch

3. Live-FSH16T+v2 only

If you want to use the VLAN function, please select VLAN mode. Please refer to “VLAN Selector” section for details

4. Connect power to the switch, make sure “Power” LED is on.

5. Connect devices to the switch:

ˆ Connect PCs, router, print servers, AP, or other network devices to the station ports. ˆ Live-GSH5T/8T only Connect Server with Gigabit card or another Gigabit switch to the Gigabit Port ˆ Use twisted pair cable, please view “cabling requirement section for details. ˆ Check whether the “Link/Act” light is on. If not, please make sure the other device or the PC’s power is on ˆ Please do not form a network loop, refer to the “Connectivity Rules” section for details. ˆ The maximum cabling distance is 100 meter

6. Please refer to the user’s manual in the CD for detail instructions.

All Live switches feature Auto-MDI/MDI-X function. It allows users to use straight-thru cable for all type of connections. Live Series Switches English

LED & Cabling Rules LED indicator Status Meaning Power ● Green

OFF Power ON Power OFF Link/Act ● Green

Blinking OFF Connection is made Transmitting/Receiving No connection is made FDX/Col ● Yellow

OFF Blinking Full Duplex Half Duplex Collisions (in half duplex) ● RED

1000/ACT 100/ACT 10/ACT ● Green ● Green ● Green ● Green Port Type 10/100 Ports Cable to use 100Mbp :CAT5 UTP/STP 10Mbps: Cat 3, 4, 5 UTP/STP Gigabit Port (Live GSH5T/8T) 10/100/1000Mbps Cat 5 UTP/STP To PC Straight-through To hub/switch Straight-through Straight-through Maximum distance 100m 100m Live Series Switches Straight-through English

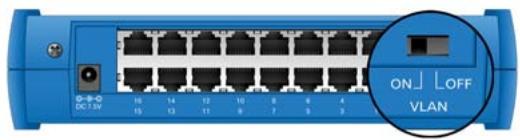

VLAN Selector (Live FSH16T+ only) English For normal operation, please make sure your VLAN switch is in “OFF” Position Live-FSH16T+ is equipped with VLAN selector switch in the back panel. When activated, each port will be in its own VLAN group with 2 sharing ports. Ports in different VLAN groups cannot see each other. However, everyone can see the sharing port. Please make sure your VLAN selector is in “OFF” position if you are not using the VLAN function.

ON: Every port in its own VLAN group sharing Port 8 and 16 OFF: VLAN function off, the switch operates in normal mode Connectivity Rules ˆ Please avoid forming a network loop (see the diagram on the right) when connecting the cables. A network loop can cause the network to shutdown.. ˆ The maximum cable distance is 100 meter ˆ Always check the LED lights for trouble shooting ˆ Computers and network devices must be in the same IP subnet in order to see each other. For example, 198.168.0.1 can not see 192.192.1.1 for Class C subnet. You can find out the computer’s IP address by typing “IPCONFIG” in WinNT/2000/XP’s command line. For Win9x, run “WINIPCFG”. ˆ Avoid operating device in 10Mbps full duplex mode if the device does not have auto-negotiation function. Live Series Switches English

MEMO Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

OvisLink Corp. 2F, NO.8 Lane 130, Min Chuan Road, Hsin-Tien City Taipei, Taiwan
