SANUS

CAUTION:

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCT

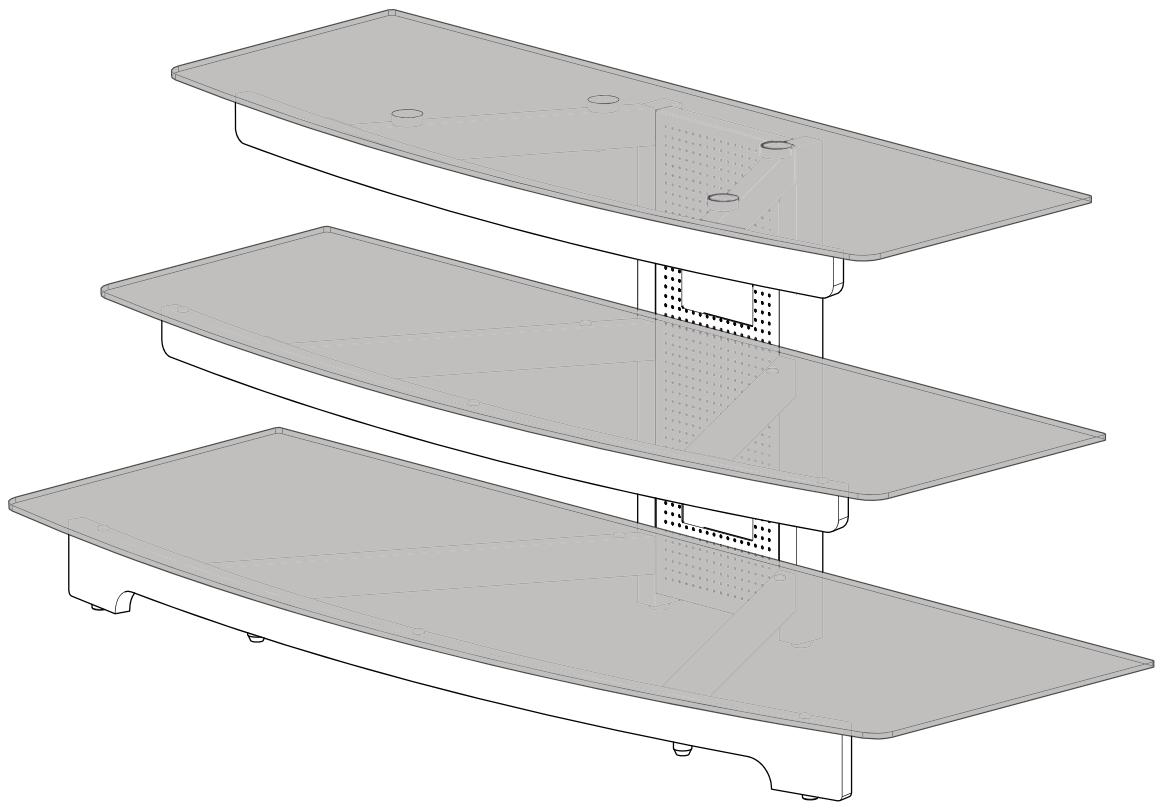

Specifications

Weight capacities:

Top shelf:57 kg (125 lbs)
Middle shelf: 23kg (50 lbs)
Bottom shelf: 23kg (50 lbs)

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose not explicitly specified by manufacturer.
If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact manufacturer Customer Service or call a qualified contractor.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

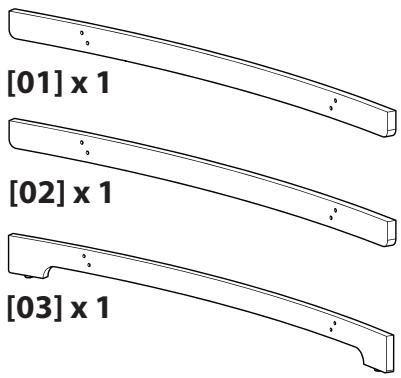

Supplied Parts and Hardware.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used

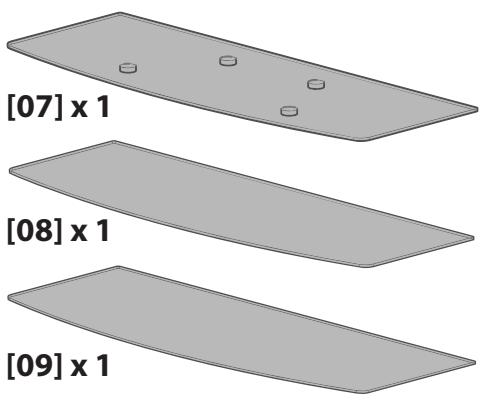

Begin with the top glass assembly [07] top-down on a soft surface on the floor. Pucks (p)should face upward.

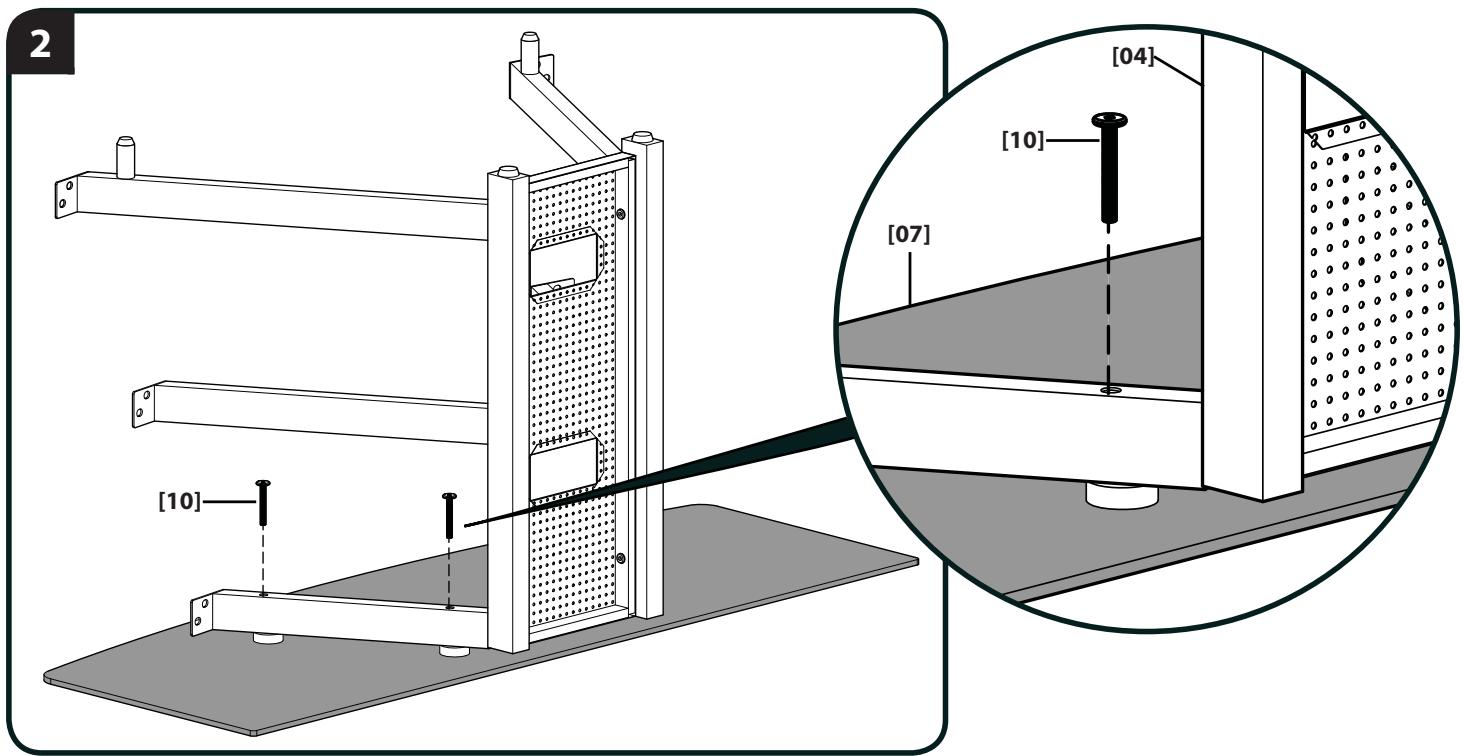

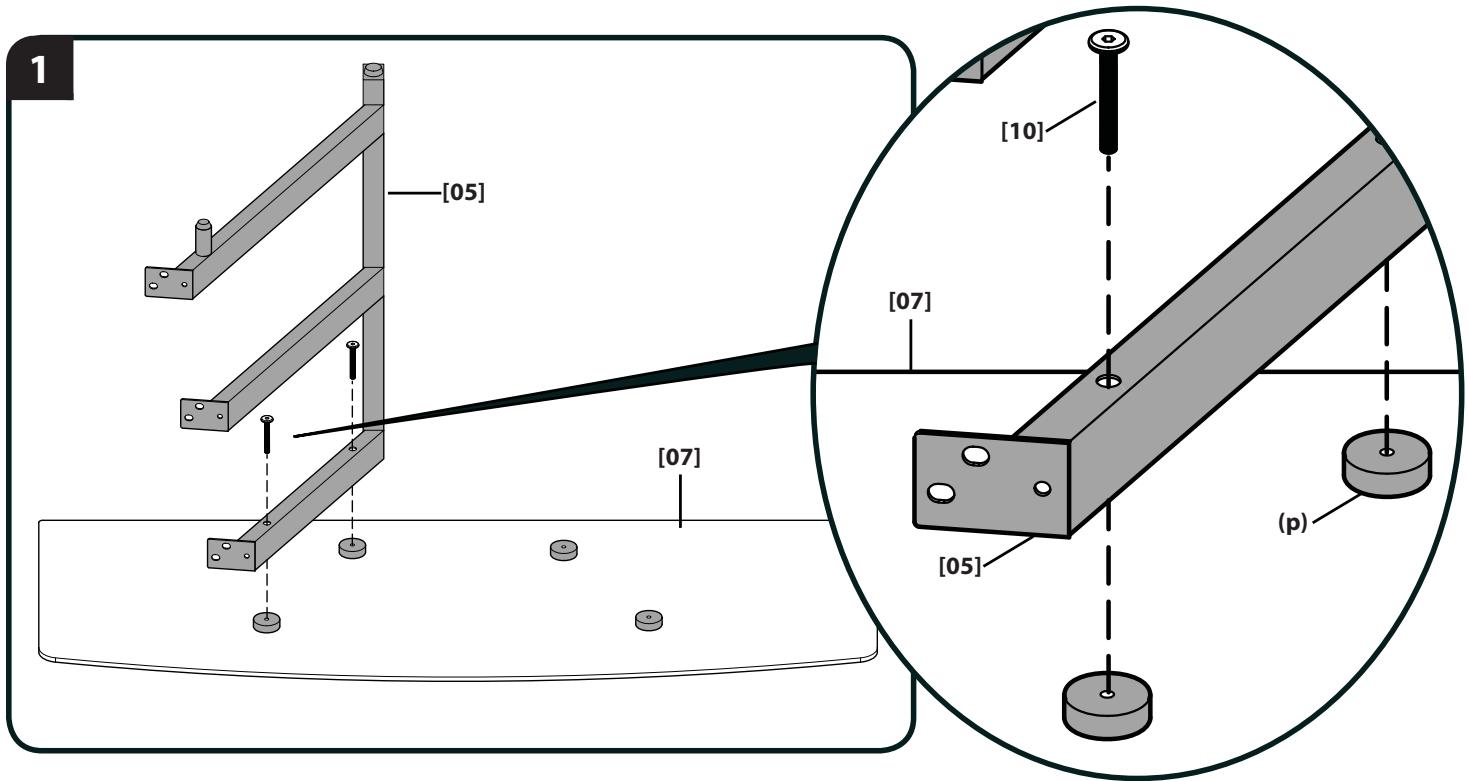

1. Attach right leg assembly [05] to the top glass assembly [07] using bolt [10].

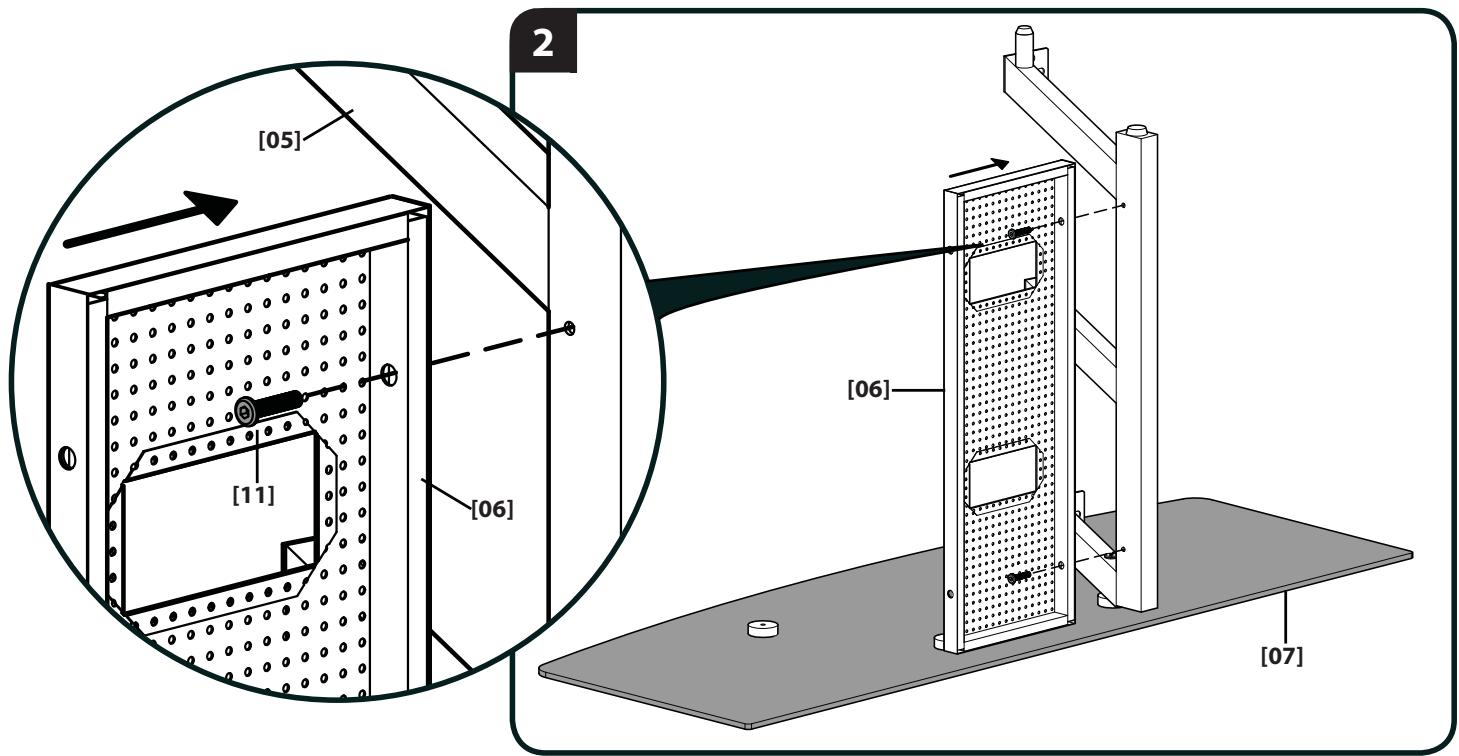

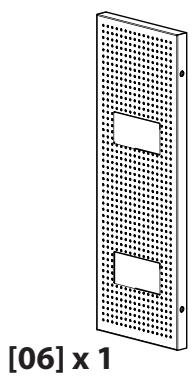

2. Attach the back panel [06] to the right leg assembly [05] using bolt [11].

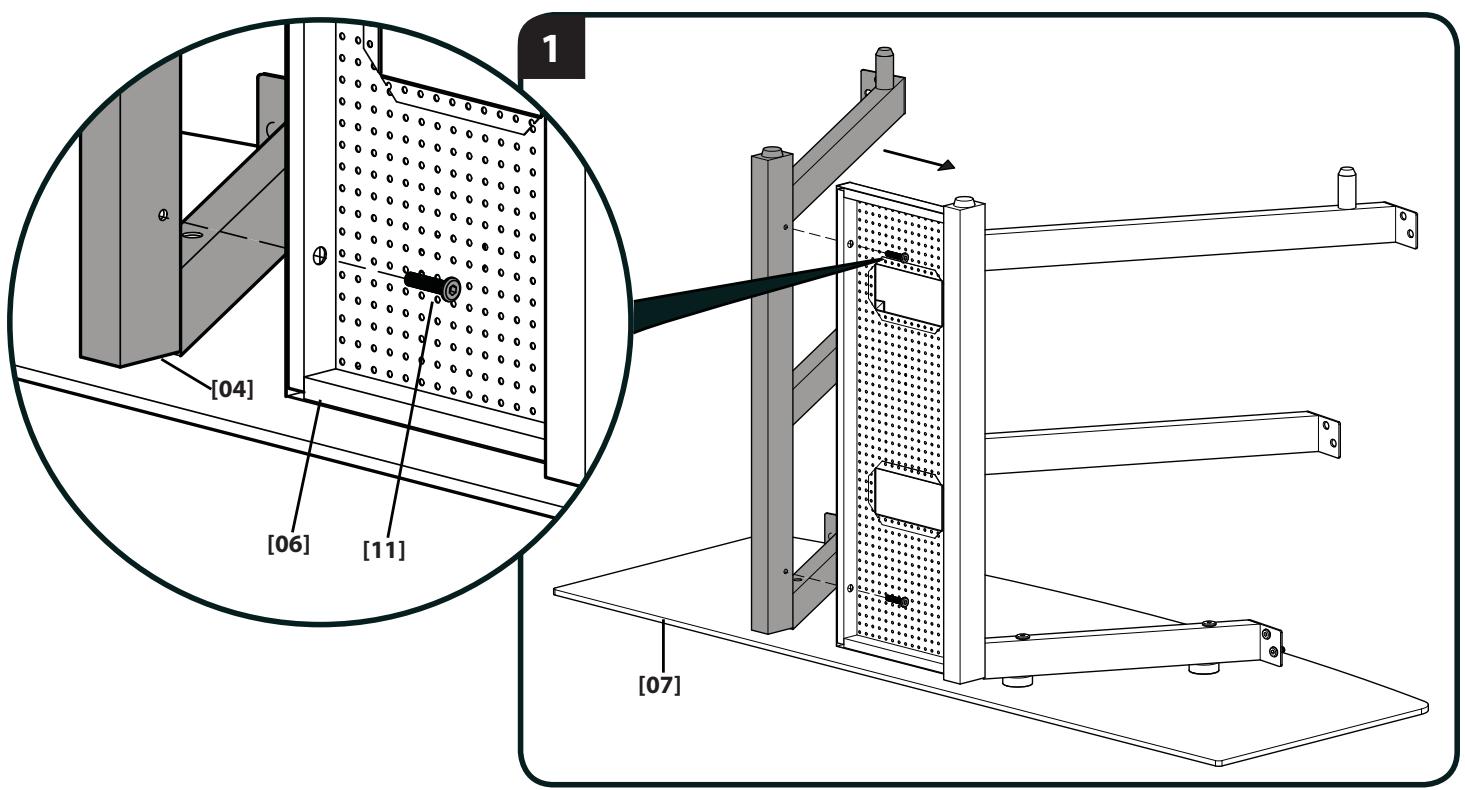

1. Attach left leg assembly [04] to the back panel [06] using bolt [11].
2. Attach the left leg assembly [04] to the top glass assembly [07] using bolt [10].

1. Attach the top front panel [01] to the leg assemblies [04, 05] using bolt [12], as shown.

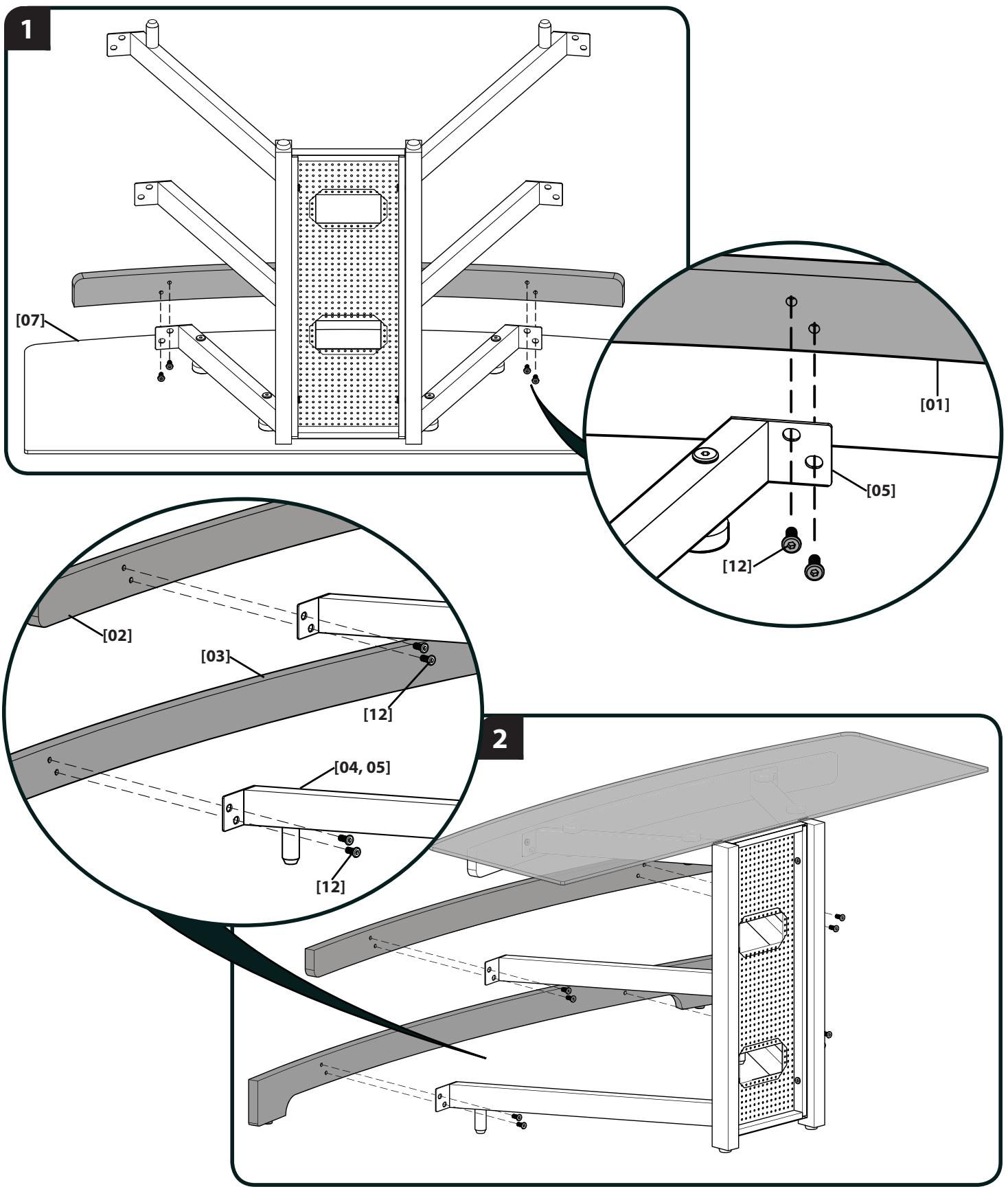

2. Flip the unit right side up. Attach the middle and bottom front panels [02, 03] to the leg assemblies [04, 05] using bolt [12], as shown.

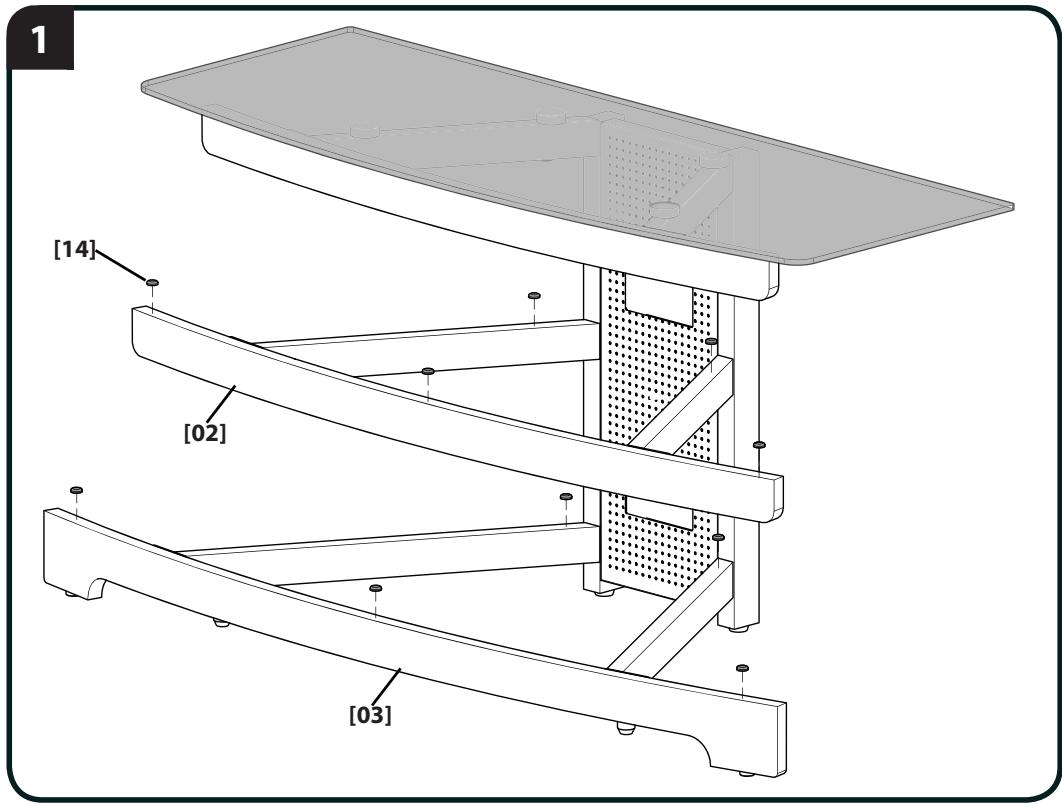

1. Attach the clear bumpers [14] to the front panels [02, 03] and the leg assemblies [04, 05] as shown.

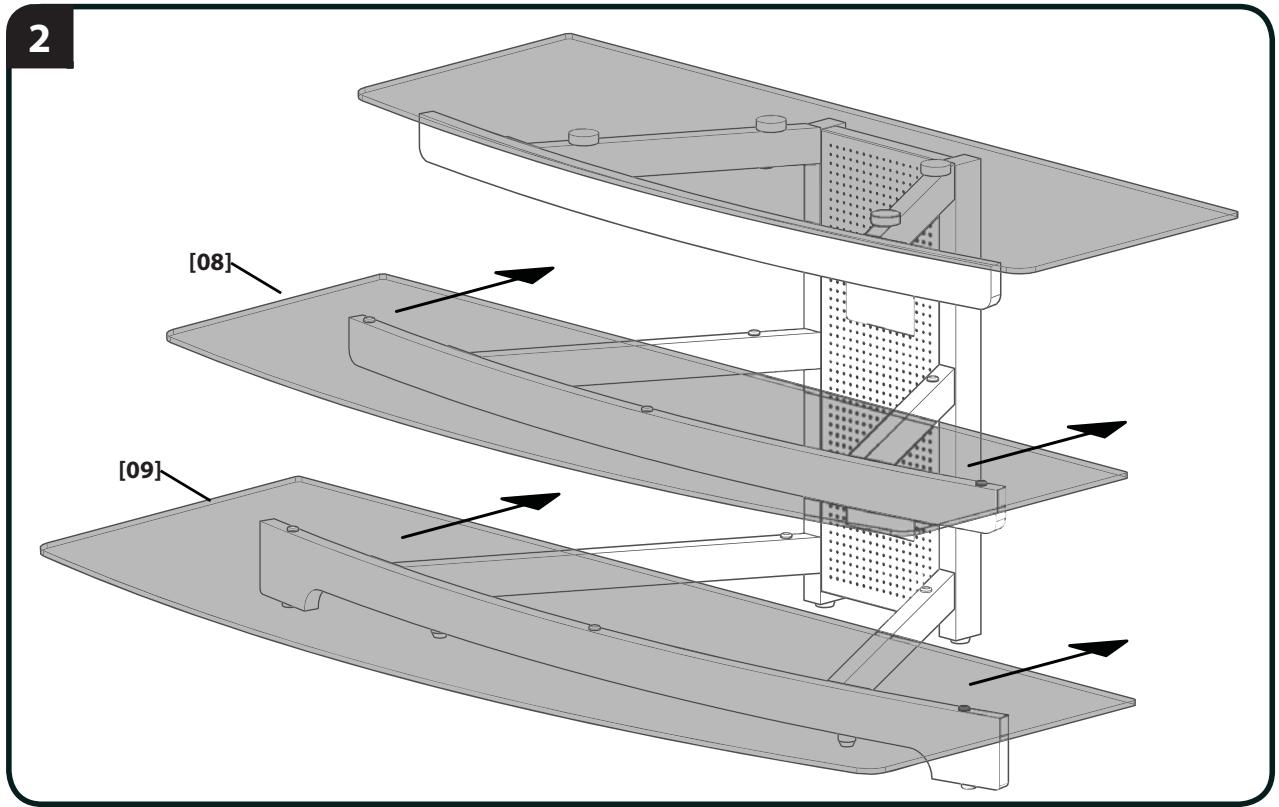

2. Gently place glass shelves [08, 09,] on top of the clear bumpers [14].

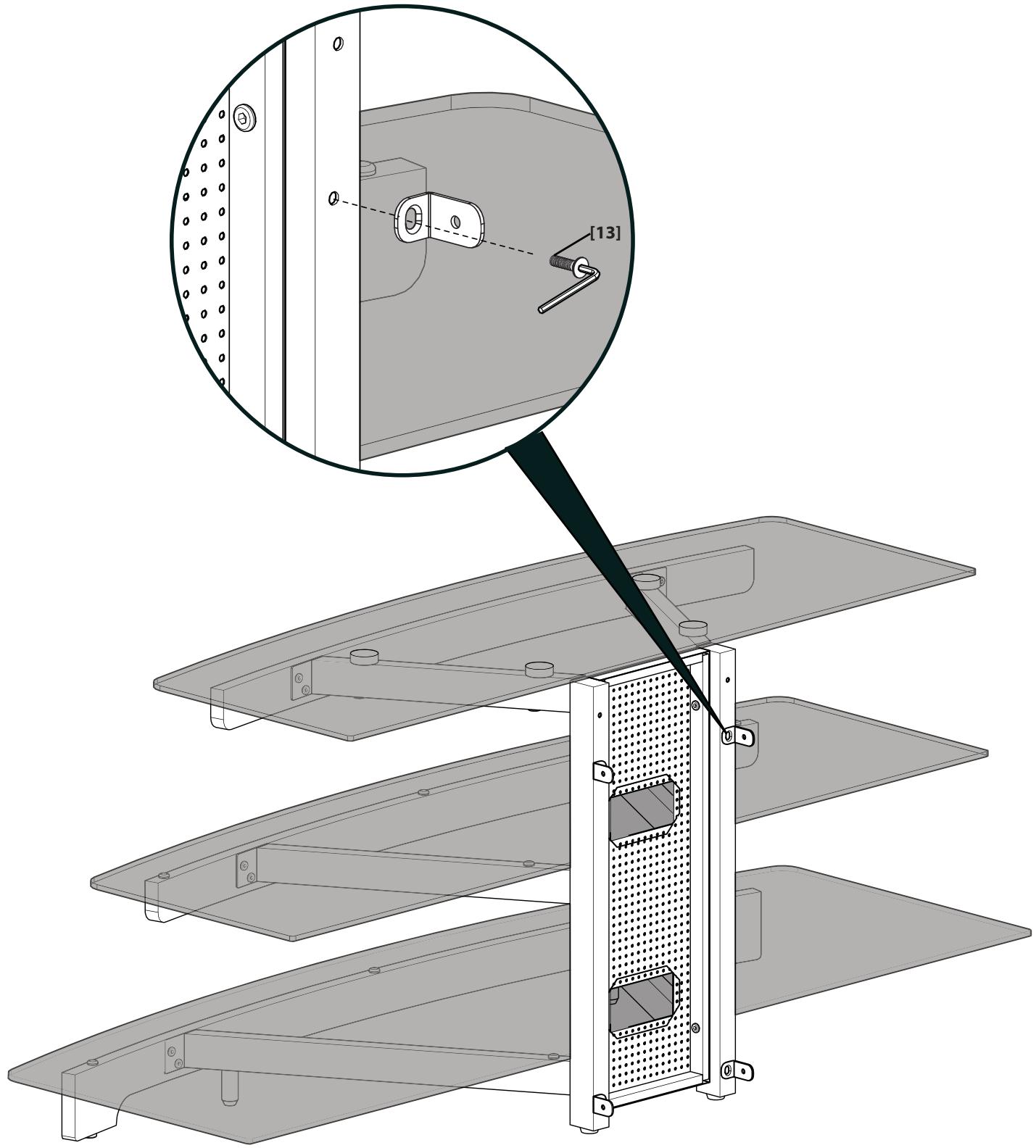

NOTE: The M4 allen key and pillar bracket are included with the FMK056 pillar kit mount.

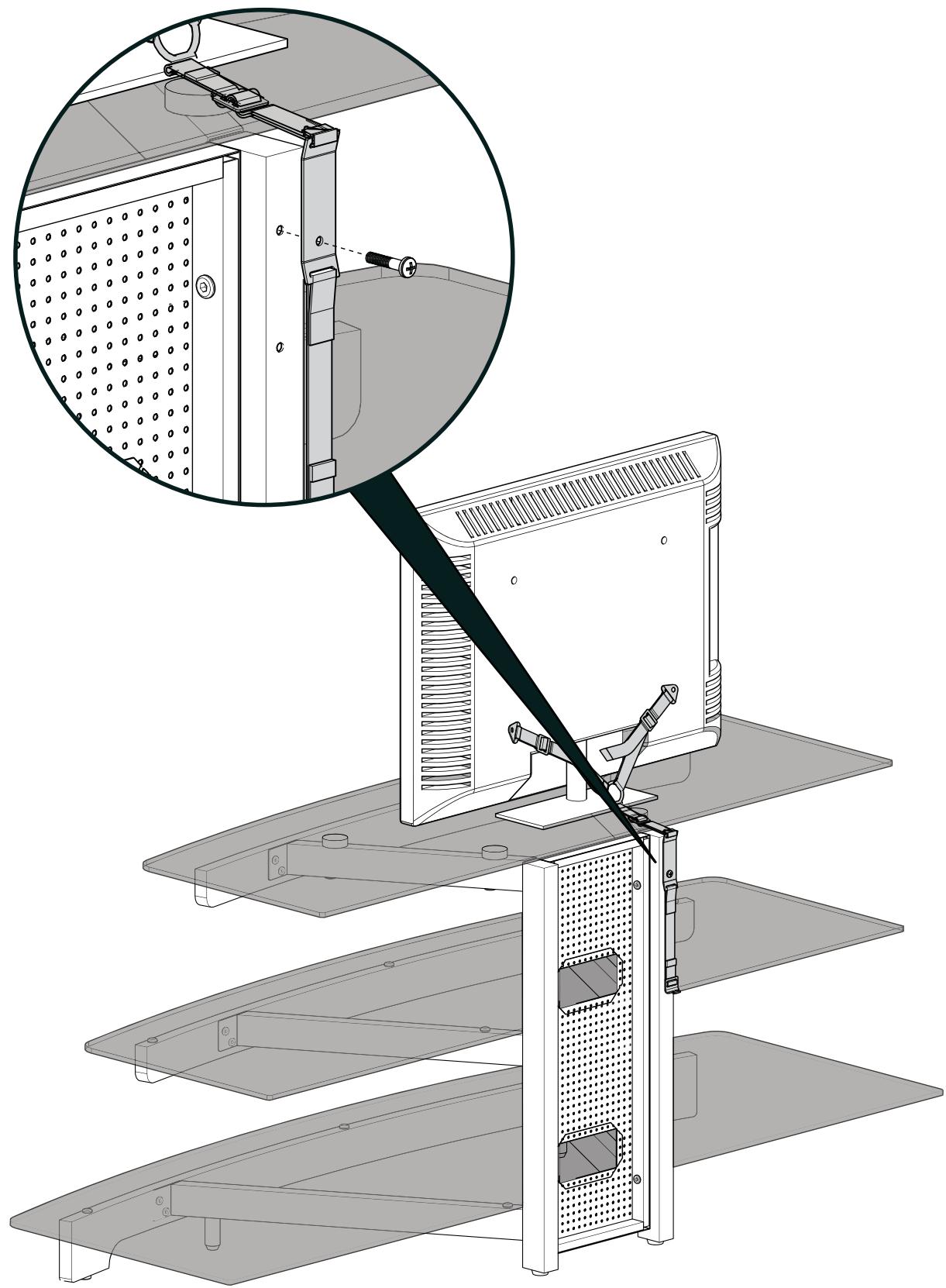

Attach the ELM701 Anti-tip Strap

NOTE: Hardware to attach the ELM701 Anti-Tip Strap is included with the strap.

ATTENTION:

INFORMATIONS IMPORTANTES CONCERNANT LA SECURITE - CONSERVEZ CES INSTRUCTIONS - VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL AVANT D'UTILISER CE PRODUIT

1. Attach the clear bumpers [14] to the front panels [02, 03] and the leg assemblies [04, 05] as shown.
2. Gently place glass shelves [08, 09,] on top of the clear bumpers [14].
