Product type	Refrigerator with freezer compartment
Climate class	SN, N, ST, T (from +10°C to +43°C)
Temperature setting	Positions 1 (warmest) to 6 (coldest), position 0 for off
Refrigerator defrosting	Automatic, water drained to rear tray
Freezer defrosting	Manual, when frost layer reaches 5 mm
Interior equipment	Adjustable shelves, removable door bins, vegetable drawer, ice cube tray
Power supply	230 V, 50 Hz (standard)
Installation	Built-in under worktop, niche height 820 or 890 mm
Door reversal	Possible, left or right side
Maintenance	Interior cleaning with warm water and bicarbonate, cleaning ventilation grille
Bulb replacement	Unscrew ceiling light, replace with bulb of same wattage
Child safety	Packaging caps dangerous, door closing device to be neutralized when disposing
Energy consumption	Energy saving tips: avoid prolonged opening, do not place hot food
Recyclable materials	Packaging in PE, PS, PP; appliance to be taken to recycling center

Frequently Asked Questions - BRV82 BORETTI

How to adjust the refrigerator temperature?

Turn the thermostat knob located in the refrigerator compartment on the right. Position 1 is the warmest, position 6 the coldest, and position 0 turns off the appliance. A medium position is recommended.

What to do if water accumulates at the bottom of the refrigerator?

The defrost water drain hole is probably clogged. Clean it with the provided stick (located in the hole) to prevent the vegetable drawer from filling with water.

How to defrost the freezer?

Wrap food in newspaper and place in a cool place. Turn the thermostat to 0 or unplug the appliance. Leave the door open, place a container under the drain opening and remove the plug. Once defrosted, wipe dry and replace the plug.

The interior light no longer works, how to change it?

Unplug the appliance. Unscrew the fixing screw of the ceiling light, unhook the movable part, then replace the bulb with one of the same wattage. Screw the ceiling light back on.

When should the ventilation grille be cleaned?

The ventilation grille must be cleaned periodically to ensure good ventilation. Remove the baseboard, dismantle the grille, then vacuum or clean the rear part near the wall.

Can I reverse the door opening direction?

Yes, it is possible to reverse the refrigerator and freezer doors. Follow the instructions provided in the installation manual. After reversal, check that the magnetic seal adheres well.

The appliance makes a gurgling noise, is this normal?

Yes, these noises are normal. They come from the circulation of the refrigerant (liquid, gas or vapor) and the operation of the compressor. Clicking may also occur during startup cycles.

How to save energy with this refrigerator?

Install the appliance away from heat sources, do not open the door unnecessarily, do not place hot food, and use the appropriate thermostat setting. Defrost the freezer regularly.

What to do in case of a power outage?

Do not open the door. If the interruption lasts less than 12 hours and the freezer is full, the food remains frozen. Otherwise, consume the food quickly.

What are important safety precautions?

Do not pull the cable to unplug, do not place carbonated drinks in the freezer, do not touch frozen food with wet hands, and do not repair the appliance yourself. Call a professional.

USER MANUAL BRV82 BORETTI

Avertissements important 16

Elimination 17

Congélation et surgélation

CE-73/23 CEE 19/02/73 (Basse Tension) et modifications successives;

Notes which are important for your safety or for the proper functioning of the appliance

Supplementary information regarding operation and practical applications of the appliance.

Tips and notes concerning economical and environmentally sound use of the appliance

Safety Instructions

This information has been provided in the interests of your safety. Please read it before installing or using the appliance. Please retain the instruction book for future reference. If owner ship is transferred, please leave the user manual for the new owner.

Domestic Use

• The domestic refrigerators and freezers are designed to be used specifically for the storage of edible foodstuffs only.
• Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer.
• This appliance is heavy. The edges and projecting parts of the cabinet may be sharp. Be careful when moving the cabinet and always use gloves.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• Make sure that the power plug is not squashed or damaged by the back of the appliance. Make sure that the cable is not trapped underneath the appliance, nor touches the motor.
• Do not remove the power cord by pulling on its lead, particularly when the appliance is being pulled out of its niche. If the power plug socket is loose, do not insert the power plug. Damage to the cord may cause a short-circuit, fire and/or electric shock.
• Do not use electrical appliances inside the appliance.
• Do not keep carbonated drinks or bottles in the freezer compartment. The glass bottles may break.
• Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer.
• It is dangerous to try and alter the specifications or modify this product in any way.
• Under no circumstances should you attempt to repair the appliance yourself. Refer to your local Service Centre, and always insist on genuine spare parts.

Child Safety

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• This appliance is designed to be operated by adults only. Do not allow the children to tamper with the controls or play with the products. There is a risk of suffocation! Keep packaging material away from children!

Environment Protection

• This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit. Information on your local disposal sites may be obtained from your municipal authorities.

Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

Disposal

Appliance Packaging Information

• The materials marked with the symbol are recyclable.

PE< for polyethylene, e.g. sheet wrapping material

PS< for polystyrene, e.g. padding material (always CFC-free)

POM< polyoxymethylene, e.g. plastic clips.

All materials are environmentally sound!

Disposal of old appliances

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Contents

Important Safety Instructions 28

Disposal 28

Use and Control Before Use / Refrigerator compartment - Starting the appliance 30

Refrigerator compartment - Temperature control / Internal parts / Hints 31

Freezer compartment - Temperature control / Interior accessories / Hints 32

Maintenance Defrosting / Cleaning 33

Changing the light bulb 34

Something not Working 34

Customer Service and Spare Parts / Technical Specifications 35

Installation Positioning 35

Electrical connection 36

Building in the appliance under a worktop Grid preparation 36

Building in 37

Fitting the plinth 40

Door reversibility 40

Inner door reversal 41

Use and Control

Before Use

Wait two hours before connecting the appliance to allow the oil to flow back in the compressor.

• Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

• Remove safety elements used for transportation.

Refrigerator compartment

Starting the appliance

• Insert the plug into the wall socket and turn the thermostat knob clockwise beyond position «O» (OFF).

• The thermostat control situated inside the fridge compartment regulates the temperature of the appliance.
• Turn the thermostat control to the required setting.

Temperature Control

• The following effects are of significance in respect of the interior temperature:
• Ambient temperature
• Quantity and temperature of the food stored;
• Frequency with which the door is opened and how long it is left open
• the location of the appliance.
• The temperature inside the appliance is automatically adjusted.
• Setting, 1^ = highest temperature, warmest setting
• Setting, 6^u = lowest temperature, coldest setting.
• Setting ,* = Off

A medium setting is generally the most suitable.

Internal Parts

Storage shelves

• The shelves can be removed for cleaning.
• To permit storage of food packages of various sizes, the shelves can be placed at different heights.
• To remove the internal shelf pull forward until it can be tipped up or down and removed.
• Please do the same in reverse to insert the shelf at a different height.

• For better use of space, the front half-shelves can lie over the rear ones.

The glass shelf above the vegetable drawers and the bottle shelf should always remain in position, to ensure correct air circulation.

Door shelves

This model is equipped with a variable storage box which is fitted under a door shelf compartment and can be slid sideways.

• For more thorough cleaning, the top and bottom door sheves can be easily removed and refitted in position.

Hints

Saving Energy

• Pay careful attention to where the cabinet is placed. See the section "Installation". When installed correctly the cabinet will consume less energy.
• Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
• If the ambient temperature is high, the thermostat knob is on the coldest setting (higher numbers) and the appliance is fully loaded, the compressor may run continuously, causing frost or ice to form on the evaporator. If this happens, turn the knob to a warmer setting (lower numbers) to allow automatic defrosting and so a saving in electricity consumption.
• Do not place warm foods inside the appliance. Allow warm foods to cool first.
• Put frozen food in the fridge to defrost. The cold in the frozen food will then be used to cool the fridge.

Hints for refrigeration

• Do not store warm food or evaporating liquids in the refrigerator and do cover or wrap up the food, particularly if it has a strong smell.

To help you use your refrigerator correctly, here are some useful hints:

• Raw meat (beef, pork, lamb & poultry): wrap in polythene bags and place on top of the salad compartment, this being the coldest spot in the refrigerator.

Meat can only be stored safely in this way for one or two days at the most.

• Cooked food, cold cuts, jelly, etc.: these should be well covered and can be stored on any of the glass shelves.
• Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom bin/s.
• Butter & cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to keep out as much air as possible.
• Milk bottles: these should have a top and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Freezer compartment

Temperature Control

• To freeze fresh foods it is not necessary to change the setting of the thermostat knob.
• For a quicker freezing operation, turn the thermostat knob to the coldest setting; but remember that, in this condition, the refrigerator compartment temperature might drop below 0^ . If this occurs reset thermostat knob to a warmer setting.
• At the first starting-up or after a period out of use, before putting the products in the compartment, let the appliance run for at least two hours on the coldest setting, then turn the thermostat knob to the normal operating position.

Interior Accessories

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes.

Fill these trays with water, then put them in the freezer compartment.

Do not use metallic instruments to remove the trays from the freezer.

Hints

Freezing of fresh food and storage of frozen food

• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required.
• Wrap up the food in aluminium foil or polythene and make sure that the packages are airtight.
• Do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter.
• Do not touch frozen food with wet hands. Your hands could stick to the food and cause skin abrasions.
• It is advisable to show the freezing-in date on each individual pack to enable you to keep tab of the storage time.
• Be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time.
• Do not put carbonated liquids (fizzy drinks, etc.) in the freezing compartment as they may burst.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.

Unplug the appliance before carrying out any maintenance operation.

Warning

This appliance contains hydrocarbons in its cooling unit maintenance and recharging must therefore only be carried out by authorised technicians.

Defrosting

Refrigerator compartment

• Defrosting the refrigerator compartment is automatic. The defrost water drains out through a trough into a container at the back of the appliance, above the motor compressor, where it evaporates.

• It is important to periodically clean the defrost water drain hole (F) situated under the salad drawers to prevent the water overflowing and dripping onto the food inside. Use the special cleaner provided (P), which you will find already inserted into the drain hole.

Freezer compartment

• Remove the frost with a plastic scraper.
• Whenever the thickness of the frost exceeds 5mm complete defrosting should be carried out.

Proceed as follows:

• Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.

• Pull out the plug from the wall socket or turn the thermostat knob to the «O» setting.

• Leave the door open, place a basin on the top shelf of the refrigerator compartment, under the drain hole, remove the plug as shown in the figure.

• When defrosting is completed, dry the interior thoroughly and refit the plug.
• Turn the thermostat knob back to the required setting or replace the plug in the power socket.
• Reload the previously removed food into the compartment.

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

Cleaning

Never use metal objects for cleaning your appliance as it may get damaged.

NEVER use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as these will damage the surface and leave a strong odour.

Clean the inside with warm water and bicarbonate of soda. Rinse and dry thoroughly.

The appliance is equipped with a ventilation grid. Keep clean to guarantee good ventilation and good working order of the appliance.

An accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

The structure of the appliance permits cleaning of the rear zone close to the wall, using a vacuum cleaner.

1. Remove the plinth (1), then the ventilation grid (2);

1. Carefully pull the air deflector out (3), checking that there is no water left from the defrosting.

When the appliance is not in use

Disconnect the appliance from the electricity supply. Empty all foods and clean the appliance, leaving the doors ajar to prevent unpleasant smells.

Changing the light bulb

• Should the interior light fail to work, first switch off the appliance and disconnect from the electricity supply, then replace the bulb as follows:

• unscrew the light cover securing screws.

• unhook the moving part by pressing it as shown in the figure.

1. Replace the bulb by other with another with the same characteristics.

Something not Working

Problems may be due to causes which can easily be solved before calling the Technical Service. Please follow these instructions:

SYMPTOM	SOLUTION
Door does not close	Weight surpasses the storage limit of the door shelf so spread weight more evenly or take some products out. The appliance is not properly installed. Please look in the "Building-in" section.
It is too warm inside the refrigerator	Set a lower temperature. Distribute the food products to allow cold air to circulate around them. Make sure that the door is completely closed and that the insulating strip is complete and clean. The temperature where the cabinet is placed is above normal room temperature.
It is too cold inside the refrigerator.	Turn the temperature regulator to a warmer setting temporarily.
The compressor works continuously.	Turn the thermostat knob to a lower number. The temperature where the cabinet is placed is above normal room temperature. Check that the ventilation is sufficient and that the ventilation openings are unobstructed. The cause could be the introduction of large quantities of food and/or frequent opening/closing of the door.
There is water inside/outside the refrigerator.	Sometimes is normal. During automatic defrosting frost thaws on the cooling plate.
Water comes out on the floor.	Place the drain hose at the back of the cabinet above the drain bowl.
Noises	Sometimes this is normal. Temperature control may cause clicking sounds when the system is connected or disconnected. The injected cooling gas may produce a gurgling sound while passing through the tubes. The motor may cause a humming noise and/or slight bumping. The insulation material used has a tendency to slightly increase noise levels, how ever it allows for much better insulation and a lower energy consumption.

Customer service and spare parts

If you cannot find the remedy for a malfunction in these operating instructions, please contact your dealer or our customer service department and consult the Guarantee card.

Selective ordering of replacement parts can save unnecessary travel and costs.

For this reason always provide the following appliance information:

• Model Name
• Model Number (PNC)
• Serial Number (S-No.)

This information can be found on the rating plate inside the cabenit on the left hand wall. We recommend that you enter this information here, so that it is handy if needed.

Technical specifications

The technical data is indicated in the rating plate on the right side inside the appliance.

If there is a power failure when food is in the freezer, do not open the door of the freezer compartment. The frozen food will not be affected if the power cut is of short duration (up to 12 hours) and the freezer compartment is full, otherwise, it is recommended that the food should be used within a short time (a temperature increase of the frozen food shortens its safe storage period).

Installation

Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.

• During normal operation, the condenser and compressor at the back of the appliance heat up considerably. Always ensure that there is adequate ventilation as a failure to do this will result in component failure and possible food loss. See installation instructions.
• Important: if the supply cable is damaged, it must be replaced by authorised service or qualified personnel using a special cable of the same type.

Positioning

• Unpack the cabinet and check that it is in good condition and free of any transport damage.
• The appliance must not be located close to radiators or gas cookers.
• Avoid prolonged exposure of the appliance to direct sunlight.
• For building-in and door reversibility refer to the relevant instructions.

The climate classification can be found on the rating plate, which is located inside the cabinet on the right hand wall.

The following table shows which ambient temperature is correct for each climate classification:

Climate classification	for an ambient temperature of
SN	+10 to +32°C
N	+16 to +32°C
ST	+18 to +38°C
T	+18 to +43°C

When the ambient temperature is not included within the range indicated for the class of this appliance, the storage temperature in the appliance cannot be guaranteed; therefore it is advisable to use the food stored as soon as possible.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply.

Voltage can vary by ± 6% of the rated voltage.

For operation with different voltages, a suitably sized auto-transformer must be used.

Important

The appliance must be earthed.

The power supply cable plug is provided with a contact for this purpose.

If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a specialist technician.

The Manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the following E.E.C. Directives:

87/308 EEC of 2/6/87 relative to radio interference suppression.

• 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications.

• 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Building in the appliance under a worktop

Grid preparation

Left door opening:

Remove the left side (A) of the grid cutting it from the rear (see figure).

Right door opening:

Remove the right side (B) of the grid cutting it from the rear (see figure).

To position the grid on the appliance proceed as follows:

Apply the grid to the base of the appliance by pushing on to the clasps (a) until they click.

Building-in

Dimensions of the recess

The dimensions of the recessed installation area must correspond with those indicated in the figure.

1. Installation kit

1. Two cabinet securing brackets (D) are supplied with the installation pack. They need to be assembled onto the cabinet prior to cabinet being pushed into the Kitchen aperture.

• To fit these brackets remove the two screws at the top left and right hand front corners of the cabinet.
• Position the two brackets as shown in the figure and replace the two securing screws.

1. Push the appliance into place. The plug socket necessary for connection of the appliance to the electricity supply should be positioned, so that the plug is not placed in the recess.

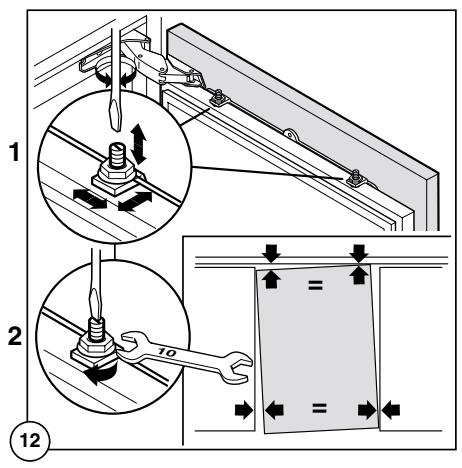

To adjust the height proceed as follows:

• Loosen or tighten the two front feet.
• The rear feet are adjusted by turning the screw in the front kick plate to the left or right.

1. The joint cover (B) is to be assembled after having installed the appliance in the recess.

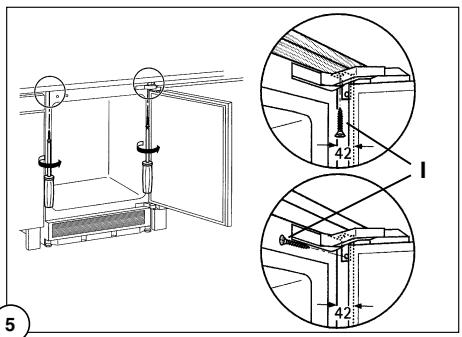

1. Screw appliance into place and retain the cabinet with screws (I) through the securing brackets into the worktop or adjacent woodwork as necessary.

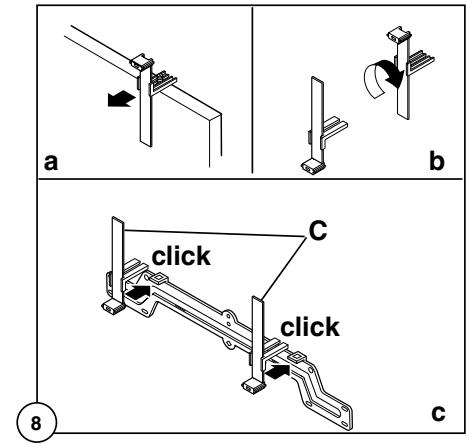

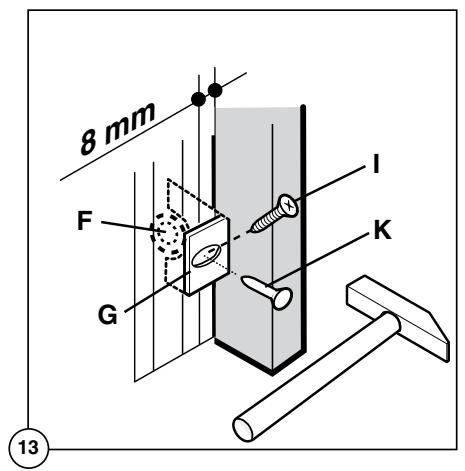

2. To mount the furniture door proceed as shown in the figures:

7. Refit the covering strip (A).

Fitting the plinth

Important

For the efficient operation of the appliance, it is important that the original ventilation grid is used.

• For an opening height dimension A = 820 mm and a plinth height dimension a = 100 mm , the plinth may be fitted without adjustments. The same applies to an opening height dimension B = 890 mm and a plinth height dimension b = 170 mm .
• For plinth heights greater than a = 100 mm , b = 170 mm , a cut should be made in the plinth, 580 mm wide, in the centre of the appliance position, leaving a remaining height of a = 100 mm , b = 170 mm .
• Attach plinth to the kitchen units.

Important

The plinth must be positioned at a minimum distance of 25mm from the door.

Door reversibility

To reverse the opening direction of the door, proceed as follows:

Warning!

If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdrier.

Inner door reversal

PE<=Polyathylen
PS<=Polystyrol
PP<=Polypropylen
