USER MANUAL BKIV178 BORETTI

Installing and operating your fridge freezer

Before Using your fridge freezer

Tips for saving energy ...............................................................................37 PARTS OF THE APPLIANCE AND THE COMPARTMENTS ................. 38 The operating instructions apply to several models. Dierences may therefore occur.EN - 23 - PART - 1.

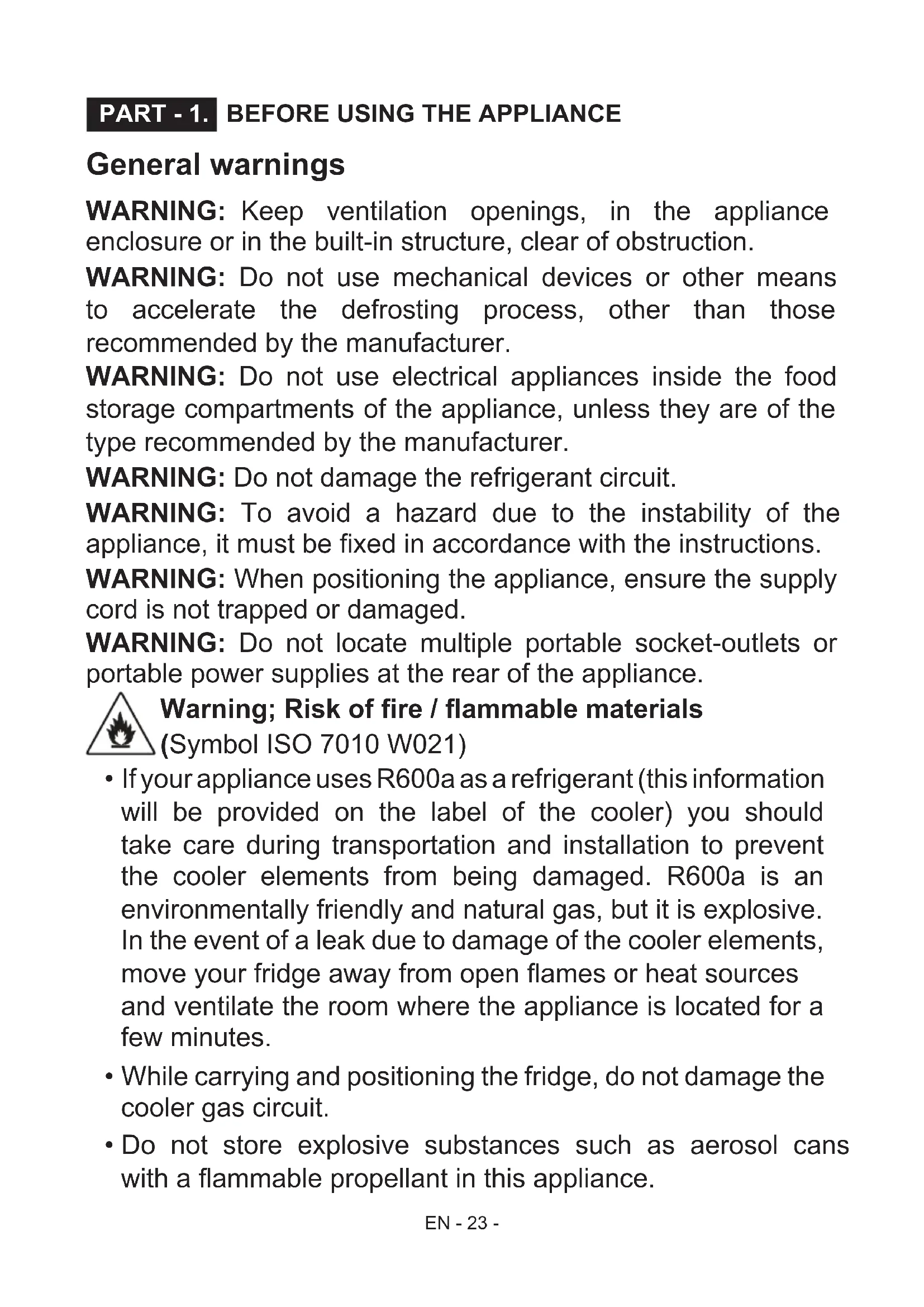

WARNING: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means

to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the

appliance, it must be xed in accordance with the instructions.

WARNING: When positioning the appliance, ensure the supply

cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or

portable power supplies at the rear of the appliance. Warning; Risk of re / ammable materials (Symbol ISO 7010 W021)

• If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open ames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.EN - 24 -

• This appliance is intended to be used in household and domestic applications such as: - sta󰀨 kitchen areas in shops, o󰀩ces and other working environments. - farm houses and by clients in hotels, motels and other residential type environments. - bed and breakfast type environments; - catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualied persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualied persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding 2000 m.EN - 25 - Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

• Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridges.

• Please ask your municipal authority about the disposal of the WEEE reuse, recycle and recovery purposes. Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specied purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case. Safety warnings

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.

• Do not plug in damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang o󰀨 the door.

• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

• Do not place glass bottles or beverage cans in the ice-making compartment as they can burst as the contents freeze.

• Do not place explosive or ammable material in your fridge freezer. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.

• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezerEN - 26 - compartment!

• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after you have taken them out of the ice-making compartment.

• Do not cover the body or top of fridge with lace. This a󰀨ects the performance of your fridge freezer.

• Secure any accessories in the fridge freezer during transportation to prevent damage to the accessories.

• Do not use plug adapter Installing and operating your fridge freezer Before starting to use your fridge freezer, you should pay attention to the following points:

• The operating voltage for your fridge freezer is 220-240 V at 50Hz.

• The plug must be accessible after installation.

• Your fridge may have a smell when it is operated for the rst time. This is normal and the smell will fade away when your fridge freezer starts to cool.

• Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualied electrician.

• Insert the plug into a socket with an e󰀩cient ground connection. If the socket has no ground contact or the plug does not match, we recommend that you consult a qualied electrician for assistance.

• The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

• Place your fridge freezer where it will not be exposed to direct sunlight.

• Your fridge freezer should never be used outdoors or exposed to rain.

• Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

• When your fridge freezer is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not place heavy items on the appliance.

• Clean the appliance thoroughly, especially the interior, before use (see Cleaning and Maintenance).

• The installation procedure into the kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.

• Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge freezer after cleaning.EN - 27 - Before Using your fridge freezer

• When using your fridge freezer for the rst time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows e󰀩cient operation and prevents damage to the compressor.

• Your fridge freezer may have a smell when it is operated for the rst time. This is normal and the smell will fade away when your fridge freezer starts to cool. Information about The New Generation Cooling Technology The New Generation Cooling Technology refrigerators are di󰀨erent from the other static refrigerators in terms of their operational system. In normal fridge freezers, the humidity entering the fridge freezer due to opening the door and the humidity inherent in the food causes freezing in the freezer compartment. To defrost the frost and ice in the freezer compartment, you are periodically required to turn o󰀨 the fridge freezer, place the food that needs to be kept frozen in a separately cooled container and remove the ice gathered in the freezer compartment. The situation is completely di󰀨erent in no-frost refrigerators. Dry and cold air is blown into the fridge and freezer compartments homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing. Therefore your New Generation Cooling Technology fridge freezer allows you ease of use, in addition to its huge capacity and stylish appearance. HOW TO OPERATE THE APPLIANCE PART - 2.EN - 28 - Control panel This button allows setting temperature of the fridge. In order to set values for fridge partition, press this button. Use this button also to activate Super Cooling mode.

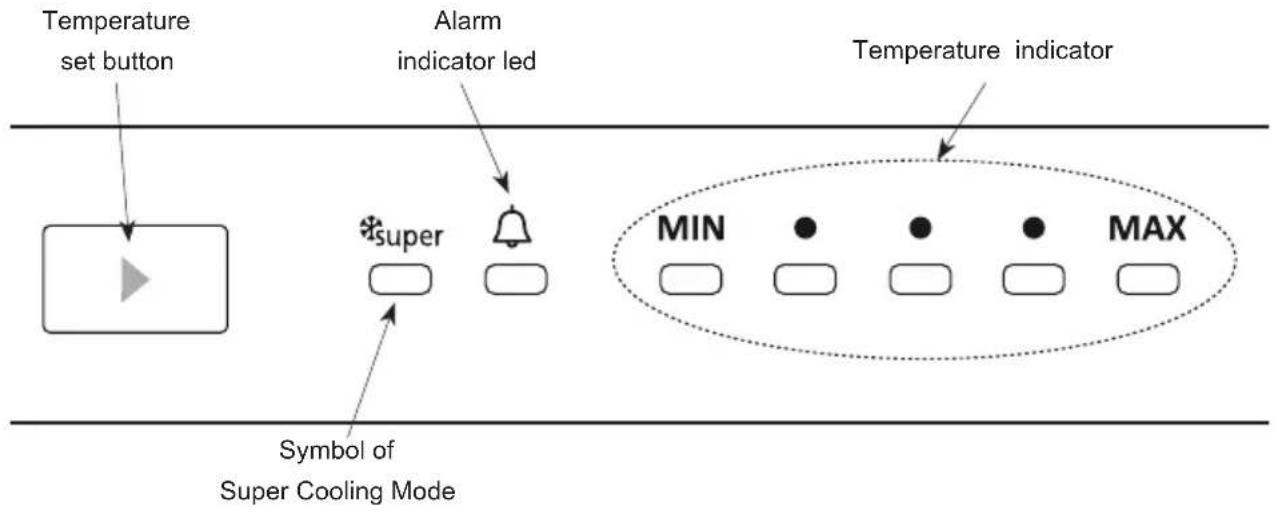

In case of a problem within the fridge, the alarm led will release red light

1.1.2. Super Cooling Mode

When would it be used?

• To cooling huge quantities of food.

• To cooling fast food.

• To cooling food quickly.

• To store seasonal food for a long time. How to use?

• Press temperature set button until super cooling light comes on.

• Super cooling led will light during this mode.

• For optimal appliance performance in maximum cooling capacity, set the appliance to active Super Cooling mode 5 hours before you put the fresh food into the fridge. During this mode: If you press temperature set button, the mode will be cancelled and the setting will be restored from MAX. Note: “Super cooling” mode will be automatically cancelled after 5 hours.

1.1.3. Temperature Settings

• The initial temperature of the Setting Display is Middle temperature indicator.

• Press temperature set button once.

• Every time you press the button, the setting temperature will decrease.

• If you press temperature set button until super cooling symbol is displayed on your fridge settings display and you do not press any button within the following 3 seconds, Super cooling will blink. Temperature set button Symbol of Super Cooling Mode Alarm indicator led Temperature indicatorEN - 29 - Warnings for Temperature Settings

• Do not pass to another adjustment before completing an adjustment.

• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the fridge and ambient temperature of the place of your fridge.

• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled.

• Do not open doors of your fridge frequently and do not place much food inside it in this period.

• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug o󰀨 and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling e󰀨ectiveness.

• This appliance is designed for use at an ambient temperature within the 16°C - 43°C range. Climate class Ambient Temperature (

SN Between 10 and 32

• If you keep on pressing, it will restart from last value. It ensures that the temperature settings in the cooling and freezing compartments of your refrigerator are performed automatically. It may be set to any value ranging from MIN to MAX. As you press temperature set button from MIN to MAX, the temperature decreases. To save energy in winter months, operate your refrigerator in a lower position.EN - 30 - Accessories Ice tray

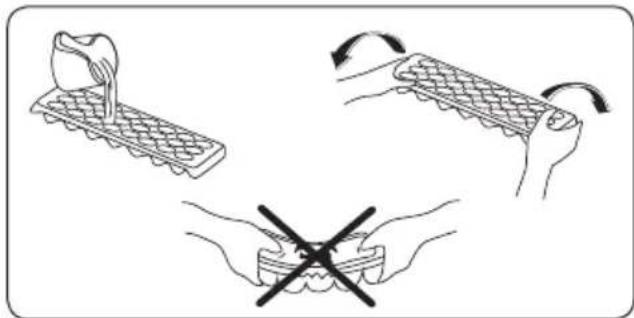

• Fill the ice tray with water and place in the freezer compartment.

• After the water has completely turned into ice, you can twist the tray as shown below to remove the ice cubes. Bottle holder In order to prevent bottles from slipping or falling over, you can use the bottle holder. This will also help to prevent the noise made by bottles when opening or closing the door. Fresh dial When the humidity controler in the closed position, it allows fresh fruit and vegetables to be stored longer. In case of the crisper is totally full, the fresh dial is located in front of crisper, should be opened. By means of this the air in the crisper and humidity rate will be controlled and endurance life will be increased. If you see any condensation on glass shelf, humidity control should be taken into the open positions. (In some models) (In some models) (In some models) Fig. 1 Fig. 2 Adjustable Door Shelf Six di󰀨erent height adjustments can be made to provide storage areas that you need by adjustable door shelf. To change the position of adjustable door shelf ; Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow (Fig.1). Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is xed. Note: Before moving door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall o󰀨 the rails due to the weight. So damage may occur on the door shelf or rails. (In some models) All written and visual descriptions in the accessories may vary according to the appliance model.EN - 31 - Refrigerator Compartment

• Always make sure food is wrapped or stored in closed containers.

• Hot food and drinks should be cooled to room temperature before being placed in the refrigerator.

• Please do not store packaged food and cups against the lamp and cover of the cooling compartment.

• Store fruit and vegetable items loose in the crisper containers. Some recommendations have been specied below for the placement and storage of your food in the cooling compartment. Freezer Compartment

• Please use the deep freeze compartment of your refrigerator for storing frozen food for a long time and producing ice.

• Please place the food you would like to freeze initially in the upper basket of the deep freeze in such a way that it does not exceed the declared freezing capacity of your refrigerator. Please do not place the food to be frozen near the already frozen food. You may place your food next to the other frozen food after it has frozen (for at least 24 hours). FOOD STORAGE IN THE APPLIANCE PART - 3. Food Maximum Storing time Where to place in the fridge department Vegetables and fruits 1 week Vegetable bin Meat and sh 2 - 3 Days Wrapped in plastic foil or bags or in a meat container (on the glass shelf) Fresh cheese 3 - 4 Days In special door shelf Butter and margarine 1 week In special door shelf Bottled products milk and yoghurt Until the expiry date recommended by the producer In special door shelf Eggs 1 month In the egg shelf Cooked food All shelves

• You should freeze food (meat, minced meat, sh, etc.) by dividing it into portions in such a way that they can be consumed in one sitting.

• Please do not refreeze frozen food once it has thawed. It may pose a danger for your health since it might cause food poisoning.

• Do not place hot meals in the deep freeze before they have cooled. You may cause the other food frozen food in the deep freeze to become putreed.

• When you buy frozen food, make sure they were frozen under appropriate conditions and that the package is not torn.

• When storing frozen food, the storage conditions on the package should be observed. IfEN - 32 - there are no instructions, the food has to be consumed in the shortest possible period of time.

• Frozen food has to be transported before it perishes and should be placed in the fast freezing shelf as soon as possible. Please do not use the door shelves for freezing purposes.

• If a frozen food package has been humidied and has a foul smell, the food might have previously been stored under suitable conditions and gone rotten. Please do not buy such food!

• The storage duration of frozen food changes depending on the environmental temperature, the frequent opening and closing of the doors, thermostat settings, food type and the length of time that has elapsed from the time the food was bought to the time it entered the freezer. Always abide by the instructions on the packaging and never exceed the storage duration. Some recommendations have been specied below for the placement and storage of your food in the freezing compartment. Meat and sh Preparation Maximum Storing time (month) Steak Wrapping in a foil 6 - 8 Lamb meat Wrapping in a foil 6 - 8 Veal roast Wrapping in a foil 6 - 8 Veal cubes In small pieces 6 - 8 Lamb cubes In pieces 4 - 8 Minced meat In packages without using spices 1 - 3 Giblets (pieces) In pieces 1 - 3 Bologna sausage/salami Should be packaged even if it has membrane Chicken and turkey Wrapping in a foil 4 - 6 Goose and Duck Wrapping in a foil 4 - 6 Deer, Rabbit, Wild Boar In 2.5 kg portions and as llets 6 - 8 Fresshwater shes (Salmon, Carp, Crane, Siluroidea) After cleaning the bowels and scales of the sh, wash and dry it; and if necessary, cut o󰀨 the tail and head.

Lean sh; bass, turbot, ounder

Fatty shes (Tunny, Mackarel, bluesh, anchovy)

Shellsh Cleaned and in bags 4 - 6 Caviar In its package, aluminium or plastic container

Snails In salty water, aluminum or plastic container 3EN - 33 - Note: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, it must not be re-frozen. Vegetables and Fruits Preparation Maximum Storing time (months) String beans and beans Wash and cut into small pieces and boil in water

Beans Hull and wash and boil in water 12 Cabbage Cleaned and boil in water 6 - 8 Carrot Clean and cut to slices and boil in water 12 Pepper Cut the stem, cut into two pieces, remove the core and boil in water

Spinach Washed and boil in water 6 - 9 Cauliower Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while

Eggplant Cut to pieces of 2cm after washing 10 - 12 Corn Clean and pack with its stem or as sweet corn

Apple and pear Peel and slice 8 - 10 Apricot and Peach Cut into two pieces and remove the stone 4 - 6 Strawberry and Blackberry Wash and hull 8 - 12 Cooked fruits Adding 10 % of sugar in the container 12 Plum, cherry, sourberry Wash and hull the stems 8 - 12 Dairy Products Preparation Maximum Storing time (months) Storing Conditions Packet (Homogenize) Milk In its own packet 2 - 3 Pure Milk – In its own packet Cheese-excluding white cheese In slices 6 - 8 Original package may be used for short storing period. It should be wrapped in foil for longer periods. Butter, margarine In its package 6EN - 34 - Maximum Storing time (months) Thawing time in room temperature (hours) Thawing time in oven (minutes) Bread 4 - 6 2 - 3 4-5 (220-225 °C) Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C) Pastry 1 - 3 2 - 3 5-10 (200-225 °C) Pie 1 - 1,5 3 - 4 5-8 (190-200 °C) Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C) Pizza 2 - 3 2 - 4 15-20 (200 °C)

CLEANING AND MAINTENANCE

• Disconnect the unit from the power supply before cleaning.

• Do not clean the appliance by pouring water.

• Make sure that no water enters the lamp housing and other electrical components.

• The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately with soap and water Do not clean them in the dishwasher.

• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have nished cleaning, reconnect the plugto the mains supply with dry hands.

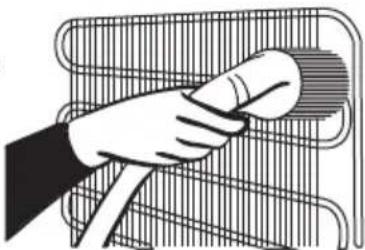

• Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity. THE POWER SUPPLY MUST BE DISCONNECTED.EN - 35 - Defrosting You refrigerator has fully automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, ows into the vaporisation container below the condenser and evaporates there. Evaporation container Replacing LED Lighting 1 or 2 led strips in fridge is used to illumianate your appliance. Please call the service man. Note: Numbers and location of led strips may be changed according to the model. !!! Some versions may be without illumination. Upper side LED strip (In some models) Left / Right side LED strip (In some models) PART - 5.

TRANSPORTATION AND CHANGING OF

INSTALLATION POSITION Transportation and changing of installation position

• The original packages and foamed polystyrene (PS) can be retained if required.

• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.

• Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper…) should be taken out or xed with bands in order to prevent them from getting damaged.

• Carry your fridge freezer in the upright position.EN - 36 - BEFORE CALLING YOUR AFTER SALES SERVICE PART - 6. If your fridge freezer is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money. What to do if your appliance does not operate; Check that;

The general switch in your home is disconnected ,

• The socket is not su󰀩cient. To check this, plug in another appliance that you know which is working into the same socket. What to do if your appliance performs poorly; Check that;

You have not overloaded the appliance ,

• The fridge temperature set to MAX.

The door is closed perfectly ,

• There is no dust on the condenser ,

• There is enough place at the rear and side walls. If your fridge is operating too loudly; Normal Noises Cracking (Ice cracking) Noise:

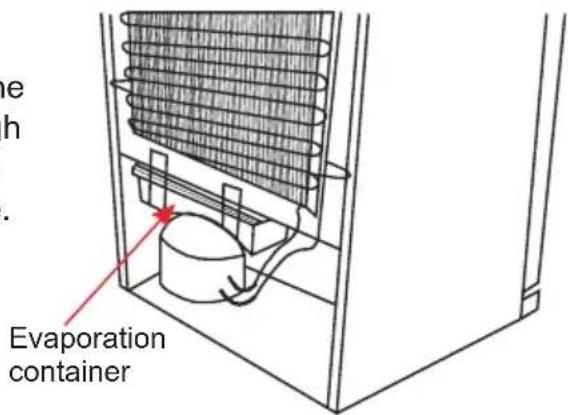

• During automatic defrosting.

• When the appliance is cooled or warmed (due to expansion of appliance material). Short cracking: Heard when the thermostat switches the compressor on/o󰀨. Compressor noise: Normal motor noise. This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated. Bubbling noise and splash: This noise is caused by the ow of the refrigerant in the tubes of the system. Water ow noise: Normal ow noise of water owing to the evaporation container during defrosting. This noise can be heard during defrosting. Air Blow Noise: Normal fan noise. This noise can be heard in fridges during normal operation of the system due to the circulation of air. If the edges of fridge cabinet that the door joint contact are warm; Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal. If humidity builds up inside the fridge freezer;

• Are all food packed properly? Are the containers dried before placing them in the fridge? Alarm indicator led is turning on

ERROR TYPE WHY WHAT TO DO

"Failure Warning" There is/are some part(s) Out of order or there is a failure in cooling process Check the door is open or not. If the door is not open, call service for assistance as soon as possible.EN - 37 -

• Are the fridge freezeer's doors opened frequently? Humidity of the room gets in the fridge when the door is opened. Humidity build up will be faster when you open the door more frequently, especially if the humidity of the room is high. If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?

• Are the door compartments, shelves and drawers placed properly?

• Are door joints broken or torn?

• Is your fridge freezer on a level surface? Recommendations

• To stop the appliance completely, unplug from main socket (for cleaning and when the door is left open) Tips for saving energy

1. Install the appliance in a cool, well ventilated room , but not in direct sunlight and not near

a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.

2. Allow warm food and drinks to cool down outside the appliance.

3. When thawing frozen food, place it in the refrigerator compartment. The low temperature

of the frozen food will help to cool the refrigerator compartment when it is thawing. This will help to save energy. If the frozen food is put out, it results in a waste of energy.

4. Cover drinks or other liquids when placing them in the appliance Otherwise humidity

increases in the appliance. Therefore, the working time gets longer. Also covering drinks and other liquids helps to preserve smell and taste.

5. Try to avoid keeping the doors open for long periods or opening the doors too frequently

as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.

6. Keep the covers of the di󰀨erent temperature compartments (crisper, chiller ...etc ) closed

7. Door gasket must be clean and pliable. Replace gaskets if worn.EN - 38 -

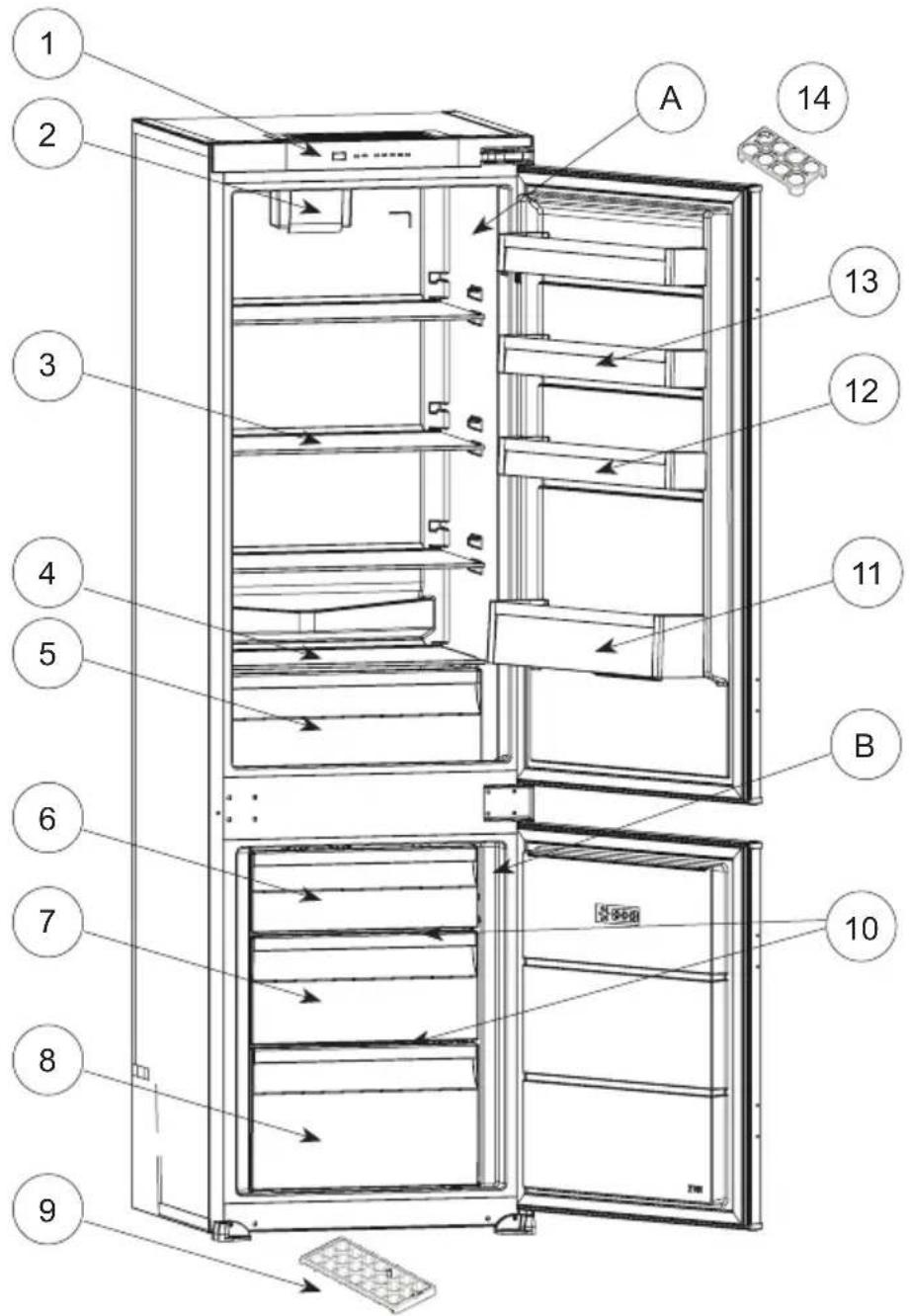

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

PARTS OF THE APPLIANCE AND THE

COMPARTMENTS PART - 7. A) Refrigerator compartment B) Freezer compartment

6) Freezer room cover

7) Freezer comp. drawer

10) Freezer glass shelves *
