USER MANUAL BKV179 BORETTI

E info.be @ boretti.com

Belgium

Inhoudsopgave

VOORDAT U HET APPARAAT GAAT GEBRUIKEN ....2

VEİLIGHEIDSINSTRUCTIES....2

AANBEVELÍNGEN....3

INSCHAKELEN VAN HET APPARAAT....4

BEDIENING VAN HET APPARAAT....5

THERMOSTAAT INSTELLING....5

INSTELLING THERMOSTAAT COMBİ MODELLEN MET ENKELVOUDİGE COMPRESSOR....5

COMBİ MODELLEN MET DUBBELE COMPRESSOR....6

SUPERVRIEZEN EN SCHAKELAAR LAGE OMGEVÍNGSTEMPERATUUR....7

DISPLAY....7

ACCESSOIRES....8

IJSLADE....8

FLESSENHOUDER....8

VOEDSEL IN HET APPARAAT PLAATSEN....8

KOELÍNGSCOMPARTÍMENT....8

VRIEZER....8

REINIGING EN ONDERHOUD....9

ONTDOOÏEN....10

KOELINGSCOMPARTIMENT....10

VRIEZERCOMPARTIMENT....10

VOOR HET VERVANGEN VAN DE LAMP IN DE KOELKAST....11

TRANSPORT EN WIJZIGING VAN DE INSTALLATIEPOSITIE....11

RICHTING DEUROPENING VERANDEREN....11

VOORDAT U EEN BEROEP DOET OP DE KLANTENSERVICE....12

DE ONDERDELEN VAN HET APPARAAT EN DE COMPARTIMENTEN....14

DEEL 1. VOORDAT U HET APPARAAT GAAT GEBRUIKEN

Illustration of hands tying a knot with ropes, showing different postures (no text or symbols present)

Cartoon illustration of a person climbing from a book (no text or symbols)

Cartoon illustration of a milk carton and a refrigerator with a smiling face (no text or symbols)

Illustration showing three hand positions: abacus, moving cart with arrows, and holding a cross (no text or symbols)

Simple line drawing of a bottle mounted on a base (no text or symbols)

DEEL 3. VOEDSEL IN HET APPARAAT PLAATSEN

Koelingscompartiment

Technical line drawing of a structural component with an inset showing a magnified view of a circular feature (no text or symbols)

Technical diagram of an open refrigerator with labeled parts A and B, showing internal components and directional arrows.

Technical diagram showing labeled components A and B in a mechanical or architectural assembly

DEEL 5. TRANSPORT EN WIJZIGING VAN DE INSTALLATIEPOSITIE

Two children playing a game with a long block (no text or symbols)

Labeled diagram of a refrigerator interior with numbered parts for identification

INSTRUCTIONS PREALABLES......2

Recommendations....3

TRANSPORT ET DEPLACEMENT....12

Illustration of three hands holding a cable, showing different postures (no text or symbols present)

Simple line drawing of a hand reaching toward a smiling emoji-shaped icon (no text or symbols)

Cartoon illustration of a refrigerator, a smiling refrigerator with a door, and a grid of pipes (no text or symbols)

Illustration showing three hand positions: a keyboard, a curved arrow indicating rotation, and a crossed-out hand holding a pencil (no text or symbols)

Porte-bouteilles

Simple line drawing of a bottle mounted on a base (no text or symbols)

PARTIE- 3. RANGEMENT DES ALIMENTS

Cartoon illustration of a smiling refrigerator with a sad face and two smaller figures beside it (no text or symbols)

LE CORDON D'ALIMENTATION DOIT ETRE DEBRANCHE.

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Technical diagram of an electrical enclosure with labeled components A and B, showing internal structure and warning symbols.

Diagram showing a person inside a room with labeled parts A and B, likely illustrating a procedure or positioning.

PARTIE- 5. TRANSPORT ET DEPLACEMENT

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Labeled diagram of a refrigerator interior with numbered parts for identification

Illustration of hands tying a knot with ropes, showing different postures (no text or symbols present)

Cartoon illustration of a person climbing a door (no text or symbols)

Cartoon illustration of a smiling refrigerator with a bowl of food (no text or symbols)

Simple line drawing of a container with a ruler inserted, no text or symbols present

Illustration showing three hand positions: abacus, moving cart with rotation arrow, and holding a tool (no text or symbols)

Simple line drawing of a bottle mounted on a stand (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a magnified view of a gear or gear assembly (no text or symbols present)

Technical diagram of an electrical enclosure with labeled components A and B, showing internal wiring and grounding symbols.

Technical diagram showing a mechanical or architectural component with labeled parts A and B

Simple line drawing of two children playing a game with a long block (no text or symbols)

Labeled diagram of a refrigerator interior with numbered parts for identification

BEFORE USING THE APPLIANCE....2

Safety Instructions....2

Recommendations....3

Switching On the Appliance....4

HOW TO OPERATE THE APPLIANCE....5

Thermostat Setting....5

Super Freeze and low ambient switch....7

Display Panel....7

Accessories....8

Ice tray 8 Bottle holder....8

FOOD STORAGE IN THE APPLIANCE....8

Refrigerator Compartment....8

Freezer Compartment....9

CLEANING AND MAINTENANCE....10

Defrosting the Refrigerator Compartment....10

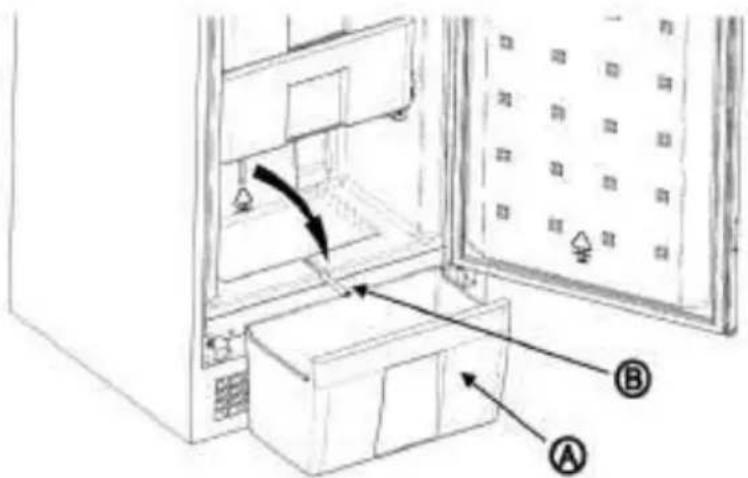

Defrosting the Freezer Compartment....11

Replacing the Refrigerator Light Bulb....12

SHIPMENT AND REPOSITIONING....12

Repositioning the Door....12

BEFORE CALLING YOUR AFTER SALES SERVICE....13

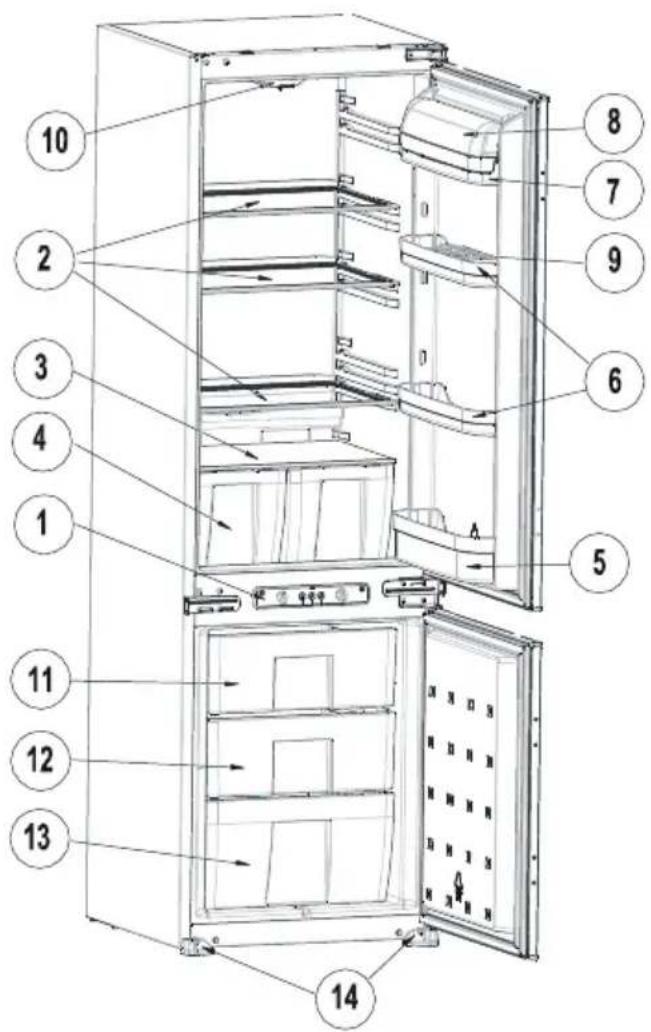

PARTS OF THE APPLIANCE AND THE

COMPARTMENTS......15

- The operating instructions apply to several models. Differences may therefore occur.

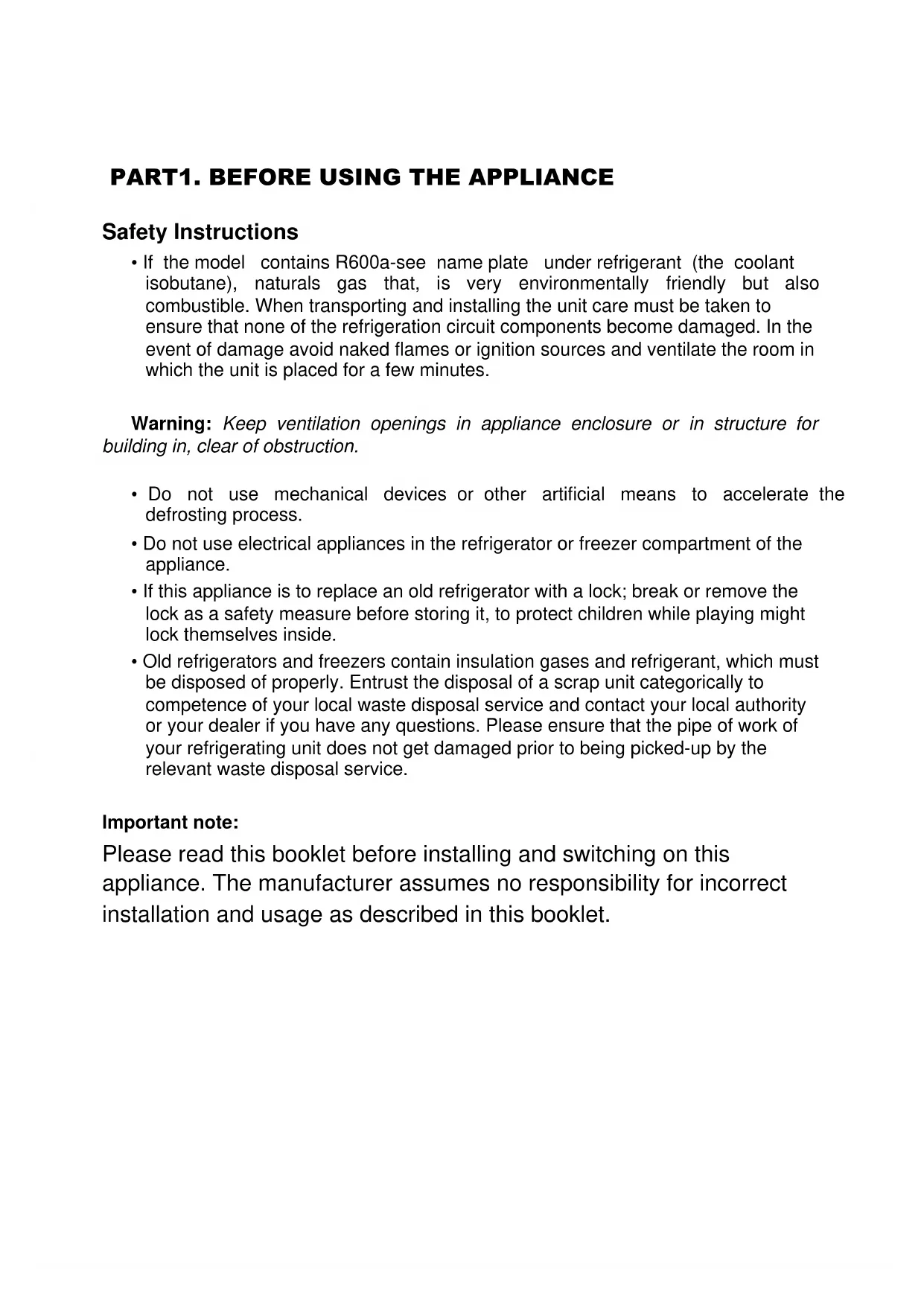

PART1. BEFORE USING THE APPLIANCE

Safety Instructions

- If the model contains R600a-see name plate under refrigerant (the coolant isobutane), naturals gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.

Warning: Keep ventilation openings in appliance enclosure or in structure for building in, clear of obstruction.

- Do not use mechanical devices or other artificial means to accelerate the defrosting process.

- Do not use electrical appliances in the refrigerator or freezer compartment of the appliance.

- If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a safety measure before storing it, to protect children while playing might lock themselves inside.

- Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit categorically to competence of your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipe of work of your refrigerating unit does not get damaged prior to being picked-up by the relevant waste disposal service.

Important note:

Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

Recommendations

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant circuit.

• Do not damage the refrigerant circuit.
• Do not allow children to play with the appliance. Children must never sit in the drawers or hang on the door.
• Do not use adapters or shunts, which could cause overheating or burning.
• Do not plug old, warped power supply cables.

Illustration of three hands performing a rope knotting technique (no text or symbols present)

- Do not twist and bend the cables, and keep them away from hot surfaces.

- Do not plug the power supply with wet hands.

- Your old appliances contain insulation gases and refrigerant that must be disposed of properly. Please ensure that the refrigerant circuit is not damaged before the appliance is taken away for disposal.

- After installation make sure that the power cable is not trapped underneath appliance.

- Do not defrost the appliance with other electrical devices (i.e. hair dryer) or other artificial means, and do not use sharp metal objects to remove the ice on the freezer, as this could cause damage to the refrigerant system.

- Do not operate any electrical appliances inside the refrigerator or freezer.

- Do not place bottles (glass or tin) containing liquids (especially sparkling liquids) into the freezer as they could cause the bottle to burst during freezing.

- Do not touch the cooling surfaces while the appliance operates, especially with wet hands, because the skin may stick to cold surfaces.

- Do not eat ice, which has just been removed from the freezer.

Simple line drawing of an electric plug with a cartoon face and plug, no text or symbols present

Cartoon character peeking from behind a book (no text or symbols)

- Your fridge is not intended for use by physically, mentally or sensibly handicapped people or by people with less experience and knowledge (including children). These people may be allowed to use the appliance under the supervision of a responsible person giving necessary

instructions. You should supervise children to prevent them from playing with the appliance.

- If the power cord is damaged, it should be replaced by an authorized service technician.

- The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.

- If the supply cord is damaged it must be replaced by the manufacturer or service agent or similar qualified people in order to avoid a hazard.

Switching On the Appliance

- Before switching on, place the appliance on upright position and wait at least three hours without moving the appliance. This will give the refrigerant circuit time to settle and operate efficiently.

Simple line drawing of a hand reaching toward a smiling emoji on a square (no text or symbols)

- Clean the appliance thoroughly, especially in the interior, before use (See Cleaning and Maintenance).

- Installation of the appliance and electrical connections must be carried out by a qualified technician, in accordance with the Installation Manual and local regulations.

- Installation procedure into the kitchen unit is given in the Installation Manual. This product is intended to be used in proper kitchen units only.

- The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we suggest you to call an authorized electrician for assistance.

Cartoon illustration of a distressed refrigerator with arms and legs, showing facial expressions (no text or symbols)

- If the supply cord is damaged, It must be replaced by an appointed service agent or similarly qualified person in order to avoid a hazard

Cartoon illustration of a smiling refrigerator with a hand gesture and a bowl of food (no text or symbols)

- Manufacturer is not responsible for failure to complete the ground connection as described in this booklet.

- There can be an odor when you first switch on the appliance. It will disappear after the appliance starts to cool.

PART 2. HOW TO OPERATE THE APPLIANCE

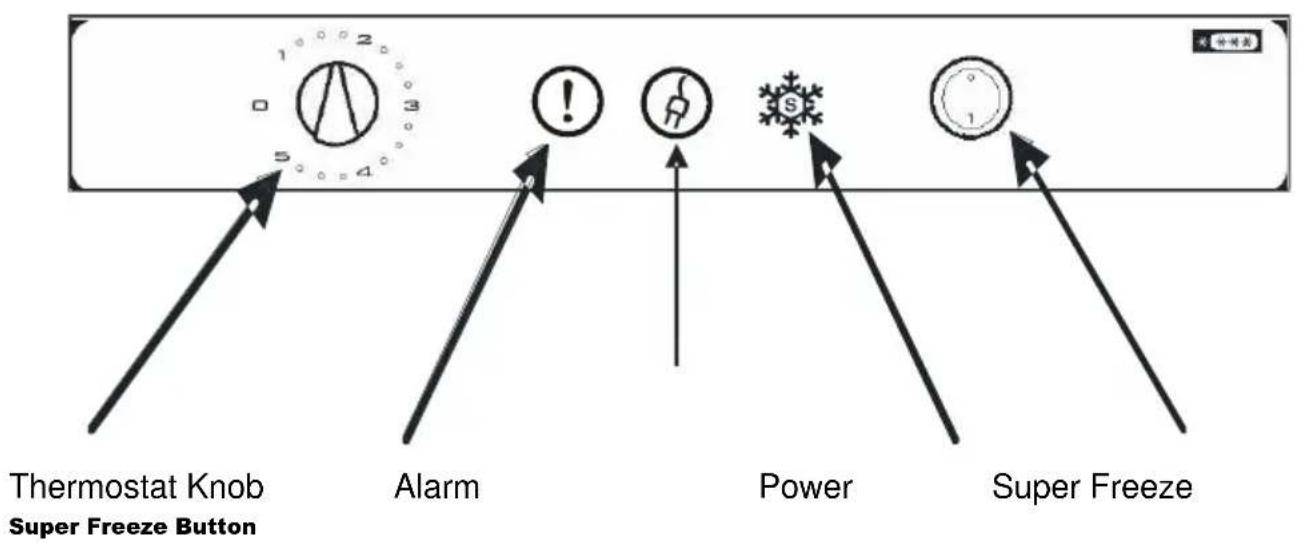

Thermostat Setting

Combi Models with Single Compressor

The freezer and refrigerator thermostats automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained. "0" position shows thermostat is closed and no cooling will be available.

Freezer Thermostat Setting;

0 : The appliance is switched off.

1 - 2 : For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position.

3 - 4 : For long-term storage of food in the freezer compartment, you can set knob to medium position.

5: For freezing the fresh food. The appliance will run for colder temperatures.

Freezing with Super Freeze (SF button): Press the SF button, the freezer will start to run continuously with maximum performance (observe that the SF lamp will light on orange when you turn on the SF button). The freezer temperature will decrease and the appliance will switch to to the lowest temperature.

Place the food to be frozen quickly inside the freezer, preferably in the top drawers. Once the food is frozen, you must turn off the SF button and set the thermostat knob to desired position.

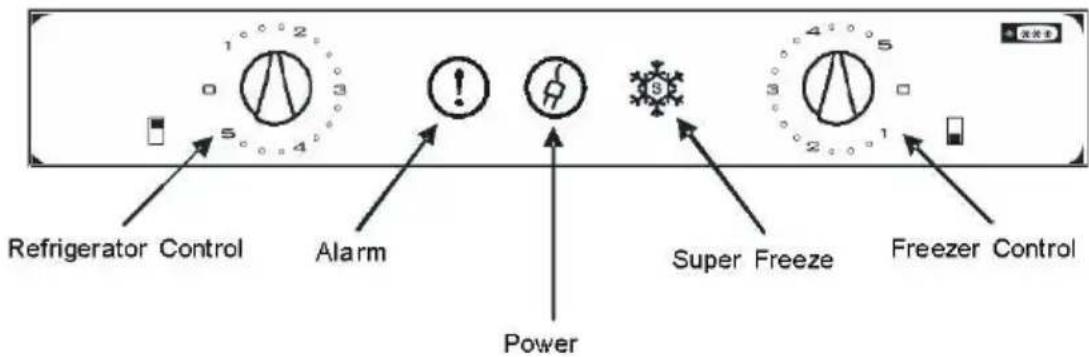

Combi Models with Double Compressor

Refrigerator Control Alarm Power Super Freeze Freezer Control

Freezer Thermostat Setting;

1 - 2 : For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position.

3 - 4 : For long-term storage of food in the freezer compartment, you can set knob medium position.

5: For freezing the fresh food. The appliance will work longer. So after you get the cold condition you must position to previous position. (Observe that SF button will turn on.)

Refrigerator Thermostat Setting;

1 - 2 : Higher temperature, lower cooling setting.

3 - 4 : Medium temperature, medium cooling setting.

5: Lower temperature, higher cooling setting.

Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator and freezer compartments. If required, change the temperature setting.

Super Freeze and low ambient switch (In some models)

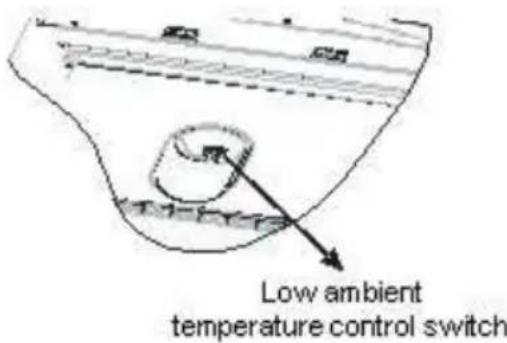

Low ambient temperature control switch

0: OFF Position.

I: ON Position.

a) Super freezing: If ambient temperature is more than 18^ C, This switch can be used as superfreeze switch.

Super freeze switch should be used for freezing the fresh food or when the RED lamp on the head panel is ON. (RED lamp on the head panel becomes ON when there is insufficient cooling).

The appliance will work longer when you activate this switch. So after you get the cold condition (or the Red lamp on the head panel is off) you must return to previous position.

At the ambient temperature more than 18^ , if super freezing function doesn't want to be used, it must always be set to OFF position.

b) Low ambient performance: If ambient temperature is less than 18^ C, this switch can also be used as a low ambient switch for good low ambient performance.

In low ambient temperatures, this switch heats the fridge part to prevent extra cooling / freezing.

Display Panel

Super freeze light (SF light): Lights orange, when the SF button is turned on.

Power light: Lights green automatically, when the appliance is connected to the power supply.

Alarm light: Lights red, when the temperature rises to a critical point in side the freeze.

Turning On The Appliance

Once the appliance has been connected to the power supply make sure that the green lamp is on. Then turn the refrigerator thermostat dial and the freezer thermostat dial to positions between 2-4. (Note that; for best internal temperature the indicator in the refrigerator and freezer thermostat should be positioned between 2 and 4.)

- When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.

- During this time do not open the door frequently and do not place a lot of food inside the appliance.

- If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugging the unit in order not to damage the compressor.

Accessories

Ice tray

- Fill the ice tray with water and place in freezer compartment.

After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three hand positions: abacus, moving cart with rotation arrow, and holding a pencil crossed out (no text or symbols)

Bottle holder

- In order to prevent the bottles to slip or fall over you can use the bottle holder. You can also prevent making noise that will be done when you open or close the door.

Simple line drawing of a bottle mounted on a base (no text or symbols)

PART 3.FOOD STORAGE IN THE APPLIANCE

Refrigerator Compartment

Refrigerator compartment is used for storing fresh food for few days.

- Do not place food in direct contact with the rear wall of the refrigerator compartment. Leave some space around food to allow circulation of air.

- Do not place hot food or evaporating liquid in the refrigerator.

• Always store food in closed containers or wrapped.

- To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the refrigerator.

- Meat of all types, wrapped in packages, is recommended to be placed on the glass shelf just above the vegetable bin, where the air is colder.

- You can put the fruits and vegetables into crisper without packing.

- To avoid the cold air escaping, try not to open the door too often, and not leave the door open for a long time.

Freezer Compartment

Freezer compartment is used for freezing fresh foods and for storing frozen foods for the period of time indicated on packaging, and for making ice cubes.

- For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil (heavy grade, in doubt double wrap), polythene bags and plastic containers are ideal.

- Do not allow the fresh food to be frozen to come into contact with the already frozen food.

- Always mark the date and the content on the pack and do not exceed the stated storage time.

- In case of a power failure or malfunction, the freezer compartment will maintain a sufficiently low temperature for food storage. However, avoid opening the freezer door to slow down the temperature rise within the freezer compartment.

- The maximum amount of fresh foods that can be loaded in the freezer within 24 hours is indicated on the name plate (see Freezing Capacity).

- Never place warm food in the freezer compartment.

- When purchasing and storing frozen food products; ensure that the packaging is not damaged.

- The storage time and the recommended temperature for storing frozen foods are indicated on the packaging. For storing and using, follow the manufacturer's instructions. If no information is provided, food should not be stored for more than 3 months.

- Place frozen food in the freezer compartment as soon as possible after buying it.

- Once the food is thawed, it must not be refrozen; you must cook it as quickly as possible in order to consume or to freeze once again.

- Storage: If you want to use the maximum net capacity, you can remove the drawers and store the items directly on the cooling tubes. This will enable you to make use of the entire volume of the compartment.

PART4. CLEANING AND MAINTENANCE

- Disconnect the appliance from the power supply before cleaning.

- Do not pour water over the appliance.

- The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately with soap and water. Do not put them in the dishwasher.

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed, reconnect the plug with dry hands.

Illustration of a refrigerator with a smiling face, accompanied by a hand holding a cup and a small bottle (no text or symbols)

Cartoon illustration of a smiling refrigerator with arms and legs, accompanied by two small figures (no text or symbols)

Defrosting the Refrigerator Compartment

Simple line drawing of a metal beam or support structure (no text or symbols)

Diagram showing a hand holding a circular object over a window with stairs and a diagonal stripe (no text or symbols)

- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

- You can also pour 12 glass of the water to drain hole to clean inside.

Defrosting the Freezer Compartment

WARNING: Never use sharp metal tools, unless recommended by manufacturer, for this operation as they can damage the refrigeration circuit.

After a period of time, frost will build up in certain areas in the freezer compartment. The frost, accumulated in the freezer compartment, should be removed periodically (use the plastic scraper if available).

Complete defrosting will become necessary if the frost layer exceeds 3-5 mm to maintain the efficiency of the freezer.

- The day before you defrost, set the thermostat dial to position "5" to freeze the foods completely.

- During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.

- Set the thermostat knob to position "0" and switch off the appliance.

- Leave the door open to accelerate defrosting. Remove the defrost water from the compartment.

• This appliance is provided with a special drain system.

1. Pull out the bottom drawer A of the freezer compartment and put it on the floor aligning it to the cabinet front.

2. Pull out the drain pipe E placed on the back wall of the freezer compartment. Then place it in the groove on the front side of the floor of the appliance.

Technical diagram of an electrical cabinet with labeled components A and B, showing internal structure and directional arrow.

1. If there is still water on the freezer floor, you can clear it away by using a sponge.

- Clean the interior by hand with lukewarm water and a little detergent.

Never use abrasive products or aggressive cleaning agents.

- Dry the inside of the unit, plug on the mains, and set the thermostat knob to position "5". After 24 hours, reset the thermostat to the desired position.

Replacing the Refrigerator Light Bulb

1. Unplug the unit from the power supply,
2. Remove the refrigerator light cover (A) by pressing the hooks placed on both sides of the cover.
3. Change the light bulb (B) with a new one (not more than 15 W).
4. Place the light cover in its place and plug the unit.

Technical diagram showing a mechanical or architectural component with labeled parts A and B

PART5. SHIPMENT AND REPOSITIONING

• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.
• Carry your fridge in the upright positio.

Simple line drawing of two children playing a game with a board (no text or symbols)

Repositioning the Door

You can reposition the doors of your fridge. Contact nearest Authorized service for this.

PART6. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check if;

• There is a power failure,
- The mains plug is not properly plugged in, or is loose
- The thermostat setting is on position "0",

- The socket is defective. To check this, plug in another appliance that you know which is working into the same socket.

The appliance performs poorly;

Check if;

• You have overloaded the appliance,
  • The doors are not closed perfectly,
• There are not enough ventilation ducts on the kitchen unit as mentioned in the Installation Manual.

If there is noise;

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If these sounds are different check if;

• The appliance is installed firmly as described in the Installation Manual.
• The objects on the appliance are vibrating.

If there is water in the lower part of the refrigerator;

Check if;

The drain hole for defrost water is not clogged (use defrost drain plug to clean the drain hole).

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class A	Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST	Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

IMPORTANT NOTES:

- In case of a sudden power loss or disconnecting and reconnecting of the plug to the electrical socket, the compressor protective thermal element will be opened as the pressure of the gas in the cooling system of your refrigerator has not yet been balanced. 4 or 5 minutes later, your refrigerator will start to operate; this is normal.

- If you won't be using your refrigerator for a long time (such as on summer holidays), please disconnect the plug from the socket. Clean your refrigerator as per Part 4 of this document and leave the door open to prevent any humidification or odor formation.

If there is still a problem with your refrigerator although you have followed the instructions in this book, please consult your nearest authorized service center.

The life cycle of this product as determined and proclaimed by the Ministry of Industry (the period for making spare parts available for the product to be able to fulfill its functions) is 10 years.

Conformity Information

- Tropical Class is defined for the environment temperatures between 16^ and 43^ in accordance with the TS EN ISO 15502 Standards.

- The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

PART 7.

PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Labeled diagram of a refrigerator interior with numbered parts for identification

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Display panel
2) Refrigerator shelf
3) Crisper shelf
4) Crisper
5) Bottle shelf

6) Middle shelf
7) Butter shelf8) Butter shelf cover
9) Egg shelf
10) Refrigerator lamp & cover
11) Freezer room cover
12) Freezer comp. drawer
13) Freezer comp. bottom drawer
14) Foot hinge
