Product type	Mobile air conditioner
Brand	UFESA
Model	AA8000
Dimensions (H x W x D)	86.5 x 43.8 x 43.5 cm
Weight	32 kg
Power supply	220-240 V ~ 50 Hz
Recommended fuse	10 A slow-blow
Main functions	Air conditioning (maximum and silent), dehumidification, air purification
Maximum cooling capacity	2,600 W
Power consumption in cooling	1,200 W
Dehumidification capacity	31.2 L/24h
Refrigerant	R-410A
Noise level (min/max)	45 / 48 dB(A)
Max airflow in cooling	215 m³/h
Max airflow in ventilation	275 m³/h
Exhaust hose length	140 cm (max)
Operating temperature (cooling)	20 °C to 35 °C
Operating temperature (dehumidification)	18 °C to 35 °C
Filters	Washable main filter + dual active purifying filter (replace annually)
Replacement filter reference	RKZ09013
Maintenance and cleaning	Wash main filter with running water; clean appliance with soft cloth and mild detergent; do not immerse
Safety	Do not cover air inlets/outlets; wait 3 minutes after stopping before restarting; do not use in dehumidification below 18 °C
Power cord length	210 cm
Included accessories	Diffuser hose, exhaust hose, suction cup, sliding window accessory

Frequently Asked Questions - AA8000 UFESA

How to install the hot air exhaust hose?

Connect the diffuser hose to the hot air exhaust hose. For a casement window, open the window slightly and insert the diffuser between the sash and the frame, then close the window and use the provided suction cup. For a sliding window, use the appropriate accessory and adjust the height. Be careful not to extend the hose beyond 140 cm and not to make too tight bends.

What to do if the full tank indicator lights up?

Set the thermostat to the off position (①) and wait about 10 minutes. Turn the drain valve to the left, remove the cap, and connect the drain hose. Place a container under the hose to collect the water. Then select the air conditioning or dehumidification function. Remember to put the cap back and turn the valve to the right to switch to cooling mode.

How to clean the purifying filters?

The main filter (fig. A,5) is cleaned with running water, then wiped dry before reinstalling. The set of purifying filters (fig. A,6) must be replaced every year. UFESA replacement filters have reference RKZ09013. To install the new filters, follow the instructions in figures O and P of the manual.

How to use the dehumidification function?

Set the function selector to the dehumidification symbol ( ). Turn the drain valve to the left, remove the cap, and connect the drain hose. Place a container at the hose outlet. Put the exhaust hose in the parking position (fig. N). The appliance reduces humidity without adjusting the temperature. Note: do not use below 18 °C.

Why is my appliance not cooling enough?

First check the following: is the plug properly inserted? Is the selector on a cooling function (max or silent)? Is the thermostat set to a temperature lower than the room temperature? Is the exhaust hose not too bent or too long (max 140 cm)? Is the drain valve in cooling position (turned to the right)? Are the air inlets and outlets clear? If the problem persists, contact technical support.

How to drain the water from the internal tank?

Set the thermostat to the off position (①) and wait 10 minutes. Turn the drain valve to the left, remove the cap, and insert the drain hose (fig. A,3). Place a container at the outlet. Then select the air conditioning or dehumidification function to drain the water. Once finished, put the cap back and turn the valve to the right for cooling mode.

Is it normal for the appliance to make a cyclic noise?

Yes, a cyclic noise is normal. It comes from the pump recirculating water to improve the appliance's power. If the noise is excessive, check that the exhaust hose is properly secured and that the air inlets/outlets are not blocked.

What are the recommended operating temperatures?

For air conditioning, the ambient temperature must be between 20 °C and 35 °C. For dehumidification, it must be between 18 °C and 35 °C. Below 18 °C, the appliance cannot dehumidify. Make sure to respect these ranges for optimal operation.

Can I use an extension cord?

Yes, if necessary, use an extension cord with a grounding plug, with a cross-section of at least 1.5 mm² per conductor and a length less than 25 meters. Make sure the extension cord is suitable for the appliance's power (1200 W in cooling).

How to dispose of the appliance at end of life?

Unplug the appliance and cut the power cord. The appliance contains refrigerants that must be disposed of in accordance with current regulations. Do not discard it with household waste. Take it to an approved collection point or contact your local municipality for recycling options.

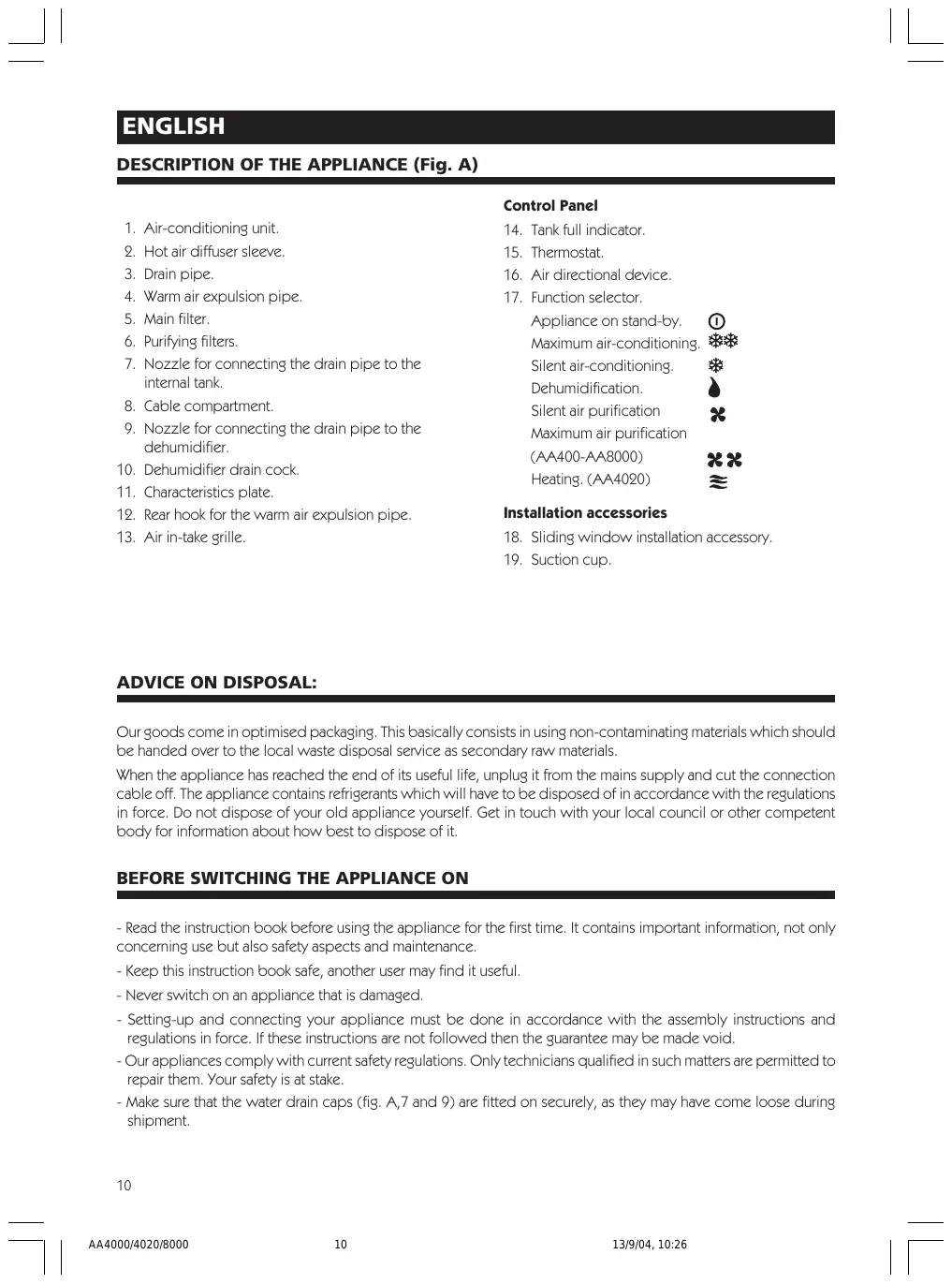

USER MANUAL AA8000 UFESA

1. Air-conditioning unit.
2. Hot air diffuser sleeve.
3. Drain pipe.
4. Warm air expulsion pipe.
5. Main filter.
6. Purifying filters.
7. Nozzle for connecting the drain pipe to the internal tank.
8. Cable compartment.
9. Nozzle for connecting the drain pipe to the dehumidifier.
10. Dehumidifier drain cock.
11. Characteristics plate.
12. Rear hook for the warm air expulsion pipe.
13. Air in-take grille.

Control Panel

1. Tank full indicator.
2. Thermostat.
3. Air directional device.
4. Function selector.

Appliance on stand-by.

Maximum air-conditioning.

Silent air-conditioning.

Dehumidification.

Silent air purification

Maximum air purification

(AA400-AA8000)

Heating. (AA4020)

Installation accessories

1. Sliding window installation accessory.
2. Suction cup.

ADVICE ON DISPOSAL:

Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials.

When the appliance has reached the end of its useful life, unplug it from the mains supply and cut the connection cable off. The appliance contains refrigerants which will have to be disposed of in accordance with the regulations in force. Do not dispose of your old appliance yourself. Get in touch with your local council or other competent body for information about how best to dispose of it.

BEFORE SWITCHING THE APPLIANCE ON

• Read the instruction book before using the appliance for the first time. It contains important information, not only concerning use but also safety aspects and maintenance.
• Keep this instruction book safe, another user may find it useful.
• Never switch on an appliance that is damaged.
• Setting-up and connecting your appliance must be done in accordance with the assembly instructions and regulations in force. If these instructions are not followed then the guarantee may be made void.
• Our appliances comply with current safety regulations. Only technicians qualified in such matters are permitted to repair them. Your safety is at stake.
• Make sure that the water drain caps (fig. A,7 and 9) are fitted on securely, as they may have come loose during shipment.

CONDITIONS FOR USE

• This electrical domestic appliance must be connected to a mains supply of 220 / 240 ~V, 50 ~Hz , through a socket with an earth connection.
• Protected with a slow acting 10 A fuse.
• Should it be necessary to use an extension lead, this will have to a minimum wire gauge of 1.5mm^2 per terminal, be provided with an earth wire, and be no longer than 25m .
• There is a compartment at the rear of the appliance used for storing the mains cable.
• Do not let water get inside the appliance.
• Do not cover the air intakes or outlets on your appliance.
• If the mains cable is damaged it must be replaced. To do this, get in touch with the manufacturer, after-sales service dept. or someone similarly qualified.

Attention!

This appliance is not suitable for dehumidification at ambient temperatures of below 18^ .

After turning your appliance off, wait at least 3 minutes before turning it back on again. The cold circuit needs this amount of time in order to reset.

MOBILITY

The appliance is fitted with wheels which allow it to be moved about. Should it be necessary to tilt the appliance when moving it, the internal water tank will have to be emptied beforehand with the help of the drain pipe (fig.A,3) placed onto the drain cock (fig.A,7) at the bottom of the appliance, as shown in (fig K). Once the appliance has been put back into the upright position leave it to stand for a few minutes before switching it back on.

Attention!

Take special care when moving this appliance. The base is fitted with a drain outlet pipe that may break off if knocked.

INSTRUCTIONS FOR USE

INSTALLATION

A) Hinge or sash windows (fig. L)

• Connect the diffuser sleeve to the warm air expulsion pipe.
• Open the window slightly and place the sleeve between the jamb and the frame.
• Close the window as far as possible and hold it with the suction cup supplied.

B) Sliding windows (fig. M)

• Connect the diffuser sleeve to the warm air expulsion pipe.
• Fit the sliding window installation accessory using the side of the window frame to support it and then adjust it to the right height.
• Close the window as far as possible and insert the diffuser sleeve through the outlet hole.

C) Fixed installation

• Use the optional window/wall sleaving accessory which can be purchased from your usual supplier of electrical appliances. (Ref.: B1RKZ06009)
• It will be necessary to make a hole in the wall to accommodate the hot air pipe sleeve (Fig. 1).

• Take the diffuser sleeve off and connect the warm air expulsion pipe to the accessory.

• When the installation goes through a window, you only need to use the transparent end piece of the accessory. Under these circumstances it will be necessary to cut a hole in the glass, 10.5cm diameter (Fig. J)

Notes:

• Try not overstretch the outlet pipe (maximum length 140cm ) nor bend it too sharply. This will impede the passage of the warm air and reduce the cooling efficiency.
• There must be a distance of at least 70~cm between the floor and the end of the duct.
• Adequate ventilation will have to be provided for small rooms, e.g. leaving the door ajar, in order to avoid creating a low pressure which will reduce the cooling efficiency.

Attention!

Do not cover the appliance's air intakes or outlets.

AIR-CONDITIONING

• Plug the appliance in.
• Run the warm air expulsion pipe to the outside (figs. L,M,J)
• Select either the maximum (） or silent（） air-conditioning function.
• Turn the drain cock to the refrigeration position (fig. F).
• Set the thermostat (fig. B,D) to the desired temperature. Should the thermostat setting cause the appliance to switch itself off automatically, you will have to wait until the room temperature rises by 2 - 3^ before it switches itself back on again.

The appliance cools and dehumidifies the air within the room at the same time in order to create a pleasant climate.

The water produced during this process by condensation is led outside and released from the condenser by evaporation.

Under extremely humid conditions the appliance will store up the condensed water in an internal tank. When this reaches a set level the safety lamp (fig.A,14) will light up, indicating that the said tank will have to be emptied, which is done as follows:

• Turn the thermostat to the ① position and wait 10 minutes to allow the safety systems to reset themselves. (fig. C,E).
• Turn the drain cock (fig.A,10) 90^ to the left (fig. G).
• Take the cap off the cock (9) and inset the drain pipe (fig.A,3) (fig. H- steps A and B).
• Place a container by the outlet of the drain pipe in order to catch the condensed water, (fig. H-step C).
• Select the air-conditioning or dehumidification function.

Attention!

When switching the appliance back to the refrigeration function do not forget to put the cap back onto the drain cock and turn it 90^ to the right. Otherwise water will escape from the appliance when it is switched on. With this done you will have removed the excess water from the system and the appliance can be switched back on for normal operation.

DEHUMIDIFICATION

Set the function control knob to the "Dehumidification" symbol (▲). At this setting, the appliance will only reduce the humidity present in the atmosphere, without affecting the temperature.

• Turn the drain cock (fig.A,10) 90^ to the left (fig. G).

• Take the cap off the cock (fig.A,9) and inset the drain pipe (fig.A,3) (fig. H- steps A and B).

• Place a container by the outlet of the drain pipe in order to catch the condensed water, (fig. H-step C).

• Put the warm air expulsion pipe in the parking position (fig. N).
• Select the dehumidification function ( ).
• As much as 31,2 litres of water can be taken out of the air every 24 hours, depending on the ambient conditions.

Attention!

This appliance is not suitable for dehumidification at ambient temperatures of below 18^ .

When you change back to the «Cooling» function, put the plug back into the drainage nozzle on the outdoor unit.

Should you fail to do so, the appliance will shed water produced by condensation during the cooling process.

AIR PURIFICATION

• On this setting the air inside the room is recirculated through purifying filters.
• The appliance includes a basic filter with a double active purifying filter for: smoke, dust, pollen and bacteria.
• Put the warm air expulsion pipe in the parking position (fig. N).
• Select the ventilation speed: Maximum (★★★) or silent (★★★).
• We recommend leaving the filters installed, independently of the setting chosen (refrigeration, dehumidification or air purification) This will provide you with a more efficient purifying action.

HEATING (AA4020)

In the (≈) position the appliance will heat the air in the room while it filters it.

• Put the warm air expulsion pipe in the parking position (fig. N).
• Select the heating function (≈) .
• Set the thermostat to the desired temperature. Once the room reaches the said temperature the appliance will switch itself off automatically and come back on when it drops by 2 - 3^ .

Attention!

Do not cover the appliance's air intakes or outlets.

CLEANING & MAINTENANCE

Cleaning and replacing the purification filters

• The inside unit is fitted with a basic air filter (fig A,5), which will require cleaning from time to time. To do this it should be washed under running water, dried and put back.
• The set of purifying filters (fig A,6) will have to be replaced each year. Replacement filters can be obtained from your local supplier. Always use original Ufesa replacement parts. Replacement filters: RKZ09013
• Fit the new filters as shown in (figures O,P).
• Only place one set of filters over the base filter in order to maintain the cooling effect.

Cleaning the appliance

• The appliance can be cleaned down with a cloth or sponge, warm water and a mild detergent.
• Never use hot water (more than 40^ ), benzene, gasoline, acids or brushes, and try to prevent water from getting inside the appliance. Do not clean the appliance down with a hose.
• Clean the outdoor unit before it is put away. To do this, spray a little water on to the heat exchanger.

Before use at the beginning of the season

• Clean the air filter.
• Then clean the cover and grilles, should they need cleaning.

Before storing it away

If you think that the appliance is not going to be used over a long period then it is advisable to empty the internal water tank with the help of the drain pipe (fig A,3) placed onto the drain cock (fig A,7) at the bottom of the appliance, as shown in figure (fig K).

CHECKS THAT WILL SAVE YOU CALLING THE TECHNICAL SERVICES.

The operations described below will help you to solve minor problems and save you calling the Technical Service Centre. If, after having carried out these checks, the problem persists or reoccurs, then get in touch with our specialist technicians.

What to do if ...

...the appliance does not work

• Make sure that it is plugged in.
• Check that the function selector is not in the off ( ① ) position.
• Check to see that there is power on the mains supply or if a fuse has tripped.
• Set the thermostat to a lower cooling temperature or a higher heating temperature.

...the appliance does not operate in heating mode

• Check that nothing is obstructing the appliance's air intakes or outlets.
• The safety system designed to prevent overheating may have cut in. If, after a few minutes, the appliance fails to come back on automatically, unplug it, wait a few minutes and plug it back in.

... the appliance does not work and the safety light is on.

• Place the appliance on a flat surface. If the lamp stays lit, empty the appliance's internal water tank. (Refer to air-conditioning instructions).

... the safety lamps lights up frequently

• Make sure that the drain cock is in the correct position.

... the appliance does not cool the air sufficiently.

• Make sure that the joints around the warm air expulsion pipe (fig.A,4) are okay.
• Make sure that the expulsion pipe's path is not too curved and that its length does not exceed 140~cm .
• Check that the drain cock (figA,10) is in the air-conditioning position.
• Place the suction cup in such as way that the window is opened as little as possible.
• Close the blinds to minimise the heat from the sun.

... the appliance makes a lot of noise

• Make sure that the warm air expulsion pipe is attached to the appliance correctly.
• Check that the air inlet and outlet on the appliance are free from obstruction.
• If your can hear water running then this is due to the pump operating, which is recirculating the water in order to improve the appliance's performance.

Any other fault or repair must be dealt with by a specialist technician. Consult an Authorised Technical Service Centre.

CHARACTERISTICS TABLE

Modelos		AA4000	AA4020	AA8000
Performance
Maximum cooling capacity (*)	W	2.300	2.100	2.600
Maximum consumption: cooling	W	955	955	1.180
Maximum consumption: heatingn	W	-	2.000	-
capacity	ltr/24h	26,4	26,4	31,2
Fuse	A	10	10	10
Sound level (min/max)	dB(A)	45/48	46/49	45/48
Refrigerant		R-407C	R-407C	R-410A
Maximum air flows
Cooling	m³/h	215	180	215
Ventilation	m³/h	275	220	275
Heating	m³/h	-	220	-
Operation range
Cool ling (min/max)	°C	20/35	20/35	20/35
dehumidification (min/max)	°C	18/35	18/35	18/35
Heating (nim/max)	°C	-	sin限时/30	-
Size
Height of the unit	cm	86,5	86,5	86,5
Width of the unit	cm	43,8	43,8	43,8
Depth of the unit	cm	43,5	43,5	43,5
Weight of the unit	kg	32	32	32
Length of cable	cm	210	210	210
Length of drainage pipe	cm	140	140	140
Accessories
Window accessory RKZ1000
Balcony accessory RKZ2000
Wall // Window Tube B1RKZ 06009
Set of active filters RKZ09013		X	X	X
(*) ASHRAE 128
