USER MANUAL 4104 BISSELL

Thanks tor buying a BISSELL Vacuum We're glad you purchased a BISSELL vacuum. Everything we know about floor care went into the design and construction of this complete, high-tech home cleaning system. Your BISSELL vacuum is well made, and we back it with a limited one year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Services department, so, should you ever have a problem, you'll receive fast, considerate assistance. My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high quality homecare products like your BISSELL vacuum . Thanks again, from all of us at BISSELL. ne 7.474240 Mark J. Bissell Chairman, President & CEO www.bissell.ca = 1-800-263-2535

When using an electrical appliance, basic precautions should be observed, including the following:

READ ALL INSTRUCTIONS

UPRIGHT VACUUM. Always connect to a polarized outlet (left slot is wider than right). Unplug from outlet when not in use and before conducting maintenance. VAN WARNING: 50 reduce the risk of fire, electric shock, a injury: Do not modify the polarized plug to fit a non-polarized outlet or extension cord. Do not leave vacuum cleaner unattended when it is plugged in. Unplug from outlet when not in use and before servicing. Unplug before attaching the TurboBrush. Do not use outdoors or on wet surfaces. Do not allow children to operate vacuum cleaner or use as a toy. Close attention is necessary when used by or near children. Do not use for any purpose other than described in this user's guide. Use only manufacturer's recommended attachments. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center. M Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces. M Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. M Do not handie vacuum cleaner or plug with wet hands. M Do not put any object into openings. Do not use with any opening blocked: keep openings free of dust, lint, hair, and anything that may reduce air flow. M Keep haïr, loose clothing, fingers, and all parts of body away from openings and moving parts. A sISSer

M Tom off all controls before plugging or unplugging vacuum cleaner. ΠUse extra care when cleaning stairs. ΠDo not pick up flammable materials (lighter fluid, gasoline, kerosene, etc.) or use in the presence of explosive liquids or vapors. M Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.) Do not use vacuum cleaner in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors. Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. Do not use without filters in place. Use only on dry, indoor surfaces. Keep appliance on a level surface. Do not carry the vacuum cleaner while it is running, SAVE THESE INSTRUCTIONS FOR FUTURE USE THIS APPLIANCE

PLUG. risk of electric shock, this appliance has a {one blade is wider than the other). This plug wil ft in a polarized outet only one way, I the pl not ft fully in 1h let, rex the plug, If it stl does not fit cc qualied electrcian to install a proper outlet Do not change the plug in any way. This model is for household use on 1-800-263-2535 3

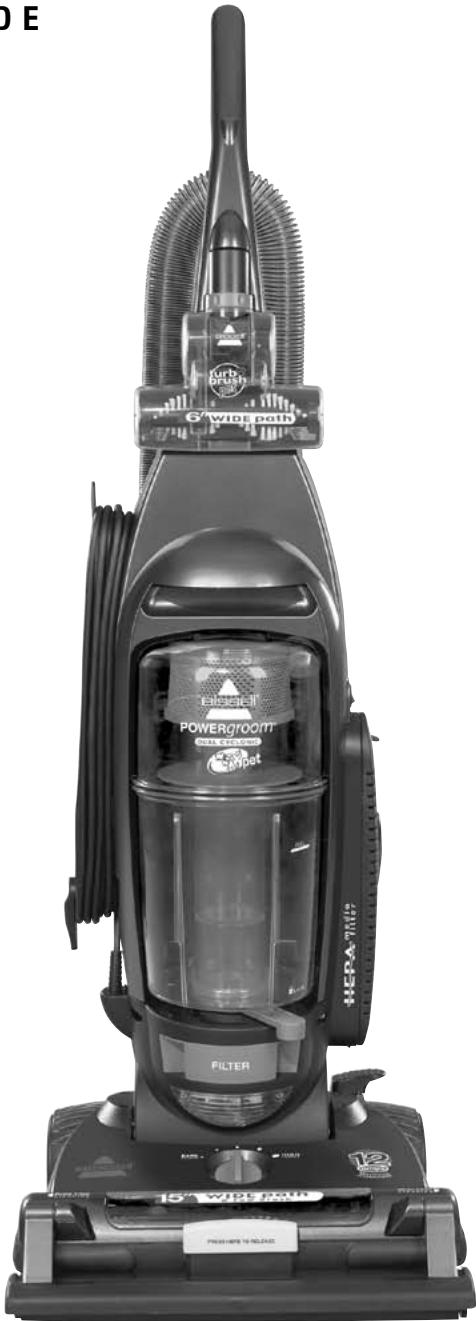

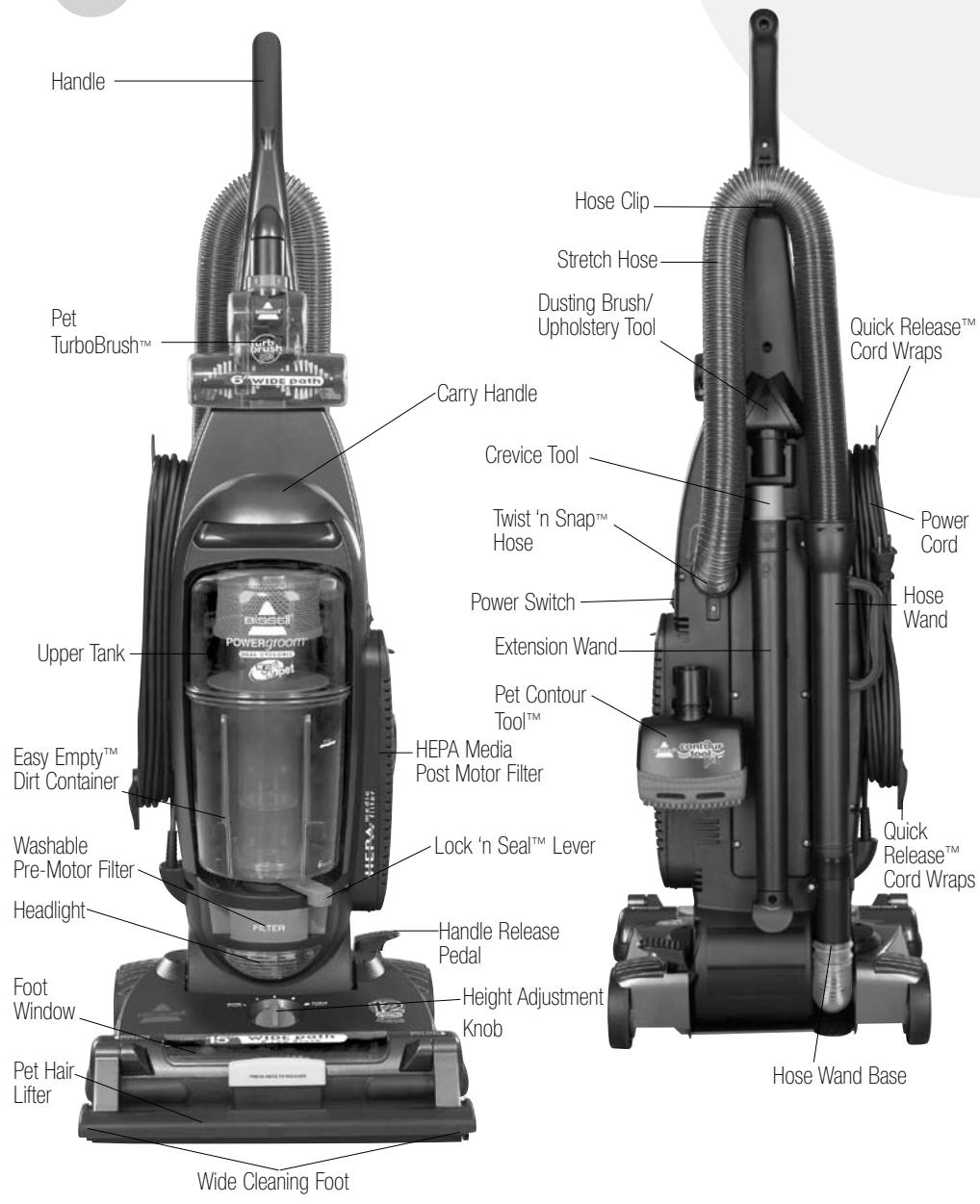

Product view Handle Stretch Hose. Dusting Brush/ Quick Release”" Pet Uphoistery Tool TurboBrushw Cord Wraps Cary Handie Crevice Tool Tiist'n Snap” Power Hose Cord Power Switch —— . Hose Wand Upper Tank Extension Wand- Pet Contour Too!" Easy Empty" HEPA Media D Conaer Post Motor Filter Lock 'n Seal" Lever ji ù Rate Cord Wraps Washable Pre-Motor Filter —Height Adjustment Knob USE — x Hose \Nland Base Lifter Wide Clearing Foot 4 wwwbissell.ca = 1-800-263-2535

Assembly The only tool you'll need to assemble your vacuum cleaner is a Phillips screwdriver. Attach handle to vacuum

1. Locate the handle and cord wrap. Remove

the screw packet taped to the handle. 2.

2. Stand the vacuum upright and from the

rear of the unit, slide the base of the handle firmly into the grooves at the top of the vacuum body.

3. Ensure that the handle fits firmly to the

vacuum body. If there are any gaps, continue EN to push firmly until the handle is secure.

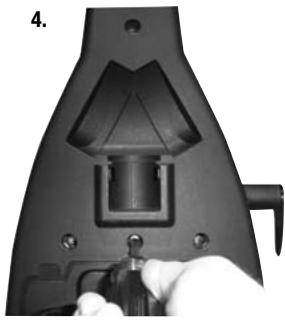

4. Insert the provided screw into the existing

hole, attaching the handle to the body of the vacuum. Tighten securely with a screwdriver. www.bissell.ca À CAUTION: Do not plug in your vacuum cleaner until you are familiar with all instructions and operating procedures. 1-800-263-2535

Assembly Attach vacuum hose and tools

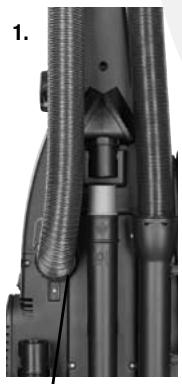

1. Attach the Twist 'n Snap" Hose by lining up

the tabs on the base with the corresponding notches on the back of the vacuum as shown.

2. Turn the Twist 'n Snap Hose to the right to

lock the hose into place.

3. Grasping the Quick Reach Handle, slide the

end of the Hose Wand onto the Hose Wand Base. Snap the Hose into the Hose Clip. NOTE: The vacuum will not operate effectively unless the hose wand is fimly attached.

4. Slide the extension wand and crevice tool

into the storage clip on back of vacuum.

5. Slide the dusting brush/upholstery tool into

the storage clip on back of vacuum.

6. Attach the Pet Contour Tool to the back

of the vacuum by inserting tool into storage clip.

7. Store Pet TurboBrush on the front of the

handle by lining up the TurboBrush base with the base of the holder then push back to snap into place.

8. Flip the pet hair lifter down until it clicks into

place on the front of the foot. NOTE: Flip the Pet Hair Lifter down for carpeted surfaces and up for non-carpeted surfaces (see page 7 for more information). Operations Power switch The Power Switch is located on the left side of the vacuum. Push the rocker switch “ON” (1) to vacuum, and “OFF” (0) when cleaning is complete.

6 www.bissell.ca = Twist'n Snap Hose 7. Pet Hair Lifter ACAUTION: Before using your vacuum, make sure that the dirt container is in the locked position and that all filters {pre-motor and HEPA post- motor) are in place. Do not operale your vacuum without these filters. NOTICE: For above floor cleaning, the floor brush will continue to rotate but is raised above floor. To prevent carpet damage, do not lean on the vacuum or let the powerfoot tit forward. ACAUTION: To avoid personal injury and to prevent the cleaner from falling when cleaning stairs, always place it at the bottom of the stairs. 1-800-263-2535

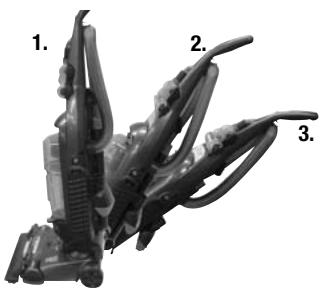

www.bissell.ca Operations Handle positions Press the handle release pedal, located on the lower left side of the vacuum, with your foot to place your vacuum into one of three cleaning positions.

1. Upright - For storage and above floor

cleaning with tools.

2. Normal Cleaning -— Press handle release

pedal once. Position used for most household floor cleaning tasks.

3. Low Cleaning - With the vacuum in normal

cleaning position, press handle release pedal again. Use for reaching under low furniture such as tables, chairs or beds. Height adjustment The powerfoot/rotating floor brush on your vacuum can be adjusted to clean several floor surfaces. NOTE: For optimal cleaning performance, adjust to the lowest practical setting. If your cleaner is difficult to push, adjust to the next higher setting.

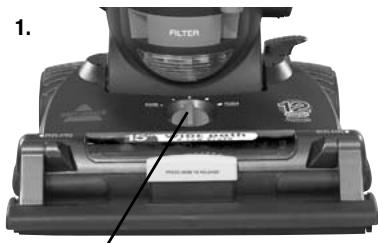

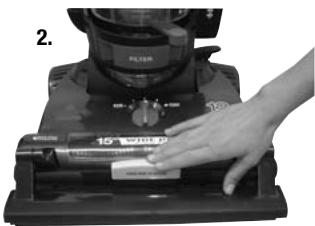

1. Tum height adjustment knob to desired setting.

Bare Floor For non-carpeted, indoor surfaces Lowest Setting For short pile carpets Medium Setting For short and medium pile carpets Highest Setting For plush pile carpet Pet Hair Lifter Use to pick up pet hair from carpeted surfaces. Just vacuum like you normally would. The vacuum will grab pet hair when you pull back and it will release hair and suction it up when you push forward. NOTE: Turn vacuum off before you flip up or flip down the Pet Hair Lifter.

1. Carpeting - While vacuum is in upright

position flip Pet Hair Lifter down until it clicks into place on the front of the foot. Turn height adjustment knob to lowest setting.

2. Hard floor — Fip Pet Hair Lifter up. Push the

yellow release button just above the feature, and it will flip up and out of the way. Tip: Before cleaning under low furniture, check area first for objects that might harm the unit or block the vacuum hose. Height Adjustment Knob 1-800-263-2535 7

Operations Transporting cleaner

1. To move your cleaner from room to room,

put the handle in the upright position, tilt the cleaner back on its rear wheels and push forward.

2. The cleaner can also be moved by using

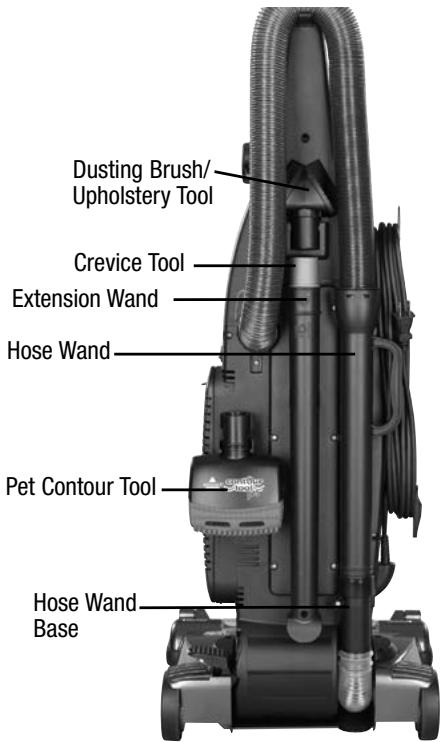

the carry handle. Special on-board tools Your vacuum is not only a powerful carpet and rug cleaner, it's also a versatile above floor vacuum cleaner when you select one of the special tools.

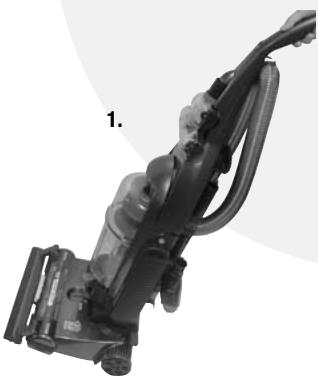

1. Raise the handle to the upright position.

2. Grasp the hose wand handle to separate

from hose wand base.

3. Attach tools by firmly pushing onto vacuum

hose, hose wand or extension wand. Be sure the hose and tool fit snuggly together by twisting tightly. Dusting Brush/Upholstery Tool: Two types of cleaning tools in one attachment. + Use the dusting brush to dust furniture, blinds, books, lamps, shelves and baseboards. + Slide the brush off to use the upholstery tool on cushions, draperies and fabrics. www.bissell.ca Extension Wand Hose Wand: correct way to carry Dusting Brush/ Upholstery Tool Crevice Tool 1-800-263-2535

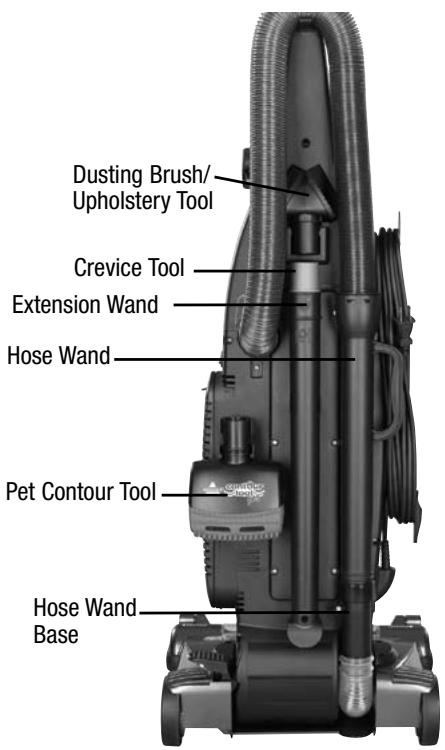

Operations Special on-board tools (continued) Crevice Tool: Use in tight narrow spaces. Extension Wand: Use with desired attachment for a longer reach. Hose Wand: Use with desired attachment for a longer reach or for cleaning hard to reach places. Pet Contour Tool: Use to reach into corners and edges on stairs as well as armrests and other curved surfaces. The tool can be flipped to use in any direction. Pet TurboBrush: Use rotating brush action for small flat areas such as cushions and beds. NOTE: Press gently down and pull towards you in a raking motion. Too much pressure will cause the brush to stop rotating. NOTICE: These tools are designed to remove pet hair from upholstered or carpeted surfaces. They Should not be used on pets. Dusting Brush/ Upholstery Tool Crevice Tool Extension Wand Hose Wand Pet Contour Tool Hose Wand Base Pet Contour Tool Tip: Haïr, sbing and small objects can block the vacuum hose or tools. Check them occasionaly for obstructions. A\CAUTION: The rotating floor brush continues to rotate while tools are in use. To reduce the risk of injury from moving parts, always move the cleaner with the carrying handle. Always place vacuum cleaner on the floor with handle in upright position when using tools. Never place your fingers under the cleaner when it is running. Never place powerfoot on furniture or uneven surfaces. Do not place vacuum cleaner close enough to objects to pull them into rotating brush.

sise www.bissell.ca == 1-800-263-2535 9

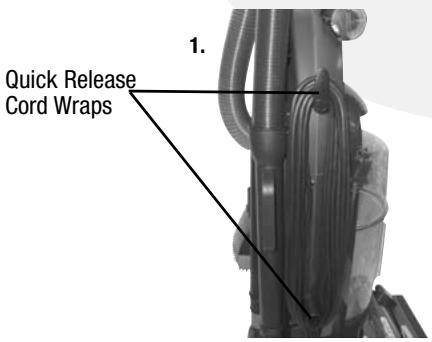

Operations Power cord usage

To use your vacuum, remove the cord and plug it into an electrical outlet. For your 1. convenience, there are two quick release cord wraps for easy cord removal. There is also a cord clip that is part of the upper cord wrap where you can attach the cord when vacuuming, Quick Release Cord Wraps When you are finished cleaning, turn vacuum cleaner off. Unplug power cord by grasping the polarized plug (NOT the cord) and disconnect from outlet. Loop power cord around cord wraps on side of vacuum cleaner. Be sure to first return the quick release cord wraps back to their original position before wrapping the cord. Clip molded plug to power cord to secure. 10 www.bissell.ca == 1-800-263-2535

Maintenance and care To maximize your cleaning performance and extend the life of your vacuum, it is very important that you empty your dirt container WA R N l N G : and check and clean your filters frequently. To reduce the risk of electric Perform the following maintenance steps: shock, turn power switch OFF

1. Emptythe dirt container when the dirt reaches and disconnect polarized plug

the “Full” line on the container, or more frequentiy from electrical outlet before to prevent overfils. For best performance, empty performing maintenance or after each use. troubleshooting checks.

2. Check the pre-motor filter and post-motor HEPA

media filter at least once a month, clean or replace as needed.

3. Replace the post-motor HEPA media filter Tip …

every three to six months. a NOTE: More frequent filter cleaning may be To maximie cleaning performance, necessary if you are vacuuming new carpet, check and clean or replace al fiters fine dust, or have allergy concerns. Follow the instructions on the following pages to perform these simple maintenance steps. s suggested. Empty dirt container

The dirt container should to be emptied before the dirt reaches the “Full” line on the container.

1. Unplug the vacuum from electrical outlet.

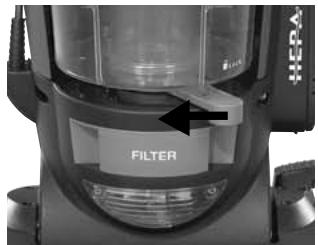

2. Slide the Lock ‘n Seal Lever to the “Unlock” 2.

3. Grasp handle and pull the dirt container

straight out to remove from the vacuum.

4. Empty dirt into garbage container.

NOTE: Emptying the dirt container after every use will help prevent over filling and ensure that the vacuum is ready to go the next time you clean. www.bissell.ca == 1-800-263-2535 11

Maintenance and care Cleaning the pre-motor and post-motor HEPA media filter

1. Unplug the vacuum from electrical outlet.

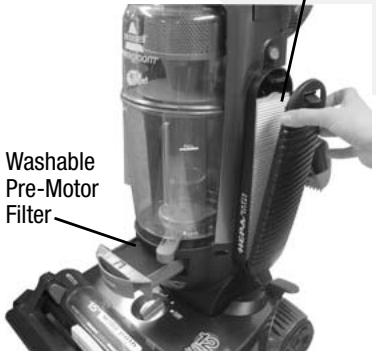

2. The pre-motor filter protects the motor from

dirt particles. It is located in the slide out tray underneath the dirt container. If the filter becomes dirty, pull out the tray, lift out the foam filter pad and clean it. NOTE: The pre-motor filter may be hand washed in cold water with mild detergent. Rinse well and air dry thoroughly before replacing.

3. The post-motor HEPA media filter assists in

the filtration process to retum clean air to the room. tis located behind the door on the side of the vacuum. If the filter becomes dirty, remove the door, remove the filter and replace. NOTE: The post-motor filter isa white, pleated HEPA media filter. This filter is not washable and must be replaced when it becomes dirty. Check rotating floor brush and drive belt You should check your vacuum cleaner rotating floor brush and drive belt regularly for wear or damage. You Should also clean the brush and brush ends of strings, hair and carpet fibers. This type of debris can wrap around the brush and hamper its ability to effectively clean your carpet. Also remove any debris that has accumulated under the brush cover.

1. Unplug the vacuum from electrical outlet.

2. Place handle in low position and turn vacuum

cleaner over so bottom side is facing up.

3. Lift tab 1 and release the three latches in

order 2-4 marked. Lift off the brush cover.

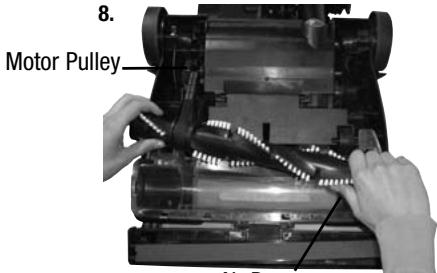

4. Grasp rotating floor brush at both ends and lift.

Clean strings, hair and other debris from rotating floor brush, paying particular attention to brush ends.

6. Clean strings, hair and other debris from

motor pulley and drive belt areas.

7. Check drive belt carefully for wear, cuts or

8. Check air passageway for obstructions.

Remove debris from this area. 12 wuwbissell.ca = Washable Pre-Motor Filter AWARNING: Do not operate cleaner with damp or wet filters or without all filters in place. À WARNING: To reduce the risk of injury from moving parts, turn vacuum cleaner off and disconnect power plug from electrical outlet. Motor Pulley.

Maintenance and care Replace drive belt

1. Unplug the vacuum from electrical outlet.

2. With rotating floor brush removed from

vacuum cleaner (Steps 1-4 of check rotating floor brush and drive belt), grasp old drive belt and remove from motor pulley. Discard the old drive belt. Motor Pulley.

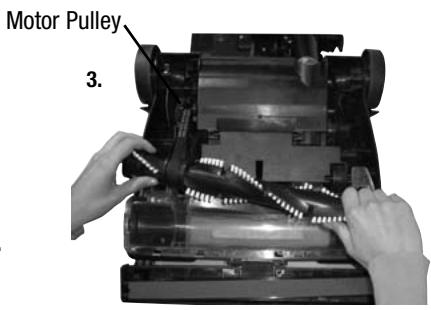

3. Place new drive belt over motor pulley and

loop other end over rotating floor brush in 3. the space between the bristles. NOTE: It is important that you use only genuine BISSELL replacement belts. Generic belts may not meet the exact specifications required to keep your vacuum operating at its peak performance. The use of unbranded belts could lead to early failure of the vacuum and could void your warranty.

4. Pull the rotating floor brush firmly into

position, stretching the drive belt, and place ends of rotating floor brush down into the slots on sides as shown. Alignment of brush ends in slots may be necessary to fully insert the brush.

5. Turn rotating floor brush by hand several

times in the direction of motor pulley. f properly installed, drive belt will center itself on rotating brush crown.

6. Insert front edge of brush cover, rotate into

place, and snap 3 latches.

www.bissell.ca = 1-800-263-2535 13

Maintenance and care Replace lightbulb

1. Unplug the vacuum from electrical outlet.

2. Using a screwdriver, first remove 2 screws

on either side of lens and pull out to remove the lens.

3. Remove the bulb from the socket by

grasping the bulb and pulling gently. Install the new bulb by pushing it gently into the socket until the bulb snaps into place.

4. Reposition the lens place cover back over

headlight and reinsert 2 screws. Maintaining Pet TurboBrush®" The Pet TurboBrush should be checked regularly for clogs or debris wrapping around the brush.

1. Remove tool from hose or front of vacuum.

2. Twist collar so opening is at the top and lift

top cover to remove.

3. Remove the brush from the belt and clean

4. Replace the brush inside the belt and place

ends into slots on sides as shown.

5. Reposition top cover making sure to line up

inside tab at the front with the opening on the cover. Twist collar until opening is at the bottom to lock into place. 14 uww.bissell.ca 1-800-263-2535

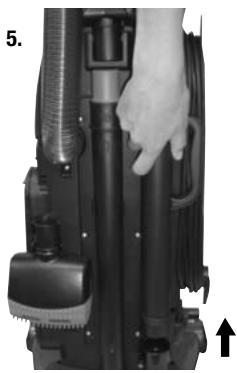

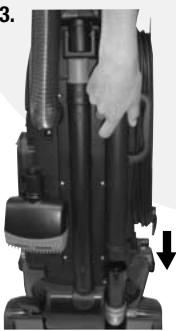

Maintenance and care Clearing clogs Low suction or poor pickup may be due to a clog in the vacuum cleaner. If you notice a change in the sound of the motor, check for clogs.

8 SN www.bissell.ca Unplug the vacuum from electrical outlet. Empty dirt container. Check upper tank for build up or clogs. If you notice a clog in the upper tank, remove the inner cyclone (see section "Cleaning the upper tank" on page 16). Grasp the hose wand and separate it from the hose wand base. Check for a clog in the base, the wand or in the hose. Remove the Twist ‘n Snap hose from the vacuum by tuming to the left. Straighten the hose and unclog with a long, narrow object such as a broom handle. If the clog persists, follow the instructions for "Checking the rotating floor brush and drive belt" on page 12 and inspect the air passageway for obstructions. 1-800-263-2535

Maintenance and care Cleaning the upper tank

Troubleshooting www.bissell.ca Grasp the inner cyclone and twist to the left until the locking tabs stop the rotation. Pull down from the upper tank to remove it. ‘Wipe out the inside of the upper tank and the inner cyclone with a damp cloth moistened with water or a mild cleaning solution If you desire to thoroughly clean the filtration disk located in the upper portion of the inner cyclone, hold the bottom of the cyclone and turn filtration disk to the right and pull up to remove. The inner cyclone and filtration disk may be washed using a mild detergent. Be sure it is completely dry before reassembling or damage to your unit may result. Once cleaning is completed, reassemble the filtration disk over the inner cyclone by sliding it straight down on the top of the inner cyclone and turning left. Be sure to line up the tabs when reassembling for proper installation. To replace the inner cyclone, slide it into the upper housing. Be sure to line up the inner cyclone by ensuring tabs on filtration disk are positioned toward the front of the unit. Push the inner cyclone in and rotate it to the right until the locking tabs stop the rotation. Vacuum cleaner won’t run À WARNING: To reduce the risk of electric shock, turn power OFF and disconnect polarized plug from electrical outlet before performing maintenance or troubleshooting. Possible causes

1. Power cord not plugged in

2. Blown fuse/tripped breaker in home

Troubleshooting Vacuum cleaner won't run (continued) Possible causes

3. Damaged power cord

Vacuum cleaner and tools won't pick up dirt Possible causes

1. incorrect height adjustment

2. Hose not attached to suction opening

3. Tiist'n Snap hose not securely attached

Crack or hole in hose Broken or wo drive belt Rotating floor brush bristles wom Rotating floor brush jammed

Clog in vacuum Dirt container full

10. Dirt container not installed properiy

11. Filters are dirty

12. TurboBrush is clogged or débris is wrapped

around the brush roll

Vacuum cleaner is difficult to push Possible causes

1. Incorrect height setting

Visible dirt escaping from cleaner Possible causes

1. Dirt container full

2. Filters missing or installed incorrectiy

3. Unplug, check for damage, replace

as necessary Remedies

1. Adjust powerfoot to correct height

2.. Fimiy push hose wand int hose wand base

3. Make sure Tiist'n Snap hose is snapped

into locked position .… Check hose and replace if needed .… Replace drive bel, see pages 12-13 .… Replace brush Remove brush and clean debris from brush ends pee

8. Clear clogs, see page 15

9. Empty dir container

10. Position correctiy and lock in place

11. Check pre-motor and post-motor fiers

12, See page 14 for Maintaining TurboBrush Remedies

1. Ajust powerfoot to correct height setting

1. Empty dirt container

2. Check pre-motor and post-motor fiters for

correct installation

3. Pull out and re-insert dirt container correctly

Other maintenance or service not included in the manual should be performed by an authorized service representative. Thank you for selecting a BISSELL product. Please do not return this product to the store. For any questions or concerns, BISSELL is happy to be of service. Contact us directly at 1-800-263-2535.

BISSELL Consumer Services For information about repairs or replacement parts, or questions about your warranty, call: BISSELL Consumer Services 1-800-263-2535 Monday - Friday Saturday Or write: BISSELL Homecare, Inc. PO Box 3606 Grand Rapids MI 49501 ATTN: Consumer Services Or visit the BISSELL website - wwwr.bissell.ca When contacting BISSELL, have model number of cleaner available. Please record your Model Number: Please record your Purchase Date: 8 am. — 10 p.m. ET 9am.— 8p.m.ET NOTE: Please keep your original sales receipt. It provides proof of purchase date in the event of a warranty claim. See Warranty on page 20 for details. Replacement parts - BISSELL vacuum Style 7/9/10/12/14 Drive Belt (2-Pack) ‘Wide Window Foot Brush Roll (gray) Style 7/8/14 Pre-Motor Foam Filter Style 8/14 HEPA Media POST-Motor Filter Item Part No. Part Name L 32074 2 203-1297 Headlight Bulb 3 203-1283 4 203-1073

Warranty - BISSELL PowerGroom Pet" Vacuum If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact BISSELL Consumer Services by E-mail, telephone, or regular mail as described below. Limited One Year Warranty Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product, BISSELL Canada Corporation will repair or replace (with new or remanufactured components or products), at BISSELL's option, free of charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part. See information below on “If your BISSELL product should require service” This warranty applies to product used for personal, and not commercial or rental service. This warranty does not apply to routine maintenance components such as belts or brushes. Damage or malfunction caused by negligence, abuse, or use not in accordance with the User's Guide is not covered. If your BISSELL product should require service Call BISSELL Consumer Services at the number listed below or visit the BISSELL website — www.bissell.ca to lo- cate a BISSELL Authorized Service Centre in your area. f there are no authorized BISSELL Service Centres in your area, a BISSELL Representative at canada.custhelp@bissell.ca or at the phone number below will issue you a Return Authorization Number and a pre-paid mailing label to retum the unit to BISSELL for warranty repair. The machine should be retumed with a photocopy of your proof of purchase. (Your dated sales receipt is your warranty — do not send original.) If you need information about repairs or replacement parts, or if you have questions about your warranty, contact BISSELL Consumer Services. Website: wwmr.bissell.ca E-mail: canada.custhelp@bissell.ca Or Call: BISSELL Consumer Services 1-800-263-2535 Monday — Friday 8 a.m.— 10 p.m. ET Saturday 9 a.m.— 8 p.m. ET Or write: BISSELL Canada Corporation Box 1003, Niagara Falls, ON L2E 6W2 ATIN: Consumer Services BISSELL CANADA CORPORATION IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL'S LIABILITY WILL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT. *EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND Bissell FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE ONE YEAR DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE ÉD NOTE: Please keep your original sales receipt, (©2009 BSSELL Homecare, nc it is your warranty. BISSELL Canada Corporation Niagara Fall, ON L2E 62 Al rights reserved. Printed in Korea Part Number 110-4107 Rei 5/08 Vi our nebste at: wwmbisselLca www.bissell.ca = 1-800-263-2535
