| Product Type | Powered subwoofer (active) |
| Brand | YORKVILLE |
| Model | ELITE LS200P |
| Configuration | 1 x 10-inch speaker |
| Amplifier | 200 Watts RMS |
| Electronic protection | Excursion, thermal, and clipping limiter |
| Thermal protection | Yes (built-in) |
| Inputs | 2 x 1/4" TRS balanced (line/speaker level) |
| Outputs | 2 x 1/4" parallel (daisy-chain) |
| Controls | Volume, Input selector (Line/Speaker), Ground lift switch |
| Ground switch | GND / GND LIFT |
| Enclosure material | Black carpet |
| Grille | High-gauge perforated metal |
| Corners | Black metal |
| Feet | Plastic |
| Handles | 2 side, 1 top |
| Dimensions (W x H x D) | 69 x 44 x 36 cm (27 x 17.5 x 14 inches) |
| Weight | 25.9 kg (57 lbs) |
| Power supply | Mains (power cord) |
| Warranty | 2 years for electronics, 10 years for cabinet |
| Recommended use | Enhance low frequencies of a full-range system |
| Maintenance | Clean with a dry cloth, avoid water |
| Safety | Do not open, refer servicing to qualified personnel |
| Optional accessories | LS200P Stand, SW-Teletube |
Frequently Asked Questions - ELITE LS200P YORKVILLE
User questions about ELITE LS200P YORKVILLE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Passive speaker in PDF format for free! Find your manual ELITE LS200P - YORKVILLE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ELITE LS200P by YORKVILLE.
USER MANUAL ELITE LS200P YORKVILLE
The Owner's Manuals should be read and understood before operation of your unit. Please, save these instructions for future reference.
Packaging
Keep the box and packaging materials, in case the unit needs to be returned for service.
Warning
When using electric products, basic precautions should always be followed, including the following:
Power Sources
Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precautions should be taken so that the grounding scheme on the unit is not defeated.
Hazards
Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer.
The apparatus should not be exposed to dripping or splashing water; no objects filled with liquids should be placed on the apparatus.
Terminals marked with the "lightning bolt" are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords.
Ensure that proper ventilation is provided around the appliance.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Power Cord
The AC supply cord should be routed so that it is unlikely that it will be damaged. If the AC supply cord is damaged DO NOT OPERATE THE UNIT.
Service
The unit should be serviced only by qualified service personnel.
INSTRUCTIONS RELATIVES AU RISQUE DE FEU, CHOC ÉLECTRIQUE, OU BLESSURES AUX PERSONNES
AVIS:
AFIN DE REDUIRE LES RISQUE DE CHOC ELECTRIQUE, N'ENLEVEZ PAS LE COUVERT (OU LE PANNEAU ARRIERE)
NE CONTIENT AUCUNE PIECE REPARABLE PAR L'UTILISATEUR.
CONSULTEZ UN TECHNICIEN QUALIFIE POUR L'ENTRETIENT
The LS200P powered subwoofer incorporates a 200 Watt amplifier. It can be used to enhance the bottom end (bass) of a full-range speaker system and increase the overall output of the system. The inputs to the subwoofer can accept a single source either from a speaker/amplifier output or a line level output from a pre-amp or mixer.
The LS200P also has a built in limiter and thermal protection that make this product smooth and robust at high power levels. The internal limiter and the internal protection are factory set to maximize performance.

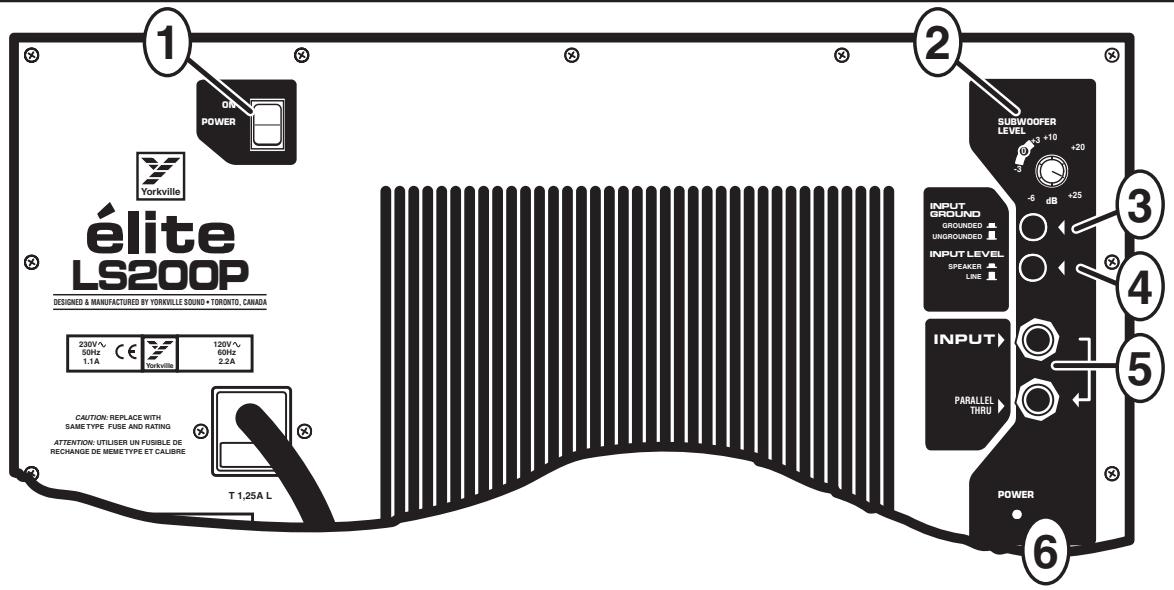

1. Power Switch
2. Volume
Set the volume control to a desired level as music is being played through the unit.
A setting of 0 dB on the SUBWOOFER LEVEL control is the correct starting point when setting up a sound system. From there the sound can be adjusted for best sound. The 0 dB mark refers to the setting that will give full power when the line input is used and the input signal is at a level of +4 dBV. This also is the setting to give a sensitivity of 2.83 Vrms (1 watt 8-ohms) for 100 dB spl when set for speaker level input. With a typical full range companion speaker this will give flat response. In either line or speaker operation it will usually be desirable to set the control at +3 to +6 to give some bass boost at low power levels. At levels approaching full power the built-in limiter will automatically reduce the gain to prevent over powering the subwoofer. Operation with settings significantly above +12 may clip the circuitry in the subwoofer reducing the dynamics of the music. Setting the subwoofer gain above +12 is only appropriate at low operating levels.
3. Ground Lift
If a hum, or buzz is detected from the subwoofer, try setting the switch to the GND LIFT position (OUT position). The switch should otherwise be left in the GND (IN position).
4. Input Level Switch Speaker
Normally, the input to the subwoofer is from a full-range speaker cabinet, or amplifier output. (See figure 2.0)
Line In this case, the input to the subwoofer is from a line level source such as a mixer.
5. Input Jacks
The two inputs are balanced 1/4 inch parallel jacks and can be connected as shown in figures 2 and 3, on the following page. Please note that there is no effect to the performance of the full-range speaker if it is used to supply a music signal to the LS200P.
6. Power ON LED
Multiple LS200P's
As well as accommodating the full-range speakers, the parallel input jacks allow many LS200P's to be connected in a string. There is no practical limit to the number of LS200P's that may be connected together.

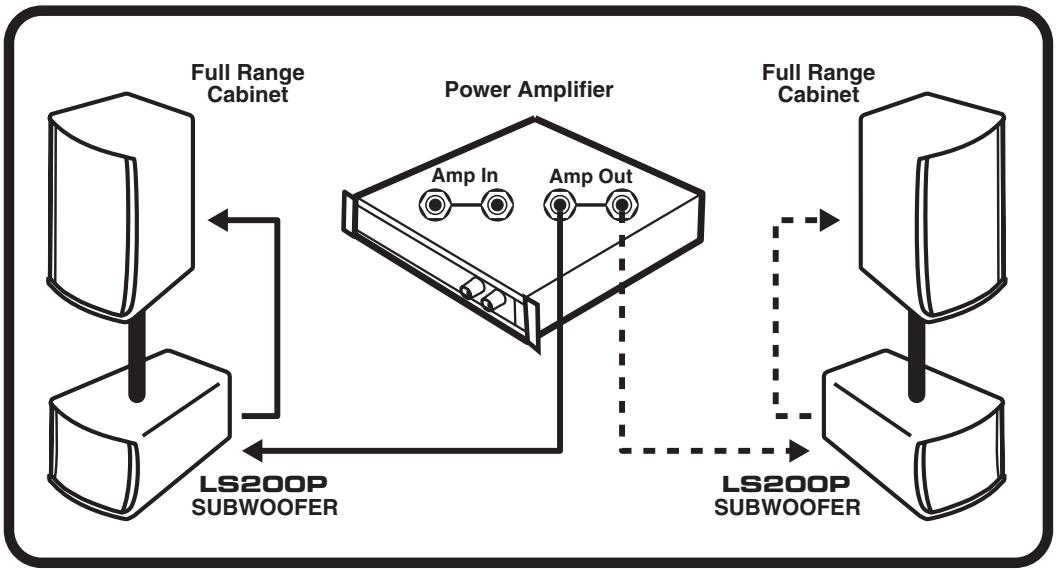

Figure 2

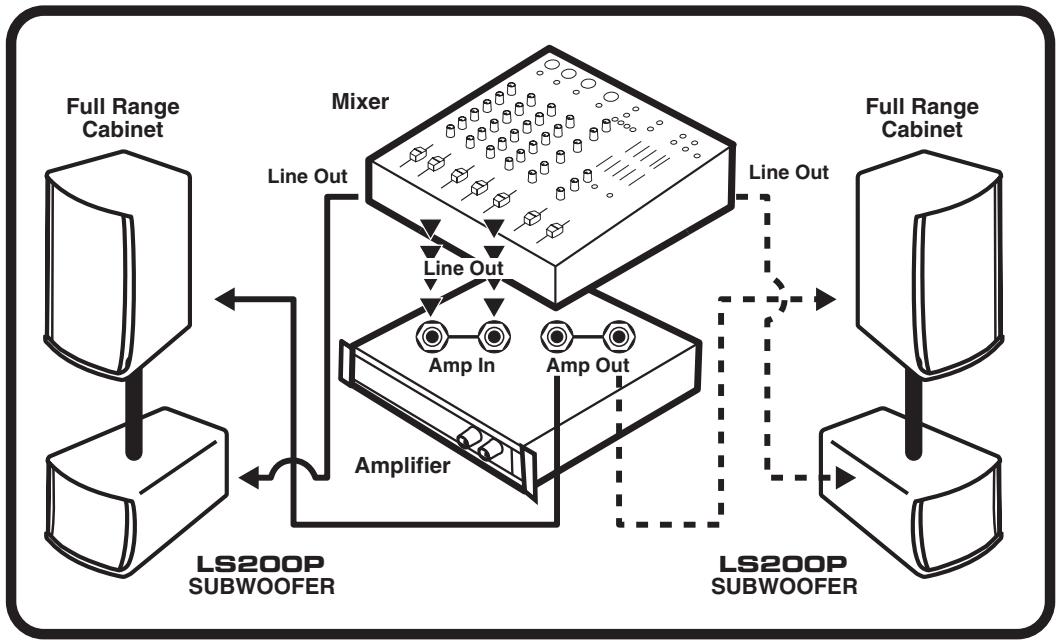

Figure 3
User Note
For normal operation connect the LS200P just like any ordinary speaker along with the full-range speakers. The input level switch should be set to speaker. If the audio source does not have a U ground (a ground pin on the AC cord), the ground lift switch must be set to gnd. The LS200P may be wired before or after the full-range speakers. The LS200P does not alter the signal to the full-range speakers. The LS200P will not draw any power from the amplifier driving the full-range speakers. Please note that an external crossover is not necessary.
élite
LS200P
Note: The LS200P built-in stand mounting adapter can be used with Yorkville SW-Teletube accessory to support our E160 cabinets. The support tube can be adjusted up to it's full 5^4'' extension safely as long as the LS200P is not inclined more than 10^ (10 degrees).
WARNING: Larger/heavier cabinets should not be used with the stand mount!
Specifications
System Type Subwoofer
Active or Passive Active
Program Power (Watts) 200
Max SPL (dB) 125
Frequency Response (Hz +/- 3db) 50 - 110
Driver Configuration 10 inch
LF Driver(s) 10 inch
LF Protection Electronic Limiting (excursion, thermal, clip)
LF Power Amplifier (Watts) 200
Power Cable Yes
Power Switch Yes
Inputs - 1/4 inch Jacks 2 line inputs, 2 link (in/out)
Level Controls Main Volume
Other Controls / Features Selectable line or speaker level input
Ground lift switch
Corners Black Steel
Feet Plastic Glides
Bar Handles 2 Side mounted
1 Top
Enclosure Materials 15mm (5/8 inch) 11-ply Russian Birch
Grille Heavy gauge perforated metal
Covering / Finish Black Ozite (Carpet)
Dimensions (DWH xbackW, inches) 27 × 17.5 × 14
Dimensions (DWH xbackW, cm) 69 x 44 x 36
Weight (lbs/kg) 57 / 25.9
Introduction
Active ou Passive Active
Puisance Nominale (Watts)
Niveau de Pression Sonore Max (dB)
Dimensions (PLH x L arrriere, cm)
Poids (livres/kg)
57/25.9
10 pouces
15mm (5/8 pouce) 11-plis Bouleau Rousse
Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge. This includes all Yorkville products, except for the YSM Series studio monitors, Coliseum Mini Series and TX Series Loudspeakers.
Freight charges, consequential damages, weather damage, damage as a result of improper installation, damages due to exposure to extreme humidity, accident or natural disaster are excluded under the terms of this warranty. Warranty does not cover consumables such as vacuum tubes or par bulbs. See your Yorkville dealer for more details. Warranty valid only in Canada and the United States.
Garantie Illimitée
Niagara Falls, New York
14305 USA
WEB: www.yorkville.com
Niagara Falls, New York
14305 USA
Voice: (716) 297-2920
Fax: (716) 297-3689
