USER MANUAL MSR2007 AUDIOVOX

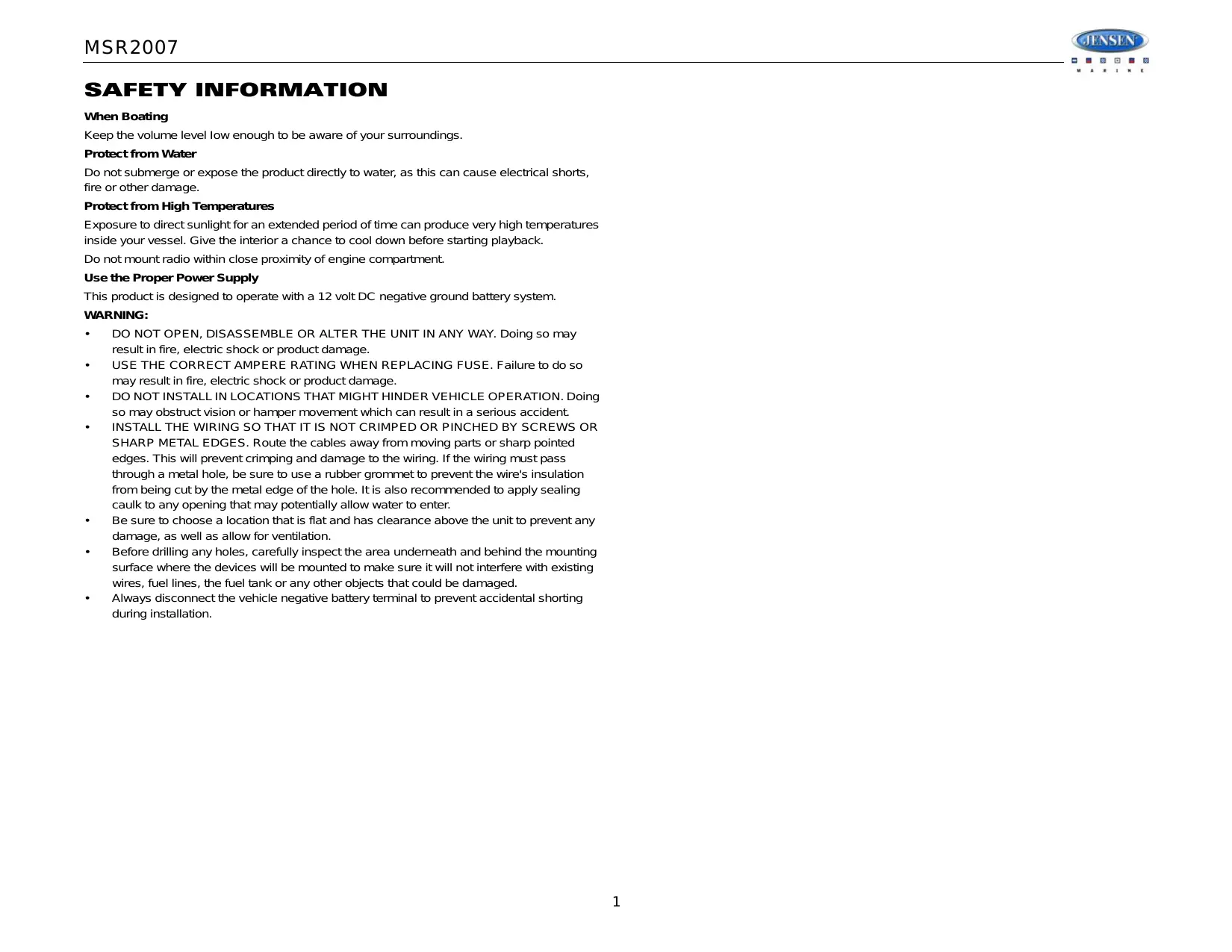

MSR2007 SAFETY INFORMATION When Boating Keep the volume level Iow enough to be aware of your surroundings. Protect from Water Do not submerge or expose the product directly to water, as this can cause electrical shorts, fire or other damage. Protect from High Temperatures Exposure to direct sunlight for an extended period of time can produce very high temperatures inside your vessel. Give the interior a chance to cool down before starting playback. Do not mount radio within close proximity of engine compartment. Use the Proper Power Supply This product is designed to operate with a 12 volt DC negative ground battery system.

DO NOT OPEN, DISASSEMBLE OR ALTER THE UNIT IN ANY WAY. Doing so may result in fire, electric shock or product damage. USE THE CORRECT AMPERE RATING WHEN REPLACING FUSE. Failure to do so may result in fire, electric shock or product damage. DO NOT INSTALL IN LOCATIONS THAT MIGHT HINDER VEHICLE OPERATION. Doing so may obstruct vision or hamper movement which can result in a serious accident. INSTALL THE WIRING SO THAT IT IS NOT CRIMPED OR PINCHED BY SCREWS OR SHARP METAL EDGES. Route the cables away from moving parts or sharp pointed edges. This will prevent crimping and damage to the wiring. If the wiring must pass through a metal hole, be sure to use a rubber grommet to prevent the wire's insulation from being cut by the metal edge of the hole. It is also recommended to apply sealing caulk to any opening that may potentially allow water to enter. Be sure to choose a location that is flat and has clearance above the unit to prevent any damage, as well as allow for ventilation. Before drilling any holes, carefully inspect the area underneath and behind the mounting surface where the devices will be mounted to make sure it will not interfere with existing wires, fuel lines, the fuel tank or any other objects that could be damaged. Always disconnect the vehicle negative battery terminal to prevent accidental shorting during installation.

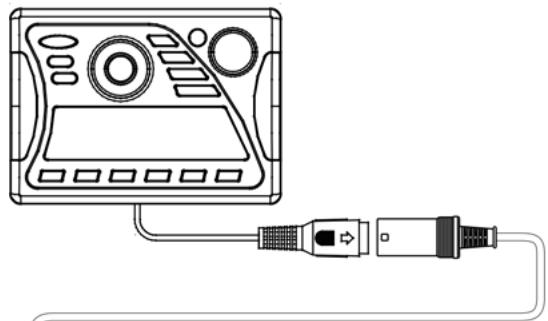

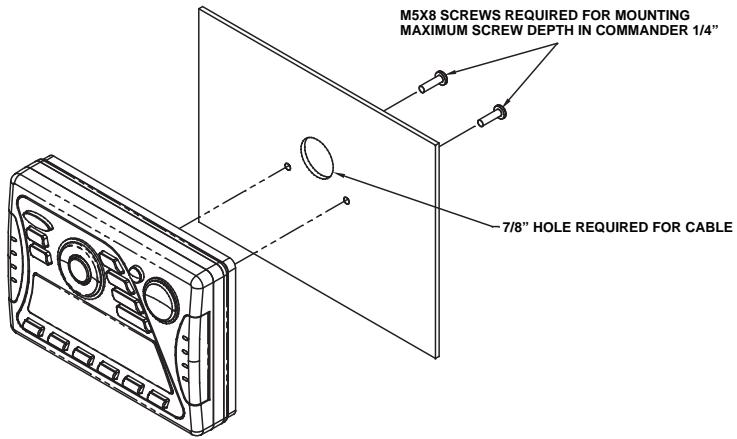

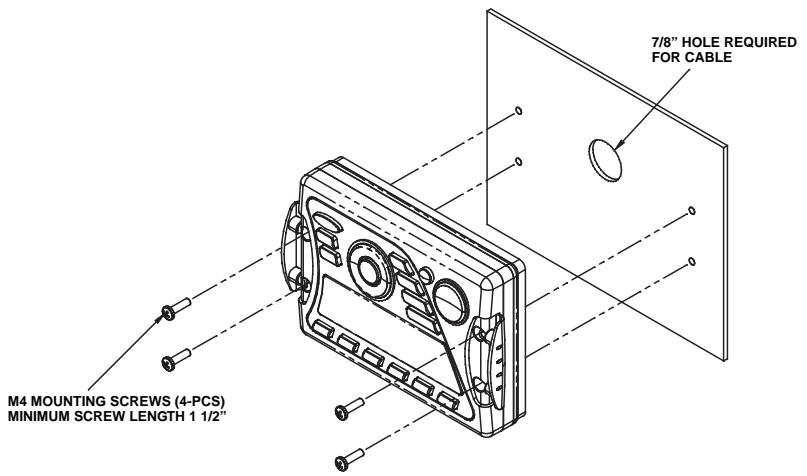

MSR2007 INSTALLATION Before You Begin Wired Commander Mounting Before you begin, always disconnect the battery negative terminal.

Before final installation, test the wiring connections to make sure the unit is connected properly and the system works. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. Consult with your nearest dealer if installation requires the drilling of holes or other modifications to your vessel. Install the unit where it does not interfere with driving and cannot injure passengers if there is a sudden or emergency stop. Avoid installing the unit where it will be subject to high temperatures from direct sunlight, hot air, or from a heater, or where it would be subject to excessive dust, dirt or vibration. Choose a mounting area for the wired commander that is clean and flat, allowing the rear gasket to fully seal to the mounting surface. Secure the wired commander using either of the recommended mounting methods detailed in the diagrams below. 7/8” HOLE REQUIRED FOR CABLE M4 MOUNTING SCREWS (4-PCS)

Choose a mounting area for the tuner/amp module that will provide plenty of ventilation to prevent the amplifier from overheating. The tuner/amp module can be mounted in the horizontal or vertical position. Please note that when mounting in vertical position, do not mount with the harness exit points facing straight up, as water can collect around the chassis in these areas.

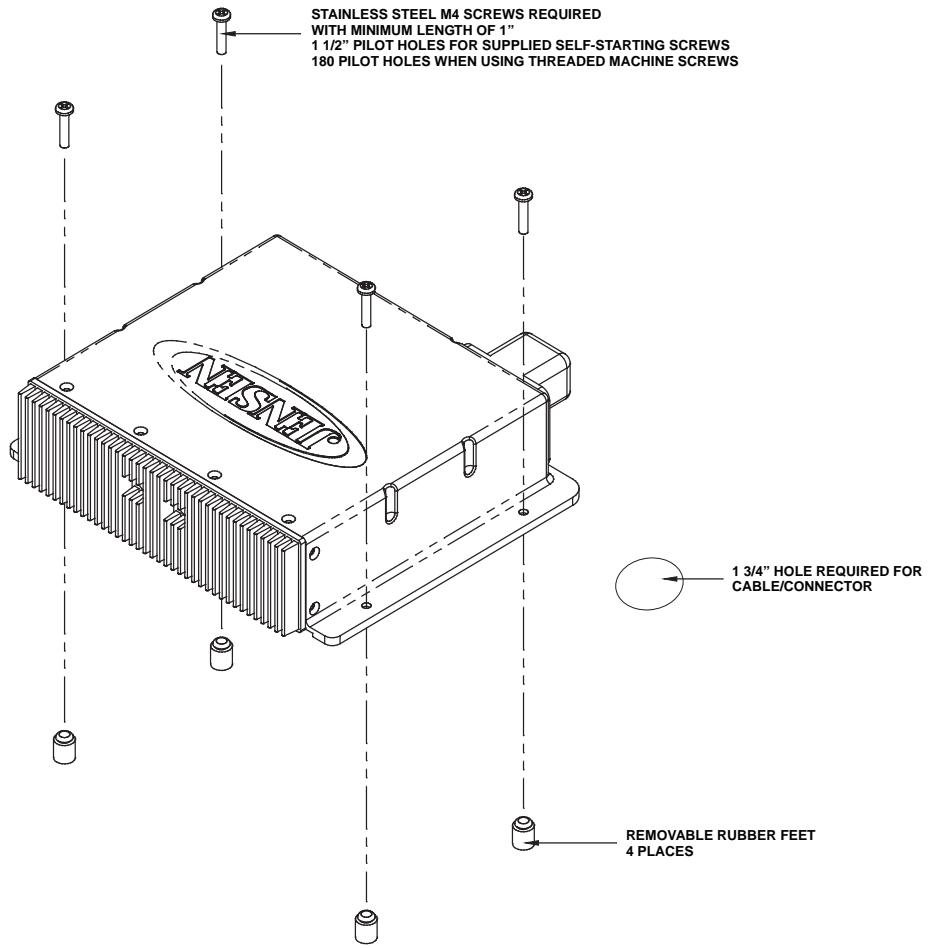

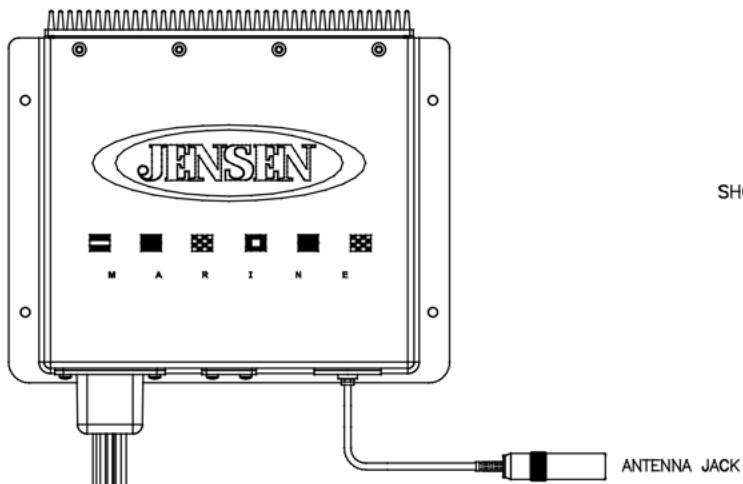

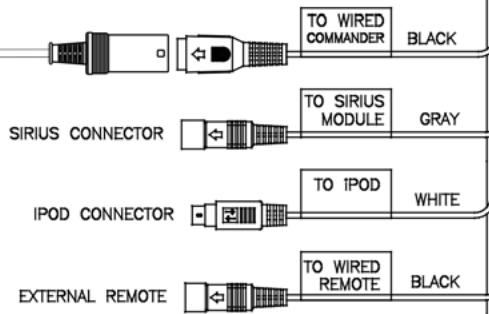

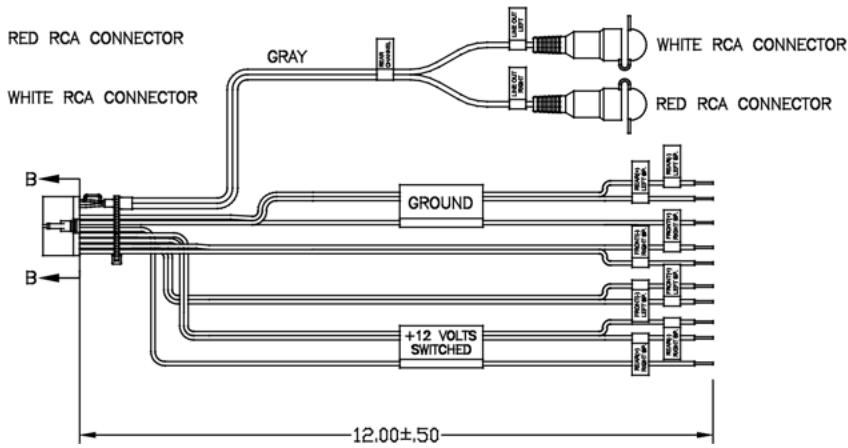

Attach the 4 rubber mounting feet, provided, to the bottom of the tuner/amp metal plate. This will provide clearance from surface moisture and promote good ventilation for the heat sink. Using the shortest length of the recommended size screws possible, mount the tuner/ amplifier as detailed in the diagram on the right. Route the tuner/ amplifier harness and cable throughout the vessel as required. Keep some slack in the harness/ cables so it won't be too tight, as this can cause damage to the wires. Follow the wiring diagram carefully and make certain all connections are secure and insulated with crimp connectors or electrical tape to ensure proper operation. After completing the wiring connections, reconnect the negative terminal on the battery and turn the unit on to confirm operation (vessel accessory switch must be on). If the unit does not operate, disconnect battery, recheck all wiring and refer to the trouble-shooting guide located in the back of the manual.

4 PLACES When wiring is complete, reconnect the battery negative terminal.

The reset button should be activated for the following reasons:

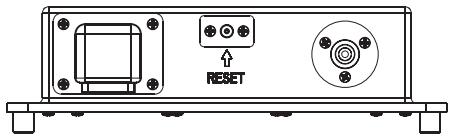

Use a ball point pin or thin metal object to press the RESET button, located on the tuner box. AUDIO

initial installation of the unit when all wiring is completed function buttons do not operate error symbol on the display

You can recover factory default settings using the RESUME function located on the system menu. With “YES” flashing, press the MODE button (4) to activate. Audio Menu SAT Press the AUDIO button (3) on the control panel to access the audio menu. You can navigate through the audio menu items by pressing the AUDIO button repeatedly. Once the desired menu item appears on the display, adjust that option by pressing the VOLUME +/- buttons (2) within 5 seconds. The unit will automatically exit the audio menu after five seconds of inactivity. The following menu items can be adjusted. Bass Level

Use the VOLUME buttons to adjust the Bass level range from “-6” to “+6”.

Treble Level Use the VOLUME buttons to adjust the Treble level range from “-6” to “+6”. Power On/Off Balance Press any button on the front panel to turn the unit on. Press the POWER button (1) to turn the unit off. The unit will resume the last mode (Tuner, Aux, etc.). The POWER button is illuminated whenever the +12V DC Switched (red wire) is powered, regardless of whether the unit is on or off. Use the VOLUME buttons to adjust the Balance between the left and right speakers from “L12” (full left) to “R12” (full right). Fader Use the VOLUME buttons to adjust the Fader between the rear and front speakers from “R12” (full rear) to “F12” (full front). Volume Control To increase the volume, press the VOLUME + button (2a). To decrease the volume, press the VOLUME - button (2b). The maximum volume level is “46”. Mute Press the MUTE button (17) on the control panel to mute the audio output. Press MUTE again to restore the audio output to the previous level. Mode Press the MODE button (4) on the control panel to select a different mode of operation, as indicated on the display panel. Available modes include Tuner, SIRIUS, iPod and AUX In. NOTE: iPod and SIRIUS mode will be skipped if the module is not installed.

When the information is too long to be displayed on the LCD, press and hold the INFO/ SCROLL button (12) to view the entire title. The information will scroll twice and then return to abbreviated text.

Press and hold the AUDIO button (3) for more than 3 seconds to enter the system menu. “MENU” will appear on the display, followed by the first menu item, “CONTRAST.” Press the TUNE/TRK >>| or |<< button (19, 18) or press the AUDIO button repeatedly to navigate the system menu and select the desired item. Press the VOLUME +/- buttons (2) to adjust the selected menu item. Press the AS/PS button to return to the previous operation immediately or wait for 5 seconds to return automatically. Quick Exit Hot Key In the following modes and conditions, press the AS/PS button < 3 seconds to quickly exit the current operation without waiting for the system default time out:

The following items can be adjusted:

CONTRAST (0 – 10): Set LCD contrast. LOW BATT (ON/OFF): Monitor voltage on ACC line. AREA (USA/LATIN/EUROPE/OIRT): Set frequency spacing for various regions. VOL PGM (0 – 46): Select an automatic turn-on volume. BEEP TONE (ON/OFF): Turn the audible beep ON/OFF (heard when functions/buttons are selected). NOTE: Beep tone off will not affect LOW BATT audible tone. RESUME: Return the EEPROM to factory default set up values and reset the Sirius Tuner Settings. "Yes" will blink on the LCD to confirm. Press MODE to select. LOW BATTERY Operation If LOW BATT is set to “ON”, a alarm will sound (8 beeps every 30 sec) when the voltage drops to 10.8V (+/- 0.03V). A visual warning (LOBA) will appear flashing (8 flashes every 30 sec) in the lower left corner of the LCD display. NOTE: “OFF” is the default setting for LOW BATT. If the audio is muted or the volume is set to 0, the audible beep will not be heard. Equalizer Press the EQ button (11) to turn on the equalization function and select between five predefined bass and treble curves: OFF > POP > JAZZ > CLASSIC > BEAT > ROCK. iX-Bass Press and hold the EQ/IX-BASS button (11) toggle loudness on/off. When listening to music at low volumes, this feature will boost the bass range to compensate for the characteristics of human hearing. Auxiliary Input To access an auxiliary device:

Connect the portable audio player to the AUX IN cables on the back of the tuner box.

Press the MODE button (4) to select Aux In mode. Press MODE again to cancel Aux In mode and go to the next mode. Liquid Crystal Display (LCD) The current frequency and activated functions are shown on the LCD panel (23). NOTE: LCD panels may take longer to respond when subjected to cold temperatures for an extended period of time. In addition, the visibility of the numbers on the LCD may decrease slightly. The LCD display will return to normal when the temperature increases to a normal range.

Automatically Store Select a band (if needed). Press and hold the AS/PS (15) button for more than three seconds to automatically select six strong stations and store them in the current band. The new stations replace any stations already stored in that band. AUDIO

NOTE: During Auto Store (AS), the tuner will default to “Local” mode while scanning the band initially. After scanning the entire band once, the unit will switch to “Distant” mode for all subsequent Auto Store tuning.

Select a band (if needed). Press AS/PS (15) to scan stations stored in the current band. The unit will pause for ten seconds at each preset station. Press AS/PS again to stop scanning when the desired station is reached. Local/Distant Reception (LO/DX) During radio operation, received signals are usually in stereo mode as indicated by the “ST” icon. However, when the signals are weak or intermittent, you can activate the Local (LOC) mode by pressing the LO/DX button (20). This mode favors access to local stations whose signals are much stronger; thereby improving radio reception. Press the LO/DX button again to terminate Local receive mode. SAT

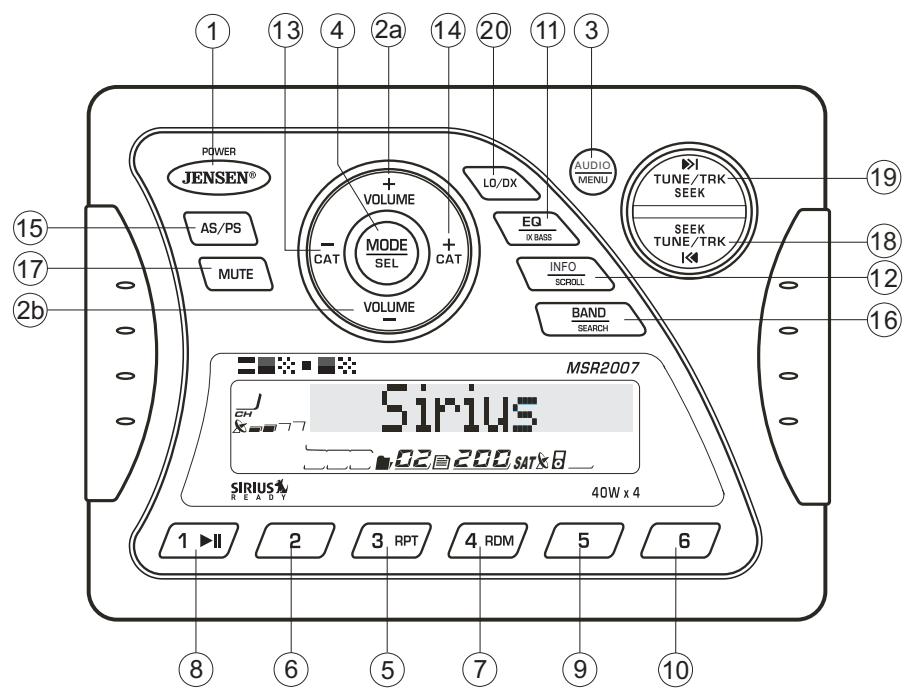

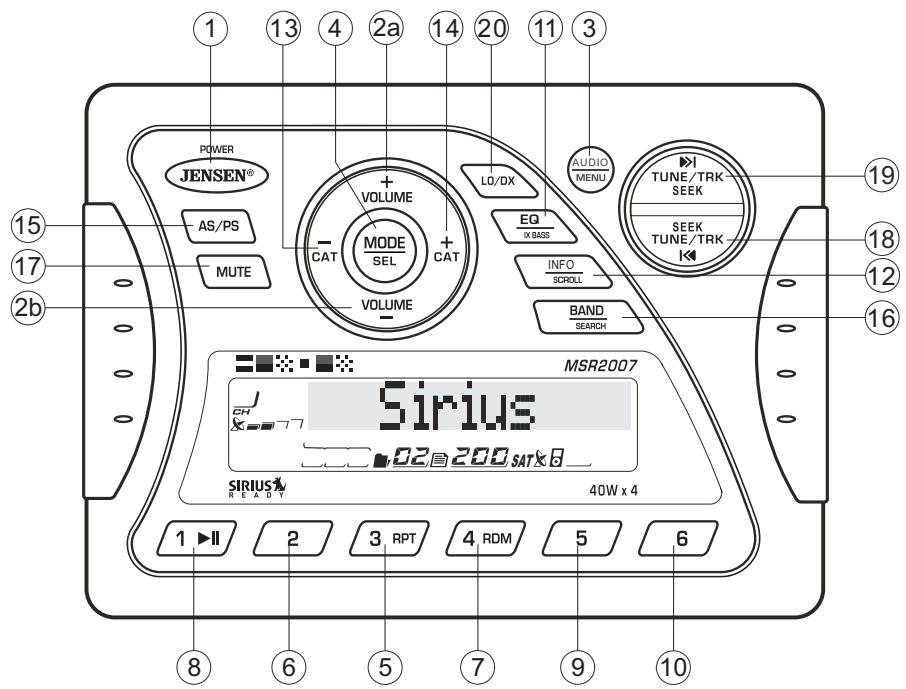

Select a Band Press the BAND button (16) to change between three FM bands and two AM (MW) bands. Manual Tuning Press the TUNE/TRK >>| or |<< buttons (18, 19) to seek stations up/down step by step. Auto Seek Tuning Press and hold the TUNE/TRK >>| or |<< buttons (18, 19) to automatically seek the next or previous strong station. Preset Stations Six numbered preset buttons store and recall stations for each band. Store a Station Select a band (if needed), then select a station. Press and hold a preset button (5-10) for two seconds. The preset number will appear in the display. Recall a Station Select a band (if needed). Press a preset button (5-10) to select the corresponding stored station.

Press the MODE button (4) or the TUNE/TRK |<< / >>| buttons (18/19) to choose desired channels in that category. Press the TUNE/TRK buttons to select a channel within the chosen category. Press MODE to confirm channel selection. Channel Up/Down Tuning AUDIO

The preset buttons (5-10) can be used to store 6 channels, allowing convenient access to your favorite channels.

Programming Channels

1. Select the channel you want to store in memory.

2. Press and hold a preset button (5-10) until the corresponding preset button number

3. Repeat steps 1 and 2 to program additional channels.

SAT Quick Tuning Press one of the six preset buttons (5-10) to select a preset channel directly. Channel Direct Access Searching

Press and hold the BAND/SEARCH button (16) to access Direct Tune mode. “DIRECT-T” appears on the display for a few seconds. Press the MODE button (4) to confirm. Press the TUNE/TRK |<< / >>| buttons (18/19) to move between the three digits. Use the VOLUME +/- buttons (2) to select a number for each position. Press the MODE button to confirm each digit. Press the MODE button again to tune to the selected file. Switching to SIRIUS Mode (Requires Optional Sirius Tuner)

In Sirius mode, press and hold the BAND/SEARCH button (16) to select DIRECT mode. Press the MODE button (4) to activate Direct mode. Press the MODE button for each digit to enter “000”. Press MODE again to confirm. This will display the Sirius ID number for your tuner. The Sirius ID number will scroll twice and then freeze with the first 11 digits on the display. Press the INFO/SCROLL button (12) to display the remaining digit. Satellite Signal Strength The display will indicate satellite reception strength as shown below. Signal Strength Selecting a Band No Signal In Sirius mode, press the BAND button (16) to access the Sirius user-preset channel groups in the following order: SR-1, SR-2, SR-3. Weak Category Tuning

Good Press the CAT - /+ buttons (13/14) to change the category. Each category title and song title will be displayed in increments. While in the category mode, press the CAT - /+ buttons again to view category names. (The lowest channel number within the chosen category will always be the default first channel tuned.) Excellent

Strength Display MSR2007 IPOD OPERATION This unit is equipped with an iPod ready function that will allow you to control your iPod (if compatible) using the control panel control buttons. The following iPod versions are supported: Press and hold the TUNE/TRK |<< / >>| button (18/19) to fast reverse/forward the song.

NOTE: If you press and hold the TUNE/TRK |<< / >>| button to change the current song to the previous/next song, you will exit fast reverse/forward mode. iPod 3G (firmware version 2.2 only) iPod Mini iPod 4G iPod Photo iPod Nano iPod 5G (Video)

NOTE: iPod and iPod Cable sold separately. Accessing iPod Mode AUDIO The unit will automatically switch to iPod mode when an iPod is plugged into the iPod cable.

To return to the iPod menu from any other source, press the MODE button (4) on the control panel or remote control until “iPod” appears on the display.

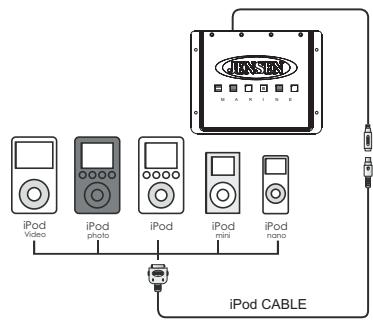

Turning the iPod On/Off The iPod power turns on automatically when an iPod iPod iPod iPod iPod iPod is connected to 30-pin iPod cable, as long as the vehicle ignition is turned on. You can turn the iPod off by disconnecting it from the cable or by iPod CABLE turning the ignition off. When the ignition is turned off, the iPod will pause and then enter sleep mode after 2 minutes. While the iPod is connected, the power cannot be turned on or off from the iPod itself. Video photo mini nano SAT NOTE: The iPod will continuously recharge when connected to the unit, as long as the vehicle ignition is turned on.

Pausing Playback Alternate Display Information During playback, press the 1/>|| button (8) to pause the iPod player. “Pause” will appear on the LCD. Press 1/>|| again to resume playback. Press INFO/SCROLL button (12) to change the display information in the following order: ARTIST NAME > SONG TITLE > FOLDER NAME. Repeat Play Search Mode During playback, press the 3/RPT button (5) to repeat the current song. “Repeat” will appear on the LCD. Press 3/RPT again to stop repeat playback. Press and hold the BAND/SEARCH button (16) to enter iPod search mode. Press BAND/ SEARCH again to access Playlist, Artist, Album, Genre, Song, or Composer (consecutively). Random Play When search mode is selected, press the MODE button (4) to confirm selection. Use the VOLUME +/- buttons (2) to navigate through various list selections. Press MODE (4) to make your final selection. During playback, press the 4/RDM button (7) to play all songs in the current category in random order. Random play will begin once the current song has finished playing. “Shuffle” will appear on the LCD. Press 4/RDM again to stop random playback. Selecting Tracks During playback, press the TUNE/TRK |<< / >>| button (18/19) to play the previous or next track in the current category. Press the TUNE/TRK |<< button (18) once to play the song from the start position or press TUNE/TRK |<< twice to play the previous track.
