Product Type	Electronic instantaneous water heater
Brand	Dimplex
Model	DEE 1803
Nominal power	18 kW
Nominal voltage	400 V three-phase
Fuse protection	32 A
Minimum cable cross-section	4 mm²
Hot water flow rate (ΔT 26°C)	9.9 L/min
Hot water flow rate (ΔT 48°C)	5.4 L/min
Activation flow rate	2.6 L/min
Minimum flow pressure	0.025 MPa (0.25 bar)
Maximum nominal pressure	1.0 MPa (10 bar)
Maximum inlet temperature	20 °C
Protection class	I
Installation type	Wall-mounted (solid fixing)
Electrical connection	Terminal block (top or bottom)
Water connection	Cold water pipe only, closed circuit
Features	Continuous temperature adjustment, start-up purge, electronic safety
Maintenance	Clean with damp cloth; descale strainer if necessary
Warranty	According to distributor conditions

Frequently Asked Questions - DEE 1803 DIMPLEX

How to install the DEE 1803?

Installation must be carried out by a qualified installer. Mount the device firmly on the wall, first connect cold water (closed circuit) then the electrical supply (400 V three-phase with earth wire). Before first use, perform a purge by opening the hot water tap for at least 1 minute at a flow rate of 6 L/min.

What to do if the water is not hot enough?

Check that the household fuse has not blown. If the flow rate is too high, partially close the hot water tap. In winter, colder inlet temperature may require reducing the flow rate. If the problem persists, have the automatic cut-out checked by a technician.

Why is the water flow too low?

The strainer of the tap, shower head or heating block may be blocked. Clean or descale the strainer. If the strainer downstream of the non-return valve is obstructed, have it cleaned by a specialized technician.

The device does not start, what to do?

Ensure the electrical supply is restored (fuses). Perform a start-up purge: open the hot water tap for at least 1 minute at a flow rate of at least 6 L/min. If the flow is insufficient, remove the aerator or shower head and repeat the operation.

How to clean the device?

Wipe the device with a damp cloth. Never use abrasive or scouring detergent. For descaling, remove the strainer and clean or decalcify it if necessary.

What to do in case of frost or winter?

The device must be installed in a frost-free room. If the desired outlet temperature is not reached in winter, reduce the water flow at the tap until the desired temperature is obtained.

How to adjust the water temperature?

Use the temperature selector on the device for continuous adjustment. For economical use, set the temperature directly on the water heater rather than adding cold water. The recommended position for energy savings is 40 °C.

Why does cold water flow briefly?

This is normal when the device detects air in the water. The water heater briefly cuts the heating power and then restarts automatically after a few seconds.

How to save energy with this device?

Set the water temperature directly on the device to 40 °C (position R). Avoid adding cold water if the water is too hot: this wastes water and energy. A thermostatic mixer can also improve efficiency.

What to do after a water cut?

Turn off the device (disconnect the fuses). Open the hot water tap until the air is purged from the pipe. Reconnect the fuses. The device is then ready to operate.

USER MANUAL DEE 1803 DIMPLEX

Installation and operating instructions

Instantaneous water heater

Chauffe-eau instantané

Doorstrom heetwaterapparat

Vent for one minute!

Apérependant 1 minute

1 minuut ontluchten

Odp战略布局 - 1 minute!

VI.

Montageanleitung

Eine Störung, was tun?

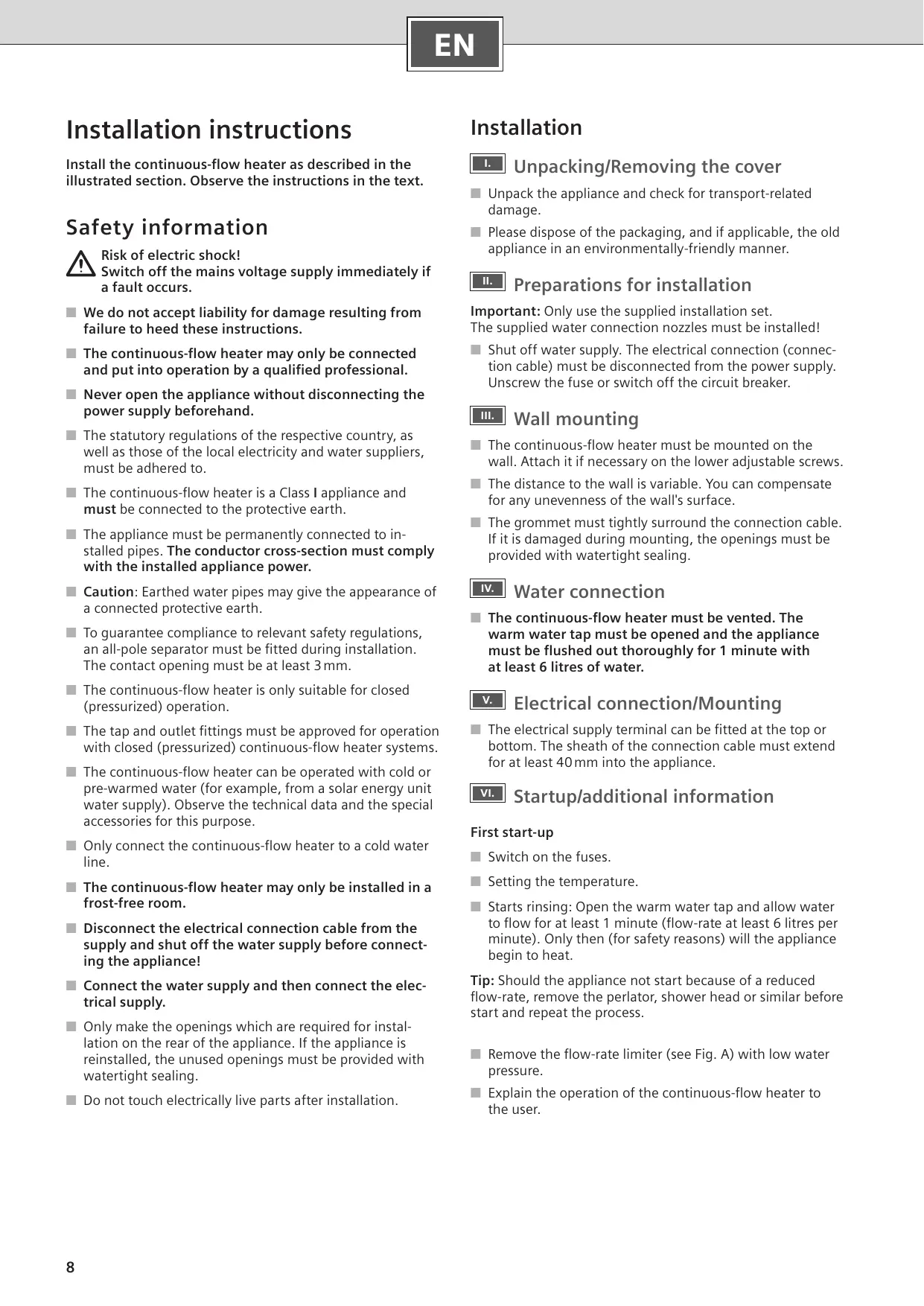

Installation instructions

Install the continuous-flow heater as described in the illustrated section. Observe the instructions in the text.

Safety information

Risk of electric shock!

Switch off the mains voltage supply immediately if a fault occurs.

We do not accept liability for damage resulting from failure to heed these instructions.
The continuous-flow heater may only be connected and put into operation by a qualified professional.
- Never open the appliance without disconnecting the power supply beforehand.
The statutory regulations of the respective country, as well as those of the local electricity and water suppliers, must be adhered to.
The continuous-flow heater is a Class I appliance and must be connected to the protective earth.
The appliance must be permanently connected to installed pipes. The conductor cross-section must comply with the installed appliance power.
Caution: Earthy water pipes may give the appearance of a connected protective earth.
To guarantee compliance to relevant safety regulations, an all-pole separator must be fitted during installation. The contact opening must be at least 3mm
The continuous-flow heater is only suitable for closed (pressurized) operation.
The tap and outlet fittings must be approved for operation with closed (pressurized) continuous-flow heater systems.
The continuous-flow heater can be operated with cold or pre-warmed water (for example, from a solar energy unit water supply). Observe the technical data and the special accessories for this purpose.
Only connect the continuous-flow heater to a cold water line.
The continuous-flow heater may only be installed in a frost-free room.
- Disconnect the electrical connection cable from the supply and shut off the water supply before connecting the appliance!
Connect the water supply and then connect the electrical supply.
Only make the openings which are required for installation on the rear of the appliance. If the appliance is reinstalled, the unused openings must be provided with watertight sealing.
Do not touch electrically live parts after installation.

Installation

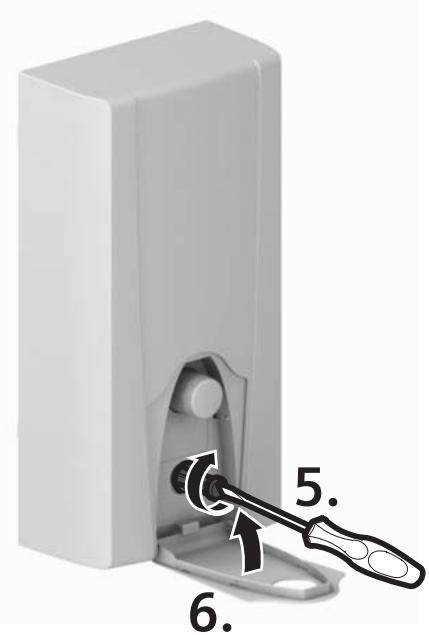

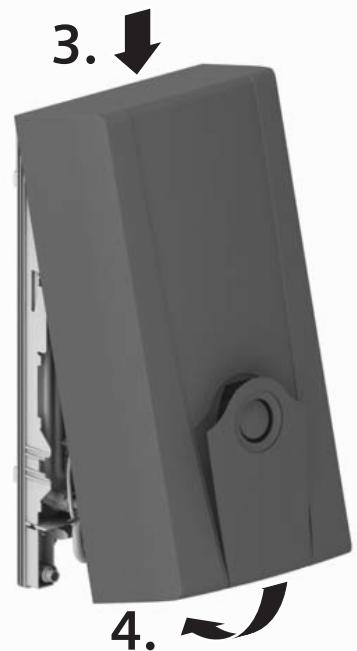

Unpacking/Removing the cover

• Unpack the appliance and check for transport-related damage.
  Please dispose of the packaging, and if applicable, the old appliance in an environmentally-friendly manner.

Preparations for installation

Important: Only use the supplied installation set.

The supplied water connection nozzles must be installed!

• Shut off water supply. The electrical connection (connection cable) must be disconnected from the power supply. Unscrew the fuse or switch off the circuit breaker.

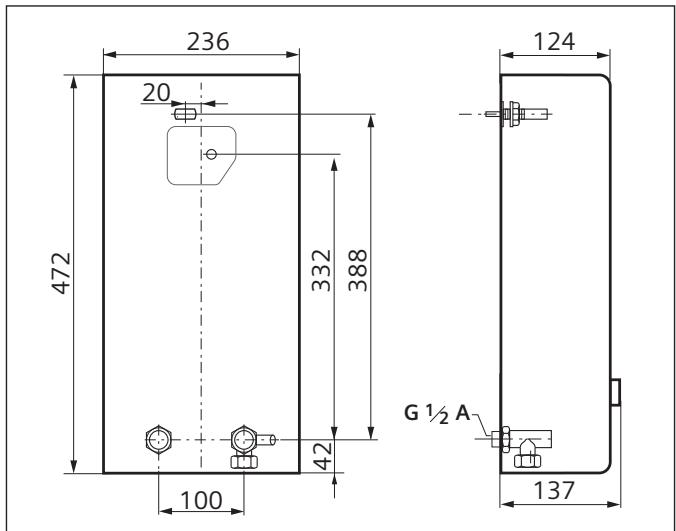

Wall mounting

The continuous-flow heater must be mounted on the wall. Attach it if necessary on the lower adjustable screws.
The distance to the wall is variable. You can compensate for any unevenness of the wall's surface.
The grommet must tightly surround the connection cable. If it is damaged during mounting, the openings must be provided with watertight sealing.

Water connection

The continuous-flow heater must be vented. The warm water tap must be opened and the appliance must be flushed out thoroughly for 1 minute with at least 6 litres of water.

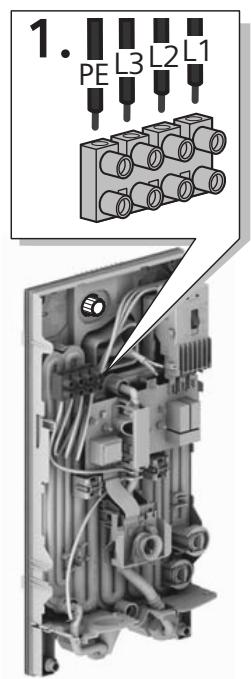

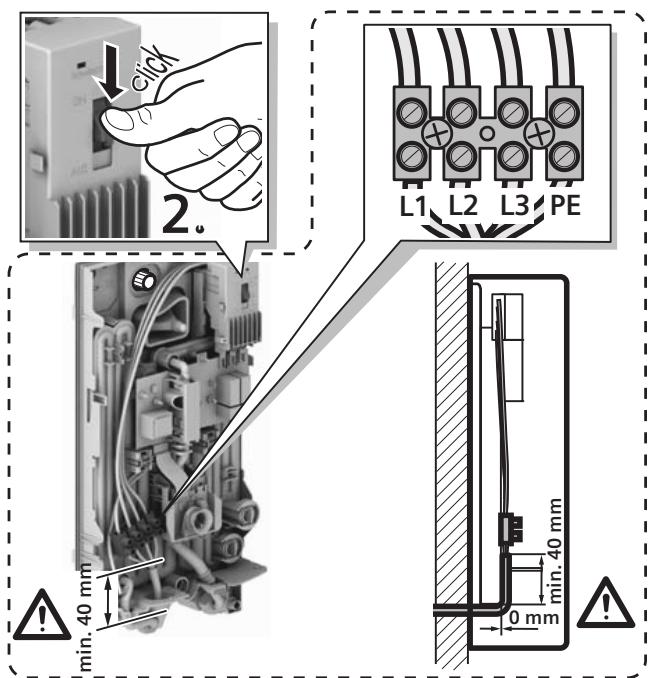

Electrical connection/Mounting

The electrical supply terminal can be fitted at the top or bottom. The sheath of the connection cable must extend for at least 40mm into the appliance.

Startup/additional information

First start-up

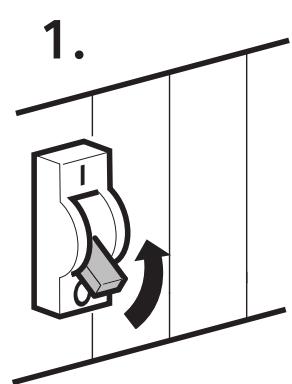

Switch on the fuses.

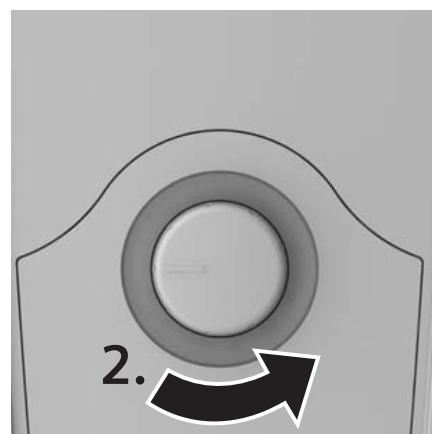

Setting the temperature.

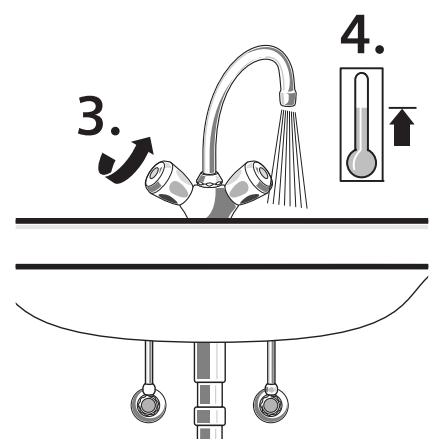

- Starts rinsing: Open the warm water tap and allow water to flow for at least 1 minute (flow-rate at least 6 litres per minute). Only then (for safety reasons) will the appliance begin to heat.

Tip: Should the appliance not start because of a reduced flow-rate, remove the perlator, shower head or similar before start and repeat the process.

Remove the flow-rate limiter (see Fig. A) with low water pressure.
Explain the operation of the continuous-flow heater to the user.

If the continuous-flow heater does not have sufficient water flow due to low water line pressure in your domestic plumbing system, remove the flow-rate limiter.

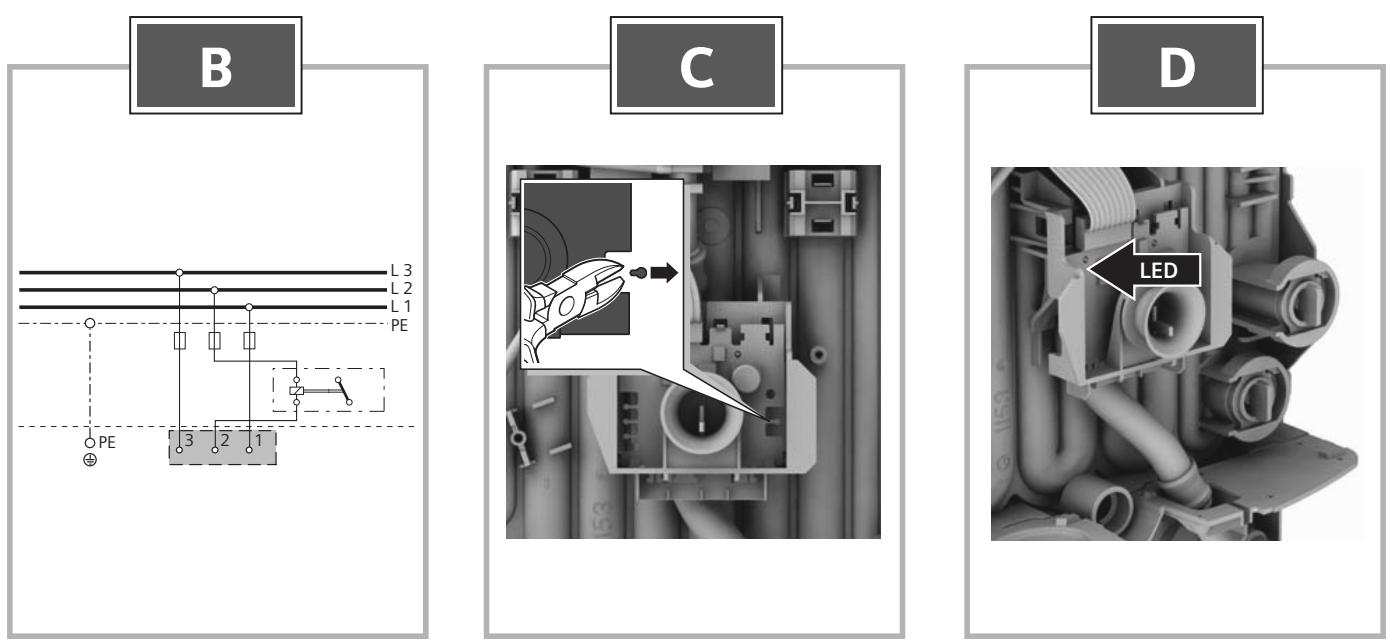

Priority circuit for the combination with electrical storage heaters:

For operation with a priority circuit, a special load shedding relay BZ 45L20 (special accessory) is required. Other existing load shedding relays, with the exception of electronic load shedding relays, may malfunction.

The control electronics must be coded when operated with a load shedding relay.

Status display on the appliance

LED	Appliance status
Off	Off
Lights up	Ready
Slow flash (1/s)	Appliance is heating
Fast flash (4/s)	Desired water temperature is not reached (water flow too high for appliance rating).

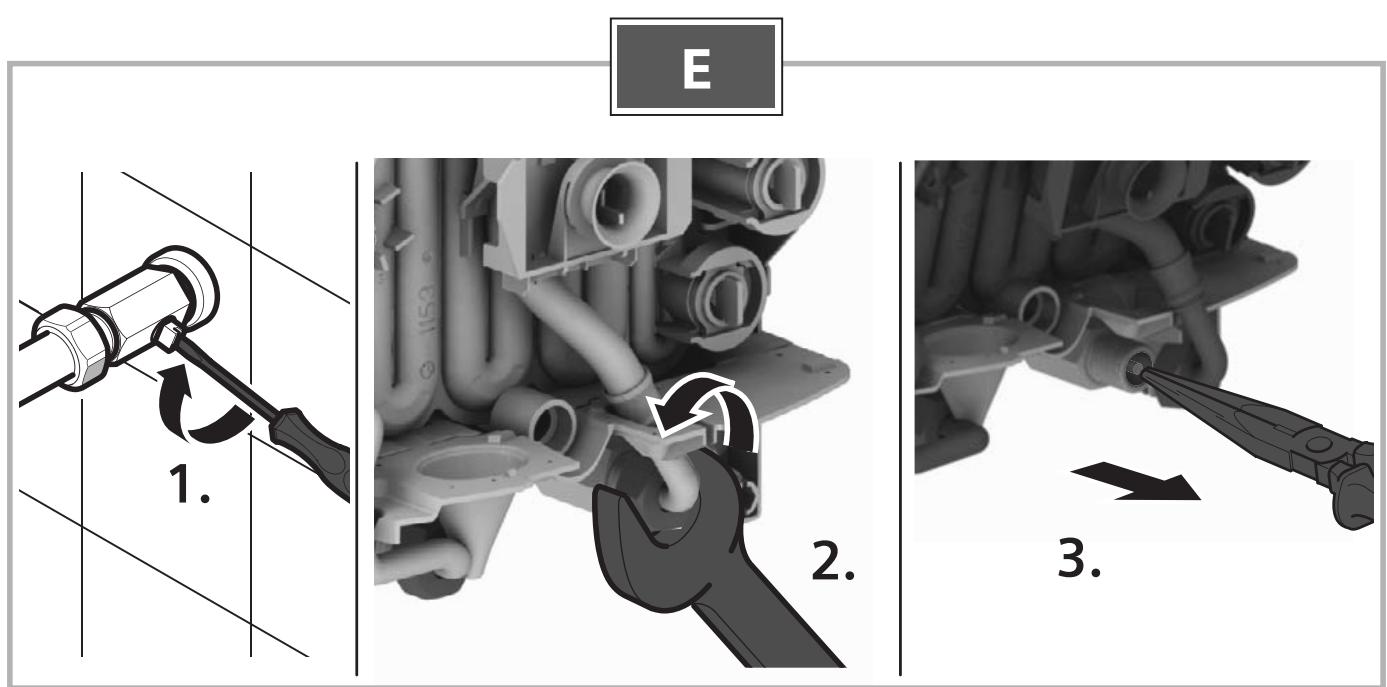

The filter upstream from the check valve in the cold water supply inlet is clogged.

Remove the filter and either clean it or descale it. See Figure E 1-3.

Technical data

		DEE 1803	DEE 2103	DEE 2403
Rated output	[kW]	18	21	24
Rated voltage	[V]	400	400	400
Fuse protection	[A]	32	32	40
Minimum conductor cross-section	[mm2]	4	4	6
Warm water flow at rated output with temperature increase from
12°C to 38°C	[I/min]	9.9	11.6	13.6
12°C to 60°C	[I/min]	5.4	6.3	7.2
Start-up flow	[I/min]	2.6	2.6	2.6
Start-up flow pressure *	[MPa (bar)]	0.025 (0.25)	0.025 (0.25)	0.025 (0.25)
Application area in water specific electric resistance at 15°C	[Ωcm]	≥ 1300	≥ 1300	≥ 1300
Rated pressure	[MPa (bar)]	1.0 (10.0)	1.0 (10.0)	1.0 (10.0)
Maximum permissible supply temperature	[°C]	20	20	20
Maximum mains impedance at connection point	[Ω]	≤ 0.400	≤ 0.400	≤ 0.400

• The pressure loss on the mixer must also be added.

Special accessories

Pipe kit DLE 02RBS: for use of the continuous-flow heater as an under sink appliance
Priority switch (load shedding relay): for operation with a priority circuit
Mounting kit DLE 02AP: for surface mount installation

Operating instructions

Please read the operating instructions carefully before you use the appliance!

Safety information

This appliance is intended for domestic use or for household-based non-commercial applications. Household-based applications include, e.g. usage in employees catering facilities for shops, offices, agricultural and other commercial operations, as well as usage by guests of guest houses, small hotels and similar residential establishments.

Risk of electric shock!

Switch off the mains voltage supply immediately if a fault occurs.

We do not accept liability for damage resulting from failure to heed these instructions.
The continuous-flow heater may only be connected and put into operation by a qualified professional.
Repairs may only be undertaken by a suitably qualified specialist to avoid potential sources of danger.
The continuous-flow heater may only be installed in a frost-free room.
- Persons (including children) with diminished bodily, sensory or mental perception, or those who lack knowledge or experience should not operate the appliance, unless they are monitored or have received instruction concerning use of the appliance by persons responsible for their safety.
- Keep children away from the appliance. Please monitor children to ensure that they do not play with the appliance.
The mixer and the warm water pipe may be hot.
Please switch off all fuses immediately if a malfunction occurs. Immediately shut off the cold water supply to the appliance should it leak. The malfunction can only be repaired by a specialist or an authorised service agent.

Your new appliance

The electronically regulated flow-through heater warms the water while it flows through the unit.

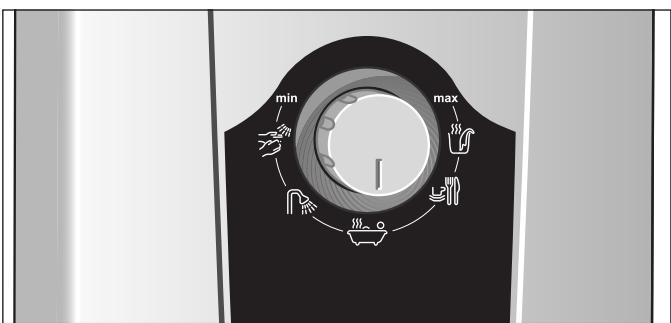

How to operate the continuous-flow heater

The warm water temperature can be continuously adjusted on the electronically regulated flow-through heater:

Washbasin

Shower

With the use of a thermostat battery, the following settings are recommended for high temperatures or large quantities of water, for example:

Dish washing

Cleaning

Bath tub

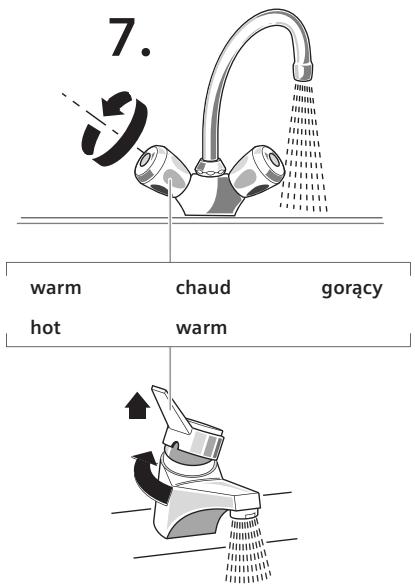

Turn on the hot-water tap.

The continuous-flow heater switches on and heats the water when the hot-water tap is turned on.

It switches off again when the tap is turned off. Changing the supply water temperature correspondingly changes the outgoing water temperature.

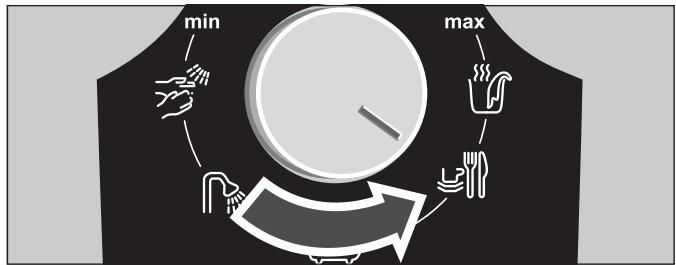

Increasing the water temperature

If a higher temperature for a completely opened warm water tap is not achieved, more water flows than the flow-through heater can warm as a result its performance capabilities. In this case, the warm water tap must be closed somewhat.

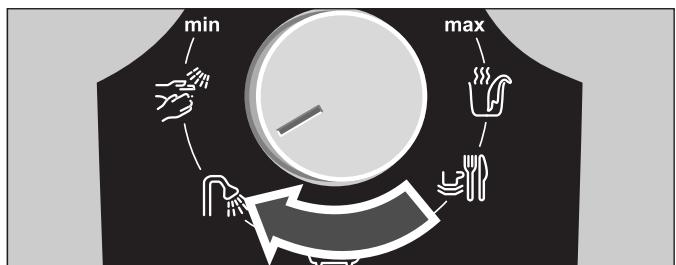

Decreasing the water temperature

Startup after a water cutoff

• Switch off the appliance (unscrew the fuse in the house electrical installation).
  Turn on the hot-water tap until the air is purged from the pipe.
  Switch the fuse back on again.

The appliance is ready for operation.

Saving energy

Set the desired warm water temperature directly on the flow-through heater.

Mixing with cold water at the armature for water that is too hot consumes unnecessarily water and energy.

At approx. 40^ (temperature selection position ) the unit operates most economically.

Cleaning

Simply wipe the appliance with a damp cloth.

Do not use intensive or abrasive cleaning agents.

A fault, what to do?

If your appliance does not operate as required, it is often due to a very minor problem. Please check whether you can remedy the fault yourself by using the following guidelines. You will save yourself the costs of an unnecessary visit by customer service personnel.

Fault	Cause	Solution	Who
Water flow-rate is too low.	The filter in either the water tap or the showerhead is clogged	Remove the filter and either clean it or descale it.	Customer
	The filter in the corner regulating valve is clogged.	Get a servicing expert to clean the filter.	Servicing expert
	The filter upstream from the check valve in the cold water supply inlet is clogged.	Remove the filter and either clean it or descale it.	Servicing expert
The desired water temperature is not reached.	The continuous-flow heater is connected to a thermostatically-controlled water tap.	Set the temperature on the continuous-flow heater to "max".	Customer
	The power limit has been reached. Water flow-rate is too high and/or the cold water supply temperature is too low.	Reduce the flow-rate at the water tap supply.	Customer
		By a qualified professional: use the angle valve to regulate the flow-rate. Check the flow-rate limiter or replace it with a smaller one.	Servicing expert
The water is not sufficiently warm.	The fuse in the house electrical installation has tripped/blown.	Check the fuse in the house electrical installation.	Customer
	The appliance's automatic circuit breaker has been tripped.	Get the appliance's automatic circuit breaker checked by an electrician. Check the permissible supply temperature.	Servicing expert
	The power limit has been reached. Water flow-rate is too high and/or the cold water supply temperature is too low.	By a qualified professional: use the angle valve to regulate the flow-rate. Check the flow-rate limiter or replace it with a smaller one.	Servicing expert
From time to time, cold water flows out.	The air sensor in the appliance detects air in the water and momentarily switches the heating element off.	After a few seconds, the continuous-flow heater automatically goes back into operation.	Continuous-flow heater automatically resolves problem
Winter operation: The desired water temperature leaving the tap is no longer reached.	The supply temperature has reduced.	Reduce the water flow on the taps until the desired water temperature is reached.	Customer
The appliance does not start (heat), no water flows.	Power failure or initial start-up.	Starts rinsing: Open the warm water tap and allow water to flow for at least 1 minute (flow-rate at least 6 litres per minute). Only then (for safety reasons) will the appliance begin to heat. Should the appliance not start because of a reduced flow-rate, remove the perlator, shower head or similar before start and repeat the process.	Customer

If the fault could not be eliminated, please call customer service.

Customer Service

We ask you to always provide the E-No. and the FD-No. of your appliance when calling in a customer service engineer.

E-No.:

FD-No.:

Disposal

This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.
