USER MANUAL LCI-C POLK AUDIO

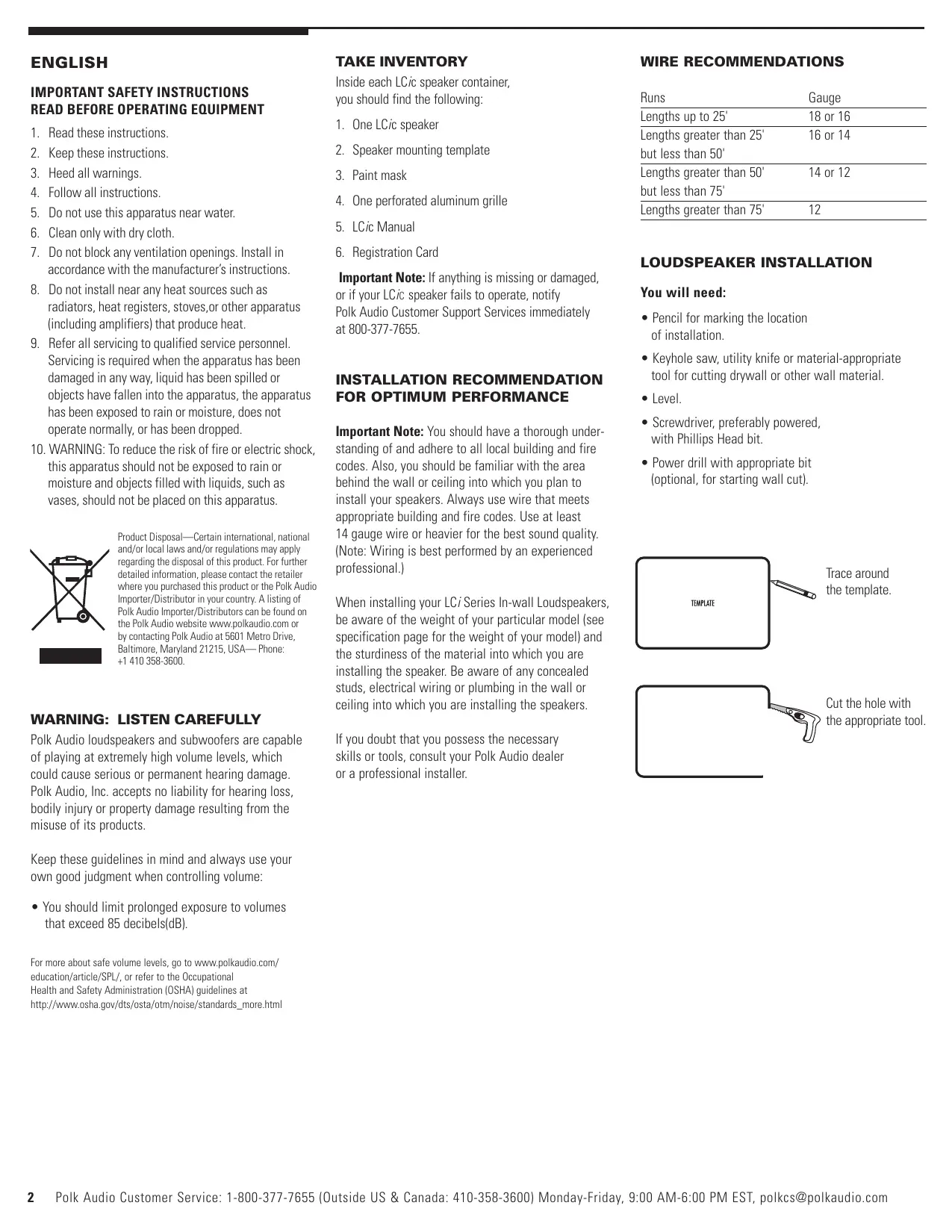

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves,or other apparatus (including amplifiers) that produce heat.

9. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

10. WARNING: To reduce the risk of fire or electric shock,

this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus. Product Disposal—Certain international, national and/or local laws and/or regulations may apply regarding the disposal of this product. For further detailed information, please contact the retailer where you purchased this product or the Polk Audio Importer/Distributor in your country. A listing of Polk Audio Importer/Distributors can be found on the Polk Audio website www.polkaudio.com or by contacting Polk Audio at 5601 Metro Drive, Baltimore, Maryland 21215, USA— Phone: +1 410 358-3600.

WARNING: LISTEN CAREFULLY

Polk Audio loudspeakers and subwoofers are capable of playing at extremely high volume levels, which could cause serious or permanent hearing damage. Polk Audio, Inc. accepts no liability for hearing loss, bodily injury or property damage resulting from the misuse of its products. TAKE INVENTORY Inside each LCi c speaker container, you should find the following:

1. One LCi c speaker

2. Speaker mounting template

4. One perforated aluminum grille

WIRE RECOMMENDATIONS Runs Lengths up to 25' Lengths greater than 25' but less than 50' Lengths greater than 50' but less than 75' Lengths greater than 75' Gauge 18 or 16 16 or 14 14 or 12

6. Registration Card

Important Note: If anything is missing or damaged, or if your LCi C speaker fails to operate, notify Polk Audio Customer Support Services immediately at 800-377-7655. INSTALLATION RECOMMENDATION

FOR OPTIMUM PERFORMANCE

Important Note: You should have a thorough understanding of and adhere to all local building and fire codes. Also, you should be familiar with the area behind the wall or ceiling into which you plan to install your speakers. Always use wire that meets appropriate building and fire codes. Use at least 14 gauge wire or heavier for the best sound quality. (Note: Wiring is best performed by an experienced professional.) When installing your LCi Series In-wall Loudspeakers, be aware of the weight of your particular model (see specification page for the weight of your model) and the sturdiness of the material into which you are installing the speaker. Be aware of any concealed studs, electrical wiring or plumbing in the wall or ceiling into which you are installing the speakers. LOUDSPEAKER INSTALLATION You will need:

• Pencil for marking the location of installation.
• Keyhole saw, utility knife or material-appropriate tool for cutting drywall or other wall material.
• Screwdriver, preferably powered, with Phillips Head bit.
• Power drill with appropriate bit (optional, for starting wall cut). Trace around the template. Cut the hole with the appropriate tool. If you doubt that you possess the necessary skills or tools, consult your Polk Audio dealer or a professional installer. Keep these guidelines in mind and always use your own good judgment when controlling volume:
• You should limit prolonged exposure to volumes that exceed 85 decibels(dB). For more about safe volume levels, go to www.polkaudio.com/ education/article/SPL/, or refer to the Occupational Health and Safety Administration (OSHA) guidelines at http://www.osha.gov/dts/osta/otm/noise/standards_more.html

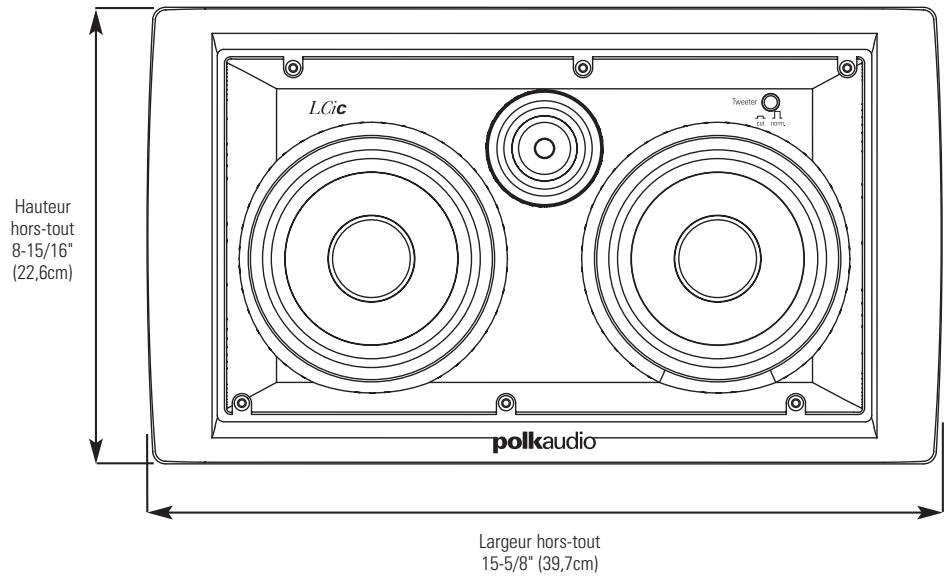

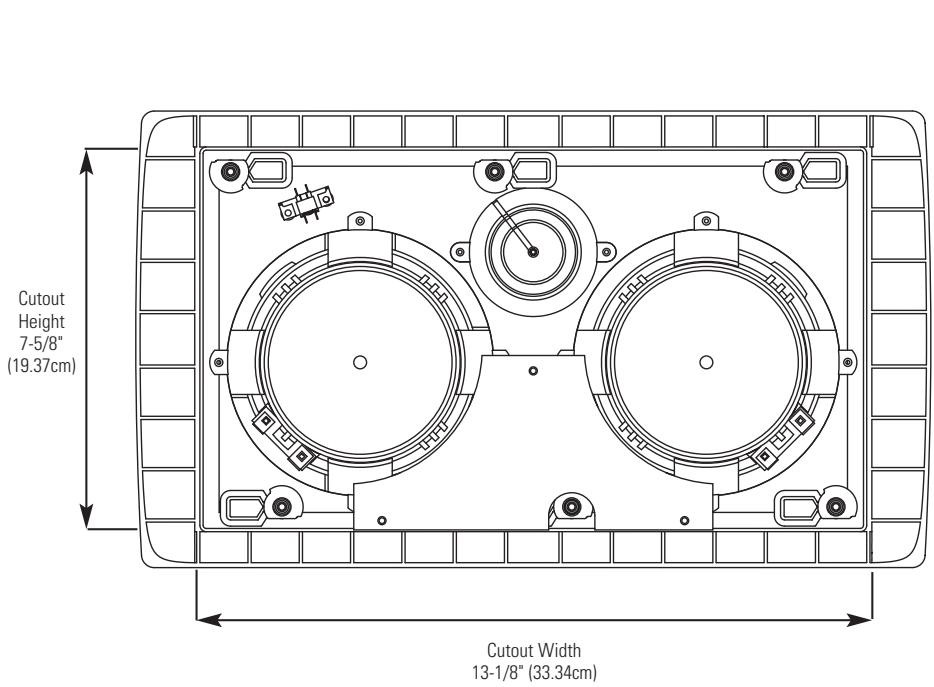

Polk Audio Customer Service: 1-800-377-7655 (Outside US & Canada: 410-358-3600) Monday-Friday, 9:00 AM-6:00 PM EST, polkcs@polkaudio.com PHYSICAL DIMENSIONS LCi C Overall Height 8-15/16" (22.6cm) Overall Width 15-5/8" (39.7cm) Overall Depth 4" (10.2cm) Cutout Height 7-5/8" (19.37cm) Mounting Depth (Assumes 1/2" [12.7mm] drywall) 3-1/2" (8.9cm) Cutout Width 13-1/8" (33.34cm) Note: LCi c speakers are designed to be used as a center channel speaker. The LCi c fits between 16" OC (on center) studs. SPECIFICATIONS Model LCiC Recommended Amplification (W/channel) 10-150W Impedance(Nominal) 4 Ohms Frequency Response (+/-3dB) 30Hz – 27kHz (45Hz-26kHz) Efficiency (2.83V@1M) 91db Speaker Weight

For more information visit our website at www.polkaudio.com

Important Note: LCi Series In-wall Loudspeakers are not magnetically shielded and should not be placed closer than 1' (30cm) from a CRT (picture tube) television or video monitor. PLACEMENT Install the LCi c as close as possible to ear level. If the speaker needs to be installed higher, aim the tweeter up or down as required.

ROOM ENVIRONMENT CONTROL

Tweeter Switch If your listening room is very reflective, with smooth sheetrock walls, hardwood floors, and non-cushioned furniture, the sound will be overly “bright” and unnatural. Selecting the “cut” setting compensates for the effect of reflectivity in a hard room. Tweeter attenuation flattens room response, without hindering higher frequency response, for warmer, more realistic sound and more accurate imaging.

PAINTING IN-WALL GRILLES

Painting in-wall grilles The LCi c is supplied with one perforated aluminum grille, which may be painted. Painting the aluminum mesh grille: The grille of the LCi Series speaker features an even, protective paint. This paint is an ideal primer. Required tools:

1. Paint of your choice (grilles must be spray painted).

2. A paperclip or corkscrew (for removing the

4. Paint mask (supplied; covers un-paintable parts)

1. Paint the grille.

Note: Grilles must be spray painted. Do not use a brush and paint. Thick, brushed paint may clog the grille holes. Use thin coats of spray paint. If you’re using a compressor and spray gun, use the finest, most diffused setting. Be careful not to fill the holes in the grille with paint. Preparation:

1. Separate the parts of the speaker. If the speaker

is not yet installed, the grille can be removed simply by pushing the clamp screws forward to push the grille off the speaker from the inside.

2. Remove the cloth scrim from the inside of the grille.

3. When painting the speaker frame, use the supplied

paint masks to carefully mask off the front of the speakers to protect the drivers and baffles. You can do this while the speaker is already installed in the wall (if, for instance, you’re repainting the room). If you do not have the paint masks, carefully mask the speaker components using paper and masking tape. Use a paper clip to remove the grille.

2. When the paint is completely dry, press the white

cloth scrim into place and carefully reinstall the grille by fitting it into its recess so that it is just resting on the frame. Starting with one corner, go around the speaker and push the grille into the grille notch a little bit at a time. Be gentle; the grille may be easily bent by rough handling. You will feel a positive “snap” when the grille is fully in place. Painting the frame:

1. Apply paint to exposed (unmasked) parts.

Use two or more thin coats.

2. When the paint is completely dry, remove

the masking material. Polk Audio Customer Service: 1-800-377-7655 (Outside US & Canada: 410-358-3600) Monday-Friday, 9:00 AM-6:00 PM EST, polkcs@polkaudio.com PORTUGUÊS
