USER MANUAL SR104 POLK AUDIO

IMPORTANT SAFETY INSTRUCTIONS

READ BEFORE OPERATING EQUIPMENT

1. Read these instructions.
2. Keep these instructions and shipping cartons for future transportation.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources.
9. Only use attachments/accessories specified by the manufacturer.
   10.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
10. WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids should not be placed on this apparatus.

Product Disposal - Certain international, national and/or local laws and/or regulations may apply regarding the disposal of this product. For further detailed information, please contact the retailer where you purchased this

product or the Polk Audio Importer/ Distributor in your country. A listing of Polk Audio Importer/Distributors can be found on the Polk Audio website www.polkaudio.com or by contacting Polk Audio at 5601 Metro Drive, Baltimore, Maryland 21215, USA— Phone: [phone].

WARNING

Turn that down and listen!

If you expose your hearing to the loud decibel levels this product is capable of producing, you may experience permanent hearing loss. When you play this product at its loudest, you play at your own risk.

Damage to loudspeakers can occur when an amplifier, regardless of its wattage, is made to play at higher listening levels than it can produce at low distortion levels. This is usually beyond the "noon or 1 o'clock" position on the volume control. Operation at this level can result in very high levels of audible distortion originating in the amplifier, which can add a harsh, gritty sound to your listening material. Contrary to popular belief, a speaker is more likely to be damaged by trying to get too much volume from a low-powered amplifier or receiver than from a high-powered one.

PRE-CONDITIONING

SR Subwoofores require a pre-conditioning period because the suspension (spiders and surround) is stiff when brand new. We recommend playing your SR Subwoofer at moderate listening levels for anywhere from 40 to 60 hours before you really crank up the volume. A pre-conditioning period helps loosen the suspension for better transient response and lower bass frequency extension.

TAKE INVENTORY

Inside your subwooers carton, you should find:

1 SR Subwoofer & Gasket
1 SR Subwoofer Manual
1 Online Registration Card
1 2.5mm Allen Key

Please inspect your subwoofer(s) carefully. Notify your Polk Audio dealer if you notice any damage or missing items. Polk Audio's Customer Service Department is available from 9am-6pm, EST, Monday through Friday, at 800-377-7655 (US & Canada only, outside the US call 410-358-3600) or via email at [e-mail]. Keep the carton and packing material; this will do the best job of protecting your subwoofer(s) if it has to be shipped.

GENERAL DESCRIPTION

The same engineering excellence and performance obsession that went into the SR6500 system has been applied to four new subwooers—the SR124, SR124DVC, SR104 and SR104DVC. These models are

designed to provide competition-grade bass performance when installed in small sealed enclosures (.88 cubic foot for the SR124 and .66 cubic foot for the SR104).

FEATURES

• Available in both Single and Dual 4 Ohm Voice Coil configurations.
• A 2.5 inch glass/epoxy voice coil former wound with four layers of heavy gauge high temperature Aluminum wire provides the highest power handling (700 Watts Continuous!) and reliability in Polk Audio's history.
• Voice coil is bathed in cooling air via an extensive network of vents in the pole piece and basket.
• Specially designed curved vanes smooth the airflow to prevent any air turbulence that could cause noise and "chuffing."
• Dual spiders tightly control the cone's long excursion for the ultimate in "tight," detailed and musical bass.
• Polk's Klippel Distortion Analyzer, which uses laser technology to measure and optimize driver behavior under high output, helps maximize linearity, minimize distortion, flatten and extend frequency response.
• Spider collar, sandwiched between the dual spiders, ensures precise alignment of the voice coil. The collar also reduces stress on the suspension for increased durability.
• ABS Cone employs catenary geometry, a naturally strong and stable geometry for ultra-low distortion bass.
• Massive die-cast aluminum basket.
• NBR (Nitrile Butyl Rubber) Surround damps distortion-inducing resonance as it stands up to harsh automotive environments.
• Hex-key terminals for clean, professional hookups can accommodate up to 8 gauge speaker wire.

SPECIFICATIONS

	SR104	SR104DVC	SR124	SR124DVC
Nominal Diameter	10in. (25.4cm)	10in. (25.4cm)	12in. (30.48cm)	12in. (30.48cm)
Overall Diameter	10.26in. (26.06cm)	10.26in. (26.06cm)	12.45in. (31.62cm)	12.45in. (31.62cm)
Mounting Hole Diameter	9.1in. (23.11cm)	9.1in. (23.11cm)	11in. (27.94cm)	11in. (27.94cm)
Bolt Hole Circle	9.64in. (24.49cm)	9.64in. (24.49cm)	11.68in. (29.67cm)	11.68in. (29.67cm)
Magnet Diameter	7in. (17.78cm)	7in. (17.78cm)	7in. (17.78cm)	7in. (17.78cm)
Mounting Depth	7in. (17.78cm)	7in. (17.78cm)	7.6in. (19.3cm)	7.6in. (19.3cm)
Driver Displacement	0.12 cu. ft. (3.34L)	0.12 cu. ft. (3.34L)	0.14 cu. ft. (3.96L)	0.14 cu. ft. (3.96L)
Frequency Response	25-200Hz	25-200Hz	20-200Hz	20-200Hz
Thermal Power Handling	700W	700W	700W	700W
Peak Power Handling	1400W	1400W	1400W	1400W
Nominal Impedance	4 Ohms	Dual 4 Ohms	4 Ohms	Dual 4 Ohms
Sensitivity (2.83V)	87dB	90dB@2 Ohms, 84dB@8 Ohms	88dB	91dB@2 Ohms, 85dB@8 Ohms
Net Weight	24.5 lb. (11.1kg)	24.5 lb. (11.1kg)	26.5 lb. (12.0kg)	26.5 lb. (12.0kg)

THIELE-SMALL PARAMETERS

	SR104	SR104DVC	SR124	SR124DVC
Fs	35Hz	36Hz	29Hz	30Hz
Qts	0.47	0.55	0.53	0.55
Qes	0.5	0.6	0.58	0.6
Qms	6.8	8.0	6.9	8.0
Vas	22L	22L	53L	53L
Xmax Linear (One Way)	0.64in.	0.64in.	0.64in.	0.64in.
	16.25mm	16.25mm	16.25mm	16.25mm
Re	3.5 Ohms	7.0 Ohms (series)	3.5 Ohms	7.0 Ohms (series)
		1.75 Ohms (parallel)		1.75 Ohms (parallel)
Mms	164g	155g	200g	183g
Cms	125um/N	125um/N	155um/N	150um/N
BI	15.5T-m	19T-m (series)	15.5T-m	19T-m (series)
		9.3T-m (parallel)		9.3T-m (parallel)
Sd	346.36 sq.cm.	346.36 sq. cm.	499 sq. cm.	499 sq. cm.
	53.69 sq. in	53.69 sq. in.	77.35 sq. in.	77.35 sq. in.

RECOMMENDED SEATED

ENCLOSURE SIZES

SR104/SR104DVC—0.66cu.ft. (18.7L) net—

Important: Add driver displacement

(0.12 cu ft/3.34L) to total volume.

SR124/SR124DVC—0.88 cu. ft. (24.9L) net

Important: Add driver displacement

(0.14 cu ft./3.96L) to total volume.

IMPORTANT

INSTALLATION

NOTES:

SR Subwoofoers are heavy:

The SR104/SR104DVC

weighs 24.5 lb. (11.1kg).

The SR124/SR124DVC

weighs 26.5 lb. (12.0kg).

To adequately support the subwoofer in its enclosure, use 3/4'' (19mm) to

1" (25.4mm) MDF for the front baffle.

If you intend to mount your SR Subwoofer with the magnet facing out, ensure that the pilot holes are small and that you use mounting screws with an aggressive thread that will seat the subwoofer securely in the baffle.

For complete details on building an enclosure for your SR Subwoofer, go to: polkaudio.com/car/toolbox/subboxplans/.

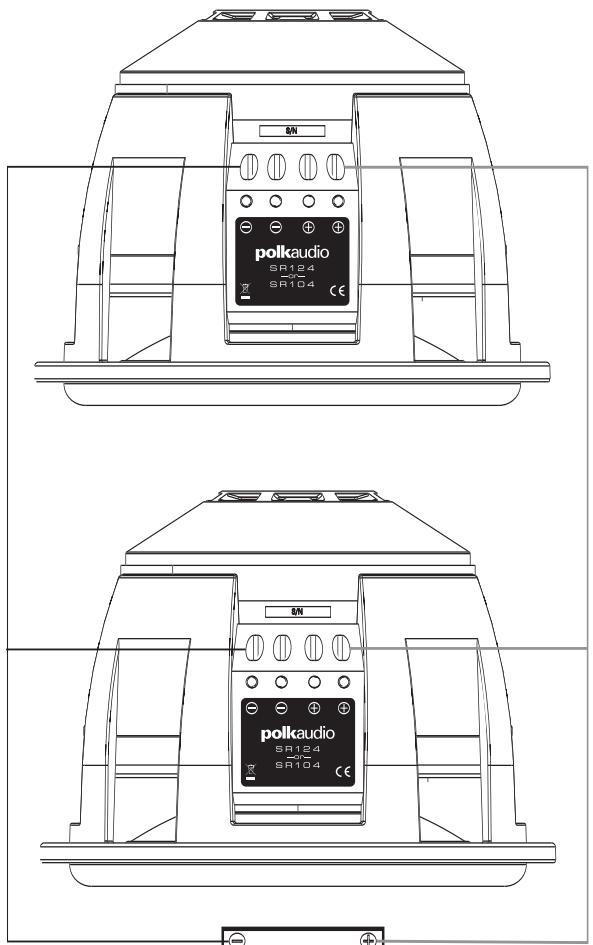

2 Ohm Wiring

Two 4 Ohm subwoofoers wired in parallel will present a 2 Ohm load. Make sure that your amplifier is 2 Ohm stable when configured in the bridge mode. Consult your amplifier's owner's manual before wiring in this configuration.

NOTE: In order to make it easy to parallel multiple subwoofoers, the two positive terminals are connected together. The same has been done with the negative terminals.

WIRING FOR SR104/124

SINGLE VOICE COIL SUBWOOFERS

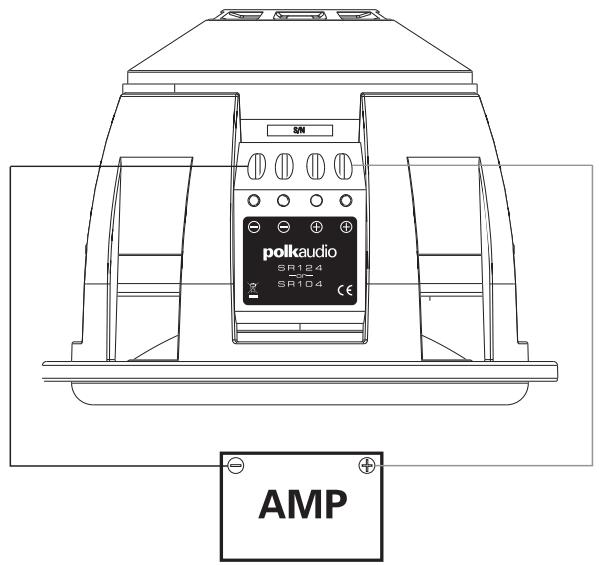

Single 4 Ohm Wiring

AMP

WIRING FOR SR104/124DVC DUAL VOICE COIL SUBWOOFERS

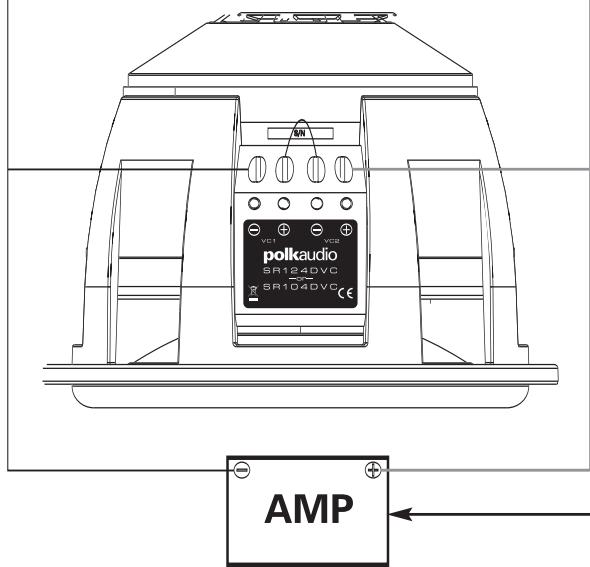

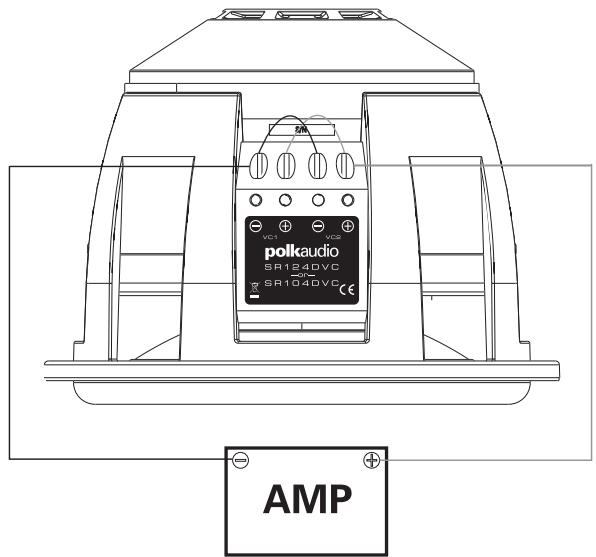

2 Ohm Parallel Wiring

Note: SR104/124DVCs voice coils are wired in a parallel 2 Ohm configuration from the factory. No additional wiring required.

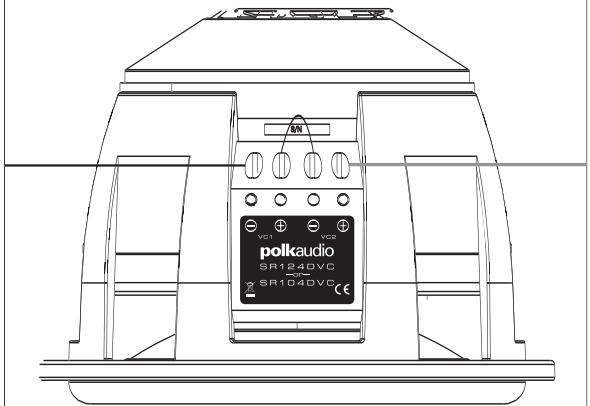

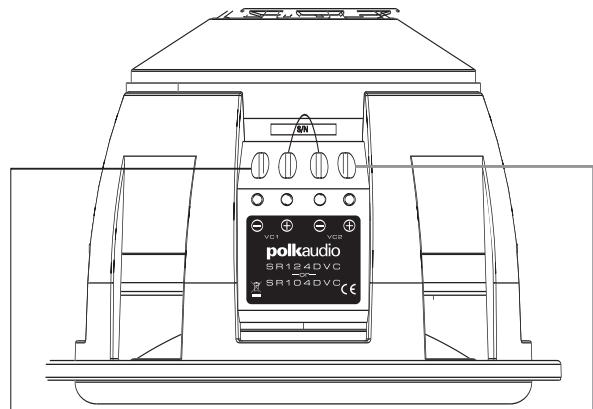

2.6 Ohm Series/Parallel Wiring

Note: SR104/124DVCs are wired in a series/parallel 2.6 Ohm configuration. Please note jumper location for this wiring.

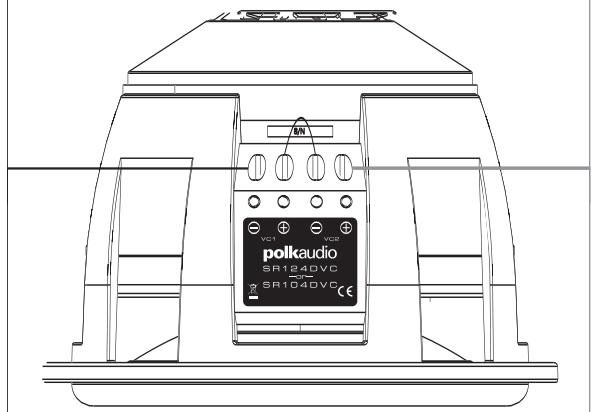

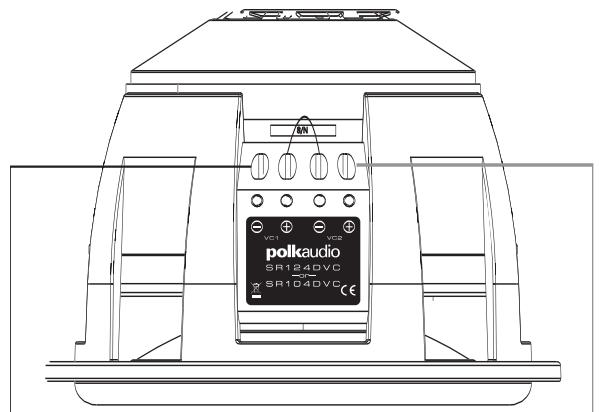

4 Ohm Series/Parallel Wiring

Note: SR104/124DVCs are wired in a series/parallel 4 Ohm configuration. Please note jumper location for this wiring.

CABAMENTO DE SUBWOOFERS SR104/ 124DVC COM BOBINA MÓVEL DUPLA

CABLATURA PER I SUBWOOFER SR104/124 CONVOICE COIL SINGOLO

SR104/124 CON VOICE COIL DOPPIO

Polk Audio, Inc., warrants to the original retail purchaser only. This warranty will terminate automatically prior to its stated expiration if the original retail purchaser sells or transfers the Product to any other party.

Polk Audio, Inc., warrants, to the original retail purchaser only, that the LOUDSPEAKER(S), PASSIVE CROSSOVER COMPONENT(S) and ENCLOSURE on this Polk Audio Loudspeaker Product will be free from defects in material and workmanship for a period of three (3) years from the date of original retail purchase from a Polk Audio Authorized Dealer.

To allow Polk Audio, Inc. to offer the best possible warranty service, please register your new product online at: www.polkaudio.com/registration or call Polk Audio customer service 800-377-7655 in the USA and Canada (outside the USA: 410-358-3600) within ten (10) days of the date of original purchase. Be sure to keep your original purchase receipt.

Defective Products must be shipped, together with proof of purchase, prepaid insured to the Polk Audio Authorized Dealer from whom you purchased the Product, or to the Factory at 2550 Britannia Boulevard, Suite A, San Diego, California 92154. Products must be shipped in the original shipping container or its equivalent; in any case the risk of loss or damage in transit is to be borne by you. If upon examination at the Factory or Polk Audio Authorized Dealer it is determined that the unit was defective in materials or workmanship at any time during this warranty period, Polk Audio or the Polk Audio Authorized Dealer will, at its option, repair or replace this Product at no additional charge, except as set forth below. All replaced parts and Products become the property of Polk Audio. Products replaced or repaired under this warranty will be returned to you, within a reasonable time, freight prepaid.

This warranty does not include service or parts to repair damage caused by accident, disaster, misuse, abuse, negligence, inadequate packing or shipping procedures, commercial use, voltage inputs in excess of the rated maximum of the unit, cosmetic appearance not directly attributable to defect in materials or workmanship, or service, repair, or modification of the Product which has not been authorized or approved by Polk Audio. This warranty shall terminate if the serial number on the Product has been removed, tampered with or defaced.

This warranty is in lieu of all other expressed warranties. If this Product is defective in materials or workmanship as warranted above, your sole remedy shall be repair or replacement as provided above. In no event will Polk Audio, Inc. be liable to you for any incidental or consequential damages arising out of the use or inability to use the Product, even if Polk Audio, Inc. or a Polk Audio Authorized Dealer has been advised of the possibility of such damages, or for any claim by any other party. Some states do not allow the exclusion or limitation of consequential damages, so the above limitation and exclusion may not apply to you.

All implied warranties on this Product are limited to the duration of this expressed warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from state to state.

This warranty applies only to Products purchased in Canada, the United States of America, its possessions, and USA and NATO armed forces exchanges and audio clubs.

The warranty terms and conditions applicable to Products purchased in other countries are available from the Polk Audio Authorized Distributors in such countries.
