TRIAX SPEED 50 - Sports Watch NIKE - Free user manual and instructions

Product Type	Sports Watch
Brand	Nike
Model	Triax Speed 50
Category	Sports Watch
Display	Digital (mineral crystal)
Water Resistance	100 m (10 ATM)
Operating Temperature	-5°C to 50°C
Glass Material	Mineral crystal glass
Strap Material	Polyurethane
Case Material	Polycarbonate
Case Back Material	Stainless steel
Bezel Material	Stainless steel
Button Material	Polycarbonate
Buckle Material	Stainless steel
Battery Type	CR2032 (Lithium 3V)
Approximate Weight	50 g (with strap)
Approximate Dimensions	45 x 50 x 15 mm
Chronograph Limits	19h59min59s99 (auto stop), 10 race memories, 50 laps
Time Zones	2 zones (dual time zone)
Alarms	2 alarms (20 seconds duration)
PACE Function	Real-time/target comparison with pace alarm
Interval Mode	5 programmable repeatable segments
Data Mode	View training data (total time, best lap, etc.)
Care and Cleaning	Clean with a soft dry cloth. Avoid chemicals. Rinse with fresh water after use in salty environments.
Batteries and Repairability	Battery replaceable by a watchmaker. Spare parts available from Nike after-sales service.

Frequently Asked Questions - TRIAX SPEED 50 NIKE

How to set the time and date on the Nike Triax Speed 50?

In TIME mode, press and hold the VIEW button for 1 second to enter settings. Use the START/SPLIT and STOP/RESET buttons to change values. The TIME mode allows setting two time zones.

How to use the chronograph to record laps?

In RUN mode, press START/SPLIT to start. Each press of START/SPLIT records a lap. Press STOP/RESET to stop. The watch stores up to 10 race memories and 50 laps.

Is the watch waterproof? Can I swim with it?

Yes, it is water resistant to 100 meters (10 ATM). You can swim, but do not press the buttons underwater to avoid damage. Suitable for swimming and snorkeling, but not for diving.

How to change the battery of the Triax Speed 50?

Use a CR2032 battery. Open the stainless steel case back with a suitable tool. Remove the old battery and insert the new one, observing polarity. Close tightly to maintain water resistance.

How does the PACE function work?

In RUN mode, activate the PACE function to set a target time per segment. The PACE alarm beeps 5 times before the end of each segment. The watch compares your actual time to the target time.

How to set the alarms?

In TIME mode, press VIEW to select Alarm 1 or 2. Press and hold VIEW to enter settings. Use START/SPLIT and STOP/RESET to set the time. The alarm sounds for 20 seconds.

How to stop the chronograph after recording?

Press STOP/RESET to stop the chronograph. To reset, press and hold STOP/RESET for 2 seconds in stopped mode.

How to clean my Nike Triax Speed 50 watch?

Use a soft dry cloth. Avoid solvents or chemicals. After exposure to salt water, rinse with fresh water and dry. Clean the polyurethane strap regularly with mild soap.

Can I adjust the strap length?

Yes, the polyurethane strap has adjustment holes. Use a pushpin to remove the buckle pin and adjust to the desired size. Avoid forcing.

How to turn off the alarm after it has rung?

Press any button to stop the alarm. If you do nothing, it stops after 20 seconds. To completely disable an alarm, set it to OFF in the settings.

USER MANUAL TRIAX SPEED 50 NIKE

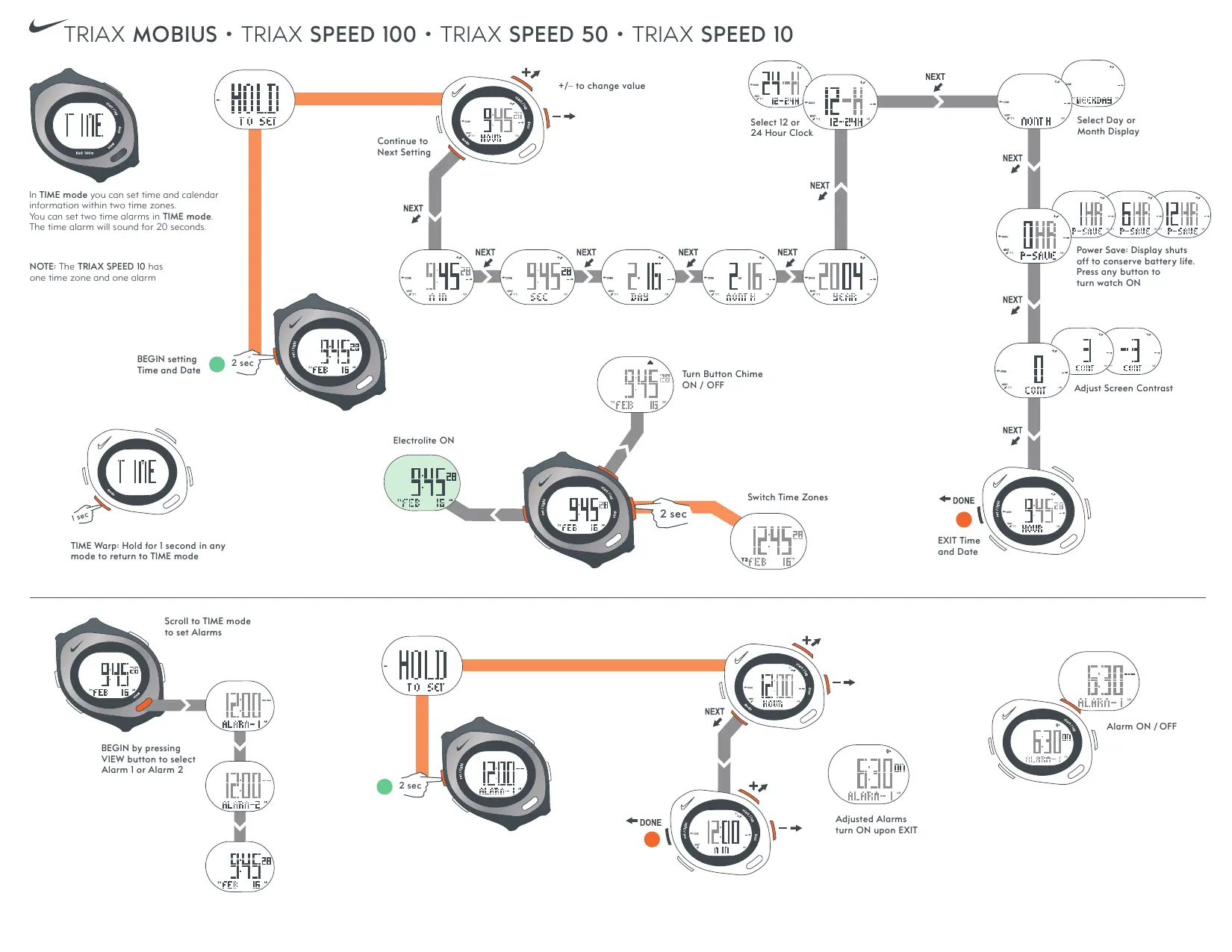

In TIME mode you can set time and calendar information within two time zones.

You can set two time alarms in TIME mode. The time alarm will sound for 20 seconds.

NOTE: The TRIAX SPEED 10 has one time zone and one alarm

BEGIN setting Time and Date

TIME Warp: Hold for 1 second in any mode to return to TIME mode
any

BEGIN by pressing VIEW button to select Alarm 1 or Alarm 2
Scroll to TIME mode to set Alarms

CHRONOGRAPH LIMITS

TRIAX MOBIUS / TRIAX SPEED 100

19:59'59"99 (auto stops) · 30 Run memory · 100 Laps

TRIAX SPEED 50

19:59'59"99 (auto stops) · 10 Run memory · 50 Laps

TRIAX SPEED 10

19:59'59"99 (auto stops) · 1 Run memory · 10 Laps

H20 RESIST

100m

ATTENTION: Water damage may occur if the buttons are pressed underwater

-5 to 50^ Celsius

MATERIAL SPECIFICATIONS

CRYSTAL

Mineral Glass

STRAP

Polyurethane

CASE

Polycarbonate

CASEBACK

Stainless Steel

BEZEL

Stainless Steel

BUTTONS

Polycarbonate

BUCKLE

Stainless Steel

RUN mode has a PACE function which compares
actual lap and total times to preset PACE target times

NOTE: The TRIAX SPEED 10 does not have the PACE function

Turn PACE ALARM ON / OFF
The PACE ALARM will give 5 short beeps
before the end of each target segment

Set Segment 1 - Seconds, Minutes and Hours

In INTERVAL mode you can set five repeating segments for customized interval training
NOTE: The TRIAX SPEED 10 does not have INTR mode

In DATA mode you can review workout data saved from RUN

Select RUN

RUN

RUN

RUN 3

RUN

DATA mode with the PACE targets turned ON

TOTAL

22 7650
23 1500

TARGET

LAP1

+142 7492

LAP2

-942 13 158

LAP3

+11 756

LAP2

13

BEST

SB)

HP

74630

AUG
