USER MANUAL 200.264 BARTSCHER

Ventilated saladette

from page 17 to 32

GB/UK

Mode d'emploi

1.1 Information about the instruction manual 18
1.2 Key to symbols 18
1.3 Liability and Warrantees 19
1.4 Copyright protection 19
1.5 Declaration of conformity 19

2. Safety 20

2.1 General information 20
2.2 Safety instructions for use of the device 20-21
2.3 Intended use 21

3.Delivery,packaging and storage 22

3.1 Delivery check 22
3.2 Packaging 22
3.3 Storage 22

4. Technical data 23

4.1 Overview of parts 23
4.2 Technical specification 24

5. Installation and operation 24

5.1 Safety instructions 24-25
5.2 Installation and connection 25
5.3 Operating 26-29

6. Cleaning and maintenance 29

6.1 Safety advice 29
6.2 Cleaning 29-30
6.3 Safety instructions for maintenance 2930

7. Possible Malfunctions 31

8.Waste disposal 32

Bartscher GmbH

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device.

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology. If you have any questions, you should contact the manufacturer.

NOTE!

Read the instruction manual carefully before using the device. The manufacturer does not accept liability for any damage or malfunction resulting from not following the instructions for use.

The instruction manual should be kept near the device, easily accessible for anyone wishing to work with or using it. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity.

If required we will be glad to send you the according declaration of conformity.

2. Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

2.1 General Information

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications.

Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.

CAUTION!

The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device.
Children should be observed to ensure that they are not playing with the device.
o Preserve this manual safely. When passing on/selling the device to a third party, the manuals must be handed over along with the device.
○ Every person using the device must act in accordance to the manuals and under consideration of the safety advice.
The device is to be used indoors only.

2.3 Intended use

CAUTION!

This device is intended for commercial use only and should be operated by qualified personnel in professional food service organizations.

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

The ventilated saladette is intended only for cooling, preparing and distributing salads, fruits, vegetables and cold meals.

Do not use the ventilated saladette for:

storage of flammable or explosive materials such as ether, alcohol, oil or glue;
storage of pharmaceutical products or blood.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt.

In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint.

Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
  In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

4. Technical data

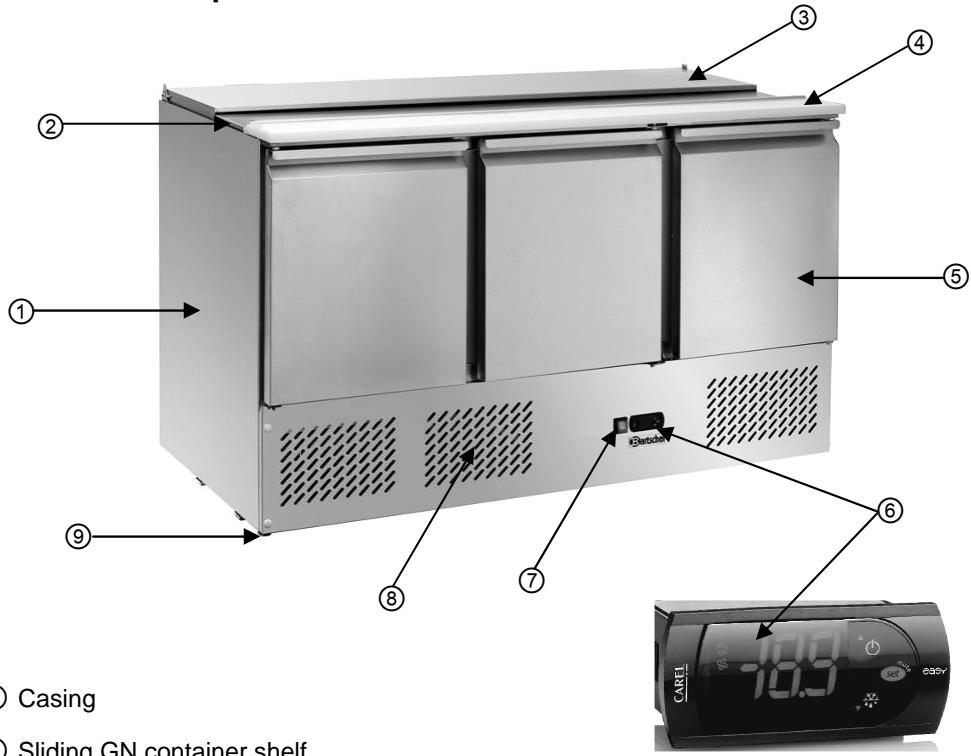

4.1 Overview of parts

① Casing
② Sliding GN container shelf
③ Sliding cover for GN container shelves
④ Work surface
⑤ Doors
⑥ Digital temperature regulator
(7) ON/OFF switch with integrated control light
(8) Ventilation ducts
⑨ Adjustable legs

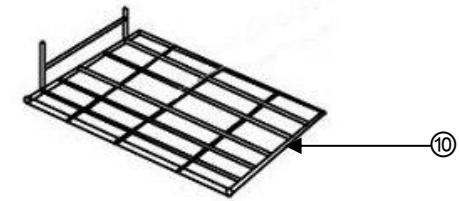

Grille
Lateral GN container shelves

4.2 Technical specification

Name	Ventilated saladette with 3 doors, with evaporator encased in foam
Article no.:	200.264
Construction:	4 x 1/1 GN, depth: 150 mm
Material saladette:	chrome-nickel steel
Work surface – material:	polyethylene
Power:	230 V ~ 50 Hz 0.25 kW
Temperature range:	2℃ – 10℃
Coolant:	R134a / 430 g
Capacity:	400 litres
External dimensions:	W 1380 x D 695 x H 865 mm
Weight:	103 kg
Accessories:	Lateral GN container shelves: 3 shelves: length 535, width 31 mm, 6 shelves: length 330, width 22 mm; 3 GN 1/1 grilles, W 335 x D 570 mm

We reserve the right to make technical changes!

5. Installation and operation

5.1 Safety instructions

WARNING! Electrical hazard!

The device must only be connected to a properly installed single socket with protective contact.

Never yank cord to disconnect from outlet. Cable must not touch any hot parts.

• See that the cable does not touch any heat sources or sharp edges. Do not let the cable dangle over the counter edge.
• Do not use the device in case it does not function properly, has been damaged or dropped.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.
• Do not move or tilt the device when in operation.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that of the device (see type label).

Connect the device only in case of compliance!

Take note of the security advice!

5.2 Installation and connection

CAUTION!

Installation and connection of the device may only be performed by certified specialists.

• Unpack the device and remove the packing material. Remove the entire protective foil from the device.
• Place the device on a flat, secure surface that can support its weight.
• Never place the device on a flammable surface (e.g. carpet).
• Do not place the device near an open flame, electric ovens, coal furnaces or other sources of heat such as direct sunlight. High temperatures may have a negative effect on cooling power and increase energy consumption.
• Place the device so as to allow proper air circulation. Keep a minimum distance of 5 cm from the rear, 10 cm at the sides and 30 cm from the ceiling or shelves.
• Never cover the device's ventilation ducts.
• Do not place the device where high levels of ambient humidity occur. Such high humidity may damage the device.
• Only move the device by lifting it, to avoid damage to the adjustable legs and other equipment.
• If the device has been transported in an upright position, wait 2 hours prior to connecting the device (integrated condenser) to a power source.
• To regulate the device's height, turn the adjustable legs until the device is straight and level.
• The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips.
• Place the device so that the plug is easily accessible and can be quickly removed from its socket in case of necessity.

5.3 Operating

• Clean the device after unpacking and again before connecting it to a power source (see 6.2 Cleaning).
• Connect the device to a single grounded outlet.
• Turn the device on using the ON/OFF switch at the front. The green control light will come on.
• After turning the device on, the LED display will show the following symbols: and 念 . The factory pre-set temperature will also be shown.
• During first use, allow the device to reach the desired temperature prior to placing any food products or beverages inside.

Digital temperature regulator

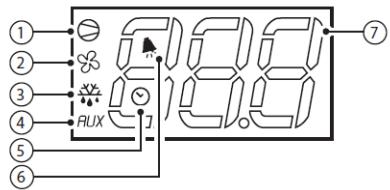

Display and functions

Primary temperature settings are established at the factory and correspond to a working temperature in the device of approx. 2^10^ .

During normal use, the display will show the temperature as measured by the sensor. The LED will also show the current state of functions (table 1), and by using the 3 buttons some functions can be activated/deactivated (table 2).

	LED	Function	Normal working mode			Start
			ON	OFF	Flashing
①	○	Compressor	On	Off	Needed	ON
②	○	Ventilator	On	Off	Needed	ON
③	○○○	Defrost	On	Off	Needed	ON
④	RUX	Aux	Device is on	Device is off	-	ON
⑤	○	Time	RTC function is available and/or active and set for at least 1 time period	RTC function is not available or turned off, or no time period has been set	-	ON, if the RTC function is available

Tab. 1

⑥		Alarm	All	No alarm	-	ON
⑦		Digital display	Composed of 3 lighted values with comma/period and range of -199...999. See parameters /4, /5, /6 for the display of values detected by sensor, values in °C/ °F and after the comma/period

Button functions

Tab. 2

Button		Normal work mode		Start
		Pressing buttons individually	Pressing buttons together
①	UP ON/OFF	Longer than 3 sec.: alternating display of ON/OFF	Pressed together – constant operation mode turned on / off	-
③	Down Defrost	Longer than 3 sec.: Defrost turned on / off		Pressed together – RESET of paramaters activated	1 sec: Programming version displayed
②	Set mute	- 1 sec.: display/ setting of - longer than 3 sec.: access to paramater configuration menu (enter code 22) - Deactivates signal (buzzer).	-		1 sec: reset current EZY settings

Setting desired values (required temperature)

To regulate and change desired values:

• Press set for one second: the set value will begin flashing;
  increase or lower the value by pressing or ^ y x
• confirm the new value by pressing set

Defrost

Automatic defrost

The device automatically defrosts 3 times per 24 hours. The internal clock is activated the first time the device is turned on.

If you want to reset the automatic defrost cycle, press and hold ^ + y for over 3 seconds.

The display will show the symbol x . The device will immediately begin automatic defrost, then the next defrost will begin in 8 hours.

Manual defrost

Manual defrost can be activated at any time in addition to automatic defrost: to do so, press and hold ^ for over 3 seconds.

Manual defrost will begin, and the display will show the symbol

NOTE!

If you wish to change other settings or parameters, instructions on how to do so can be found in the information included concerning temperature control, or such changes can be performed by qualified service personnel.

Tips for the user

• Place products inside the ventilated saladette after the desired temperature is clearly visible on the display.
• Fill appropriate GN containers with ready-to-serve food products, then place the containers inside the ventilated saladette. Use the GN containers supplied for this purpose.
• Do not place warm food products inside the ventilated saladette - they must be cooled first.
  Always close and/or pack food products very tightly.

• During first loading of the ventilated saladette, always open and fill only one shelf at a time.

• When placing products inside the ventilated saladette, ensure that sufficient space is left between the device's interior walls and food products in storage. This is to guarantee free air circulation inside the device.

• When greater amounts of products are inside the ventilated saladette or when its doors/covers are held open for longer periods, the device uses more energy and may be damaged more quickly.
• To reduce cold loss, keep doors and covers open for as short a time as possible. Do not open them more often than is necessary.
• To avoid unpleasant odours inside the ventilated saladette, it is recommended to observe the best-by date for food products in storage.
• In the event of a power failure, avoid opening doors if possible in order to avoid cold loss.
• After a power outage or after removing the plug from its socket, do not connect the device to a power source for at least 5 minutes.

6. Cleaning and maintenance

6.1 Safety advice

Before beginning with repair or cleaning works make sure the device has been disconnected from power socket (pull the power plug!!!) and has cooled down.
o Do not use any acid agents and make sure no water ingresses the device.
To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

CAUTION!

The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!

6.2 Cleaning

Clean the device regularly.
○ Remove the grille, shelves and GN containers from the device. Wash them with a food service-class disinfectant.
○ Wash the inside and outside of the device with a soft, moist cloth. Dry the device thoroughly.
o Wash the work surface with a soft, moist cloth and mild cleaning agent.
o Never use abrasive cleaning substances such as scouring powder, substances containing alcohol, or solvents, as they may damage the device's surface.
After cleaning, dry and polish the surface with a soft, dry cloth.

If the device is to remain unused for a longer period of time:

remove the plug from its socket;
remove all food products from the device;
clean the interior and exterior of the ventilated saladette with a moist, soft cloth and mild cleaning agent. Wipe the device down with clean water and dry thoroughly.
leave the door and drawers open for some time to allow the device to dry thoroughly.

6.3 Safety instructions for maintenance

Check the mains connection cable for damage from time to time. Never operate the device when the cable is damaged. A damaged cable must immediately be replaced by customer service or a qualified electrician to avoid dangers.
In case of damage or malfunction, please contact your stockist or our customer service centre. Pay attention to the troubleshooting tips in pt. 7.
○ Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

Maintenance

So that the cooling device will function properly for a long period of time, perform the following maintenance work on the condenser regularly:

o remove the device's plug from its socket
open the cooling device to get access to the condenser.

WARNING! Danger of burns!

The compressor's surface may be very hot during normal use.

Never touch it with bare hands.

○ Use a vacuum cleaner or brush to delicately clean the surface of the condenser, following the ridges.
Close the shelf after cleaning.

CAUTION!

Handle the cable carefully - do not pull it!

7. Possible Malfunctions

Problem	Cause	Solution
Does not cool	Plug improperly inserted into socket. Safety fuse has disconnected power source. Power outage Damaged temperature regulator.	Remove plug and reinsert properly into socket. Check fuses, connect device to another socket. Check power supply. Contact a sales agent.
Insufficient cooling power	The device is near a heat source or exposed to direct sunlight. Poor air circulation around the device. Food products inside the device are too hot. The device is overfilled.	Ensure sufficient distance between the device and heat sources. Ensure sufficient distance between the device and walls or other objects. Allow food products to cool before placing them in the device. Avoid overfilling the device, remove unneeded food products if possible.

The above situations are only examples designed to assist you in determining the possible sources of problems. If such problems or other similar ones occur, immediately turn off the device and do not use it. Contact qualified personnel or a sales agent in order to arrange examination of the device and its repair.

8. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH

4.2 Indications techniques
