USER MANUAL DeliCool II-D 700208G BARTSCHER

Instruction manual Refrigerated showcase

from page 19 to 36

GB/UK

Mode d'emploi

Vitrine réfrigérée

of the original instruction manual

Table of contents

1.Safety 20

1.1 Safety instructions 20
1.2 Key to symbols 21
1.3 Hazard sources 22
1.4 Proper use 24

2. General information 25

2.1 Liability and Warrantees 25
2.2 Copyright protection 25
2.3 Declaration of conformity 25

3. Transport, packaging and storage 26

3.1 Delivery check 26
3.2 Packaging 26
3.3 Storage 26

4. Technical data 27

4.1 Overview of parts 27
4.2 Technical specification 28

5. Installation and operation 29

5.1 Positioning and connection 29
5.2 Operation 30

6. Cleaning 33

7. Possible Malfunctions 34

8.Waste disposal 36

Bartscher GmbH

Read these instructions before using and keep them available at all times!

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1. Safety

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

All persons using the device must follow the recommendations and instructions in this manual.

1.1 Safety instructions

• Do not use the device in case it does not function properly, has been damaged or dropped.
• Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
• To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.
• Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable.
• The power cable must not be folded, bent or tangled, and must always remain fully unrolled.

• Never place the device or other objects on the power cable.

• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.

• Inspect the power cable regularly for damage. Never use the device if the cable is damaged. If the power cable is damaged, have an authorised service center or qualified electrician replace it.
  Children should be observed to ensure that they are not playing with the device.
• Do not move or tilt the device when in operation.
• Only use the device indoors.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards which could lead to injury.

To avoid them please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING!

This symbol highlights dangerous situations which could lead to injury or death.

To avoid them please follow the instructions very carefully and proceed with particular attention in these cases.

CAUTION!

This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device.

To avoid them please follow the instructions very carefully and proceed with particular attention in these cases.

NOTE!

This symbol highlights recommendations and information aimed for effective and trouble-free device operation.

1.3 Hazard sources

DANGER!

Electric shock hazard!

To avoid the hazard results please follow the safety instructions below.

Do not use the machine in case of incorrect operation, damages or dropping on the floor. When the cable is damaged it should be replaced by the service company or qualified electrician in order to avoid the hazards.
The supply cable must be disconnected from the socket only by pulling the plug.
Never carry or lift the device by the supply cable.
In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
Never immerse the plug in water or other liquids.
Never operate the device with moist hands or standing on wet floor.
Remove the plug from its socket:

• when the device is not used,
• in case of anomalies during operation,
• before cleaning.

DANGER!

Suffocation hazard!

Prevent access of children to the package materials like plastic bags and foamed polystyrene elements.

WARNING!

Burn hazard!

To avoid the hazard results please follow the safety instructions below.

During normal operation the compressor surface may be hot. Do not touch it with bare hands.

WARNING!

Fire or explosion hazard!

In case of improper operation there is the fire or explosion hazard due to ignition of the device content.

To avoid the hazard results please follow the safety instructions below.

Do not store the flammable or explosive substances in the device, like ether, kerosene, or glues.
Do not clean the device with use of flammable liquids. The released vapours may cause fire or explosion.
Do not store gasoline or other flammable substances in the vicinity of the device. The vapours may cause fire or explosion.
Do not store the explosive objects in the device, like cans with explosive work substances.
Do not allow for the cooling circuit damages.

1.4 Proper use

CAUTION!

The device has been designed and manufactured for the industrial use and should be operated only by the qualified personnel of the restaurants, canteens, hospitals, and similar places.

The operational safety of the device is assured only in case of proper use, according to the operation manual.

All technical activities like installation and maintenance must be performed by the qualified service personnel only.

The refrigerated showcase is designed for cooling of food and drinks only.

Do not use the refrigerated showcase for any of the following:

• storing of the flammable or explosive substances in the device, like ether, kerosene, or glues;
• storing of pharmaceutical products or preserved blood.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

2. General information 2.1 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology.

NOTE!

Read this manual carefully and thoroughly before any operation of the device, and especially before turning it on!

Manufacturer is not liable for any damages or faults caused by:

• violation of advice concerning operation and cleaning;
• use other than designed;
• alterations made by user;
• use of inadequate spare parts.

We reserve the right to make technical changes for purposes of developing and improving the useful properties.

2.2 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

2.3 Declaration of conformity

The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity.

3. Transport, packaging and storage 3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
• In case of longer storage ( >3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

4. Technical data

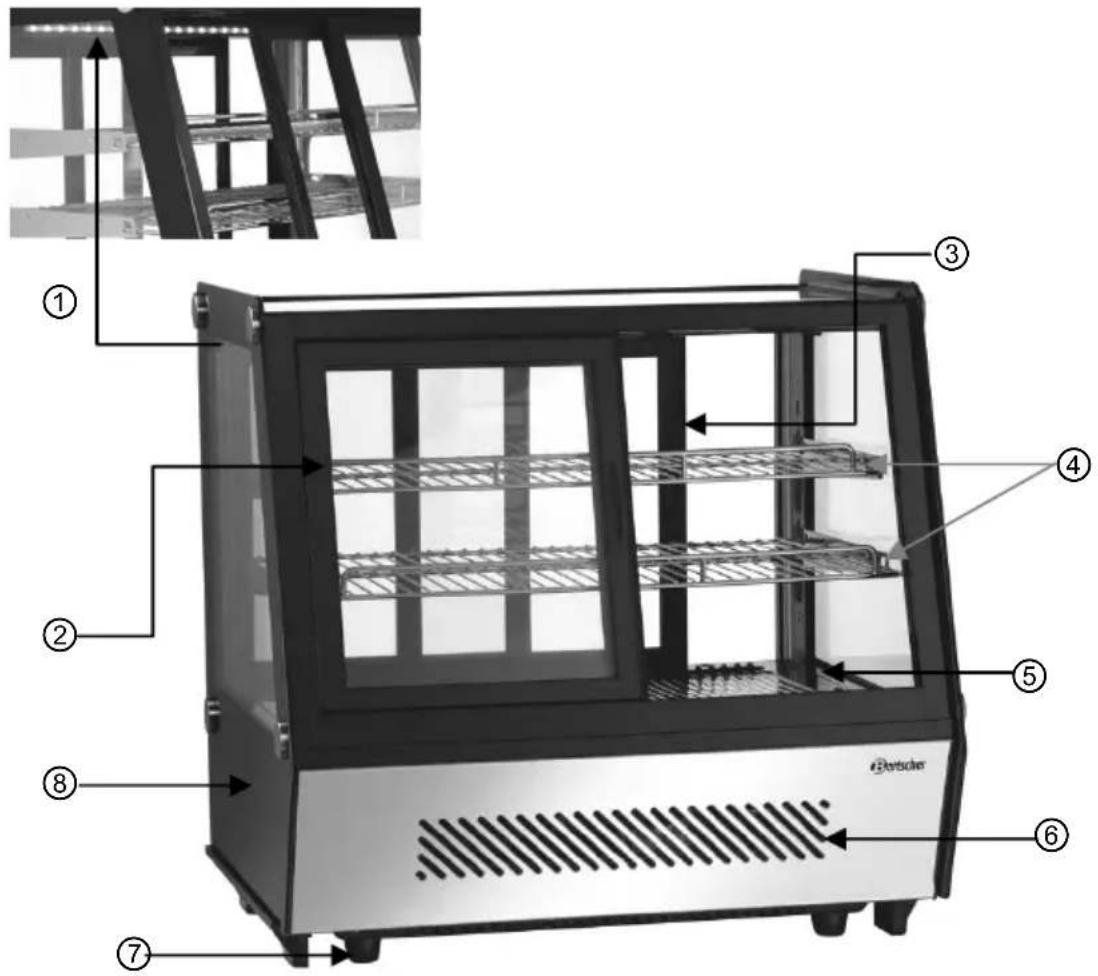

4.1 Overview of parts

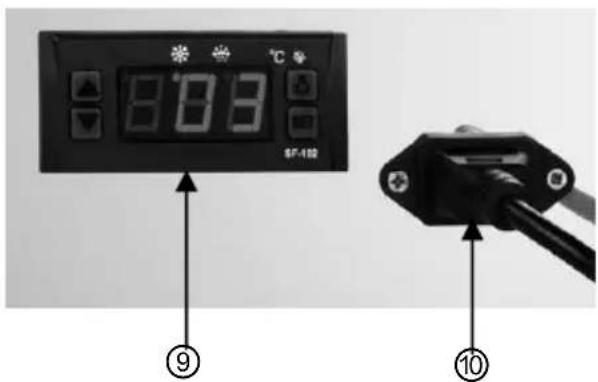

Control elements on the back wall

① LED illumination
② Slide front glass door
③ Slide rear glass door
④ Adjustable shelves (2)
⑤ Lower operational surface
⑥ Ventilation holes
⑦ Feet
⑧ Housing
⑨ Digital temperature controller
Device socket + supply cable

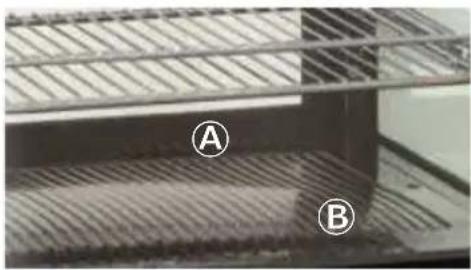

Air inlet

For suction of cooling air.

Air outlet

Ejects the cooling air.

NOTE!

Do not cover the air inlet and outlet holes of the refrigerated showcase. They should be always permeable so the air may freely circulate in the device assuring proper cooling.

4.2 Technical specification

Name	Refrigerated showcase „Bartscher Deli-Cool II D“
Code-no.:	700208G
Realization:	2 slide glass door, front and rear, allowing for placing products from both sidesLED illuminationcooling with circulated air with 2 fansautomatic defrosting
Material: Plastic housing	with double glass, safety glass
Capacity: 120 litres
Cooling medium R600a
Operating temperature: 2 °C – 12 °C
Power supply: 0.16 kW /	230 V~ 50 Hz
Dimensions: W 710 x D 568 x H 686 mm
Weight: 55.0 kg
Equipment:	2 adjustable shelvesdimensions: W 630 x D 340 mm, x W 630 x D 370 mm

We reserve the right to make technical changes!

5. Installation and operation

5.1 Positioning and connection

Positioning

• Before the operation unpack the device and remove all package material and protective foil from the device and equipment.

CAUTION!

Never remove the rating plate and any warning signs from the device.

• Position the device in safe place of load capacity sufficient for weight of the device with full content.
• Never place the device on the flammable surfaces.
• In order to avoid the compressor damages do not tilt the device during positioning or transport by more than 45^ .
• Do not place the device in the vicinity of open fire, electric ovens, heating furnaces, or other heat sources like direct sunlight. High temperature may damage the device surface and may impact the cooling capacity and energy consumption.
• During the device installation keep in mind that the environment temperature should not be lower than 0^ and higher than 32^ .
• Position the device in such way that free air circulation is assured. Remain distance of at least 5cm from the walls and other objects.
• Never cover the ventilation holes of the device.
• Do not place the device in places of high air humidity. The excessive humidity may damage the device.
• Do not bore holes or install other objects in the device.
• Do not place any heavy objects on the device.

Connection

DANGER! Electric shock hazard!

The device can cause injuries due to improper installation!

Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance!

Connect the device only to properly installed single socket with protective terminal.

Do not disconnect the supply cable by pulling it, always pull the plug.

• Before use position the device and leave it for at least 2 hours before connecting to the power supply.
• After a power outage or after removing the plug from its socket do not connect the device to a power source for at least 5 minutes.
• The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips.
• Position the device in such way that the plug is easily accessible for quick disconnecting when required.

5.2 Operation

Preparation

• Before operation become familiar with the device and its equipment by reading this manual.
• Before the device operation clean it according to the instructions in section 6.2 "Cleaning".
• Place the shelves at required height. The possibility of adjusting shelves allows for placing objects of various height in the refrigerated showcase. The brackets for shelves are installed in the factory. Position the shelves on the brackets on appropriate level.
• First connect the supplied cable to the socket on the back side of the device, then connect the plug to the single grounded socket.

• The optimal settings are selected in the factory and are in range between 2^ (lower adjustment limit) and 6^ (upper adjustment limit). Those settings correspond to the operational temperature in the refrigerated showcase in range of approx. 2^ - 12^ .

• Cool the device initially with use of default settings. Place drinks and food in the device only when the sufficient cooling capacity is reached.

NOTE!

The temperature value displayed on the digital display is the value measured near the temperature sensor and is used for the compressor control.

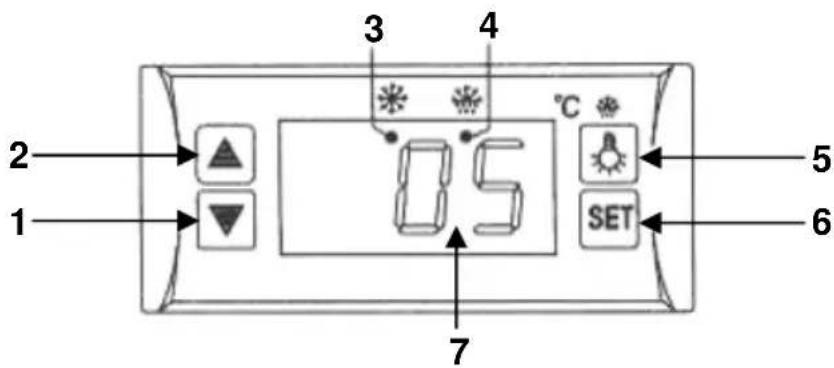

Digital temperature controller

The temperature controller is located on the back of the device.

1 Temperature decreasing button
2 Temperature increasing button
3 LCD indicator for compressor
4 LCD indicator for defrosting
5 Illumination button
6 Settings control/saving button (SET)
7 Digital display

LED indicators

LCD indicator for compressor:

The indicator illuminates during the cooling mode, is off when the temperature in the cooling chamber is stable, and flashes during the activation delay mode.

LCD indicator for defrosting:

The indicator illuminates during the defrosting process, is off after defrosting, and flashes during the defrosting delay mode.

Automatic defrosting

The device automatically defrosts 4 times per 24 hours.

Manual defrosting

When the cooling capacity drops, e.g. after longer opening of the glass door, it is recommended to perform the manual defrosting. To start the defrosting press button

“” and hold it pressed for 6 seconds. The LCD indicator “” for defrosting will illuminate.

LED illumination

The device is equipped with 2 illumination LED strips. They are located in the upper part of the refrigerated showcase.

The LED illumination may be turned on or off when required.

To turn the LED illumination on press button “for 1 second. Pressing the button again will turn the illumination off.

Tips for the user

• The front and glass slide door allow for convenient removing and placing of food or drinks from both sides.
• To minimize loss of cold keep the sliding door open for as short of a time as possible. Moreover do not open the door too often.
• Do not cover the air inlet and outlet holes of the refrigerated showcase. Air must circulate freely in order to assure appropriate cooling properties.
• The stored food should be placed in appropriate distances from each other. Too little distances reduce the cooling effect.
• The levels of shelves may be freely adapted to the height of stored food.
• Warm food should be cooled to the room temperature before storing.
• In the event of the power failure avoid opening the door if possible in order to avoid cold loss.
• After the power failure or after removing the plug from its socket do not connect the device to a power source for at least 5 minutes.

6. Cleaning

CAUTION!

The device is not designed for flushing with direct water jet. Therefore do not use the pressurized jet for cleaning the device!

Clean the refrigerated showcase periodically.
o Before cleaning disconnect the device from the power supply (pull the plug!).
- Open the glass doors and remove the shelves. Wash them with use of gentle washing agent and soft cloth, then dry thoroughly.
- Wash the device inside and outside with use of warm water, gentle washing agent, and soft cloth. Rinse with clean water to remove the washing agent residuals. Dry the washed surfaces thoroughly.
- Never use aggressive cleaning agents, such as scouring powders, alcohol-based substances, or solvents which may damage the plastic parts and/or paint coating.
Always use the soft cloth only, never use any abrasive washcloth which may scratch the device.

In case of longer break in operation:

1. remove the plug from its socket:
2. remove all food products from the device:
3. clean the refrigerated showcase inside and outside according to the instructions above;
4. leave the sliding doors opened for complete drying.

7. Possible Malfunctions

In case of anomalies use the table below before calling the service company or informing the vendor.

Problem	Cause	Solution
No cooling	·The plug is not connected to the socket ·Damaged fuse ·Power supply failure ·Damaged temperature controller	·Connect the plug correctly ·Check power supply ·Check power supply ·Contact the vendor.
Insufficient cooling efficiency	·Direct sunlight or heat sources in the vicinity of the device ·Poor air circulation around the device ·The door is not closed completely or opened too long ·Too little distances between the stored food or too much food in the device ·Covered air inlet or outlet	·Move the device away from the heat sources ·Assure sufficient distances to the walls or other objects ·Close the slide doors, minimize the opening time ·Assure sufficient spaces between the food products, remove the food excess ·Do not cover the air inlet and outlet holes
Loud operation	·The device is not placed on the even surface ·The refrigerator touches walls or other objects	·Place the refrigerator on the even surface ·Ensure sufficient distance between the device and walls or other objects
The compressor does not start automatically	·Overloaded refrigerated showcase ·The door was opened too long	·Remove excess of food ·Minimize the door opening time

When the anomalies cannot be removed:

• disconnect the device from the socket (pull the plug!)
• do not open the housing
• contact the service company or the vendor.

Error messages

Error message	Error description	Consequences	Solution
“HH1”	Overheating (above 80°C) or temperature sensor short circuit	The compressor is started for 45 minutes and then turned off for 15 minutes	Contact the vendor
“LL1”	Too low temperature (below 60°C) or interrupted circuit (no connection with the temperature sensor)	The compressor is started for 45 minutes and then turned off for 15 minutes	Contact the vendor

The following phenomena do not indicate the damage:

1. Sound of flowing water. Such sound is audible during the normal operation. It is produced by the cooling medium circulating in the circuit.
2. Water condensation on the internal glass walls is normal during increased air humidity. Remove the condensate with use of soft dry cloth.

8. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

DANGER!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

CAUTION!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH

4.2 Indications techniques
