USER MANUAL 520DX SHURE

520DX "GREEN BULLET"

HARMONICA MICROPHONE

MICROPHONE POUR HARMONICA

520DX (GREEN BUCKET)

HARMONIKA-MIKROFON 520DX

(GREEN BULLET)

MICROFONO 520DX PARA ARMONICA

(GREEN BULLET)

MICROFONO DA ARMONICA 520DX

(GREEN BULLET)

MINKPOΦOHДЛЯГБΗΟΥΑPMΟΗΝΚΙ520DX

«GREEN BULLET»

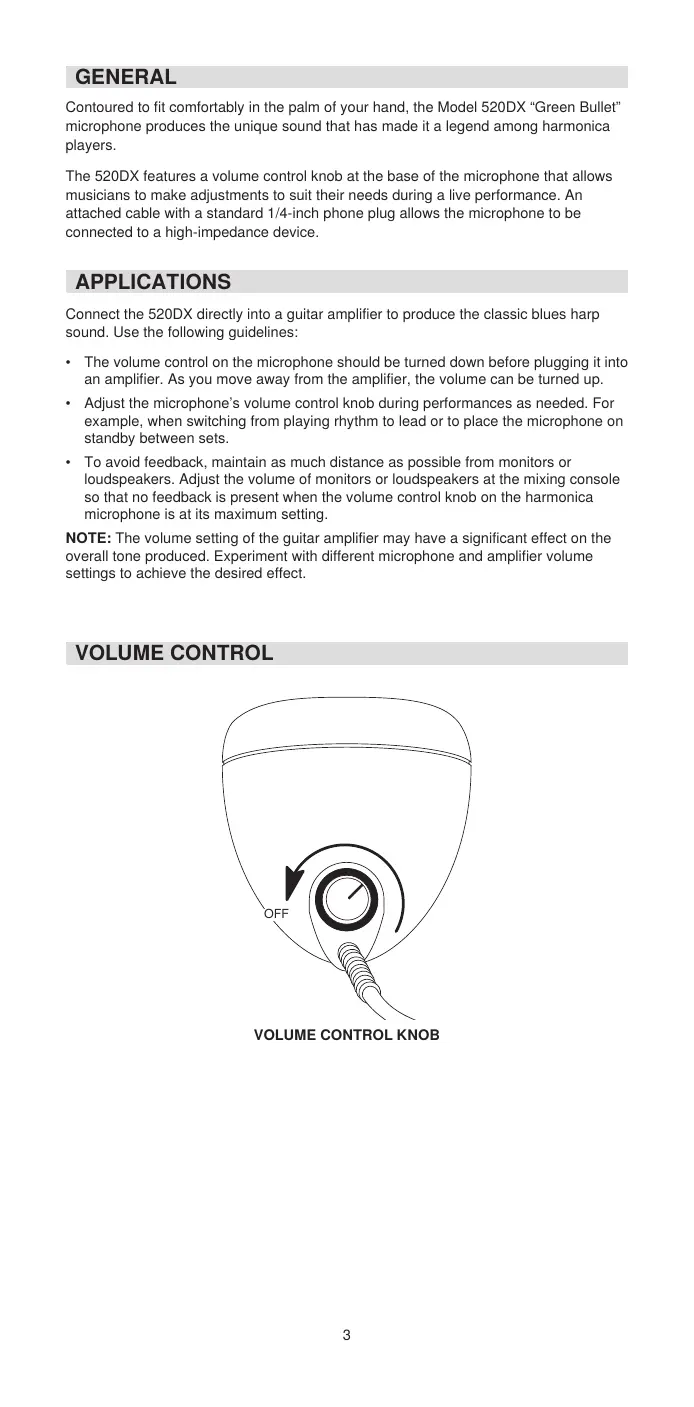

Contoured to fit comfortably in the palm of your hand, the Model 520DX "Green Bullet" microphone produces the unique sound that has made it a legend among harmonica players.

The 520DX features a volume control knob at the base of the microphone that allows musicians to make adjustments to suit their needs during a live performance. An attached cable with a standard 1/4-inch phone plug allows the microphone to be connected to a high-impedance device.

APPLICATIONS

Connect the 520DX directly into a guitar amplifier to produce the classic blues harp sound. Use the following guidelines:

• The volume control on the microphone should be turned down before plugging it into an amplifier. As you move away from the amplifier, the volume can be turned up.
• Adjust the microphone's volume control knob during performances as needed. For example, when switching from playing rhythm to lead or to place the microphone on standby between sets.
• To avoid feedback, maintain as much distance as possible from monitors or loudspeakers. Adjust the volume of monitors or loudspeakers at the mixing console so that no feedback is present when the volume control knob on the harmonica microphone is at its maximum setting.

NOTE: The volume setting of the guitar amplifier may have a significant effect on the overall tone produced. Experiment with different microphone and amplifier volume settings to achieve the desired effect.

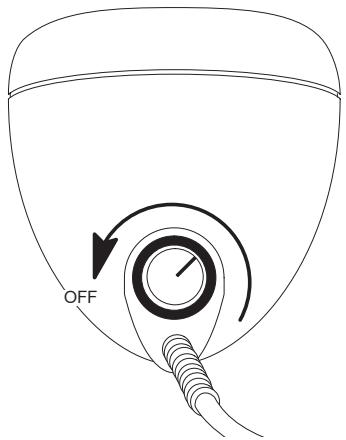

VOLUME CONTROL

VOLUME CONTROL KNOB

LOW IMPEDANCE

To connect the 520DX to a low impedance device, such as a mixer, use a low-to-high impedance-matching line transformer, such as the Shure model A95U.

NOTE: The 520DX can be rewired for low impedance, but this disables the volume control. Contact the Shure Applications Group at [phone] for more information.

SPECIFICATIONS

Type	Dynamic
Frequency Response	100 to 5,000 Hz
Polar Pattern	Omnidirectional
Impedance	High, unbalanced
Load Impedance Range	Minimum: 100 kΩ
Output Level (at 1,000 Hz)	Open Circuit Voltage -38.0 dBV/Pa (13 mV) 1 Pa = 94 dB SPL
Polarity	Positive sound pressure on diaphragm pro- duces positive voltage on tip with respect to sleeve (ground) of microphone output phone plug connector
Cable	6.1 m (20 ft) two conductor shielded with standard 1/4-inch phone plug attached (sup- plied wired for high-impedance, unbalanced connection)
Case	Green and chrome finished die casting
Dimensions	63 mm (2.5 in) max diameter, 82.6 mm (3 1/4 in) long
Net Weight (with cable)	737 grams (26 oz)

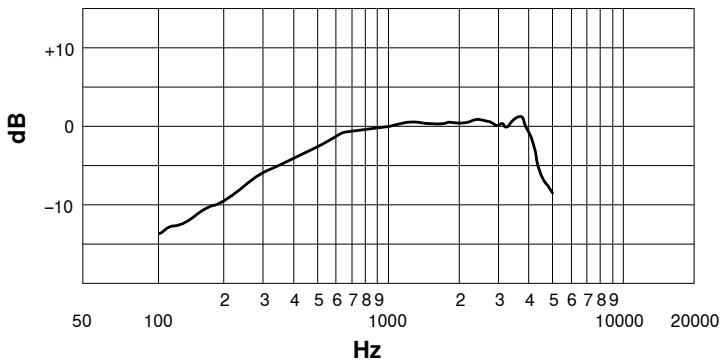

TYPICAL FREQUENCY RESPONSE

Certification

Eligible to bear CE Marking. Conforms to European EMC Directive 2004/108/EC. Meets Harmonized Standards EN55103-1:1996 and EN55103-2:1996, for residential (E1) and light industrial (E2) environments.

The Declaration of Conformity can be obtained from: Authorized European representative:

Shure Europe GmbH

Headquarters Europe, Middle East & Africa

Department EMEA Approval

Wannenacker Str. 28

D-74078 Heilbronn, Germany

Phone: [phone]

Fax: [phone]

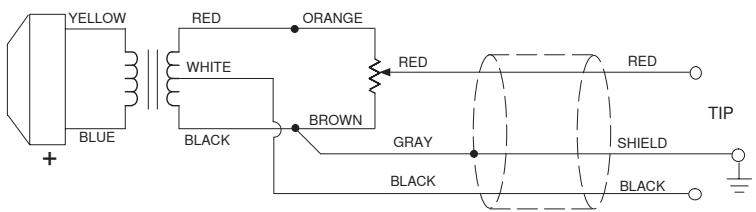

The RED lead is the high-impedance audio output; the SHIELD is the audio return and case ground.

The Model 520DX Green Bullet Microphone is supplied wired for high-impedance, unbalanced operation with the 1/4-inch phone plug.

INTERNAL CONNECTIONS UNBALANCED HIGH-IMPEDANCE OUTPUT

REPLACEMENT PARTS

Cartridge	R198
Cable and Plug	95A2353
Volume Control Pot	90A4487

For additional service or parts information, please contact Shure's Service department at 1-800-516-2525. Outside the United States, please contact your authorized Shure Service Center.

MICROPHONE POUR HARMONICA 520DX (GREEN BULET) GUIDE DE L'UTILISATEUR

GÉNÉRALITÉS

D-74078 Heilbronn, Germany

Phone: [phone]

Fax: [phone]

Email: [e-mail]

BRANCHEMENTS

Department: EMEA Approvals

Wannenackerstrasse 28

74078 Heilbronn, Germany

Phone: [phone]

Fax: [phone]

D-74078 Heilbronn, Germany

Phone: [phone]

Fax: [phone]

Email: [e-mail]

CONEXIONES

D-74078 Heilbronn, Germany

Phone: [phone]

Fax: [phone]

Email: EMEA [e-mail]

CONNECTIONI

TEXHnueCKHEXAPAKTEPNCNTIKN

Headquarters Europe, Middle East & Africa

Department: EMEA Approval

Wannenacker Str. 28

D-74078 Heilbronn, Germany (Германь)

Teneon: [phone]

ΦaKc: [phone]

Ön. noʊṭa: [e-mail]

COEINHEHNA

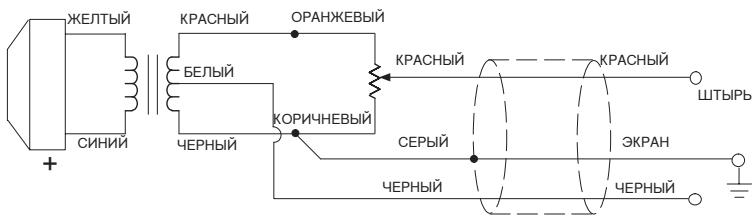

KPACHbI npoBOd — BbICOKOMnpeHaChbI ayDnOBbIXoJ; 3KPAH — o6paTHbI npoBOd ayDnOCnHraHa n 3eMJI KOpNya.

MnKpOfoH 520DX Green Bullet noCTaBnEtcra c 1/4-DoHMOBbIM TeleFoHHbIM UTekepom n CMOHTnpOBaH dna BbICOKoHMpeHaCHORo HeCMMeTpHuHOro peJKMHa.g.

BHYTPEHHNE COEINHEHNA HECIMMETPNUHbI BbICOKOMMEJAHCHbI BbXoD

CMEHHbIE DETAHN

D-74078 Heilbronn, Germany

Tel: [phone]

Fax: [phone]

EMe-1:[e-mail]

接綫

D-74078 Heilbronn, Germany

朝歌：[phone]

串：[phone]

IMeIeI:[e-mail]

简历

韋迦利德専是的，也。

Headquarters Europe, Middle East & Africa

Department: EMEA Approval

Wannenacker Str. 28

D-74078 Heilbronn, Germany

电话：[phone]

传真：[phone]

电子邮件：[e-mail]

连接

EU DECLARATION OF CONFORMITY

We,

of

Shure Incorporated

5800 Touhy Ave

Niles, Illinois, 60714-4608 U.S.A

[phone]

Declare under our sole responsibility that the following product

Model: 520DX

Description:

Dynamic Microphone

to which this Declaration relates

are in conformity to European Low Voltage Directive 73/23/EEC

are in conformity to European EMC Directive 89/336/EEC

are in conformity to European CE Marking Directive 93/68/EEC

The product complies with the following product family, harmonized or national standards:

EN 55103-1

EN 55103-2

Manufacturer:ShureIncorporated.

Signed

1

Date

NOVEMBER 19,2003

Name, Title

Craig Kozokar

EMC Project Engineer, Corporate Quality, Shure Incorporated

European Contact: Shure Europe GmbH

Wannenacker Str. 28, 74078 Heilbronn, Germany

Phone: [phone], Fax: [phone]
