Overview of ND-52000 Thank you for choosing ND-52000. This product has the following key features: Simple installation, 5 minutes configuration and user-friendly management interface for SMB users. High speed SATA HDD, supports hotswap, maximum capacity up to 2.0TB. Dual Gigabit ports for load balance, fail over and standalone settings. LCD panel for instant display of IP address and important system info; IP settings can be configured directly without access to PC. Built-in anti-virus mechanism. Simply enter activation code to enable anti- virus function without extra installation. Supports instant online virus scan to protect data (optional). Supports redundant power supply to increase system reliability. Provides various practical backup mechanisms. Y__ Professional remote replication to remote NAS USB 2.0 interface for CD/DVD data burning

SCSI interface for tape backup

Provides backup software for Windows users, instant and scheduled backup can be performed without IT professional assistance

Front View LCD panel Enter button LED indicators: Power, Error, Network and Disk Down button Rear View ATX Redundant Power Supply Reset button Power button Power connector SCSI connecter (For tape device) Power Rear View USB ports Giga M | Giga LAN 1 LAN 2 Power Light Error Light Error Alarm Shutdown Button

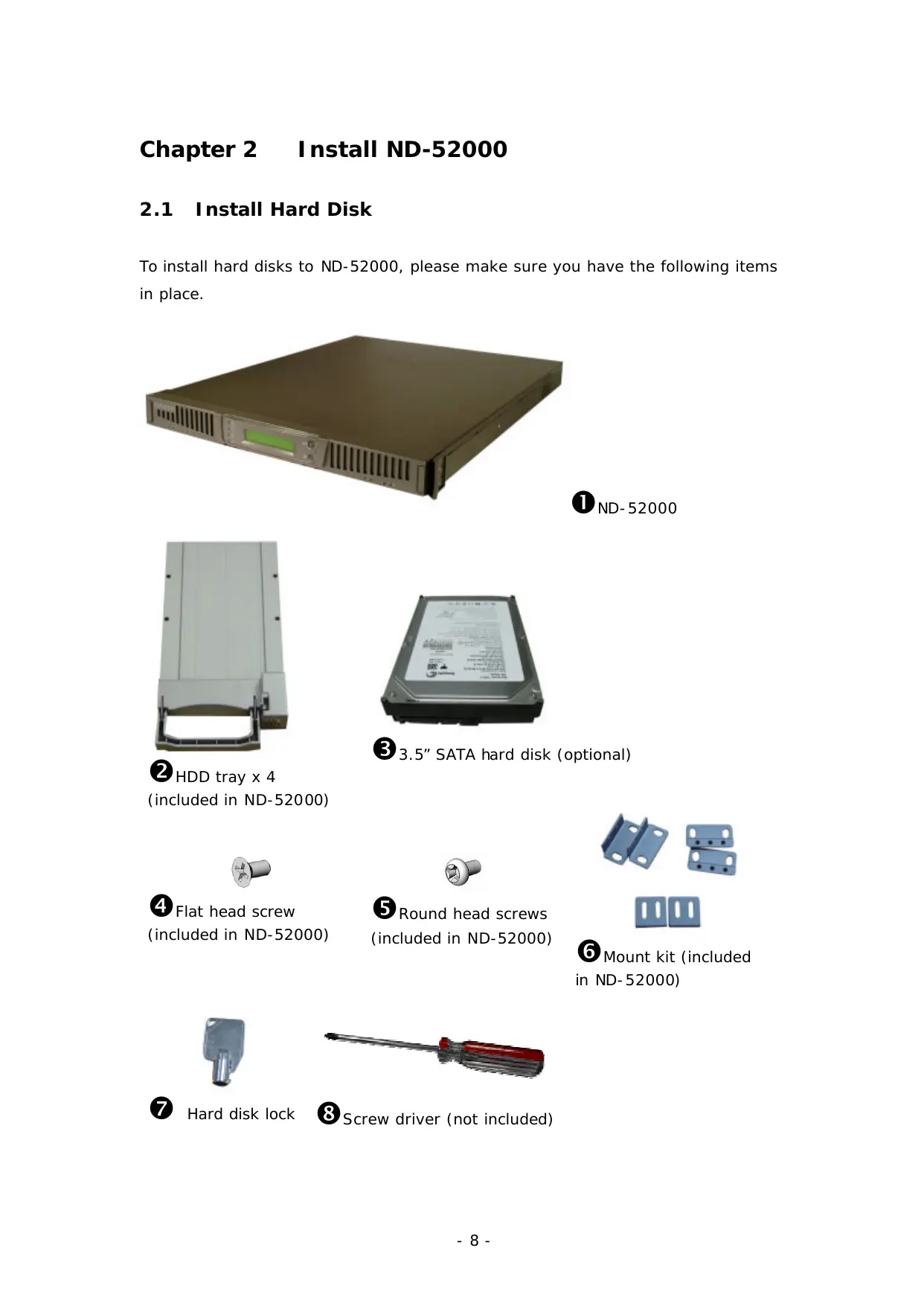

To install hard disks to ND-52000, please make sure you have the following items in place. Ov. 52000 6: SATA hard disk (optional) + WE [4 DER head screw Oround head screws tft} (included in ND-52000) (included in ND-52000) Oo tray x 4 (included in ND-52000) @ mount kit (included in ND-52000) ——.2s © Hard disk lock Oscrew driver (not included)

Hard Disk Installation Procedure “7 It is highly recommended that you install disks of the same brand and same size on ND-52000. The server may function improperly if disks of different brands and size are installed. Please refer to Chapter Erreur! Source du renvoi introuvable. for hard disk recommendation list.

1. Push the side locks in the front of ND-52000 and then pull forwards to open

the front panel. Open front panel

2. Unlock the disk tray with hard disk lock and take out the hard disk tray.

Take out the disk tray Unlock

3. Place a hard disk in a hard disk tray.

4. Turn over the disk tray. Make sure the disk holes match the holes at the base

of the tray. Fasten the disk with four flat head screws.

5. Insert the hard disk tray to ND-52000. Then lock the tray with the hard disk

lock. (You can install 4 disks at maximum.) Insert the disk tray Close the front panel

6. When finished, close the front panel of ND-52000. Note that all disks should

be inserted in order from right to left (HDD1-HDDA4). Note: You can install 1-4 hard disks depending on the type of disk configuration you select for ND-52000. If less than 4 disks are installed and the server is turned on, the system will beep continuously. In such case, please go to Hardware Settings in System Tools (refer to Chapter

6.9.4) and disable the buzzer. You can then continue to use ND-52000.

Install Rackmount Kit Please follow the steps below to install the rackmount kit of ND-52000.

1. Attach brackets (a) to both sides of ND-52000 in the front.

2. Lock the brackets (b) to ND-52000. Then attach and fasten z-shape brackets

(c). Push ND-52000 into the rack.

4. Fasten the screws to fix the position of ND-52000.

(important Notice: Please back up your disk data periodically to avoid data loss due to improper operation or disk failure of ND-52000. COMET LABS is not responsible for any data loss or recovery.

2.2 Connect ND-52000 to Office Network

When connecting ND-52000 to office network: 1. It is recommended to install ND-52000 in LAN with DHCP server. 2. You can use any PC in the same subnet to connect to the server by IE browser. 3. You may also connect a tape drive or USB CD/DVD burner to ND-52000 for data backup and restore. Connect tape drive and/or USB CD/DVD burner to ND-52000 for backup To access the server, connect PC to the same subnet of ND-

Connect a switch/ hub/ router to ND- 52000, which is a DHCP server

To install ND-52000 in office network, please follow the steps: a, b, c, d, e below. a. Connect Gigabit port LAN 1 or LAN 2% to a switch/ hub/ router by a network cable. d. Connect the power C. Connect tape b. Connect CD/DVD e. Turn on the cord and plug in the drive to the SCSI burner *. server. other end of the cord connector *. to power outlet. To use fail over or load balance function, please connect both LAN 1 and LAN 2 to switch/ hub/ router. For further details, please refer to Chapter 6.5.1.

• Optional step. You can skip this step if you are not using CD/DVD backup/restore or tape backup service. OM To connect ND-52000 to a PC, please use a network cable to connect the PC to LAN 1 or LAN 2 of ND-52000. For further details about accessing ND-52000, please refer to Chapter 6.

Chapter 3 Use LCD Panel

When ND-52000 is turned on, the server name, IP address, date, and time will be shown. Server name Date Power Enter button Error Network Down button Hard disk IP address Time Check System Information

1. Press Down button to view disk information, i.e. number of disks and disk

size. Note that the disk size displayed is the total size of all installed disks but may not be the actual disk size you can use. If you configure the disks as RAID 1 disk volume, the actual disk size you can use is smaller than the displayed disk size on the panel.

2. Press Down button again to view system temperature and system fan speed.

3. Press Down button again to view CPU temperature and CPU fan speed.

4. Press Down button again to view model number and version information.

Network Settings Enter NETWORK SETTINGS configuration page and press Down button to select one of the following options. DHCP DHCP will obtain IP address automatically. STATIC IP Press Enter button to select STATIC IP. Then configure the IP address.

Press Down button to enter 0-255 and press Enter button to set the next number for the IP address. ï. SET NETMASK Follow the above procedure to set the netmask address.

Follow the above procedure to set the gateway address.

iv. SELECT STATIC IP

Press Down button to select YES or NO. When YES is selected, you will be asked to restart the system. EXIT To return to the previous menu.

Quick Install Wizard enables you to search for all available ND-52000 within the local network, and view the server name, IP address, and workgroup etc. You can also configure the disk name, date and time, etc. via Quick Install Wizard. To use Quick Install Wizard, run ND-52000 CD-ROM in your PC and install the program. Run Quick Install wizard shortcut on the desktop, the following screen will be shown. Indicates the Windows IP address of workgroup joined Quick Install Wizard the server. by the Network AIl Network Disk Servers can be identified using a unique server pe. ÎName [7 _1PaAddress | 7° Wokgow| x] ipserver 172.17.21.80 IP

Cancel | Upon successful login, the following screen will appear. configuration values and click OK.

nter the IP address xclusively assigned to The subnet mask is used to distinguish the network ID and IP Address If this option is Subnet Mask enabled, the server Gabvey DEEE EINELE nsc the IP addrace CE Cancel Exits and saves Exits and chances. discards The IP address for the default gateway that connects to the Internet

Map drive a. Select a ND-52000 and click Map Drive. b. Select the correct network share and click Map Network Drive. Then select the drive letter for the connection.

Select Network Share Select network share to map as network drive : Map Network Drive ] Cancel

Map Network Drive (x) Windows can help you connect to a shared network folder and assign a drive letter to the connection so that you can access the folder using My Computer, SpeciFy the drive letter For the connection and the folder that you want to connect to: Folder: 11192.168 public Ho Example: \iserverishare Reconnect at logon Connect using a different user name. Sign up for online storage or connect to à network server. c. Enter the user name and password for the network drive. Search for all available ND-52000 again. To refresh the search results, click Refresh to display all available servers within the network. Help If you have any enquiries about Quick Install Wizard when using the program, you can click the Help button to view the help text. Enter the homepage of ND-52000 Double click on ND-52000 to enter the administration page.

Chapter 5 Start to Enjoy the Services of ND-

ND- 52000 provides the following powerful services and applications

You can make use of the following means to access and share the folders of ND- 52000 easily: a. By Quick Install Wizard: By the Map Drive function of Quick Install Wizard, you can configure the share folders on ND-52000 as a drive of your PC quickly. For further information, please refer to Chapter 4. b. By samba: ND-52000 supports Microsoft, MAC and Linux (NFS) OS for data sharing to enable you to share data across different platforms, please refer to Chapter 7.1-7.3. c. By Web File Manager: ND-52000 provides a simple-to-use web administration interface for you to access share folders, upload and download files from ND-52000, please refer to Chapter Appendix A.

ND-52000 supports FTP file transfer. You can use the following methods to access share files by FTP: a. By IE browser or b. By Web File Manager For further information, please refer to Chapter 7.5.

ND- 52000 provides versatile backup mechanisms to help you back up or restore disk data completely to enhance more efficient and secure system management. The backup/ restore applications are listed below:

NetBak Replicator NetBak Replicator is a powerful backup software dedicated to Windows users. You can back up your PC data to ND-52000 easily by the user-friendly interface. Please refer to Chapter 8. Remote Replication Remote replication is a built-in backup feature of ND-52000. You can set up instant or scheduled backup to replicate the data of ND-52000 to another COMET LABS NAS server. Please refer to Chapter 6.9.9. USB CD/DVD Restore/ Backup You can connect USB CD/DVD burner to the high speed USB 2.0 transfer interface of ND-52000 and enjoy data backup and restore functions to and fro ND-52000 and CD/DVD. Please refer to Chapter 6.9.12. Tape Backup You can use tape backup function of ND-52000 to perform backup and restore jobs by a tape drive for secure data protection. Please refer to

When you have installed ND-52000 and connected it to the network or PC, you can manage the server via web browser. It is recommended to use Microsoft Internet Explorer 6.0 or above to access ND-52000. ND-52000 Network Configuration for the First Time of Use By factory default, ND-52000 will search the network via DHCP (Dynamic Host Configuration Protocol) to detect IP address settings automatically. 1f your network does not support DHCP protocol, ND-52000 will use the default settings as below: IP Address: 192.168.0.1 Subnet Mask: 255.255.255.0 When ND-52000 boots up, the LCD panel will display current IP address settings. If your network does not support DHCP protocol, you must configure your ND- 52000 to proper LAN settings before using it for the first time. 1f you are not sure about the LAN settings, please contact your network administrator. You can change the network settings of ND-52000 by the following ways:

1. Use the LCD panel to change the network settings. For more information,

please refer to Chapter 3. OR

2. Use Quick Install Wizard in the CD-ROM to change the network settings. For

more information, please refer to Chapter 4.

6.1 Access Administration Page

You can access ND-52000 administration page by the following means:

3. Launch the web browser. Enter the IP address of ND-52000 to access the

administration page. You can check the IP address of ND-52000 on the LCD panel (see Chapter 3). OR

4. Install and Quick Installation Wizard (see Chapter 4). Search for ND-52000 in

the network and double click the server name on the list. Quick Install Wizard

5. When the administration page is shown, click Administration.

ND-52000 Turbo Server A reliable and high capacity network attached storage server + Share your storage over Mcroscft, Linux and Appie retwcrk. + Protect your data va RAID technology and management. + Easy administration through simple web interface, Versen 2.0.0 buid LUI

6. Enter the user name and password to login.

Default user name: administrator Password: admin The first time you login ND-52000, Quick Configuration page will be shown. Please refer to 6.3 Quick Configuration for more details. To connect ND-52000 by MAC, open a web browser in MAC and enter the IP address of ND-52000. Login the server and continue the software configuration. Please use the built-in browser in MAC-Safari for browsing.

Please follow the step-by-step guide in Quick Configuration to complete the settings of ND-52000. If you have any questions during web administration, please click the help button @ on the top right hand corner of the page. Other buttons are described as below: @. Return to previous page @. Return to home page ®. Logout system RASLEN2E An 55 = = 09 = A Configuration + Wicome NES + Step Vicleome tone quickeanfiguratianwizard This Wizard wil guide vou hrough ne falowing <tens ta ELA Sanfgure this system quick; + Stpa 1. Entorthenama forthie cwvar. + step

2. Cheng ie adminisetor password

+ Stps + steps 3. Enterthe date, tme andtime zone for his semer. ° Ep? 4 Selectihe language Mathis senerwil use orfle rames. + steps © Expo 5. EnterthelP address, supnet mask end default gatenray forts Server. + Step 10 6. Soloctho nohvorklo carvicos that vou wantto provida on his sarvar e Fréh

10 Manage nebwork shates on is server. + net Step 1. Enter the server name. — 1. Enter the name for this server. Server Name : + Bak | + Next

Step 2. Change the administrator password or select to use the original password. — 2. Change the administrator password. Passard mm | Venf Password: 2] FT Use the original password Note: If you select "Use the original password", the administrator password will not be changed. < Back || + Next Step 3. Enter the date, time and select the time zone for the server. — 3. Enter the date, time and time zone for this server. Time Zone : T(GMT) Greenwich Mean Time : Dublin, Edinburgh, Lisbon, London ef Current date and time: fRo04 ; 9 7 9 AM 10 : 04 : 12 ] M Change the server's time and date as below: Date: [anuary IL ],[__ | (mm dd, yyyy) Time: [=]: JL JIM ET (hhimmiss) Back > Next Step 4. Select the language the server uses to display files and directories. The default setting is English. FOR CONTINENTAL EUROPE USAGE (I NCLUDI NG FRANCE, ITALY, SPAIN AND GERMANY), USE WESTERN EUROPE/ LATIN 1 — 4, Select the language that this server will use for file names. Language + Next

Step 5. Enter the IP address, subnet mask and default gateway for the server. Select network interface configuration: fail over or load balance. — 5. Enter the IP address, subnet mask and default gateway for this server. © Obtain TCPIP settings automatically via DHCP © Use the following settings IP Address Subnet Mask Default Gateway: Configuration ofNetworkinterfaces © Fail Over © Load Balance Note: If you don't need a default gateway for this server, please enter "0.0.0.0". [ Æ Back ] [+ net Step 6. Select the network file services to provide on the server. — 6. Select the network file services you want to provide on this server, Enable File Service for Microsoft Networking Enable AppleTalk File Service for Apple Networking Enable Linux (NFS) Service Enable Web File Manager ENCOODE Enable FTP Service - Back J[ + next

Step 7. Configure disk volume on the server. — 7. Configure disk volume on this server. You can click on the disk volume you want to configure on the New Disk Volume Configuration list. The Current Disk Volume Configuration list shows the current disk volume configuration ofthis server. New Disk Volume Configuration + RAID 1 Mirroring Disk Single Disk Volume Es Volume Create single disk volumet(s) ES x Create mirroring disk volume (s). RAID 0 Striping Disk — Volume Eu | Linear Disk Volume Create one striping disk ——— Create one linear disk volume. volume. ES) RAID 5 Disk Volume Create one RAID 5 disk volume. Current Disk Volume Configuration Volume Total Size Free Size Status Striping Disk Volume: Drive 1 2 304685.00 MB 296874.00 MB Ready + sax || + Next Step 8. Configure the method of user authentication. Please refer to Chapter

6.5.2 for further information.

— 8. Configure the method of user authentication. Enable file service for Microsoft networking © Standalone Server © NT Domain Member © AD Domain Member Server Description Workgroup AD Server Name LE] Domain Name LE] Domain Username | Es =

Step 9. Manage users and user groups of this server. — 9. Manage users of this server. To add a user, enterthe user information in the following fields, then click Add. To remove an existing user, click on the user name on the left list and click Remove. You can remove multiple users at a time Andrew Bella i UserName [2] Cynthia Derek Password LL] administrato SE Ver Password [7] Note: For increased security, password should be at least 6 characters. + x || + Net — 9.1 Set user groups of this server. To add a user group, enter the group name in the box below. Selectthe user(s) to add ta the group from the list on the right, then click Add. To remove a user group, selectthe group name on the left list, and click Remove. You can remove multiple user groups at a time. User Group Name administrators Andrew everyone Bella Cynthia Derek administrator You can choose one or more users to add into the user group from the above feld. Ce sx [= net

Step 10. Manage network shares on this server. — 10. Manage network shares on this server. To add a network share, enter the network share information in the fields on the right below, then click Add. To remove an existing network share, select the network share on the left list, and click Remove NASDE0036PR Network Share Name public voue Striping Disk Volume: Drive12 M] Comment [< ak || —æ Net Step 11. Finish. It may take several to tens of minutes to complete Quick Configuration, depending on your system settings. — Finish Congratulations. You have finished allthe steps for Quick Configuration. To start using the server, click Finish. Or you can click Backto make more changes to the settings. Æ ak || = Frs

Basic system settings include the server name, date, time, and view system settings. où <= = 29 LC A 2» Gant Name + Date & Time Sener Name: = Sent Name + Language Settrg 2 View Systom Sattngs ° tm

Enter the name of ND-52000. The server name can be 14 characters long at maximum, which can contain alphabets, numbers and hyphen (-). The server does not accept names with space, period (.), or names in pure numbers. — Server Name Server Name: Apply

Set the date, time, and time zone according to your location. If the settings are incorrect, the following problems may occur: When using a web browser to access or save a file, the display time of the action will be incorrect. The system event log time will be incorrect compared to the actual time when an action occurs. — Adjust the date, time and time zone of this server Time Zone: (GMT+08:00) Taipei v Current date and time: Boos /8/10PM0S : 48:31 ] E Change date and time manual Date January En. L_] {mm dd, yyyy) Time CC st Jam {hhimmiss) [1 Configure NTP server or cent setting Use the specified NTP server IP Address of NTP Server Time Interval Eneble NTP server NTP Server #1 (Status: NTP Server #2 (Status: —)

Ÿ _ NTP Server You can enable or use specified NTP (Network Time Protocol) server to update the date and time of the system automatically. To enable NTP server, please enable Configure NTP server or client setting and enter the IP address or domain name of the NTP server, e.g. time.nist.gov, time.windows.com in Use the specified NTP server field. Then enter the time interval for adjusting the time (minimum value is 1 minute and maximum value is 99 days). M1 Configure NTP s © Usethe sp IP Addre r or client setting ifled NTP server ofNTP Servel Time Interval To enable multiple NTP servers, you can select Enable NTP server and enter the IP address or domain name of the servers. You can enter 3 NTP servers at maximum. If the system fails to connect to the first NTP server, it will try to connect the second one automatically, so on so forth. You can click Test to try to connect to the NTP server. If there is no specified IP address for the NTP server, the system will refer to internal clock for date and time settings. © Enable NTP server e. Apply OM The first time you enable NTP server, it may take several minutes for time synchronization before the time is correctly adjusted.

Select the language ND- 52000 uses to display files and directories. OM All files and directories on ND-52000 will be created using Unicode encoding. 1f your FTP clients or PC does not support Unicode, e.g. Windows 95, 98, ME OS is used, select the language the same as the language of your OS in order to view the files and directories on the server properly. — Language Setting Language Apply

6.4.4 View System Settings

You can view all current system settings, e.g. server name, on this page. — View System Settings Server Name Server Name NAS1E0041 Date & Time Date October Time 12:33:4 PM Tim ne (GMT) Gre: n, London Language Code Page English ( System Information

Configuration of Network Interfaces

Fail Over (Default) The system supports the configuration of multiple network interfaces, which enables you to perform Fail Over or Load Balance functions. Fail over ensures server availability to the network. If the primary port is disconnected due to a hardware or cable problem, the secondary port will replace its network identity. 1f the failed port resumes the network connection, it will also resume the role as the primary interface. © oObtainlP address settings automatically via DHCP © Use static IP address Fixed IP Address [7]. Subnet Mask 255. | 255 254 Default Gateway E_]. E__ |]. E_] a E_] Primary DNS Server Secondary DNS Server Enable DHCP Server Start IP Address End IP Address Lease Time P_] Primary DNS Server E_ |. E__]. E_] " E_] Secondary DNS Server

YŸ_ Load Balance In load balance* mode, the transmission load is distributed among aggregated network ports. © obtain IP address settings automatically via DHCP © Use static IP address Fied IP Address F2 ].f7_]. . [226 ] Subnet Mask 255, | 255 254 0 Defauit Gateway E__].6_].01.E 71 Primary DNS Server Secondary DNS Server Enable DHCP Server Start IP Address End IP Address Lease Time Primary DNS Server Secondary DNS Server

• An intelligent software adaptive agent will repeatedly analyze the traffic flow from the server and distribute the packets based on the destination address. Load balance can only occur on Layer 3 routing protocols (IP or NCP IPX). Multicast/Broadcast and non-routing protocols, such as NetBEUI and Microsoft IPX, are transmitted over the primary port.

Standalone Standalone settings enable each port to have a unique IP, which allows users on different network areas to share one ND- 52000 and maintain their independence from one another in the network. When using this mode, fail over cannot be used and only LAN 1 can be configured as DHCP server. — LAN Configruration Configuration of Network Interfaces © Fall Over © Load Balance © Standalone Network Speed auto-negotiat I) © Obtain IP address settings automatically via DHCP © Use static IP address Fixed IP Address Subnet Mask Default Gateway Primary DNS Server Secondary DNS Server Enable DHCP Server Start IP Address End IP Address Lease Time Primary DNS Server E_].E_]. b_]-E 7 Secondary DNS Server LANT © obtain IP address settings automatically via DHCP © Use static IP address Fixed IP 4ddress Subnet Mask Default Gateway

Network Speed Network speed settings provide an advanced option for configuring network speed. You can select auto-negotiation (default), 10 Mbps, 100 Mbps, or 1000 Mbps. It is recommended to use the default setting that the server will determine network speed automatically. Network Speed auto-negotiation [M + Obtain IP address settings automatically via DHCP If your network supports DHCP, ND-52000 will automatically use DHCP protocol to retrieve the IP address and related information. © Obtain IP add ttings automatically via DHCP + _ Use static IP address To use fixed IP address for network connection, enter fixed IP address, subnet mask and default gateway. O1 c IP address Fixed IP Address [72 ] . FE 7] . Es ] o [25 ] Subnet Mask 255. + Default Gateway CE . E_] : E_] . E_]

Primary DNS Server: Enter the IP address of primary DNS server that provides DNS service for ND-52000 in external network. Secondary DNS Server: Enter the IP address of secondary DNS server that provides DNS service for ND-52000 in external network. 10 |. . Secondary DNS Server b_] . b_] . Pb _ ] . b_ ] Primary DNS Server You can also configure the following settings: Ÿ _ Enable DHCP server If there is no DHCP server on your network, you can enable this option to provide IP address settings to the clients. Start IP address The first IP address to be dynamically allocated for DHCP service. End IP address The last IP address to be dynamically allocated for DHCP service. Lease time Define the lease time for the dynamic IP address. Primary DNS server When the system allocates an IP address to your computer, the primary DNS server address is also specified to it. Secondary DNS Server When the system allocates an IP address to your computer, the secondary DNS server address is also specified to it. Enable DHCP Serv Start IP Add End IP Address

- Microsoft Networking Enable file service for Microsoft networking © NT Domain Member © AD Domain Member er Description Workgroup AD Server Name Domain Name Domain Username LL] Password LL] D Enable WINS server CO Usethe specified WINS WINS server IP address Ee le le je ] CO] Domain Master e Apr Enable file service for Microsoft networking: |f you are using Microsoft Windows, enable this service to access the files on network share folders. Assign a workgroup name. Y__ Standalone Server Use local users for user authentication. Ÿ__ NT Domain Member Use Microsoft NT domain for user authentication. Ÿ _ AD Domain Member ND-52000 supports Windows 2003 AD (Active Directory) to provide quick and direct import of user accounts to the existing AD server available in your network. This function helps you to save time and effort on creating user accounts and passwords and lowers IT maintenance cost by automatic configuration procedure. > Server Description: Describe ND-52000 for users to identify the server. To use ND-52000 on the Microsoft Windows OS, you must enable

Microsoft Network Services. > Workgroup: Specify the workgroup ND-52000 belongs to. The workgroup is a computer group unit in Microsoft Windows network for network sharing. > AD Server Name: Enter the name of the AD server when AD domain is selected for authentication. > Domain Name: Microsoft domain name. Enter the domain name when you select NT domain or AD domain. Ÿ MINS server If the local network has a WINS server installed, specify the IP address. ND- 52000 will automatically register its name and IP address with WINS service. If you do not want to enable WINS server support, or you do not have a WINS server on your network, enter 0.0.0.0 in the field for WINS server IP address. C7} 36 707] Ÿ Domain Master There is a unique Domain Master Browser for collecting and recording resources and services available for each PC in the network or workgroup of Windows. When a domain master browser (Windows NT/ 200x/ XP PC) exists already in the network, there is no need to configure ND-52000 as the domain master. When you find the waiting time for accessing Network Neighborhood too long, it may due to failure of an existing master browser, or there is no master browser available. 1f the reason is the latter one, you can check the box Domain Master in this section to configure ND-52000 as the master browser to enhance the speed of accessing information on Network Neighborhood. Cl Domain Master

To use ND-52000 on Apple MAC operating system, enable AppleTalk network support. 1f your AppleTalk network uses extended networks, and is assigned with multiple zones, assign a zone name to ND-52000. If you do not want to assign a network zone, enter an asterisk (*) to use the default setting. This setting is disabled by default. — Apple Networking e Apr

6.5.4 Linux (NFS) Service

To use ND-52000 on Linux OS computer or server, enable Linux (NFS) service. ND-52000 supports NFS version 2.0 and 3.0. This setting is disabled by default. — Linux (NFS) Service CO] Enable Linux (NFS) e apply

To access files on ND-52000 via web browser, enable Web File Manager. 1f ND- 52000 is connected to the Internet and uses a valid IP address, you can access files on the server by web browser from anywhere. For further details, please refer to Appendix A. — Web Service M Enable Web File Manager e__ Appy

Select to enable or disable Unicode Support. The default setting is No. As most FTP clients do not support Unicode currently, it is recommended that you disable Unicode support and select a language the same as your OS in “System Settings—Language Setting” page (refer to Chapter 6.4.3) so that the folders and files on FTP can be properly shown. — FTP Service M Enable FTP Se Port Number Maximum Connections Unicode Support CYes © No e App

ND-52000 can accommodate four disks at maximum. You can set the disk volume to the following configurations by clicking on the icons on Create Disk Volume page: a. Single Disk Volume You can create an individual disk volume. In case of disk crash, all data will be lost. Single Disk Volume Create an individual disk volume,

RAID 5 Disk Volume Three or more hard disks can be integrated to form RAID 5 disk volume. Data will be distributed and stored among the disks. 1f a disk fails, you can replace a new disk with the damaged one, and the system will restore the data to the new disk. You can also use three disks for RAID 5 and a fourth disk as a backup disk. 1f a disk of RAID 5 volume is damaged, the spare disk can replace that damaged disk, which enhances server stability and efficiency.

RAID 5 Disk Volume Integrate three or more disks into one large disk volume with data protection. Note: When configuring RAID 5 disk volume, at least 3 disks are required. RAID 1 Mirroring Disk Volume Mirroring Disk protects your data by automatically backing up the contents of one disk onto the second disk of a mirrored pair. This protects your data if one of the disks fails. However, the storing capacity is equal to a single disk, as the second disk is used to automatically back up the first one.

Fe RAID 1 ES x Al dat oring Disk Volume the disk will be auto aly backed up to tt RAID 0 Striping Disk Volume Striping disk combines two or more disks into one larger disk. It offers the fastest disk access but does not have any protection of your data if the striped array fails. The disk capacity equals the number of disks in the array times the size of the smallest disk. RAID 0 Striping Disk Volume Es Integrate two or more disks into one large disk volume with parallel data access.

e. Linear Disk Volume You can combine two or more disks into one larger disk. Files will be saved on physical disks sequentially but does not have a disk failure file protection function. The overall capacity of linear disk is the sum of all disks. ET Linear Disk Volume 32 Integrate two or more dicks into ane large disk volume with sequential data access. ET)

6.6.2 Delete Disk Volume

To delete a disk volume, select the disk volume to remove and click OK. — Delete Disk Volume Please select the disk volume you want to remove and click OK. ‘Waming: All data and network shares on the disk volume you select wil be deleted. The connection of all active users on this volume will be terminated. Note: To view all shares and active users on the volume you have selected, click Show Shares. Volume Total Size Free Size Status & |RAID 5 Disk Volume: Drive 1 2 34 233632.50 MB 22478451 MB Ready . ok x Cancel | [ Show Shares

6.6.3 Examine Disk Volume

To examine a disk volume, select the disk volume to examine and click OK. You can check the Fix errors box and the server will fix errors automatically during disk checking. — Examine Disk Volume Please select the disk volume you want to examine and click OK. You can check the Fix errors option to resolve errors automatically. ‘Waming: All active users on this disk volume will be terminated. Note: To view all shares and active users on the volume you have selected, click Show Shares. Volume Total Size Free Size Status & |RAID 5 Disk Volume: Drive 1 2 3 4 233632.50 MB 224784,51 MB Ready NF Fixerrors . ci J[_»x came || Show Shares Disk Volume Operation Report After click OK on Examine Disk Volume page, a page like below will display to show the current status and information of disk volume operation. — Disk Volume Operation Report Operation Type Format Disk Volume Source Disk Volume Mirroring Disk Volume: Drive 1 2 Target Disk Volume _ Snapshot Settings Disabled Status Formatting.… Result œ mn DCE may take several minutes to hours, depending on the disk Note: This page will automatically refresh every 5 seconds. Click Close to exit this page. You can choose to view the operation result later on the View Disk & Volume Status page.

6.6.4 Format Disk Volume

To format disk volume, select the disk volume to format and click OK. — Format Disk Volume Please select the disk volume you want to format and click OK.

Warning: All data and network shares on the disk volume you select wil be deleted. The connection of al active

users on this volume will be terminated. Note: To view all shares and active users on the volume you have selected, click Show Shares. Volume Total Size Free Size Status © |RAID 5 Disk Volume: Drive 1 2 3 4 233632.50 MB 224784,51 MB Ready CE * Cancel | [ Show Shares

6.6.5 View Disk & Volume Status

You can view details of physical disks and logical volumes in the section. Disk Model Capacity Status Drive 1 Maxtor 6Y120L0 117246,94MB Ready Drive 2 Maxtor 6Y120L0 117246.94MB Ready Drive 3 Maxtor 6Y120L0 117246.94MB Ready Drive 4 Maxtor 6Y120L0 117246.94MB Ready Logical Volumes Volume Total Size Free Size Status Striping Disk Volume: Drive 1 2 3 4 467878.12 MB 460403.27 MB Ready > refeh || - dose OM When configuring disk volume, make sure there are no active users connecting to ND-52000 to avoid any potential damage to the disks. You can check all currently active users in Statistics & Logs—Active Users (refer to Chapter 6.10.1) and inform those users to logout before configuring disk volume.

The files on ND-52000 can be shared among multiple users. For easier management and better control of users’ access right, you have to organize users, user groups and their access right control. Æ T0 <= © NS [user Management mr 2: Soloct à ueer 2, Sottings create Add a uer Create Mutile Lars Add bwo er mere users Change Password Change a users passé Create Private Notwork Share Create à ueer priate netwraik cha ssgn User Gra Specfy the user groupe ueere Helen ta Quota Set ue Delete Remeve one or mate us + User Groups + Que

The system has created the following users by default: © Administrator By default, administrator has access to system administration and cannot be deleted. © Guest This is a built-in user and will not be displayed on User Management page. When you use à non-registered user name to login, the server will recognize the user as a guest and will allow limited access. A guest does not belong to any user group. (3 Anonymous This is a built-in user and will not be displayed on User Management page. When you connect to the server by FTP service, you can use this name to login as a guest.

512 users can be created at maximum (including system default users). You can create a new user according to your needs. The following information is required to create a new user:

User name The user name must not exceed 32 characters. It is case-insensitive and can contain double-byte characters, such as Chinese, Japanese, and Korean except: MINE = + 2< >" Password The password is case-sensitive and can be 16 characters long at maximum. It is recommended to use a password of at least 6 characters. You can perform the following settings for users: Create Add a user Create Multiple Users Add two or more users Change Password Change a user's password Create Private Network Share Create a user's private network share &ssign User Groups Specify the user groups u: Quota Settings Set u: ota limitation Delete Remove one or more Users

User group is a collection of users with the same access right to files or folders. ND-52000 has created the following user groups by default: © Administrators All members in this group have administration right. You cannot delete this group. (2] Everyone All registered users belong to everyone group. You cannot delete this group. Le Us 2 Select à user group 2. Settgs + User Grouns TRE Dorair Groups Go Ac 2 user groun Ù Create Private Netarcrk Share o Create a user graun'spivate nebnark shate . Assign Users Speciy users for a user group u Debte + Quts Remove one or mare user groups You can manage user groups with the following options: Create Add à user group Create Private Network Share Create à user group's private net: Assign Users Specify us

Delete Remove or User groups name must not exceed 256 characters. It is case-insensitive and can contain double-byte characters, such as Chinese, Japanese, and Korean, except the following ones: MINATI:; 1 +2 <>" To properly manage security, it is very important to manage users and user groups. You may set the share access parameters of each user or user group accordingly.

Create Users and Assign Users to User Group The following example demonstrates how to create new users and assign users to a user group. ABC Co. has recently recruited two employees Mr. Jones Lee for Administration Department and Ms. Jane Wu for Sales Department. The IT Department therefore needs to create two user accounts for them to access company data on ND-52000.

i. To create a user account, go to User Management-Users. Click Create.

Æ ID <= = ND user Management BE 2 Select à user 2: Settings

ad aus Huile Lezre Add Eva er more Ur Change Password Charge 2 ueecs passnard Create Private Network Share Create à users priate network share Asson User Groups Specfr the user groups users Eelerg to Quota Setringe Set users quota Imitation Delste Roma ame a mare Liere + User Groups + quota ï. Enter the user name (Jones Lee/ Jane Wu) and password. Check the box “Continue to set the user groups to which this user belongs” and click OK. - Add a user Verfr Password Note: For increased security, password should be at least 6 characters. Continue to set the user groups ta which this user belangS

— Add a user User Name Fane wu ] Password Verify Password Note: For increased security, password should be at least 6 characters. ©] Continue ta set the user groups to which this user beloi

iv. Select the user groups the users belong to on the right list, i.e. Mr. Jones Lee for Administration Dept and Ms. Jane Wu for Sales Dept, and click Add. Then click Close. Specify the user groups users belong to User groups which Jones Lee User groups which Jones Lee belongs to doesn't belong to everyone (Sales Dept \acministrators — Specify the user groups users belong to User groups which Jane Wu User groups which Jane Wu belongs to dogsn't belong ta feveryone Bdministration Dept ladministrators After creating the users, the users will appear on the list on Create User Page.

1. Select à user 2. Settings

== NAS Local Users== Create Andrew Add a user Bela Create Multiple Users Cynthia p Add two or more users Change Password Change à user's password ecmPstrator Create Private Network Share Create a user's private network share &ssign User Groups Specify the user groups users belong to Quota Settings Set user's quota limitation Delete Remove one or more Users

Create Private Network Share for User Groups You can create particular network share for each user group. The procedure is described as below:

1. To create a network share called media accessible by Administration

Department only, please go to “User Management—User Groups” page. Select the user group Administration Dept and click Create Private Network Share on the right. Æ D <= © RS >< ms 2 Ssect a user ge 2, Settings Uxer Grcus aie fer 2 Let grip celete Reruve one ur mDre user urOups

2. Enter the network share name media. Select to disk volume that the share

will be created in and specify the path automatically or manually. Enter the comment for the network share, e.g. media folder for Admin Dept and click Apply. — Enter new network share's name, volume and path. Only users that are the members of Administration Dept user group can access this network share, Network Shars Name Disk Volume [Stripina Disk Volume: Drive13 “| Path © Specify path automatically OEnter path manual [ ] Browse... | Comment {media folder for Admin Dept ]

3. You can see the folder media in Network Share Management page.

LI <= 1 92 [Network Share Management TR 2. Network Shares 2: Settros Prin Create Create a retaork char Property Charge (be name, path and carrment of a retwok cree Conti Set access it for à netwoik <haxre Delste Romaso a retacrk char

4. Enter Access Control. You can see that only Administration Dept has full

access right to the folder. — Access Control Users or Groups Configured with 4ccess Users or Groups Not Configured with Access Right to media Right to media User Grou Sales Dept Œu AAUN érinstrators everyone Permission Ful access M]

Jane Wu Guest Access Right: Obeny access Oread any Orull access

To allocate disk volume efficiently, you can specify the quota that can be used by each user. When this function is enabled and a user has reached his/her disk quota, he/she cannot upload data to the server anymore. By default, no limitations are set for users. You can modify the following two options:

i. Enable quota for all users

ü. Quota size on each disk volume - Quota M Enable quota for all users Quota size on each disk volume D _J"æ Note: Individual user quota size can be changed in Users * Quota Settings . Ok s Show Quotas Please refer to the following example to configure the quota setting of users: The IT department is planning to set the disk quota of Mr. Jones Lee from Administration Department and Ms. Jane Wu from Sales Department on ND- 52000. The disk quota is 2000MB for Mr. Jones Lee and 4000MB for Ms. Jane Wu.

1. Please go to Quota page in User Management to enable quota for all users.

can be changed in Lars - Quoi Settings

2. Select Jones Lee on User page and click Quota Settings on the right.

4. Follow the same steps and enter the quota size 4000MB for Jane Wu and click

OK. The quota setting is successfully applied. — Quota status for user Jane Wu Volume Quota Sie |Used Size |Status Striping Disk Volume: Drive 1 3 (Free Size: 464621.86 MB) 1000 MB 0.00MB | Available 1000.00 MB Set the quota size of Jane Wu on each disk volume © No limit © Quota sie: ME Le x J[ x ca

6.8 Network Share Management R==]

The primary purpose of network storage is file sharing. In a standard operation environment, you can create different network share folders for various types of files, or provide different file access rights to users or user groups. <= = 22 SRE 2. Network Sharas 2, Setinge create Gieate a netwoik share Prcparty Chance the name, path and commen of à nerwoik shae » Acces Control Set acces NE fo à network Share Delste Remañe a natwoik share There are four options in Network Share Management: Create Create a network share Property Change the name, path and comment of à network share Access Control Set access right for a network share Delete Remove à network share

To create a network share, enter the following information: Ÿ_ Network share name The share name must not exceed 12 characters and cannot contain the following characters: Ma+=/\il*2<>; [11% Ÿ Disk volume This area shows the disk volume status. Ÿ Path All data are stored under the assigned path onto the disk volume. You can select “Specify path automatically” or assign a path manually. The path cannot exceed 256 characters and cannot contain the characters below: +=/\:l*2<>;: 11% Ÿ. Comment Enter a brief description for the share folder. The comment cannot exceed 128 characters. - Create Perse nee | | [Mirorina Disk Volume: Drive12 © Specify path automatically OEnter path manual l L_ sos. ]

Grant full access right for everyone ©] Grant read access right for guest M] Continue to set access right for this network share . OK x Cancel

To edit the property of an existing network share, select a share and click Property. You can then edit the content of that share. — Property Network Share Name Disk Volume [RAID 5 Disk Volume: Drive1340 Path [test Browse... Comment [ ] Note: If you change the share's volume or path of the share, all data that has already existed in the original volume or path will not be moved. . OK x Cancel

6.8.3 Access Control

Once the network share is created, you can assign access rights to users or user groups: Ÿ_ Deny access Access to the network share will be denied when this option is selected. Ÿ Read only Users can read the files only on the network share when read only is assigned. YŸ Full access Users with full access are allowed to read, write, create, or delete files and folders on the network share. — Access Control Users or Groups Configured with Access Users or Groups Not Configured with: Right to test Access Right to test User Grouÿ ladministrators + Add CHENE | Permission Full ac ES] Guest Access Right: Obeny access ORead only Orul access + Close

Select a share and click delete. Click OK to confirm. Note: Al active users who are currently using this network share wil be disconnected.

Enter the e-mail address of administrator and SMTP server IP address. In case of warning or malfunction, e.g. CPU fan fails, a disk drive fails or is unplugged, an email will be sent to the administrator automatically. You can refer to Event Logs section in Statistics & Logs (refer to Chapter 6.10.2) to check all happened errors and warnings. If your mailbox requires SMTP authentication, enter the user name and password. OM It is recommended to send a test e-mail to make sure you can receive the alert mails. — Alert Notification alert level: © Low: No alert e-mails E-mail (SMTP) server IP address ps] 255 255 255 TP Authentication il be sent

To enable users to configure TCP/IP settings via the LCD panel. ïü. Enable configuration reset switch By enabling this option, you can press the reset button for a few seconds to reset the administrator password and system settings to default.

When buzzer is enabled, an alert sound will be played in case of system error.

iv. Power Supply Type

Select power supply type. There is one power supply by default. Do NOT change the position of default power supply. To use a second power supply, you can purchase from the distributor. To use two power supplies, follow the steps below:

1. Set power supply type as Redundant.

of RAID fails Stop network 5 Power Supply

2. Shut down the system properly.

3. Insert the second power supply and turn on the system.

If a power supply fails, the system will send an alert notification to the administrator.

If your UPS device provides USB interface, you can enable UPS (uninterruptible power supply) support to protect your system from abnormal system shutdown caused by power outage. In case of utility power failure, the system will shut down automatically by probing the power status of the connected UPS unit. — UPS [1 Enable UPS Support system will be shut down in |5 minute(s) when the Ai UPS Model The IP Address of UPS UPS Model AC Power Stat: Battery Pow atus: — ing the UPS model, click Test to make sure sel tion is correct La Refresh e Apply YŸ_ Enable UPS support To activate the UPS support, you can select this option. You can set the shutdown timer to turn off the system automatically after the system detects the AC power is abnormal. In general, the UPS can keep supplying the power for the system for about 5-10 minutes, depending on the maximum load of the UPS and the number of the loads connected to it.

UPS Model Select the UPS model from the list. 1f the UPS model you are using is not available on the list, please contact our technical support. IP Address of UPS If you have selected APC UPS with SNMP for UPS model, enter the IP address of the UPS. — UPS Enable UPS Support ] minute IP Address of UPS

AC Power Status: — Test Battery Power Status: — After selecting the UPS model, click Test to make sure selection is correct. 4 Refresh Q Apply Note: When UPS support is not enabled, the Test button will not function.

Note: If the system is running properly, you do not need to update the firmware. Before updating system firmware, please make sure the product model and firmware version are correct. Follow the steps below to update firmware: Step 1: Download the release notes of the same version as the firmware from COMET LABS website http://www.Comet Labs.com.tw/. Read the release notes carefully to make sure you need to upgrade the firmware. Step 2: Before upgrading system firmware, back up all disk data on the server to avoid any potential data loss during system update. Step 3: Click the [Browse..] button to select the correct firmware image for system update. Click Update System to update the firmware. Note: System update may take tens of seconds to several minutes to complete depending on the network connection status. Please wait patiently. The system will inform you when system update is completed. — System Update Note: If the system is running properly, you do not need to update the firmware. Current firmware version: 1.0.0 Build 1118 Before updating system firmware, please make sure the product model and firmware version are correct. Follow the steps bel Step 1: Download tt the firmware from QNAP website http://www.qnap.com.tw/ refull to make sure you need to upgrade the firmware. Step 2: Before upgrading system firmware, back up all disk data on the server to avoid any potential data loss during rect firmware imac em update. Click the Note: System update may take tens of seconds to several minutes to complete depending on the network connection status, Please wait patientiy. The system will inform you when system update is completed. [Ge . Update System -.73-

You can choose à personal picture to display on the login page of ND-52000. The size of the picture cannot exceed 20K bytes. — Change Logo Please select an image from the To be displayed pull-down menu. Then click Apply to confirm the change. To upload your own image, click Browse to select the image. Then click Upload to upload the image. To replace an image, select an appropriate image from the To be replaced to pull-down menu and click Apply. Uploaded image: [7 ]CFowse.) [ Upload Tobereplacedto: [Not replace v| | Replace To be displayed: d'Image [M Image 1 Image 2 Uploaded Image Image 3 Image 4 Current Logo Image Note: For the best image effect, the recommended size for the image is 100 x 100 pixels. e appy

Tape backup enables you to perform backup or restoration jobs by a tape drive. ND-52000 supports full backup and incremental backup. By full backup, all source files will be backed up. By incremental backup, only modified or new files after last backup will be backed up. Backup Now To back up files to the tape drive immediately. Restore | Scheduled Jobs [ Tools Job Status Backup Label RS Backup Source Backup Type Tape Volume Note:

1. 1f you need a second tape to continue the backup job and the tape drive cannot detect it

automatically, please set the tape volume manually.

2. Make sure the label name does not contain any double-byte characters, e.g. Chinese and Japanese.

Apply Y_ Restore To restore data from the previously backup tape. Select the restore destination and whether or not to overwrite existing files. ER 0 ECC [ob status Drivei Restore Destination Single Di Overwrite Existing Files Yes ml Apply

Scheduled Jobs You can schedule a backup job to be executed automatically. Click New and define the job name, backup source, backup type, and schedule. rt FE [ CD | Delete Job Name Backup Source BakuP schedue Ty Status There is no existing backup schedule. Backup Now Restore Tools Job Status Job Name [_ Backup Source Backup Type Schedule fhour:minute) © wo ©] Sunday ©] Monday ©] Tuesday [] Wednesday © Thursday ©] Friday [] Saturday © Monthly 01 Note: Make sure the job name does not contain any double-byte characters, eg. Chinese, Japanese. [_… ok J[ x cn

YŸ Tools There are several useful tape functions to operate on the tape drive. For example, you can rewind, eject or erase the tape here. Click Apply to execute the action. Please choose the operation and click the "Apply" button to execute, Rewind Tape Eject Tape

C Erase Tape € Tape Information Lei Cancel Current Task Note: When "Cancel Current Task" is executed, it will take a few seconds to stop the operation of the tape drive. Apply Job Status You can view the status of backup or restore job. Backup Now Restore Scheduled Jobs Tools Job Status The tape drive is not connected Backup Source Backup Label = Tape Number Total Files Total Size Start Time - Cose [OM

1. The SCSI tape drive has to be properly connected and turned on

before starting up ND-52000 for proper detection.

2. HVD (High Voltage Differential) SCSI tape drive is not supported.

Remote Replication enables you to replicate local files to remote folders on another server. The files will be compressed before the replication process in order to save time for data transfer. Make sure a network share is created before creating a remote replication job. Using Remote Replication Login ND-52000, go to Remote Replication in System Tools. = © 29 CC EI + SNMP Settings Alert Natation Remote Repication + Rostart} Shutdeun ne D oh Harre Scheduie Statue + Hordare Settings Du There à no existing rerlcaton schedule. + system Upate + Change Logo + Tape Esckup + Remote Repication Antitinie Configuration .. Eackup/ Restore) Fosot Settings US CD/DVD Backup Restore

a. Click New to enter the following page. - Remote Replication Edit Delete Job Name Schedule Status There is no existing replication schedule. b. Complete all settings and click OK to save or Cancel to quit. Add a remote replication job Job Name Remote Destination Remote Host Name / IP Address Destination Path (Network Share/Directory) User Name Password Remote Host Testing Local Source Source Path (Network Share/Directory) TE L - © Replicate Now Replication Schedule Hour : Minute © aïy O Weekly © Monthiy Day [] activate fle compression © Stop network file services while replicating ©] Perform incremental replication [] belete extra flles on remote destination Note: To use remote replication, enable Microsoft Networking service, make sure the destination network share and directory have been created, and the user name and password are valid to login the destination folder.

Select the job to be edited. b. Click Edit. c. Modify the settings. d. Click OK to save or Cancel to quit. — Remote Replcation Delete a. Select the job to be deleted. b. Click Delete. — Remote Replcation

A network share may not be able to detect a virus without an automatic virus scan function when there is a transfer of infected files. The user computer may have been infected in this situation. To prevent virus infection of the user computers, the system provides a virus scan program to comprehend with available virus scan agent for the best data protection. In System Tools, enter the IP address of the network share and set up the user account and password for the virus scan agent. Specify the IP address of the virus scan agent. When there is a file transfer, the virus scan agent will notify the virus scan software on the system to scan the file.

Installing Virus Scan Agent Make sure the virus scan agent and software are installed on the same computer that performs virus scanning before activating the agent. Follow the following steps to installing Virus Scan Agent:

1. Run the CD-ROM enclosed in the Network Disk Server package.

When the following screen appear, click Install Virus Scan Agent.

2. Click Next to continue the Virus Scan Agent Setup.

Start Installation Setup is ready to begin installation. Click Back to review or change the current configuration. If the current configuration is correct, click Next to begin installation. Current Configuration: Product. = Virus Scan Agent E 'ersion:

Welcome computer. Welcome to the Virus Scan Agent Setup program. This program will install Virus Scan Agent on your Itis strongly recommended that you exit all Windows programs before running this setup program. <Back Next > Cancel

3. Click Finish to complete the Setup.

Setup Result x Setup has successfully installed Virus Scan Agent. Click Finish to complete Setup. <Back Cancel A screen will pop up to show the system information the first time you have successfully installed the virus scan agent.

NASOE 0012 17217.50.50 NASCE 0083 1721710738 NAS100840 1721710113 NAS4T20TestMac | 172.17.10.17 I [2 Add Dale] Picorrairen| Earetesh | The description of the fields is as below: Fields Description Server Name Name of the network share under the protection of virus scan agent IP Address The IP address of the network share Status Connection status of the host network share with the virus scan agent: + __Disconnect: Not connected to the network + __Idle: Connection has been enabled but there is no file transfer for three minutes or more. + Ready: Connection has been enabled and ready to be scanned + __--: User name and password have not been set up Infected Number of infected files Last Scan Time Date and time of the most recent virus scanning job

Result Scanning result: OK: No files are infected + Virus Found: Virus is found. The name of the infected file(s) may not be displayed due to the scanning of other files. Go to the administration page to view the name and location of the infected file(s). - Access Denied: Access to the server is denied. -__ Authentication Failed: The login user ID is not authorized to access the folder of the network share. Path The file location on the network share

Enabling Virus Scan Support Go to Virus Scan of System Tools. To enable virus scan support, tick the box Enable Virus Scan Support. scan server and click Apply. — Virus Scan T° Enable Virus Scan Support 1P Address of Virus Scan Server [5 î F P Enter the IP address of the virus Viewing Details of Infected Files To view the details of infected files of the network share, go to Event Logs of Statistics & Logs. A warning message will be shown in the table. All events E Type Content À EE V Date Time Error Virus found in the fle: fpublicfvirus 07/24/2003 | 17:23:10 Information Connection to Virus Scan Agent is successful. Scan protection is activated 07/24/2003 | 17:22:29 [ee refeh || x ear

USB Backup/Restore function enables you to back up local data to CD/DVD discs via USB CD/DVD burner, and CD/DVD data to local disk. Using USB Backup/ Restore USB CD/DVD Backup/ Restore Device: No device detect Media Type: No media detect Maximum Write Speed: Status: No Disc Re-detect Eject Disc Write Data Volume Label: Source Path (Network Share/ Directory): Write Speed: 1x M RTE Status: Iding Load Data CD Label Destination Path (Network Share/ Directory): © Overwrite existing files OSkip existing files Status: Iding

USB CD/ DVD Detection a. Connect USB burner to ND-52000. Turn on the burner and input a writable disc. b. Click Re-detect. The system will display information of the detected burner. USB Backup} Restore Device: [ATAPI J[DVD DD 2X11 {16][G7J9] Media Type: DVD+RW Maximum Write Speed: 4,0x Status: Ready Re-detect Eject Disc c. Click Eject Disc to eject the disc from the burner. d. Insert the disc again and click Re-detect and continue to use writing and loading functions.

ïü. Write data a. To write data from ND-52000 to disc, enter the volume label name. b. In Source Path (Network Share/Directory), select a network share from the drop-down menu and enter a directory name. You can also use stroke to indicate multiple directories, e.g. sales/jenny. Write Data Volume Label: Source Path (Network ets] Share/ Directory): test x] fsales/jenny Write Speed: * Write to disc || Stopiritina || Erase Rewritable Disc Status: Idling Refresh c. Select Write Speed. d. Click Write to disc to write data to the disc. To view updated writing status, click Refresh. Write Data Volume Label Source Path (Network = ] Share/ Directory): test 21 féales/ienny ‘Write Speed: 10* |

Status: 11.32% Refresh e. The disc will be ejected after burning.

Load data a. Insert the disc for loading data to ND-52000 network share. The volume label is shown in CD Label. b. In Destination Path (Network Share/Directory), select a network share from the drop-down menu and enter a directory name. You can also use stroke to indicate multiple directories, e.g. sales/jenny. c. Select Overwrite existing files to overwrite existing files in the directory or Skip existing files to skip loading files that have existed in the directory during loading process. Load Data CD Label Sales Destination Path (Network fes] Share/ Directory): est 21 / [sales/ienny Overwrite existing files C Skip existing files Load Stop Lodina Status: Iding Refresh d. Click Load to load data to destination path. Load Data CD Label Sales Destination Path (Network fes xl Share/ Directory): test 1] / [sales/iennyl © Overwrite existing files € Skip existing files Load Status: Initialize Refresh e. The disc will be ejected after loading. Stop Loding

You can view the event logs of all currently online users on ND-52000 for system monitoring.

ND-52000 can store thousands of recent event logs, including warning, error and information messages. In case of system malfunction, event logs can be retrieved to analyze system problems. Errors only v e À EM V Al events Date Time TYPE ||Warnings and errors Error LÉrors one 09/08/2005 | 16:19:35 Dee drive 2 faled or unplugged. Please use à new hard disk to replace the old 09/07/2005 | 17:45:34 Error “y Refresh [ x Clear

When DHCP service is enabled, you can refer to DHCP logs to monitor all assigned dynamic addresses, client MAC addresses and other information.

1. You can access ND-52000 in Windows OS by the following ways:

By Quick Install Wizard. For further information, please refer to

You may also search for ND-52000 within the Network Neighborhood. Locate the workgroup and find the name of your ND-52000. When the server is found, double-click on the server name to connect. You may also use “Search for Computers” function to look for your ND- 52000 in Windows. Under Windows OS, please follow these steps:

ii. Enter the name of ND-52000 in Computer Name field.

When ND-52000 is found, double click the item to access the server. Use Run function in Windows. Type \\[server name] or \\[server IP] to access share folder on ND-52000. e Type the name of à program, folder, document, or . Internet resource, and Windows will open it for you, Open: |\1192.168,0.1 v| [ OK ]{ Cancel ]{ Browse. ]

Once the connection to ND-52000 is successful, all listing on your available network share will be displayed. Use the option Map Network Drive to map the folder(s) as your network drive. File Edit View Favorites É @ Back © G) Disconnect Network Drive.… EEE CC Folder Options... D à test2 test_group Network Tasks Other Places Details

If you are an Apple MAC user, you can access ND-52000 by the following ways:

Enter the login name and password, or use “Guest” to enter. Click Connect. Connect to the file server “NAS00009D” as: Q Guest @ Registered User Name: (I Password: CU] [I Add to Keychain Clear Text Password (__ Change Password. } (_ Cancel | Congect ) When ND-52000 is connected, all network shares will be shown. EJouvic] publict publiez k % publics public4 NIEIDI!

e. Choose a network share to connect. The network share will appear on the desktop. Eure] pubiict SR publiez D publics SR public4

Connect to the file server “NAS1234” as: Q Guest @ Registered User Name: | Password: Cl Add to Keychain Clear Text Password | Change Password. | { Cancel |

All available network shares will be listed. Select a network share and click OK.

NAS00009E Select the items you want to use: Œpubiic mm mer Cl [me public2 public3 Or Checked items will be opened at system startup time

In addition to Microsoft and MAC OS, ND-52000 also supports Linux systems through the NFS service:

1. On Linux, run the following command:

mount -t nfs <ND-52000 IP address>:/ <Network Share Name> <Directory to Mount> For example, if the IP address of your ND-52000 is 192.168.0.1 and you want to link the network share folder “public” under the /mnt/pub directory, use the following command: mount -t nfs 192.168.0.1:/ public / mnt/ pub Note: You must login as “root” user to initiate the above command.

2. Login as the user id you define, you can use the mounted directory to access

your network share files.

Other than OS support, your ND-52000 also provides a convenient web file management interface that allows using a standard web browser to access your data. 1f you link ND-52000 to the Internet and use a public IP address, you can access the files on the server anywhere. For more information, please refer to Appendix A.

7.5 By File Transfer Protocol (FTP)

In addition to working with multiple operating systems, ND-52000 also supports connection via FTP. Enter the correct user name and password to connect the server or access the public share folders as guest. Please go to Network Settings—FTP service and enable FTP service before using FTP service. ns = 900 CC A + T@/IP confquretion LFP Sani + Microsoft NetWOIKINg M Enanle FTP Service + Apple Netwaring Port Number + Lun (ES) Servce Madmum Cenne:tions Es] + Web Fle Manager Unicode Support Oÿes On + View Network Settings Follow the steps below to use FTP service:

1. Open an IE browser and type ftp://[server IP] or ftp://[server name]. OR

2. By Web File Manager of ND-52000.

a. Go the ND-52000 administration and click Web File Manager. Enter user name and password to login ND-52000. ND-52000 Turbo Server A reliable and high capacity network attachod storage server + She your storage over Mcrosofl, Linux and apple retwurk. 2 Protect your data ia RAID tochnology and management. + Easy administration through smple web interface, Versen 2.0.0 buid LUI

b. Click the share folder in FTP section. FTP Admin dept Quarantine Virus Quarantine Folder Sales test c. When the ftp folder is shown, enter user name and password. M ftp://172.17.26.81 / - Microsoft Internet Explorer CCE =! æ ETES Could not login Ea the FTP server with the user name and password specified. | ÉBlocking popups f=jAutoril FTP Server: 172.17.26.81 User Name: [Ecministrator] “ Password: I After you login, you can return to this FTP server easily by adding it to your Favorites List. TT Login Anonymously T Save Password io |_ cm | {Connecting to 172.17.26.81 [User: administrator | Internet 2

d. The share folder will be shown. You can then manage the folder by dragging and dropping files to it, as well as rename or delete the files. F2 ftp://172.17.26.81/ - Microsoft Internet Explorer 1 J'éest - + - sean Gris GB E »|] laddress (@rp:ir172.17.26.817 cles [|&- public {User: administrator [@ internet 7:

Chapter 8 NetBak Replicator

NetBak Replicator is a powerful program installed in user's system (Windows OS only) for data backup. You can back up any files or folders on local PC to specified share folder on ND-52000 by LAN or WAN. Main Functions

+ Instant Backup You can select files and folders on local PC and back up files to specified network share folder on ND-52000 immediately. + File Filter You can select particular file types to be excluded from backup. The system will filter all files belonging to these file types when backing up data. + Schedule You can specify a schedule for backing up data with this option, e.g. 12:00 every day or 05:00 every Saturday. + Monitor When this option is enabled, the system will upload all files or folders to the server instantly for backup when the files or folders are modified.

Select this option to restore backed up data to the original location of the file or to a new directory.

Enable this option to record events of NetBak Replicator, e.g. the time when NetBak Replicator starts and terminates, Restore and Monitor, backup time and original location of all files, etc.

2. Follow the steps to install NetBak Replicator.

3. Upon successful installation, a shortcut icon BNet&akŸ will be shown on the

Desktop. Using NetBak Replicator

1. Before using NetBak Replicator, please login ND-52000 administration and go

to Network Share Management to create a share folder for backup. nagement INatwoik Share Management LE in 2 Geste Geste anerucrk share Fraparty Change the name, path arc cemment a à network Access Corte Eat arree right for a neue chare Det Remove à netuctk share

2. Run NetBak Replicator. Click $|. AI ND-52000 and their share folders

within the network will be displayed.

3. When the following window appears, ND-52000 connected to the LAN will

appear on the left list. Select a server and a share folder on the right. NetBak Replicator also supports backup via WAN, you can enter the IP address of ND-52000 for data backup directly and select a share folder. Then click OK

Description of Buttons on NetBak Replicator Open Configuration: Open a previously saved NetBak Replicator configuration. pr]

Save Configuration: Save the settings on NetBak Replicator. The file will be named as *.rpr Select All: Select all folders. The column on the left shows EL all available folders and the right column shows the files in the folders. [Fi 1] Clear All: Clear selection of all folders.

OU Select My Document: Select all folders in My Document.

5. You can start the backup procedure upon successful connection to the ND-

+ Backup Select files and folders for backup.

Config.Msi Documents and Settings Program Files Recycled RECYCLER System Volume Information YŸ Start When you have selected the files for backup to ND-52000, click Start on NetBak Replicator. The program will start to copy the selected files to the specified share folder on ND-52000.

Y_ File Filter Click File Filter on NetBak Replicator main page to select file format to be skipped from backup. Then click OK. "2 NetBak Replicator [rl M] acer TM610 [HIS dui650+ driver 220b ( Notes &# C1 Documents and Settings # [16 €:

Backup Schedule Select the frequency and time for backup FN Enable Backup Schedule | 4M 12: 00 r Frequency | Execute Time € Daily CO Weekly OK Cancel Ÿ Monitor Select a folder for monitoring. When this option is enabled, the system will upload all files or folders to the server instantly for backup when the files or folders are modified. Other files will be gray and cannot be selected. Click Monitor again to cancel monitoring. An icon l will appear on task bar of Windows when monitoring is in process.

Y_ Initialize Configuration When using this function, NetBak Replicator will record all current settings of the user, including whether or not monitor function is enabled. When the user login again, this program will load the previous recorded settings for users to manage data backup. 2 NetBakReplicator. NetBak Replicator :* nn 2 NAS Server F 081217 Share Folder {public >| LA Backup | Restore | Log | y 1 Be O0 On EU O0 A0 D:\Backup\dwl650+ driver 220b File Name Size

Restore Please follow the steps below to restore files from ND-52000 to your PC. a. Restore to original position: Select the location that the data will be restored to. b. Select new restore position: Click 1 to select the directory to restore data to or select a previously chosen location from the drop-down menu. c. Select the folder(s) and sub-folder(s) for restoring data on the right list and click Start. ET) L NetBak Replicator. NetBak Replica For client NAS Server Fr 081217 Share Folder [public “| 4 Tv | °° Restore to original position Select new restore position | EI ES D ÎREI_DESKTOP _+] [ File Name Sie # TS Disk D

d. Option: Select recovery option and error option. If the restoring file has already existed on the target folder, you can select to: Y__ Recover all files Pop up a request dialog Skip this file If an error happens in the process of file restoring, you can select to: Y__ Stop the restoring process Y__ Pop up a request dialog Skip restoring this file Restore Option Recovery Option lfthe restoring file has already existed on the target 1° Recover all files °° Pop up a request dialog °° Skip this file - Error Option If an error happens in the process of file restoring °° Stop the restoring process °° Pop up a request dialog 4° Skip restoring this file Ok Cancel

Log a. Save As..: To save all logs on NetBak Replicator, click this button. All logs will be saved as text file. b. Clear All: Click this button to clear all logs. c. Option: Select the type of logs to be recorded? “Record all logs” or “Record error logs only”. "#4 NetBak Replicator

ND-52000 is specially designed to run 24x7 and be ready at all times against system crash caused by power outage. This section provides a general overview on system maintenance.

9.1 Restart/ Shut down Server

Follow the steps below to restart or shut down ND-52000.

1. Ask all active users of ND-52000 to save their files and disconnect from the

server. Enter the administration page and select Restart/ Shutdown in System Tools.

3. Click Restart to reboot the server or Shut Down to turn off the server. You

can perform these actions by the LCD panel. — Restart / Shutdown Shut Down. . Restart e Shut Down

To reset the administrator password and network settings of ND-52000,

1. Press the reset button of ND-52000 for a few seconds. A beep sound will be

heard. Login ND-52000 with the default user name and password: Default user name: administrator Password: admin [OM To reset the system by the reset button, the option “Enable configuration reset switch” in Hardware Settings must be activated. — Hardware Settings D] Enbileb Pow Supply Type

When you encounter disk malfunction or failure, please do the following:

1. Record the malfunction status or error messages.

2. Stop using the failed ND-52000 and turn off the server.

3. Contact customer service for technical support.

OM Your ND-52000 must be repaired by professional technicians, please do not try to repair the server yourself. Please back up any important files or folders to avoid potential data loss due to disk crash.

5.2 Power Outage or Abnormal Shutdown

In case of power outage or improper shutdown of ND-52000, the system will resume to the state before it is shut down. 1f your server does not function properly after restart, please do the following:

1. Ifthe system configuration is lost, configure the system again.

2. In the event of abnormal operation of the server, contact customer service for

technical support. To avoid the above situations, please back up your data periodically and make sure you have done the following: + __ Follow the instructions described in Chapter 9.1 to restart or shut down the server. + __Ifthere is an anticipated power outage, back up all important data and turn off the server properly until power supply is resumed.

+ View Netmoik Settinge Launch the web browser and go to ND-52000 home page. Select Web File Manager and enter the correct login name and password. You may also enter “guest” in the login name field with no password to access the network shares on ND-52000 as an anonymous guest. OM Make sure a network share has been created before using Web File Manager. ND-52000 Turbo Server A reliable and high capacity network attached storage sarver + Share your storage over Merosaft, Liu ar anple network. = Protect your dta vi RAID tochndlogy ard mansgemert. + Es admnstration thraudh ample wreb interface. Version 1.0.0 buid 1118

Select an existing network share for management. FTP Virus Quarantine Folder You can organize network share folders of ND-52000. With Web File Manager, you can upload, rename, or delete files and folders in the network shares. D own - 200 10f2 1620 D nacun - 200 10/22 1626 D 19 sas 20/00/26 00110 D 20 ET a oo vos D sex 1388 enmfonfer mes D sn ET] 200SIOYEE 1627 View files online Click on a file displayed on the web page. The information of the file will be displayed. 1f your browser does not support the file format, the download window pops up automatically. Once the file is downloaded, you can open it on your computer. Create folder

i. Select a network share or folder in which you want to create a new folder.

ü. Click (Create Folder) on the toolbar. Enter the name of the new folder and click OK.

Rename file or folder

i. Select a file or folder to rename.

ü. Click (Rename) on the toolbar.

ii. Enter the new file or folder name and click OK.

Delete file or folder

i. Select a file or folder to delete.

ü. Click Es (Delete) on the toolbar.

ii. Confirm to delete the file or folder.

To delete all files and folders, click | | (Select All) and then EE (Delete). Upload file

i. Open the folder to upload file to.

i. Select a file to download.

ü. Right click the mouse and select “Save Target As” to save the file. Logout To exit Web File Manager, click | | (Logout).

Viewing Files Named in Chinese To view files named in Chinese, you may have to configure the browser settings. Take Internet Explorer as an example, follow the steps below to configure the settings.

General | Security | Privacy | Content | Connections | Programs Advanced Settings: [&3 Accessibility 2 [] âlways expand ALT test for images [ Move system caret with focus/selection changes [=] Browsi

Automatically check for Intemet Explorer updates Close unused falders in History and Favorites (requires restait) Disable script debugaing D Display a notification about every script error Enable folder view for FTP sites Enable Install On Demand (Intemet Explorer) M Enable Install On Demand (Other] M Enable offline items to be synchronized on a schedule M Enable page transitions DO Enable Personalized Favorites Menu M Enable third-paity browser extensions (requires Es 4

Web File Manager Icons Icon Description Up-return to the parent folder Refresh-reload the current page Home-return to network share list home page Create folder Rename file or folder Delete file or folder Select all Cancel selection Logout Full access network share folder Read-only network share folder Malfunction network share folder

Appendix B Configuring AD Authentication AD environment mixed mode can be supported by ND-52000. For example, qatest.com.tw and sub2.qatest.com.tw are domains controlled by Windows 2003 server, and subl.qatest.com.tw domain is controlled by Windows 2000 server. Action View Help tive Directory Domains and Trusts --|on|+8|€ El € gatesteomtw 58-89) sub1 qatest com br 19-69 sub2.qatest.com.tw GE active Directory Domains and Trusts | gatest.com.tw Name [re I Efsub1 qatestcomtw domanDNS Epsub2 gstestcom.twr domainDNS

Please make sure you have enabled the Active Directory Service on the Windows Server and check the following items:

DNS Server setting on ND-52000 has to be directed to AD server. ND-52000 and AD server can synchronize only if their time difference is less than 5 minutes. ND-52000 and AD server will synchronize each 5 minute. To configure the settings manually, ND-52000 has to be set as standalone mode and then added to AD domain. When adding ND-52000 to AD domain, please login by domain_name\Username. ND-52000 local user cannot login AD domain. Inter-network segments can be used. If you are using NT Domain, please select standalone mode when you want to upgrade the system, then join AD domain. It is suggested to use Windows 2000 Service Pack 4, or Windows 2003 Service Pack 1. When ND-52000 is added to AD domain, the authority of “everyone” will not work, “everyone” is the original account of ND-52000, but doesn't include AD. Therefore the authority has to be reset. The DNS setting on Windows 2000 server should be added as “Active Directory DNS”, the server should be rebooted after DNS setting is set. You should use the full domain name on the AD setting of ND-52000. For example, if your FQDN name of AD server is “ad.test.com.tw”, you should use “test.com.tw” as the ad domain setting on ND-52000. The DNS setting on AD server should have the IP of AD server itself. You must change the password of “administrator” after you create “Active Directory” service on AD server. The DNS server on the AD Server should have two records on it. For example, AD Server Name: 2003tc.testad.com DNS record on DNS Server 2003tc.testad.com A 192.168.1.100 testad.com A 192.168.1.100 One is “A record” for AD server, and the other is the domain “A record” for DNS queries.

1. Go to TCP/IP Configuration in Network Settings. Enter the IP address of

Go to Microsoft Networking of Network Settings. Enable AD Domain Member, and enter the domain name and the user name with administrator access right to that domain. Microsoft Netwering + TCP/R Configuration + Mrs Netnerina Enatie ne sente tr icon remaring aps Netrorg © Slanisiane 3ener + Linux (rs) Sance © Nrbomai Member 2 Web ie Manager TRES 2 FTP Genie SenerDescranon + eivok inter Serie ner = —— 2 Ven Nath Sting

Darain Hama Pasonord [Use te epecired MINS sen nerIP audrese IEEE D Coma master Note: a. Make sure that a fully qualified domain name such as gatest.com.tw has been filled in. b. Make sure the user name with administrator access right to that domain.

3. When the following message appears after applying the settings in step 2,

check the DNS IP. Microsoft Networking Microsoft Networking configured faled. Please check the DNS server settings. When the following message appears after applying the settings in step 2, domain name, domain user name, and the password. Microsoft Networking Microsoft Networking configured faled. Please check the domain / usemame / password settings. Æ Back When the following message appears after applying the settings in step 2, check the time zone settings. Make sure the difference of your time and that of AD server is less than 5 minutes. If the time difference is larger than 5 minutes, you will not be able to add the domain member. Microsoft Networking Microsoft Networking configured failed. Please synchronize time with Windows server.

Using AD users to access services To access services like FTP, Network Neighborhood, or Apple Talk with an AD user account, add DomainName\ before the user name when logging in.

1. Go to Microsoft Networking to enable NT Domain member and then enter the

domain name such as sub1 and the user who has administrator access right for identification. CETTE = 2 View Network Settings AD Sawar Name Ex Domain Name Domain Usememe (anneau Passwort able MINS conver aa VINS cerver FINS semer IP address EE 1e IE D vomanWaster Ducre a. Please notice that ND-52000 and Windows 2000/2003 server must be in the same section or the system will show the following error message. Microsoft Networking Microsoft Networking configured faled. Please check the domain / username / password settings. + Back b. Make sure that a domain name such as sub1 has been filled in. c. Make sure the user name with administrator access right to that domain.

2. When the following message appears after applying the settings in step 1,

check the domain name, domain user name, and the password. Microsoft Networking Microsoft Networking configured faled. Please check the domain / usemame / password settings. Æ Back When the following message appears after applying the settings in step 2, check the time zone settings. Make sure the difference of your time and that of AD server is less than 5 minutes. If the time difference is larger than 5 minutes, you will not be able to add the domain member. Microsoft Networking Microsoft Networking configured faled. Please synchronize time with Windows server

3. Upon successful adding of domain member, you can view the list for domain

4. Go to Access Control in Network Share Management to configure the access

control right of domain users for all available network shares. uns Mer Cerhgured wi Admin opt + Acc Control mt Boca Hight beny tes Obexdort Onlaccess Using domain users to access services To access services like FTP, Network Neighborhood, or Apple Talk with a domain user account, add DomainName\ before the user name when logging in. > Could not login ta the FTP server with the user name and password specified. FTP Server: 172.17.27.68 UserName: fsubiiguest F2] Password: Î After you login, you can return to this FTP server easily by adding it to your Favorites List. 1 Login Anonymousty D Save Password Login Cancel OM To join AD domain again, set ND-52000 as standalone server in Microsoft Networking section. Make sure all domain users are removed in User Management before joining ND-52000 to AD domain.

Appendix C M Configuration S essages of Hard Disk and Disk tatus Hard Disk English Display Status Description Ready The hard disk status is normal No disk No disk currently Disk tray is not installed or there is main board error. Users can check disk tray. 1f there is main board error, please contact COMET LABS customer service. Invalid Indicates the disk does not have a record on ND-52000 Ÿ_ The disk is used on ND-52000 the first time, or the disk on the same ND-52000 model is used. Users can re-configure disk volume. R/W error Disk fails When R/W error is shown, users should back up data immediately and replace the failed disk. Disk Configuration/ R; AID Configuration English Display Status Description Initializing Initializing disk Formatting Formatting disk Creating Creating RAID configuration Removing Removing RAID configuration Rebuilding Rebuilding RAID configuration Checking Error checking on hard disk or disk configuration in process YŸ_ ND-52000 will check disk automatically if it is shut down improperly

Disk Configuration/ RAID Configuration English Display Status Description Ready The status of current disk or disk configuration is normal Unmounted Hard disk is not installed or hard disk configuration is not configured Not Active RAID configuration is damaged and cannot be enabled When this message is shown, users should back up disk data immediately and replace the failed disk. Uninitialized Initialization fails Single disk does not support hot swap. If the hard disk is unplugged when ND-52000 is turning on, disk configuration will be damaged and will lead to data loss. In degraded mode A disk of RAID 1 or RAID 5 configuration is unplugged or fails. RAID data protection mechanism fails. YŸ__Inthis situation, users should back up disk data immediately and replace the failed disk to rebuild RAID configuration.

1. When R/W error is displayed for hard disk status, or “Not active” or “In

degraded mode” is displayed for RAID configuration, please replace the hard disk immediately to ensure RAID data protection can work properly. COMET LABS is not responsible for any data loss caused by delay in replacing failed disks in a RAID configuration by users intentionally or unintentionally.

2. Comet Labs, Inc. guarantees that all ND-52000 (ND-52000) released have

passed strict and complete QA test and can operate properly in normal condition. COMET LABS offers conditional and limited maintenance for ND- 52000 within warranty period. However, COMET LABS disclaims the responsibility for any data loss or damage, or business loss of users. In no event shall the liability of COMET LABS exceed the price paid for the product from direct, indirect, special, incidental, or consequential software, or its documentation. Technical Support COMET LABS provides dedicated online support and customer service via instant messenger. You can contact us by the following means: Online Support: www. Comet Labs.com E-mail: support@comet Labs.com
