Sonos®Multi-room Music System ZonePlayer 90

Sonos® ZonePlayer™ 90 Setup Guide. For use with the Sonos Multi-room Music System. THIS DOCUMENT CONTAINS INFORMATION THAT IS SUBJECT TO CHANGE WITHOUT NOTICE. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including but not limited to photocopying, recording, information retrieval systems, or computer network without the written permission of Sonos, Inc. Sonos is a registered trademark of Sonos, Inc. in the United States, Canada, and Australia, and a trademark of Sonos, Inc. in other countries. Sonosnet, ZonePlayer, ZoneBridge, and all Sonos logos are trademarks of Sonos, Inc. in the United States and/or other countries. Macintosh® and Mac OS® are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. Windows Vista™ and Windows® XP are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. This product includes technology owned by Microsoft Corporation and under a license from Microsoft Licensing, GP. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft Corporation and/or Microsoft Licensing, GP as applicable. MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson. Sonos uses MSNTP software, which was developed by N.M. Maclaren at the University of Cambridge. © Copyright, N.M. Maclaren, 1996, 1997, 2000; © Copyright, University of Cambridge, 1996, 1997, 2000. All other products and services mentioned may be trademarks or service marks of their respective owners. © 2004-2007 by Sonos, Inc. All rights reserved. For the latest product documentation, including the Sonos Multi-room Music System User Guide, go to www.sonos.com/support and click Documents. ZonePlayer 90 Setup Guide Version: 080501

Sonos ZonePlayer 90 Setup Guide Sonos ZonePlayer 90

Sonos ZonePlayer 90 Setup Guide Sonos ZonePlayer 90 Setup Guide Sonos ZonePlayer 90 Setup Guide Regulation Information Europe Sonos declares that this product complies with the requirements and other relevant provisions of the R&TTE Directive (1999/5/EC). A copy of the full Declaration of Conformance may be obtained at http://eu.sonos.com. Attention In France, operation is limited to indoor use within the band 2.454-2.4835 GHz. (Attention. En France, l’utilisation en intérieur est limitée à la bande de fréquences 2,454-2,4835 GHz.) USA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced audio technician for help. Modifications not expressly approved by the manufacturer may void the user's authority to operate the equipment under FCC rules. Sonos ZonePlayer 90 Setup Guide

Canada This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Industry Canada The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s Web site www.hc-sc.gc.ca/rpb. RF Exposure Requirements To comply with FCC and EU exposure essential requirements, a minimum separation distance of 20cm (8 inches) is required between the equipment and the body of the user or nearby persons. Recycling Information This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead please deliver it to the applicable collection point for the recycling of electrical and electronic equipment. By recycling this product correctly, you will help conserve natural resources and prevent potential negative environmental consequences. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Setup Guide

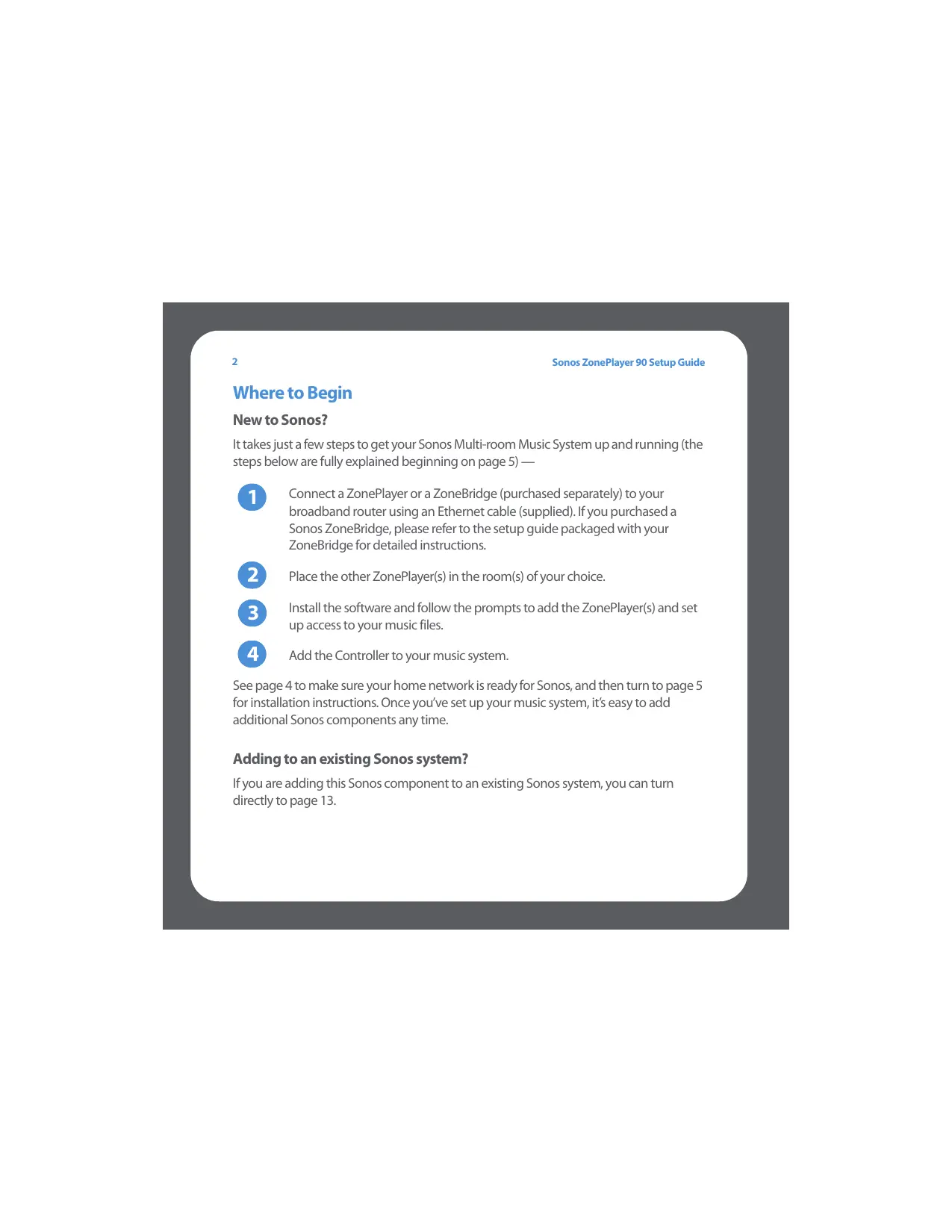

Sonos ZonePlayer 90 Setup Guide Where to Begin New to Sonos? It takes just a few steps to get your Sonos Multi-room Music System up and running (the steps below are fully explained beginning on page 5) —

Connect a ZonePlayer or a ZoneBridge (purchased separately) to your broadband router using an Ethernet cable (supplied). If you purchased a Sonos ZoneBridge, please refer to the setup guide packaged with your ZoneBridge for detailed instructions.

Place the other ZonePlayer(s) in the room(s) of your choice.

Install the software and follow the prompts to add the ZonePlayer(s) and set up access to your music files.

Add the Controller to your music system. See page 4 to make sure your home network is ready for Sonos, and then turn to page 5 for installation instructions. Once you’ve set up your music system, it’s easy to add additional Sonos components any time. Adding to an existing Sonos system? If you are adding this Sonos component to an existing Sonos system, you can turn directly to page 13. Sonos ZonePlayer 90 Setup Guide

The ZonePlayer 90 The ZonePlayer 90 is designed to be used with an external amplifier. It contains both analog and digital outputs so that you can easily connect it to your existing audio equipment.

• Use a ZonePlayer 90 to create a music zone in a room where you already have an amplifier, such as your home theater system or the stereo system in your family room.
• Use a ZonePlayer 90 to create a music zone in your home office where you already have a computer or a pair of powered speakers.
• Use a ZonePlayer 90 if you have a distributed audio system that is driven from an amplifier in one central location with speaker wires home-run to this central location.

Sonos ZonePlayer 90 Setup Guide Your Computer Network To play the digital music files stored on your computer, your computer network must meet the following requirements: Network requirements Note: Your network must have a high-speed Internet connection, as the Sonos Multi-room Music System is designed to provide you with online software updates. Your Sonos system must be registered to receive these updates, so be sure to register during the setup process. We do not share your e-mail address with other companies.

• DSL/cable modem, or LAN-based, high-speed Internet connection.
• If you currently have a cable or DSL modem connected directly to your computer, you should install a router between your modem and your computer to enhance your computer’s security, and to share the Internet connection with your Sonos Multi-room Music System and other devices. If you do not have a router, you should purchase and install one before proceeding. Compatible operating systems
• Windows® XP, including Windows® XP Media Center
• Macintosh® OS X Please visit our Web site at http://faq.sonos.com/specs for the latest system requirements. Sonos ZonePlayer 90 Setup Guide

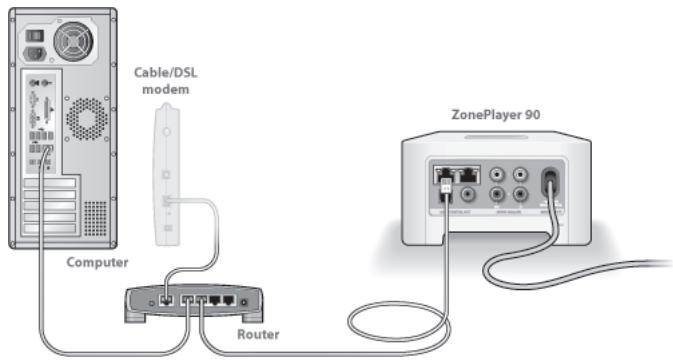

Setting Up New Sonos System 1 Connect to your broadband router Note: One Sonos component must connect to your broadband router using a standard Ethernet cable (supplied). If you do not wish to play music in this room, you can connect a Sonos ZoneBridge (purchased separately) instead. Connect an Ethernet cable (supplied) from any of the Ethernet switch connectors on the back of your ZonePlayer 90 (or ZoneBridge if purchased separately) to an open port on your router.

• Do not connect the ZonePlayer directly to your cable or DSL modem unless your modem has a built-in router. If you don’t have a router, you can go to http://faq.sonos.com/norouter for instructions.

Sonos ZonePlayer 90 Setup Guide

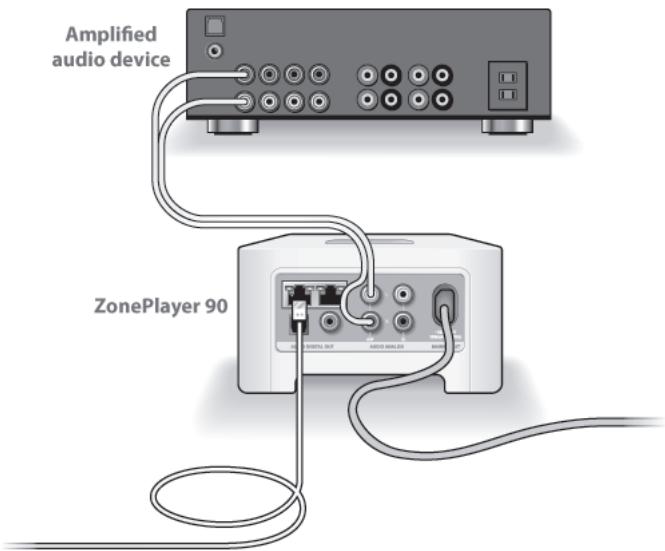

Place ZonePlayer in the room of your choice You can connect a ZonePlayer 90 to the inputs of any amplified audio device, such as a home theater receiver, stereo, or computer with powered speakers, using the ZP 90’s digital or analog outputs (RCA cable supplied). Sonos ZonePlayer 90 Setup Guide

Attach the power cord, and then connect your ZonePlayer 90 to an external amplifier by choosing one of the following options: Connect to a home theater or amplifier

• If you have digital inputs on your home theater or amplifier, you can use either a TosLink optical audio cable or a digital coaxial cable to connect the ZonePlayer 90’s digital output to the digital input on the receiver.
• If you have analog inputs on your home theater or amplifier, use a standard RCA audio cable to connect a ZonePlayer’s analog audio output to the audio inputs on the receiver.
• Select the proper input channel on the receiver.
• After you finish setting up your Sonos system, turn to page 19 to adjust the volume settings. Connect to a computer or powered speakers
• You will need a stereo mini to RCA Y-adapter audio cable (one 1/8-inch stereo miniplug to dual RCA male connectors) to connect the ZonePlayer’s analog audio output to the computer’s audio input.
• You may need a Y-adapter audio cable (one1/8-inch stereo miniplug to dual RCA male connectors) to connect the speakers to the audio outputs on the ZonePlayer. If your speakers have a male 1/8-inch stereo plug, you will need to attach a female-to-female coupler between the speaker plug and the Y-adapter audio cable. For additional information on connecting audio devices, please go to our Web site at http://faq.sonos.com/cables.

Sonos ZonePlayer 90 Setup Guide Proceed to step 3 when the ZonePlayer Status indicator on the ZonePlayer’s front panel flashes white and the Mute button flashes green.

Mute button (green) ZonePlayer Status Indicator (white) Install the software Insert the Sonos System Setup CD-ROM, and follow the prompts to connect your ZonePlayer(s) and set up access to your music files. (If you purchased multiple Sonos components, you may have more than one System Setup CD-ROM—use the one that accompanied your ZonePlayer and you can put the others away.) Note: During the setup process, you will be prompted to check for software updates. Select Yes to ensure that you set up your music system using the latest software release. (If you add additional Sonos components, you may be prompted to update your music system again during the setup process.) Sonos ZonePlayer 90 Setup Guide

• If you don’t use Windows® or Macintosh OS X® operating systems, you can put For use with:
• Windows XP, including Windows XP Media Center
• Mac OS X, version the Sonos System Setup CD away in a safe place and use the Sonos Controller to set up your music system. Simply plug in the power adapter (see page 10) and follow the Controller’s on-screen prompts. For additional information, please visit our Web site at http://faq.sonos.com/nodcr.
• If you have music stored on a computer or Network-Attached Storage (NAS) device, the Sonos Multi-room Music System will recognize most standard shared folders. For additional information on shared folders, please visit our Web site at http://faq.sonos.com/sharing. Note: Firewall software such as Norton Internet Security™, McAfee® Personal Firewall, Windows Firewall, or Mac OS X Firewall, can block the operation of your Sonos Desktop Controller software. During installation, you may be prompted by your firewall software to allow access to the Sonos application. You should always allow full access. You may also need to change the settings of your firewall software to ensure that Windows file sharing is not blocked. Please go to our Web site at http://faq.sonos.com/firewall for detailed instructions.

Sonos ZonePlayer 90 Setup Guide

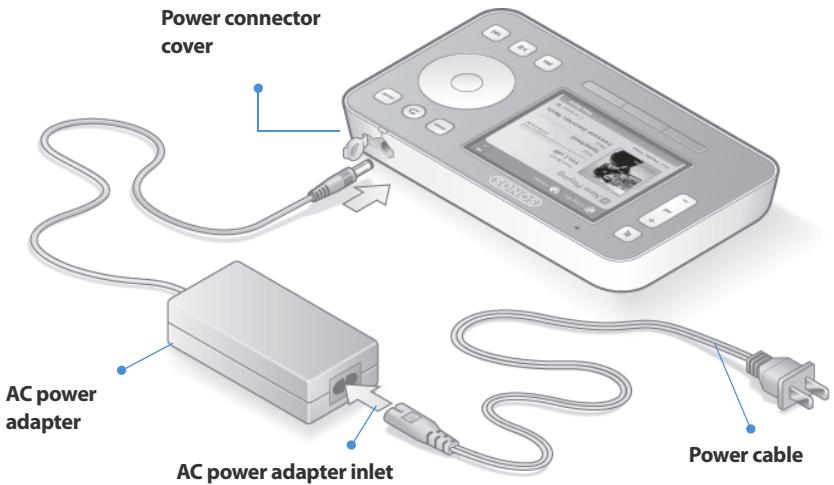

Add the Sonos Controller

• After at least one ZonePlayer has been set up, you can pick up your Controller and follow the prompts on the Controller’s screen to add it to your music system.
• You should charge your Sonos Controller when you remove it from the packaging. The Controller battery will be fully charged in about two (2) hours. You can use your Controller while it is charging.
• The power connector cover is part of your Controller’s splash-resistant design, so keep the cover down when the Controller is not charging. Power connector cover AC power adapter AC power adapter inlet Power cable Sonos ZonePlayer 90 Setup Guide

Caution Use only the supplied power adapter to charge the Controller’s battery. Using another adapter will damage your Controller and void your product warranty. Now you’re ready to play some music! If you need help getting started, see the steps below. Music menu Press the Music button on your Sonos Controller to display the Music menu. To read more about the features and functions of your new Sonos system, please download the user guide from our Web site at: www.sonos.com/support/documents or start your Desktop Controller software and select Sonos System Help from the Help menu.

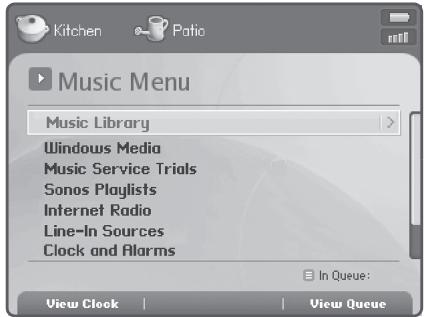

• To activate a free music service trial, select Music Service Trials. (Your music system must be registered to activate a trial, so if you have not yet registered, you

Sonos ZonePlayer 90 Setup Guide can do it now by selecting System Settings→Advanced Settings→ System Registration.)

• To select an Internet radio station, select Internet Radio.
• To add music folders located on a computer in your home network , open your Desktop Controller software and select Set Up Music Library→Add a Share from the Music menu.
• You can use the Sonos Controller to add music folders by selecting System Settings→Music Library Management →Music Library Setup→Add New, but it’s easier to use the Desktop Controller for this one-time task. Sonos ZonePlayer 90 Setup Guide

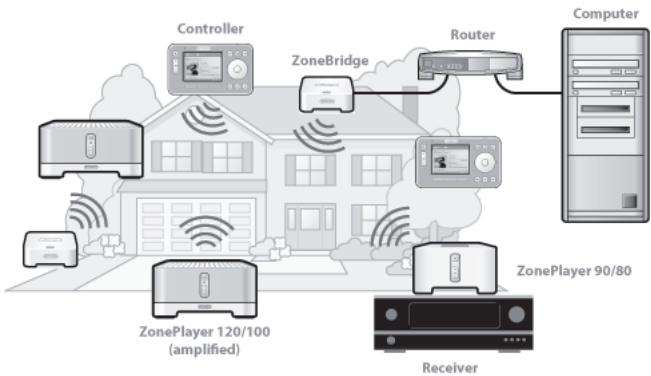

Adding to Existing Sonos System Once you’ve set up your Sonos Multi-room Music System, you can easily add more Sonos components any time (up to 32 zones). If your house has structured (built-in) wiring, you can make a wired connection to the additional ZonePlayers or ZoneBridges. If you don’t have structured wiring, our built-in wireless technology is ideal for you. Note: Thick walls, 2.4 GHz cordless telephones, and the presence of other wireless devices can interfere with the wireless network signals from your Sonos Multi-room Music System. If you are experiencing difficulty, it is advisable to relocate the ZonePlayer, change the wireless channel your music system is operating on, or make a wired connection (Ethernet cable) either from your router to the ZonePlayer, or from one ZonePlayer to another (see page 24.) If you are having trouble placing your units within wireless range of each other, you can go to our Web site at http://faq.sonos.com/range for more information. Add a ZonePlayer or ZoneBridge Note: If you are replacing the ZonePlayer that is currently attached to your router, first add the new Sonos component to your music system (steps below.) You can then unplug the wired Sonos component from your router, replace it with the new one, and move the original component to a new location.

1. Choose one of the following options:

• If you are adding an amplified ZonePlayer (120 or 100), attach desired speakers.
• If you are adding a ZonePlayer 90 or 80, connect it to an external amplified device (as shown on page 6).

Sonos ZonePlayer 90 Setup Guide

• If you are adding a ZoneBridge, attach the power adapter. If you need help with this step, refer to the Setup Guide packaged with your Sonos component, or start your Desktop Controller software and select Sonos System Help from the Help menu.

2. If you are making a wired connection, connect an Ethernet cable from your router,

another ZonePlayer or ZoneBridge, or a live network wall plate (if you have built-in wiring) to one of the Ethernet switch connections on the back of the new Sonos component. If you are making a wireless connection, skip this step.

3. Attach the power cord and plug in the ZonePlayer or ZoneBridge.

4. Choose one of the following options:

• Using the Sonos Controller, select System Settings→Add a ZonePlayer or ZoneBridge from the Music menu and follow the prompts to add this component to your Sonos Multi-room Music System.
• Using the Desktop Controller software, select Zones→Add a ZonePlayer or ZoneBridge and follow the prompts to add this component to your Sonos Multi-room Music System. Add a Controller You should charge your new Sonos Controller when you remove it from the packaging. Plug it into the power adapter, and then follow the Controller’s on-screen prompts to add it to your music system (you can use the Controller while it is charging.) Sonos ZonePlayer 90 Setup Guide

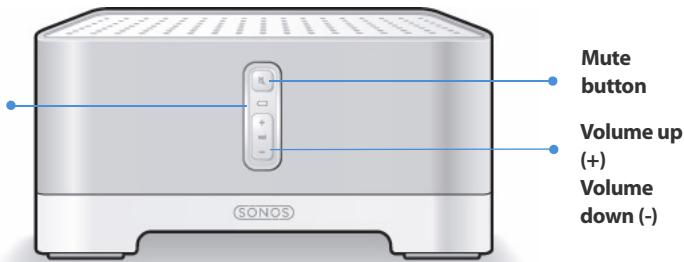

ZonePlayer 90 Front ZonePlayer status indicator On/Off

Using the Sonos Controller, select Pause All from the Zone menu. Using the Desktop Controller software, select Pause All from the Play menu. ZonePlayer status indicator

Flashes white when powering up or connecting to your Sonos Multiroom Music System. Solid white when powered up and connected to your Sonos Multiroom Music System (normal operation). Mute button Volume up Volume down (-) Your Sonos Multi-room Music System is designed to be always on; the system uses minimal electricity whenever it is not playing music. To stop streaming music in all zones, you can use the Pause All feature. Indicates the current status of the ZonePlayer. When the ZonePlayer is in normal operation, you can turn the white status indicator light on and off. For additional information, see the online help system included with your Desktop Controller software. For a complete list of status indications, please go to http://faq.sonos.com/led.

Sonos ZonePlayer 90 Setup Guide Mute button

Lights solid green when sound is muted. Flashes green rapidly when household mute or unmute is about to take place. Flashes green slowly when ZonePlayer is connecting to your music system. Volume up (+) Volume down (-) To mute/unmute this ZonePlayer: Press the Mute button to mute or unmute this ZonePlayer. To mute/unmute all ZonePlayers: Press and hold the Mute button for 3 seconds to mute all ZonePlayers in your household. Press and hold for 3 seconds to unmute all ZonePlayers. Press these buttons to adjust the volume up and down. Sonos ZonePlayer 90 Setup Guide

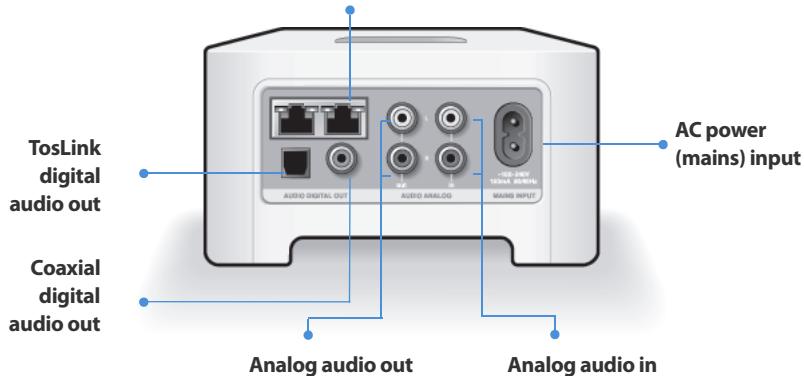

Rear Panel Connectors Ethernet switch connectors TosLink digital audio out Coaxial digital audio out Analog audio out Analog audio in Ethernet switch connectors (2) Use Category 5 Ethernet cable to connect to a router, computer, or additional network device such as a network-attached storage (NAS) device. Use the supplied power cord to connect to power outlet. Analog audio in Use a standard RCA audio cable to connect the audio outputs from a separate audio component such as a CD player, to the ZonePlayer’s analog audio inputs.

Sonos ZonePlayer 90 Setup Guide Analog audio out (fixed/variable) Use a standard RCA audio cable to connect the ZonePlayer’s analog audio outputs to the audio inputs on a separate audio component, such as an amplifier or your home theater receiver. You can use a TosLink optical audio cable to connect the ZonePlayer’s TosLink digital audio output to the audio inputs on a separate audio component, such as an amplifier or your home theater receiver. Coaxial digital audio out You can use a digital coaxial cable to connect the ZonePlayer’s coaxial digital audio output to the audio inputs on a separate audio component, such as an amplifier or your home theater receiver. Sonos ZonePlayer 90 Setup Guide

Using Line-Out Use the ZonePlayer’s audio outputs to connect a home theater, computer, powered speakers, or an amplifier to the ZonePlayer 90. Connecting to a home theater or amplifier For additional information on connecting audio devices, please go to our Web site at http://faq.sonos.com/cables.

1. If you have digital inputs on your home theater or amplifier, you can use either a

TosLink optical audio cable or a digital coaxial cable to connect the ZonePlayer 90’s digital output to the digital input on the receiver. If you have analog inputs on your home theater or amplifier, use a standard RCA audio cable to connect the ZonePlayer 90’s analog audio output to the audio inputs on the receiver.

2. Select the proper input channel on the receiver.

Controlling the volume from your home theater or amplifier To control the volume exclusively from your home theater or amplifier, you can change the line-out level on this ZonePlayer to Fixed by selecting one of the following options:

• Using the Sonos Controller, from the Music menu, select System Settings. Select ZonePlayer Settings, and use the scroll wheel to highlight the ZonePlayer attached to the receiver. Select Line-Out Level, and choose Fixed.
• Using the Desktop Controller software, select ZonePlayer Settings from the Zones menu. Select the ZonePlayer attached to the receiver, and then click Settings. Click the Line-Out tab, and choose Fixed.

Sonos ZonePlayer 90 Setup Guide Note: When you change the line-out level to Fixed on your ZonePlayer 90, you will not be able to adjust the volume or the equalization settings using your Sonos Controller. Controlling the volume from your Sonos system

1. Adjust your home theater or amplifier’s volume to typical listening volume.

2. If the line-out level on this ZonePlayer is not currently set to Variable, you will need

• Using the Sonos Controller, from the Music menu, select System Settings. Select ZonePlayer Settings, and use the scroll wheel to highlight the ZonePlayer attached to the receiver. Select Line-Out Level, and choose Variable.
• Using the Desktop Controller software, select ZonePlayer Settings from the Zones menu. Select the ZonePlayer attached to the receiver, and then click Settings. Click the Line-Out tab, and choose Variable.

3. Use the Sonos Controller to adjust the volume on your Sonos system so you can

hear music. This may be at the high end of the volume scale.

4. If desired, you can readjust the volume on your home theater system or amplifier so

that the volume range for the Controller falls within your typical listening range. Connecting to a computer or powered speakers

• If you are connecting to your computer: You will need a stereo mini to RCA Yadapter audio cable (one 1/8-inch stereo miniplug to dual RCA male connectors) to connect the ZonePlayer’s analog audio output to the computer’s audio input.
• If you are connecting to powered speakers: You may need a Y-adapter audio cable Sonos ZonePlayer 90 Setup Guide

(one 1/8-inch stereo miniplug to dual RCA male connectors) to connect the computer’s speakers to the audio outputs on the ZonePlayer. If your speakers have a male 1/8-inch stereo plug, you will need to attach a female-to-female coupler between the speaker plug and the Y-adapter audio cable. Using Line-In You can easily stream an external source such as a CD player or portable music player through your Sonos Multi-room Music System using the audio-in connections on your ZonePlayer. The device will be automatically detected as soon as you plug it in.

1. Use a standard RCA cable to plug an external source like a CD player into the analog

Audio In connections on the back of your ZonePlayer 90.

• If you are connecting a portable music player to the ZonePlayer 90, you will need a 1/8 inch mini-stereo to RCA audio cable instead. Plug the mini-stereo end into the portable device and the RCA end into the Audio In connection on the ZonePlayer.

2. Choose one of the following options:

• From the Sonos Controller, select Line-In Sources from the Music menu. Select Edit Name to choose a source name for this device. Once setup is complete, simply select Line-In Sources from the Music menu, and touch Play any time you want to play music from this device.
• From the Desktop Controller software, select the Line-In tab from the Music Library. Click Set Up and then select the Line-In tab to choose a source name and line-in level for this device. Once setup is complete, simply select Line-In Sources from the Music Library, and press Play Now any time you want to play music from this device.

Sonos ZonePlayer 90 Setup Guide A default (typical) line-in level is automatically assigned when you select a source name. If the volume sounds too low, you can select a higher line level for this device. You may experience clipping at higher volume levels if you set the level too high. Line-in encoding settings When you have line-in music sources attached to a ZonePlayer, line-in encoding determines how the Sonos Multi-room Music System will encode the data coming in from these sources. For multi-room audio, we recommend using the Compressed setting. For the highest quality sound, you can select Uncompressed encoding, but this selection requires more network bandwidth than compressed audio. For TV or DVD audio, we recommend using the Uncompressed setting. Note: You will notice a delay when a line-in source is in use. When the Uncompressed encoding setting is selected, this delay is significantly reduced. Sonos ZonePlayer 90 Setup Guide

Basic Troubleshooting

Warning: Under no circumstances should the product be repaired by

anyone other than an authorized Sonos repair center, as this will invalidate the warranty. Please contact the Sonos Customer Service Center to locate an authorized repair center in your area. Do not open the system as there is a risk of electric shock. If a problem occurs, you can try the troubleshooting suggestions listed below. If one of these doesn’t remedy the problem, or you are not sure how to proceed, please contact the Sonos Customer Service Center and we’ll be happy to help.

• Web site Visit our Web site at www.sonos.com/support. There you can visit our Forums, browse our Frequently Asked Questions (FAQ) pages, or request assistance.
• US/Canada: +1.800.680.2345 toll-free
• United Kingdom: 0808 2346596 If your country is not listed here, please visit our Web site at www.sonos.com/support and click Phone Support to find the correct telephone number for your country.

Sonos ZonePlayer 90 Setup Guide ZonePlayer not detected during setup A network or a firewall issue may be preventing the ZonePlayer from joining your Sonos system. If this is a wireless ZonePlayer, try moving the ZonePlayers closer together, or wire the ZonePlayer temporarily to see if the problem is related to wireless interference. If you encounter this message when installing the first wired Sonos component, you can try the steps below to resolve this issue. If you are still experiencing problems, please contact the Sonos Customer Service Center.

1. Check the firewall

Firewall software installed on the computer may be blocking the ports that Sonos uses to operate. First, disable all your firewalls and try to connect again. If this resolves the problem, then you should configure your firewall to work with the Sonos Desktop Controller. Please visit our Web site at http://faq.sonos.com/firewall for additional information. If this does not resolve the problem, you can try step 2 below.

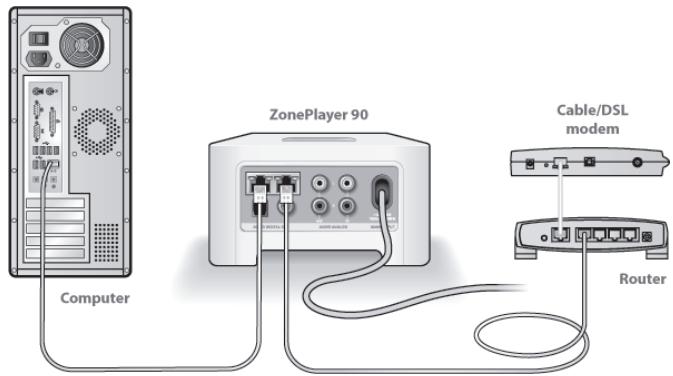

2. Check the router

You can bypass your router’s switch to determine whether there are any router configuration issues by connecting Sonos as follows (note that the ZonePlayer and the computer still have Internet access in this configuration): Sonos ZonePlayer 90 Setup Guide

• Be sure that your cable/DSL modem is connected to the router’s WAN (Internet) port.
• Temporarily remove any other components that are wired to your network.
• Connect an Ethernet cable from the computer directly to the back of the ZonePlayer, and then connect another Ethernet cable from the ZonePlayer directly to one of the LAN ports on your router.
• When you make a change to your network configuration, you may need to power cycle the ZonePlayer by unplugging the power cord, and then plugging it back in.
• If you are not using a router, visit our Web site at http://faq.sonos.com/norouter for more information.

Sonos ZonePlayer 90 Setup Guide

3. Check the wiring

Check the link/activity lights on both the router and the ZonePlayer. They should be green, and there should be blinking activity lights.

• If the green link lights are not lit, try connecting to a different port.
• If the link lights still do not light, try connecting a different Ethernet cable. When adding the handheld Sonos Controller, it fails to detect the ZonePlayer(s) Wireless interference or a network problem may be preventing the Controller from joining your Sonos Multi-room Music System.

1. Verify that this is not a DHCP or network problem.

• Disconnect the Ethernet cable from the back of the ZonePlayer so that it is not connected to your network.
• Unplug the ZonePlayer's power cord and then plug it back in.
• When the status indicator light on the front of the ZonePlayer stops blinking white, try adding your Controller again. If it works, your router's DHCP server may have run out of available IP addresses to assign to the Controller. In most cases you can log into your router by typing http://192.168.1.1 into your browser’s address line (the IP address of your router may be different). Check the DHCP settings and increase the number of IP addresses available in the DHCP scope. If your Controller still does not recognize the ZonePlayer after completing this step, you can try step 2 below. Sonos ZonePlayer 90 Setup Guide

2. Turn off any 2.4GHz cordless phones.

Some 2.4GHz cordless telephones can cause wireless interference. If turning off your 2.4GHz cordless phone resolves the problem, you should consider switching to a 5.8Ghz or 900Mhz phone (or change the wireless channel your Sonos system is operating on see step 4 below.)

3. Put 108 Mbps wireless routers into 54 Mbps mode.

Sonos cannot function properly when a router is operating in turbo mode. In order to double the speed from 54 Mbps to 108 Mbps, the router goes into a wide bandwidth mode which utilizes most of the 2.4 GHz spectrum that the FCC has set aside for 802.11b/g devices. This means that interference (RF noise) will occur with any other 2.4 GHz device that is not operating on the same channel as the 108 Mbps device (usually channel 6). While it is possible to put all of your wireless devices on channel 6, it is unwise. The devices will have to compete for available bandwidth, and your entire wireless network will become sluggish and bogged down.

4. Change the wireless channel your Sonos system is operating on.

• Using the Desktop Controller for Windows: From the File menu, select Preferences. Click the Advanced tab, and select another wireless channel from the Wireless Channel list.
• Using the Desktop Controller for Macintosh: From the Sonos menu, select Preferences. Click the Advanced tab, and select another wireless channel from the Wireless Channel list. It may take several seconds for the switch to take effect. If you have music playing, a short music dropout will occur during the wireless channel change.

Sonos ZonePlayer 90 Setup Guide Important Safety Information

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry soft cloth. Household cleaners or solvents can damage the finish on

your ZonePlayers or Controllers.

7. Do not block any ventilation openings. Install in accordance with the manufacturer´s

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus that produce heat.

9. Protect the power cable from being walked on or pinched, particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

10. Only use attachments/accessories specified by the manufacturer.

11. Unplug this apparatus during lightning storms or when unused for long periods of

time. Sonos ZonePlayer 90 Setup Guide

12. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cable or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

13. The Mains plug should be readily available to disconnect the equipment.

14. Warning: To reduce the risk of fire or electric shock, do not expose this

apparatus to rain or moisture.

15. Do not expose apparatus to dripping or splashing and do not place objects filled with

liquids, such as vases, on the apparatus.

Warning: To avoid damage to speakers, turn off the external amplifier

before unplugging your ZonePlayer 90. Sonos ZonePlayer ZP90 – Installationshandbuch Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Stumm-Taste

Sonos ZonePlayer ZP90 – Installationshandbuch

Ethernet-Anschlüsse (2) Sonos ZonePlayer ZP90 – Installationshandbuch Analoger Audioeingang Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Sonos ZonePlayer ZP90 – Installationshandbuch

Sonos ZonePlayer ZP90 – Installationshandbuch Knop Mute (groen) Statusindicator ZonePlayer (wit) Voorkant ZonePlayer 90 Knop Mute ZonePlayer statusindicator Sonos ZonePlayer 90 Installationshandbok Sonos ZonePlayer 90 Installationshandbok

Sonos ZonePlayer 90 Installationshandbok Sonos ZonePlayer 90 Installationshandbok

Sonos ZonePlayer 90 Installationshandbok

Sonos ZonePlayer 90 Installationshandbok

Sonos ZonePlayer 90 Installationshandbok Sonos ZonePlayer 90 Installationshandbok

Sonos ZonePlayer 90 Installationshandbok

Sonos ZonePlayer 90 Installationshandbok

Sonos ZonePlayer 90 Installationshandbok Sonos ZonePlayer 90 Installationshandbok

Sonos ZonePlayer 90 Installationshandbok Sonos ZonePlayer 90 Installationshandbok

ZonePlayer 90 - framsidan ZonePlayer statusindikator På/av

Sonos ZonePlayer 90 Installationshandbok Ljud av-knapp

Sonos ZonePlayer 90 Installationshandbok

Analogt ljud in Sonos ZonePlayer 90 Installationshandbok Analogt ljud in Sonos ZonePlayer 90 Installationshandbok

Sonos ZonePlayer 90 Installationshandbok Sonos ZonePlayer 90 Installationshandbok

Sonos ZonePlayer 90 Installationshandbok Sonos ZonePlayer 90 Installationshandbok

Sonos ZonePlayer 90 Installationshandbok Sonos ZonePlayer 90 Installationshandbok

Sonos ZonePlayer 90 Installationshandbok Sonos ZonePlayer 90 Installationshandbok

Sonos ZonePlayer 90 Installationshandbok Sonos ZonePlayer 90 Installationshandbok
