USER MANUAL LED PIPE RGB 230V JBSYSTEMS LIGHT

Copyright © 2007 by BEGLEC cva.

Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.

Version: 1.0

EN - DISPOSAL OF THE DEVICE

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

FR-DECLASSES L'APPAREIL

Thank you for buying this JB Systems® product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit.

A complete JB Systems® LED PIPE 230V system contains the following components:

• 1 or more LED PIPE tubes (can work standalone or can be connected to the LED PIPE controller)
• 1 optional LED PIPE controller (controls the connected led tubes)
• Optional signal extension cables: 1m, 5m or 10m.

FEATURES

This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

• This device has been designed to produce decorative effect lighting and is used in light show systems.
  Each LED PIPE uses 144 high efficiency leds. (Red=48, Green=48, Blue=48)
  Each LED PIPE is split up in 16 sections for maximum flexibility while programming patterns!

• A chain of LED PIPE units can be used in 3 ways:

• Standalone without controller: many wonderful build-in patterns, also music activated!

• Standalone with controller: the optional LED PIPE controller can control up to 1000 tubes with additional flexibility.

• DMX control via controller: uses 3 DMX channels

• 4 program run modes: auto mode (adjustable speed), Sound mode, dB mode (VU-meter), hold mode.

• Lightweight polymer enclosure with high quality frost lens for indoor use.
• Specially shaped base makes it possible to hide all connection cables nicely behind the units!
• Internal power supply for easy daisy chaining of up to 200 units on only one 230V/16A wall socket!
• Can be easily fixed to walls and ceilings with the supplied wall brackets.
• Suitable for indoor use only.
  Extended life span: 50.000 - 100.000 hours
• Low power consumption: only 18W per tube!
• Optional signal extension cables: 1m, 5m or 10m available.
• Perfect for use in: retail stores, commercial displays, architectural lighting, indoor decoration, clubs, pubs, mobile DJs, trussing, ...

BEFORE USE

• Before you start using this unit, please check if there's no transportation damage. Should there be any, do not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.

Check the contents:

Check that the carton contains the following items:

• Operating instructions
• LED PIPE RGB unit

SAFETY INSTRUCTIONS:

CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only.

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only.

This symbol means: Read instructions.

• To protect the environment, please try to recycle the packing material as much as possible.
• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.
• This unit is for indoor use only.
• Don't place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.
• Prevent use in dusty environments and clean the unit regularly.
• Keep the unit away from children.
• Inexperienced persons should not operate this device.
  Maximum save ambient temperature is 40^ . Don't use this unit at higher ambient temperatures.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Always unplug the unit when it is not used for a longer time or before servicing.
• The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.
• Check that the available voltage is not higher than the one stated on the rear panel of the unit.
• The power cord should always be in perfect condition. Switch the unit immediately off when the power cord is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never let the power-cord come into contact with other cables!
• This fixture must be earthed to in order comply with safety regulations.
• Don't connect the unit to any dimmer pack.
• In order to prevent electric shock, do not open the cover. There are no user serviceable parts inside.
• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications!
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
• The housing and the lenses must be replaced if they are visibly damaged.
• Please use the original packing when the device is to be transported.
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.
  Important: Don't use the effect in the presence of persons suffering from epilepsy.

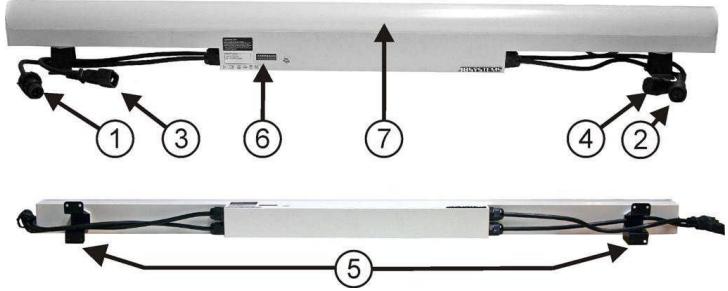

DESCRIPTION:

1. LED PIPE SIGNAL INPUT: low voltage signal input to be connected with the signal output of the previous tube or with the signal output cable from the controller. Extra 1m, 5m or 10m signal cable extensions are optionally available.
2. LED PIPE SIGNAL OUTPUT: low voltage signal output to be connected with the signal input of the next tube. Extra 1m, 5m or 10m signal cable extensions are optionally available.
3. POWER INPUT CABLE: To be connected with power output cable of the previous tube or directly with the mains.
4. POWER OUTPUT CABLE: To be connected with the power input cable of the next tube.
5. LED PIPE HOLDERS: Needed to fix the tubes easily against a surface. The shape of the enclosure and the holders makes it possible to hide your cables perfectly behind your construction.
6. DIP SWITCHES: used to setup the different user modes of the tube.
7. PLASTIC COVER: The milky white plastic cover is used to mix the 3 primary colors. If you like you can install the LED PIPE tubes behind a big milky white opaque surface to create an "ever color changing wall". In this case you can try to remove the plastic cover from the LED PIPE to obtain more light output. This can be easily done by removing the 2 small screws on one side of the plastic cover. Once the end cap removed you can easily slide the plastic cover out of the base.

OVERHEAD RIGGING

• Important: The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's weight.
• The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal.

ELECTRICAL INSTALLATION + SETUP

Important: The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.

You can install the tubes in 2 ways: with or without controller.

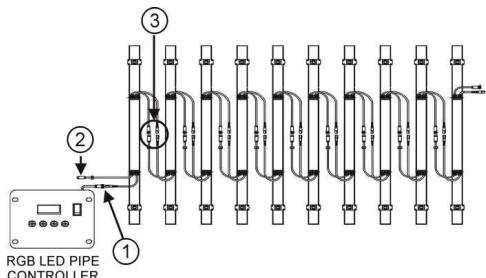

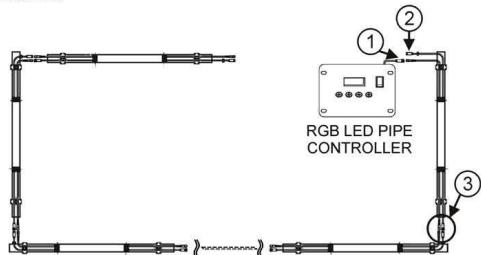

INSTALLATION WITH CONTROLLER:

1. Fix all the tubes properly to wall or ceiling.
2. Connect the signal cables of all tubes together. Make sure to fasten the plastic ring well. (see n^3 on the picture)
3. Connect the power cables of all tubes together and connect the first unit to the mains. (see n°2 and 3 on the picture) PS: to connect the first unit to the mains, you need an optional mains cable with IEC-socket on one end.
4. Connect the signal input cable of the first tube to the signal output connector of the LED PIPE controller. Eventually use the optional extension cables. (See n°1 on the picture)
5. Switch the controller on and follow the setup of the controller like suggested in the manual of the LED PIPE controller

1. Done!

Remarks:

You can daisy chain up to 1000 tubes on 1 controller. The DIP-switch settings on the individual LED PIPE have no effect in a setup with controller. For detailed explanations on how the controller works and how you can control your setup by DMX, please refer to the user manual for the LED PIPE controller.

INSTALLATION WITHOUT CONTROLLER:

The installation without controller is almost identical so please refer to points 1 to 3 above.

When no controller is connected, the first unit in the chain will act as the master: only use the DIP-switches on this master unit. The DIP-switch settings on the other (slave) LED PIPES have no effect.

PATTERN REPETITION

Dipswitch 1+2: used to choose after how many tubes the build-in patterns are repeated.

OFF ON

Patterns are repeated every 32 tubes.

OFF ON

Patterns are repeated every 16 tubes.

OFF ON

Patterns are repeated every 8 tubes.

OFF ON

Patterns are repeated every 4 tubes.

→ PATTERN PLAYBACK SPEED

Dipswitch 5+6: used to set the playback speed of the patterns in auto mode

OFF 11 ON 50

Playback speed is very slow.

OFF ON 30

Playback speed is slow.

OFF ON

Playback speed is fast.

OFF 1ON 58

Playback speed is very fast.

AUTO MODE (DIP3 = OFF - DIP4 = OFF)

DIP10 = switch ON for pattern inversion

OFF ON

Random mode (7 chases)

OFF 780 ON

Auto fade

OFF ON

One color in one way

OFF 78 ON

One color in two way

OFF ON

Multicolor in one way

OFF ON 32789

Multicolor in two way

OFF ON

Multicolor strobe

OFF 789 ON

Strobe in white light

SOUND MODE (DIP3 = ON - DIP4 = OFF)

DIP10 = switch ON for pattern inversion

Random mode (7 chases)

Color change by sound in two way chase

One color in one way

One color in two way

Multicolor in one way

Multicolor in two way

Color change by sound

Color change in strobe

dB MODE (DIP3 = OFF - DIP4 = ON)

DIP10 = switch ON for pattern inversion

Random mode (7 chases)

Multicolor chase light with red base color

Multicolor chase light with green base color

Multicolor chase light with blue base color

Multicolor chase light with black base color

VU-meter with green/yellow/red color

Multicolor VU-meter 1

Multicolor VU-meter 2

HOLD MODE (DIP3 = ON - DIP4 = ON)

DIP10 = not used

All tubes white

All tubes red

All tubes green

All tubes yellow

All tubes blue

All tubes purple

All tubes cyan

All tubes white

OPERATING INSTRUCTIONS

• Once connected to the mains the devices start running.
• You can also connect the units to the LED PIPE controller for extra functions and DMX-control. When used with the controller, please also check its user manual.
• Do not switch the unit on and off in short time intervals as this reduces the lamp life.
• Always unplug the unit when it is not used for a longer time or before replacing the bulb or start servicing.
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
• Important: Don't use the effect in the presence of persons suffering from epilepsy.

MAINTENANCE

• Make sure the area below the installation is free from unwanted persons during servicing.

During inspection the following points should be checked:

• All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation.
• When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
• The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected.

• The cleaning of external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics.

• Clean with a soft cloth using normal glass cleaning products.
  Always dry the parts carefully.

• Clean the external optics at least once every 30 days.

SPECIFICATIONS

Mains Input:

AC 230V, 50Hz

Power consumption:

18Watt

Number of LEDs:

144 pcs (48 red, 48 green, 48 blue)

Different LED sections:

16

Beam Angle:

120^

Life span of LEDs:

50000 ~ 100000 hours

Sound control:

Internal microphone

Size:

1000 × 62 × 100mm

Weight:

1.6kg

Every information is subject to change without prior notice

You can download the latest version of this user manual on our website: www.beglec.com
