USER MANUAL WHITE & BROWN MF600B WHITE & BROWN

m = 311 ;

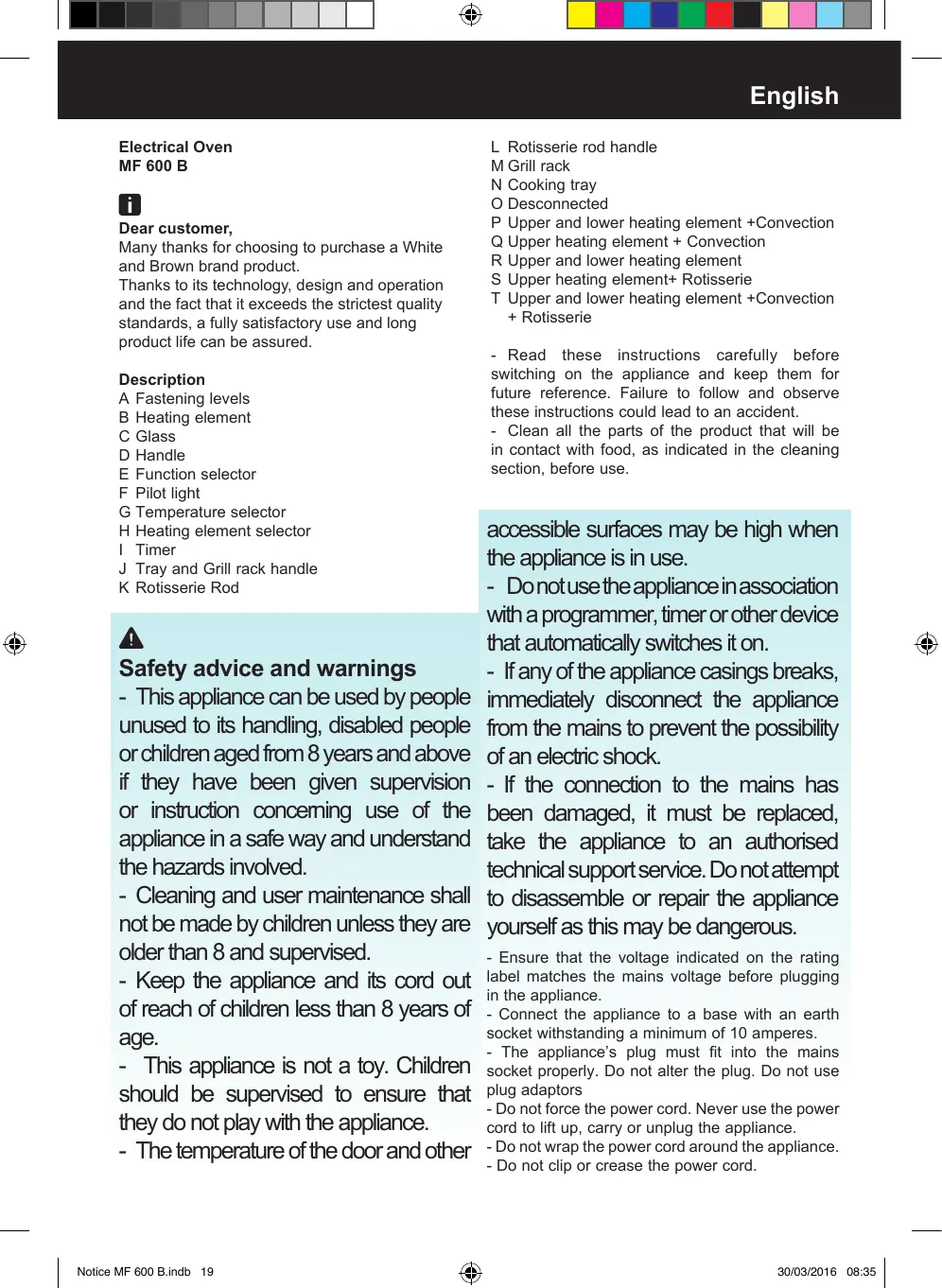

Many thanks for choosing to purchase a White and Brown brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Description

A Fastening levels
B Heating element
C Glass
D Handle
E Function selector
F Pilot light
G Temperature selector
H Heating element selector
I Timer
J Tray and Grill rack handle
K Rotisserie Rod

Safety advice and warnings

• This appliance can be used by people unused to its handling, disabled people or children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years of age.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• The temperature of the door and other

L Rotisserie rod handle
M Grill rack
N Cooking tray
O Disconnected
P Upper and lower heating element +Convection
Q Upper heating element + Convection
R Upper and lower heating element
S Upper heating element+ Rotisserie
T Upper and lower heating element +Convection + Rotisserie

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
• Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

accessible surfaces may be high when the appliance is in use.

• Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.

• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

• If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Do not clip or crease the power cord.

• Do not allow the power cord to come into contact with the appliance's hot surfaces.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not use the appliance if it has fallen on the floor with visible signs of damage, as it may cause electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• The appliance is not suitable for outdoor use.
• The appliance must be used and placed on a flat, stable surface.
• Keep the appliance away from flammable material such as textiles, cardboard or paper, etc.
• CAUTION: In order to prevent overheating do not cover the appliance.
• Ensure that neither the air access nor exit become either totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.
• Do not use or store the appliance outdoors.
• Do not touch the heated parts of the appliance, as it may cause serious burns.
• Do not touch the metal parts or the body of the appliance while in use, as it may cause burns.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the selectors do not work.
• Do not move the appliance while in use.
• Disconnect the appliance from the mains when not in use and before under taking any cleaning task.
• This appliance is for household use only, not professional, industrial use.
• This appliance should be stored out of reach of children and/or the disabled.
• Do not store the appliance in a vertical position.
• Do not store or transport the appliance if it is still hot.
• In order to reduce the risk of fire inside the appliance: on heating food in plastic or paper recipients, watch over the appliance in case of fire. If smoke appears, stop or disconnect the appliance and keep the door closed in order to reduce flames.
• Keep the inside of the oven clean to avoid the carbonising of left over food, which may damage the appliance.
• Do not use the appliance to dry pets or animals.

• Do not use the appliance to dry textiles of any kind.

• Do not use the inside of the oven for storage purposes.

• Use only utensils appropriate for ovens.
• Don't place heavy utensils or trays on the open door.
• CAUTION: do not heat up liquids or other foods in hermetic recipients as they may explode.
• CAUTION: if the door or the door catch is damaged the oven must not be used until repaired by a competent technician.
• CAUTION: Do not use the appliance if the glass is cracked or broken.
• CAUTION: Water condensation may appear on the surfaces and objects around this appliance.

Service:

• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

#

Installation

• Be sure to remove all packaging material from inside the appliance.
• Do not remove the support feet of the appliance.
• Do not cover or obstruct any of the openings of the appliance.
• The plug must be easily accessible so it can be disconnected in an emergency.

Instructions for use

Before use:

• Remove the appliance's protective film.
• Make sure that the entire product's packaging has been removed.
• Before using this product for the first time, it is advisable to test it without bread.
• Before using this product for the first time, it is advisable to test it without food.
• Before using the product for the first time, we recommend running it just with water.
• Before using the product for the first time it is advisable to boil water within, so as to remove all remaining dust and impurities.

• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

• Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.

• To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.
• Prepare the appliance according to the function you wish to use:

Use:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Select the appliance function desired.
• Turn the thermostat control to the desired temperature position.
  -Leave to heat up for 10 Minutes.
• During the appliance's use the pilot light (F) will come on and off automatically, indicating the heating elements are working, and therefore maintaining the desired temperature.
• In order to minimize the generation of acrilamida during the cooking process, avoid reaching dark brown colours on the foodstuffs.
• When the food is to your taste, remove it from the appliance with the help of a wooden spatula or similar heat resistant implement; do not use utensils that could damage the non-stick coating.
• After the selected time the appliance will switch off automatically.
• To stop the appliance manually once cooking put the timer selector at 0 positions.
• Always use the rod to remove the plate or the grill from the oven once it's still hot.
• Turn off the entire appliance selector.

How to bake:

• Place the removable rack into the desired position.
• Place the bake pan (with the food ready to be baked) on the wire rack.
• Shut the oven door
• Turn the timer dial to the desired cooking time.
• Turn the control knob to use the top heating with convection
• Turn the thermostat dial to the desired temperature
• After selected time, the appliance will switch off automatically

How to broil:

• Insert the removable wire rack with food and the all purpose pan.

• Keep the door half open
  -Turn the thermostat dial to the desired broiling time.

• After the selected time, the appliance will switch off automatically.

How to roast:

• Set the temperature control to 230^
• Turn the control knob to use the top &bottom heating.
• Place the food to be roasted on the back rack.
• Turn the timer control to the desired position. Bell will ring to signal the end of the roast cycle.
• After the selected time, the appliance will switch off automatically.

Rotisserie Function

e.g., to roast a chicken:

• Do not preheat the oven.
• Position the first butterfly bolt on the skewer and fix it in place using a screwdriver. Stick the spit through the middle of the chicken then position the second butterfly screw on the spit and fix it in place using a screwdriver.
• Place the frying pan below.
• Insert the spit by inserting the right end first then sliding it in to insert the left end.
• Start the spit turning by selecting the desired cooking mode and cooking time.
• Set the thermostat to the desired temperature (recommended temperature for a roast chicken: 210^ ). If the appliance gives off excessive smoke during cooking, lower the temperature.
• When cooking is finished, turn the thermostat and the timer back to 0.
• Remove the spit using the special handle, taking the necessary precautions to avoid possible burns: position the handle in the grooves.
• Gently lift the spit, sliding it to the right to release it and then take the skewer out completely.

CONVECTION

• This oven is equipped with an internal fan.

• This function, called convection cooking, allows the heat to be better distributed inside the oven. We recommend using this function for:

• Cooking and reheating two different dishes at the same time without mixing the flavours.

• cooking food more uniformly and make food more crunchy and fluffy.
• cooking food more quickly

- To use the Convection:

• Turn the convection selector on by setting the mode dial to the correct position

• To stop the fan function at any time, position the knob in the OFF position.

RECOMMENDATIONS TO OBTAIN OPTIMUM RESULTS FROM THE OVEN.

• Do not overload the oven. - Place food in the middle of the appliance insofar as this is possible.
• Open the door as little as possible during cooking to avoid loss of heat.
• Supervise cooking when trying new recipes.

RECOMMENDATIONS FOR COOKING

• During the food cooking process it is normal for a small amount of smoke to be produced.

• However, these smoke emissions can be reduced by following these recommendations:

• Do not cover the grill with foil as this causes smoke and splashing, preventing grease from draining off. It also prevents the correct circulation of air inside the oven, which may damage the appliance.

• Place a dish full of water in the oven. This can reduce smoke emissions.
• For the best results, defrost meat before cooking it.
• If the meat is very fatty, cut the excess fat off if necessary.
• If the fat starts to splatter during cooking, lower the temperature of the thermostat.
• In order to avoid an accumulation of fat that will inevitably cause unpleasant smoke to be given off, try to clean the oven after every use. To do this use a nonabrasive sponge with hot water.

Cleaning

• This oven is equipped with self-cleaning internal walls: from a cooking temperature of 200^ upwards, fat is eliminated.
• As a precaution, we recommend using a wet

sponge.
- Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
- Remove the grill and accessories.
- Use a wet cloth to clean the outside. For more resistant stains, use a non-abrasive solution or glass cleaning products. Rinse and then dry with a cloth.
- Never use metal scouring pads as these may damage the surface of the oven.
- The accessories may be cleaned normally in the same way as any other kitchen utensil.
- Clean the electrical equipment and the mains connection with a damp cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.
- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
- Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance
- Never submerge the appliance in water or any other liquid or place it under running water.
- This appliance has been designed to work in maximum safety. However, it's important to keep it clean and free of grease and particles of dirt.
- To clean the glass, use a special product for glass or a wet cloth. Dry with a cloth.

Anomalies and repair

• Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.
• For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

• This symbol means that surface could to get hot during the use

This appliance complies with Directive 2014/35/ EC on Low Voltage, Directive 2014/30/EC on Electromagnetic Compatibility, Directive 2011/65/ EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

Jaaaiiae 1 aaii jai jai jai jai

EU/2011/65 44444444444444444444444444444444444444444444444444444444444444444444444

ailllll llllllll 15 15

品

. 1200 1

Ailii ydiwl pliswiwl glilui

aaii aiae ayiey iay jay 45 jil yjy jll j jll jll jll

aall al

a b a b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b

a

Jnlll 1

aal 1s Jg Lg 1sle Jg 1sall

jilu jilu g jol uai jai gai bai y. dlls ay gai gai gai jai aae bai jilil sas gai sygill pabll abi

Aiiiai iaiiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaia

jlll lililililililililililililililililililililililililililililililililililililililililil

jglal alalal aalil 1 jai g jirnai gaiy qill cii jks no jld jilw o eo j

Aaiiia iiaiaing y jiljie jiljie jiljie jiljie jiljie jiljie jiljie

alall yla aall jy alil 11jll ay

j 1

1. l12a , l12b , l12c , l12d , l12e , l12f

1111 1

jss s s s s s s s s s s s s s s s s s s s s s s s s s s

y

aannnnnnae

p 1

alall

ailll llll lllllllll

yj 1000000000000000000000000000000000000000

jll 111: (aiaia 210: yall aal laiy jll aai jll aai jll aai

jlll jil

0 1

jogall gaiagaiailgaiial gwrall gglal aajll cblbllisil galsl galsll galsll galsll

J 1

Jd

1

.1jll 12121212121212121212121212121212121212121212121212121212121212

iia jia jia jia jia jia jia jia jia

S ADB = S COD + S_ BDO

1,2,3,4

aagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaa

. OFF 1

ailllll lllllllllllllllllll

jlll jlll jgjgslllll llll jglal

A 1

a jilal sloal g Jauwul wudia jzll li

y j 1

...glllglllllllllllllllllllllllllllllllllllllllll

Jaiy A ay aolal olal/ laiiial oil ciis jiee Jaoiye

Juaauii yj o jyLo ciui jayai

aaii aie gaiy alilg agalaiwpiic ie giygll jajlgl

glllall glll Jaaaiu uul jiaai jial ljaaiuui jiaill iis 1i

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

（）

iisla jy y jls i jai j jiaaiy

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

alaiaill jyll elibly lilu yll glc lla jzll J

jlll caiy yaiy aie plalb lyay jlyy, iaiyi jnil ciuyi icic bila

Cllgall jao yj gaiydl Cllgall gai jgi Jaiin

e jgi jn cai gaiial abc qil jaii jaiy

y

.

i 1

jll jll jll jll jll all j j

jglall jlaa all jlaa

jlll lai jia aai y 1

15

a

:JaiuiuLi ayjgl cibla

Jai jia jia jia jia jia jia jia

y

jglal

aalal aal alal aal alal alal alal alal alal alal alal

10 jj jjj jjj

Jusll Jusll jssll sll sll (F) sall ssll ssll jssll Jssll

aalalal alalal alalal

MF600B

12,34,58

i 1

J 100000000000000000000000000000000000000000

#

duu

juaic

S OBC = S COD + S BOC - S BOC

g

a

jusui juaic yuui liao

auiuall 8ol uulll jia

ol guo 11

ol guo liu jia

a

Jia

（20

S

aall 1

olgailglgglg

（）

A

B

C

D

E

F

G

H

1

J

K

L

M

N

0

P

Q

R

S

T

ailllll llll 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

aie 1

i 1

aalwaii jaiy gailai

aaii i aiaiiial aiai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaai i aiaii
