USER MANUAL INFOTOOL NERO

Copyright and Trademark Information The Nero InfoTool manual and all its contents are protected by copyright and are the property of Nero AG. All rights reserved. This manual contains material that is protected by internationally valid copyright. No part of this manual may be reproduced, transmitted or transcribed without the express written permission of Nero AG. Nero AG rejects any claims that transcend the clauses of the guarantee rights. Nero AG does not undertake any liability for the correctness of the content of the Nero InfoTool manual. The contents of the software supplied, as well as of the Nero InfoTool manual, may be changed without prior warning. All trade names and trademarks are the property of their respective owners. The trademarks mentioned here are named for information purposes only. Copyright © 2008 Nero AG andits licensors. All rights reserved. SW 4.99.6.0 inrofroor

3 Launching the Program 6

3.1 Starting Nero InfoTool via Nero StartS mart 6

4.1 Saving and printing the log 10

4.1.1 Saving the log 10

4.12 Printing the log 10

4.2 Refreshing the log 11

43 Changing the language 11 44 Verifying system requirements for Blue-ray and HD DVD 11 5 List of figures 12 6 Index 13 7 Contact 14 inrofroor Page 3

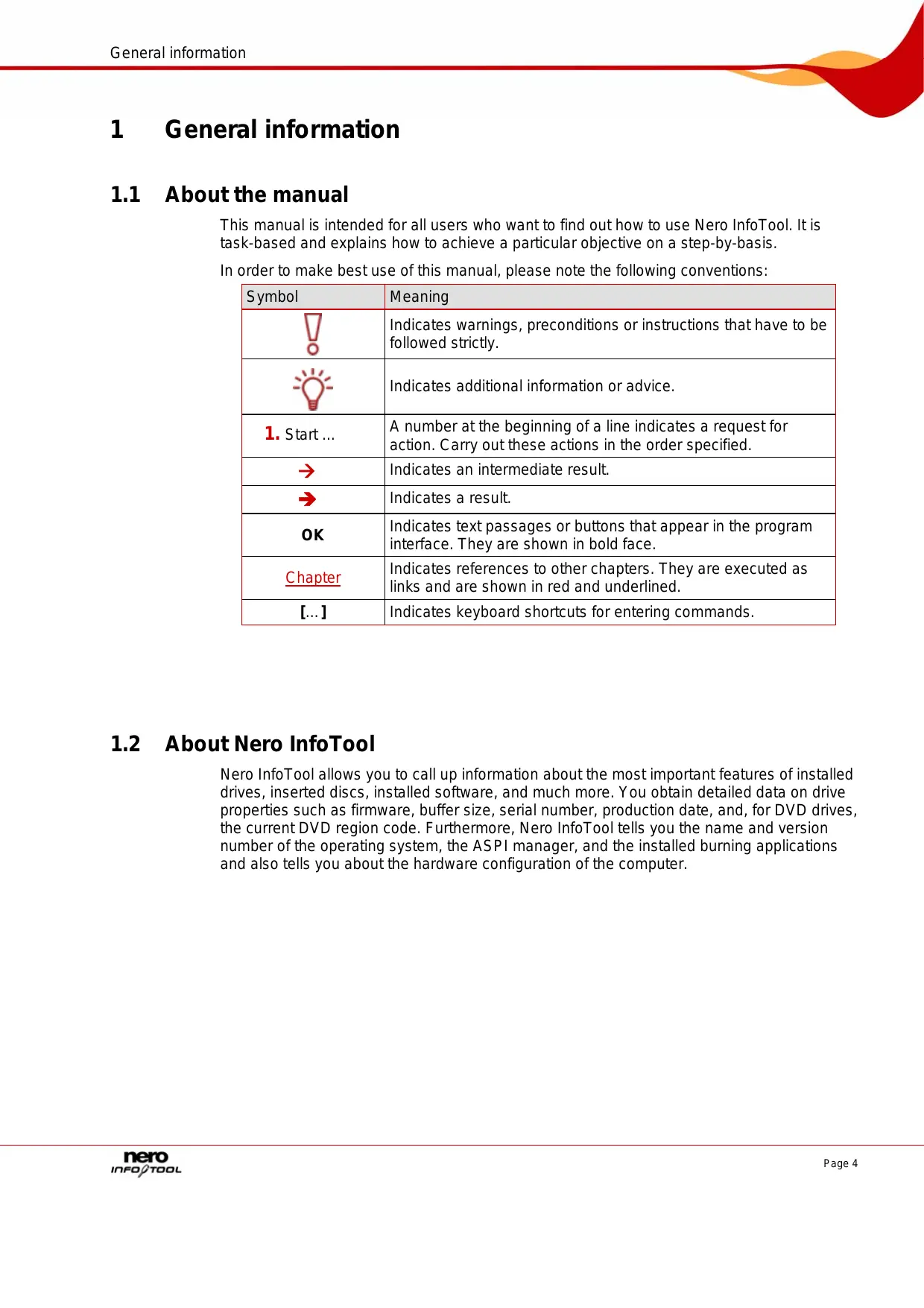

This manual is intended for all users who want to find out how to use Nero InfoTool. Itis task-based and explains how to achieve à particular objective on a step-by-basis. In order to make best use of this manual, please note the following conventions: Symbol Meaning Indicates warnings, preconditions or instructions that have to be followed strictly. Indicates additional information or advice. A number at the beginning of a line indicates a request for action. Carry out these actions in the order specified. Indicates an intermediate result. Indicates a result. Indicates text passages or buttons that appear in the program interface. They are shown in bold face. Indicates references to other chapters. They are executed as links and are shown in red and underlined. Indicates keyboard shortcuts for entering commandés.

1.2 About Nero InfoTool

Nero InfoTool allows you to call up information about the most important features of installed drives, inserted discs, installed software, and much more. You obtain detailed data on drive properties such as firmware, buffer size, serial number, production date, and, for DVD drives, the current DVD region code. Furthermore, Nero InfoTool tells you the name and version number of the operating system, the ASPI manager, and the installed burning applications and also tells you about the hardware configuration of the computer. inrofroor Page 4

2.1 System requirements

Nero InfoTool is installed together with the Nero Suite and its system requirements are the same. You can find more detailed information on the system requirements in the Nero QuickStart Guide. inrofroor Pages

Launching the Program 3 Launching the Program

3.1 Starting Nero InfoTool via Nero StartSmart

To start Nero InfoTool via Nero StartS mart, proceed as follows:

1. Click on the Nero StartSmart icon.

> The Nero StartSmart window opens.

2. Click the (@ button.

> The list of Nero applications is displayed. Welcome to De Pen | Nero StartSmart Complete your tasks quickly and easily

Aude Rpping Manage your projects Copy Dise step-by-step with the

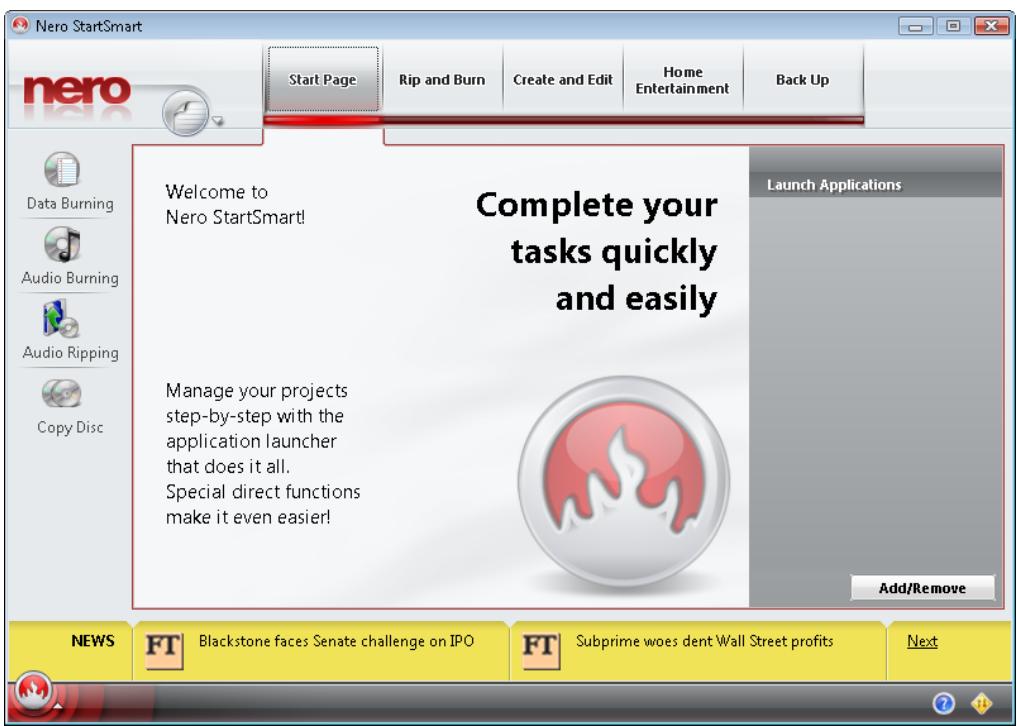

application launcher that does it all [ | Special direct functions | ] make it even easier \ Abb. 1: Nero StartSmart

3. Selectthe Nero InfoTool entry in the Tools list box.

> The Nero InfoTool window opens. > You have launched Nero InfoTool via Nero StartS mart. nero inrofroor Page6

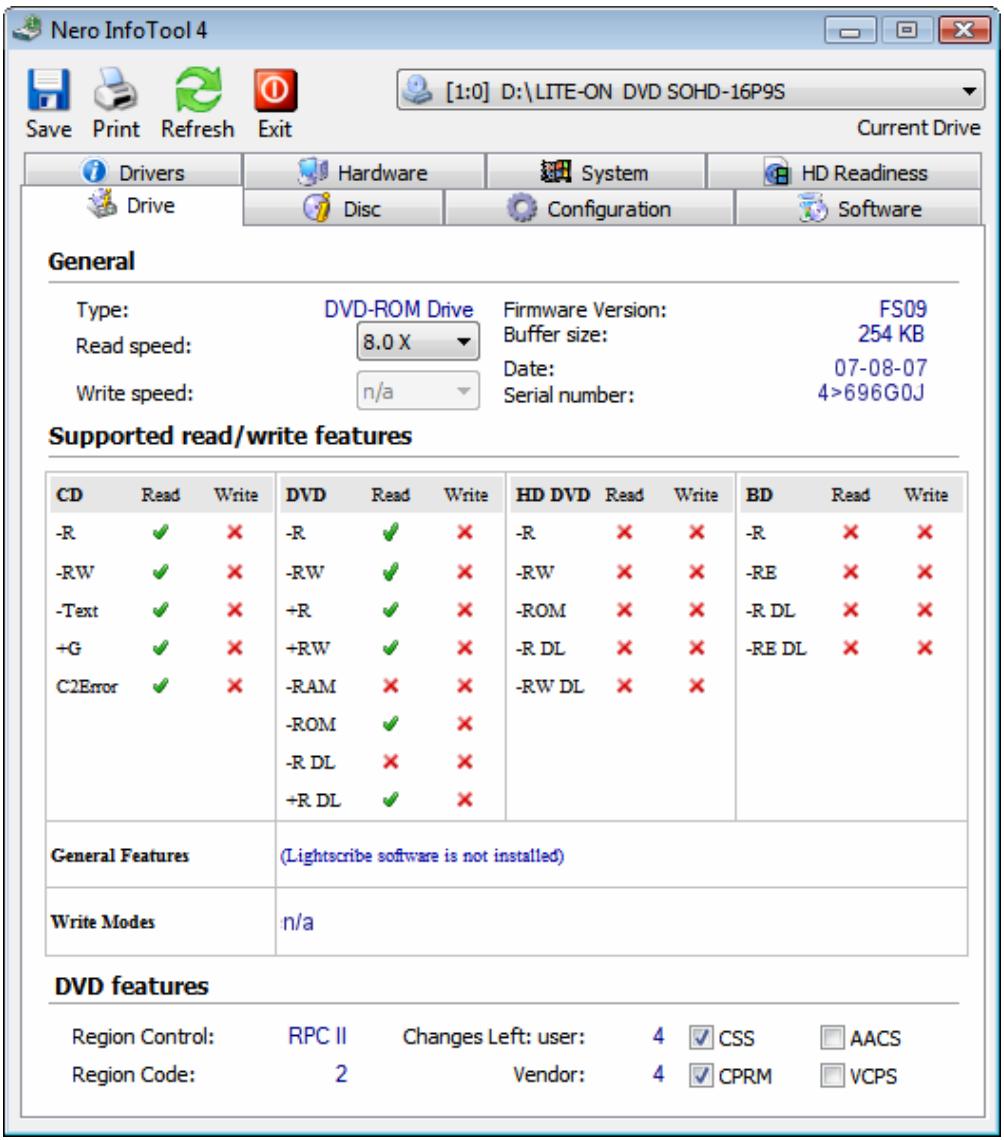

Nero InfoTool 4 Nero InfoTool 5 Nero InfoTool 4 Ts Hl e-) Le] & [1:0] D:\LITE-ON DVD SOHD-16P9S -| Save Print Current Drive | Hsystem | (@ HDReadiness | configuraton | 1) Software Type: DVD-ROM Drive Firmware Version: FS09 Read speed: Buffer size: 254 KB Date: 07-08-07 Write speed: n/a Serial number: 4>696G0J Supported read/write features CD Rex Write DVD Rex Write HDDVD Rex Write BD Red Write R Ca x |R Ca x |R x x OR * x RW 4 X [RW #4 x |rw XX RE x x Test x | 4 X |ROM OX X |RDL OX x + TX |2W 4 X |RDL XX |REDL X X C2Enœ # X |RAM X x |rw * x ROM x RDL OX x #RIDL x General Features (Lightscribe sofvrare is not installed) Write Modes n/a DVD features Region Control: RPC II Changes Left: user: 4 [Micss Maacs Region Code: 2 Vendor: 4 [Wicru lvcps Fig. 2: Nero InfoTool window; Drive tab The following setting options are available in the Nero InfoTool window: Drive list box Displays all connected recorders for selection. Opens the Nero InfoTool - Save/Print window and saves the Save bution log generated by Nero InfoTool. Print button Opens the Nero InfoTool - Save/Print window and prints the log generated by Nero InfoTool. Refresh button Refreshes the log generated by Nero InfoTool. Options button Sets the language of the program and the log. Exit button Closes Nero InfoTool. inrofroo Page 7

Nero InfoTool Drive tab General area Displays general information about the installed recorder. Supported read features area Displays the formats that the installed recorder can read. Supported write features area Displays the formats that the installed recorder can write. DVD features area Displays any additional DVD burning features of the recorder. Disc tab General area Displays general information about the inserted disc, such as the type or capacity. Extended Information area Displays extended information about the inserted disc, such as the number of tracks and sessions on the CD. Content area Displays information about the contents of the inserted disc, such as the name or creation date ofthe disc. Configuration tab Selection tree Displays the driver(s) of the selected main entry when it is expanded. Driver information area Displays information about the driver selected in the tree. Software tab : Displays the version numbers of the installed Nero Software list applications. Drivers tab Drivers area Displays all of the software drivers installed on the computer. Video Codecs Displays all of the video codecs installed on the computer. Audio Codecs Displays all of the audio codecs installed on the computer. Hardware tab System area Displays information about the computer hardware. Peripherals area Displays information about the computer's peripherals, such as audio output devices. System tab System information area Displays information about the installed operating system, DirectX version, and browser. inrofroor Page 8

Nero InfoTool HD Readiness tab Verify the system requirements drop- down menu Displays the tasks for which the system requirements are verified. Your system display area Displays a table that lists the tested components, information about whether an upgrade is required, and the details of the tested components. Link display area Displays whether system upgrades are required and provides a link to the system requirements list. Your Nero version display area Displays whether the current Nero configuration supports the task that you selected in the drop-down menu. inrofroor Page 9

4.1 Saving and printing the log

When you open Nero InfoTool as described in the chapter 'Launching the Program', a log is automatically generated. You can save or print this log.

4.1.1 Saving the log

To save the log, proceed as follows:

1. To save the log, click on the Save button.

> The Nero InfoTool - Save/Print window is opened.

2. If you do not wish to include information from certain areas:

1. Uncheck the boxes for the areas that you wish to exclude in the check box area ofthe

Nero InfoTool - Save/Print window.

2. To see what the log will look like without the unchecked areas, click on the Preview

button. > The log preview is refreshed.

3. Click on the Save button.

> The Save As window is opened.

4. Selectthe folder where you want to save the log.

5. Enter the name to save the log with in the File name text box.

> You have saved the log as a text file.

4.1.2 Printing the log

To printthe log, proceed as follows:

1. To printthe log, click on the Print button.

> The Nero InfoTool - Save/Print window is opened.

2. If you do not wish to include information from certain areas:

1. Uncheck the boxes for the areas that you wish to exclude in the check box area ofthe

Nero InfoTool - Save/Print window.

2. To see what the log will look like without the unchecked areas, click on the Preview

button. > The log preview is refreshed.

3. Click on the Print button.

> The Print window is opened.

4. Apply the desired print settings and then click on the Print button.

> You have printed the log. inrofroor Page 10

4.2 Refreshing the log

To refresh the log, proceed as follows:

1. Click the Refresh log button.

> The Nero InfoTool - Retrieving Information window is opened. Y ou have refreshed the log. 43 Changing the language To change the language of Nero InfoTool and the log, proceed as follows:

1. Click on the Options button.

> The Options window is opened.

2. Select the desired Language from the drop-down menu and confirm your selection.

3. Restart Nero InfoTool to apply the language change.

> You have changed the language. 44 Nerifying system requirements for Blue-ray and HD DVD With Nero InfoTool you can check your system to see if it supports Blu-ray Discs and HD DVDs. To display any necessary upgrades for Blu-ray Disc support, proceed as follows:

1. Click the HD Readiness tab.

2. Selectthe desired task from the Verify the system requirements drop-down menu.

> Depending on the selected entry, the tested components, information about any required upgrades, and the details of the tested components are displayed in the area below the Verify the system requirements list box. The display area on the left indicates whether your system needs to be upgraded for the selected task. A link to the system requirements for the selected task is provided here. The Your Nero version display area provides information about whether the current Nero configuration supports the selected task. inrofroor Page ll
