USER MANUAL DB-1 AKG
The double-bass bridge DB-1 was designed in co-operation with musicians on the stage and in the studio, for direct sound take-off from a double-bass. The bridge offers professional acoustic transmission quality and guarantees unrestricted freedom of movement on the stage, since the constant alignment of the instrument to an external microphone is no longer necessary. Furthermore, because tripods and adaptors are no longer needed, the work involved in transport and in preparing the stage is also reduced.
Operation
The double-bass bridge DB-1 is used like a normal bass bridge. The transmitting system must be supplied with universal phantom supply (9-25 V to DIN 45596), either from the mixing console or by means of an external phantom supply device (AKG B18; B29 for DB-1 B-lock).

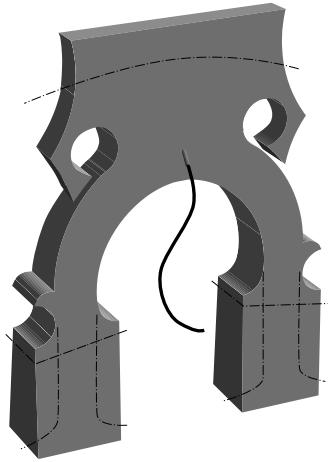

Installation
The double-bass bridge DB-1 is fitted and installed on the instrument in the same way as a conventional bridge without an integrated sound transmission system. If you do not possess the necessary tools and specialist knowledge, we recommend you have the bridge installed by your violin-maker in the usual way. Care must simply be taken that the lead is not kinked or damaged. In addition, the slots for the strings should on no account extend past the marked line, otherwise the sound transmitting system will be damaged.
The bridge has adequate material in reserve so that it can be adapted for all the usual string arrangements.
Specifications
| Type: | vibration pickup |
| Frequency Range: | 5-5.000 Hz |
| Sensitivity at 1000 Hz: | 2.5 mV/ms-2 |
| Electrical Impedance at 1000 Hz: | 200 Ω |
| Recommended Load Impedance: | ≥ 1000 Ω |
| Maximum SPL for 1 %/3 % T.H.D.: | 130 dB/138 dB SPL |
| Equivalent Noise Level: | 14 dB-A |
| Powering DB-1/DB-1 B-lock: | 9-52 V Phantom Power/B 29 battery parer supply |
| Current Consumption: | approx. 2.2 mA |
| Environment: | temperature range: 0°C to +45°C, R. H. at +20°C: 70 % |
| Connector DB-1/DB-1 B-lock: | 3-pin XLR/1/8" mono jack plug |
| Wiring DB-1/DB-1 B-lock: | Pin 1: ground, Pin 2: audio (inphase), Pin 3: audiojack: tip: audio inphase, sleeve: ground |
| Case Material: | wood (maple) |
| Size: | 200 x 145 mm (8" x 5.8") |
| Cable Length: | 1.5 m (5 ft.) |
| Net Weight: | 272 g (9.9 oz.) |
This product conforms to EN 50 082-1

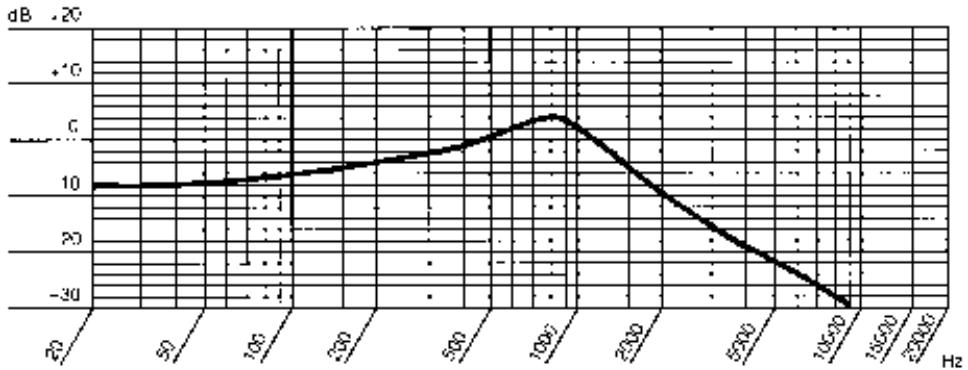

Frequency Response:
