Hardware Setup IP35 Pro Motherboard Socket 775 User’s Manual BIOS Setup FSB 1333 MHz Dual PCI-E X16 Slots Dual Gigabit LAN 6x Internal, 2x External SATA 3Gb/s Connectors USB 2.0 / IEEE 1394 7.1-Channel HD Audio Multilingual QIG Dual Channel DDR2 800 Driver & Utility Intel P35 / ICH9R abit uGuru™ Technology External CMOS Clearing Switch Quick Power & Reset Button Vista Premium HW Ready Appendix abit Silent OTES™ Technology About this Manual: This user’s manual contains all the information you may need for setting up this motherboard. To read the user’s manual of PDF format (readable by Adobe Reader), place the “Driver & Utility CD” into the CD-ROM drive in your system. The auto-run screen will appear, click the “Manual” tab to enter its submenu. If not, browse the root directory of the CD-ROM via the File Manager, and double click the “AUTORUN” file. IP35 Pro User’s Manual English + Multilingual QIG P/N: 4310-0000-89 Rev. 2.00, May 2007 Copyright and Warranty Notice The information in this document is subject to change without notice and does not represent a commitment on part of the vendor, who assumes no liability or responsibility for any errors that may appear in this manual. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular part of this document. In no event shall the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising from any defect or error in this manual or product. Product names appearing in this manual are for identification purpose only and trademarks and product names or brand names appearing in this document are the property of their respective owners. This document contains materials protected under International Copyright Laws. All rights reserved. No part of this manual may be reproduced, transmitted or transcribed without the expressed written permission of the manufacturer and authors of this manual. If you do not properly set the motherboard settings, causing the motherboard to malfunction or fail, we cannot guarantee any responsibility. The Following Information is Only for EU-member States: Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE): The use of the symbol indicates that this product may not be treated as household waste. By Ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be cause by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

• Supports FSB 1333MHz Chipset
• Intel P35 / ICH9R Memory
• 4x 240-pin DIMM slots support maximum memory capacity up to 8GB.
• Supports Dual Channel DDR2 800/667 Un-buffered Non-ECC memory. LAN
• Onboard Dual Gigabit LAN Controller Audio
• Onboard 7.1-Ch HD Audio Codec
• Supports S/PDIF In/Out
• HDMI Audio Header Ready Serial ATA

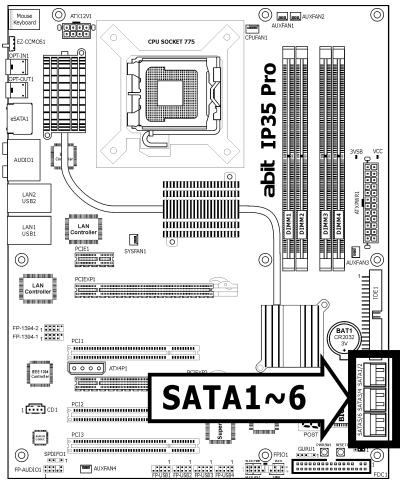

• 6x Internal SATA 3Gb/s connectors offered by Intel ICH9R support Intel Matrix Storage Tech (AHCI & RAID 0, 1, 5, and 10).
• 2x External SATA 3Gb/s connectors offered by JMicron JMB363 support RAID 0, 1, and JBOD. IEEE 1394
• Supports 2x IEEE 1394a ports at 400Mb/s transfer rate. Expansion Slots
• 1x PCI-E X16 Slot (X16 Bandwidth)

• 3x PCI Slots Internal I/O Connectors

PS/2 Keyboard Connector PS/2 Mouse Connector External CMOS Clearing Switch Optical S/PDIF In Connector Optical S/PDIF Out Connector eSATA Connectors 7.1-Ch Audio Connector USB 2.0 Connectors RJ-45 Gigabit LAN Connectors abit Engineered

• 100% Lead-free Process and RoHS Compliant Miscellaneous
• ATX Form Factor (305mm x 245mm)
• Vista Premium HW Ready Specifications and information contained herein are subject to change without notice. IP35 Pro 1-1

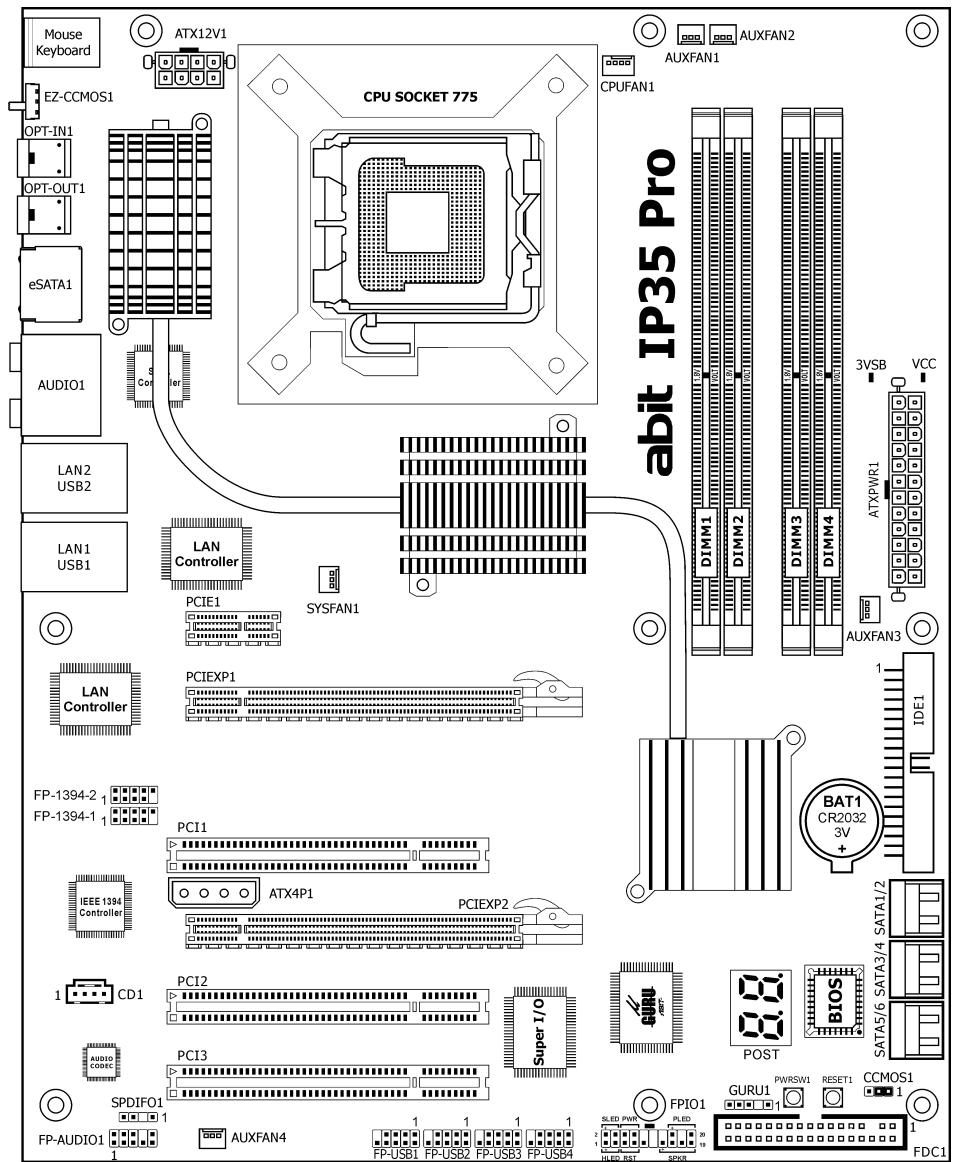

Choose a chassis big enough to install this motherboard.

As some features for this motherboard are implemented by cabling connectors on the motherboard to indicators and switches or buttons on the chassis, make sure your chassis supports all the features required.

If there is a possibility of adopting some more hard drives, make sure your chassis has sufficient power and space for them.

Most chassis have alternatives for I/O shield located at the rear panel. Make sure the I/O shield of the chassis matches the I/O port configuration of this motherboard. You can find an I/O shield specifically designed for this motherboard in its package.

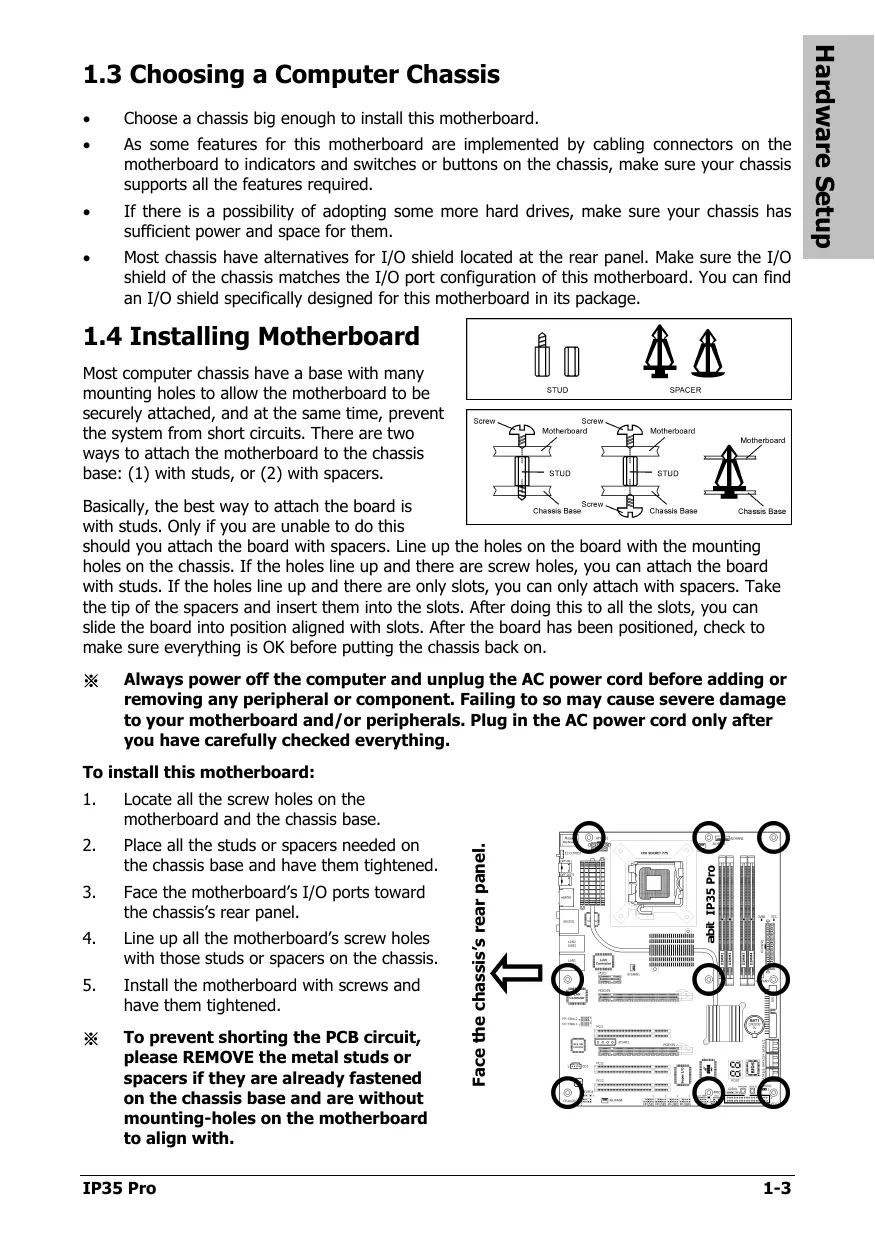

1.4 Installing Motherboard

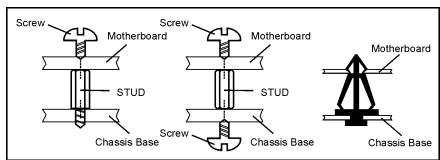

Most computer chassis have a base with many mounting holes to allow the motherboard to be securely attached, and at the same time, prevent the system from short circuits. There are two ways to attach the motherboard to the chassis base: (1) with studs, or (2) with spacers. Basically, the best way to attach the board is with studs. Only if you are unable to do this should you attach the board with spacers. Line up the holes on the board with the mounting holes on the chassis. If the holes line up and there are screw holes, you can attach the board with studs. If the holes line up and there are only slots, you can only attach with spacers. Take the tip of the spacers and insert them into the slots. After doing this to all the slots, you can slide the board into position aligned with slots. After the board has been positioned, check to make sure everything is OK before putting the chassis back on.

Always power off the computer and unplug the AC power cord before adding or removing any peripheral or component. Failing to so may cause severe damage to your motherboard and/or peripherals. Plug in the AC power cord only after you have carefully checked everything. Locate all the screw holes on the motherboard and the chassis base.

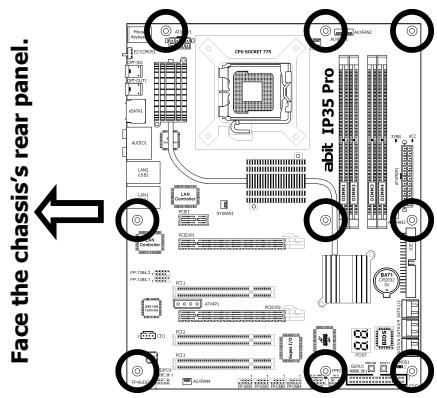

Place all the studs or spacers needed on the chassis base and have them tightened.

Face the motherboard’s I/O ports toward the chassis’s rear panel.

Line up all the motherboard’s screw holes with those studs or spacers on the chassis.

Install the motherboard with screws and have them tightened.

To prevent shorting the PCB circuit, please REMOVE the metal studs or spacers if they are already fastened on the chassis base and are without mounting-holes on the motherboard to align with. IP35 Pro Face the chassis’s rear panel. To install this motherboard:

1.3 Choosing a Computer Chassis

For a 2-pin jumper, plug the jumper cap on both pins will make it CLOSE (SHORT). Remove the jumper cap, or plug it on either pin (reserved for future use) will leave it at OPEN position. SHORT OPEN OPEN Pin 1~2 SHORT Pin 2~3 SHORT For 3-pin jumper, pin 1~2 or pin 2~3 can be shorted by plugging the jumper cap in.

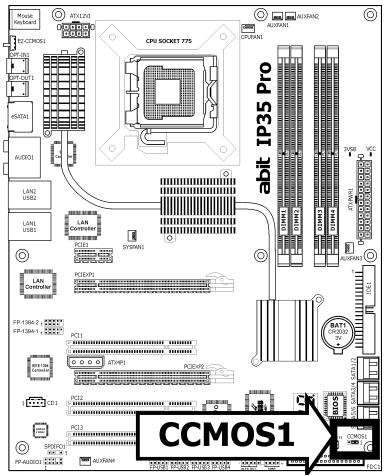

1.5.1 CMOS Memory Clearing Header and Backup Battery

The time to clear the CMOS memory occurs when (a) the CMOS data becomes corrupted, (b) you forgot the supervisor or user password preset in the BIOS menu, (c) you are unable to boot-up the system because the CPU ratio/clock was incorrectly set in the BIOS menu, or (d) whenever there is modification on the CPU or memory modules. This header uses a jumper cap to clear the CMOS memory and have it reconfigured to the default values stored in BIOS.

Pins 1 and 2 shorted (Default): Normal operation.

Pins 2 and 3 shorted: Clear CMOS memory. To clear the CMOS memory and load in the default values:

Power off the system.

Set pin 2 and pin 3 shorted by the jumper cap. Wait for a few seconds. Set the jumper cap back to its default settings --- pin 1 and pin 2 shorted.

Power on the system.

For incorrect CPU ratio/clock settings in the BIOS, press <Del> key to enter the BIOS setup menu right after powering on system.

Set the CPU operating speed back to its default or an appropriate value.

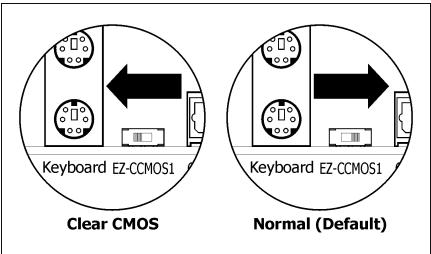

Another easy way to clear the CMOS memory can be done by switching “EZ-CCMOS1”, see the section of “Connecting Rear Panel I/O Devices” in this manual for detail. The C.C. POST Code appears when either the external “EZ-CCMOS1” switch or the internal “CCMOS1” jumper is not set to its normal position. 1-4 IP35 Pro

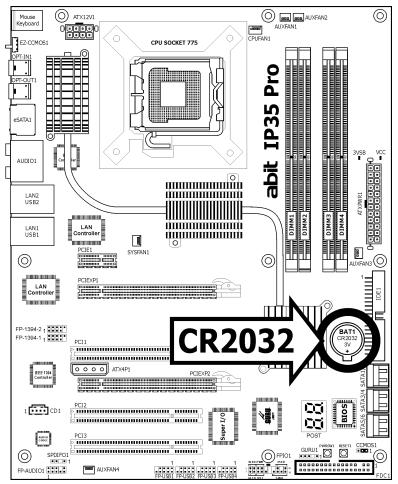

An onboard battery saves the CMOS memory to keep the BIOS information stays on even after disconnected your system with power source. Nevertheless, this backup battery exhausts after some five years. Once the error message like “CMOS BATTERY HAS FAILED” or “CMOS checksum error” displays on monitor, this backup battery is no longer functional and has to be renewed. To renew the backup battery:

Power off the system and disconnect with AC power source.

Remove the exhausted battery.

Insert a new CR2032 or equivalent battery. Pay attention to its polarity. The “+” side is its positive polarity.

Connect AC power source and power on the system.

Danger of explosion may arise if the battery is incorrectly renewed.

Renew only with the same or equivalent type recommended by the battery manufacturer.

Dispose of used batteries according to the battery manufacturer’s instructions. IP35 Pro 1-5 Hardware Setup CMOS Backup Battery:

1.6 Connecting Chassis Components

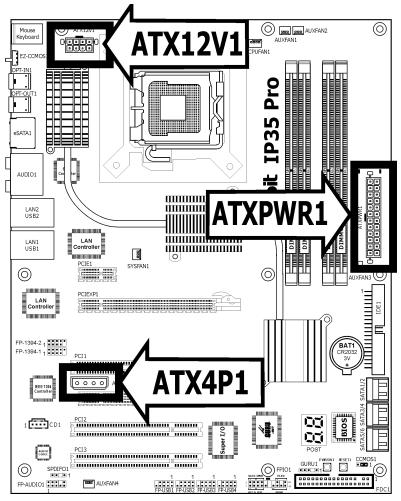

1.6.1 Power Connectors

These connectors provide the connection from an ATX12V power supply. As the plugs from the power supply fit in only one orientation, find the correct one and push firmly down into these foolproof-designed connectors. For a fully configured system, we recommend that you use a power supply of ATX12V 2.0 (or newer) specification compliant and of providing minimum 400W power output capability. For a fully configured system with two PCI Express X16 cards installed, a power supply with minimum 500W or more power output is recommended.

The following motherboard photos are served for DEMO only, and may not be the same type or model as the one described in this user’s manual. [ATXPWR1]: 24-pin power connector You may connect either a 20-pin (ATX12V 1.3) or 24-pin (ATX12V 2.0) power source. However, it is recommended to connect the 24-pin ATX12V power source to meet the 240VA protection limits. Plugged from a 24-pin ATX12V power. Plugged from a 20-pin ATX12V power. Plugged from a 4-pin ATX12V power. Plugged from an 8-pin EPS12V power. [ATX12V1]: 8-pin power connector This connector supplies +12V power to CPU. You may connect either a 4-pin ATX12V or an 8-pin EPS12V power source. However, it is recommended to connect the 8-pin EPS12V power source to meet the 240VA protection limits. [ATX4P1]: Auxiliary 12V power connector This connector provides an auxiliary power source for devices added on PCI Express slots. 1-6 IP35 Pro Hardware Setup

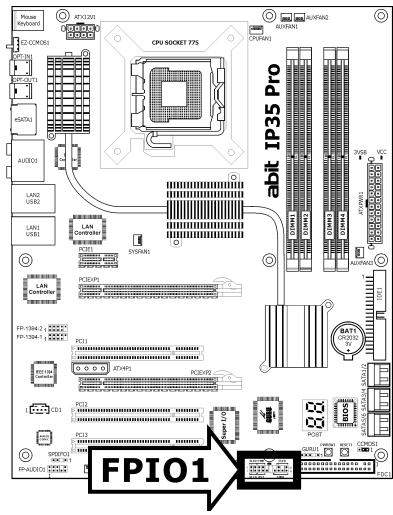

1.6.2 Front Panel Switches & Indicators Headers

This header is used for connecting switches and LED indicators on the chassis front panel. Watch the power LED pin position and orientation. The mark “+” align to the pin in the figure below stands for positive polarity for the LED connection. Please pay attention when connecting these headers. A wrong orientation will only result in the LED not lighting, but a wrong connection of the switches could cause system malfunction. HLED (Pin 1, 3): Connects to the HDD LED cable of chassis front panel. RST (Pin 5, 7): Connects to the Reset Switch cable of chassis front panel. SPKR (Pin 13, 15, 17, 19): Connects to the System Speaker cable of chassis. SLED (Pin 2, 4): Connects to the Suspend LED cable (if there is one) of chassis front panel. PWR (Pin 6, 8): Connects to the Power Switch cable of chassis front panel. PLED (Pin 16, 18, 20): Connects to the Power LED cable of chassis front panel.

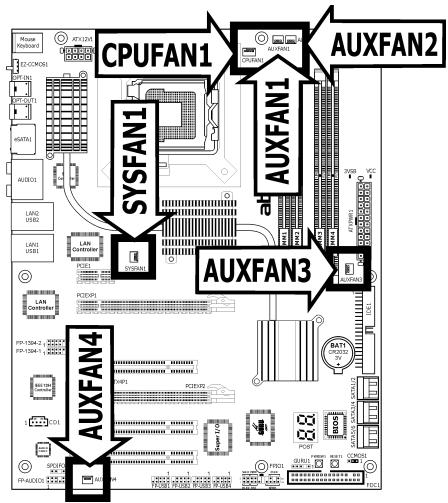

1.6.3 FAN Power Connectors

These connectors each provide power to the cooling fans installed in your system.

CPUFAN1: CPU Fan Power Connector

AUXFAN1~4: Auxiliary Fan Power Connector

Either a 3-pin or 4-pin CPU cooling fan connected to the “CPUFAN1” connector is still capable of having its fan speed controlled. Please refer to the BIOS setup route: “PC Health Status” “ABIT FanEQ Control” “CPU FAN Type” to select the one of your own.

These fan connectors are not jumpers. DO NOT place jumper caps on these connectors. IP35 Pro 1-7

1.7 Installing Hardware

DO NOT scratch the motherboard when installing hardware. An accidental scratch of a tiny surface-mount component may seriously damage the motherboard.

In order to protect the contact pins, please pay attention to these notices:

1. A maximum 20 cycles of CPU installation is recommended.

2. Never touch the contact pins with fingers or any object.

3. Always put on the cap when the CPU is not in use.

1.7.1 CPU Socket 775

The installation procedures vary with different types of CPU fan-and-heatsink assembly. The one shown here is served for demo only. For detailed information on how to install the one you bought, refer to its installation guidelines.

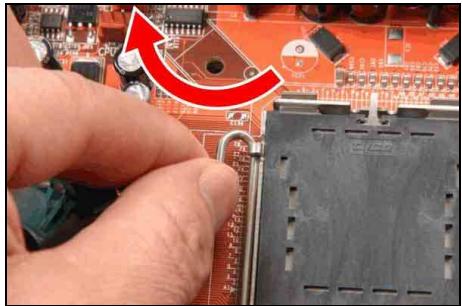

1. Place the board so that the lever-hook of

the socket is on your left side. Use your left thumb and forefinger to hold the lever hook, pull it away from the retention tab. Rotate the lever to fully open position.

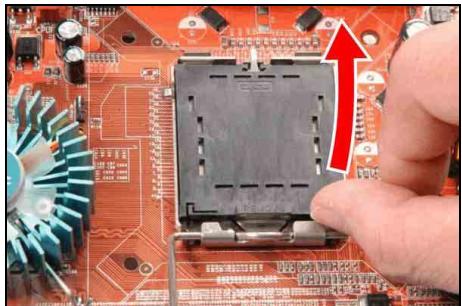

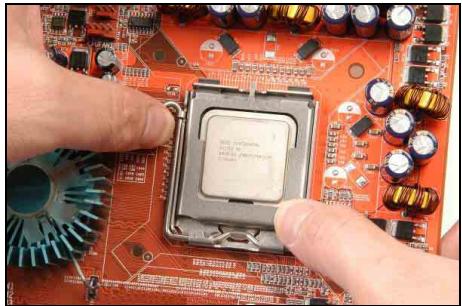

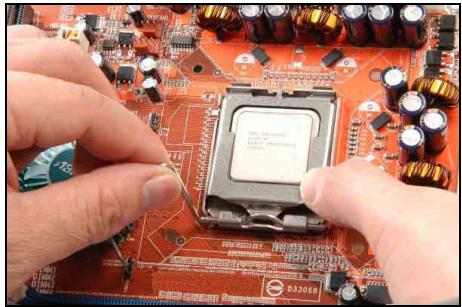

2. Use your right-thumb to raise the load

plate. Lift it up to fully open position. 1-8

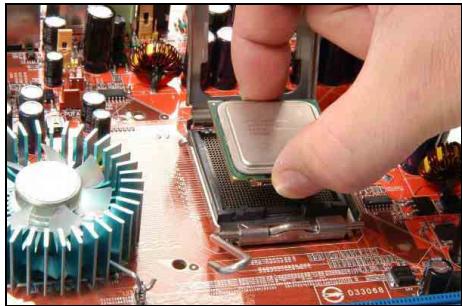

3. Use your right thumb and forefinger to

grasp the CPU package. Be sure to grasp on the edge of the substrate, and face the Pin-1 indicator toward the bottom-left side. Aim at the socket and place the CPU package vertical down into the socket.

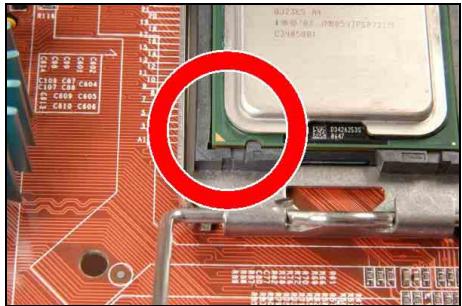

4. Visually inspect if the CPU is seated well

into the socket. The alignment key must be located in the notch of package. IP35 Pro Hardware Setup

5. Use your left hand to hold the load plate,

and use your right thumb to peel the cap off.

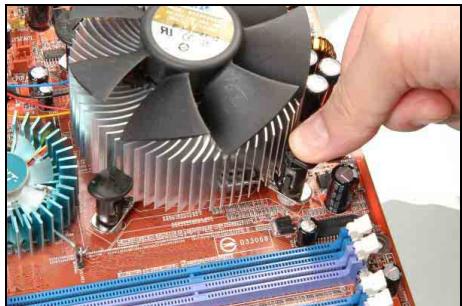

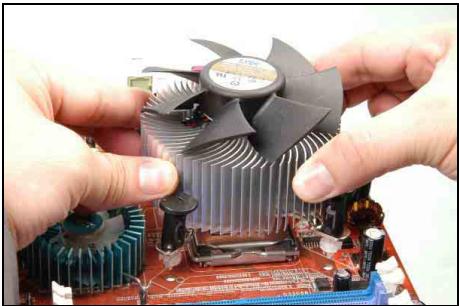

8. Place the heatsink and fan assembly onto

the socket. Align the four fasteners toward the four mounting holes on the motherboard. The cap plays an important role in protecting contact pins. In order to prevent bent pin, PUT ON the cap after operation or testing.

9. Press each of the four fasteners down

into the mounting holes. Rotate the fastener clock-wise to lock the heatsink and fan assembly into position.

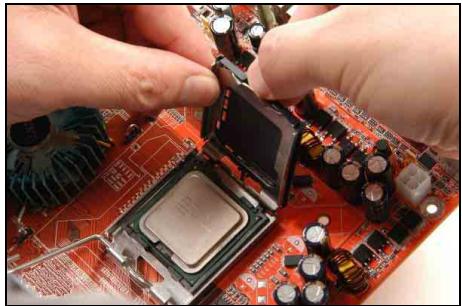

6. Lower the plate onto the CPU package.

Engage the load lever while gently pressing down the load plate.

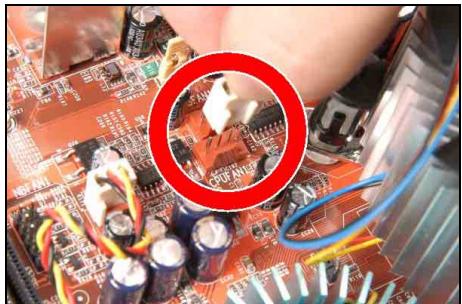

10. Attach the four-pin power plug from the

heatsink and fan assembly to the CPU FAN connector.

7. Secure the lever with the hook under

A higher fan speed will be helpful for better airflow and heat-dissipation. Nevertheless, stay alert to not touch any heatsink since a high temperature generated by the working system is still possible. IP35 Pro 1-9

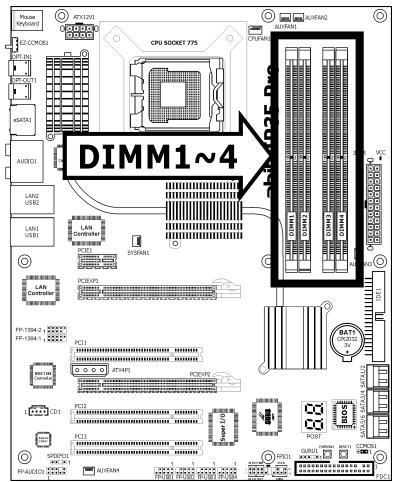

1.7.2 DDR2 Memory Slots

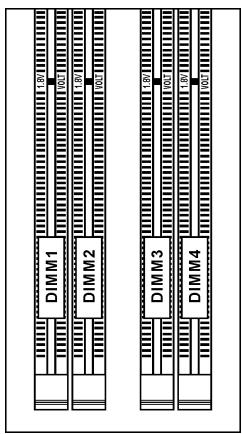

To reach the performance of Dual Channel DDR2, the following rules must be obeyed:

For a 2-DIMM dual-channel installation: Populate DIMM modules of the same type and size on slots [DIMM1]+[DIMM3], or slots [DIMM2]+[DIMM4].

For a 4-DIMM dual-channel installation: Populate 2 DIMM modules of the same type and size on slots [DIMM1]+[DIMM3], and another 2 DIMM modules of the same type and size on slots [DIMM2]+[DIMM4].

[DIMM1] and [DIMM3] slots are made of the same color. [DIMM2] and [DIMM4] are made of another same color. Usually there is no hardware or BIOS setup requires after adding or removing memory modules, but you will have to clear the CMOS memory first if any memory module related problem occurs. To install system memory:

Power off the computer and unplug the AC power cord before installing or removing memory modules.

Locate the DIMM slot on the board.

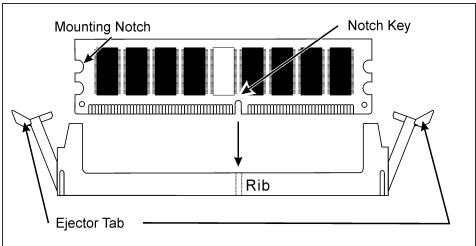

Hold two edges of the DIMM module carefully, keep away from touching its connectors.

Align the notch key on the module with the rib on the slot.

Firmly press the module into the slots until the ejector tabs at both sides of the slot automatically snap into the mounting notch. Do not force the DIMM module in with extra force as the DIMM module only fits in one direction.

Static electricity can damage the electronic components of the computer or optional boards. Before starting these procedures, ensure that you are discharged of static electricity by touching a grounded metal object briefly. 1-10 IP35 Pro This motherboard provides dual PCI Express X16 slots for one or two graphics cards installation of graphics cards that comply with PCI Express specifications. One PCI Express graphics card installation: Insert your PCI Express graphics card into slot [PCIEXP1].

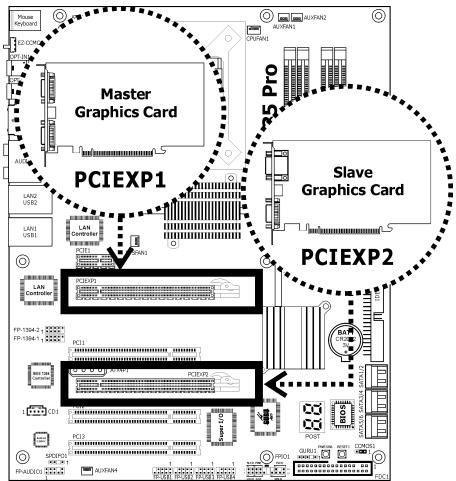

Do not install only one PCI Express graphics card on slot [PCIEXP2], for such an act will pull its speed down to x4 only. Two PCI Express graphics cards installation: Install the master graphics card into slot [PCIEXP1]. Install the slave graphics card into slot [PCIEXP2].

Both the graphics cards must be of the same GPU family.

Make sure your power supply is sufficient to provide the minimum power required. (For a fully configured system with two PCI Express X16 cards installed, a power supply with minimum 500W or more power output is recommended.)

Refer to the instruction guide that came with the graphics card on how to run its dual display mode. IP35 Pro 1-11 Hardware Setup

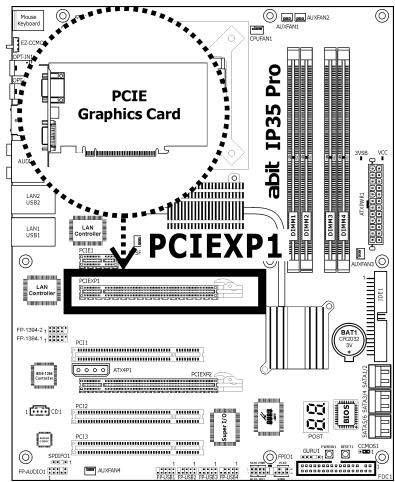

1.7.3 PCI Express X16 Add-on Slots (Install Graphics Card)

1.8 Connecting Peripheral Devices

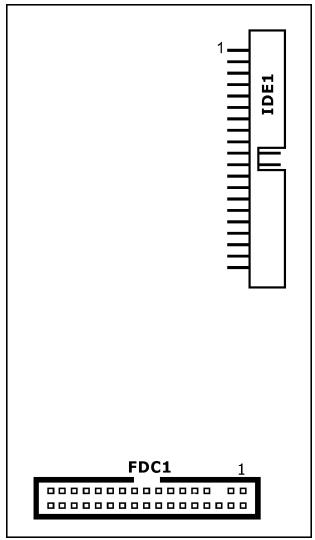

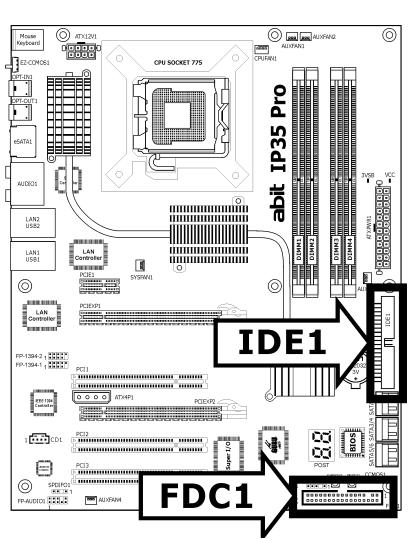

1.8.1 Floppy and IDE Disk Drive Connectors

The FDC1 connector connects up to two floppy drives with a 34-wire, 2-connector floppy cable. Connect the single end at the longer length of ribbon cable to the FDC1 on the board, the two connectors on the other end to the floppy disk drives connector. Generally you need only one floppy disk drive in your system.

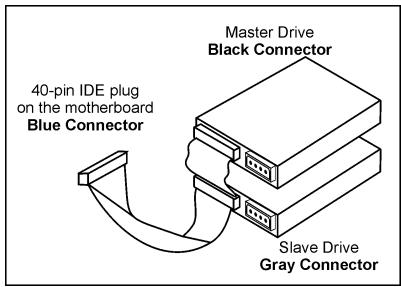

The red line on the ribbon cable must be aligned with pin-1 on both the FDC1 port and the floppy connector. Each of the IDE port connects up to two IDE drives at Ultra ATA/100 mode by one 40-pin, 80-conductor, and 3-connector Ultra ATA/66 ribbon cables. Connect the single end (blue connector) at the longer length of ribbon cable to the IDE port of this board, the other two ends (gray and black connector) at the shorter length of the ribbon cable to the connectors of your hard drives.

1-12 Make sure to configure the “Master” and “Slave” relation before connecting two drives by one single ribbon cable. The red line on the ribbon cable must be aligned with pin-1 on both the IDE port and the hard-drive connector. IP35 Pro Each SATA connector serves as one single channel to connect one SATA device by SATA cable. To connect SATA device:

Attach either end of the signal cable to the SATA connector on motherboard. Attach the other end to the SATA device.

Attach the SATA power cable to the SATA device and connect the other end from the power supply.

The motherboard in this photo is served for DEMO only, and may not be the same type or model as the one described in this user’s manual. IP35 Pro 1-13 Hardware Setup

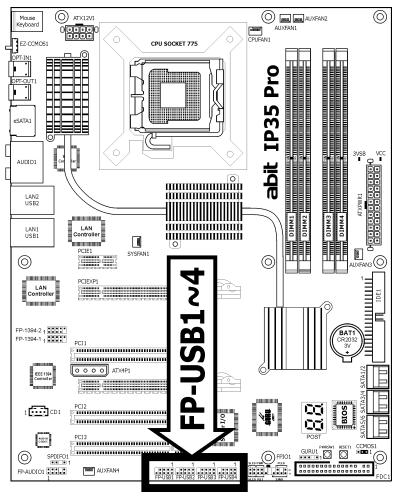

Each header supports 2x additional USB 2.0 ports by connecting bracket or cable to the rear I/O panel or the front-mounted USB ports of your chassis.

Pin Pin Assignment Pin Pin Assignment

Make sure the connecting cable bears the same pin assignment.

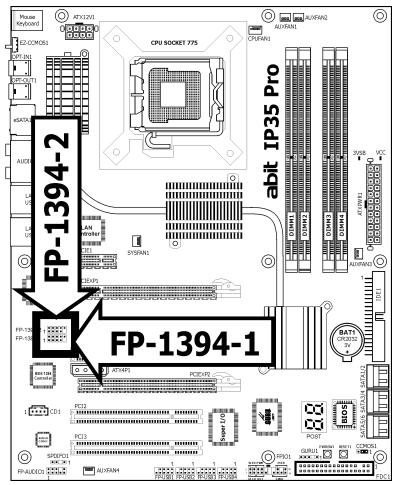

1.8.4 Additional IEEE 1394 Port Headers

Each header supports 1x additional IEEE 1394 port by connecting bracket or cable to the rear I/O panel or the front-mounted IEEE 1394 port of your chassis.

1-14 Pin Pin Assignment Pin

Ground Make sure the connecting cable bears the same pin assignment. IP35 Pro Hardware Setup

1.8.5 Internal Audio Connector

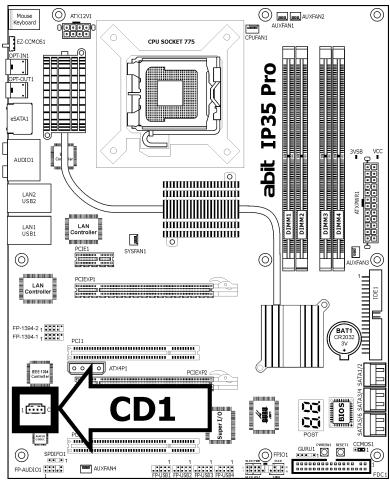

This connector connects to the audio output of internal CD-ROM drive or add-on card.

1.8.6 Front Panel Audio Connection Header

This header provides the front panel connection for HD (High Definition) Audio, yet for AC’97 Audio CODEC connection, you must carefully check the pin assignment before connecting from the front panel module. An incorrect connection may cause malfunction or even damage the motherboard.

Please do not connect the “Ground” cable or “USB VCC” cable from the front panel module to the Pin 4 “AVCC” of this header. IP35 Pro Pin Pin Assignment (HD AUDIO) Pin Pin Assignment (AC’97 AUDIO)

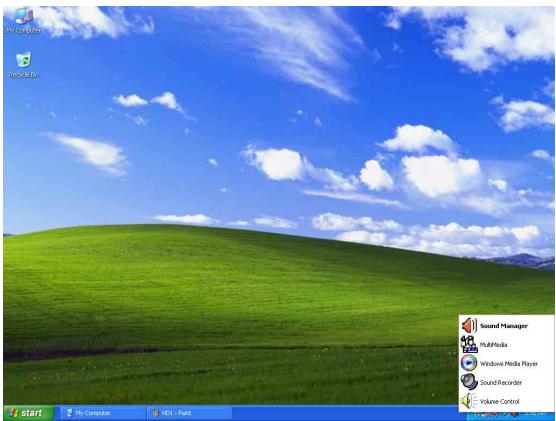

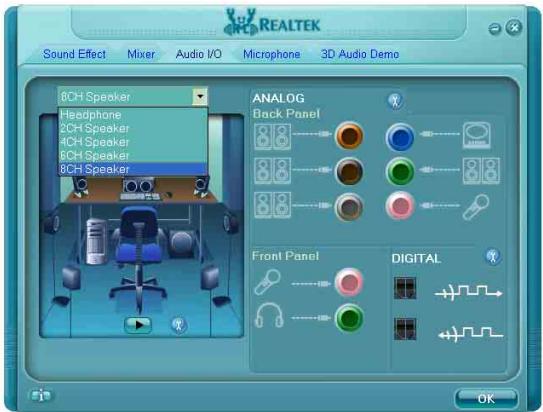

1-15 Driver Configuration for AC’97 audio connection: The audio driver is originally configured to support HD Audio. For AC’97 audio connection, you may:

Right-click the “Realtek HD Audio Manager” icon system tray.

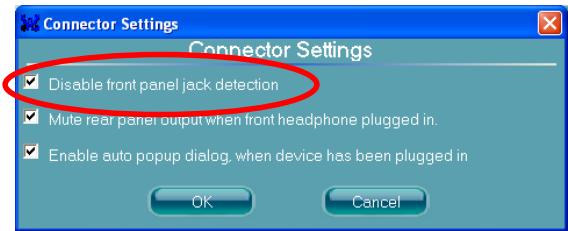

Click “Audio I/O” tab, and then click “Connector Settings”.

Click “Disabled front panel jack detection”, and then click “OK” to confirm. 1-16 IP35 Pro Hardware Setup

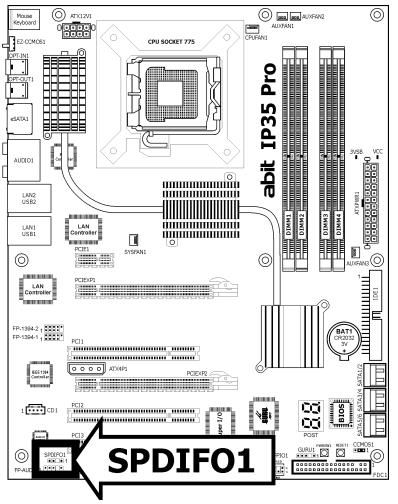

1.8.7 S/PDIF Output Connection Header

This header provides the S/PDIF output connection to your add-on HDMI VGA card. Pin Pin Assignment

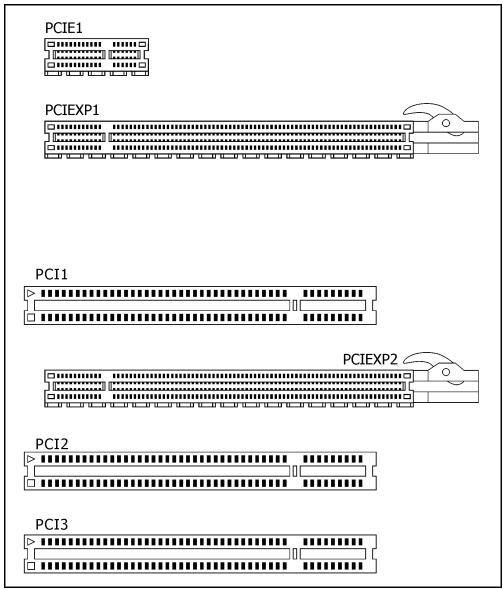

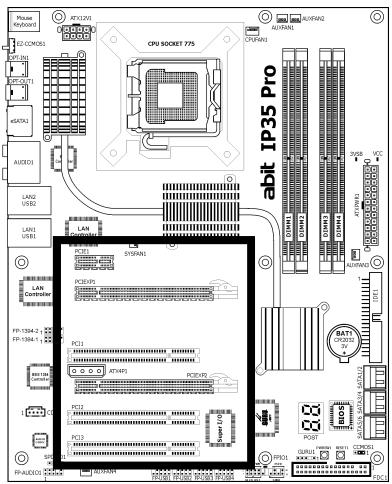

Install PCI Express X1 cards into slot “PCIE1”. Install PCI cards into slots “PCI1”, “PCI2”, and/or “PCI3”. IP35 Pro 1-17

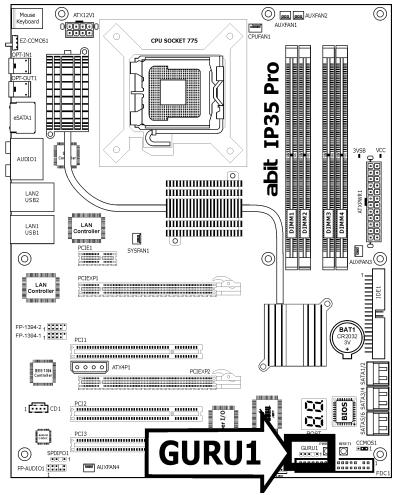

1.8.9 Guru Panel Connection Header

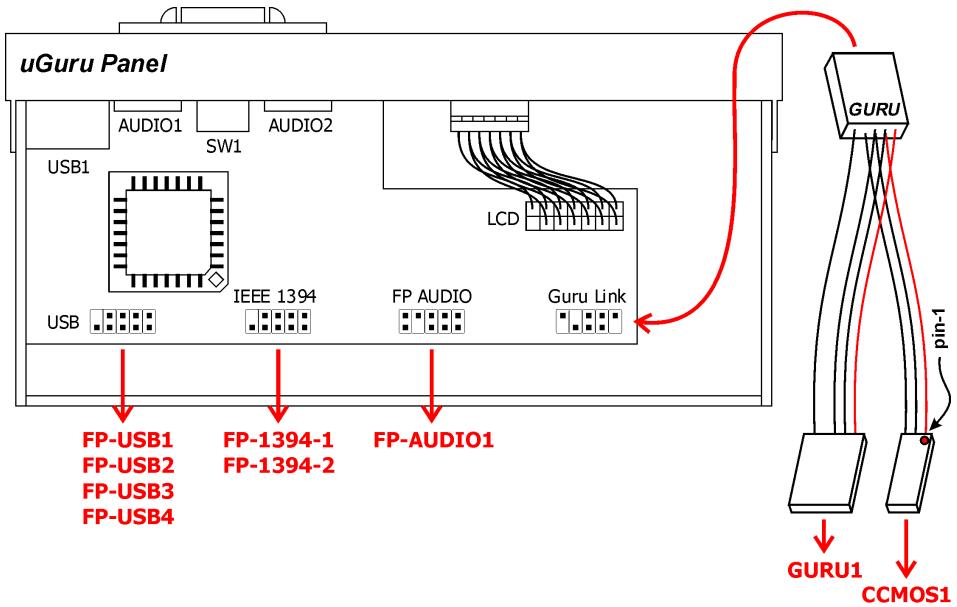

This header is reserved for connecting abit’s exclusive Guru Panel. For more information, please refer to the included Guru Panel Installation Guide. 1-18 IP35 Pro

1.9.1 POST Code Displayer

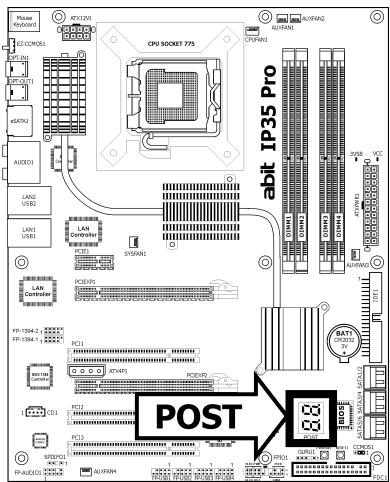

This is an LED device to display the “POST” Code, the acronym for Power On Self Test. The computer will execute the POST action whenever you power on the computer. The POST process is controlled by the BIOS. It is used to detect the status of the computer’s main components and peripherals. Each POST Code corresponds to different checkpoints that are also defined by the BIOS in advance. For example, “memory presence test” is an important checkpoint and its POST Code is “C1”. When the BIOS execute any POST item, it will write the corresponding POST Code into the address 80h. If the POST passes, the BIOS will process the next POST item and write the next POST Code into the address 80h. If the POST fails, we can check the POST Code in address 80h to find out where the problem lies. This LED device also displays the “POST” Code of AC2005, an “uGuru” chipset developed exclusively by abit.

The decimal point lights up during the AC2005 POST action. See Appendix for both AWARD and AC2005 POST Code definitions. IP35 Pro 1-19 Hardware Setup

1.9 Onboard Indicators and Buttons

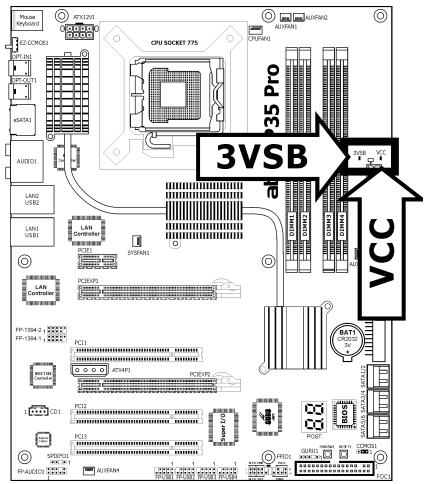

1.9.2 Power Source Indicators

3VSB: This LED lights up when the power supply is connected with power source.

VCC: This LED lights up when the system power is on.

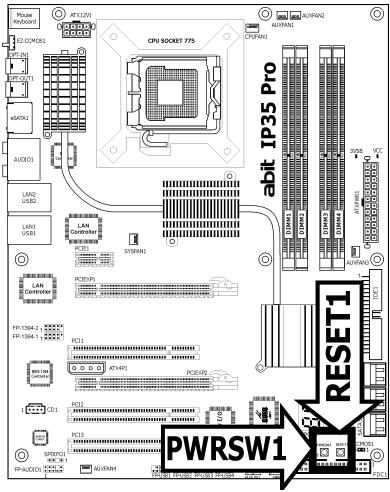

1.9.3 Onboard Buttons

PWRSW1: Push this button to power on the system.

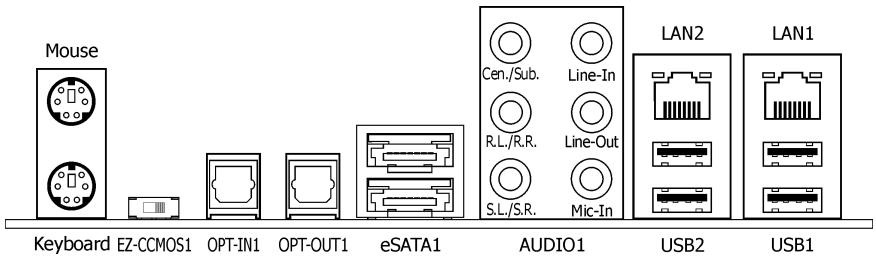

1.10 Connecting Rear Panel I/O Devices

The rear I/O part of this motherboard provides the following I/O ports:

Mouse: Connects to PS/2 mouse.

Keyboard: Connects to PS/2 keyboard.

EZ-CCMOS1: This switch enables clearing the CMOS memory without uncovering the system chassis. To clear the CMOS memory by EZ-CCMOS1: Step 1: Power off the system. Step 2: Turn left this switch to the “Clear CMOS” position. Step 3: Turn right this switch to its default “Normal” position. The default CMOS memory is now reloaded. ※ The C.C. POST Code appears when either the external “EZ-CCMOS1” switch or the internal “CCMOS1” jumper is not set to its normal position.

OPT-IN1: This connector provides an S/PDIF-In connection through optical fiber from digital multimedia devices.

OPT-OUT1: This connector provides an S/PDIF-Out connection through optical fiber to digital multimedia devices.

eSATA1: This connector supports the external SATA connection.

AUDIO1: Cen./Sub. (Center / Subwoofer): Connects to the center and subwoofer channel. R.L./R.R. (Rear Left / Rear Right): Connects to the rear left and rear right channel. S.L./S.R. (Surround Left / Surround Right): Connects to the surround left and surround right channel. Line-In: Connects to the line out from external audio sources. Line-Out: Connects to the front left and front right channel. Mic-In: Connects to the plug from external microphone.

LAN1/LAN2: Connects to Local Area Network.

USB1/USB2: Connects to USB devices such as scanner, digital speakers, monitor, mouse, keyboard, hub, digital camera, joystick etc. IP35 Pro 1-21 1-22 IP35 Pro

This motherboard provides a programmable EEPROM so that you can update the BIOS utility. The BIOS (Basic Input/Output System) is a program that deals with the basic level of communication between processor and peripherals. Use the BIOS Setup program only when installing motherboard, reconfiguring system, or prompted to “Run Setup”. This chapter explains the Setup Utility of BIOS utility. After powering up the system, the BIOS message appears on the screen, the memory count begins, and then the following message appears on the screen: If this message disappears before you respond, restart the system by pressing <Ctrl> + <Alt> + <Del> keys, or by pressing the Reset button on the computer chassis. Only when these two methods fail should you restart the system by powering it off and then back on. After pressing <Del> key, the main menu screen appears. Phoenix – AwardBIOS CMOS Setup Utility ► uGuru Utility ► PnP/PCI Configurations ► Standard CMOS Features Load Fail-Safe Defaults ► Advanced BIOS Features Load Optimized Defaults ► Advanced Chipset Features Set Password ► Integrated Peripherals Save & Exit Setup ► Power Management Setup Exit Without Saving Esc: Quit F10: Save & Exit Setup F6 : Save PROFILE To BIOS ‚€ : Select Item (P35-W627DHG-6A790A1BC-00) F7 : Load PROFILE From BIOS Change CPU’s Clock & Voltage

In order to increase system stability and performance, our engineering staff is constantly improving the BIOS menu. The BIOS setup screens and descriptions illustrated in this manual are for your reference only, and may not completely match with what you see on your screen. IP35 Pro 2-1 BIOS Setup

There are two setup menus in this μGuru utility. You may switch between these two by clicking the left or right arrow key on keyboard:

CPU Operating Speed - External Clock - Multiplier Factor - Estimated New CPU Clock - DRAM Speed (CPU:DRAM) - PCI Express Clock Item Help ► 3600(200) 204MHz X 18 3672MHz Default 100MHz ► Voltages Control Press Enter ► Power Cycle Statistics Press Enter ‚€:Move Enter:Select +/-/PU/PD:Value F8:OC On The Fly F10:Save ESC:Exit Genuine Intel(R) CPU This item displays the CPU model name installed on this motherboard. Frequency This item displays the processor speed of the CPU installed on this motherboard. CPU Operating Speed This item displays the CPU operating speed according to the type and speed of your CPU. You can also select the [User Define] option to enter the manual option. User Define:

The wrong settings of the multiplier and external clock in certain circumstances may cause CPU damage. Setting the working frequency higher than the PCI chipset or processor specs, may cause abnormal memory module functioning, system hangs, hard disk drive data lose, abnormal functioning of the VGA card, or abnormal functioning with other add-on cards. Using non-specification settings for your CPU is not the intention of this explanation. These should be used for engineering testing, not for normal applications.

There will be no guaranty for the settings beyond specification. Any damage of any component on this motherboard or peripherals resulting therein is not our responsibility.

External Clock This item selects the external clock frequency. Due to the specification limit of the CPU you installed, the speed you set over its standard bus speed is supported, but not guaranteed. 2-2 IP35 Pro

Multiplier Factor This item displays the multiplier factor for the CPU you installed.

Estimated New CPU Clock This item displays an estimated CPU processor speed.

CPU Core Voltage This item selects the Core voltage for CPU.

DDR2 Voltage This item selects the voltage for DDR2 memory modules.

CPU VTT 1.2V Voltage This item selects the VTT voltage for CPU.

DDR2 Reference Voltage This item selects the reference voltage for DDR2 memory modules. IP35 Pro 2-3 BIOS Setup This option allows you to switch between the default and user-defined voltages. Leave this setting at default unless the current voltage setting cannot be detected or is not correct. The option “User Define” enables you to select the following voltages manually.

These items select the percentage ratio of CPU VTT voltage for each group of the CPU GTL reference voltage. Power Cycle Statistics Click <Enter> key to enter its submenu: μGuru Utility v1.01C OC Guru Power Cycle Statistics PC Up Time PC Up Time Total PC Power Cycles PC Reset Button Cycles AC Power On Total Time AC Power Cycles

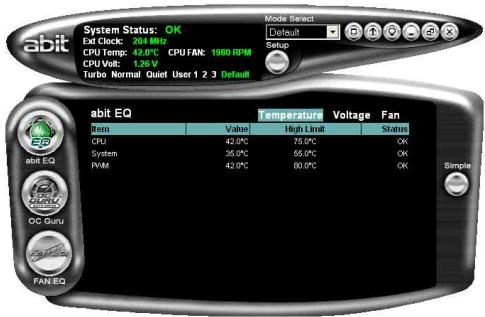

Click right-arrow <→> key to switch from OC Guru setup menu to ABIT EQ setup menu:

Shutdown Enable Use <Space> key to enable system shutdown function. If the CPU/System/PWM’s temperature exceeds the shutdown temperature limit, the system will shutdown automatically.

Shutdown Temp. This item sets the temperature that will shutdown the system automatically in order to prevent system overheating.

Beep Enable Use <Space> key to enable warning beeps function. Once the system has detected that the CPU/System/PWM’s temperature exceeded the beep temperature limit, warning beeps will sound.

Beep Temp. This item selects the warning temperature limit.

The shutdown temperature must be set higher than the warning temperature. IP35 Pro 2-5 Voltage Monitoring Click <Enter> key to enter its submenu: μGuru Utility v1.01C ABIT EQ Voltage Monitoring Reading Shutdown Enable (*)CPU Core Voltage

Shutdown Enable Use <Space> key to enable system shutdown function. If the voltage of corresponding element is higher/lower than the high/low limit, the system will automatically shutdown.

Beep Enable Use <Space> key to enable warning beeps function. If the voltage of corresponding element is higher/lower than the high/low limit, warning beeps will sound.

High/Low Limit These items set the high and low voltage limit.

2-6 The high limit voltage must be set higher than the low limit voltage. IP35 Pro Fan Speed Monitoring Click <Enter> key to enter its submenu: ‚€:Move Enter:Select +/-/PU/PD:Value Beep Enable

CPU/SYS/AUX1~4 FAN Speed These items display the speed of the fans connected to CPU, SYS, and AUX1~4 fan connectors.

Shutdown Enable Use <Space> key to enable system shutdown function. Once the system has detected that the fan speed is lower than the low limit value, system will shutdown automatically.

Beep Enable Use <Space> key to enable warning beeps function. If the fan speed is lower than the low limit value, warning beeps will sound.

Low Limit These items set the low limit of fan speed. IP35 Pro 2-7 FanEQ Control μGuru Utility v1.01C ABIT EQ FanEQ Control ► 1st FanEQ Group Press Enter ► 2nd FanEQ Group Press Enter ‚€:Move Enter:Select +/-/PU/PD:Value Item Help ►► F10:Save ESC:Exit 1st FanEQ Group Click <Enter> key to enter its submenu (1st FanEQ Group): μGuru Utility v1.01C ABIT EQ 1st FanEQ Group CPU FanEQ Control Enabled -Reference Temperature CPU Temperature -Control Temperature High 66°C/150°F -Control Temperature Low 35°C/95°F -Fan PWM Duty Cycle High 100 % -Fan PWM Duty Cycle Low 60 % SYS FanEQ Control Enabled -Reference Temperature SYS Temperature -Control Temperature High 40°C/104°F -Control Temperature Low 30°C/86°F -DC Fan Voltage High

‚€:Move Enter:Select +/-/PU/PD:Value Item Help ►►► F10:Save ESC:Exit CPU/SYS/AUX1 FanEQ Control When set to [Enabled], these items control the CPU, SYS, and/or AUX1 fan speed by the following setting combinations.

Reference Temperature This item selects the reference point for taking temperature among the available options of CPU, SYS, and PWM Temperature. 2-8 IP35 Pro

Control Temperature High/Low These items set the high and low temperature limit that you want to do the fan speed control.

Fan PWM Duty Cycle High/Low These items set the high and low limit of PWM duty cycle that you want to provide the fan with.

DC Fan Voltage High/Low These items set the high and low voltage limit that you want to provide the fan with.

The high limit voltage must be set higher than the low limit voltage. BIOS Setup 2nd FanEQ Group Click <Enter> key to enter its submenu (2nd FanEQ Group): μGuru ABIT EQ 2nd FanEQ Group AUX2 FanEQ Control -Reference Temperature -Control Temperature High -Control Temperature Low -DC Fan Voltage High -DC Fan Voltage Low AUX3 FanEQ Control AUX4 FanEQ Control Utility V1.01C Enabled SYS Temperature 40°C/104°F 30°C/86°F

Disabled Disabled ‚€:Move Enter:Select +/-/PU/PD:Value Item Help ►►► F10:Save ESC:Exit AUX2~AUX4 FanEQ Control When set to [Enabled], these items control the AUX2~AUX4 fan speed by the following setting combinations.

Reference Temperature This item selects the reference point for taking temperature among the available options of CPU, SYS, and PWM Temperature.

Control Temperature High/Low These items set the high and low temperature limit that you want to do the fan speed control.

DC Fan Voltage High/Low These items set the high and low voltage limit that you want to provide the fan with.

The high limit voltage must be set higher than the low limit voltage. IP35 Pro 2-9

‚€:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults 2-10 IP35 Pro HDD Auto-Detection This item allows you to detect the parameters of hard drives by pressing <Enter> key. The parameters will be shown on the screen automatically. SATA Channel 1 ~ SATA Channel 6 When set to [Auto], the BIOS will automatically check what kind of SATA hard drive you are using. If you want to define your own drive yourself, set it to [Manual] and make sure you fully understand the meaning of the parameters. Please refer to the instruction manual provided by the device’s manufacturer to get the setting right. Access Mode Capacity This item displays the approximate capacity of the disk drive. Usually the size is slightly greater than the size of a formatted disk given by a disk-checking program. Cylinder This item configures the numbers of cylinders. Head This item configures the numbers of read/write heads. Precomp This item displays the number of cylinders at which to change the write timing. Landing Zone This item displays the number of cylinders specified as the landing zone for the read/write heads. Sector This item configures the numbers of sectors per track. Back to Standard CMOS Features Setup Menu Drive A & Drive B This item sets the type of floppy drives (usually only Drive A) installed. Floppy 3 Mode Support This item allows you to use “3 Mode Floppy Drive” in Japanese computer systems by selecting drive A, B, or both. Leave this item at its default [Disabled] setting if you are not using this Japanese standard floppy drive. Halt On This item determines whether the system stops if an error is detected during system boot-up. [All Errors]: The system-boot will stop whenever the BIOS detect a non-fatal error. [No Errors]: The system-boot will not stop for any error detected. IP35 Pro 2-11 BIOS Setup This item selects the mode to access your SATA devices. Leave this item at its default [Auto] setting to detect the access mode of your HDD automatically. [All, But Keyboard]: The system-boot will stop for all errors except a keyboard error. [All, But Diskette]: The system-boot will stop for all errors except a diskette error. [All, But Disk/Key]: The system-boot will stop for all errors except a diskette or keyboard error. Base Memory This item displays the amount of base memory installed in the system. The value of the base memory is typically 640K for systems with 640K or more memory size installed on the motherboard. Extended Memory This item displays the amount of extended memory detected during system boot-up. Total Memory This item displays the total memory available in the system. 2-12 IP35 Pro

2.3 Advanced BIOS Features

Item Help ‚€:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults CPU L3 Cache This item is used to enable the L3 cache (default setting), and appears only for certain CPU (Intel Pentium 4 processor with HT Technology Extreme Edition) that possesses L3 cache. CPU Feature Click <Enter> key to enter its submenu: Phoenix – AwardBIOS CMOS Setup Utility CPU Feature Thermal Control Enabled Limit CPUID MaxVal Disabled C1E Function Enabled Execute Disable Bit Enabled Virtualization Technology Enabled EIST Function Enabled Item Help ‚€:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults Thermal Control This option enables or disables the thermal monitoring. Limit CPUID MaxVal When set to [Enabled], this item limits the CPUID maximum value to 3, which is usually required for older OS like Windows NT4.0. IP35 Pro 2-13 BIOS Setup Phoenix – AwardBIOS CMOS Setup Utility Advanced BIOS Features CPU L3 Cache Enabled ► CPU Feature Press Enter ► Hard Disk Boot Priority Press Enter Hyper-Threading Technology Enabled Quick Power On Self Test Enabled First Boot Device Floppy Second Boot Device Hard Disk Third Boot Device SATA CDROM Boot Other Device Enabled Boot Up Floppy Seek Disabled Boot Up NumLock Status Security Option Setup MPS Version Ctrl For OS Report No FDD for OS Full Screen LOGO Show Enabled Leave this item at its default [Disabled] settings for OS like Windows XP. C1E Function This item appears only for certain processors with the C1E (Enhanced Halt State) Function. When set to [Enabled], the processor will further reduce the total power consumption. Execute Disable Bit This item appears only for certain processors with the Execute Disable Bit (XD bit) feature. When set to [Enabled], this item allows the processor to prevent data pages from being used by malicious software to execute code and provide memory protection. Virtualization Technology This option enables or disables the additional hardware capabilities provided by Virtualization Technology. EIST Function This item appears only for certain processors with the EIST (Enhanced Intel SpeedStep Technology) Function. When set to [Enabled], EIST will dynamically switch between multiple frequency and voltage points to optimize the power and performance balance of the processor and system based on demand. Back to Advanced BIOS Features Setup Menu Hard Disk Boot Priority This item selects the hard disks booting priority. By pressing <Enter> key, you can enter its submenu where the hard disks detected can be selected for the booting sequence to boot up system. This item functions only when there is the option of [Hard Disk] in any one of the First/Second/Third Boot Device items. Hyper-Threading Technology This item is used to enable the functionality of the processor with Hyper-Threading Technology and will appear only when using such processor. The Hyper-Threading Technology helps your PC work more efficiently by maximizing processor resources and enabling a single processor to run two separate threads of software simultaneously, bringing forth greater performance and system responsiveness when running multiple applications at once. Quick Power On Self Test When set to [Enabled], this item speeds up the Power On Self Test (POST) after powering on the system. The BIOS shorten or skip some check during the POST. First Boot Device / Second Boot Device / Third Boot Device / Boot Other Device Select the drive to boot first, second and third in the [First Boot Device], [Second Boot Device], and [Third Boot Device] items respectively. The BIOS will boot the operating system according to the sequence of the drive selected. Set [Boot Other Device] to [Enabled] if you wish to boot from another device other than these three items.

2-14 Select the correct type of CD-ROM for the option [First Boot device] when installing OS from CD-ROM. IP35 Pro Boot Up Floppy Seek When set to [Enabled], the BIOS will check whether the floppy disk drive is installed or not. Boot Up NumLock Status This item determines the default state of the numeric keypad at system booting up. [On]: The numeric keypad functions as number keys. [Off]: The numeric keypad functions as arrow keys. Security Option [Setup]: The password is required only when accessing the BIOS Setup. [System]: The password is required each time the computer boots up.

Don’t forget your password. If you forget the password, you will have to open the computer case and clear all information in the CMOS before you can start up the system. But by doing this, you will have to reset all previously set options. MPS Version Ctrl For OS This item specifies which version of MPS (Multi-Processor Specification) this motherboard will use. Leave this item at its default setting. Report No FDD For OS When set to [Yes], this item allows you to run some older operating system without floppy disk drive. Leave this item at its default setting. Full Screen LOGO Show This item determines to show the full screen logo when booting. IP35 Pro 2-15 BIOS Setup This item determines when the system will prompt for password - every time the system boots or only when enters the BIOS setup.

Phoenix – AwardBIOS CMOS Setup Utility Advanced Chipset Features DRAM Timing Selectable By SPD - CAS Latency Time (tCL) Auto - RAS# to CAS# Dealay (tRCD) Auto - RAS# Precharge (tRP) Auto - Precharge Delay (tRAS) Auto - Refresh Cycle Time (tRFC) Auto - Write Recovery Time (tWR) Auto - Write to Read Delay (tWTR) Auto - Act to Act Time (tRRD) Auto - Read to Precharge (tRTP) Auto PCIe Compliancy Mode v1.0a PEG Force X1 Disabled Init Display First PCI Slot Item Help ‚€:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults DRAM Timing Selectable This item sets the optimal timings for the following four items, depending on the memory module you are using. The default setting “By SPD” configures these four items by reading the contents in the SPD (Serial Presence Detect) device. The EEPROM on the memory module stores critical parameter information about the module, such as memory type, size, speed, voltage interface, and module banks. The following items will be available to make adjustments by selecting option [Manual].

Write Recovery Time (tWR)

Write to Read Delay (tWTR)

Act to Act Time (tRRD)

2.5 Integrated Peripherals

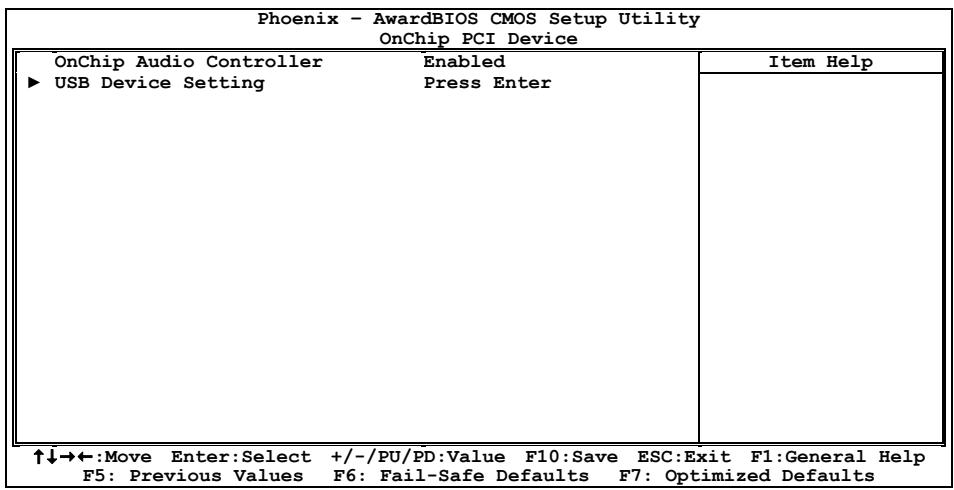

Phoenix – AwardBIOS CMOS Setup Utility Integrated Peripherals ► OnChip SATA Device Press Enter ► OnChip PCI Device Press Enter ► Onboard PCI Device Press Enter Onboard FDC Controller Enabled Item Help OnChip SATA Device Click <Enter> key to enter its submenu: Bus Master SATA Mode Phoenix – AwardBIOS CMOS Setup Utility OnChip SATA Device Enabled IDE Item Help ‚€:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults Bus Master This option enables or disables the bus mastering capability under the DOS environment. SATA Mode This item selects the mode for devices connected through SATA1~SATA6 ports. [IDE]: The on-chip Serial ATA served as IDE mode. [RAID]: The on-chip Serial ATA served as RAID mode. [AHCI]: The on-chip Serial ATA served as AHCI (Advanced Host Controller Interface) mode for advanced performance and usability. IP35 Pro 2-17 BIOS Setup ‚€:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults OnChip PCI Device Click <Enter> key to enter its submenu: Phoenix – AwardBIOS CMOS Setup Utility OnChip PCI Device OnChip Audio Controller Enabled ► USB Device Setting Press Enter Item Help ‚€:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults OnChip Audio Controller This option enables or disables the audio controller. USB Device Setting Click <Enter> key to enter its submenu: Phoenix – AwardBIOS CMOS Setup Utility USB Device Setting USB Functions Enabled - USB 2.0 Operation Mode High Speed - USB Keyboard Support Via - USB Mouse Support Via - USB Storage Function Enabled Item Help *** USB Mass Storage Device Boot Setting *** ‚€:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults USB Functions This option enables or disables the USB controller.

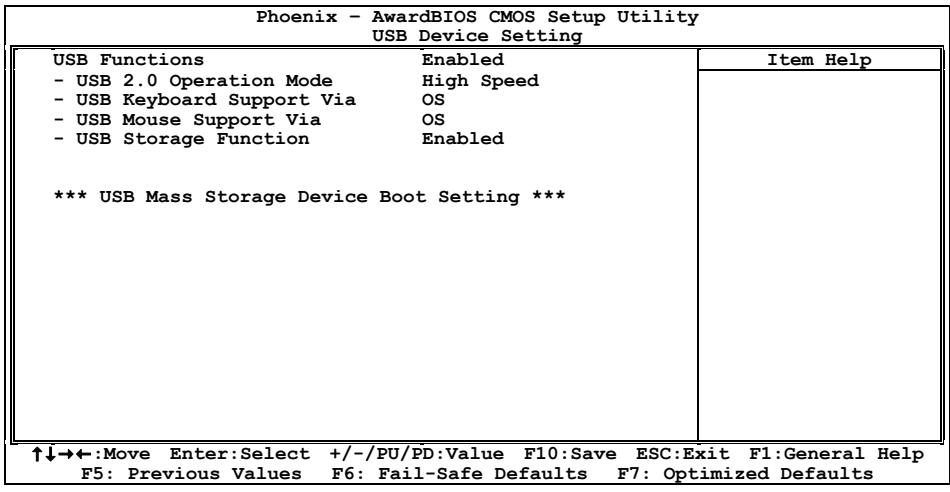

USB 2.0 Operation Mode This option selects the speed mode for USB devices. 2-18 IP35 Pro [High Speed]: All USB devices operate on high-speed mode. [Full/Low Speed]: All USB devices operate on full/low-speed mode.

USB Keyboard Support Via Select [BIOS] for the legacy operating system (such as DOS) that does not support USB keyboard.

USB Mouse Support Via Select [BIOS] for the legacy operating system (such as DOS) that does not support USB mouse. USB Storage Function BIOS Setup

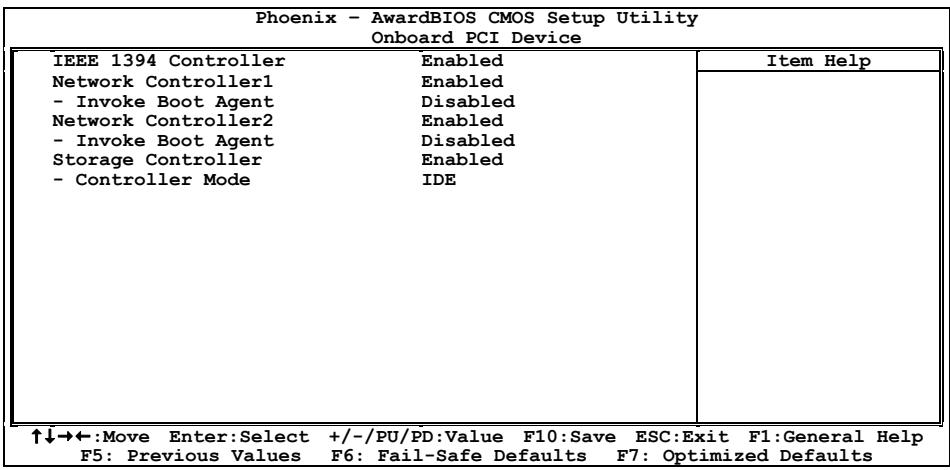

Invoke Boot Agent This item allows you to use the boot ROM (instead of a disk drive) to boot up the system and access the local area network directly. Storage Controller This option enables or disables the JMB363 controller that controls both IDE1 and eSATA1 ports.

Controller Mode This item selects the mode for devices connected through eSATA1 ports. IP35 Pro 2-19 Options: [IDE], [RAID], [AHCI]. Back to Integrated Peripherals Setup Menu Onboard FDC Controller This option enables or disables the floppy disk controller. 2-20 IP35 Pro

Resume by USB from S3 When set to [Enabled], this item allows you to use a USB device to wake up a system that is in the S3 (STR - Suspend To RAM) state. This item can be configured only if the item “ACPI Suspend Type” is set to [S3(STR)]. Power Button Function This item selects the method of powering off your system: [Delay 4 Sec.]: Pushing the power button for more than 4 seconds will power off the system. This will prevent the system from powering off in case you accidentally hit or pushed the power button. [Instant-Off]: Pressing and then releasing the power button at once will immediately power off the system. Wake Up by WAKE# of PCIe When set to [Enabled], access through the add-on PCI Express card can remotely wake up the system that was in Soft-Off condition. The PCI Express card must support the wake up function. Wake Up by PME# of PCI When set to [Enabled], access through the add-on PCI card can remotely wake up the system that was in Soft-Off condition. The PCI card must support the wake up function. Wake Up by Onboard LAN1/LAN2 When set to [Enabled], access through the onboard LAN1/LAN2 port can remotely wake up the system that was in Soft-Off condition. IP35 Pro 2-21 BIOS Setup

Phoenix – AwardBIOS CMOS Setup Utility Power Management Setup ACPI Suspend Type S3(Suspend-To-RAM) - Resume by USB from S3 Enabled Power Button Function Instant-Off Wake Up by WAKE# of PCIe Disabled Wake Up by PME# of PCI Disabled Wake Up by Onboard LAN1 Disabled Wake Up by Onboard LAN2 Disabled Resume by Alarm Disabled - Date(of month) Alarm - Time(hh:mm:ss) Alarm 0 : 0 : 0 POWER ON Function Button Only - KB Power ON Password Enter - Hot Key Power ON Ctrl-F1 Restore On AC Power Loss Power Off Resume by Alarm When set to [Enabled], you can set the date and time you would like the Soft-Off PC to power-on in the “Date (of Month) Alarm” and “Time (hh:mm:ss) Alarm” items. However, if the system is being accessed by incoming calls or the network (Resume On Ring/LAN) prior to the date and time set in these items, the system will give priority to the incoming calls or network instead.

Date (of Month) Alarm [0]: This option power-on the system everyday according to the time set in the “Time (hh:mm:ss) Alarm” item. [1-31]: This option selects a date you would like the system to power-on. The system will power-on on the date set, and the time set in the “Time (hh:mm:ss) Alarm” item.

Time (hh:mm:ss) Alarm This item sets the time you would like the system to power-on. POWER ON Function This item selects the way you want your system to power on. [Password]: Use a password to power on the system, select this option then press <Enter>. Enter your password. You can enter up to 5 characters. Type in exactly the same password to confirm, and then press <Enter>. [Hot KEY]: Use any of the function keys between <F1> to <F12> to power on the system. [Mouse Left]: Double click the mouse left button to power on the system. [Mouse Right]: Double click the mouse right button to power on the system. [Any KEY]: Use any keyboard keys to power on the system. [Button Only]: Use only the power button to power on the system. [Keyboard 98]: Use the power-on button on the “Keyboard 98” compatible keyboard to power on the system.

The mouse wake up function can only be used with the PS/2 mouse, not with the COM port or USB type. Some PS/2 mice cannot wake up the system because of compatible problems. If the specs of your keyboard are too old, it may fail to power on.

KB Power ON Password This item sets the password required in order to power on your computer.

Do not forget your password, or you will have to clear the CMOS and reset all parameters in order to utilize this function again.

Hot Key Power ON This item powers on the system by pressing <Ctrl> key plus one of each function key (<F1> ~ <F12>) simultaneously. Restore On AC Power Loss This item selects the system action after an AC power failure. [Power Off]: When power returns after an AC power failure, the system’s power remains off. You must press the Power button to power-on the system. 2-22 IP35 Pro [Power On]: When power returns after an AC power failure, the system’s power will be powered on automatically. [Last State]: When power returns after an AC power failure, the system will return to the state where you left off before power failure occurred. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns. BIOS Setup

IRQ Resources Click <Enter> key to enter its submenu: This item sets each system interrupt to either [PCI Device] or [Reserved]. PCI/VGA Palette Snoop This item determines whether the MPEG ISA/VESA VGA cards can work with PCI/VGA or not. [Enabled]: MPEG ISA/VESA VGA cards work with PCI/VGA. [Disabled]: MPEG ISA/VESA VGA cards do not work with PCI/VGA. IP35 Pro 2-23

This option loads the BIOS default values that are factory settings for optimal-performance system operations.

This option protects the BIOS configuration or restricts access to the computer itself.

2.11 Save & Exit Setup

This option saves your selections and exits the BIOS setup menu.

2.12 Exit Without Saving

The “Driver-&-Utility CD” that came packed with this motherboard contains drivers, utilities and software applications required for its basic and advanced features.

Place the “Driver-&-Utility CD” into the CD-ROM drive in your system. The following installation auto-run screen appears. If not, browse the root directory of the CD-ROM via the File Manager, and double click the “AUTORUN” file.

Click the item needed for installation. [Drivers]: Click to enter the driver installation menu.

[abit Utility]: Click to enter the installation menu of utilities exclusively developed by abit.

Browse CD]: Click to browse the contents of this “Driver-&-Utility CD”. Close]: Click to exit this installation menu. The Windows will automatically search for current and updated software by looking up your computer. When this “Found New Hardware Wizard” window appears. Click [Cancel] to start the following procedures. IP35 Pro 3-1 Driver & Utility

Click on the [Drivers] tab in the installation menu screen.

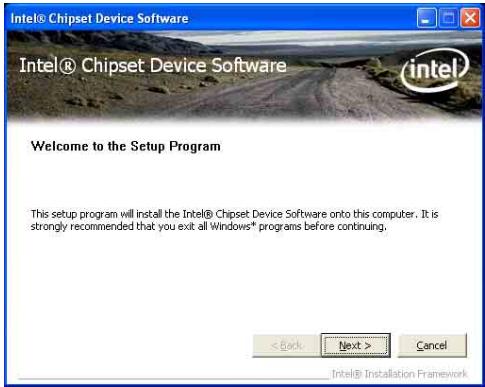

Click the [Intel Chipset Software Installation Utility] item. The installation screen appears.

Follow the prompts on the screen to complete installation.

3.3 Intel Matrix Storage Manager

This driver provides functionality for the on-chip SATA Controller.

This driver installation is necessary for connectors “SATA1~SATA6” only when after having enabled the RAID function in the BIOS setup menu. The path to enable the RAID function in the BIOS setup menu is: Integrated Peripherals OnChip IDE Device SATA Mode Select “RAID”. To install this program:

Click on the [Drivers] tab in the installation menu screen.

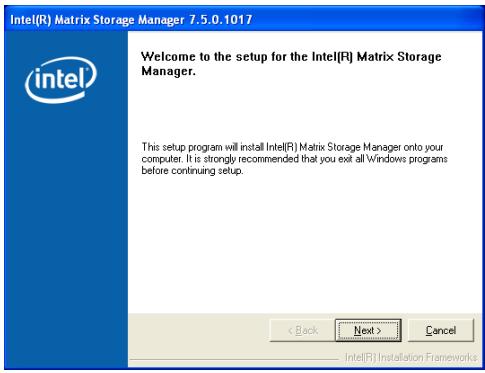

Click the [Intel Matrix Storage Technology Driver] item. The installation screen appears.

Follow the prompts on the screen to complete installation. 3-2 IP35 Pro

To install this program: Click on the [Drivers] tab in the installation menu screen.

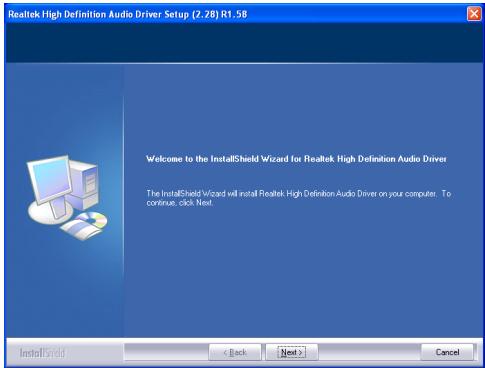

Click the [Audio Driver] item. The installation screen appears.

Follow the prompts on the screen to complete installation.

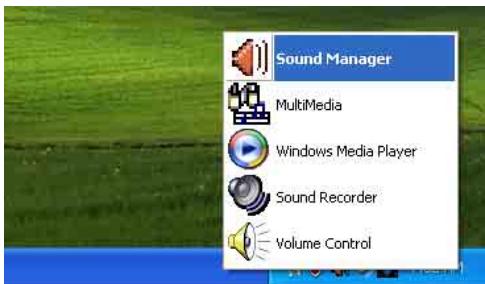

After restarting the system, right-click the Sound Manager icon located at the desktop shortcut. Click item “Sound Manager”. The Realtek HD Audio Manager appears.

Click the pull down menu to select the channel configuration.

Click [OK] button to apply the Audio I/O settings and exit. IP35 Pro Driver & Utility

Click on the [Drivers] tab in the installation menu screen.

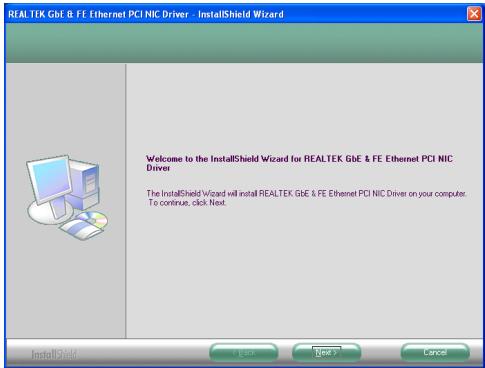

Click the [LAN Driver] item. The installation screen appears.

Follow the prompts on the screen to complete installation.

3.6 JMicron SATA Driver

This driver provides functionality for the onboard SATA RAID Controller.

This driver installation is necessary for the devices connected through connectors “eSATA1” or “IDE1”. To install this program:

Click on the [Drivers] tab in the installation menu screen.

Click the [JMicron SATA Driver] item. The installation screen appears.

Follow the prompts on the screen to complete installation.

3-4 There is no need to install this driver for Windows 2000 with Service Pack 4, Windows XP with Service Pack 1, or their later version. IP35 Pro

The μGuru Utility combined with the optional Guru Panel allows you to access and select system performance of your system while playing games, listening music, browsing Internet or office applications in full screen with no need to stop or close the running application. To install this utility: Click on the [abit Utility] tab in the installation menu screen.

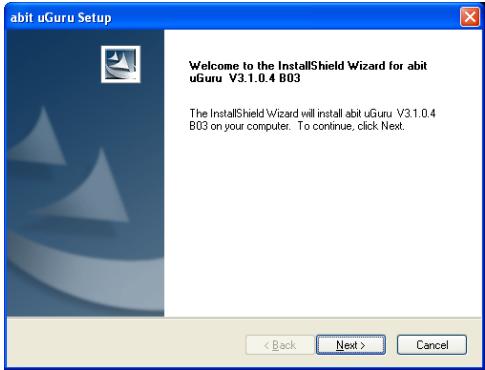

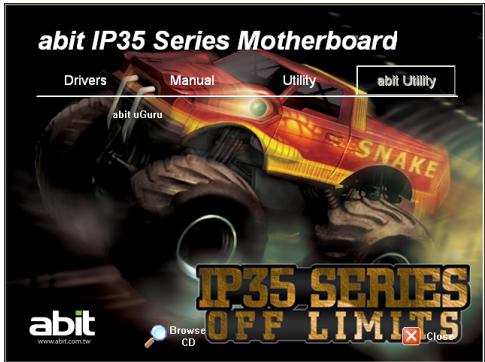

Click the [abit uGuru] item. The following screen appears.

Follow the prompts on the screen to complete installation.

Restart the system for the program to take effect.

Execute the abit EQ by entering the Windows Menu [Start] [All Programs] [abit] [abit uGuru].

The μGuru Utility shows you the status of Voltage, Fan Speed, and Temperature readings as well. IP35 Pro Driver & Utility

The Raid Driver needed when installing Windows Vista operating system is located at the following path of your CD-ROM drive after placing the “Driver-&-Utility CD” into it: For a RAID configuration connected among “SATA1 ~ SATA6” connectors: For Vista 32bit For Vista 64bit CD-ROM Drive:\Drivers\SATARAID\Intel\Vista32 CD-ROM Drive:\Drivers\SATARAID\Intel\Vista64 For a RAID configuration connected to “eSATA1” connector: For Vista 32bit For Vista 64bit CD-ROM Drive:\Drivers\SATARAID\Jmicron\Vista32 CD-ROM Drive:\Drivers\SATARAID\Jmicron\Vista64

3.10 SATA RAID Driver (for Windows XP, 2003, or 2000)

The “Driver Disk Maker” program bundled in the Driver-&-Utility CD is a utility to build the driver program needed for SATA controller into a floppy disk under DOS environment. This procedure is necessary only for installing Windows operating system to the hard disk connected to “eSATA1” or “SATA1~SATA6” connector. To create a driver disk: Before starting, connect a 3.5” floppy disk drive to the “FDC1” connector, and connect a CD-ROM drive to your motherboard. Prepare a 3.5” floppy disk. After completing all the start-up preparation for hardware setup, power on the system. Enter the BIOS Setup Menu by hitting <Del> key 1. Enter and select the BIOS menu “Advanced BIOS Features”. Configure the option “First Boot Device” to “CD-ROM” 2 drive. Save this selection and exit BIOS setup menu by accessing the BIOS menu “Save & Exit Setup”. Restart the system. The system will now boot from CD, and enter the ABIT Boot Manager, the following options appear 3: (0) (1) (2) (3) Boot Make Boot Skip From First HDD Driver Disk From First Floppy Drive CD-ROM Boot (Try Next Boot Device) Type <1> and hit <Enter> key. The following options appear: (1) Make Driver Disk (2) Exit

Type <1> and hit <Enter> key to start making. The driver options appear: (1) Intel SATA RAID Driver Disk for WinXP_2K_2003_Vista (2) JMicron SATA RAID Driver Disk for WinXP_2K_2003_Vista Type the number of the actions you want and hit <Enter> key. Insert floppy disk to the floppy drive 4. Press any key to continue. Copying files to floppy now starts. After completed copying, hit the <n> key if you do not want to make another Driver Disk, and stop at the A:\> prompt. Take out the Driver-&-Utility CD from the CD-ROM drive now. Restart your system 5. You may refer to the chapter “BIOS Setup Menu” in user’s manual on how to do so. The name may vary as per BIOS version. Place the “Driver-&-Utility CD” into the CD-ROM drive now. You will have to type your command within 20 seconds, or the system will boot from HD. You will be asked to do the format procedure if the floppy disk is not blank. Hit <n> key for not formatting another floppy. Now you have this driver disk ready for installing Windows Operating System. Insert this floppy disk to floppy drive and press <F6> key when the screen instruction prompts you to install a third-party SCSI or RAID driver. 3-6 IP35 Pro

1. Clear 8042 interface

2. Initialize 8042 self-test

1. Test special keyboard controller for Winbond 977 series Super I/O chips

2. Enable keyboard interface

1. Disable PS/2 mouse interface (optional)

2. Auto detect ports for keyboard & mouse followed by a port & interface swap (optional)

3. Reset keyboard for Winbond 977 series Super I/O chips

Test F000h segment shadow to see whether it is R/W-able or not. If test fails, keep beeping the speaker Auto detect flash type to load appropriate flash R/W codes into the run time area in F000 for ESCD & DMI support Use walking 1’s algorithm to check out interface in CMOS circuitry. Also set real-time clock power status, and then check for override Program chipset default values into chipset. Chipset default values are MODBINable by OEM customers Initial onboard clock generator if Early_Init_Onboard_Generator is defined. See also POST Detect CPU information including brand, SMI type (Cyrix or Intel) and CPU level (586 or 686) Initial interrupts vector table. If no special specified, all H/W interrupts are directed to SPURIOUS_INT_HDLR & S/W interrupts to SPURIOUS_soft_HDLR. Initial EARLY_PM_INIT switch Load keyboard matrix (notebook platform) HPM initialization (notebook platform)

1. Check validity of RTC value: e.g. a value of 5Ah is an invalid value for RTC minute.

2. Load CMOS settings into BIOS stack. If CMOS checksum fails, use default value instead.

Prepare BIOS resource map for PCI & PnP use. If ESCD is valid, take into consideration of the ESCD’s legacy information. Early PCI Initialization: -Enumerate PCI bus number. -Assign memory & I/O resource -Search for a valid VGA device & VGA BIOS, and put it into C000:0 5-1 Appendix

1. If Early_Init_Onboard_Generator is not defined Onboard clock generator initialization.

3. Init onboard H/W monitor devices

Initialize INT 09 buffer

1. Program CPU internal MTRR (P6 & PII) for 0-640K memory address.

2. Initialize the APIC for Pentium class CPU.

3. Program early chipset according to CMOS setup. Example: onboard IDE controller.

4. Measure CPU speed.

1. Initialize double-byte language font (Optional)

2. Put information on screen display, including Award title, CPU type, CPU speed, full screen

logo. Reset keyboard if Early_Reset_KB is defined e.g. Winbond 977 series Super I/O chips. See also POST 63. Test DMA Channel 0 Test DMA Channel 1. Test DMA page registers. Test 8254 Test 8259 interrupt mask bits for channel 1 Test 8259 interrupt mask bits for channel 2 Test 8259 functionality Initialize EISA slot

1. Calculate total memory by testing the last double word of each 64K page

2. Program writes allocation for AMD K5 CPU

1. Program MTRR of M1 CPU

2. Initialize L2 cache for P6 class CPU & program CPU with proper cacheable range

3. Initialize the APIC for P6 class CPU

4. On MP platform, adjust the cacheable range to smaller one in case the cacheable ranges

between each CPU are not identical Initialize USB Test all memory (clear all extended memory to 0) Clear password according to H/W jumper (Optional) Display number of processors (multi-processor platform) Display PnP logo Early ISA PnP initialization -Assign CSN to every ISA PnP device Initialize the combined Trend Anti-Virus code (Optional Feature) Show message for entering AWDFLASH.EXE from FDD (optional)

1. Initialize Init_Onboard_Super_IO

2. Initialize Init_Onbaord_AUDIO

Okay to enter Setup utility; i.e. not until this POST stage can users enter the CMOS setup utility Reset keyboard if Early_Reset_KB is not defined Initialize PS/2 Mouse Prepare memory size information for function call: INT 15h ax=E820h Turn on L2 cache Program chipset registers according to items described in Setup & Auto-configuration table

1. Assign resources to all ISA PnP devices

2. Auto assign ports to onboard COM ports if the corresponding item in Setup is set to

1. Initialize floppy controller

2. Set up floppy related fields in 40:hardware

(Optional Feature) Enter AWDFLASH.EXE if: -AWDFLASH is found in floppy drive -ALT+F2 is pressed Detect serial ports & parallel ports. Detect & install co-processor Init HDD write protect Switch back to text mode if full screen logo is supported -If errors occur, report errors & wait for keys -If no errors occur or F1 key is pressed to continue: Clear EPA or customization logo E8POST.ASM starts

1. Call chipset power management hook

2. Recover the text font used by EPA logo (not for full screen logo)

3. If password is set, ask for password

Save all data in stack back to CMOS Initialize ISA PnP boot devices

1. USB final Initialization

2. Switch screen back to text mode

NET PC: Build SYSID Structure

1. Assign IRQs to PCI devices

2. Set up ACPI table at top of the memory.

1. Invoke all ISA adapter ROMs

2. Invoke all PCI ROMs (except VGA)

1. Enable/Disable Parity Check according to CMOS setup

5. Power management final initialization

2. Build & update ESCD

3. Set CMOS century to 20h or 19h

4. Load CMOS time into DOS timer tick

5. Build MSIRQ routing table

Boot attempt (INT 19h) Appendix IP35 Pro 5-3

Start power on sequence

Enable ATX power supply

ATX power supply ready

Setup PWM for CPU core voltage

Assert PWM for CPU core voltage

Check CPU core voltage

CPU core voltage ready

Complete µGuru initial process AWARDBIOS take over booting job

Start power off sequence

Check CPU core voltage

De-Assert ATX power supply

Complete power off sequence C.C. Either the external “EZ-CCMOS1” switch or the internal “CCMOS1” jumper is not set to its normal position. F.0. Button reset F.1. SoftMenu reset F.2. Power on sequence timeout F.3. Power off sequence timeout Power Off Sequence Others 5-4 IP35 Pro

5.2 Troubleshooting (How to Get Technical Support?)

Q: Do I need to clear the CMOS before I use a new motherboard to assemble my new computer system? A: Yes, we highly recommend that you clear the CMOS before installing a new motherboard. Please move the CMOS jumper from its default 1-2 position to 2-3 for a few seconds, and then back. When you boot up your system for the first time, follow the instructions in the user's manual to load the optimized defaults. Q: If my system hangs when I update the BIOS or set the wrong CPU parameters, what should I do? A: Whenever you update the BIOS or if the system hangs due to wrong CPU parameters setting, always clear CMOS jumper before booting up again. Q: Why does the system fail to boot up again right after a mechanical power-off? A: Please keep a 30-second interval between each mechanical power On/Off. Q: Why does the system fail to boot up and nothing displays on the screen after I did some over-clocking or non-standard settings inside the BIOS? A: It should not cause hardware or permanent damage to motherboard when BIOS settings were changed from default to over-clocking or non-standard status. We suggest the following three troubleshooting methods to discharge CMOS data, recover the hardware default status, and then making the motherboard work again. There is no need to bother returning the motherboard to where you bought it from or go through an RMA process. Step 1. Switch off the power supply unit and then switch it on again after one minute. If there is no power-switch on the power supply unit, disconnect its power cord for one minute and then reconnect. Press and hold the <Insert> key on the keyboard, and press the power-on button to boot up system. If it works, release the <Insert> key and hit <Del> key to enter the BIOS setup page to apply the correct settings. If the situation remains the same, repeat the procedures in Step 1 three times, or try Step 2. Step 2. Switch off the power supply unit or disconnect the power cord. Open the chassis cover. Locate the CCMOS jumper near the button battery. Change the jumper position from default 1-2 to 2-3 for one minute to discharge the CMOS data, and then put it back to default 1-2 position. Close the chassis and switch on the power supply unit or plug in the power cord. Press the power-on button to boot up system. If it works, hit <Del> key to enter the BIOS setup page to do the correct settings. If the situation remains the same, try Step 3. IP35 Pro 5-5 Appendix Step 3. The same procedure as Step 2, but while discharging the CMOS data, pull out the ATX power connectors from motherboard and remove the button battery during CMOS discharge. Q: How to get a quick response for my request on technical support? A: Please carry out a simple troubleshooting before sending “Technical Support Form”: System boot-up fails after the system had been assembled: Check the motherboard’s supporting specifications first to see if all the key components attached in your system can meet. To do so, you may:

Remove all the unnecessary add-on devices (except the CPU, VGA card, DRAM, and Power Supply), and then reboot.

If the trouble still exists, try another VGA card of different brand/model to see if the system will start.

If the trouble still exists, try another memory module of different brand/model.

If the trouble still exists, try another CPU and Power Supply. If the system runs successfully, shut it down and start re-installing the interface cards and devices that were previously installed in the system. Re-install and start the system one at a time until the system won’t start. Malfunction in the OS: If the system hangs after resuming from S3 or some testing program, if the CPU cannot be recognized properly, if the display resolution mixed, or if a certain program cannot be executed, etc, you may:

Upgrade the motherboard’s latest BIOS version.

Check if there is any conflict in the “Control Panel/System Properties”. Q: How to fill in the “Technical Support Form”? A: To fill in this “Technical Support Form”, please refer to the following instructions: 5-6

Region: Type in your country name.

First name: Type in your first name.

Last name: Type in your last name.

Subject: Type in the model name and the problem of your motherboard. Example 1: AA8XE and SCSI 29160 malfunction Example 2: AA8XE boot fails, POST code AF Example 3: AA8XE (system hang when S3 resume)

Motherboard: Type in the model name and revision number of your motherboard. Example: AA8XE REV: 1.00

BIOS Version: Type in the BIOS version of your motherboard. (You can find it on the screen during the POST sequence.)

CPU: Type in the brand name and the speed (MHz) of your CPU. (Illustrate the over-clocking status if you had done so.) Example: Intel 650 3.4GHz (OC FSB=220MHz)

Memory configuration: Type in the memory configuration in BIOS setting. Example: Memory Timing: 2.5-3-3-7 @533MHz

Graphics information: Note Graphics card’s brand, model and driver version

Graphics card: Type in the brand and model name of your graphics card. Example: ATI RADEON X850 XT PE

Graphics driver version: Type in the driver version of your graphics card Example: Catalyst 5.12V

Power supply maker: Type in the brand and model name of your power supply unit.

Power supply wattage: Type in the power wattage of your power supply unit.

Storage devices: Type in the brand and specifications of your HDD drive and quantity. Specify if it was inserted on IDE (Master or Slave) or SATA ports, including the RAID allocation status. Example 1: WD Caviar WD600 60GB (on IDE2 master), Maxtor DiamondMax 10 SATA 300GB (on SATA 3) Example 2: Maxtor DiamondMax 10 SATA 300GB *2 (on SATA 3, SATA 4 RAID 1)

Optical devices: Type in the brand and specifications of your optical drives and quantity. Specify if it was inserted on IDE (Master or Slave) or SATA ports.

Other devices: Indicate which add-on cards or USB devices you are absolutely sure relate to the problem. If you cannot identify the problem’s origin, indicate all the add-on cards or USB devices inserted on your system. Example: AHA 29160 (on PCI 2), Sandisk Cruzer mini 256MB USB Flash-disk.

Operating system: Indicate which OS and language version Example: Microsoft Windows XP SP2, English version Example: Microsoft Media Center Edition 2005, Korean version

Problem description: Describe the problem of your system configuration. Indicate the steps to duplicate problem if possible. See the next page for a blank Technical Support Form, or visit our website to fill in the form on line (http://www.abit.com.tw/page/en/contact/technical.php). Q. Is the motherboard dead? Do I need to return it to where I bought from or go through an RMA process? A: After you have gone through the troubleshooting procedures, yet the problem still exists, or you find an evident damage on the motherboard, please contact our RMA center. (http://www2.abit.com.tw/page/en/contact/index.php?pFUN_KEY=18000&pTITLE_IMG) Appendix IP35 Pro 5-7

5.2.2 Technical Support Form

Region: E-mail: First name: Last Name: Subject: Motherboard: BIOS Version: CPU: Memory brand: Memory size: Memory configuration: Graphics card: Graphics driver version: Power supply maker: Power supply wattage: Storage devices: Optical devices: Other devices: Operating system: Problem description: 5-8 IP35 Pro

Website: http://www.abit.com.cn UK, Ireland Universal ABIT UK Co. Ltd. Poland Unit 3, 24-26 Boulton Road, Stevenage, Herts SG1 4QX, United Kingdom Universal ABIT Poland (Rep. office) Tel: +44-1438-228888 Fax: +44-1438-226333 For technical support and RMA return: Tel: +44-1438-362088 technical@abitcomputer.co.uk returns@abitcomputer.co.uk Germany and Benelux (Belgium, Netherlands, Luxembourg), France, Italy, Spain, Portugal, Greece, Denmark, Norway, Sweden, Finland, Switzerland Universal ABIT NL B.V. Jan van Riebeeckweg 15, 5928LG, Venlo, The Netherlands Chamber of Commerce Venlo – number
