USER MANUAL AN52 ABIT

Hardware Setup AN52S AN52 Motherboard AMD Socket AM2 BIOS Setup User’s Manual Dual Channel DDR2 800 Gigabit LAN SATA 3Gb/s RAID USB 2.0 7.1-Channel HD Audio Multilingual QIG 2000MT/s HT Driver & Utility NVIDIA NF520 Single Chip abit SoftMenu™ Technology abit Silent OTES™ Technology (AN52S) External CMOS Clearing Switch (AN52S) Vista HW Ready Appendix About this Manual: This user’s manual contains all the information you may need for setting up this motherboard. To read the user’s manual of PDF format (readable by Adobe Reader), place the “Driver & Utility CD” into the CD-ROM drive in your system. The auto-run screen will appear, click the “Manual” tab to enter its submenu. If not, browse the root directory of the CD-ROM via the File Manager, and double click the “AUTORUN” file. AN52S/AN52 User’s Manual English + Multilingual QIG P/N: 4310-0000-87 Rev. 2.00, May 2007 Copyright and Warranty Notice The information in this document is subject to change without notice and does not represent a commitment on part of the vendor, who assumes no liability or responsibility for any errors that may appear in this manual. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular part of this document. In no event shall the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising from any defect or error in this manual or product. Product names appearing in this manual are for identification purpose only and trademarks and product names or brand names appearing in this document are the property of their respective owners. This document contains materials protected under International Copyright Laws. All rights reserved. No part of this manual may be reproduced, transmitted or transcribed without the expressed written permission of the manufacturer and authors of this manual. If you do not properly set the motherboard settings, causing the motherboard to malfunction or fail, we cannot guarantee any responsibility. The Following Information is Only for EU-member States: Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE): The use of the symbol indicates that this product may not be treated as household waste. By Ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be cause by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

5.1 Troubleshooting (How to Get Technical Support?).......................... 5-1

CPU Internal I/O Connectors

• Supports Socket AM2 940 Processor with 2000MT/s system bus using Hyper Transport™ Technology
• Supports AMD CPU Cool ‘n’ Quiet Technology Chipset
• NVIDIA NF520 Single Chip Memory
• 4x 240-pin DIMM slots support maximum memory capacity up to 8GB
• Supports Dual Channel DDR2 800 Un-buffered ECC/Non-ECC memory LAN

• 1x CD-In connector Rear Panel I/O
• 1x PS/2 Keyboard connector
• 1x PS/2 Mouse connector
• 1x COM port (For AN52S only)
• 1x External CMOS Clearing Switch (For AN52S only)

• Supports auto Jack Sensing and Jack Retasking functions Serial ATA

• 1x RJ-45 LAN connector abit Engineered
• abit Softmenu™ Technology
• abit Silent OTES™ Technology (For AN52S only)

• External CMOS Clearing Switch (For AN52S only) RoHS
• 100% Lead-free process and RoHS compliant Miscellaneous
• ATX form factor (305mm x 245mm)

Specifications and information contained herein are subject to change without notice. AN52S/AN52 1-1

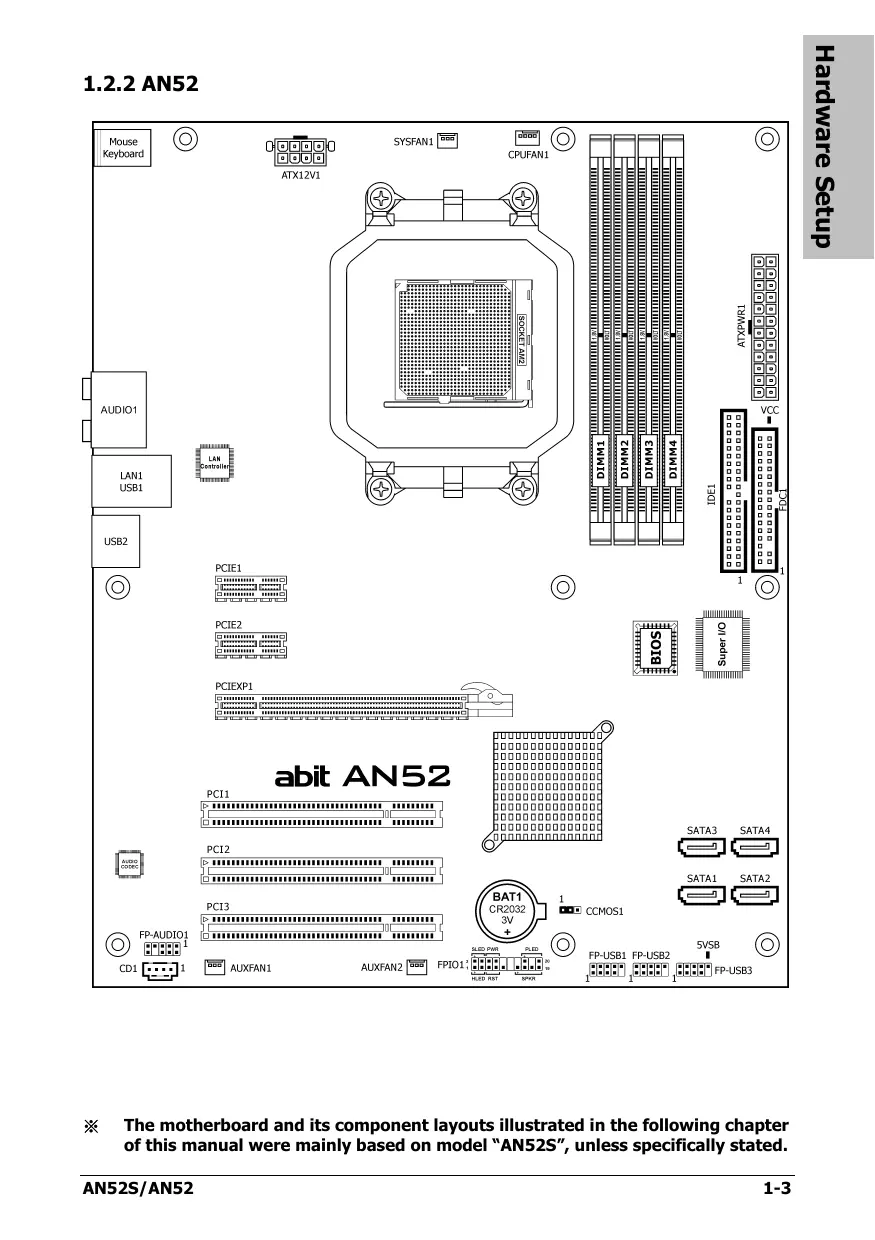

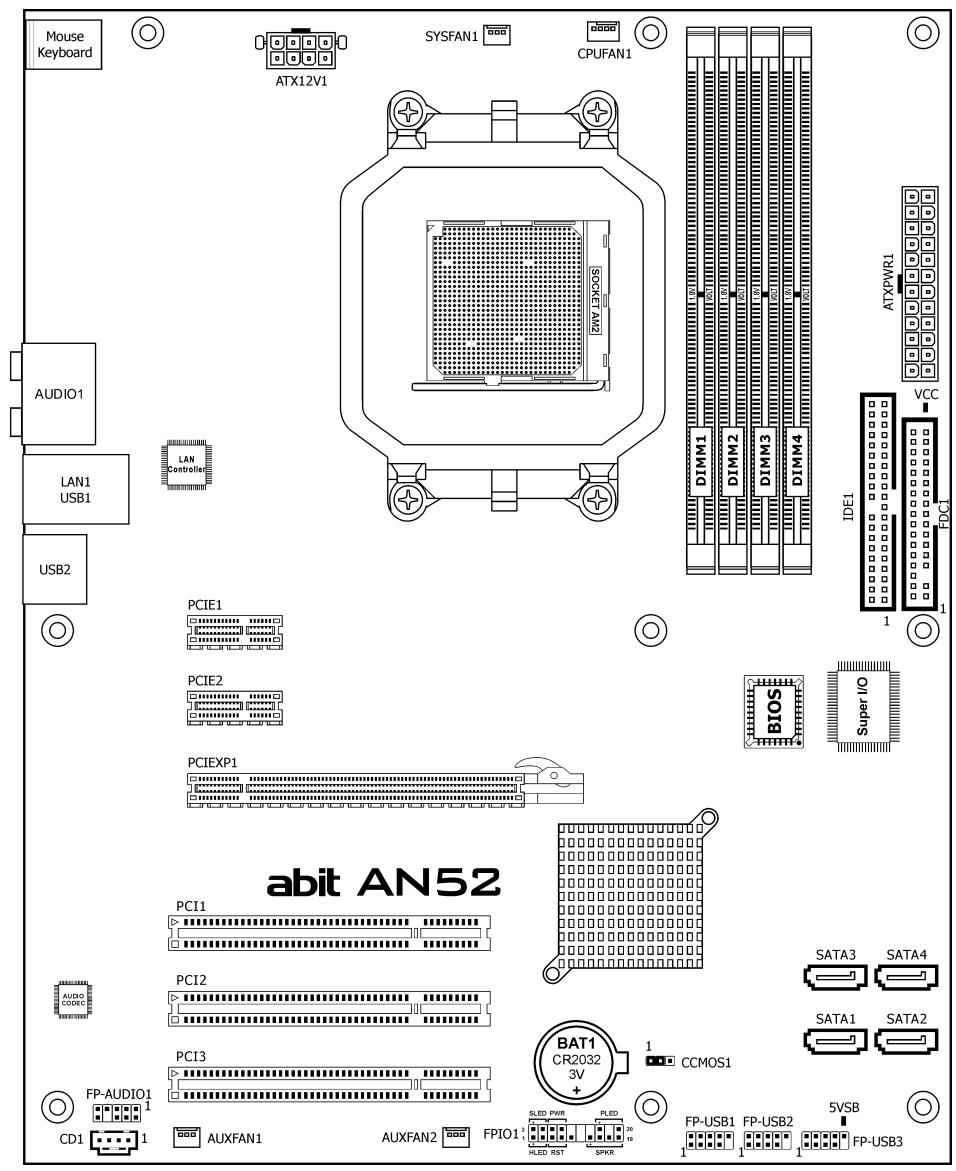

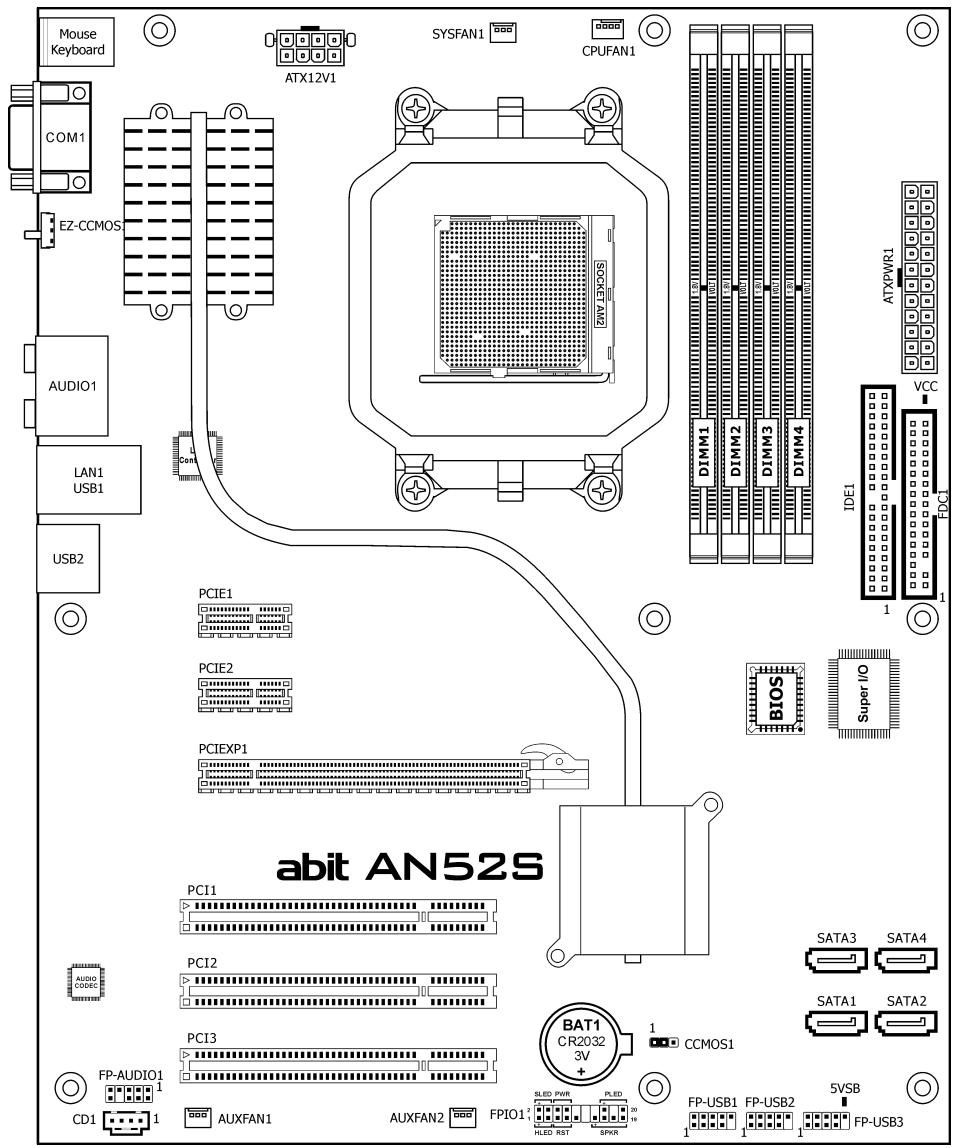

The motherboard and its component layouts illustrated in the following chapter of this manual were mainly based on model “AN52S”, unless specifically stated. AN52S/AN52 1-3

1.3 Choosing a Computer Chassis

Choose a chassis big enough to install this motherboard.

As some features for this motherboard are implemented by cabling connectors on the motherboard to indicators and switches or buttons on the chassis, make sure your chassis supports all the features required.

If there is a possibility of adopting some more hard drives, make sure your chassis has sufficient power and space for them.

Most chassis have alternatives for I/O shield located at the rear panel. Make sure the I/O shield of the chassis matches the I/O port configuration of this motherboard. You can find an I/O shield specifically designed for this motherboard in its package.

1.4 Installing Motherboard

Most computer chassis have a base with many mounting holes to allow the motherboard to be securely attached, and at the same time, prevent the system from short circuits. There are two ways to attach the motherboard to the chassis base: (1) with studs, or (2) with spacers. Basically, the best way to attach the board is with studs. Only if you are unable to do this should you attach the board with spacers. Line up the holes on the board with the mounting holes on the chassis. If the holes line up and there are screw holes, you can attach the board with studs. If the holes line up and there are only slots, you can only attach with spacers. Take the tip of the spacers and insert them into the slots. After doing this to all the slots, you can slide the board into position aligned with slots. After the board has been positioned, check to make sure everything is OK before putting the chassis back on.

Always power off the computer and unplug the AC power cord before adding or removing any peripheral or component. Failing to so may cause severe damage to your motherboard and/or peripherals. Plug in the AC power cord only after you have carefully checked everything. Locate all the screw holes on the motherboard and the chassis base.

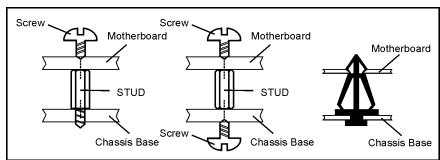

Place all the studs or spacers needed on the chassis base and have them tightened.

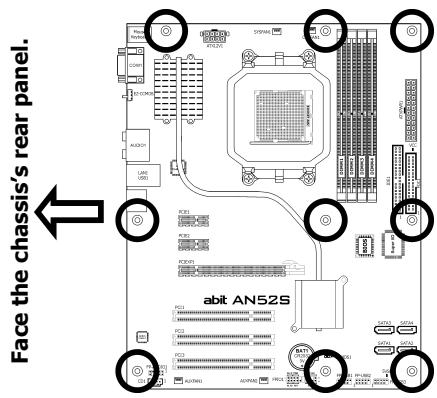

Face the motherboard’s I/O ports toward the chassis’s rear panel.

Line up all the motherboard’s screw holes with those studs or spacers on the chassis.

Install the motherboard with screws and have them tightened.

To prevent shorting the PCB circuit, please REMOVE the metal studs or spacers if they are already fastened on the chassis base and are without mounting-holes on the motherboard to align with. 1-4 Face the chassis’s rear panel. To install this motherboard:

For a 2-pin jumper, plug the jumper cap on both pins will make it CLOSE (SHORT). Remove the jumper cap, or plug it on either pin (reserved for future use) will leave it at OPEN position. SHORT OPEN OPEN Pin 1~2 SHORT Pin 2~3 SHORT For 3-pin jumper, pin 1~2 or pin 2~3 can be shorted by plugging the jumper cap in.

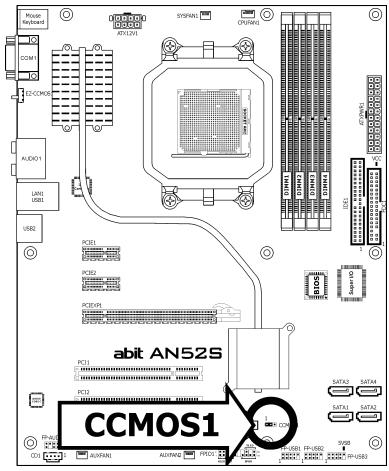

1.5.1 CMOS Memory Clearing Header and Backup Battery

The time to clear the CMOS memory occurs when (a) the CMOS data becomes corrupted, (b) you forgot the supervisor or user password preset in the BIOS menu, (c) you are unable to boot-up the system because the CPU ratio/clock was incorrectly set in the BIOS menu, or (d) whenever there is modification on the CPU or memory modules. This header uses a jumper cap to clear the CMOS memory and have it reconfigured to the default values stored in BIOS.

Pins 1 and 2 shorted (Default): Normal operation.

Pins 2 and 3 shorted: Clear CMOS memory. To clear the CMOS memory and load in the default values:

Power off the system.

Set pin 2 and pin 3 shorted by the jumper cap. Wait for a few seconds. Set the jumper cap back to its default settings --- pin 1 and pin 2 shorted.

Power on the system.

For incorrect CPU ratio/clock settings in the BIOS, press <Del> key to enter the BIOS setup menu right after powering on system.

Set the CPU operating speed back to its default or an appropriate value.

Another easy way to clear the CMOS memory can be done by switching the “EZ-CCMOS1”, see the section of “Connecting Rear Panel I/O Devices” in this manual for detail. (For AN52S only)

Please do shut down the system power before clearing CMOS memory. AN52S/AN52 1-5 CMOS Backup Battery: An onboard battery saves the CMOS memory to keep the BIOS information stays on even after disconnected your system with power source. Nevertheless, this backup battery exhausts after some five years. Once the error message like “CMOS BATTERY HAS FAILED” or “CMOS checksum error” displays on monitor, this backup battery is no longer functional and has to be renewed. To renew the backup battery:

Power off the system and disconnect with AC power source.

Remove the exhausted battery.

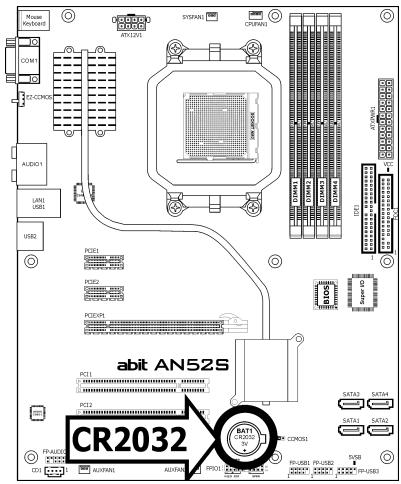

Insert a new CR2032 or equivalent battery. Pay attention to its polarity. The “+” side is its positive polarity.

Connect AC power source and power on the system.

Danger of explosion may arise if the battery is incorrectly renewed.

Renew only with the same or equivalent type recommended by the battery manufacturer.

Dispose of used batteries according to the battery manufacturer’s instructions. 1-6 AN52S/AN52

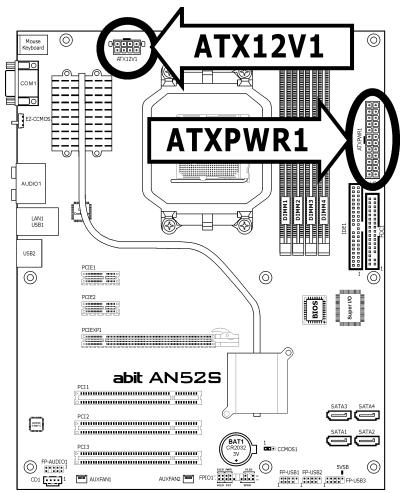

1.6.1 ATX Power Connectors

For a fully configured system, we recommend that you use a power supply of ATX12V 2.0 (or newer) specification compliant and of providing minimum 400W power output capability.

The following motherboard photos are served for DEMO only, and may not be the same type or model as the one described in this user’s manual. [ATXPWR1]: 24-pin power connector You may connect either a 20-pin (ATX12V 1.3) or 24-pin (ATX12V 2.0) power source. However, it is recommended to connect the 24-pin ATX12V power source to meet the 240VA protection limits. Plugged from a 24-pin ATX12V power. Plugged from a 20-pin ATX12V power. Plugged from a 4-pin ATX12V power. Plugged from an 8-pin EPS12V power. [ATX12V1]: 8-pin power connector This connector supplies +12V power to CPU. You may connect either a 4-pin ATX12V or an 8-pin EPS12V power source. However, it is recommended to connect the 8-pin EPS12V power source to meet the 240VA protection limits. AN52S/AN52 1-7 Hardware Setup

1.6 Connecting Chassis Components

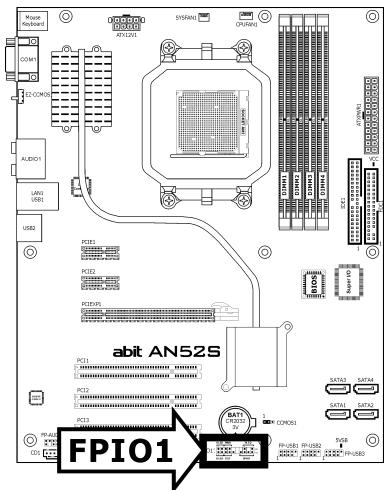

1.6.2 Front Panel Switches & Indicators Headers

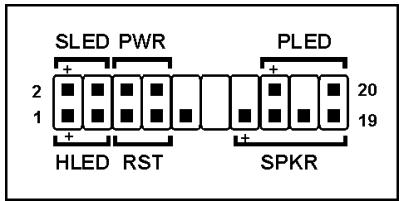

This header is used for connecting switches and LED indicators on the chassis front panel. Watch the power LED pin position and orientation. The mark “+” align to the pin in the figure below stands for positive polarity for the LED connection. Please pay attention when connecting these headers. A wrong orientation will only result in the LED not lighting, but a wrong connection of the switches could cause system malfunction.

HLED (Pin 1, 3): Connects to the HDD LED cable of chassis front panel.

RST (Pin 5, 7): Connects to the Reset Switch cable of chassis front panel.

SPKR (Pin 13, 15, 17, 19): Connects to the System Speaker cable of chassis.

SLED (Pin 2, 4): Connects to the Suspend LED cable (if there is one) of chassis front panel.

PWR (Pin 6, 8): Connects to the Power Switch cable of chassis front panel.

PLED (Pin 16, 18, 20): Connects to the Power LED cable of chassis front panel. 1-8 AN52S/AN52 Hardware Setup

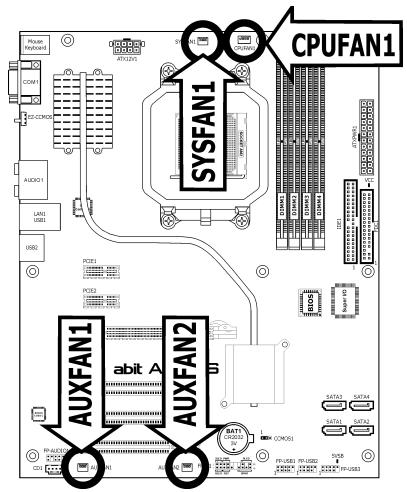

1.6.3 FAN Power Connectors

These connectors each provide power to the cooling fans installed in your system.

CPUFAN1: CPU Fan Power Connector

AUXFAN1~2: Auxiliary Fan Power Connectors

These fan connectors are not jumpers. DO NOT place jumper caps on these connectors. AN52S/AN52 1-9

1.7 Installing Hardware

※ DO NOT scratch the motherboard when installing hardware. An accidentally scratch of a tiny surface-mount component may seriously damage the motherboard.

1.7.1 CPU Socket AM2

※ DO NOT touch or bend the delicate pins on the CPU whenever you are holding it. The installation procedures vary with different types of CPU fan-and-heatsink assembly. The one shown here is served for DEMO only. For detailed information on how to install the one you bought, refer to its installation guidelines.

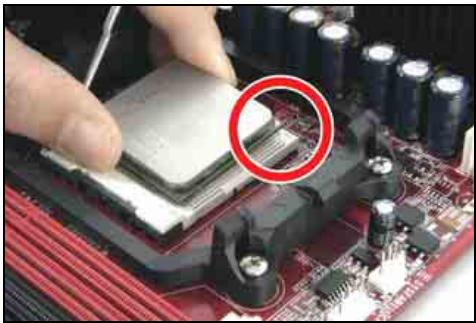

1. Pull out the socket lever away from the

socket and fully lift it up over 90-degree angle. Locate and align the triangle mark with both the CPU and the socket body. Vertically place the CPU with its pin-side down into the socket. Be careful to insert the CPU into the socket. The CPU only fits in one orientation with the socket. DO NOT force the CPU into the socket.

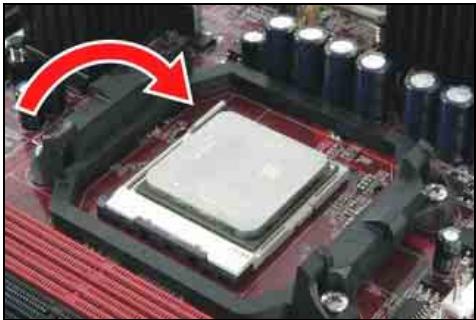

2. After placing the CPU into position, push

the socket lever down into its locked position to secure the CPU. The lever clicks when it’s locked into position.

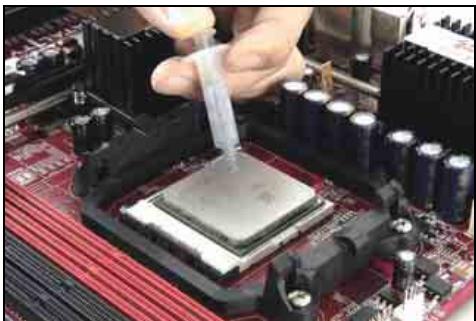

3. The heatsink for CPU may have thermal

interface material attached to its bottom. If not, applying a few squeeze of thermal paste to the CPU die will help to increase the contact. 1-10 AN52S/AN52 Hardware Setup

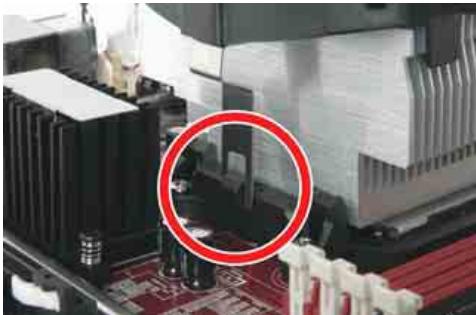

4. Place the heatsink and fan assembly

onto the retention frame. Match the heatsink clip with the socket mounting-lug. Hook the spring clip to the mounting-lug.

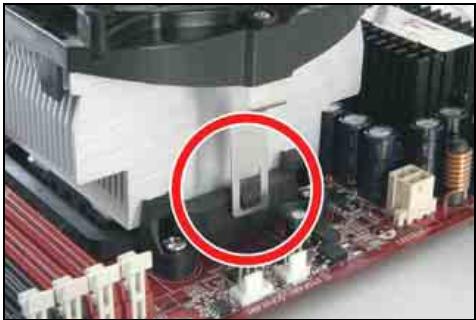

5. On the other side, push the retention

clip straight down to lock into the plastic lug on the retention frame.

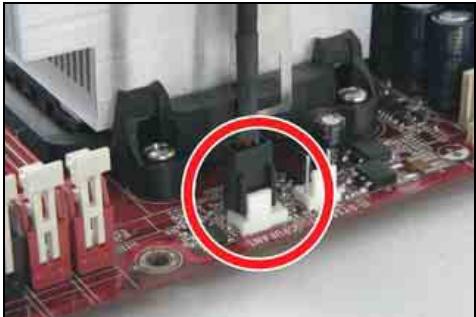

6. Connect the CPU cooling fan power

cable to the CPUFAN1 connector on this motherboard. ※ The “CPUFAN1” connector can be connected either with a 3-Pin or 4-Pin CPU cooling fan. For a 3-Pin connection, there will be no speed control available in the BIOS setup menu; the CPU fan will run at full speed. Also, please watch out for the orientation when inserting 3-Pin plug into this 4-Pin fan connector. ※ The motherboard in this illustration is served for DEMO only, may not be the same type or model as the one described in this user’s manual. ※ A higher fan speed will be helpful for better airflow and heat-dissipation. Nevertheless, stay alert to not touch any heatsink since a high temperature generated by the working system is still possible. AN52S/AN52 1-11

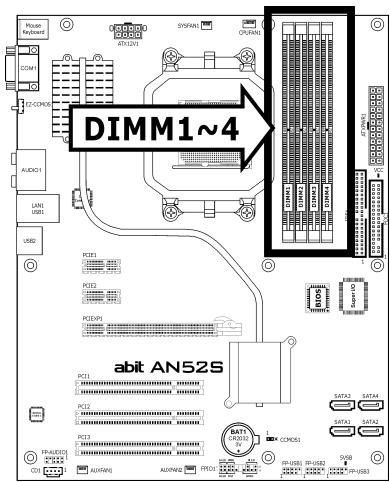

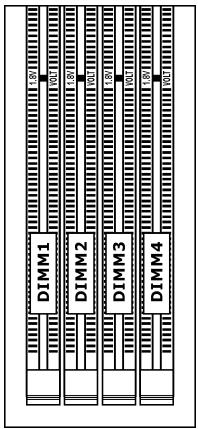

1.7.2 DDR2 Memory Slots

To reach the performance of Dual Channel DDR2, the following rules must be obeyed:

For a 4-DIMM dual-channel installation: Populate 2 DIMM modules of the same type and size on slots [DIMM1]+[DIMM2], and another 2 DIMM modules of the same type and size on slots [DIMM3]+[DIMM4].

[DIMM1] and [DIMM2] slots are made of the same color. [DIMM3] and [DIMM4] are made of another same color. Usually there is no hardware or BIOS setup requires after adding or removing memory modules, but you will have to clear the CMOS memory first if any memory module related problem occurs. To install system memory:

Power off the computer and unplug the AC power cord before installing or removing memory modules.

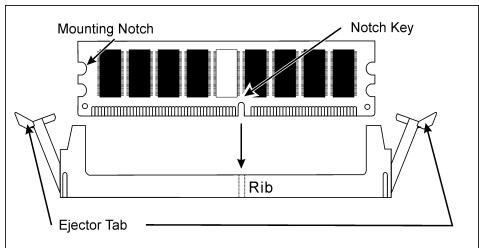

Locate the DIMM slot on the board.

Hold two edges of the DIMM module carefully, keep away from touching its connectors.

Align the notch key on the module with the rib on the slot.

Firmly press the module into the slots until the ejector tabs at both sides of the slot automatically snap into the mounting notch. Do not force the DIMM module in with extra force as the DIMM module only fits in one direction.

Static electricity can damage the electronic components of the computer or optional boards. Before starting these procedures, ensure that you are discharged of static electricity by touching a grounded metal object briefly. 1-12 AN52S/AN52 Hardware Setup

1.8 Connecting Peripheral Devices

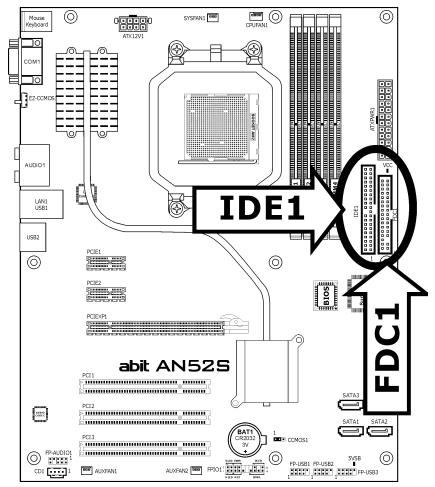

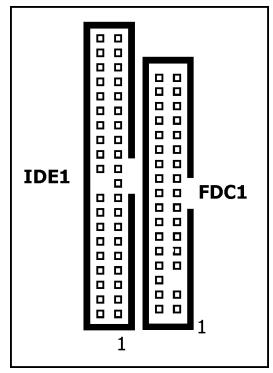

1.8.1 Floppy and IDE Disk Drive Connectors

The FDC1 connector connects up to two floppy drives with a 34-wire, 2-connector floppy cable. Connect the single end at the longer length of ribbon cable to the FDC1 on the board, the two connectors on the other end to the floppy disk drives connector. Generally you need only one floppy disk drive in your system.

The red line on the ribbon cable must be aligned with pin-1 on both the FDC1 port and the floppy connector. Each of the IDE port connects up to two IDE drives at Ultra ATA/100 mode by one 40-pin, 80-conductor, and 3-connector Ultra ATA/66 ribbon cables. Connect the single end (blue connector) at the longer length of ribbon cable to the IDE port of this board, the other two ends (gray and black connector) at the shorter length of the ribbon cable to the connectors of your hard drives.

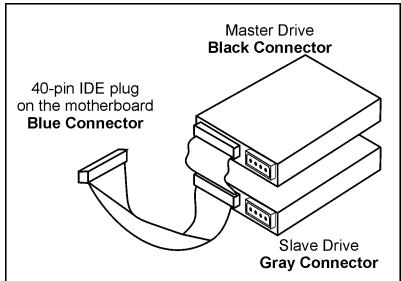

Make sure to configure the “Master” and “Slave” relation before connecting two drives by one single ribbon cable. The red line on the ribbon cable must be aligned with pin-1 on both the IDE port and the hard-drive connector. AN52S/AN52 1-13

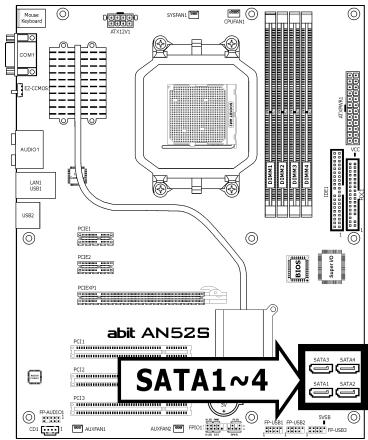

1.8.2 Serial ATA Connectors

Each SATA connector serves as one single channel to connect one SATA device by SATA cable. To connect SATA device:

Attach either end of the signal cable to the SATA connector on motherboard. Attach the other end to the SATA device.

Attach the SATA power cable to the SATA device and connect the other end from the power supply.

The motherboard in this photo is served for DEMO only, and may not be the same type or model as the one described in this user’s manual.

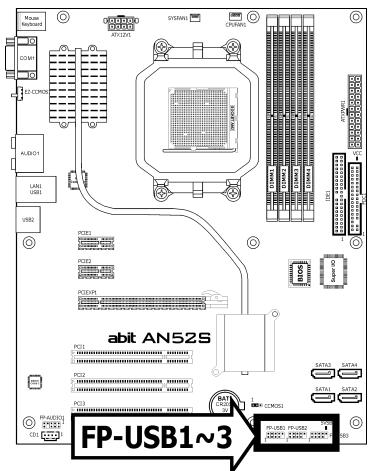

1.8.3 Additional USB 2.0 Port Headers

Each header supports 2x additional USB 2.0 ports by connecting bracket or cable to the rear I/O panel or the front-mounted USB ports of your chassis.

1-14 Pin Pin Assignment Pin

Make sure the connecting cable bears the same pin assignment. AN52S/AN52 Hardware Setup

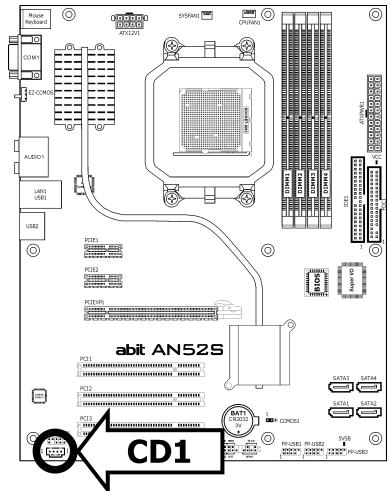

1.8.4 Internal Audio Connectors

This connector connects to the audio output of internal CD-ROM drive or add-on card.

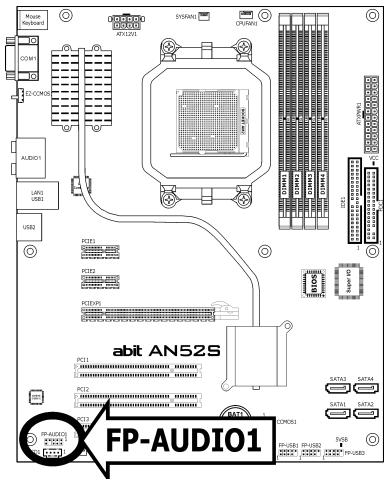

1.8.5 Front Panel Audio Connection Header

This header provides the front panel connection for HD (High Definition) Audio, yet for AC’97 Audio CODEC connection, you must carefully check the pin assignment before connecting from the front panel module. An incorrect connection may cause malfunction or even damage the motherboard.

Please do not connect the “Ground” cable or “USB VCC” cable from the front panel module to the Pin 4 “AVCC” of this header. AN52S/AN52 Pin Pin Assignment (AC’97 AUDIO) MIC2 L

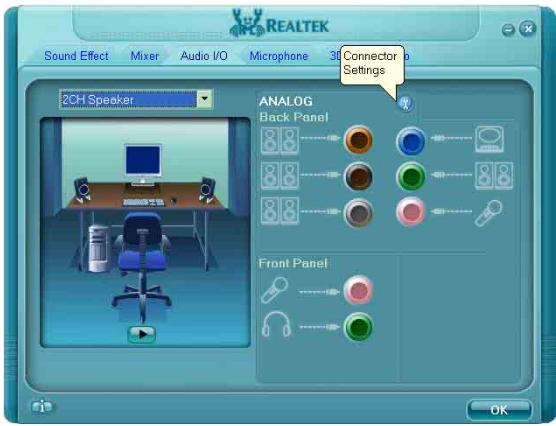

1-15 Driver Configuration for AC’97 audio connection: The audio driver is originally configured to support HD Audio. For AC’97 audio connection, you may:

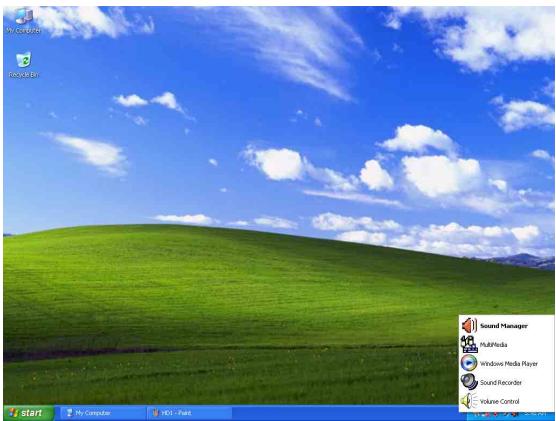

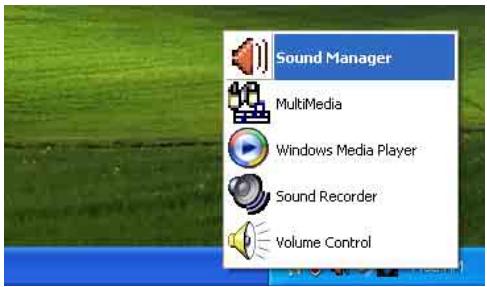

Right-click the “Realtek HD Audio Manager” icon system tray.

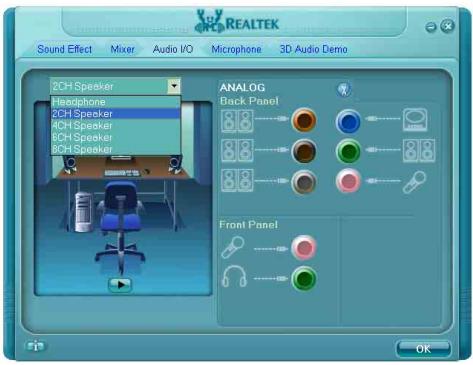

Click “Audio I/O” tab, and then click “Connector Settings”.

Click “Disabled front panel jack detection”, and then click “OK” to confirm. 1-16 AN52S/AN52 Hardware Setup

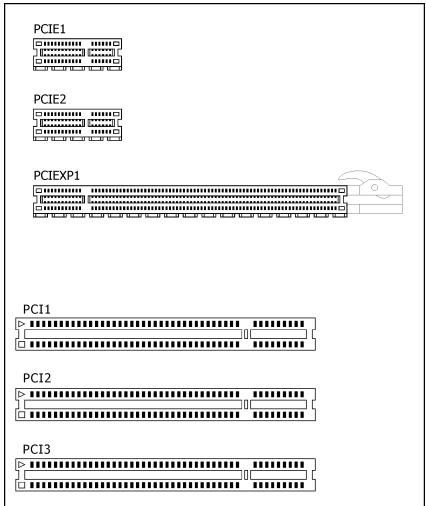

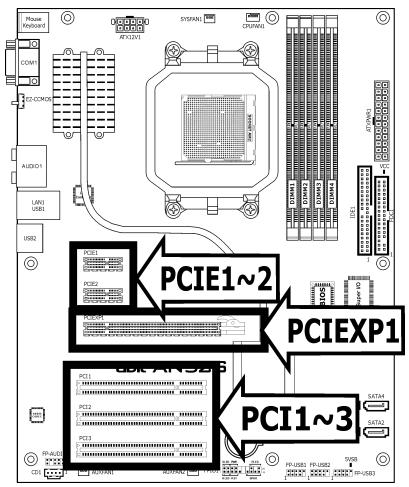

1.8.6 PCI and PCI Express X16, X1 Slots

Install PCI Express X16 graphics card into slot “PCIEXP1”. Install PCI Express X1 cards into slots “PCIE1” and/or “PCIE2”. Install PCI cards into slots “PCI1”, “PCI2”, and/or “PCI3”. AN52S/AN52 1-17

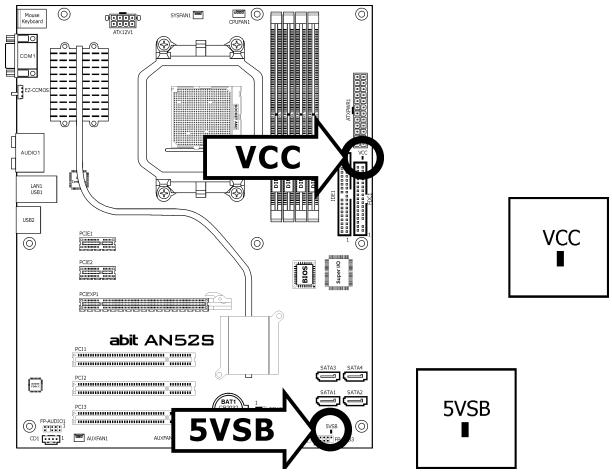

5VSB: This LED lights up when the power supply is connected with power source.

VCC: This LED lights up when the system power is on. 1-18 AN52S/AN52 Hardware Setup

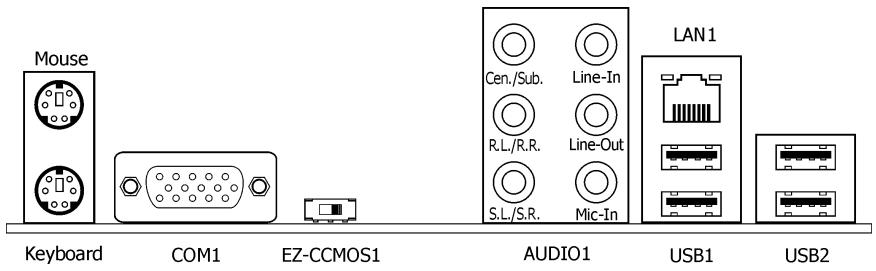

1.10 Connecting Rear Panel I/O Devices

The rear I/O part of this motherboard provides the following I/O ports: AN52S AN52

Mouse: Connects to PS/2 mouse.

Keyboard: Connects to PS/2 keyboard.

COM1: Connects to external modem, mouse or other devices that support this communication protocol. (For AN52S only)

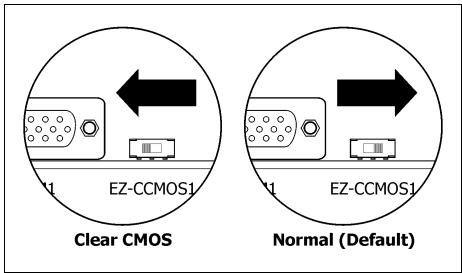

EZ-CCMOS1: This switch enables clearing the CMOS memory without uncovering the system chassis. (For AN52S only) To clear the CMOS memory by EZ-CCMOS1 switch: Step 1: Power off the system. Step 2: Turn left this switch to the “Clear CMOS” position. Step 3: Turn right this switch to its default “Normal” position. The default CMOS memory is now reloaded.

Make sure to set this switch to its “Normal” position before turning on the AC power. Otherwise, the DC power won’t be able to turn on.

Also make sure to shut down the system power before clearing CMOS memory. Note that by turning left this switch to the “Clear CMOS” position under system power-on condition will force shutting down the system, and by turning right this switch to the “Normal” position will then force turning on the system. AN52S/AN52 1-19

AUDIO1: Cen./Sub. (Center / Subwoofer): Connects to the center and subwoofer channel. R.L./R.R. (Rear Left / Rear Right): Connects to the rear left and rear right channel. S.L./S.R. (Surround Left / Surround Right): Connects to the surround left and surround right channel. Line-In: Connects to the line out from external audio sources. Line-Out: Connects to the front left and front right channel. Mic-In: Connects to the plug from external microphone.

LAN1: Connects to Local Area Network.

USB1/USB2: Connects to USB devices such as scanner, digital speakers, monitor, mouse, keyboard, hub, digital camera, joystick etc. 1-20 AN52S/AN52

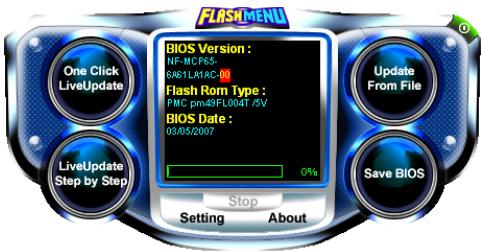

This motherboard provides a programmable EEPROM so that you can update the BIOS utility. The BIOS (Basic Input/Output System) is a program that deals with the basic level of communication between processor and peripherals. Use the BIOS Setup program only when installing motherboard, reconfiguring system, or prompted to “Run Setup”. This chapter explains the Setup Utility of BIOS utility. After powering up the system, the BIOS message appears on the screen, the memory count begins, and then the following message appears on the screen: If this message disappears before you respond, restart the system by pressing <Ctrl> + <Alt> + <Del> keys, or by pressing the Reset button on the computer chassis. Only when these two methods fail should you restart the system by powering it off and then back on. After pressing <Del> key, the main menu screen appears. Phoenix – AwardBIOS CMOS Setup Utility ► SoftMenu Setup ► PC Health Status ► Standard CMOS Features Load Fail-Safe Defaults ► Advanced BIOS Features Load Optimized Defaults ► Advanced Chipset Features Set Password ► Integrated Peripherals Save & Exit Setup ► Power Management Setup Exit Without Saving ► PnP/PCI Configurations Esc: Quit F10: Save & Exit Setup ‚€ : Select Item (NF-MCP65-6A61LA1AC-00) Change CPU’s Clock & Voltage

In order to increase system stability and performance, our engineering staff is constantly improving the BIOS menu. The BIOS setup screens and descriptions illustrated in this manual are for your reference only, and may not completely match with what you see on your screen. AN52S/AN52 2-1 BIOS Setup

Item Help ‚€:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults Brand Name This item displays the CPU model name installed on this motherboard. Frequency This item displays the processor speed of the CPU installed on this motherboard. CPU Operating Speed This item displays the CPU operating speed according to the type and speed of your CPU. You can also select the [User Define] option to enter the manual option. User Define:

The wrong settings of the multiplier and external clock in certain circumstances may cause CPU damage. Setting the working frequency higher than the PCI chipset or processor specs, may cause abnormal memory module functioning, system hangs, hard disk drive data lose, abnormal functioning of the VGA card, or abnormal functioning with other add-on cards. Using non-specification settings for your CPU is not the intention of this explanation. These should be used for engineering testing, not for normal applications.

There will be no guaranty for the settings beyond specification. Any damage of any component on this motherboard or peripherals resulting therein is not our responsibility.

CPU External Clock(MHz) This item selects the external clock frequency. Due to the specification limit of the CPU you installed, the speed you set over its standard bus speed is supported, but not guaranteed.

Multiplier Factor This item displays the multiplier factor for the CPU you installed. 2-2 AN52S/AN52

PCIe Clock This item selects the clock frequency for PCI Express slot. Voltages Control This option allows you to switch between the default and user-defined voltages. Leave this setting at default unless the current voltage setting cannot be detected or is not correct. The option “User Define” enables you to select the following voltages manually. CPU Core Voltage

Hyper Transport Voltage

‚€:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults 2-4 AN52S/AN52 IDE HDD Auto-Detection This item allows you to detect the parameters of IDE drives by pressing <Enter> key. The parameters will be shown on the screen automatically. IDE Channel 1 Master/Slave, SATA Channel 1~4 When set to [Auto], the BIOS will automatically check what kind of IDE or SATA hard drive you are using. If you want to define your own drive yourself, set it to [Manual] and make sure you fully understand the meaning of the parameters. Please refer to the instruction manual provided by the device’s manufacturer to get the setting right. Access Mode Capacity This item displays the approximate capacity of the disk drive. Usually the size is slightly greater than the size of a formatted disk given by a disk-checking program. Cylinder This item configures the numbers of cylinders. Head This item configures the numbers of read/write heads. Precomp This item displays the number of cylinders at which to change the write timing. Landing Zone This item displays the number of cylinders specified as the landing zone for the read/write heads. Sector This item configures the numbers of sectors per track. Back to Standard CMOS Features Setup Menu Drive A This item sets the type of floppy drive installed. Floppy 3 Mode Support This item allows you to use “3 Mode Floppy Drive” in Japanese computer systems by selecting drive A, B, or both. Leave this item at its default [Disabled] setting if you are not using this Japanese standard floppy drive. Halt On This item determines whether the system stops if an error is detected during system boot-up. [All Errors]: The system-boot will stop whenever the BIOS detect a non-fatal error. [No Errors]: The system-boot will not stop for any error detected. AN52S/AN52 2-5 BIOS Setup This item selects the mode to access your IDE or SATA devices. Leave this item at its default [Auto] setting to detect the access mode of your HDD automatically. [All, But Keyboard]: The system-boot will stop for all errors except a keyboard error. [All, But Diskette]: The system-boot will stop for all errors except a diskette error. [All, But Disk/Key]: The system-boot will stop for all errors except a diskette or keyboard error. Base Memory This item displays the amount of base memory installed in the system. The value of the base memory is typically 640K for systems with 640K or more memory size installed on the motherboard. Extended Memory This item displays the amount of extended memory detected during system boot-up. Total Memory This item displays the total memory available in the system. 2-6 AN52S/AN52

2.3 Advanced BIOS Features

Item Help ‚€:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults Quick Power On Self Test When set to [Enabled], this item speeds up the Power On Self Test (POST) after powering on the system. The BIOS shorten or skip some check during the POST. CPU Feature Click <Enter> key to enter its submenu: Virtualization Phoenix – AwardBIOS CMOS Setup Utility CPU Feature Enabled Item Help ‚€:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults Virtualization Technology This option enables or disables the additional hardware capabilities provided by Virtualization Technology. AN52S/AN52 2-7 BIOS Setup Phoenix – AwardBIOS CMOS Setup Utility Advanced BIOS Features Quick Power On Self Test Enabled ► CPU Feature Press Enter ► Hard Disk Boot Priority Press Enter First Boot Device Floppy Second Boot Device Hard Disk Third Boot Device CDROM Boot Other Device Enabled Boot Up Floppy Seek Disabled Boot Up NumLock Status Security Option Setup MPS Version Ctrl For OS Delay IDE Initial (Secs) Full Screen LOGO Show Enabled Back to Advanced BIOS Features Setup Menu Hard Disk Boot Priority This item selects the hard disks booting priority. By pressing <Enter> key, you can enter its submenu where the hard disks detected can be selected for the booting sequence to boot up system. This item functions only when there is the option of [Hard Disk] in any one of the First/Second/Third Boot Device items. First Boot Device / Second Boot Device / Third Boot Device / Boot Other Device Select the drive to boot first, second and third in the [First Boot Device], [Second Boot Device], and [Third Boot Device] items respectively. The BIOS will boot the operating system according to the sequence of the drive selected. Set [Boot Other Device] to [Enabled] if you wish to boot from another device other than these three items. Boot Up Floppy Seek When set to [Enabled], the BIOS will check whether the floppy disk drive is installed or not. Boot Up NumLock Status This item determines the default state of the numeric keypad at system booting up. [On]: The numeric keypad functions as number keys. [Off]: The numeric keypad functions as arrow keys. Security Option This item determines when the system will prompt for password - every time the system boots or only when enters the BIOS setup. [Setup]: The password is required only when accessing the BIOS Setup. [System]: The password is required each time the computer boots up.

Don’t forget your password. If you forget the password, you will have to open the computer case and clear all information in the CMOS before you can start up the system. But by doing this, you will have to reset all previously set options. MPS Version Ctrl For OS This item specifies which version of MPS (Multi-Processor Specification) this motherboard will use. Leave this item at its default setting. Delay For HDD (Secs) This item allows the BIOS to support some old or special IDE devices by prolonging this delay time. A larger value will give more delay time to the device for which to initialize and to prepare for activation. Full Screen LOGO Show This item determines to show the full screen logo when booting. 2-8 AN52S/AN52

2.4 Advanced Chipset Features

Phoenix – AwardBIOS CMOS Setup Utility Advanced Chipset Features K8<->NB HT Speed Auto K8<->NB HT Width Auto ► DRAM Configuration Press Enter SSE/SSE2 Instructions Enabled Item Help K8<->NB HT Speed This item selects the LDT Bus Frequency between CPU and NF520 Chipset. K8<->NB HT Width This item selects the LDT Bus Width between CPU and NF520 Chipset. DRAM Configuration Click <Enter> key to enter its submenu. You may manually set the DRAM timing parameters through its sub-items, or leave them at their default settings according to the SPD (Serial Presence Detect) data stored in the DRAM. SSE/SSE2 Instructions This item allows you to Enable or Disable the SSE/SSE2 (Streaming SIMD Extensions) instruction set. AN52S/AN52 2-9 BIOS Setup ↓↑→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

2.5 Integrated Peripherals

USB Keyboard Support Select [BIOS] for the legacy operating system (such as DOS) that does not support USB keyboard.

USB Mouse Support Select [BIOS] for the legacy operating system (such as DOS) that does not support USB mouse. OnChip Audio Controller This option enables or disables the audio controller. 2-12 AN52S/AN52 Onboard FDD Controller This option enables or disables the floppy disk controller. Onboard Serial Port (For AN52S only) This item determines which I/O addresses the onboard Serial Port controller will access. Onboard LAN Controller This option enables or disables the LAN controller.

Onboard LAN Boot ROM AN52S/AN52 2-13 BIOS Setup This item allows you to use the boot ROM (instead of a disk drive) to boot-up the system and access the local area network directly.

USB Resume from S3 When set to [Enabled], this item allows you to use a USB device to wake up a system that is in the S3 (STR - Suspend To RAM) state. This item can be configured only if the item “ACPI Suspend Type” is set to [S3(STR)]. Power Button Function This item selects the method of powering off your system: [Delay 4 Sec.]: Pushing the power button for more than 4 seconds will power off the system. This will prevent the system from powering off in case you accidentally hit or pushed the power button. [Instant-Off]: Pressing and then releasing the power button at once will immediately power off the system. Wake Up by WAKE# of PCIe When set to [Enabled], access through the add-on PCI Express card can remotely wake up the system that was in Soft-Off condition. The PCI Express card must support the wake up function. Wake Up by PME# of PCI When set to [Enabled], access through the add-on PCI card can remotely wake up the system that was in Soft-Off condition. The PCI card must support the wake up function. Wake Up by Ring When set to [Enabled], any event affecting from Modem Ring will awaken a system that has powered down. Wake Up by Alarm When set to [Enabled], you can set the date and time you would like the Soft-Off PC to 2-14 AN52S/AN52 power-on in the “Date (of Month) Alarm” and “Time (hh:mm:ss) Alarm” items. However, if the system is being accessed by incoming calls or the network (Resume On Ring/LAN) prior to the date and time set in these items, the system will give priority to the incoming calls or network instead.

Day of Month Alarm [0]: This option power-on the system everyday according to the time set in the “Time (hh:mm:ss) Alarm” item. [1-31]: This option selects a date you would like the system to power-on. The system will power-on on the date set, and the time set in the “Time (hh:mm:ss) Alarm” item.

Time (hh:mm:ss) Alarm BIOS Setup This item sets the time you would like the system to power-on. Cool ’n’ Quiet Technology This option enables or disables the AMD K8 cool and quiet function. Restore On AC Power Loss This item selects the system action after an AC power failure. [Power Off]: When power returns after an AC power failure, the system’s power remains off. You must press the Power button to power-on the system. [Power On]: When power returns after an AC power failure, the system’s power will be powered on automatically. [Last State]: When power returns after an AC power failure, the system will return to the state where you left off before power failure occurred. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns. HPET Support This item selects to support the “High Precision Event Timer” (HPET), a new timer hardware for use by the system software when generating interrupts for thread schedulers, kernels, and multimedia timer servers. AN52S/AN52 2-15

IRQ Resources Click <Enter> key to enter its submenu: This item sets each system interrupt to either [PCI Device] or [Reserved]. PCI/VGA Palette Snoop This item determines whether the MPEG ISA/VESA VGA cards can work with PCI/VGA or not. [Enabled]: MPEG ISA/VESA VGA cards work with PCI/VGA. [Disabled]: MPEG ISA/VESA VGA cards do not work with PCI/VGA. Maximum Payload Size This item sets the maximum TLP payload size for the PCI Express devices. 2-16 AN52S/AN52

2.8 PC Health Status

CPU Shutdown Temperature You can set the processor shutdown temperature here. If the processor temperature exceeds the settings value, system will force to shutdown to protect the processor not overheat. CPU Warning Temperature This item lets you select the temperature at which you want the system to send out a warning message to the PC speakers of when the temperature goes beyond either limit. You can select the temperatures you want. FAN Fail Alarm Selectable This item selects the fan that will be monitored for malfunction. Shutdown When FAN Fail When set to [Enabled], the system will be shut down if the fan selected for monitoring is not running. CPU FANEQ Control This item allows you to control the CPU fan speed. When set to [Enabled], the following items become selectable.

Hyper Transport Voltage

CPU FanEQ Temp. Tolerance This item sets the temperature tolerance range for the item “CPU FanEQ Target Temp.”.

CPU FanEQ Start Control This item sets the speed ratio for the 4-pin CPU fan assembly connected at “CPUFAN1” fan power connector to start running.

CPU FanEQ Stop Control This item sets the lowest speed ratio for the 4-pin CPU fan assembly connected at “CPUFAN1” fan power connector to run at when the CPU temperature detected is lower than the value of item “CPU FanEQ Target Temp.” plus the value of item “CPU FanEQ Temp. Tolerance”. In the situation when the CPU temperature detected is higher than the value of item “CPU FanEQ Target Temp.” plus the value of item “CPU FanEQ Temp. Tolerance”, the speed ratio for the 4-pin CPU fan assembly connected at “CPUFAN1” fan power connector will first run at the speed ratio set by the item “CPU FanEQ Start Control”, and then up to 100%.

The 3-pin fan assembly connected at this 4-pin “CPUFAN1” fan power connector will have no speed control function. SYS FanEQ Control This item allows you to control the SYSFAN speed. When set to [Enabled], the following items become selectable.

SYS FanEQ Reference Temp. This item sets the reference point for taking temperature. The options are “System” and “CPU”.

In the situation when connecting a 3-pin CPU fan assembly, and you still want the speed control function to take effect, you must:

1. Plug the 3-pin CPU fan assembly to “SYSFAN1” fan power connector.

2. Set the “SYS FanEQ Reference Temp.” item from the default “System” to

SYS FanEQ Target Temp. This item sets the temperature mark for the “SYS FanEQ” function to take effect.

SYS FanEQ Temp. Tolerance This item sets the temperature tolerance range for the item “SYS FanEQ Target Temp.”.

SYS FanEQ Start Control This item sets the speed ratio for the 3-pin fan assembly connected at “SYSFAN1” fan power connector to start running.

SYS FanEQ Stop Control This item sets the lowest speed ratio for the 3-pin fan assembly connected at “SYSFAN1” fan power connector to run at when the temperature of “SYS FanEQ Reference Temp.” detected is lower than the value of item “SYS FanEQ Target Temp.” plus the value of item “SYS FanEQ Temp. Tolerance”. In the situation when the temperature of “SYS FanEQ Reference Temp.” detected is higher than the value of item “SYS FanEQ Target Temp.” plus the value of item “SYS FanEQ Temp. Tolerance”, the speed ratio for the 3-pin fan assembly connected at “SYSFAN1” fan power connector will first run at the speed ratio set by the item “SYS FanEQ Start Control”, and then up to 100%. 2-18 AN52S/AN52 All Voltages, Fans Speed and Thermal Monitoring These unchangeable items list the current status of the CPU and environment temperatures, fan speeds, and system power voltage.

This option loads the BIOS default values that are factory settings for optimal-performance system operations.

This option protects the BIOS configuration or restricts access to the computer itself.

2.12 Save & Exit Setup

This option saves your selections and exits the BIOS setup menu.

2.13 Exit Without Saving

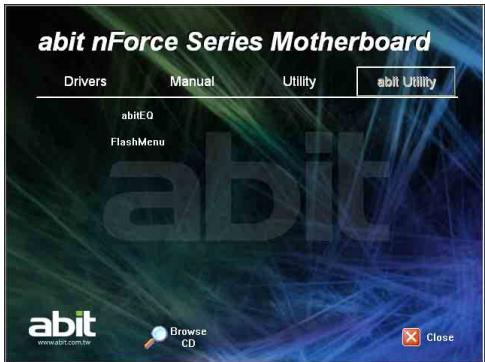

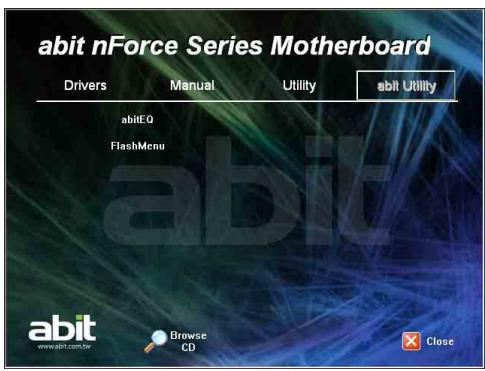

The “Driver-&-Utility CD” that came packed with this motherboard contains drivers, utilities and software applications required for its basic and advanced features.

Place the “Driver-&-Utility CD” into the CD-ROM drive in your system. The following installation auto-run screen appears. If not, browse the root directory of the CD-ROM via the File Manager, and double click the “AUTORUN” file.

Click the item needed for installation. [Drivers]: Click to enter the driver installation menu.

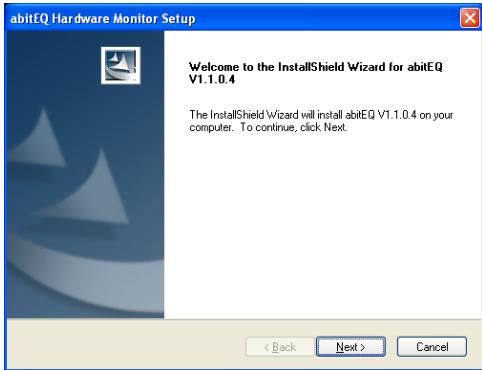

[abit Utility]: Click to enter the installation menu of utilities exclusively developed by abit.

Browse CD]: Click to browse the contents of this “Driver-&-Utility CD”. Close]: Click to exit this installation menu. The Windows will automatically search for current and updated software by looking up your computer. When this “Found New Hardware Wizard” window appears. Click [Cancel] to start the following procedures. AN52S/AN52 3-1 Driver & Utility

Click on the [Drivers] tab in the installation menu screen.

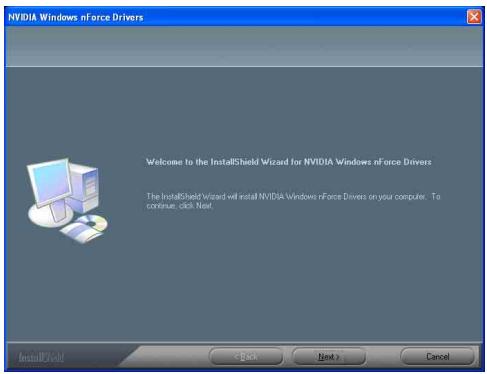

Click the [nVidia nForce Chipset Driver] item. The installation screen appears.

Follow the prompts on the screen to complete installation.

Please install this nVidia nForce Chipset Driver first after having installed the Windows operating system.

Click on the [Drivers] tab in the installation menu screen.

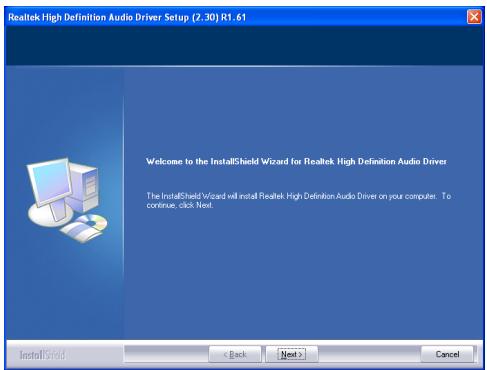

Click the [Realtek HD Audio Driver] item. The installation screen appears.

Follow the prompts on the screen to complete installation.

After restarting the system, right-click the Sound Manager icon located at the desktop shortcut. Click item “Sound Manager”. The Realtek HD Audio Manager appears. 3-2 AN52S/AN52

Click the pull down menu to select the channel configuration.

Click [OK] button to apply the Audio I/O settings and exit. Driver & Utility AN52S/AN52 3-3

Click on the [Drivers] tab in the installation menu screen.

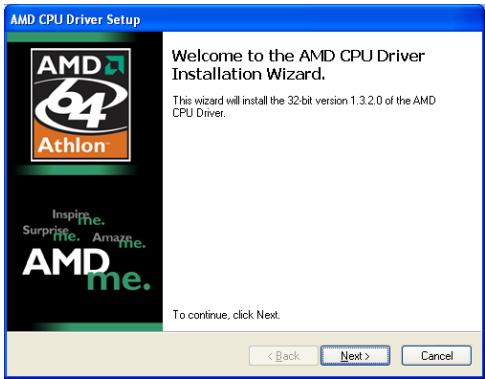

Click the [Cool’n’Quiet Driver] item. The installation screen appears.

Follow the prompts on the screen to complete installation.

Restart the system for the driver to take effect.

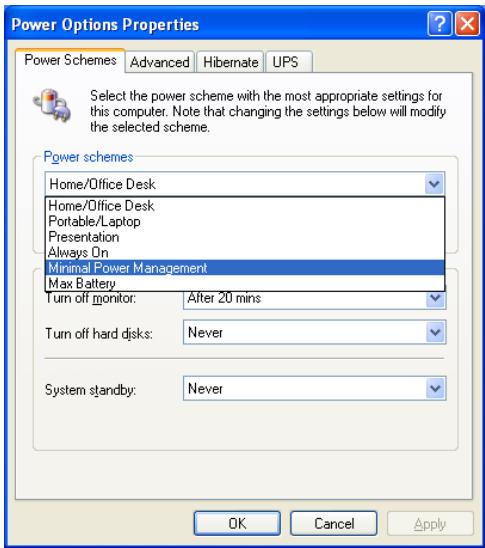

After the system restarted, open the “Power Options” from the control panel and choose the power scheme “Minimal Power Management” to enable Cool ‘n’ Quiet.

For Windows 2000 or ME system, an AMD Cool ‘n’ Quiet tab will appear under “Power Options” when the Cool ‘n’ Quiet software for Windows 2000 and ME is installed. This must be set to “Automatic Mode” for Cool ‘n’ Quiet to be enabled.

3-4 There is no need to install this driver for Windows 2000 with Service Pack 4, Windows XP with Service Pack 1, or their later version. AN52S/AN52

3.6 abitEQ (The Hardware Doctor Utility)

The abitEQ is a self-diagnostic system that protects PC Hardware by monitoring critical items of Power Supply Voltage, CPU & System Fans Speed, and CPU & System Temperature. To install this utility: Click on the [abit Utility] tab in the installation menu screen.

Click the [abitEQ] item. The following screen appears.

Follow the prompts on the screen to complete installation.

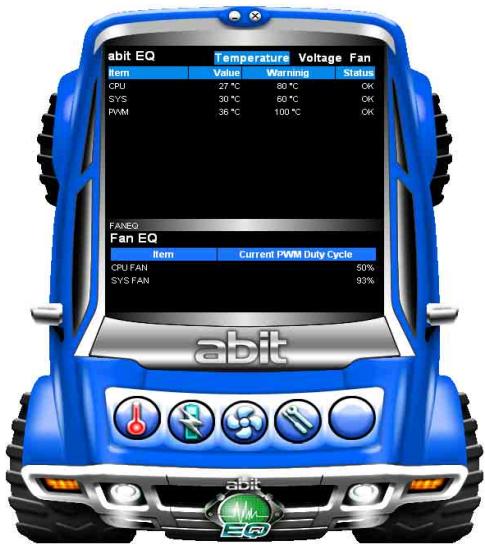

The abitEQ shows you the status of Voltage, Fan Speed, and Temperature readings as well. Driver & Utility

The FlashMenu is a utility to flash the BIOS in a more easily and quickly way. To install this utility:

Click on the [abit Utility] tab in the installation menu screen.

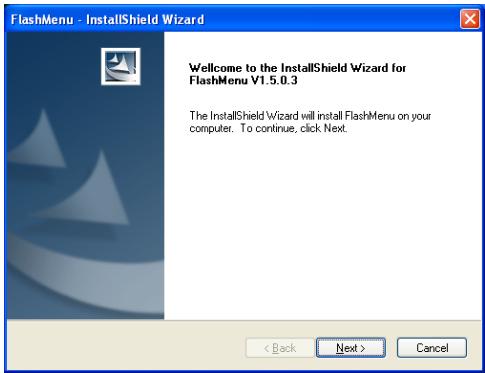

Click the [FlashMenu] item. The following screen appears.

Follow the prompts on the screen to complete installation.

This FlashMenu screen appears. You can easily update the BIOS from clicking [Update From File], [One Click LiveUpdate], or [LiveUpdate Step by Step] button. 3-6 AN52S/AN52

3.8 SATA RAID Driver (for Windows Vista)

The Raid Driver needed when installing Windows Vista operating system is located at the following path of your CD-ROM drive after placing the “Driver-&-Utility CD” into it: For Vista 32bit CD-ROM Drive:\Drivers\SATARAID\MCP65\Vista32 For Vista 64bit CD-ROM Drive:\Drivers\SATARAID\MCP65\Vista64

3.9 SATA RAID Driver (for Windows XP, 2003, or 2000)

The “Driver Disk Maker” program bundled in the Driver-&-Utility CD is a utility to build the driver program needed for SATA controller into a floppy disk under DOS environment. This procedure is necessary only for installing Windows operating system to the hard disk connected to “SATA1~SATA4” connector. To create a driver disk Under DOS Environment:

Before starting, connect a 3.5” floppy disk drive to the “FDC1” connector, and connect a CD-ROM drive to your motherboard. Prepare a 3.5” floppy disk.

After completing all the start-up preparation for hardware setup, power on the system.

Enter the BIOS Setup Menu by hitting <Del> key 1.

Restart the system. The system will now boot from CD, and enter the ABIT Boot Manager, the following options appear 3: (0) (1) (2) (3) Boot Make Boot Skip From First HDD Driver Disk From First Floppy Drive CD-ROM Boot (Try Next Boot Device) Type <1> and hit <Enter> key. The following options appear: (1) Make Driver Disk (2) Exit Type <1> and hit <Enter> key to start making.

The driver options appear:

Insert floppy disk to the floppy drive 4. Press any key to continue.

Copying files to floppy now starts. After completed copying, hit the <n> key if you do not want to make another Driver Disk, and stop at the A:\> prompt.

Take out the Driver-&-Utility CD from the CD-ROM drive now. Restart your system 5. (1) NVRaid Floppy Disk for WinXP_2K_2003 (32bit) (2) NVRaid Floppy Disk for WinXP_2003 (64bit) Type the number of the actions you want and hit <Enter> key.

You may refer to the chapter “BIOS Setup Menu” in user’s manual on how to do so. The name may vary as per BIOS version. Place the “Driver-&-Utility CD” into the CD-ROM drive now. You will have to type your command within 20 seconds, or the system will boot from HD. You will be asked to do the format procedure if the floppy disk is not blank. Hit <n> key for not formatting another floppy. Now you have this driver disk ready for installing Windows Operating System. Insert this floppy disk to floppy drive and press <F6> key when the screen instruction prompts you to install a third-party SCSI or RAID driver. AN52S/AN52 3-7 Driver & Utility Enter and select the BIOS menu “Advanced BIOS Features”. Configure the option “First Boot Device” to “CD-ROM” 2 drive. Save this selection and exit BIOS setup menu by accessing the BIOS menu “Save & Exit Setup”. 3-8 AN52S/AN52

• 3 個 PCI 插槽 abit Engineered

• 2 个 PCI-E X1 插槽 abit Engineered

5.1 Troubleshooting (How to Get Technical Support?)

Q: Do I need to clear the CMOS before I use a new motherboard to assemble my new computer system? A: Yes, we highly recommend that you clear the CMOS before installing a new motherboard. Please move the CMOS jumper from its default 1-2 position to 2-3 for a few seconds, and then back. When you boot up your system for the first time, follow the instructions in the user's manual to load the optimized defaults. Q: If my system hangs when I update the BIOS or set the wrong CPU parameters, what should I do? A: Whenever you update the BIOS or if the system hangs due to wrong CPU parameters setting, always clear CMOS jumper before booting up again. Q: Why does the system fail to boot up again right after a mechanical power-off? A: Please keep a 30-second interval between each mechanical power On/Off. Q: Why does the system fail to boot up and nothing displays on the screen after I did some over-clocking or non-standard settings inside the BIOS? A: It should not cause hardware or permanent damage to motherboard when BIOS settings were changed from default to over-clocking or non-standard status. We suggest the following three troubleshooting methods to discharge CMOS data, recover the hardware default status, and then making the motherboard work again. There is no need to bother returning the motherboard to where you bought it from or go through an RMA process. Step 1. Switch off the power supply unit and then switch it on again after one minute. If there is no power-switch on the power supply unit, disconnect its power cord for one minute and then reconnect. Press and hold the <Insert> key on the keyboard, and press the power-on button to boot up system. If it works, release the <Insert> key and hit <Del> key to enter the BIOS setup page to apply the correct settings. If the situation remains the same, repeat the procedures in Step 1 three times, or try Step 2. Step 2. Switch off the power supply unit or disconnect the power cord. Open the chassis cover. Locate the CCMOS jumper near the button battery. Change the jumper position from default 1-2 to 2-3 for one minute to discharge the CMOS data, and then put it back to default 1-2 position. Close the chassis and switch on the power supply unit or plug in the power cord. Press the power-on button to boot up system. If it works, hit <Del> key to enter the BIOS setup page to do the correct settings. Step 3. The same procedure as Step 2, but while discharging the CMOS data, pull out the ATX power connectors from motherboard and remove the button battery during CMOS discharge. AN52S/AN52 5-1 Appendix If the situation remains the same, try Step 3. Q: How to get a quick response for my request on technical support? A: Please carry out a simple troubleshooting before sending “Technical Support Form”: System boot-up fails after the system had been assembled: Check the motherboard’s supporting specifications first to see if all the key components attached in your system can meet. To do so, you may:

Remove all the unnecessary add-on devices (except the CPU, VGA card, DRAM, and Power Supply), and then reboot.

If the trouble still exists, try another VGA card of different brand/model to see if the system will start.

If the trouble still exists, try another memory module of different brand/model.

If the trouble still exists, try another CPU and Power Supply. If the system runs successfully, shut it down and start re-installing the interface cards and devices that were previously installed in the system. Re-install and start the system one at a time until the system won’t start. Malfunction in the OS: If the system hangs after resuming from S3 or some testing program, if the CPU cannot be recognized properly, if the display resolution mixed, or if a certain program cannot be executed, etc, you may:

Upgrade the motherboard’s latest BIOS version.

Check if there is any conflict in the “Control Panel/System Properties”. Q: How to fill in the “Technical Support Form”? A: To fill in this “Technical Support Form”, please refer to the following instructions: 5-2

Region: Type in your country name.

First name: Type in your first name.

Last name: Type in your last name.

Subject: Type in the model name and the problem of your motherboard. Example 1: AA8XE and SCSI 29160 malfunction Example 2: AA8XE boot fails, POST code AF Example 3: AA8XE (system hang when S3 resume)

Motherboard: Type in the model name and revision number of your motherboard. Example: AA8XE REV: 1.00

BIOS Version: Type in the BIOS version of your motherboard. (You can find it on the screen during the POST sequence.)

CPU: Type in the brand name and the speed (MHz) of your CPU. (Illustrate the over-clocking status if you had done so.) Example: Intel 650 3.4GHz (OC FSB=220MHz)

Memory configuration: Type in the memory configuration in BIOS setting. Example: Memory Timing: 2.5-3-3-7 @533MHz

Graphics information: Note Graphics card’s brand, model and driver version

Graphics card: Type in the brand and model name of your graphics card. Example: ATI RADEON X850 XT PE

Graphics driver version: Type in the driver version of your graphics card Example: Catalyst 5.12V

Power supply maker: Type in the brand and model name of your power supply unit.

Power supply wattage: Type in the power wattage of your power supply unit.

Storage devices: Type in the brand and specifications of your HDD drive and quantity. Specify if it was inserted on IDE (Master or Slave) or SATA ports, including the RAID allocation status. Example 1: WD Caviar WD600 60GB (on IDE2 master), Maxtor DiamondMax 10 SATA 300GB (on SATA 3) Example 2: Maxtor DiamondMax 10 SATA 300GB *2 (on SATA 3, SATA 4 RAID 1)

Optical devices: Type in the brand and specifications of your optical drives and quantity. Specify if it was inserted on IDE (Master or Slave) or SATA ports.

Other devices: Indicate which add-on cards or USB devices you are absolutely sure relate to the problem. If you cannot identify the problem’s origin, indicate all the add-on cards or USB devices inserted on your system. Example: AHA 29160 (on PCI 2), Sandisk Cruzer mini 256MB USB Flash-disk.

Operating system: Indicate which OS and language version Example: Microsoft Windows XP SP2, English version Example: Microsoft Media Center Edition 2005, Korean version

Problem description: Describe the problem of your system configuration. Indicate the steps to duplicate problem if possible. See the next page for a blank Technical Support Form, or visit our website to fill in the form on line (http://www.abit.com.tw/page/en/contact/technical.php). Q. Is the motherboard dead? Do I need to return it to where I bought from or go through an RMA process? A: After you have gone through the troubleshooting procedures, yet the problem still exists, or you find an evident damage on the motherboard, please contact our RMA center. (http://www2.abit.com.tw/page/en/contact/index.php?pFUN_KEY=18000&pTITLE_IMG) Appendix AN52S/AN52 5-3

5.1.2 Technical Support Form

Region: E-mail: First name: Last Name: Subject: Motherboard: BIOS Version: CPU: Memory brand: Memory size: Memory configuration: Graphics card: Graphics driver version: Power supply maker: Power supply wattage: Storage devices: Optical devices: Other devices: Operating system: Problem description: 5-4 AN52S/AN52

Website: http://www.abit.com.cn UK, Ireland Universal ABIT UK Co. Ltd. Poland Unit 3, 24-26 Boulton Road, Stevenage, Herts SG1 4QX, United Kingdom Universal ABIT Poland (Rep. office) Tel: +44-1438-228888 Fax: +44-1438-226333 For technical support and RMA return: Tel: +44-1438-362088 technical@abitcomputer.co.uk returns@abitcomputer.co.uk Germany and Benelux (Belgium, Netherlands, Luxembourg), France, Italy, Spain, Portugal, Greece, Denmark, Norway, Sweden, Finland, Switzerland Universal ABIT NL B.V. Jan van Riebeeckweg 15, 5928LG, Venlo, The Netherlands Chamber of Commerce Venlo – number
