USER MANUAL HM 500 KRESS

Operating Instructions GB 7

Mode d'emploi F 10

4 Deutsch

HM 500

Verwendung

The pneumatic drill hammer is universally usable for hammer drilling and drilling as well as for screwdriving in wood, metal and plastic.

This pneumatic drill hammer is not suited for chiselling work (also not with pointed chisels).

1

Safety Instructions and Accident Prevention

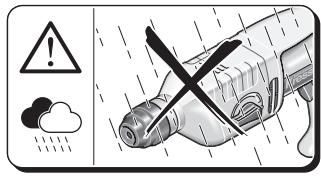

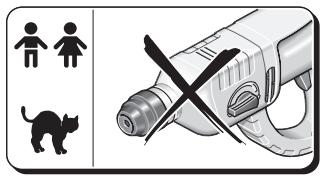

Before putting the machine into operation, read through these operating instructions completely and observe the safety instructions contained therein as well as those in the enclosed booklet on general safety instructions for electro-tools.

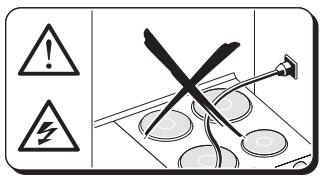

A If the mains cable is damaged while working, pull the mains plug immediately.
Never work with a damaged mains cable.
A Wear protective glasses, hearing protection, protective gloves and sturdy shoes.
For safety reasons, work only with the auxiliary handle 12 mounted.
A Do not work with materials containing asbestos.
Do not carry the machine by the cable.
The mains receptacles in the working area must be protected by a residual current circuit breaker (RC).
A For the attachment of identification markings on the machine, do not drill into the housing. The protective insulation would be shorted. Use stickers.
When the drill unexpectedly jams, the machine kicks back. Therefore, always take a secure stance and hold the machine firmly with both hands.

3 Technical Data

Pneumatic Drill Hammer

Article number

Input power

Output power

Half-wave control

No-load speed

Speed under load

No-load impact rate

Load hammer blows

Impact energie

Right/Left rotation

Clamping collar dia.

Tool holder

HM 500

0428 3225

500 Watt

270 Watt

0-1000 RPM

0-750 RPM

max. 4950 RPM

max.approx.4100 RPM

max. 2.0J

43 mm Euro standard

SDS-Plus

Drill dia., max.

Steel

Light metal

Wood

Hammer drilling in

concrete

Recommended hammer

drilling range

13 mm

16 mm

30 mm

20 mm

5-14 mm

Screw dia., max.

Wood

Sheet metal

6 mm

6.3 mm

Corner measure

Weight

Protection class

33 mm

2.175 kg

II/回

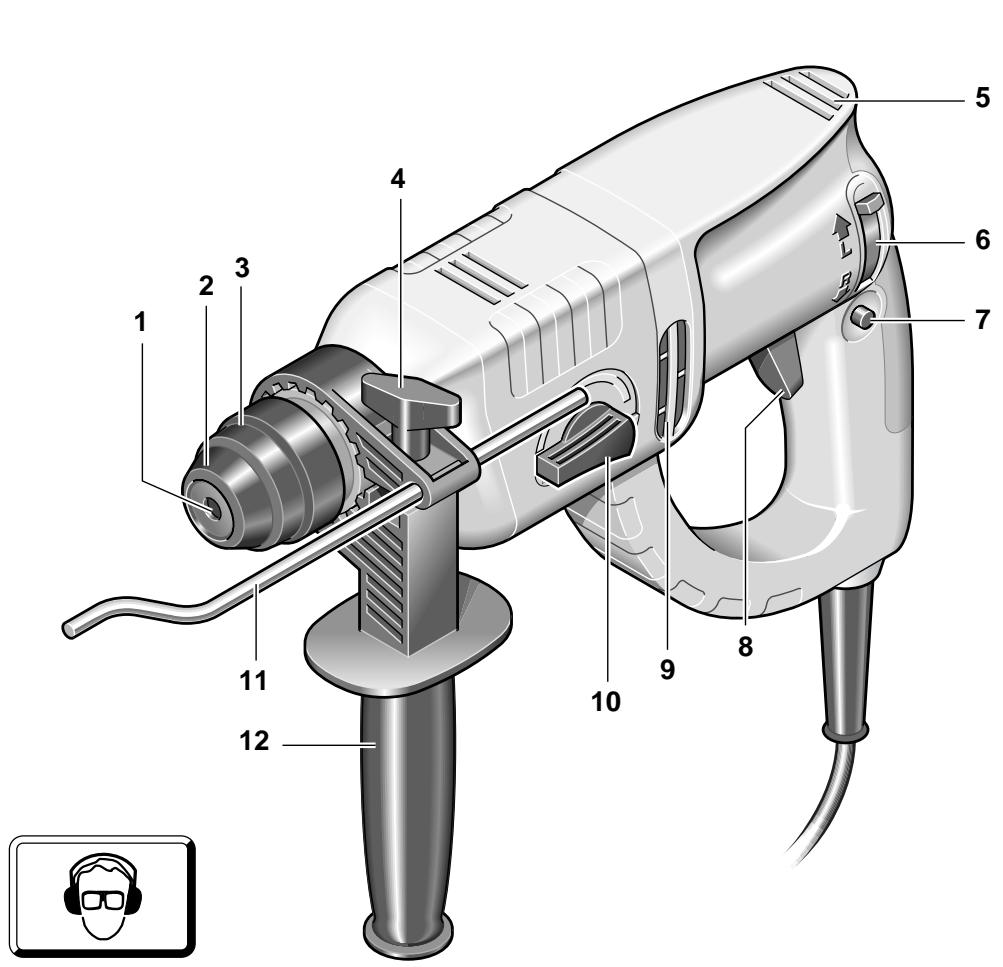

2 Illustration

1 Tool holder
2 Dust protection cap
3 Unlocking collar
4 Clamping screw for auxiliary handle/depth stop
5 Ventilation slots
6 Rotational direction switch
7 Locking button for on/off switch
8 On/Off switchr
9 Ventilation slots
10 Drilling/Impact drilling selector
11 Depth stop
12 Auxiliary handle
13 Adapter for screwdriver bits/drill chuck

Accessories illustrated or described are not always included as standard delivery items.

4 Noise/vibration information

Measured values determined according to EN 50 144.

Sound pressure level: 83.5 dB (A)

Sound power level: 96.5 dB (A)

Workplace related emission value: 86.5 dB (A).

For operation, noise protection measures are required.

The typical weighted acceleration is 12m / s^2

8 English

HM 500

Mounting the Auxiliary Handle, Powersupply Cord

Before any work on the machine itself, pull the mains plug!

Operate the machine only with the auxiliary handle 12. Place the auxiliary handle on the clamping collar and tighten with the clamping screw.

Damaged mains cables must not be used. They must be replaced without delay by an authorised servicing agent (heavy rubber sheathed code designation H 07 RN-F).

6 Putting into Operation

Check before putting into operation that the mains voltage agrees with the voltage specified on the nameplate of the machine.

SWITCHING ON/OFF

Press or release the on/off switch 8.

The on/off switch can be locked on with the locking button 7. To release, briefly press and release the on/off switch 8.

DRILLING - IMPACT DRILLING

For drilling, place the selector 10 in the position. For impact drilling, set to

The switch-over can best be performed at a standstill. Only after the on/off switch 8 is actuated and the machine starts does the gear box shift to the selected mode.

Note: Left rotation when impact drilling damages the drill. Switch off the impact mechanism for diamond crown drilling or for mixing work.

When hammer drilling, use exclusively drills with hard metal inserts and SDS-Plus shafts. The use of commercially available masonry drills with cylindrical shafts by means of the adapter 13 and the normal drill chuck in conjunction with the pneumatic impact mechanism is not possible.

SPEED CONTROL

With the On/Off switch 8, two speed steps can be selected.

For hole starting, press the On/Off switch 8 lightly (hole starting step).

For full drilling performance, press in the On/Off switch 8 completely.

ROTATIONAL DIRECTION SWITCHING

Operate the rotational direction switch 6 only when the machine is at a standstill!

Take hold of the rotational direction switch 6 on both sides.

Right rotation: Set the rotational direction switch 6 to “R”.

Left rotation: Set the rotational direction switch 6 to "L".

Important: Press the rotational direction switch 6 in each case to the stop on the housing, i. e. until it can be felt to engage.

If the rotational direction switch 6 is set between the positions "R" and "L", the machine cannot be switched on.

7 Inserting/Removing Tools

The tool holder 1 clamps the drilling tools without using a tool key.

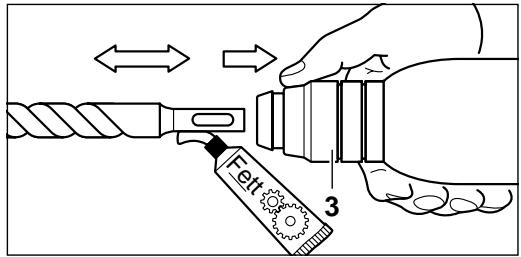

INSERTING TOOLS

Before any work on the machine itself, pull the mains plug!

Clean and lightly grease the tool shaft.

Pull back the unlocking collar 3. Insert the tool while turning into the tool holder until it latches. Release the unlocking collar. Check whether the tool is firmly seated.

Take care that the dust protection cap 2 is not damaged.

Replace damaged dust protection caps!

REMOVING TOOLS

Slide the unlocking collar 3 to the rear and pull out the tool.

HM 500

English

9

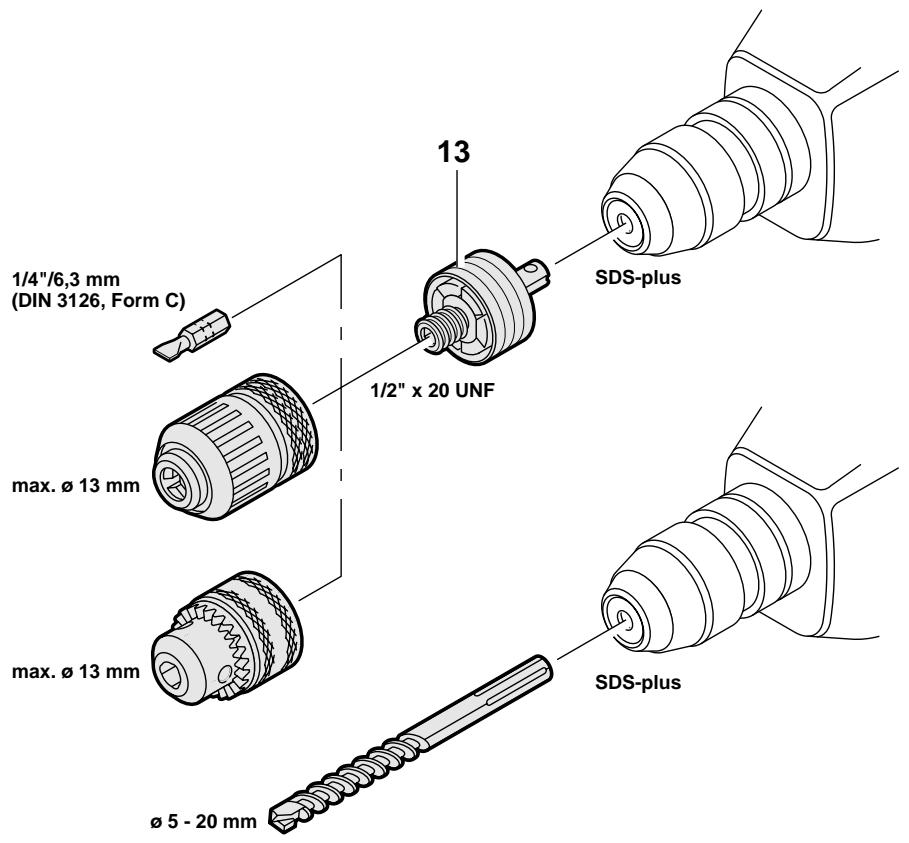

8 Drill Chuck (Accessory)

For drilling work in metal, wood and plastic with drills that have normal shafts, a drill chuck (13 mm max. chuck opening) is available. The drill chuck is mounted on the adapter (accessory) for screwdriver bits. All common drill chucks with 1/2'' x 20 UNF internal threads (13 mm max. chuck opening) can be used.

MOUNTING THE CHUCK

Before any work on the machine itself, pull the mains plug!

Clean the threads of the drill chuck (accessory) and the adapter 13 (accessory). Screw the drill chuck onto the adapter and tighten firmly (approx. 30Nm ). Clamp in a vise for tightening the adapter, for example. Clamp an Allen key in the drill chuck and use it to tighten the chuck. Then lock the adapter in the tool holder the same as a drill.

9 Practical Tips

Do not drill into hidden electrical lines or gas and water pipes. Check the area to be worked with a metal detector, for example, before starting.

For metal, use only flawless, sharpened drills; for stone and concrete, only masonry drills with hard metal inserts.

Always adapt the speed to the material to be worked and the diameter of the drill. For precision working with metal and wood, place the machine in a drill stand (accessory).

HAMMER- DRILLING

Wear protective glasses and hearing protection.

Do not apply to much pressure. The performance is not increased in this manner.

For hammer drilling, work only with protective glasses, hearing protection and the auxiliary handle 12. Check before putting into operation if the shift knob 10 is latched in the position.

DRILLING IN TILES

Start drilling slowly on the tile. After the tile is drilled through, switch to impact drilling.

SCREWDRIVING

Screwdriver bits can be inserted into the adapter 13 (accessory). Commercially available bits with a hexagonal dimension of 6.3mm or 1/4 (DIN 3126, Form C) can be used.

The screwdriver bits are held in the adapter with a spring ring. Therefore, use only bits with a notch.

10 Slip Clutch

If the drilling tool become jammed or get caught, the slip clutch releases.

Remove the load from the machine immediately by pulling back the drilling tool.

Always hold the machine tightly with both hands and assume a secure stance.

11 Maintenance Measures

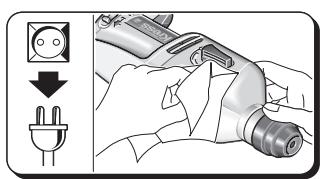

Before any work on the machine itself, pull the mains plug!

Always keep the ventilation slots clean.

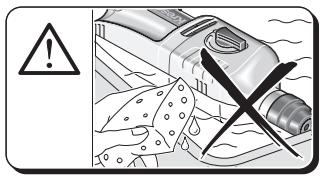

Wipe off the accessible plastic parts regularly with a cloth without cleaning agent.

After heavy use over a long period, the machine should be taken to a Kress service location for an inspection and thorough cleaning.

12 Environmental Protection

Kress takes back worn-out machines for the purpose of resource-saving recycling. As a result of their modular construction, Kress machines can be very easily dismantled into their reusable materials.

Give your worn-out Kress machine to your dealer or send it directly to Kress.

Subject to change without notice

10 Français

HM 500

Utilisation

PERCAGE - PERCAGE AVEC PERCUSSION

PERCAGE AVEC PERCUSSION

CE Declaration of conformity

We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: see below

Manager of Product Development

Josef Leins,

Quality Assurance Manager

Garantie

1. This electro-tool was manufactured with high precision and subjected to rigorous factory quality controls.
2. Therefore, we guarantee the cost-free correction of fabrication or material defects that occur within 24 months of the date of purchase by the end user. We reserve the right to repair defective parts or replace them with new parts. Replaced parts become our property.
3. Improper use or handling as well as opening of the machine by unauthorised repair agencies voids the guarantee. Parts subject to wear are excluded from the guarantee.
4. The guarantee may only be enforced when defects are reported without undue delay (including shipping damage). Guarantee implementation does not extend the guarantee period.
5. If the tool is defective, please complete the guarantee card and return the unit, guarantee card and a brief description of the problem to the responsible service location. Please enclose your sales receipt.
6. The guarantee obligations assumed by us shall exclude any further claims on the part of the buyer, in particular the right to recission of a sale, reduction and the assertion of damage claims.
7. However, the buyer shall have the right to either a reduction (in the purchase price) or the recession of the sale (cancellation of the sales agreement) should we fail to eliminate any defects within a reasonable period of time.
8. Damage claims in accordance with §§ 463, 480 Paragraph 2,635 BGB due to absence of guaranteed quality shall not be not excluded.
9. The provisions defined in Items 7 and 8 only apply to the Federal Republic of Germany.

Service-Anschriften / After sales service / Service après-venture Bundesrepublik Deutschland:

Present Handel bvba/sprl

Industriezone "Wolfstee"

Toekomstlaan 6

B-2200 Herentals

Telephone: +32 - (0)14 - 25 74 74 - Telefax: +32 - (0)14 - 25 74 75

E-mail: [e-mail]

France

S.A.R.L. Induba

Westcross Centre, 15 Shield Drive

Brentford TW8 9EX

Phone: [phone] - Telefax: [phone]

E-mail: [e-mail]

Portugal

Sarraipa S.A.

Please fill in immediately and keep in safe place.
