USER MANUAL CALIFORNIA VINTAGE MOTO GUZZI

First edition: January 2006

Reprint:

Produced and printed by:

VALLEY FORGE DECA

Ravenna, Modena, Torino

DECA S.r.l.

Registered Office and Administrative Headquarter

Via Vincenzo Giardini, 11

48022 Lugo (RA)-Italia

Tel. [phone]

Fax[phone]

E-mail: [e-mail]

www.vftis.com

On behalf of:

Moto Guzzi S.p.A.

via E.V.Parodi,57

23826 Mandello del Lario (LECCO) - Italia

Tel. [phone]

Fax [phone]

www.motoguzzi.it

The illustrations and description in this booklet are indicative only and the manufacturer reserves itself the right to introduce any modification it may deem necessary for better performance or for constructive or commercial reasons without prior notice.

First of all we wish to thank you for choosing this motorcycle of our production.

By following the instructions outlined in this manual you will ensure your bike a long and troublefree life.

Before riding, please read thoroughly this manual in order to know your motorcycle's features and how to operate it safely.

All major checking and overhaul jobs are best carried out by our dealers who have the necessary facilities to quickly and competently repair your Moto Guanzi.

Repairs or adjustments by any other than a Guzzi dealer during the warranty period could invalidate the warranty right.

Monsieur:

IMPORTANT - The text is supplemented with schematic illustrations for quick reference and better understanding of the subjects concerned. This manual contains some special remarks:

A Accident prevention rules for the mechanic and for the personnel working nearby.
Possibility of damaging the motorcycle and/or its components.
Additional information concerning the job being carried out.

Pedale commande freno

anteriori sinistro e

posteriore. 75

Leva comandochio 77

Tapposerbatoio

carburante 79

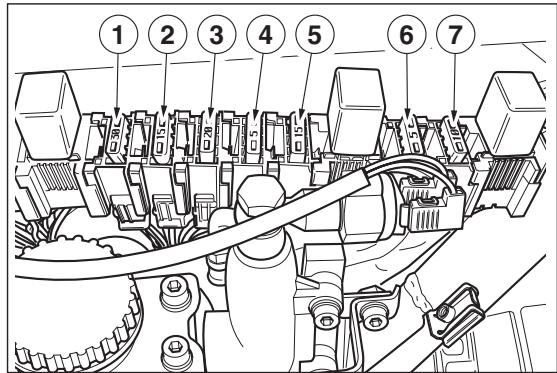

Morsettiera porta fusibili .... 83

Basic safety ryles. 17

Clothing 31

Accessories 35

Load 39

SPECIFICATIONS 47

Engine 47

Transmission 48

Frame 48

FRAME AND ENGINE

NUMBERS 59

Spare Parts 61

INSTRUMENTS AND

CONTROLS 63

Control panel 63

Automatic light control 67

Horn button, passing and

direction indicators 69

Starter button and engine

stop switch 71

Additional fog lights switch 73

Throttle twist grip 73

Clutch lever 73

Brake lever, r/h front

brake 75

“CHOKE” control. 75

Brake pedal for left front

brake and rear brake 75

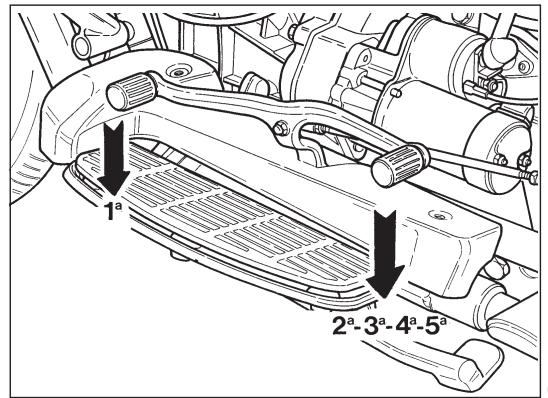

Gear change pedal. 77

Fuel filler cap 79

Fuse box. 83

Steering damper 87

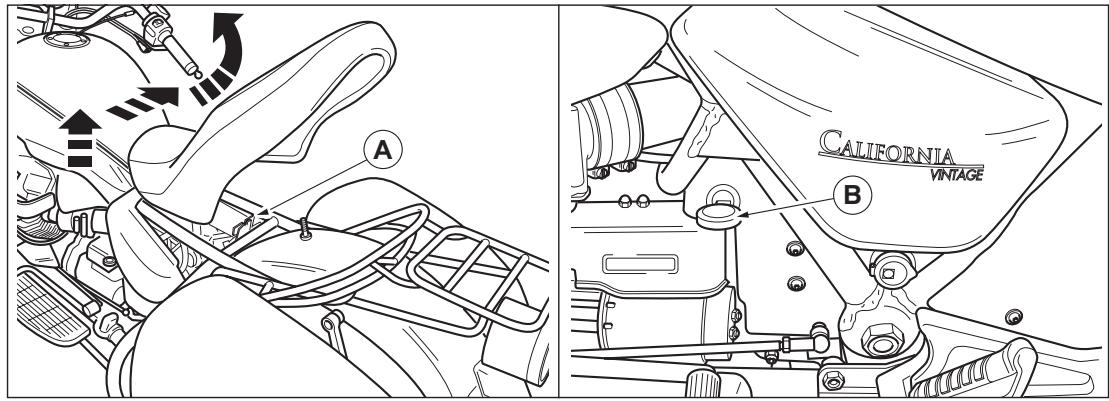

Side bags 89

Seat lock 91

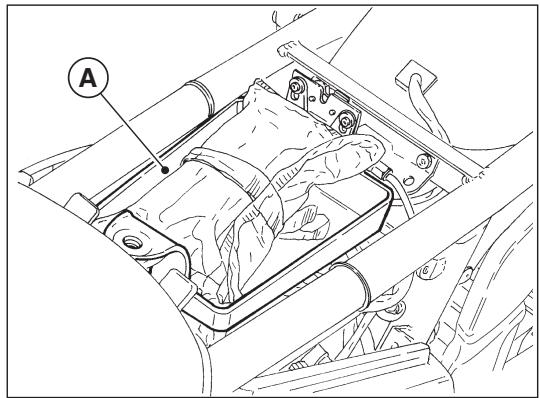

Documents and objects

holder 93

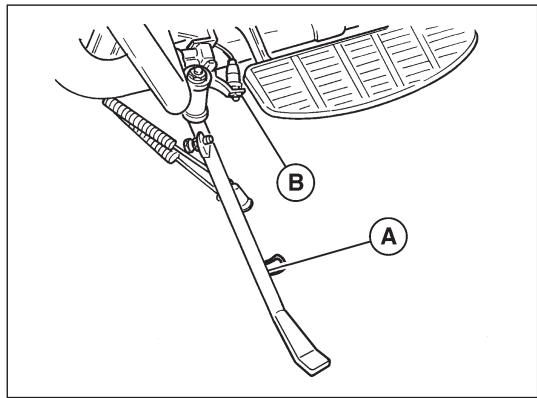

Side stand 95

12V power outlet 97

RIDING YOUR

MOTORCYCLE 99

Preliminary checks. 99

Cold starting 99

Warm start 101

On the way 101

Stopping the motorcycle . 103

Parking 105

RUNNING-IN 108

MAINTENANCE AND

ADJUSTMENTS 111

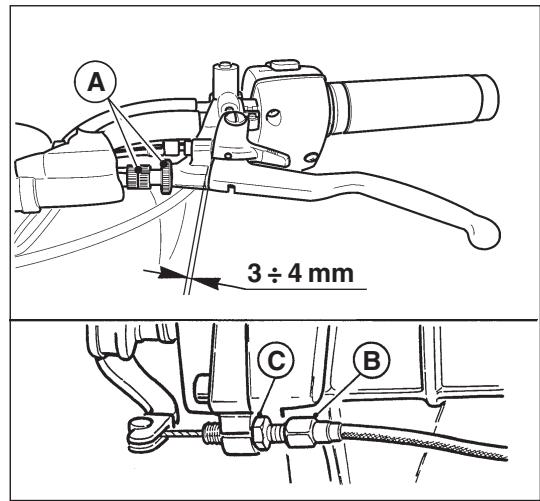

Adjusting the clutch lever 111

Adjusting the brake pedal

of rear and left-hand front

brakes 113

Checking brake

pads wear. 115

Checking brake disks .... 115

Checking the brake fluid

in the master cylinder

reservoir 117

Adjustable telescopic fork

adjustment 123

Rear shock-absorber

adjustment 125

REMOVING THE WHEELS .. 129

Front wheel 129

Rear Wheel 129

Max. allowed load 131

Tyres 133

Tyre fitting 135

12

SERVICE SCHEDULE 138

CLEANING-STORING.....141

Cleaning 141

Storage 143

CLEANING

THE WINDSCREEN 145

LUBRICATION 147

Engine lubrication 147

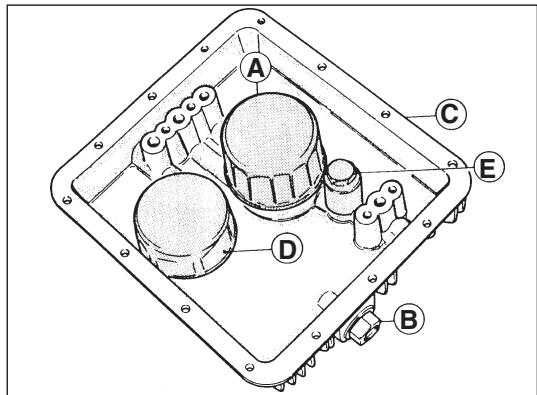

Changing the filter

cartridge and cleaning

the mesh filter 151

Gearbox lubrication 153

Rear transmission box

lubrication 155

Front fork oil change. 157

Greasing 157

INJECTION-IGNITION

SYSTEM 159

Description of the system 161

Operation phases. 163

Adjusting the idle setting.. 169

Changing the air filter 171

Spark plugs 173

ELECTRICAL EQUIPMENT 177

Battery 179

Replacing bulbs 181

Adjusting the headlight

beam 189

Bulbs 191

WIRING DIAGRAM 194

Key to wiring diagram..... 194

Wiring diagram 200

TABLE DES MATIERES

CONDUITE EN SECURITE ... 18

To drive the vehicle it is necessary to be in possession of all the requirements prescribed by law (driving licence, minimum age, psychophysical ability, insurance, state taxes, vehicle registration, number plate, etc.).

Gradually get to know the vehicle by driving it first in areas with low traffic and/or private areas.

18 CONDUITE EN SECURITÉ

The use of medicines, alcohol and drugs or psychotropic substances notably increases the risk of accidents. Be sure that you are in good psychophysical conditions and fit for driving and pay particular attention to physical weariness and drowsiness.

Most road accidents are caused by the driver's lack of experience.

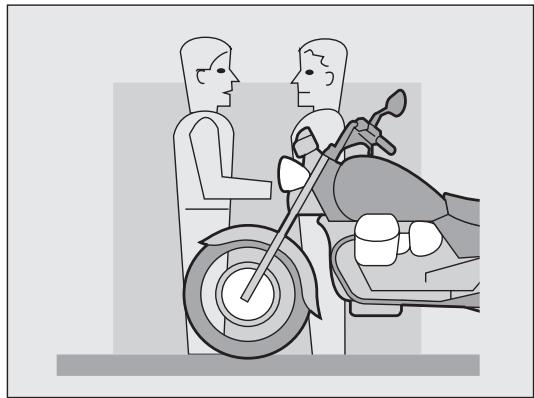

NEVER lend the vehicle to beginners and, in any case, make sure that the driver has all the requirements for driving.

20

Rigorously observe all road signs and national and local road regulations.

Avoid abrupt movements that can be dangerous for yourself and other people (for example: rearing up on the back wheel, speeding, etc.), and give due consideration to the road surface, visibility and other driving conditions.

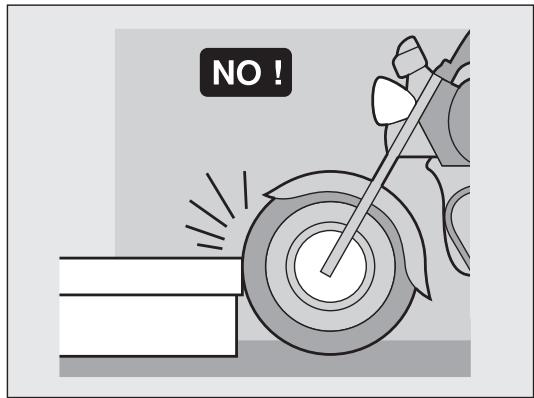

Avoid obstacles that could damage the vehicle or make you lose control.

Avoid riding in the slipstream created by preceding vehicles in order to increase your speed.

STOP150m

22

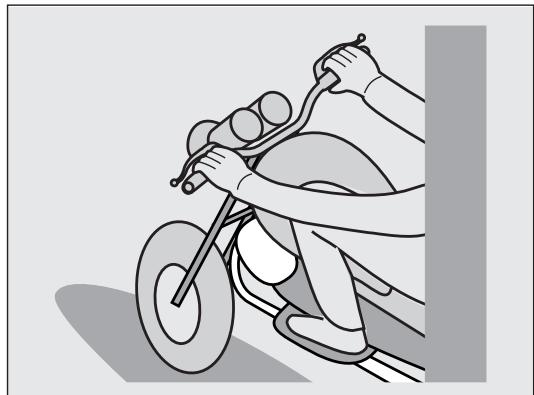

Always drive with both hands on the handlebars and both feet on the rider's footboards, in the correct driving posture.

Avoid standing up or stretching your limbs while driving.

The driver should pay attention and avoid distractions caused by people, things and movements (never smoke, eat, drink, read, etc.) while driving.

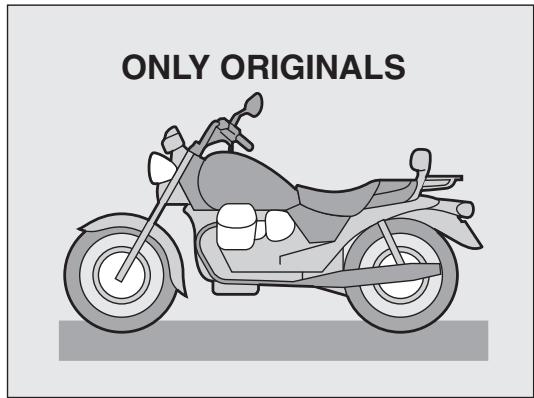

Use only the vehicle's specific fuels and lubricants indicated in the table "REFUELINGS"; check all oil and fuel.

24

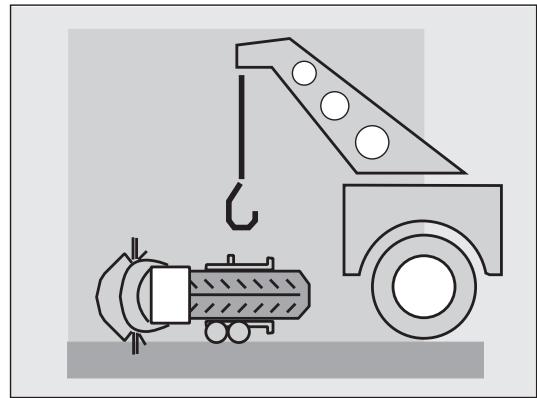

If the vehicle has been involved in an accident, make sure that no damage has occurred to the control levers, pipes, wires, braking system and vital parts.

If necessary, have the vehicle inspected by an MOTO GUZZI Official Dealer who should carefully check the frame, handlebars, suspensions, safety parts and all the devices that you cannot check by yourself.

Always remember to report any malfunction to the technicians to help them in their work.

Never use the vehicle when the amount of damage it has suffered endangers your safety.

Never change the position, inclination or colour of: number plate, direction indicators, lights and horns.

Any modification of the vehicle will result in the invalidity of the guarantee.

28

Any modification of the vehicle and/or the removal of original components can compromise vehicle performance levels and safety or even make it illegal.

We recommend respecting all regulations and national and local provisions regarding the equipment of the vehicle.

In particular, avoid all modifications that increase the vehicle's performance levels or alter its original characteristics.

Never race with other vehicles.

Avoid off-road driving.

30

Before starting, always wear a correctly fastened crash helmet. Make sure that it is homologated, in good shape, of the right size and that the visor is clean.

Wear protective clothing, preferably in light and/or reflecting colours. In this way you will make yourself more visible to the other drivers, thus notably reducing the risk of being knocked down, and you will be more protected in case of fall.

This clothing should be very tight-fitting and fastened at the wrists and ankles; strings, belts and ties should not be hanging loose; prevent these and other objects from interfering with driving by getting entangled with moving parts or driving mechanisms.

32 Vetements

Do not keep objects that can be dangerous in case of fall, for example pointed objects like keys, pens, glass vials etc. in your pockets (the same recommendations also apply to passengers).

The owner of the vehicle is responsible for the choice, installation and use of any accessory.

Avoid installing accessories that cover horns or lights or that could impair their functions, limit the suspension stroke and the steering angle, hamper the operation of the controls and reduce the distance from the ground and the angle of inclination in turns.

Avoid using accessories that hamper access to the controls, since this can prolong reaction times during an emergency.

Big fairings and windshields installed on the vehicle may produce aerodynamic forces that affect the stability of the vehicle, especially when riding at high speed.

36

Accessoires

Make sure that the equipment is well fastened to the vehicle and not dangerous during driving. Do not install electrical devices and do not modify those already existing to avoid electrical overloads, because the vehicle could suddenly stop or there could be a dangerous current shortage in the horn and in the lights. MOTO GUZZI recommends the use of genuine accessories.

38

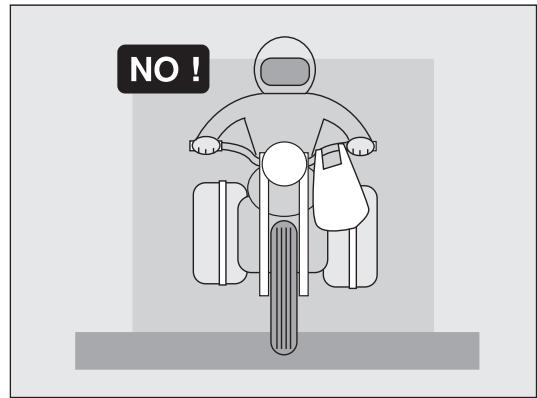

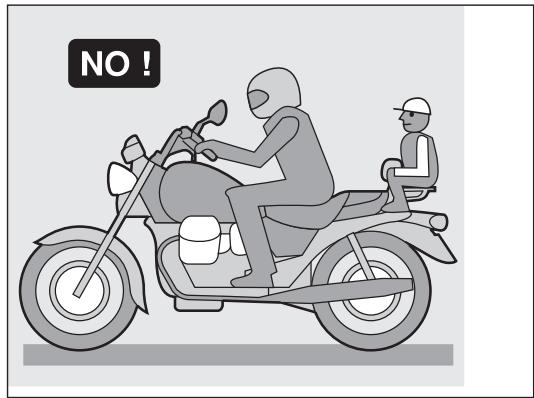

Be careful and moderate when loading your luggage. Keep any luggage loaded as close as possible to the center of gravity of the vehicle and distribute the load uniformly on both sides, in order to reduce umbalance to the minimum. Furthermore, make sure that the load is firmly secured to the vehicle, especially during long trips. Avoid hanging bulky, heavy and/or dangerous objects on the handlebars, mudguards and forks, because the vehicle might respond more slowly in turns and its manoeuvrability could be unavoidably impaired. Do not place bags that are too bulky on the vehicle sides and do not ride with the crash helmet, because they could hit people or obstacles, making you lose control of the vehicle.

40Chargement

Do not carry any bag if it is not tightly secured to the vehicle.

Do not carry bags which protrude too much from the luggage-rack or which cover the lights, horn or indicators.

Do not carry animals or children on the luggage rack.

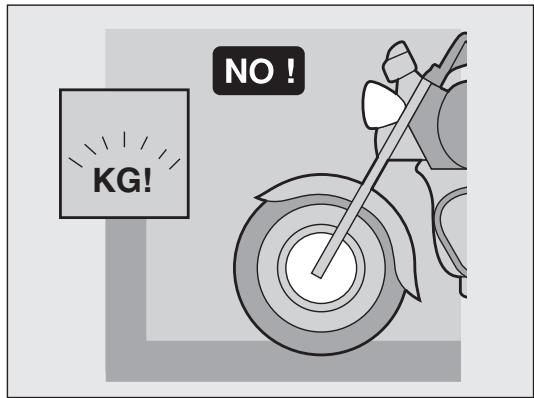

Do not exceed the maximum load allowed for each sidebag.

When the vehicle is overloaded, its stability and its manoeuvrability can be compromised.

42

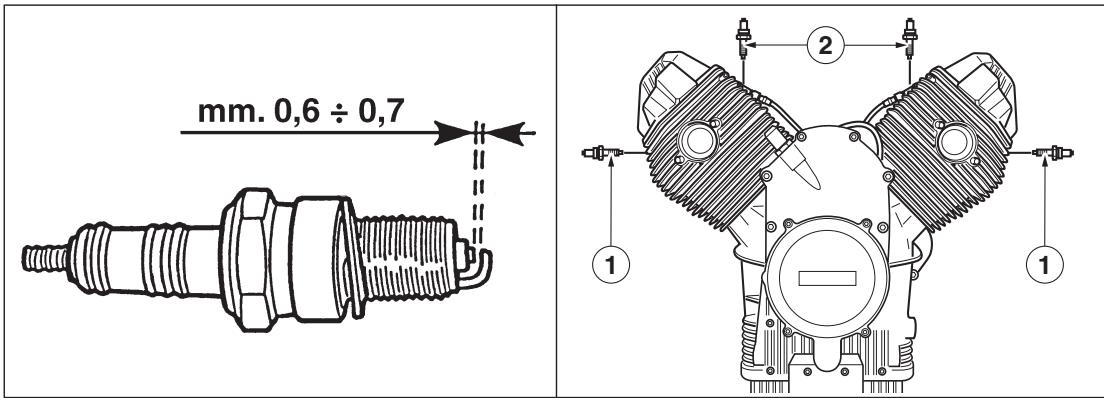

• Interna (long life) ..... NGK PMR8B

• Esterna. NGK BPR6ES

18" x 2,50-B-40 H2 -TC e DOT

Posteriore

17" x 3,50-B-40 H2 -T DOT oppure

17" x 3,50-B-40 H2 -TR e DOT

Pneumatici

Anteriore

110/90 - 18 - 61V

Posteriore

140/80 - 17 - 69V

Freni

Anteriore destro

4-stroke, twin cylinder
Cylinder configuration 90° V-twin
Bore: 92 mm
Stroke: 80 mm
Capacity: 1064 cc
Compression ratio: 9.8:1
Cooling: air

Timing system

With 2 valves per head controlled by light alloy rods and rocker arms driven by tappets.

Feed system

Multipoint electronic injection, timed sequential MAGNETI MARELLI IAW, Alpha-n system, 2 throttle valves 40 mm with Weber IW031 injectors, electric pump with pressure regulator, digital control of optimised injection times.

Exhaust system

In stainless steel - 2 pipes connected to an expansion chamber, connected to two chromed steel silencers; three-way catalytic converter with Lambda sensor.

Lubrication

Pressure fed by gear pump
Wire mesh and cartridge filters on oil sump
Normal lubrication pressure set by pressure valve on oil sump.
Low oil pressure sensor (electrical) on crankcase.

Generator / Alternator

On front of crankshaft. Output power: 350W at 5000 rev./min. (14V - 25A).

Ignition

"MAGNETI MARELLI IAW 15 RC" Inductive discharge digital electronics. Spark plugs: Inner (long life) .NGK PMR8B Outer .NGK BPR6ES Spark plug gap: .0.7mm Ignition coils .2, mounted on frame.

Starter

Electric starter motor with electromagnetic ratchet control. Ring gear on the flywheel. START «f» pushbutton on right handlebar.

48 Transmission

Clutch

Twin-plate dry clutch with control lever on handlebar (left-hand side).

Primary drive

With helical gears, 1:1.2353 (Z=17/21).

Gearbox

5-speed, front engaging, constant mesh.

Incorporated Cush drive

Control pedal on left side of machine.

Gear ratios:

1st 1:2 (Z=14/28)

2nd 1:1.3889 (Z=18/25)

3rd 1:1.0476 (Z=21/22)

4th 1:0.8696 (Z=23/20)

5th 1:0.7500 (Z=28/21)

Final drive

Cardan shaft with gears

Overall gear ratios (engine-wheel)

1st gear = 1:10,1912

2nd gear = 1: 7,0772

3rd gear = 1 : 5,3382

4th gear = 1: 4,4309

5th gear = 1 :3,8217

Frame

High tensile stress modular duplex tubular cradle.

Suspension

Front:

Telescopic hydraulic fork with MARZOCCHI "045 mm" inverted stems whose extension and compression can be adjusted separately.

Rear:

Swinging arm with two adjustable hydraulic shock absorbers for rebound hydraulic damping and spring preload.

Wheels

Wheels with steel rims in the dimensions:

Front

18" x 2.50-B-40 H2 -T DOT or

18" x 2.50-B-40 H2 -TC and DOT

Rear

17" x 3.50-B-40 H2 -T DOT or

17^ × 3.50 -B-40 H2 -TR and DOT

Tires

Front

110/90 - 18 - 61V

Rear

140/80 - 17 - 69V

Brakes

RH front brake

Stainless steel semi-floating with differentiated 4 piston calipers, fixed type. Lever control positioned on the RH side of the handlebar.

Hydraulic transmission independent from rear brake; disk = 320mm

braking cylinder = 30 / 34~mm

master cylinder = 13~mm

LH front and rear brakes

Integral braking system with metering/control valve. Stainless steel semi-floating with differentiated 4 piston calipers, fixed type.

Fixed disk with 2-piston floating calliper. Pedal lever control in the centre on the RH side of the vehicle. front disk = 320~mm

rear disk = 282~mm

braking cylinder = 30 / 32 ~mm

master cylinder = 16~mm

Rear brake is connected to front left brake through hydraulic transmission. Each single components of the front left brake has the same dimensions of those in the manual front right brake.

Dimensions and weight

Wheelbase (loaded) mm 1560

Maximum length . mm 2380

Maximum width mm 850

Minimum ground clearance mm 170

Maximum height (with windscreen) mm 1430

Rider's seat height mm 770

Weight (unloaded) kg 269

The motorcycle equipped with wind screen, bags and foot guards ensure higher riding

comfort but limit vehicle aerodynamic features.

For this reason, it is recommended the max. riding speed of 130km / h be never exceeded, especially when riding under max. load conditions.

REFUELINGS

Part	Litres	Recommended product
Fuel tank (reserve approx 4 lt.)	approx. 19	Only use unleaded petrol (95 NO-RM/min. and 85 MON)
Oil sump	3	Olio "Agip 4T RACING SAE 10W/60"
Gearbox	0.750	Olio "Agip Rotra MP SAE 80 W/90"
Transmission box (bevel gears lubrication)	0.250	"Agip Rotra MP SAE 80 W/90"
Telescopic front fork adjustable (per leg)	0.485	Shock - Absorbers oil (SAE 10)
Front and rear brake circuits	-	"Agip Brake Fluid - DOT4"

CHARACTERISTIQUES GENERALES

Moteur

1. Gang = 1:2 (Z = 14/28)
2. Gang = 1:1,3889 (Z = 18/25)
3. Gang = 1:1,0476 (Z = 21/22)
4. Gang = 1:0,8696 (Z = 23/20)
5. Gang = 1:0,7500 (Z = 28/21)

Sekundärtrieb

1. Gang = 1:10,1912
2. Gang = 1: 7,0772
3. Gang = 1: 5,3382
4. Gang = 1: 4,4309
5. Gang = 1: 3,8217

Rahmen

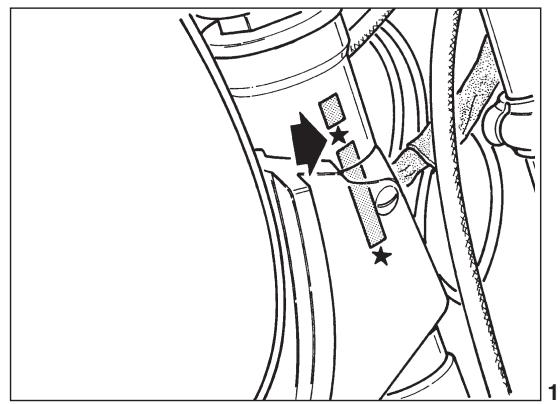

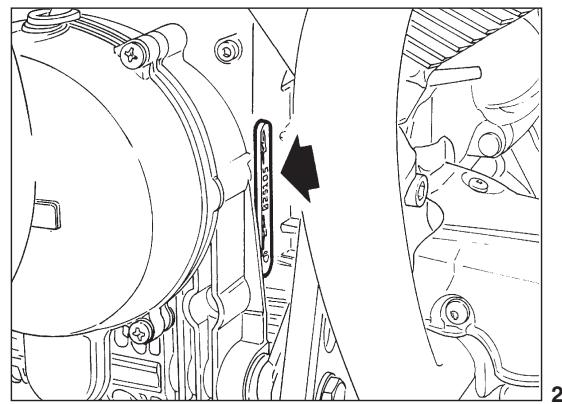

FRAME AND ENGINE NUMBERS (fig.1-2)

The frame number is stamped on the downtube; this number is entered in the motorcycle's log-book and is thus used to identify the vehicke for legal purposes. The engine number is stamped on the crankcase.

60 NUMEROS D'IDENTIFICATION (fig. 1-2)

Always use approved «MOTO GUZZI Original Spares» only when replacing or repairing parts. Use of spares which are not approved will invalidate warranty rights.

62 Pièces détachées

1 Key switch for devices and steering lock.

Position OFF «» vehicle stationary. Key removable (no contact).

Position ON «Q» vehicle ready to be started. All circuits are on. Key not removable.

Position LOCK «O» steering locked. Engine off, no contact, key removable.

Position P «P» steering locked. Engine off the parking light is on. Key removable.

64 APPAREILS DE CONTROLLE ET COMMANDE

In order to use the steering lock mechanism, proceed as follows:

Turn the handlebars to the left.
Press the key downwards and release it, then turn it in an anticlockwise direction to the LOCK «» or P «» position.

WARNING: Never turn the key to position LOCK « 四 ^ 四 or P « ^四 when the engine is running.

2 Odometer, tachometer.
3 Rev counter.
4 Pilot light (green) «Neutral». Lights up when the gearbox is in neutral.
5 Pilot light (green) for flashing right indicators.
6 Petrol tank reserve pilot light (orange).
7 Pilot light (green) for flashing left indicators.
8 Oil pressure pilot light (red). Goes out when the oil pressure is sufficient to ensure engine lubrication.
9 Pilot light (blue) for main beam.
10 Partial rev counter zeroing.

66

If the vehicles are equipped with this device, lights will automatically turn on when the automatic light Key-operated switch is positioned to «Q».

For this reason, standard light switch is not fitted. Position the automatic light switch to «» to turn lights off.

Before starting the vehicle, ensure that light dip switch is positioned to (headlight to low beam).

These are mounted on the left handlebar.

Switch «A» (fig. 4)

Position «D» dipped beam.
Position «D» main beam.
Position flashing light control.

Horn button, passing and direction 69
indicators (fig. 4)

These are mounted on the left handlebar:

Push-button B (▶) sounds the electric horn when pressed.

Push-button C:

position for right turn signals control.
position « 一 » for left turn signals control.
press the switch to disconnect flashers.

Starter button and engine stop switch 71

(fig. 5)

These are mounted on the right handlebar.

With the key «1» in fig. 3 position ON «Q», the vehicle is ready for starting. To start the engine:

check that switch «B» is in position (run);
pull the clutch lever in to disengage the clutch fully;
■ if the engine is cold, put the «CHOKE» control «D» in the starting position «1» (see fig. 4);
press the starter button «C» «(3)» (start).
To stop the engine in case of emergency:
turn the switch B to position (off).

Once the engine has stopped, turn the key switch (fig. 3) anti-clockwise until OFF «»; remove the key from the switch.

Before start, put switch «B» in (RUN) position.

Additional fog lights switch («A» in fig. 5) It is located on handlebar right-hand side; Switch «A»

Position «·» fog lights not activated;
Position fog lights activated.

Throttle twist grip («D» in fig. 5)

The throttle control is on the right handlebar; turning the twist-grip towards the rider opens the throttle, turning it away from the rider closes it.

Clutch lever («E» in fig. 4)

This is on the left handlebar and is only to be used when starting or changing gear.

74

Brake lever, r/h front brake

(«E» in fig. 5)

This is on the right handlebar and controls the master cylinder of the right front brake.

The «CHOKE» is on the left handlebar and is used for cold starts.

Position «1» CHOKE on; starting position.
Position «2» CHOKE off; engine running.

Brake pedal for left front brake and rear brake («A» in fig. 16)

This is centrally located on the right side of the vehicle and is linked to the master cylinder by a tierod; this pedal operates the front left and rear brakes together.

This is a double rocker arm type, situated on the left of the motorcycle:

1st gear: push front pedal down;
■ 2nd, 3rd, 4th, 5th gears: push rear pedal down;
neutral: between 1st and 2nd gears.

WARNING! Before changing gear disengage the clutch fully.

6

To open, turn the key anti-clockwise.

WARNING! Fuel used in explosion engines is highly inflammable and can explode under certain conditions.

Always refuel and service the vehicle in a well ventilated area when the engine is stopped. Do not smoke when refuelling and when in an area subject to fuel vapours.

Avoid contact with naked flame, sparks and any sources which may cause fire or explosion.

80

Avoid overfilling as fuel might fire up when in contact with hot engine parts.

If fuel is accidentally spilt, ensure that involved area is completely dry before starting the vehicle.

Do not fill the fuel tank up to the edge as fuel expands under heat and direct sun light.

Carefully plug the fuel tank after refuelling.

Avoid any contact with the fuel.

Do not inhale fuel vapours.

Do not swallow any fuel and do not take the fuel from a container using a hose.

82

This is located on the right side. To enter it is necessary to remove the side cover and possibly the front saddle.

The terminal board has 7 fuses.

Before changing a burnt fuse, trace and repair the cause of the trouble.

Fuse «1»: battery recharge (30A).

Fuse «2»: key switch (15A).

Fuse «3»: driving beam, traffic beam, horn (20A).

Fuse «4»: direction indicators, parking lights (5A).

Fuse «5»: 12V-Power outlet and additional fog lights (15A).

Fuse «6»: ECU (5A).

Fuse «7»: Pump, coils, injectors (10A).

TABLELLA FUSIBILI (FUSES) ANTERIORE (FRONT VEHICLE)→
F1 = 30A	F2 = 15A	F3 = 20A	F4 = 5A	F5 = 15A	F6 = 5A	F7 = 10A
-	-	-	-	-	-	POMPA PUMP
RICARICA BATTERIA	COMMUTATORE A CHIAVE	L. ABB / ANAB AVV. ACUST.	INDIC. DIREZ. L. POSIZONIE	PRESA 12V FENDINRBBA	ECU	POMPA BOBINE INIETTORI
BATTERY RECHARGER	KEY SWITCH	L. HB / LB HORN	DIREC. INDIC. DIPPED L.	SOCKET 12V FOG LAMPS	ECU	PUMP COIL INJECTORS

WARNING! Do not repair faulty fuses.

Never use fuses other than those specified.

The electric system might damage or even a fire might break out if a short circuit occurs.

A short circuit or overload might lead to frequent fuse damage.

If so, contact a MOTO GUZZI dealer.

86

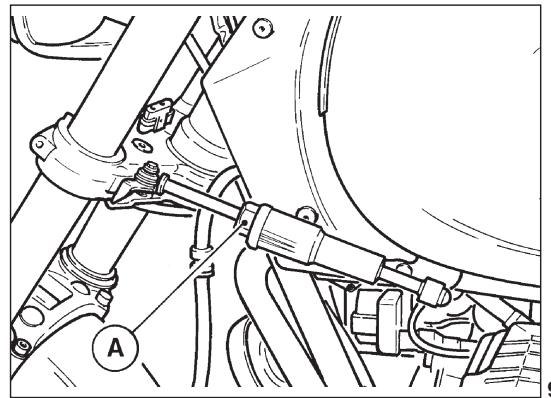

It is fitted between the frame and steering joke on the left hand side.

To harden or loosen the steering, turn in or out the knob «A».

It adds to steering accuracy and stability for improved handling under any conditions.

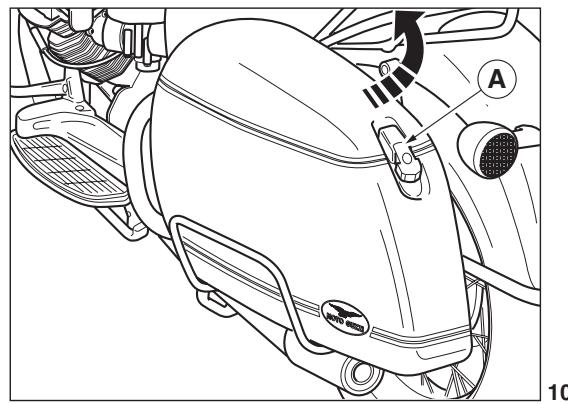

The sidebags cannot be removed; to open the lids, pull lever «A» of the clamping device after having released the lock using its key.

N.B. - The maximum load for each side bag is 5kg ; loads should be equally distributed between the two bags.

90 Sacoches laterales (fig. 10)

The single seat is locked by the device «A» controlled by a flexible transmission by means of the lock «B» and by 2 pins fitted in the pillion passenger area.

Fit key B in the seat lock and turn it clockwise to unlock the seat. Now pull the seat from the pillion passenger area.

To couple the seat proceed as follows: fit the seat onto the frame, push it forward until it click in position, press on pillion area and then on rider area.

11

Documents and objects holder

(«A» in fig. 12)

To gain access remove the seat (see Fig. 11).

12

The motorcycle is fitted with a side stand for parking. When the side stand is in use (i.e. in the out position) it activates a microswitch «B» controlling a relay which disenables to the starter motor; it is therefore not possible to start the vehicle with the side stand in use.

It is at the centre, on the left-hand side, it is useful for small 12 Volt electric items with max. power of 180W.

WARNING!
Use the power outlet when bike is stopped only.
CAUTION
Do not leave any electric item connected and ON for too long or the battery will run flat.
Using key «1» fig. 3 in « ^ » position and additional fog lights on, 12V power outlet «A» is not powered.

98

Prise de courant 12V («A» in fig. 14)

that there is sufficient fuel in the tank;
that the engine oil is on the right level;
the ignition key is in position ON «Q» (see fig. 3);
Proper operation of acoustic and visual devices;
that the following warning lights are on: red warning lights: oil pressure;
— green warning light: «NEUTRAL» indicator;
that the «CHOKE» control lever is in the starting position (if the engine is cold) («1», fig. 4);
that switch B (fig. 5) is in position (run).

Once the engine has started, and before putting the «CHOKE» lever back to its normal running position («2» in fig. 4), allow the engine to idle for a few seconds in summer or a few minutes in winter.

100 UTILISATION DU MOTOCYCLE

ATTENTION! - If the «green» warning light does not come on when the ignition switch is on (see ON «♀» in fig. 3) this means that a gear is engaged; starting the vehicle in this condition could be dangerous.

Before starting, always check that the engine is in «neutral».

Warm start

Follow the same procedure as that for the cold start but without the «CHOKE» control in the start position («1», fig. 4).

WARNING! - The starter motor should not be operated for more than 5 seconds; if the engine doesn't start, wait for 10 seconds before the following starting operation. Anyway act on the starter button C in fig. 5 only with the engine completely stopped.

On the way

To change gear, shut the throttle, disengage the clutch fully and engage the next gear; then engage the clutch gradually while opening the throttle.

The gear change pedal should be operated firmly and surely.

When changing down use the brakes gradually and close the throttle gradually to avoid over-reving the engine, when releasing the clutch lever.

Stopping the motorcycle

Close the throttle and use the brakes; just as the vehicle is about to stop disengage the clutch. These three operations should be carefully coordinated to maintain full control of the vehicle.

When slowing down in normal conditions, use the gearbox to provide engine braking to slow the vehicle; take care not to over-reving the engine. Use the brakes (especially the front brake) with particular care when roads are slippery or wet.

To stop the engine, turn the ignition switch till the position OFF «» (see fig. 3).

N.B. Avoid sharp braking, sudden slowing-down and limit braking as far as possible.

104 Arret

On badly lit roads, leave the parking lights on.

Turn the key switch to position P «P» (see figure 3), and remove the key from the switch.

IMPORTANT

Never leave parking lights on for long periods or the battery will run down.

WARNING

Park the vehicle onto a steady flat surface so that the motorcycle cannot fall onto the ground.

Do not lean the vehicle against walls or lay it down onto the ground. Ensure that the vehicle, especially its hot parts, cannot cause injuries to people and children. Do not park close to inflammable material, such as wood, dry leaves and son on, if the engine and the exhaust system are hot. Do not leave the vehicle unguarded if the engine is running or the ignition key is into the ignition switch.

Do not seat on the motorcycle if the stand is down.

106 Stationnement

The recommendations below should be followed when running-in:

Before riding, run the engine at low revs until it has warmed up.
- Do not exceed the rpm shown in the table; it is also advisable to run the engine at varying speeds rather than at a constant speed.
Before stopping reduce the speed gradually to avoid subjecting components to sudden changes in temperature.
Ride carefully for the first 100km (62 miles) to allow proper bedding of brake pads. Avoid sudden braking.
Remember that components need several thousand kilometers before they are properly bedded in; care taken in this period will ensure prolonged vehicle life.

IMPORTANT After the first

km) have the motorcycle controlled by an authorized MOTO GUZZI dealer as specified under «1000 mi (1500 km)» in «MAINTENANCE SCHEDULE» on page 138 so to avoid injuries to rider/other people and damages to the vehicle.

Should the oil level drop to the minimum level before the first 500÷ 1500 kilometers has been completed then carry out a complete oil age rather than just topping up. Recommended Agip RACING 4T SAE 10W-60

BREAKING-IN RPM

Kilometers	Max. RPM
From 0 to 1000	5000
From 1000 to 2000	6000
From 2000 to 4000	Gradually increase rpm until maximum permissible level is reached.

RODAGE

Adjusting the clutch lever (fig. 15)

There should be 3 ÷ 4 mm of free play at the lever; turn the adjuster screw «A» to obtain the desired play.

Play can also be adjusted on the cable adjuster «B» located on the right side of the gearbox. First loosen the lock nut «C» and then adjust.

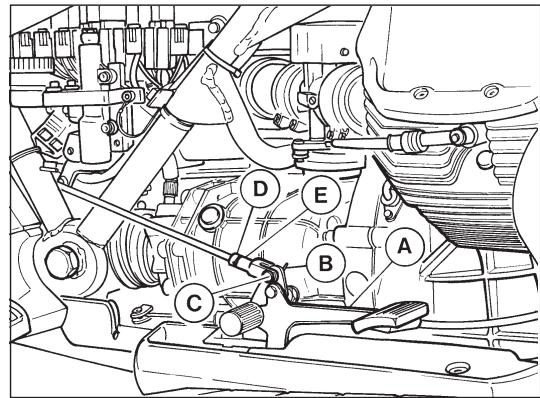

Adjusting the brake pedal of rear and 113 left-hand front brakes (fig. 16)

To vary the position of the control pedal «A», do the following:

remove the split pin «B», pull out the pin «C», loosen the counter-nut «D» and tighten or back off the fork «E» until obtaining the desired position of the control pedal;
■ replace the pin «C» with the relative split pin «B».

16

Checking brake pads wear

Check the thickness of the brake pads every 3000 km:

Wear limit 1.5mm

If the pads are below the wear limit they should be changed.

There is no need to bleed the brakes when the new pads have just been fitted; pumping the brake lever a few times will return the caliper pistons to their normal position.

When changing the pads, also check the flexible hoses; if damaged they should be replaced immediately.

N.B. - Use the brakes with moderation for the first 100km (62 mi) after fitting new

brake pads, to allow the pads to get properly bedded in.

Checking brake disks

The brake disks must be perfectly clean, with no oil, grease or other dirt on them. They should also show no signs of scoring.

The torque wrench setting of the screws that fix the disk to the hubs is 3 ÷ 3.2 kgm.

IMPORTANT! - Do not change the braking system components and the rear

suspension assay. These components must be replaced with original spare parts only and the operation must be done by authorized technicians only.

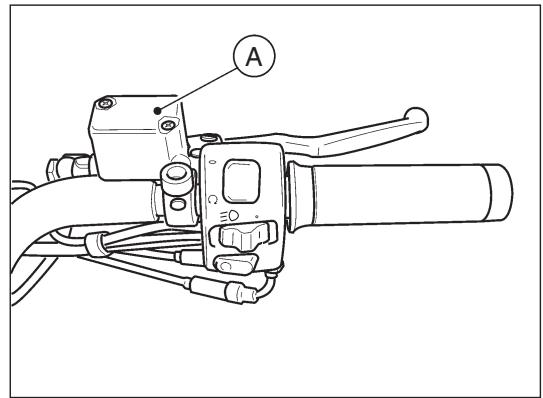

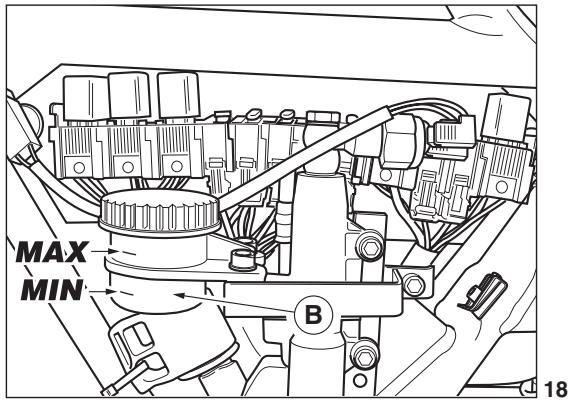

Checking the brake fluid in the master 117 cylinder reservoir (figs. 17 and 18)

To ensure efficient operation of the brakes:

1 Make frequent checks of the fluid level in the front «A» in fig. 17 and rear «B» in fig. 18 reservoirs.
The level should always be above the minimum mark on the reservoirs.
2 Top up the brake fluid when necessary or at regular intervals. Only use recommended brake fluid in sealed containers for topping up.

Fluid containers should only be unsealed immediately before they are about to be

3 The fluid in the brake reservoirs should be changed completely after about every 20,000 km, or at least once a year.

To ensure efficient braking there should be no air bubbles in the brake circuit; if the brake lever has too much travel or a spongy action, this means that there are bubbles in the brake circuit.

Never use mineral oils or greases for lubricating parts. If no suitable lubricant is available, we recommend the light greasing of the rubber and metal parts with brake fluid.

Recommended fluid «Agip Brake Fluid DOT 4».

WARNING Wear latex gloves when servicing the hydraulic circuit.

Brake fluid may cause skin irritations. Avoid contact with the eyes. Wash with abundant water

17

in case of skin contact. Call an eye specialist or a doctor in case of fluid contact with the eyes. 121

DISPOSE OF THE FLUID IN COMPLIANCE WITH CURRENT LAWS.

KEEP AWAY FROM CHILDREN.

IMPORTANT. Fluid should be handled with care, as it may dissolve paintwork.

These operations are best carried out by an authorized dealer.

Adjustable telescopic fork adjustment 123

(fig. 19)

The motorcycle is equipped with a hydraulic telescopic fork with separate adjustment of shock-absorbers during rebound and compression.

Hydraulic damping can be adjusted by using the setting handles «A» and «B».

The left setting handle «A» adjusts the hydraulic damping during rebound; the right setting handle «E» controls damping during compression.

Both setting handles have 15 adjustment positions (notches); turning them clockwise (+) increases damping and decreases it in the opposite direction (-).

N. B.: Do not force the setting handles beyond the limit positions.

Rear shock-absorber adjustment

(fig. 20)

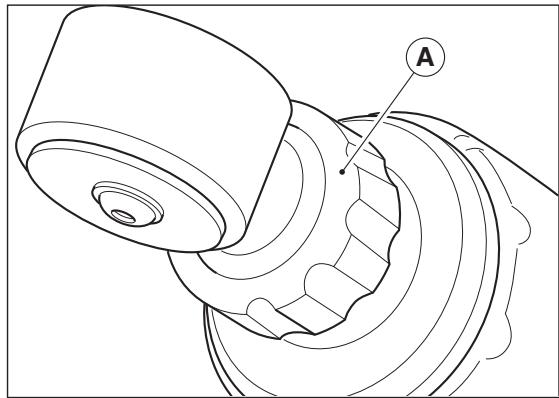

The motorcycle is equipped with shock-absorbers with adjustment of hydraulic damping during rebound and spring preload.

To adjust hydraulic braking in rebound, work on the ring nut «A».

Turn it counter-clockwise to increase, clockwise to decrease.

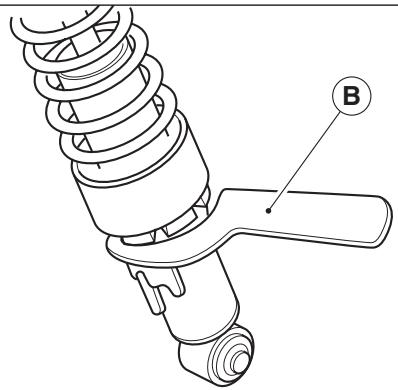

Spring preload can be adjusted in five different positions by means of key «B».

Turn it clockwise, looking from above, to increase spring preload; turn counter-clockwise to decrease it.

N.B.: To ensure good motorcycle stability, 127
it is recommended to make sure that both shock-absorbers are adjusted to the same position.
IMPORTANT - do not change the braking system components and the rear suspension assy. These components must be replaced with original spare parts only and the operation must be done by authorized technicians only.

128

Disassembling and reassembling the front wheel may prove difficult; these operations are best left to experienced mechanics.

If necessary, contact a Moto Guzzi Authorised Dealer.

Rear Wheel

CAUTION Disassemble

Disassembling and reassembling the rear wheel may prove difficult; these operations are best left to experienced mechanics.

If necessary, contact a Moto Guzzi Authorised Dealer.

130 DEMONTAGE DES ROUES DU VEHICULE

Roue AV

WARNINGFORWHEELSWITHSPIKES 131 At each maintenance control, check for integrity and tension of the wheel spokes.

A wrong spoke tension or the breakage of one or more spokes may affect the wheel, thus compromising the vehicle safety and stability.

Always respect the maximum tolerated load specifications.

Max. allowed load

The non observance of the requirements for tyres pressure or load limits can affect the handling, operation and control of the motorcycle. The max. allowed weight supported by this motorcycle is 187 kgs (passengers

• luggage + accessories).
  Divided up as follows:
• Front axle 46 kg.
  Rear axle 141 kg.

ATTENTION POUR LES ROUES AVEC BRAS

Tyres are among those machine components which require regular checking.

Machine stability, rider comfort and safety all depend on good tyre condition.

Do not use tyres with less than 2mm of tread.

Incorrect tyre pressures can cause instability and excessive tyre wear.

Tyre pressures:

■ front wheel: with one or two riders 2.3 BAR.
rear wheel: with one rider 2.5 BAR; with two riders 2.9 BAR.

The values indicated refer to normal use (tourism). For use at continuous maximum speed, on the motorway, it is recommended to increase the pressure in the front wheel by 0.2 BAR.

IMPORTANT! If a tyre needs

and type as the first-equipment tyre. Tyre pressure should be measured when tyres are cold.

134 Pneus

The motorbike is equipped with steel rims which, despite featuring a high mechanical resistance, can however get damaged, both from an aesthetic and functional point of view, by using unsuitable tools during removal and refitting of the wheel onto the rim.

For the above procedures, it is therefore advisable to use iron tools which do not have grooves and sharp edges on the parts which come into contact with the edge of the rim.

The contact surface must be wide, well smoothed and with suitably rounded edges; using one of the special, commercially available lubricants will help the tire slide into and bed-in on the rim during disassembly and reassembly, and it will eliminate the need to heavily load the iron tools; for this reason, it is also very important that the tires' bead heels are well set in the rim's central channel.

Observe the rotation direction indicated by the arrow on the tire side when assembling the tires.

MILEAGECOVERED ITEMS	1000 mi. (1500 km)	6000 mi. (10000 km)	12000 mi. (20000 km)	18000 mi. (30000 km)	24000 mi. (40000 km)	30000 mi. (50000 km)
Engine oil	R	R	R	R	R	R
Oil filter cartridge	R	R	R	R	R	R
Wire gauze oil filter	C	C	C	C	C	C
Air filter		R	R	R	R	R
Outer spark plugs	A	R	R	R	R	R
Inner spark plugs			R
Carburetion	A	A	A	A	A	A
Nuts and bolts	A	A	A	A	A	A
Fuel tank, pipes		A		A		A
Gearbox oil	R	R	R	R	R	R
Rear drive box oil	R	R	R	R	R	R
Wheel and steering bearings			A		A
Fork legs oil	R		R		R
Starter motor and generator			A		A
Brake systems fluid	A	A	R	A	R	A
Brake pads	A	A	A	A	A	A
Tightening of cylinder head nuts	A

KEY: A = Inspections - Adjustments - Possible replacements - Servicing. / C = Cleanings. / R = Replacements.
Occasionally, lubricate joints and cables; every 1000km (600 miles) check the engine oil level.
In any case, replace the motor oil, the oil filter and the brake fluid, oil at least once a year.
Periodically check the tension of the wheel spokes.

PROGRAMME D'ENTRETIEN

Preparations for washing

Before washing the vehicle, the following parts should be covered with a waterproof material: the rear part of the silencers, the clutch and brake levers and pedals, the throttle twist-grip, the left-hand light switch, the ignition key switch, the shaft with driving couplings.

Washing

Avoid spraying water too much pressure on the instruments and the front and rear hubs.

Drying

Remove the protective coverings.

Thoroughly dry the vehicle.

Test the brakes before using the vehicle.

N.B. - To clean the painted parts of the engine unit (engine, gearbox, transmission box, etc.) the following products may be used: diesel oil, petrol or water-based neutral detergents for car cleaning.

These products should be washed off immediately with water; do not use water at high temperatures or pressures.

If the vehicle is to remain idle for a considerable period of time (e.g. for the winter period) it should be stored in the following way:

clean the vehicle thoroughly;
- empty the fuel tank and feeding system. If left for a long time, the fuel will evaporate leaving incrustation and residue;
remove the outer spark plugs and put a few drops of SAE 30 oil into che cylinder. Turn the crankshaft for a few revolutions and then replace the spark plugs;
reduce the tyre pressures by 20% ;
■ position the vehicle so that its wheels are not touching the ground;
smear a layer of oil on unpainted parts to prevent rust;
remove the battery and store in a dry place away from the direct sunlight and where there is not danger of frost; check the battery charge once a month;
cover the vehicle but in such a way that the air can circulate.

The windscreen can be cleaned using most of the soaps, cleaners, waxes and polishes commercially available for glass and plastic.
The following precautions should be taken:
do not wash or polish the windscreen in direct or strong sunlight or when temperatures are high;
■ under no circumstances use solvents, lyes or similar products;
■ do not use abrasive substances, pumice, sand/ emery paper, files, etc.;
■ wash all dust and dirt away before polishing. Small superficial scratches can be removed using a mild polish;
paint or sealing compound can be removed before harden by using diesel, isopropylic alcohol or butyl cellosolvent (do not use methyl alcohol);
- use soft cloths, sponges,chyam leathers or cotton wool; do not rub too hard. Do not use paper towels or man-made fibre cloths as they tend to scratch the windscreen.
Deep scratches cannot be removed by hard rubbing on the use of solvents.

146 NETTOYAGE DU PARE-BRISE

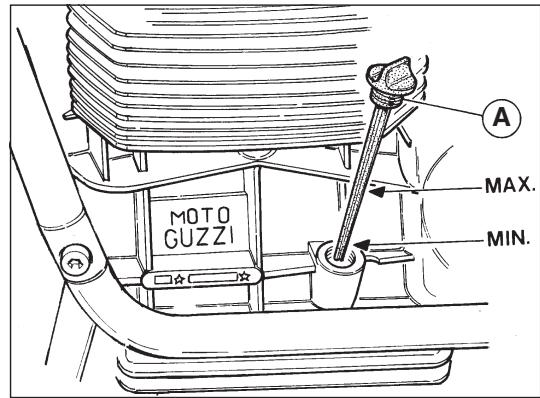

Checking the oil level (fig. 21)

Check the crankcase oil level every 1000 km; the oil should reach the «Max» mark on the dipstick «A». If the oil is below this level, top up with the recommended type and grade of oil.

N.B. - The oil level check should be carried out after the engine has run for a few minutes:

the dipstick plug «A» should be introduced in the oil opening without screwing it.

21

148 LUBRIFICATION

Oil change (figs. 21 & 22)

The oil should be changed after the first 500 ÷ 1500 km and every 10000 km thereafter. Change the oil when the engine is warm.

Allow the sump to drain fully before filling with new oil.

«A» Oil filler plug with dipstick (fig. 21);

"B> Oil drain plug (fig. 22).

Oil required: 3 litres of «Agip 4T RACING SAE 10W/60»

22

150

Changing the filter cartridge and 151 cleaning the mesh filter (fig.22)

After the first 500 ÷ 1500 km (first oil change) and afterward every 10,000 km, replace the filtering cartridge «A» by doing the following:

■ unscrew the drain plug «B» and allow the sump oil to drain off fully;
undo the screws and remove the sump cover «C» from the crankcase: this assembly includes the filter cartridge «A», the mesh filter «D» and the oil pressure valve «E».
■ When changing the filter cartridge «A» it is also a good idea to remove the mesh filter «D» and wash it in petrol; dry by blowing with compressed air. Blow the oil ducts in the sump out with compressed air and refit the mesh filter.

Do not forget to fit a new sump gasket when refitting the sump.

It is recommended to perform the operation described above at our dealer locations.

Checking the oil level (fig. 23)

Check the oil level every 5000 km; the oil should just reach the level plug hole «B».

If the oil is below this level top up with the recommended grade and type of oil.

Oil change

The gearbox oil should be changed after the first 500-1500 Km and then every 10.000 Km. Drain the oil when the gearbox is warm as the oil is more fluid and drains more easily.

Allow the gearbox to drain fully before filling with new oil.

«A» Filler plug.

Oir required: 0.750 litres of Agip Rotra MP SAE 80W/90.

Rear transmission box lubrication

(fig. 24)

Checking the oil level

Check the oil level every 5000 km; the oil should just reach the level plug hole «A».

If the oil is below this level top up with the recommended grade and type of oil.

Oil change

The transmission box oil should be changed after the first 500-1500 Km and then every 10.000 Km.

Drain the oil when the box is warm as the oil is more fluid and drains more easily.

Allow the box to drain fully before filling with new oil.

«A» Level plug.
«B» Filler plug.
C Drain plug.

Oil required: 0.250 litres is «Agip Rotra MP SAE 80W/90».

Front fork oil change.

After the first 500 ÷ 1500 Km and afterwards every 20.000 km or at least once a year.

See table “REFUELINGS” on page 50 for recommended oil type and quantity.

These operations are best carried out by an authorized dealer.

Greasing

To grease:

■ steering bearings;
swinging arm bearings;
control rod joints;
side stand fittings;

In the Weber injection-ignition system type "alfa/N" the engine speed and the throttle position are used to measure the quantity of sucked air; when the quantity of air is known, measure the fuel quantity in relation with the desired strength. Other sensors in the system allow to adjust the main operation, on particular condition. Moreover, the engine speed and the throttle angle allow to calculate the optimal ignition advance on every operation condition. The quantity of air sucked from each cylinder per cycle, depends on the air density in the suction manifold, on the single displacement and on the volume efficiency. The volume efficiency is experimentally calculated on the whole operation field of the motor (rpm and engine load) and is stored in the electronic unit. The control of the injectors, each cylinder, is "time-sequenced", i.e. the two injectors are controlled on the basis of the suction sequence, while the delivery can already begin, for each cylinder, from the expansion phase until the suction phase, already begun. The timing for the initial delivery is contained in the electronic unit.

Static inductive-discharge ignition with dwell control provided by the power module (in-built in the electronic box) and ignition advance mapping stored in the electronic box. The coils receive the control inputs from the unit (that calculates the ignition advance) via the power modules.

160 SYSTEME INJECTION-ALLUMAGE

Description of the system

Fuel circuit

The fuel is injected along the suction pipe of every cylinder, in the upper side of the suction valve.

It includes: tank, pump, filter, pressure adjuster, electroinjectors.

Sucked air circuit

The circuit includes: air filter, suction pipe, floated casing.

Downstream the throttle valve is installed the plug for the pressure adjuster.

The potentiometer for the throttle position is assembled on the throttle shaft.

The absolute pressure sensor (integrated in the electronic unit) and the air temperature sensor are installed upstream thethrottle valve.

Control circuit

With this circuit, the electronic unit detects the engine conditions and the performance of the fuel exhaust and the ignition advance.

It includes: battery, ignition switch, two relais,electronic unit with max. pressure sensor integrated, ignition unit, airtemperature sensor, throttle position potentiometer, two injectors, oil temperature sensor,injection timing/ RPM sensor and lambda sensor.

162 Description de l'installation

Circuit essence

When the engine is in standard thermic conditions, the unit calculates the phase, the injection time, the ignition advance, only by interpolation on the corresponding stored presettings, according to rpm and throttle position; Furthermore, the Lambda sensor checks for catalytic converter proper operation.

The resulting amount of fuel is delivered to the two cylinders with two subsequent injections.

The count of the initial delivery moment, for each cylinder, is made by means of a presetting that depends on the number of revolutions.

Starting phase

When the ignition switch is in operation, the unit feeds the fuel pump for few time and detects the throttle angle and the temperature of the engine.

After starting the engine, the unit receives the revolution and phase signals, which allow it to control the injection and the ignition.

To make the starting phase easy, an enrichment of the main quantity, upon the oil temperature, is performed.

After the starting phase, the unit begins the check of the advance.

Acceleration operation

During acceleration, the system increases the delivered fuel quantity, in order to obtain the best way of guide.

This condition is detected when the throttle angle variation reaches appreciable values, the enrichment factor is determined upon the oil and air temperatures.

WARNING!

In order not to cause damages to the electronic ignition system, follow the precautions hereunder:

in case of battery removal or refitting, be sure that the ignition switch is in position OFF «»;
do not disconnect the battery with engine on;
be sure of the perfect efficiency of earth cables of electronic boxes;
do not electric weld on the vehicle;
do not use other electric devices for starting;
to avoid either malfunctioning or inefficiencies of the ignition system, the spark plug wire connections (spark plug cap) and the spark plugs must be of the recommended type (as original equipment);

166

do not make any plug current check if the original spark plug cap are not fitted otherwise the electronic power box would be irreparably damaged;
in case of assembling of antitheft devices or other electric devices, absolutely do not touch the electric ignition/injection system.

In the electronic injection/ignition system is not possible to adjust the carburattor setting (air/gasoline ratio).

IMPORTANT! Do not adjust

components in the electronic injection/ignition system.
Any adjustment or maintenance work should be carried out at the dealer's workshop.

168

Adjusting the idle setting

Recommended minimum rpm: 1050 ÷ 1150 rpm.

N.B. - The idle setting should be adjusted when the engine is at running temperature.

These operations are best carried out by an authorized dealer.

170 Reglage du ralenti

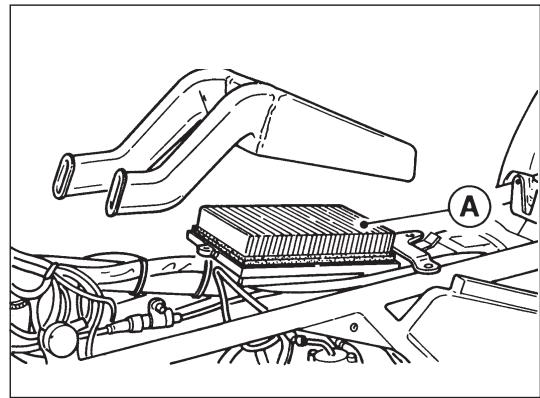

Check the air filter every 5000 km and clean by blowing with compressed air; change every 10.000 km.

This filter is mounted in a special case above the motor group, the saddle and fuel tank must be removed in order to have access to it.

For the above operations it is advisable to apply to a Moto-Guzzi dealer.

25

Interna (long life) NGK PMR8B

Esterna NGK BPR6ES

The following instructions apply only to outer spark plugs (1). This vehicle is also fitted with two inner spark plugs (2); contact a Moto Guzzi Authorised Dealer to have them replaced.

Use the following types of spark plug:

Inner (long life) NGK PMR8B

Outer NGK BPR6ES

Spark plug gap: 0.6 ÷ 0.7 ~mm .

Periodically remove the spark plugs for cleaning and checking.

174 Bougies (fig. 26)

Interne (long life) NGK PMR8B

Externe NGK BPR6ES

Elektrodenabstand: 0,6÷ 0,7 mm.

Refit the plugs by hand taking care not to cross thread them, they should screw home easily; it is then recommended to tighten them manually for some turns and to use the provided suitable key, in order to lock them when the engine is cold.

Even if used plugs appear to be in good condition, they should be replaced every 10.000km

N.B. - Values lower than 0.6 ÷ 0.7 mm can compromise the engine life.

WARNING! To avoid

To avoid either malfunctioning or inefficiencies of the ignition system, the spark plug wire connections (spark plug cap) and the spark plugs must be of the recommended type (as original equipment).

Do not make any plug current check if the original spark plug cap are not fitted otherwise the electronic power box would be irreparably damaged.

Bear in mind that this also applies to any vehicles equipped with the electronic ignition systems listed below.

176

The electrical equipment consists of the following:
Battery.
- Starter motor with electro-magnetic ratchet.
Generator-alternator fitted to the front of the crankshaft.
Fuel reserve signal device.
Light switch.
Ignition coil.
Electronic control unit.
Phase and revolution sensor.
Side-stand microswitch.
Voltage regulator.
Fuse box.
Electronic control unit.
Pump control microswitch, coils, electro-injectors.
Starter microswitch.
Headlight.
Additional fog lights.
Tall light.
■ Direction indicators.
■ Selector indicators.
Light direction indicator, horn and headlamp flasher switch.
■ Hazard warning lights, switch.
Starter and stop device.
Electric horns - Horn switch.
Warning lights on instrument panel for: neutral indicator (green), side lights on (green), oil pressure (red), main beam (blue), fuel reserve (orange), direction indicators (green).

178 INSTALLATION ELECTRIQUE

The battery has a 12 voltage, a 18Ah (16Ah USA) capacity and is charged by the alternator.

To gain access to the battery:

Remove the saddle;
Lift out the tool box;

The battery is the hermetic type (maintenance-free)

and does not need to be checked.

Instructions for recharging

To recharge the battery, use a costant voltage charger

set to 14÷ 15V at 25^

Extremely high current, avoid short circuit.

DO NOT charge in a gas tight container.

Sealed Lead Battery.

Must be recycled or disposed of properly.

These operations are best carried out by an

authorized dealer.

Keep the battery out of the reach of children.

180 Batterie

To change the bulbs, unscrew the retaining screw «A» under the headlight unit; remove the light unit and remove the lamp holder.

N.B. - When changing the headlight bulb (main/dipped beams) take care not to touch ass part of the bulb with your fingers.

Fog lights (fig. 27)

To change the bulbs, unscrew the retaining screw «B» under the light unit; remove the light unit and remove the lamp holder.

Unscrew the screws "A" which attach the reflector to the light body; at the same time press the lights inward while rotating them and unscrew them from the light-sockets.

Front and rear direction indicators (figs. 27-28)

Undo the screws «D» holding the reflector to the direction indicator unit. To remove the bulb from the bulb holder, press in and turn.

tor.

Remove the windshield;
Dismantle the head lamp;

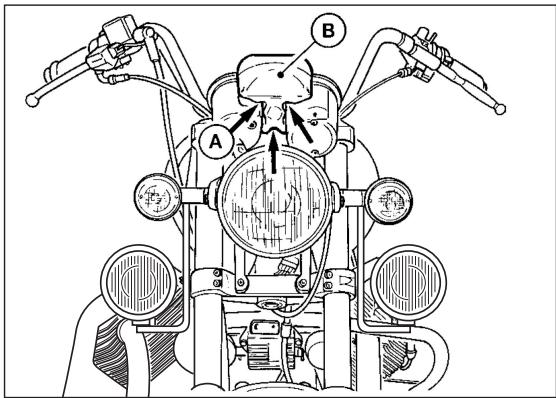

Take out the three screws «A» which fasten the lower cover «B»;

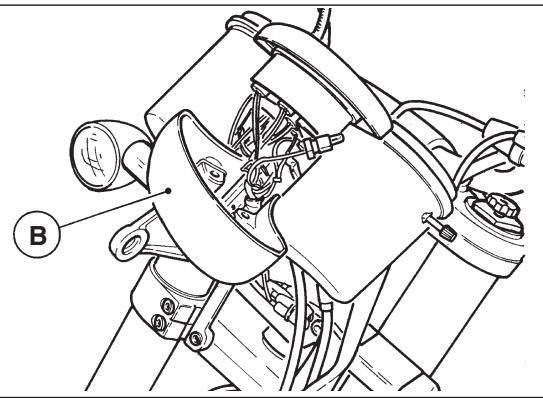

Take out the lower cover «B»;
Take out the lamp holder and replace the lamp.

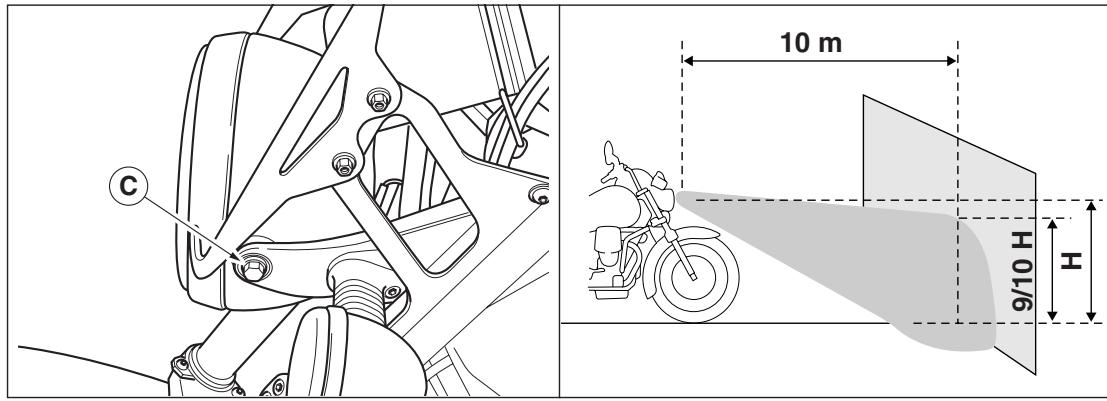

Adjusting the headlight beam (fig. 31) 189 The headlight beam should always be kept adjusted at the correct height to ensure good visibility and to avoid dazzling on coming traffic. Fot its vertical orientation, loosen two screws «C» that fix the headlight, and move it manually upwards or downwards until the prescribed height.

60/55 W Dipped and main beam 60/55 W

5W Side/parking lights 5W

55W Fog lights 55W

Tall light:

5/21 W Stop light 5/21 W

5W Numberplate 5W

10 W Direction indicators 10 W

1,2/2 W Speedo, rev. counter warning lights 1.2/2 W

1.2 W Instrument panel warning lights 1.2 W

192 Ampoules

Phare avant:

Key to wiring diagram

1 Driving beam 60 W (H4 halogen with traffic beam)
2 Parking light 5W
3 Traffic beam 55 W (H4 halogen with driving beam)
4 way Amp connector for front lamp
5 Front direction indicator 10 W, RH
6 Front direction indicator 10 W, LH
7 Fog light 55W
8 2-way connector
9 Instrument panel
10 10-way A Amp connector (instrument panel)
11 10-way B Amp connector (instrument panel)
12 Horn
13 Switch for oil pressure
14 Idle switch
15 Switch for fuel level
16 Power outlet (15A)
17 10-way Pakard connector (device LH)
18 LH control device: lights, direction indicators, horn
19 Alternator 12V 350 W
20 Voltage regulator
21 Intermittence
22 Lights relay (MINIRELAY SWITCH)
23 Start relay (MINIRELAY SHUNTING)
24 Starter
25 Battery
26 Rear Stop switch
27 3-way connector for rear light unit
28 Rear direction indicator 10 W, LH
29 Rear direction indicator 10 W, RH
30 Parking/stop light 5/21 W
31 Number plate light 5 W

32 Safety fuses range (see table at pag. 197)
33 Fog lights relay (SWITCHING MINIRELAY)
34 Female Fast-on for side stand switch
35 Safety switch for side stand
36 RH control device, (Ign.-Run, Start, lights)
37 10-way Pakard connector (controls device, RH)
38 Front Stop switch
39 Key ignition switch
40 4-way AMP connector
41 Fog light 55W
42 2-way connector
44 Electronic unit IAW 15RC
45 Air temperature sensor
46 3-way diagnosis AMP connector
47 4-way Lambda probe AMP connector
48 Cilynder ignition coil AT, LH (BAE850AK)
49 Cilynder ignition coil AT, RH (BAE850AK)
50 Power relay for injection (MINIRELAY SWITCH)
51 Safety diode
52 Electronic unit relay ECU (MINIRELAY SWITCH)
53 Pompe du carburant
54 Injector, LH (IW031)
55 Injector, RH (IW031)
56 Timing sensor (SEN813)
57 Motor oil temperature sensor (NTC WTS05)
58 Throttle potentiometer (PF3C)
59 Max. pressure sensor inside the electronic unit ECU
60 2-way AMP connector (key closed supply)
61 1-way AMP connector (RPM sensor in the injection side)
62 Side stand safety diode
63 3-way connector for safety diode

SCHEMA INSTALLATION ELECTRIQUE

F1	Battery recharge	30A
F2	Key switch	15A
F3	Driving beam, traffic beam, Stop	20A
F4	Dipped lights, Direction indicators	5A
F5	Power outlet, Fog light	15A
F6	IAW15RC	5A
F7	Pump, coils, injectors	10A

FUSIBLES

Bianco-Marrone = White-Brown

Nero-Grigio = Black-Grey

Rosso-Bianco = Red-White

Rosso-Blu = Red-Blue

Rosso-Verde = Red-Green

Marrone-Nero = Brown-Black

Bianco-Blu = White-Blue

Bianco-Verde = White-Green

Arancio = Orange

Azzurro = Azur

Bianco = Blanc

Giallo = Jaune

Grigio Gris

Marrone = Marron

Nero = Noire

Rosa = Rose

Rosso = Rouge

Verde = Vert

Viola = Violet

Marrone-Nero = Marron-Noir

Bianco-Blu = Blanc-Bleu

Bianco-Verde = Blanc-Vert

Arancio = Orange

Azzurro = Hellblau

Bianco = Weiss

Giallo = Gelb

Grigio = Grau

Marrone = Braun

Nero = Schwarz

Rosa = Rosa

Rosso = Rot

Verde = Grun

Viola = Violett

Bianco-Azzurro = Weiss-Hellblau

Bianco-Giallo = Weiss-Gelb

Bianco-Marrone = Weiss-Braun

Bianco-Nero = Weiss-Schwarz

Blu-Nero = Blau-Schwarz

Giallo-Nero = Gelb-Schwarz

Nero-Grigio = Schwarz-Grau

Rosso-Bianco = Rot-Weiss

Rosso-Blu = Rot-Blau
