USER MANUAL PU013 SWEEX

Close-up of a computer motherboard with visible connectors and slots (no text or symbols)

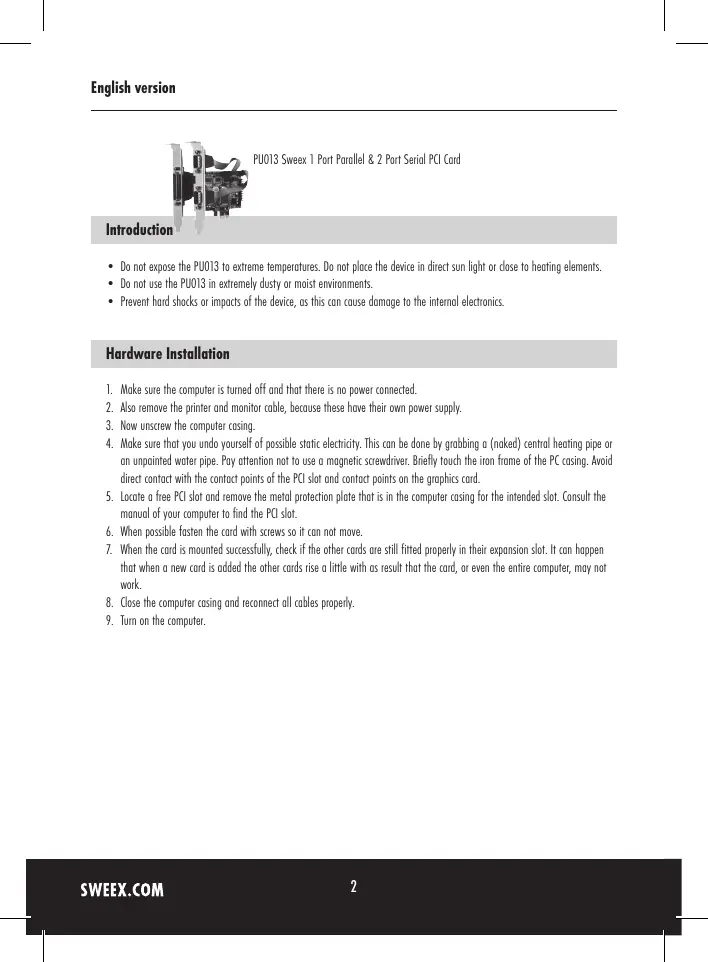

PU013 Sweex 1 Port Parallel & 2 Port Serial PCI Card

Introduction

• Do not expose the PU013 to extreme temperatures. Do not place the device in direct sun light or close to heating elements.
• Do not use the PU013 in extremely dusty or moist environments.
• Prevent hard shocks or impacts of the device, as this can cause damage to the internal electronics.

Hardware Installation

1. Make sure the computer is turned off and that there is no power connected.
2. Also remove the printer and monitor cable, because these have their own power supply.
3. Now unscrew the computer casing.
4. Make sure that you undo yourself of possible static electricity. This can be done by grabbing a (naked) central heating pipe or an unpainted water pipe. Pay attention not to use a magnetic screwdriver. Briefly touch the iron frame of the PC casing. Avoid direct contact with the contact points of the PCI slot and contact points on the graphics card.
5. Locate a free PCI slot and remove the metal protection plate that is in the computer casing for the intended slot. Consult the manual of your computer to find the PCI slot.
6. When possible fasten the card with screws so it can not move.
7. When the card is mounted successfully, check if the other cards are still fitted properly in their expansion slot. It can happen that when a new card is added the other cards rise a little with as result that the card, or even the entire computer, may not work.
8. Close the computer casing and reconnect all cables properly.
9. Turn on the computer.

Installation Windows XP

After starting the computer this window will appear.

Found New Hardware Wizard Welcome to the Found New Hardware Wizard Windows will search for current and updated software by binding on your computer, on the hardware installation (CD), or on the Windows Update Web site (with your permission) Fixed out access pool Can Windows connect to Windows Update to search for software? Yes, this line only Yes, new and grey line I connect a device No, not the next Click Next to continue. Back Next > Cancel

Choose "No not this time" and click "Next".

Found New Hardware Wizard This wizard helps you install software for Sgreenx 2 Port Serial PCIe Card If your hardware case with an installation CD or Happy disk, insert it now. What do you want the wizard to do? ○ Install the software automatics (Decommodics) ● Install how a slot or specific location (Advanced) Click Next to continue. < Back Next > Cancel

Found New Hardware Wizard This wizard helps you install software for: Sweex 1 Port Parallel PCIe Card If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? Install the software automatically (Recommended) Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel

Place the Sweex CD-ROM in the CD-ROM player. When the CD-ROM already was in the player, open the tray and close it again.

Windows will automatically install the drivers.

If windows can not find the drivers, choose "Install from a list or specific location" in the above window.

Find New Hardware Wizard Please choose your search and installation options. □ Search for the best driver in these locations. Use the check boxes below to list or expand the default search, which includes local paths and removable needs. The best driver found it will be installed. □ Search removable cards (Roppy, CD-ROM...) □ Include the location in the search. CD-ROM Driver's Browse □ Don't search will choose the driver to install. Choose this option to select the device driver from a list. Windows does not guarantee that the driver you choose will be the best match to your hardwares. Back Next > Cancel

Click "Browse" and navigate to the Sweex CD-ROM to find the drivers. Press "Next".

Hardware Installation The software you are installing for this hardware: Sweex 2 Port Serial PCIe Card has not passed Windows Logo testing to verify its compatibility with Windows XP (I tell me why this testing is important). Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

Hardware Installation The software you are installing for this hardware. Sweek 1 Port Parallel PCIe Card has not passed Windows Logo testing to verify its compatibility with Windows XP: "I tell me what this testing is important." Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

It is possible that Windows will notify you that the driver is not certified. This is not a problem for correct functioning of the card. All Sweex products and relevant drivers are tested thoroughly. Choose the option "Continue Anyway".

Found New Hardware Wizard Completing the Found New Hardware Wizard The wizard has finished installing the software for: Bweex 2 Port Serial PCIe Card Click Finish to close the wizard. Back Finish Cancel

Found New Hardware Wizard Completing the Found New Hardware Wizard The wizard has invited installing the software for: Sivex 1 Port Parallel PCIe Card Click Finish to close the wizard. Back Finish Cancel

Press "Finish" to complete the installation.

It is possible that the first window will re-appear. If it does repeat this procedure.

Installation Windows Vista

After starting the computer this window will appear.

Found New Hardware Windows needs to install driver software Locate and install driver software (recommended) Windows will guide you through the process of installing driver software for your device. Ask me again later Windows will ask again the next time you plug in your device or log on. Don't show this message again for this device Your device will not function until you install driver software. Cancel

Click "Locate and install driver software".

Insert the disc If you have the disc that came with your device, insert it now. Windows will automatically search the disc for driver software. I don't have the disc. Show me other options.

Place the Sweex CD-ROM in the CD-ROM player. When the CD-ROM already was in the player, open the tray and close it again. Windows will automatically install the drivers.

When windows can not find the drivers, choose "I don't have a disc. Show me other options." in the above window.

Windows couldn't find driver software for your device Check for a solution Windows will check to see if there are steps you can take to get your device working. Browse my computer for driver software (advanced) Locate and install driver software manually. Cancel

Click "Browse my computer for driver software".

Found New Hardware Browse for driver software on your computer Search for driver software in this location: [CD-ROM:\driver\] Include modifiers Next Cancel

Navigate to the Sweex CD-ROM to find the drivers.

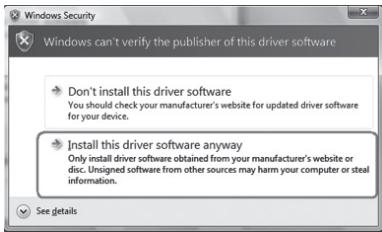

Windows Security Windows can't verify the publisher of this driver software Don't install this driver software You should check your manufacturer's website for updated driver software for your device. Install this driver software anyway Only install driver software obtained from your manufacturer's website or disc. Unsigned software from other sources may harm your computer or steal information. See details

It is possible that Windows will notify you that the driver is not certified. This is not a problem for correct functioning of the card. All Sweex products and relevant drivers are tested thoroughly. Choose the option "Install this driver software anyway".

Follow the steps to complete the installation. It is possible that the first window will re-appear. If it does repeat this procedure.

Port settings Parallel

The settings of the LPT port can be viewed and adjusted as follows:

Go to START -> settings -> control panel

In this window open "System". Go to the tab "Hardware" -> "device manager".

In the device manager open the "Ports (COM & LPT)" list and select: Sweex 1 Port Parallel PCI Card

Open the settings by right clicking it.

The following screen appears:

NetPro PCI ECP Parallel Port (LPTD) Properties General Port Settings Drive Details Resources File Resource Method □ No not to use an interrupt □ None use an interrupt □ Use any interrupt assigned to the port ■ Enable legacy Plug and Play detection LPT Port Number: [P13] [P13] (in port) [P13] OK Cancel

Select the "Port settings" tab.

Here you can view or change your LPT port. Be aware that you do not choose a port that is already being used by the computer.

This can result in a conflict.

Port settings Serial

The settings of the COM ports can be viewed and adjusted as follows:

Go to START -> settings -> control panel

In this window open "System". Go to the tab "Hardware" -> "device manager".

In the device manager open the "Ports (COM & LPT)" list and select: PU007V2 Sweex 2 Port Serial (COMxx)

Open the settings by right clicking it.

The following screen appears:

NetPlus ICF Serial Port (COMPS) Properties General Panel Settings Direct Details Resources $In per second: 9600 Data bits: 8 Help: None Stop bits: 1 Down control: None Advanced Beforee Defaults OK Cancel

Select the tab "Port settings" and click "Advanced...".

Advanced Settings for COMIS Use FIFO buffers (requires 16550 compatible UART) Select lower settings to correct connection problems. Select higher settings for faster performance. Receive Buffer: Low (1) High (14) (14) Transmit Buffer: Low (1) High (16) (16) COM Put Number: COMIS OK Cancel Defaults

Here you can view or change your COM port. Be aware that you do not choose a port that is already being used by the computer. This can result in a conflict.

This product is not suitable for all hardware key dongles.

Warranty

For most Sweex products a warranty period of 3 years applies. On Graphics Cards and Consumer Electronics Sweex offers 2 years of warranty. We do not give support or warranty on supplied software, rechargeable batteries and batteries. Transaction of warranty only takes place at the sales point where the product is bought.

All brand names and associated rights mentioned in this manual are and stay property of the rightful owner.
