Product type	PCI Express parallel controller card
Brand	SWEEX
Model	PU011
Interface	PCI Express (x1)
Number of ports	1
Port type	Parallel (LPT, IEEE 1284)
Compatibility	Desktop PC with available PCIe slot
Supported operating systems	Windows 2000, XP, Vista (drivers included on CD-ROM)
Power supply	Powered by PCI Express bus (no external power)
Dimensions (approx.)	120 × 80 × 20 mm
Weight (approx.)	30 g
Main functions	Adding a parallel LPT port, expansion for printers and parallel peripherals
Installation	Plug-and-play, drivers included on CD-ROM
Port configuration	LPT port number adjustable via Device Manager
Maintenance and cleaning	Clean with a soft, dry cloth. Avoid moisture and excessive dust.
Safety	Electrostatic discharge before handling. Turn off the computer and unplug before installation.
Spare parts / Repairability	No user-repairable parts. Contact the reseller in case of defect.
Warranty	3 years (except software, consumable batteries)
Package contents	PU011 card, driver CD-ROM, installation manual

Frequently Asked Questions - PU011 SWEEX

Which operating systems are supported by the SWEEX PU011 card?

The card is compatible with Windows 2000, Windows XP and Windows Vista. Drivers are provided on the included CD-ROM.

How do I install the PU011 card in my computer?

Turn off the computer and unplug all cables. Open the case, locate a free PCIe slot and remove the metal bracket. Insert the card avoiding contact with connectors. Close the case and reconnect everything.

Drivers do not install automatically, what should I do?

Insert the Sweex CD-ROM. If automatic installation fails, in the 'Found New Hardware' wizard, choose 'Install from a list or specific location' and browse the CD to select the driver folder.

Windows displays an unsigned driver warning, is it dangerous?

No, it's normal. Sweex drivers are tested. Click 'Continue Anyway' or 'Install this driver anyway' depending on your Windows version.

How do I configure the LPT port number (LPT1, LPT2, etc.)?

Go to Device Manager, expand 'Ports (COM & LPT)', right-click 'Sweex 1 Port Parallel PCIe Card' and select Properties. Under the 'Port Settings' tab, you can change the LPT port number.

Can I use the PU011 card with hardware protection keys (dongles)?

This product is not suitable for all hardware key dongles. Check compatibility with the dongle manufacturer.

What to do if my computer does not detect the card?

Make sure the card is properly inserted into the PCIe slot. Verify that the slot is functional. Restart your computer. If the problem persists, try another PCIe slot.

Is the PU011 card compatible with Windows 10 or 11?

The official manual only mentions Windows 2000, XP and Vista. Drivers may not work on newer systems. Check the Sweex website for possible updates.

What maintenance precautions are recommended?

Avoid exposure to extreme temperatures, humidity and excessive dust. Clean the card with a dry cloth. Protect it from strong impacts.

What is the warranty period for the PU011 card?

The warranty is 3 years for this product. Software and provided batteries are not covered. Warranty applies at the reseller.

USER MANUAL PU011 SWEEX

Close-up of a black electronic circuit board (PCB) with visible traces and components, no text or symbols present.

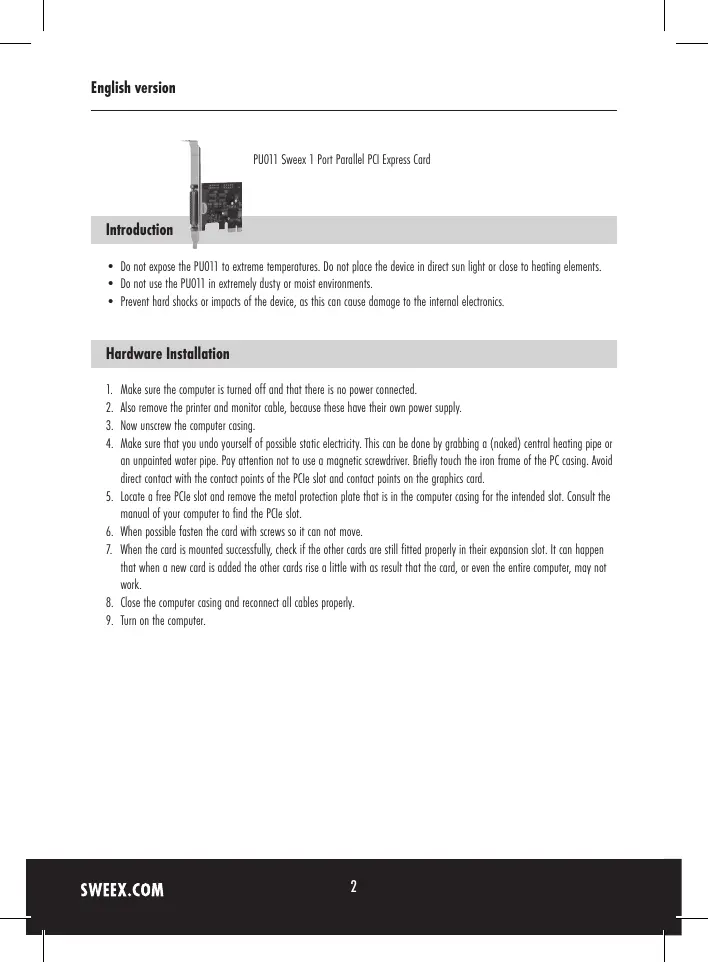

PU011 Sweex 1 Port Parallel PCI Express Card

• Do not expose the PU011 to extreme temperatures. Do not place the device in direct sun light or close to heating elements.
• Do not use the PU011 in extremely dusty or moist environments.
• Prevent hard shocks or impacts of the device, as this can cause damage to the internal electronics.

Hardware Installation

1. Make sure the computer is turned off and that there is no power connected.
2. Also remove the printer and monitor cable, because these have their own power supply.
3. Now unscrew the computer casing.
4. Make sure that you undo yourself of possible static electricity. This can be done by grabbing a (naked) central heating pipe or an unpainted water pipe. Pay attention not to use a magnetic screwdriver. Briefly touch the iron frame of the PC casing. Avoid direct contact with the contact points of the PCIe slot and contact points on the graphics card.
5. Locate a free PCIe slot and remove the metal protection plate that is in the computer casing for the intended slot. Consult the manual of your computer to find the PCIe slot.
6. When possible fasten the card with screws so it can not move.
7. When the card is mounted successfully, check if the other cards are still fitted properly in their expansion slot. It can happen that when a new card is added the other cards rise a little with as result that the card, or even the entire computer, may not work.
8. Close the computer casing and reconnect all cables properly.
9. Turn on the computer.

Installation Windows 2000 and XP

After starting the computer this window will appear.

Found New Hardware Wizard Welcome to the Found New Hardware Wizard Windows will search for current and updated software by binding on your computer, on the hardware installation (CD), or on the Windows Update Web site (with your permission) Find out previous color. Can Windows connect to Windows Update to search for software? Yes, this line only Yes, new and greve line I connect a device No, not the next Click Next to continue. Back Next > Cancel

Choose "No not this time" and click "Next".

Found New Hardware Wizard This wizard helps you install software for: Swirex 1 Port Parallel PCIe Card If your hardware came with an installation CD or Happy disk, insert it now. What do you want the wizard to do? Install the software automatically in progress Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel

Place the Sweex CD-ROM in the CD-ROM player. When the CD-ROM already was in the player, open the tray and close it again. Windows will automatically install the drivers.

If windows can not find the drivers, choose "Install from a list or specific location" in the above window.

Found New Hardware Wizard Please choose your search and installation options. Search for the best drive in these locations. Use the check boxes below to limit or expand the default search, which includes local paths and renewable needs. The best drive found will be installed. Search renewable cards (Biopsy, CD-ROM...) Include this location in the search. CD-ROM Driver's Browse Don't switch to will choose the driver to install. Choose this option to select the device driver from a list. Windows does not guarantee that the driver you choose will be the best match to your hardware. < Back Next > Cancel

Click "Browse" and navigate to the Sweex CD-ROM to find the drivers. Press "Next".

Hardware Installation The software you are installing for this hardware. Sweek 1 Port Parallel PCIe Card has not passed Windows Logo testing to verify its compatibility with Windows XP. (If we refer to this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway $TOP Installation

It is possible that Windows will notify you that the driver is not certified. This is not a problem for correct functioning of the card. All Sweex products and relevant drivers are tested thoroughly. Choose the option "Continue Anyway".

Found New Hardware Wizard Completing the Found New Hardware Wizard The wizard has finished installing the software for: Sivex 1 Port Parallel PCIe Card Click Finish to close the wizard Back Finish Cancel

Press "Finish" to complete the installation.

Installation Windows Vista

After starting the computer this window will appear.

Found New Hardware Windows needs to install driver software Locate and install driver software (recommended) Windows will guide you through the process of installing driver software for your device. Ask me again later Windows will ask again the next time you plug in your device or log on. Don't show this message again for this device Your device will not function until you install driver software. Cancel

Click "Locate and install driver software".

Insert the disc If you have the disc that came with your device, insert it now. Windows will automatically search the disc for driver software. I don't have the disc. Show me other options.

Place the Sweex CD-ROM in the CD-ROM player. When the CD-ROM already was in the player, open the tray and close it again. Windows will automatically install the drivers.

When windows can not find the drivers, choose "I don't have a disc. Show me other options." in the above window.

Windows couldn't find driver software for your device Check for a solution Windows will check to see if there are steps you can take to get your device working. Browse my computer for driver software (advanced) Locate and install driver software manually.

Click "Browse my computer for driver software".

Found New Hardware Browse for driver software on your computer Search for driver software in this location: [CD-ROM] [driver] Include subfolders Next Cancel

Navigate to the Sweex CD-ROM to find the drivers.

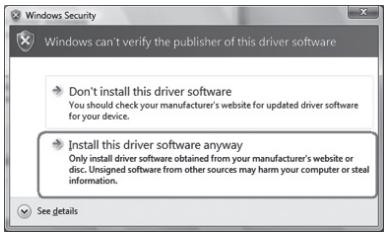

Windows Security Windows can't verify the publisher of this driver software Don't install this driver software You should check your manufacturer's website for updated driver software for your device. Install this driver software anyway Only install driver software obtained from your manufacturer's website or disc. Unsigned software from other sources may harm your computer or steal information. See details

It is possible that Windows will notify you that the driver is not certified. This is not a problem for correct functioning of the card. All Sweex products and relevant drivers are tested thoroughly. Choose the option "Install this driver software anyway".

Follow the steps to complete the installation.

Port settings Parallel

The settings of the LPT port can be viewed and adjusted as follows:

Go to START -> settings -> control panel

In this window open "System". Go to the tab "Hardware" -> "device manager".

In the device manager open the "Ports (COM & LPT)" list and select: Sweex 1 Port Parallel PCIe Card

Open the settings by right clicking it.

The following screen appears:

Select the "Port settings" tab.

NetBox RCE ECP Parallel Port (RPT3) Properties General Port Settings Drive Details Resources File Resource Method □ No not to use an interrupt □ Use any interrupt assigned to the port ■ Enable legacy Plug and Play detection LPT Port Number: P1/3 P1/3 [msv] P1/3 OK Cancel

Here you can view or change your LPT port. Be aware that you do not choose a port that is already being used by the computer. This can result in a conflict.

This product is not suitable for all hardware key dongles.

Warranty

For most Sweex products a warranty period of 3 years applies. On Graphics Cards and Consumer Electronics Sweex offers 2 years of warranty. We do not give support or warranty on supplied software, rechargeable batteries and batteries. Transaction of warranty only takes place at the sales point where the product is bought.

All brand names and associated rights mentioned in this manual are and stay property of the rightful owner.
