Product type	AGP Graphics Card
Brand	SWEEX
Model	GC805
Interface	AGP (Accelerated Graphics Port)
Dimensions (approx.)	120 mm x 80 mm
Weight (approx.)	50 g
Power supply	Powered directly by the AGP slot
Main functions	2D/3D graphics acceleration, VGA output, supports resolutions up to 1920x1080
Maintenance and cleaning	Dust with a soft dry cloth; do not use liquid or abrasive products
Safety	Discharge static electricity before handling; do not expose to moisture, extreme temperatures, or shocks
Spare parts and repairability	No detachable parts; do not open under penalty of voiding warranty
Warranty	2 years standard in the EU (excluding accessories and software)
System compatibility	Requires a free AGP slot on the motherboard
Included accessories (estimated)	Card only, manual possibly included
Operating temperature	0°C to 40°C
Operating humidity	20% to 80% RH (non-condensing)

Frequently Asked Questions - GC805 SWEEX

How to install the SWEEX GC805 graphics card?

Unplug the computer, discharge static electricity, open the case, locate a free AGP slot, insert the card straight into the slot avoiding touching the gold contacts, then secure it with a screw.

What are the prerequisites to use this card?

A computer with a free AGP slot, sufficient power supply (the card draws power from the slot), and a compatible operating system (Windows, Linux) with appropriate drivers.

Is the card compatible with my computer?

Check that your motherboard has an AGP slot (not PCI Express). The GC805 card is standard AGP. Consult your PC manual to identify the slot.

What to do if the computer does not start after installation?

Check that the card is fully seated in the slot, that the monitor power cable is connected to the card (not the motherboard), and that drivers are properly installed. Try removing and reinserting the card.

How to clean the graphics card?

Use a soft dry cloth to remove dust. Never use liquid or abrasive products. Avoid touching electronic components.

The card makes noise, is this normal?

This card is usually passive (fanless). If you hear noise, check that a cable or object is not touching the components. A hum may come from the power supply.

Can I open the card casing?

No, opening voids the warranty. The card contains no user-serviceable parts. In case of issues, contact the point of sale or Sweex support.

What is the warranty of the card?

Sweex offers a standard 2-year warranty in the EU from the date of purchase, covering manufacturing defects. Accessories, batteries, and software are excluded.

How to get the drivers?

Drivers are usually available on the Sweex website or included on a CD. Search for model GC805 in the support section. You can also use the system's generic drivers.

Can I use this card for gaming?

This card is an entry-level AGP card, suitable for office and basic multimedia use. It is not suitable for demanding recent 3D games.

USER MANUAL GC805 SWEEX

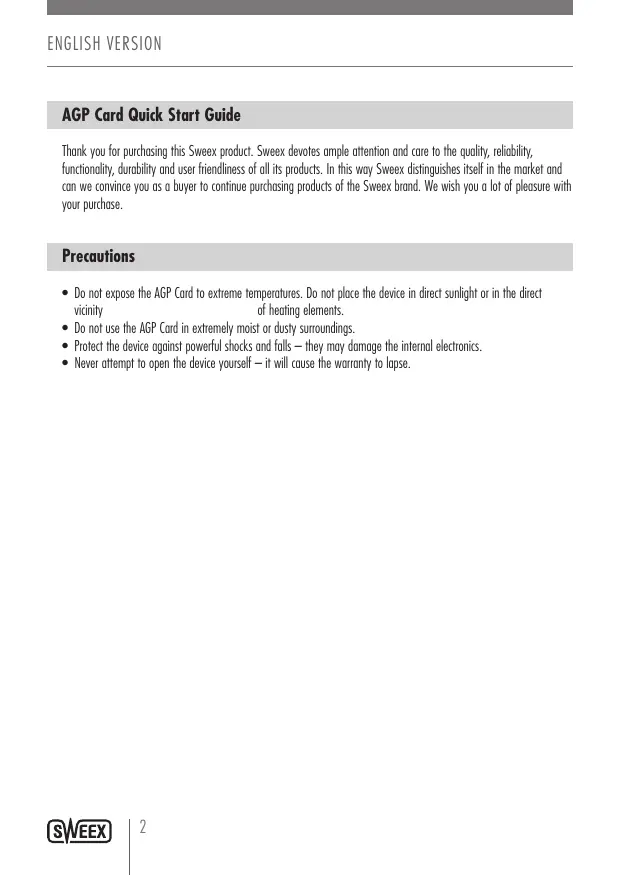

AGP Card Quick Start Guide

Thank you for purchasing this Sweeex product. Sweeex devotes ample attention and care to the quality, reliability, functionality, durability and user friendliness of all its products. In this way Sweeex distinguishes itself in the market and can we convince you as a buyer to continue purchasing products of the Sweeex brand. We wish you a lot of pleasure with your purchase.

Precautions

• Do not expose the AGP Card to extreme temperatures. Do not place the device in direct sunlight or in the direct vicinity of heating elements.
• Do not use the AGP Card in extremely moist or dusty surroundings.
• Protect the device against powerful shocks and falls - they may damage the internal electronics.
• Never attempt to open the device yourself - it will cause the warranty to lapse.

Installation

Installation of the AGP Card is done in 6 steps:

• Disconnect the power from your computer and remove all cables connected to your computer
• Ensure you are free of static electricity, this can be done by touching the bare metal of an earthed object such as a central heating pipe or water tap
• Open your computer, if you are unsure how to do this, consult your computer's operating or service manual.
• Locate a free AGP slot and if necessary remove the chassis back plate for the slot.

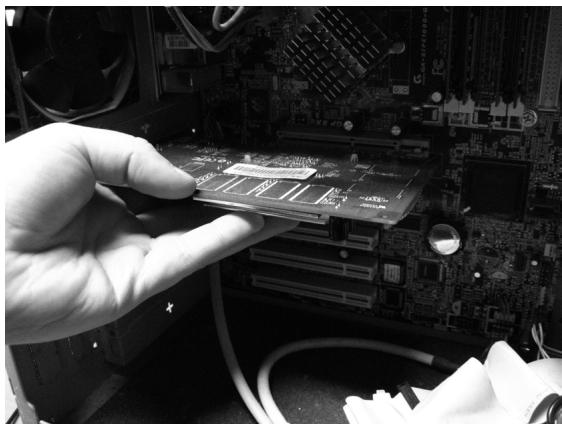

• Insert the card straight into the slot as indicated in the picture below. Avoid touching any of the card's golden contact pins:

• Use a screw to secure the card's bracket to your computer's chassis. Note that some computers may use other means of securing the card in place.

Swee x warranty conditions.

2-year standard warranty within the EU

In a standard manner a warranty period of 2 years as from the purchase date is available for this Swee x product within the EU.

Should you wish to invoke this warranty within the first 2 years after the purchase then you can directly apply to the point of sale where you purchased the product for the conditions and procedures.

Matters that are excluded from the warranty

The warranty of Sweex only covers manufacturing defects. Excluded from the warranty are accessories like batteries, rechargeable batteries and also supplied software, where applicable.

The liability of Sweex is limited to the costs of repair and/or replacement of the product covered by the warranty.

The standard warranty is null and void if the product has been opened, changes have been made, physical damage was caused to the product and if the product is used for another purpose than for which it is originally meant.

All brand names and associated rights mentioned in this manual are and remain the sole property of the rightful claimant.
