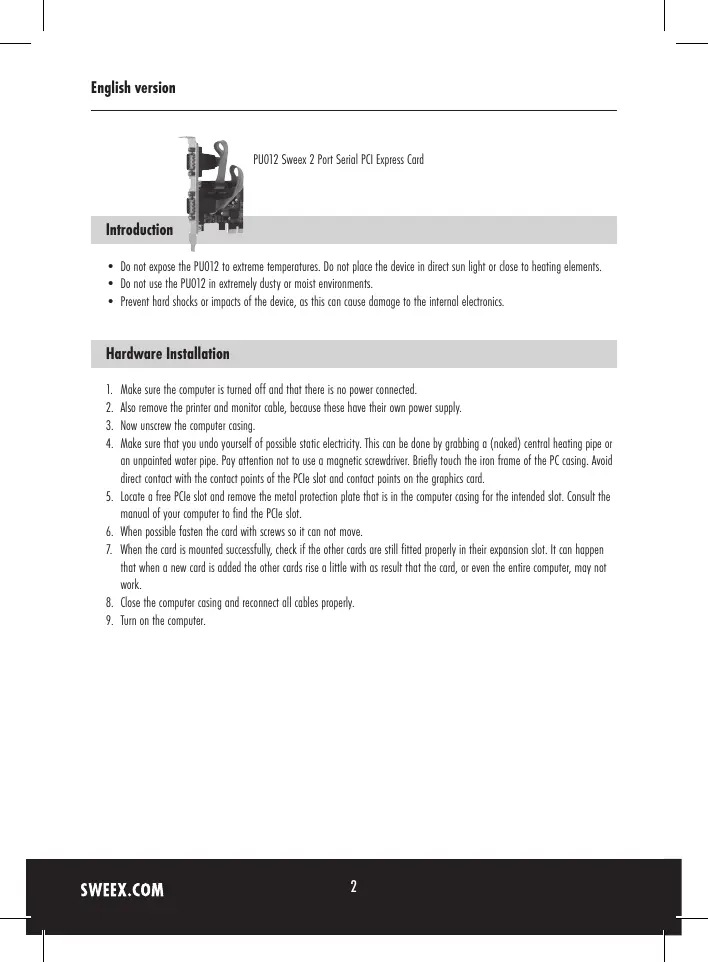

PU012 Sween 2 Port Serial PCI Express Card

Introduction

• Do not expose the PU012 to extreme temperatures. Do not place the device in direct sun light or close to heating elements.
• Do not use the PU012 in extremely dusty or moist environments.
• Prevent hard shocks or impacts of the device, as this can cause damage to the internal electronics.

Hardware Installation

1. Make sure the computer is turned off and that there is no power connected.
2. Also remove the printer and monitor cable, because these have their own power supply.
3. Now unscrew the computer casing.
4. Make sure that you undo yourself of possible static electricity. This can be done by grabbing a (naked) central heating pipe or an unpainted water pipe. Pay attention not to use a magnetic screwdriver. Briefly touch the iron frame of the PC casing. Avoid direct contact with the contact points of the PCIe slot and contact points on the graphics card.
5. Locate a free PCIe slot and remove the metal protection plate that is in the computer casing for the intended slot. Consult the manual of your computer to find the PCIe slot.
6. When possible fasten the card with screws so it can not move.
7. When the card is mounted successfully, check if the other cards are still fitted properly in their expansion slot. It can happen that when a new card is added the other cards rise a little with as result that the card, or even the entire computer, may not work.
8. Close the computer casing and reconnect all cables properly.
9. Turn on the computer.

Installation Windows XP

After starting the computer this window will appear.

Found New Hardware Wizard

Welcome to the Found New Hardware Wizard

Windows will search for current and updated software by clicking on the "Update" button in the Windows Update menu on the Windows Update site (with your permission).

Can Windows connect to Windows Update to search for software?

Yes, this time only.

Yes, now and gey line I connect a device

No,not this time

Click Next to continue.

Choose "No not this time" and click "Next".

Found New Hardware Wizard

This wizard helps you install software for:

SweeX 2 Port Serial PCIe Card

If your hardware came with an installation CD

or floppy disk, insert it now.

What do you want the wizard to do?

Iolal the software automatislics Recomended

Install from a list or specific location [Advanced]

Click Next to continue.

Place the Sweeex CD-ROM in the CD-ROM player. When the CD-ROM already was in the player, open the tray and close it again. Windows will automatically install the drivers.

If windows can not find the drivers, choose "Install from a list or specific location" in the above window.

Found New Hardware Wizard

Please choose your search and installation options.

Search for the best driver in these locations.

Use the check boxes below to limit or expand the default search, which includes local paths and removable media. The best driver found will be installed.

Search removable media [fppy, CD-ROM]

Include this location in the search.

CD-ROM DriveA

Don't search. I will choose the driver to install

Choose this option to select the device driver from a list. Windows does not guarantee that the driver you choose will be the best match for your hardware.

Click "Browse" and navigate to the Sweex CD-ROM to find the drivers. Press "Next".

It is possible that Windows will notify you that the driver is not certified. This is not a problem for correct functioning of the card. All Swee x products and relevant drivers are tested thoroughly. Choose the option "Continue Anyway".

Press "Finish" to complete the installation.

It is possible that the first window will re-appear. If it does repeat this procedure.

Installation Windows Vista

After starting the computer this window will appear.

Click "Locate and install driver software".

Place the Sweex CD-ROM in the CD-ROM player. When the CD-ROM already was in the player, open the tray and close it again. Windows will automatically install the drivers.

When windows can not find the drivers, choose "I don't have a disc. Show me other options." in the above window.

Click "Browse my computer for driver software".

Navigate to the Sweex CD-ROM to find the drivers.

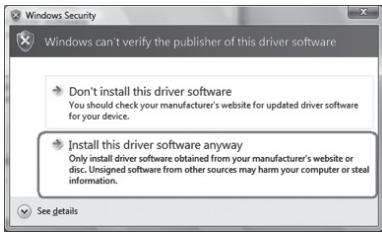

It is possible that Windows will notify you that the driver is not certified. This is not a problem for correct functioning of the card. All Sweex products and relevant drivers are tested thoroughly. Choose the option "Install this driver software anyway".

Follow the steps to complete the installation. It is possible that the first window will re-appear. If it does repeat this procedure.

Port settings Serial

The settings of the COM ports can be viewed and adjusted as follows:

Go to START -> settings -> control panel

In this window open "System". Go to the tab "Hardware" > "device manager".

In the device manager open the "Ports (COM & LPT)" list and select: NetMos PCIe Serial Port (COM)

Open the settings by right clicking it.

The following screen appears:

Select the tab "Port settings" and click "Advanced...".

Here you can view or change your COM port. Be aware that you do not choose a port that is already being used by the computer. This can result in a conflict.
