| Product Type | Hammer Drill |
| Brand | DEWALT |
| Model | D21805KS |
| Weight | 2.3 kg |
| Power Supply | 230 V, 770 W |
| No-load Speed (1st gear) | 0 - 1 100 min⁻¹ |
| No-load Speed (2nd gear) | 0 - 2 700 min⁻¹ |
| Drilling Capacity Steel | 13 mm |
| Drilling Capacity Wood | 35 mm |
| Drilling Capacity Concrete | 20 mm |
| Chuck Diameter | 13 mm |
| Chuck Type | Keyed Chuck |
| Main Functions | Drilling with hammer, drilling without hammer, screwdriving |
| Additional Features | Variable speed, left/right rotation selector, 2 speeds, adjustable side handle, depth stop |
| Sound Pressure Level | 95 dB(A) |
| Sound Power Level | 106 dB(A) |
| Vibration (metal drilling) | 4.5 m/s² |
| Vibration (hammer drilling) | 16 m/s² |
| Double Insulation | Yes |
| Maintenance and Cleaning | Dust the ventilation slots with dry air, clean with a damp cloth and mild detergent |
| Safety | Wear hearing protection, safety glasses, dust mask; use the side handle; disconnect before adjustment |
| Spare Parts and Repairability | Repair by qualified personnel with original parts; DEWALT after-sales service |
| Warranty | 1 year (exchange or refund within 30 days) |
Frequently Asked Questions - D21805KS DEWALT
User questions about D21805KS DEWALT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hammer drill in PDF format for free! Find your manual D21805KS - DEWALT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. D21805KS by DEWALT.
USER MANUAL D21805KS DEWALT
D21805/D21810/D21815
Tillykke!
D21805/D21810/D21815
DEWALT erklær, at disse værktjær er konstrueret i overensstemmelse med: 98/37/EF (indtil 28 dec. 2009), 2006/42/EF (fra 29 dec. 2009), 2004/108/EF, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, EN 60745-1, EN 60745-2-1.
D21805/D21810/D21815
D21805/D21810/D21815

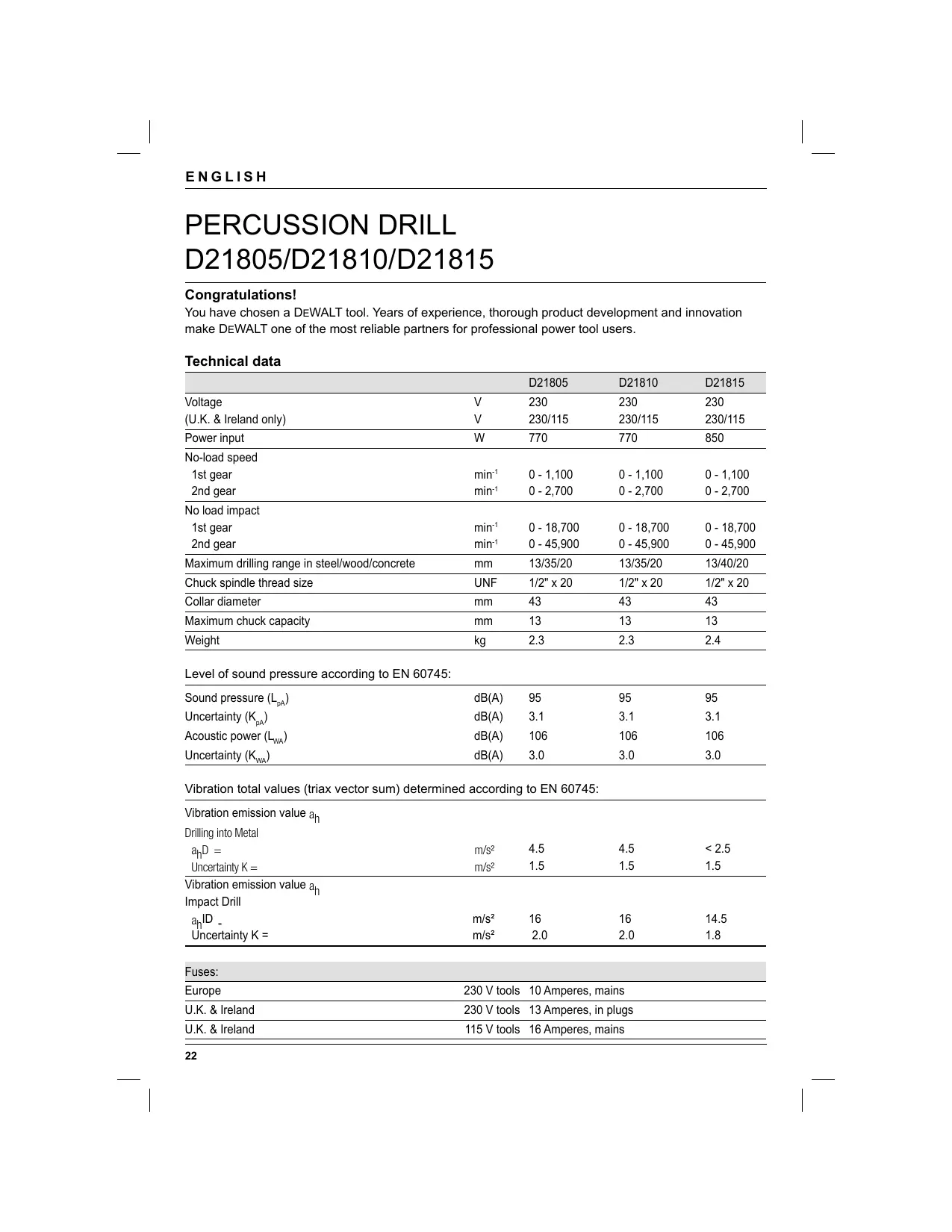

Congratulations!
You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.
Technical data
| D21805 | D21810 | D21815 | ||
| Voltage (U.K. & Ireland only) | V | 230 | 230 | 230 |
| V | 230/115 | 230/115 | 230/115 | |
| Power input | W | 770 | 770 | 850 |
| No-load speed | ||||
| 1st gear | min-1 | 0 - 1,100 | 0 - 1,100 | 0 - 1,100 |
| 2nd gear | min-1 | 0 - 2,700 | 0 - 2,700 | 0 - 2,700 |
| No load impact | ||||
| 1st gear | min-1 | 0 - 18,700 | 0 - 18,700 | 0 - 18,700 |
| 2nd gear | min-1 | 0 - 45,900 | 0 - 45,900 | 0 - 45,900 |
| Maximum drilling range in steel/wood/concrete | mm | 13/35/20 | 13/35/20 | 13/40/20 |
| Chuck spindle thread size | UNF | 1/2" x 20 | 1/2" x 20 | 1/2" x 20 |
| Collar diameter | mm | 43 | 43 | 43 |
| Maximum chuck capacity | mm | 13 | 13 | 13 |
| Weight | kg | 2.3 | 2.3 | 2.4 |
Level of sound pressure according to EN 60745:
| Sound pressure (LpA) | dB(A) | 95 | 95 | 95 |
| Uncertainty (KpA) | dB(A) | 3.1 | 3.1 | 3.1 |
| Acoustic power (LWA) | dB(A) | 106 | 106 | 106 |
| Uncertainty (KW) | dB(A) | 3.0 | 3.0 | 3.0 |
Vibration total values (triax vector sum) determined according to EN 60745:
| Vibration emission value ah | ||||
| Drilling into Metal | ||||
| ahD = | m/s2 | 4.5 | 4.5 | < 2.5 |
| Uncertainty K = | m/s2 | 1.5 | 1.5 | 1.5 |
| Vibration emission value ah | ||||
| Impact Drill | ||||
| ahID = | m/s2 | 16 | 16 | 14.5 |
| Uncertainty K = | m/s2 | 2.0 | 2.0 | 1.8 |
Fuses:
| Europe | 230 V tools | 10 Amperes, mains |
| U.K. & Ireland | 230 V tools | 13 Amperes, in plugs |
| U.K. & Ireland | 115 V tools | 16 Amperes, mains |
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
WARNING:
- The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
- An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
- Identify additional safety measures to protect the operator from the effects of vibration, such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
Definitions: Safety guidelines
The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.
Denotes risk of electric shock.
Denotes risk of fire.
EC-Declaration of conformity
D21805/D21810/D21815
DEWALT declares that these power tools have been designed in compliance with: 98/37/EC (until 28 December 2009), 2006/42/EC (from 29 December 2009), 2004/108/EC, EN 55014-1, EN 55014-2, EN 61000-3-2 & EN 61000-3-3, EN 60745-1, EN 60745-2-1.
For more information, please contact DEWALT at the address below, or refer to the back of the manual.
The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DEWALT.
Horst Großmann
Vice President Engineering and Product Development
D-65510, Idstein, Germany
17.12.2008
Safety instructions
WARNING: To reduce the risk of injury, read the instruction manual.
General power tool safety warnings
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
1 Work area safety
a Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2 Electrical safety
a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3 Personal safety
a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4 Power tool use and care
a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5 Service
a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Additional safety instructions for impact drills
-
Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.
-
Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
- Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator.
Residual risks
In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided.
These are:
- Impairment of hearing.
- Risk of personal injury due to flying particles.
- Risk of burns due to accessories becoming hot during operation.
- Risk of personal injury due to prolonged use.
- Risk of squeezing fingers when changing the accessory.
- Health hazards caused by breathing dust developed when working in concrete and/or masonry.
Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual before use.
Package contents
The package contains:
1 Percussion drill
1 Side handle
1 Depth gauge
1 Chuck key
1 Kitbox (K-models only)
1 Instruction manual
1 Exploded drawing
- Check for damage to the tool, parts or accessories which may have occurred during transport.
- Take the time to thoroughly read and understand this manual prior to operation.
Description (fig. A)
WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.
Intended use
Your D21805/D21810/D21815 percussion drill has been designed for professional drilling and impact drilling as well as for screwdriving applications.
DO NOT use this tool under wet conditions or in presence of flammable liquids or gases.
This percussion drill is a professional power tool. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.
1 Variable speed switch
2 Lock-on button
3 Forward/reverse slider
4 Two gear selector
5 Mode selector
6 Side handle
7 Depth adjustment rod
8 Keyed chuck
9 Sleeve
10 Chuck key
Electrical safety
The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.
Your DEWALT tool is double insulated in accordance with EN 60745; therefore no earth wire is required.
WARNING: 115 V units have to be operated via a failsafe isolating transformer with an earth screen between the primary and secondary winding.
If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DEWALT service organisation.
Mains Plug Replacement (U.K. & Ireland Only)
If a new mains plug needs to be fitted:
- Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the plug.
- Connect the blue lead to the neutral terminal.
WARNING: No connection is to be made to the earth terminal.
Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3 A.
Using an extension cable
If an extension cable is required, use an approved extension cable suitable for the power input of this machine (see technical data). The minimum conductor size is 1.5mm^2 . When using a cable reel, always unwind the cable completely.
Assembly and adjustment
WARNING: Prior to assembly and adjustment always unplug the tool.
Selecting the operating mode (fig. B)
The tool can be used in two operating modes:
Rotary drilling: for steel, wood and plastics.
Percussion drilling: simultaneous rotating and impacting for concrete and masonry drilling operations.
- Select the required operating mode by rotating the mode selector (5) to the required position.
Inserting and removing a bit (fig. A)
- Open the chuck by turning the sleeve (9) counterclockwise and insert the bit shank
- Put the chuck key (10) into each hole in the side of the chuck and turn clockwise until tight.
- To remove the bit, proceed in reverse order.
Fitting the side handle (fig. A)
The side handle (6) can be fitted to suit both RH- and LH-users.
WARNING: Always use the drill with the side handle properly assembled.
- Loosen the side handle.
- For RH-users, slide the side handle clamp over the collar behind the chuck, handle at the left.
- For LH-users, slide the side handle clamp over the color behind the chuck, handle at the right.
- Rotate the side handle to the desired position and tighten the handle.
Setting the drilling depth (fig. C)
- Insert the required drill bit into the chuck.
- Slacken the side handle (6).
- Fit the depth adjustment rod (7) through the hole in the side handle clamp.
- Adjust the drilling depth as shown.
- Tighten the side handle.
Forward/reverse slider (fig. A)
- To select forward or reverse rotation, use the forward/reverse-switch (3) (see arrow on tool).
WARNING: Always wait until the motor has come to a complete standstill before changing the direction of rotation.
Two gear selector (fig. D)
Your tool is fitted with a two gear selector (4) to vary the speed/torque ratio.
- Release the variable speed switch and select the required position. This can be done either with the tool switched off or running under no load condition.
Always align the selector with the arrow on the gear housing:
1 low speed/high torque (drilling large holes, driving large screws)
2 high speed/low torque (drilling smaller holes, drilling in wood)
For information on speed rates, refer to the technical data.
- Do not change gears at full speed or during use.
Chuck removal (fig. E & F)
- Open the chuck jaws as far as possible.
- Insert a screwdriver into the chuck and remove the chuck retaining screw (11) by turning clockwise.
- Tighten an Allen key into the chuck and strike it with a hammer as shown.
Instructions for use
WARNING:
- Always observe the safety instructions and applicable regulations.
- Be aware of the location of pipework and wiring.
- Apply only a gentle pressure to the tool. Excessive force does not speed up drilling but decreases tool performance and may shorten tool life.
Prior to operation:
- Insert the appropriate bit.
- Mark the spot where the hole is to be drilled.
Switching on and off (fig. A)
- To run the tool, press the variable speed switch (1). The pressure exerted on the variable speed switch determines the tool speed.
- If necessary, press the lock-on button (2) for continuous operation and release the switch. The lock-on button works only in full speed, forward rotation.
- To stop the tool, release the switch.
- To stop the tool in continuous operation, press the switch briefly and release it. Always switch off the tool when work is finished and before unplugging.
Percussion drilling (fig. A)
- Select the percussion mode.
- Press the switch (1).
Rotary drilling (fig. A)
- Select the rotary drilling mode.
- Press the switch (1).
Screwdriving
- Select forward or reverse rotation.
-
Select the rotary drilling mode.
-
Press the switch (1).
Maintenance
Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
WARNING: To reduce the risk of injury, switch off and disconnect the tool from the power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. Be sure the tool is switched off. An accidental start-up can cause injury.
Lubrication
Your power tool requires no additional lubrication.
Cleaning
WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.
WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts.
Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.
Optional accessories
Consult your dealer for further information on the appropriate accessories.
WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT, recommended accessories should be used.
Protecting the environment
Separate collection. This product must not be disposed of with normal household waste.
Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com
GUARANTEE
30 DAY NO RISK
SATISFACTION GUARANTEE
If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.
- ONE YEAR FREE SERVICE CONTRACT
If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.
- ONE YEAR FULL WARRANTY
If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:
- The product has not been misused.
- Repairs have not been attempted by unauthorized persons.
- Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.
For the location of your nearest authorized DeWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DeWALT repair agents and full details on our after-sales service are available on the Internet at www.2helpU.com.
ESPANOL
TALADRO PERCUTOR D21805/D21810/D21815
Enhorabuena!
D21805/D21810/D21815
D21805/D21810/D21815
L'emballage content:
30 JOURS D'ENGAGEMENT SATISFACTION GARANTIE
D21805/D21810/D21815
D21805/D21810/D21815
Gefeliciteerd!
D21805/D21810/D21815
D21805/D21810/D21815
Gratuler!
D21805/D21810/D21815
DEWALT erklærer at disse elektronektøyene er konstruert i henhold til: 98/37EF (inntil 28. des. 2009), 2006/42/EF (fra og med 29. des. 2009), 2004/108, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, EN 60745-1, EN 60745-2-1.
D21805/D21810/D21815
A DEWALT declara que estas ferramentas electrolyticas foram concebidas em conformidade com: 98/37CE (até 28 de Dez. de 2009), 2006/42/CE (a partir de 29 de Dez. de 2009), 2004/108/CE, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, EN 60745-1, EN 60745-2-1.
D21805/D21810/D21815
Onneksi olkoon!
D21805/D21810/D21815
Vice President Engineering and Product Development
D21805/D21810/D21815
Vi gratular!
D21805/D21810/D21815
D21805/D21810/D21815
DEWALT, bu elektrikli alelerin: 98/37/EC (Aralik 28, 2009'a kadar), 2006/42/EG (Aralik 29, 2009'dan itibaren), 2004/108/EC, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, EN 60745-1, EN 60745-2-1.
Opiouoi: Ooyniec aopaaeia
OI napakatw opiooi TepiypapovuT oTTTEoBopntac yia kαθε λεξη Evδεiŋc. Napakalouε δiaβaote to EYxεipidio kai pooεEte auta ta σuμβoλa.
KINADNOs:KaOopiEimuEeIKEiEvn EITIKivDuvN kataoaon noToia, eav dEv aTTOpeuxei, oObnyoei oE havato n OoBapotpaumio.
NPOEIODOIHSH:KaOpiEimuiaevexouEvwcsTNIKIVovnKataoaonn oToia,avEv aTOpeuxei,thetaopooue va oOnynoe 0e havato n oobapo tpaumaiu.
NPOSOXH: KaOpiEi Mi aEvEeVwC EITIKovn katotaan n oToia, eav dEv aTTOpeuxei, EvexTea va TpokaAeoi ELaappo n Mean Soapotntac Tpaumatio.
D21805/D21810/D21815
H DEWALT OTa auta ta nAeKtpiKa epyaleia a T Ondyic: 98/37/EK (ewc28 AekEumoiu 2009), 2006/42/EK (atio tC 29 iou 2009 kai oTo Ens), 2004/108/EK, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, EN 60745-1, EN 60745-2-1.
EANHIKA
Tia TpiioootepeC TnpoopopeC, Tnapakaaw ateuthetaite OTnv DEWALT OTnv Tnapakatw diuovan n avatpeTe OTo Tiow mepoc tou Eyyxieoiou.
O katwtiuoyepaumevoc evai a apuodios yia tn ouvtaqn Tou texvikou qakelou kai paymuotioie Tnv npouo o hawon ek epuoc ts etaipiac DEWALT.
X. fopsman
Horst Groimann
AvTIPoEoPoc Tmuatoc mXavoloyiaKai avTtUeNc TPOIOvTov
