Product Type	2-Channel Graphic Equalizer
Brand	Peavey
Model	PV 215EQ
Number of Channels	2 (stereo)
Number of Bands per Channel	15
Frequency Range	31.5 Hz to 16 kHz
Equalization Range	-12 dB to +12 dB per band
Filter Type	2/3 octave, constant Q
Low Cut Filter	40 Hz, 18 dB/octave slope, switchable
Input Connectors	Balanced XLR female (per channel)
Output Connectors	Balanced XLR male (per channel)
Input Impedance	20 kΩ
Output Impedance	1.5 kΩ
Maximum Output Level	11 VAC
Signal-to-Noise Ratio	90 dB
Harmonic Distortion	0.03%
Display	Level LEDs (-12 to +17 dB)
Special Functions	Bypass, Ground lift, Low cut filter with LED
Power Supply	120 V AC (depending on model)
Maintenance and Cleaning	Clean with a dry cloth only
Safety	Do not open, do not expose to moisture, refer repairs to a qualified technician
Repairability	Repair by a Peavey authorized technician only

Frequently Asked Questions - PV 215EQ PEAVEY

How to use the PV 215EQ equalizer for initial setup?

Set all equalization sliders to the center position (0 dB). Gradually increase system volume. In case of feedback (howling), slightly reduce the problematic frequency. Repeat until the desired sound level is reached.

What does the Bypass button do on the PV 215EQ?

The Bypass button disables all equalization (except the low cut filter if active). The signal is then routed directly from inputs to outputs via the low cut filter.

How to use the Low Cut filter?

The low cut filter cuts frequencies below 40 Hz with an 18 dB/octave slope. It is recommended for most PA systems. Enable it via the corresponding switch on the front panel.

What is the Ground Lift switch for?

The Ground Lift switch disconnects the audio signal ground from the electrical ground, reducing hum and noise (ground loops) while maintaining safety grounding.

How to interpret the level LEDs?

The LEDs indicate signal level from -12 dB to +17 dB. Consistent illumination around 0 dB is optimal. Avoid constant illumination in the red zone (+17 dB) to prevent distortion.

What type of cable to use to connect the PV 215EQ?

Use balanced XLR cables for inputs and outputs. Input connectors are female XLR and output connectors are male XLR.

How to adjust the LEVEL control on the equalizer?

The LEVEL control compensates for gain loss due to equalization. Adjust it so that the sound level remains constant when enabling/disabling bypass.

What safety precautions should be followed?

Do not open the unit (risk of electric shock). Do not expose to moisture or rain. Use only a dry cloth for cleaning. Refer all repairs to a Peavey authorized technician.

What to do if the unit does not power on?

Check the fuse located in the IEC power connector. Unplug the unit, remove the fuse holder and inspect it. Replace it with a fuse of the same rating if needed. If the problem persists, contact a Peavey authorized service center.

How to maintain the PV 215EQ?

Unplug the unit before cleaning. Use a dry, soft cloth to wipe the surface. Never use chemical or abrasive cleaners. Ensure ventilation openings are not blocked.

USER MANUAL PV 215EQ PEAVEY

PV SERIES PV216EQ™ PRODUCTION 5/8 WAY CHANNEL POWER CHANNEL 1 +12 -12 31.5 40 63 100 160 250 400 500 630 800 1K 2K 4K 8K 16K +12 IN/OUT LOW CUT -12 0 +10 +17 LEVEL +80Hz -12 31.5 40 63 100 160 250 400 500 630 800 1K 2K 4K 8K 16K +12 IN/OUT LOW CUT -12 0 +10 +17 LEVEL +80Hz -12 31.5 40 63 100 160 250 400 500 630 800 1K 2K 4K 8K 16K +12 IN/OUT LOW CUT -12 0 +10 +17 LEVEL +80Hz -12 31.5 40 63 100 160 225 400 500 630 800 1K 2K 4K 8K 16K +12 IN/OUT LOW CUT -12 0 +10 +17 LEVEL +80Hz -12 31.5 40 63 100 160 250 400 500 630, 800 1K 2K 4K 8K 16K +12 IN/OUT LOW CUT -12 0 +10 +17 LEVEL +80Hz -12 31.5 40 63 100 160 250 400 500 630, 800 1K 2K 5K 8K 16K +12 IN/OUT LOW CUT -12 0 +10 +17 LEVEL +80Hz -12 31.5 40 63 100 160 250 400 500, 630, 800, 1K, 2K, 4K, 8K, 16K +12 IN/OUT LOW CUT -12 0 +10 +17 LEVEL +80Hz -12 31.5 40 63 100 160, 250, 400, 500, 630, 800, 1K, 2K, 4K, 8K, 16K +12 IN/OUT LOW CUT -12 0 +10 +17 LEVEL +80Hz -12 31.5 40 63 100, -25, -4, -6, -8, -9, -12, -14, -16, -18, -20, -22, -24, -26, -28, -30, -32, -34, -36, -38, -40, -42, -44, -46, -48, -50, -52, -54, -56, -58, -60, -62, -64, -66, -68, -70, -72, -74, -76, -78, -80, -82, -84, -86, -88, -90, -92, -94, -96, -98, -100, -102, -104, -106, -108, -110, -112, -114, -116, -118, -120, -122, -124, -126, -128, -130, -132, -134, -136, -138, -140, -142, -144, -146, -148, -150, -152, -154, -156, -158, -160, -162, -164, -166, -168, -170, -172, -174, -176, -178, -180, -182, -184, -186, -188, -190, -192, -194, -196, -198, -200

Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock — DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, this apparatus should not be exposed to rain or moisture, and objects filled with liquids, such as vases, should not be placed on this apparatus. Before using this apparatus, read the operating guide for further warnings.

WARNING: When using electrical products, basic cautions should always be followed, including the following:

CE

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding plug. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus.
11. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug, proceed as follows:

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.
c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

1. Only use attachments/accessories provided by the manufacturer.
2. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
3. Unplug this apparatus during lightning storms or when unused for long periods of time.
4. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
5. Never break off the ground pin. Write for our free booklet “Shock Hazard and Grounding.” Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.
6. If this product is to be mounted in an equipment rack, rear support should be provided.
7. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

Duration Per Day In Hours	Sound Level dBA, Slow Response
8	90
6	92
4	95
3	97
2	100
112	102
1	105
1/2	110
1/4 or less	115

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

SAVE THESE INSTRUCTIONS!

Thank you for purchasing a Peavey Electronics PV 215EQ graphic equalizer. The PV 215EQ is a dual-channel EQ incorporating Peavey's legendary low-noise, low-distortion design. Ruggedly constructed, PV 215EQs have center-detented fader controls, with ±12 dB gain and an LED display indicating level. Other features include balanced inputs and outputs and bypass switches. Whether on stage, in the studio or simply tweaking your home hi-fi system, the PV 215EQ is the EQ for you.

Features

→ Dual channel (15 bands per channel)
→ 2/3 octave filter sets
→ 25 Hz to 16 kHz effective equalization range
→ Constant Q filters
→ 12 dB cut or boost per band
→ Level LEDs (-12 to +17 dB)
→ Low cut filter switch with status LED
→ XLR inputs and outputs for balanced operation
→ Bypass switch with status LED
→ Ground lift switch

Equalization Process

Always begin the equalization process with all sliders at their center-detent (flat response) positions. Adjust the level up until the unit begins to feed back, then lower each fader until the feedback frequency is found. Lower the faders in small amounts to avoid adversely affecting sound quality. Likewise, excessive boosting of a frequency may result in feedback.

Exercise caution when attempting to boost frequencies below speaker system transducer cut-off. Typical sound reinforcement enclosures are not designed for 20 Hz performance, and transducer damage could result from over-boosting low frequencies. Excessive boost at very low frequencies could also limit overall system headroom. Engaging the low-cut filter is the best way to avoid these problems.

NOTE: Superb tonality, absence of feedback and great-sounding systems may not be achievable with any graphic equalizer. All other system components must be of high quality and designed for the application. No amount of equalization will correct an acoustically bad room or bad microphone/speaker arrangement, or completely correct the response curve of a poor loudspeaker.

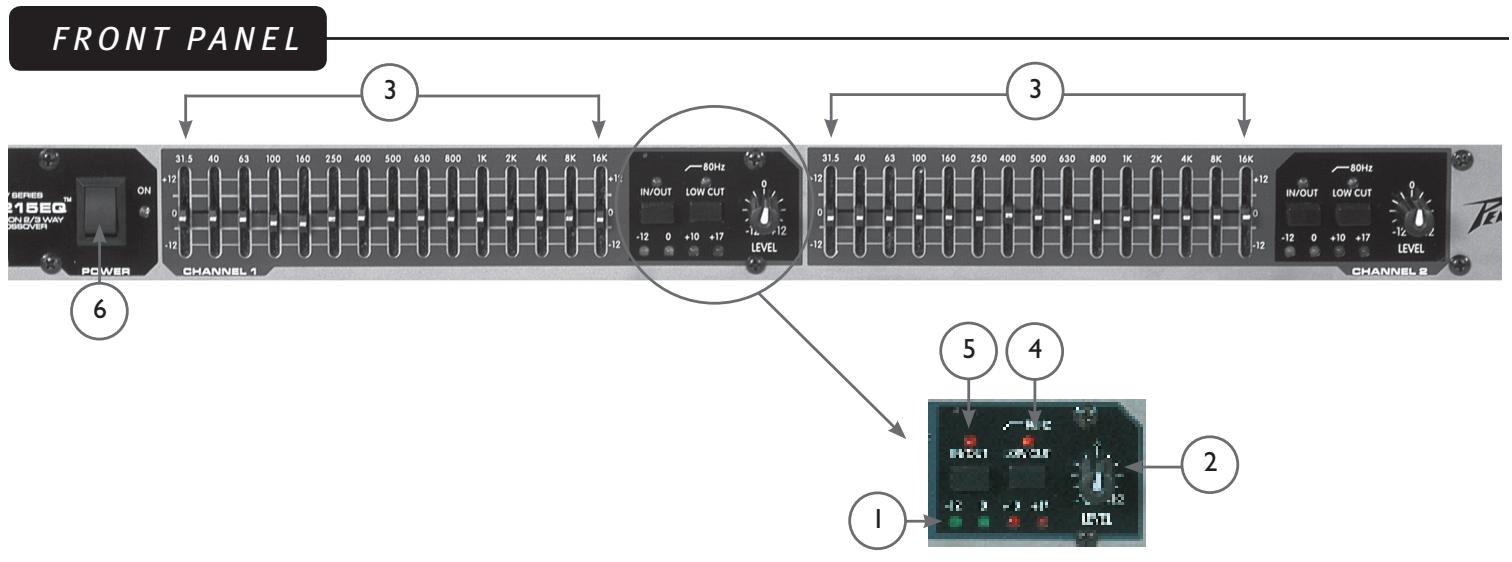

FRONT PANEL 3 6 POWER CHANNEL 1 80Hz IN/OUT LOW CUT LEVEL -12 0 +10 [phone]Hz IN/OUT LOW CUT LEVEL -12 0 +10 +17 -12 1

LEVEL LED METER (I)

This LED array indicates level from -12 dB to +17 dB.

LEVEL CONTROL (2)

This control regulates overall level of the EQUALIZER SECTION.

Unity gain throughout the signal chain can be maintained by recovering lost signal gain at this point. The equalization process may result in noticeable signal loss. To compensate for this loss, engage the BYPASS switch (5) and compare the signal level with that of the equalized level. Increase the LEVEL control until the equalized level approximates that of the bypassed level. Let your ears be your guide.

EQUALIZER SECTION (3)

These calibrated, detented controls adjust the amount of cut or boost at their respective frequencies. They are adjustable from -12 dB (cut) to +12 dB (boost).

LOW-CUT FILTER (4)

This switch activates the low-cut filter that rejects frequencies below 40 Hz. Frequency roll-off is 18 dB per octave with the switch engaged. This filter will operate even with the BYPASS (5) switch engaged. The adjacent red LED indicates activation.

BYPASS (5)

This switch allows the signal to bypass all features except the LOW-CUT FILTER (4). When this switch is engaged, the signal is routed from INPUT (10 and 11) though the low-cut filter to the channel's output. Bypass is indicated by the illumination of the LED located above the switch.

POWER (6)

This 2-position rocker switch applies mains power to the unit when in the ON position. The adjacent red LED indicates mains power activation.

WARNING! THE ON/OFF SWITCH IN THIS APPARATUS DOES NOT BREAK BOTH SIDES OF THE MAINS. HAZARDOUS ENERGY MAY BE PRESENT INSIDE THE ENCLOSURE WHEN THE POWER SWITCH IS IN THE OFF POSITION.

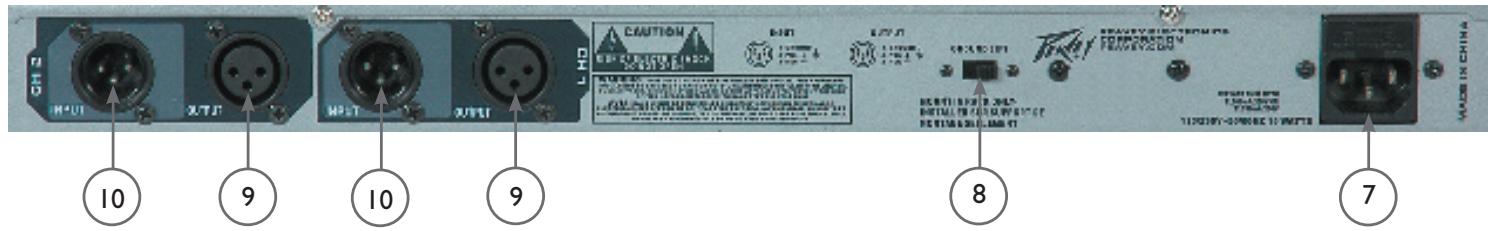

10 9 10 9 8 7

IEC MAINS CONNECTOR (7)

This is a standard IEC power connector. An AC mains cord having the appropriate AC plug and ratings for the intended operating voltage is included in the carton.

Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does not have a ground pin, a suitable grounding adapter should be used and the third wire should be grounded properly. To prevent the risk of shock or fire hazard, always make sure that the equalizer and all associated equipment is properly grounded.

Incorporated into this IEC MAINS CONNECTOR is the MAINS FUSE HOLDER. If for any reason you are unable to power up this unit, remove the fuse by pulling out the holder. Check to see if the fuse is operational. If not, then replace with a fuse of the appropriate value and rating. If the fuse continues to fail contact your nearest Certified Peavey Service Center.

GROUND LIFT SWITCH (8)

This will lift the circuit ground while keeping the Mains Safety Ground intact. This is useful when hum is present, and will maintain a safely operated unit.

XLR INPUT (9)

These female 3-pin connectors provide balanced input when used with male XLR connectors.

XLR OUTPUT (10)

These male 3-pin connectors provide balanced output when used with female XLR connectors.

PV® 215EQ Graphic Equalizer

SPECIFICATIONS

Channels: 2

Connectors: XLR balanced inputs and outputs

Bands: 15 per channel

Frequency Centers: 31.5 Hz, 40 Hz, 63 Hz, 100 Hz, 160 Hz, 250 Hz, 400 Hz, 500 Hz, 630 Hz, 800 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz

Input Impedance: 20k ohms

Output Impedance: 1.5k ohms

Maximum Output Level: 11 VAC

Level Control: +/- 12 dB

Signal to Noise: 90 dB

Distortion: 0.03%

Power: 120

Power Consumption: 15 watts

DEUTSCH

PV®215EQ

Graphic Equalizer

Beschreibung

CONNECTEUR D'ALIMENTATION IEC (7)

Consommation: 15 watts

ESPAÑOL

PV®215EQ

Ecualizador gráfico

Descripción

What This Warranty Covers

Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada.

What This Warranty Does Not Cover

The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by persons not authorized by Peavey; (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Authorized Peavey Dealer.

Who This Warranty Protects

This Warranty protects only the original retail purchaser of the product.

How Long This Warranty Lasts

The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows:

Product Category	Duration
Guitars/Basses, Amplifiers, Pre-Amplifiers, Mixers, Electronic Crossovers and Equalizers	2 years *(+ 3 years)
Drums	2 years *(+ 1 year)
Enclosures	3 years *(+ 2 years)
Digital Effect Devices and Keyboard and MIDI Controllers	1 year *(+ 1 year)
Microphones	2 years
Speaker Components (incl. speakers, baskets, drivers, diaphragm replacement kits and passive crossovers) and all Accessories	1 year
Tubes and Meters	90 days

[*Denotes additional warranty period applicable if optional Warranty Registration Card is completed and returned to Peavey by original retail purchaser within 90 days of purchase.]

What Peavey Will Do

We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.

How To Get Warranty Service

(1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Peavey Dealer or Authorized Peavey Service Center. OR
(2) Ship the defective item, prepaid, to Peavey Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Meridian, MS 39301 or Peavey Canada Ltd., 95 Shields Court, Markham, Ontario, Canada L3R 9T5. Include a detailed description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of warranty coverage. Also provide a complete return address.

Limitation of Implied Warranties

ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Exclusions of Damages

PEAVEY'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVEY'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. PEAVEY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you have any questions about this warranty or service received or if you need assistance in locating an Authorized Service Center, please contact the Peavey International Service Center at [phone] / Peavey Canada Ltd. at [phone].

FEATURES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
