USER MANUAL EQ 31FX PEAVEY

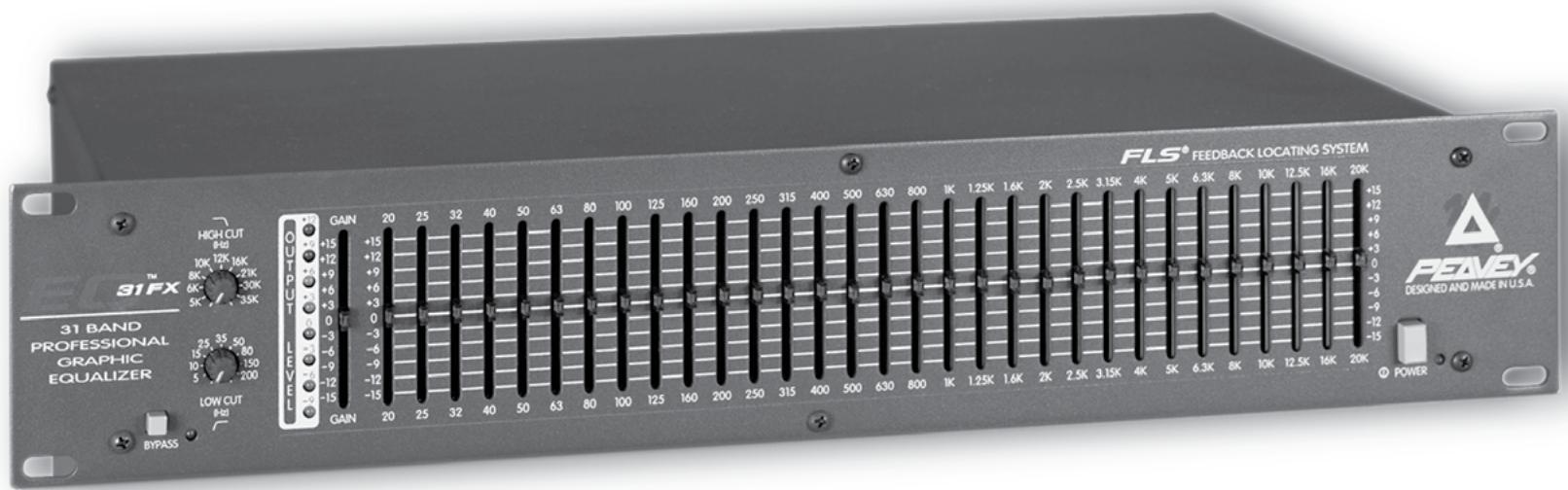

31 Band Professional Graphic Equalizer

Intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock — DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before using this appliance, read the operating guide for further warnings.

Congratulations on purchasing the EQ™ 31FX! With its introduction, Peavey engineers have taken graphic equalizers to the next level. The EQ™ 31FX offers 31 bands of 1/3 octave filters featuring superior constant "Q" devices. LED indicators are located in the slider of the frequency bands to identify the presence of a high energy signal (usually feedback). This sophisticated feedback detector system will allow you to quickly identify and remove feedback. It works like this: When the feedback detection circuit detects the frequency band with the most energy, it causes the LED in the slider of the associated frequency band to illuminate. By moving the fader downward for that band, the likelihood of feedback is reduced/eliminated. Most use the EQ 31FX in one of two ways: 1. To catch and reduce/eliminate feedback "on-the-fly" during a performance. 2. To determine frequency bands that are susceptible to feedback BEFORE the performance, and eliminating them in advance.

After the system is set up, bring up the microphone levels slowly. As they start to feed back, note the LED activity on the EQ 31FX feedback bands. Move the faders to decrease the "identified" bands. Now you have eliminated a high percentage of potential feedback problems, before the performance even begins! Note: It is not uncommon for feedback to be active over several frequency bands. Also, go easy when making fader adjustments since extreme movements will affect your performance and be counterproductive.

OPERATION NOTE

This equalizer is designed to provide room equalization, feedback control and system tone control. No amount of equalization will correct an acoustically bad room/mic/speaker arrangement or completely correct the response of a poor loudspeaker. Always begin with all sliders in the "0" position and avoid excessively cutting large segments of the audio passband, which would limit the system's dynamic range. Exercise caution when attempting to boost equalization below cut-off of the speaker system. Typical sound reinforcement enclosures are not designed for 20 Hz performance and transducer damage could result.

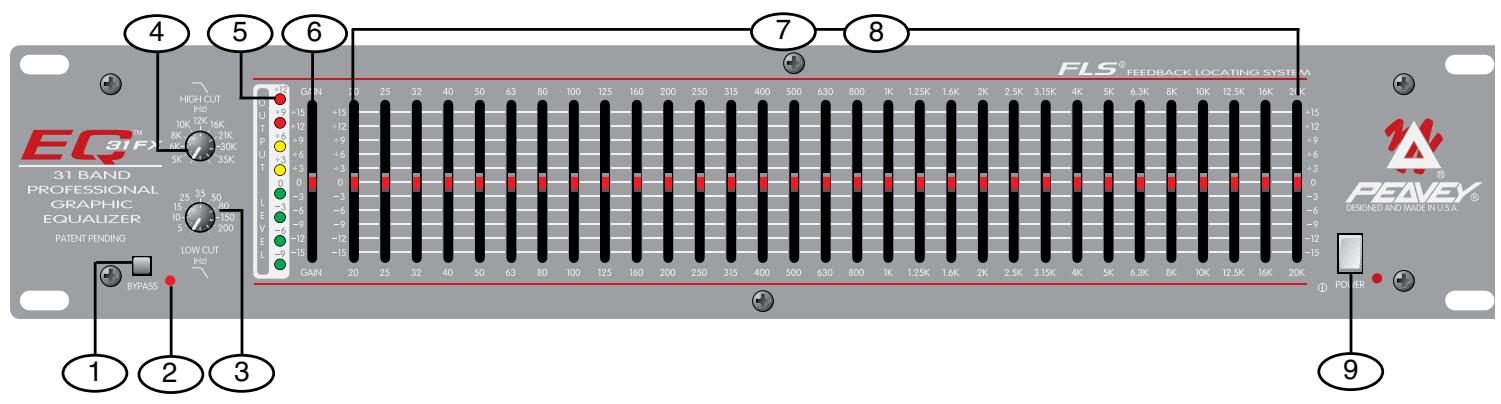

FRONT PANEL

FRONT PANEL FEATURES:

BYPASS SWITCH (1)

In Bypass mode (switch in), the input signal is routed directly to the output and is unaffected by all front panel controls except the low and high cut filters.

BYPASS LED (2)

This LED will illuminate when the Bypass switch is in the "in" position, indicating that the EQ and

gain controls are bypassed.

LOW CUT (3)

A high pass filter, continuously variable from 5Hz to 200Hz . Low frequency roll-off is at 12 dB per octave. Adjust this control to approximate low frequency cut-off of speaker system.

HIGH CUT (4)

A low pass filter, continuously variable from 5kHz to 35kHz . High frequency roll-off is at 12 dB per octave. Adjust this control slightly above high frequency system limitation.

LED LEVEL METER (5)

This multicolored LED ladder indicates output level.

GAIN (6)

Calibrated control for regulating overall gain of the equalizer section. Unity gain throughout the signal chain may be maintained by recovering lost signal at this point. Example: Assume the equalization process has introduced a signal loss of -6 dB by negative (-) adjustment of the EQ section. The gain should then be adjusted to +6 to maintain unity gain through the equalizer.

EQUALIZER SECTION (7)

31 bands of 1/3 octave filters. The filters are constant "Q" devices, located at ISO center frequencies. Effective equalization range is from 20Hz to 20kHz . Maximum cut or boost per frequency is 15dB .

AUTOMATIC FEEDBACK LOCATING LEDs (8)

When feedback occurs, the LED of the frequency band that is feeding back will illuminate indicating feedback in that band. The LED will remain illuminated for a few seconds even after the feedback is gone. This is to allow you to see where the feedback is if the feedback goes away before any correction is made. If there is no feedback occurring, the LED of the frequency band with the most energy in it will illuminate. Just because the LED is illuminated does not mean that there is feedback occurring. For best performance of the automatic feedback locating system, use an input signal of 0 dB (1V RMS).

POWER SWITCH (9)

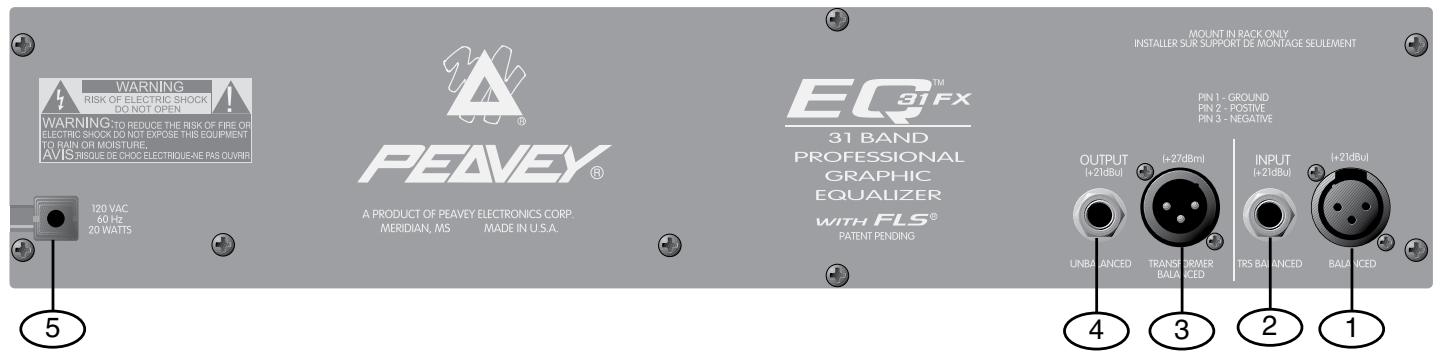

REAR PANEL

Used to turn AC mains power on or off.

INPUT XLR (1)

A three-pin female XLR jack is provided for electronically balanced input termination (pin 2 positive, pin 3 negative).

INPUT 1/4" (2)

1/4" tip-ring-sleeve (stereo) jack provides balanced input when used with stereo (TRS) 1/4" plugs and 2-conductor shielded cables. When used with a mono 1/4" phone plug, the input is unbalanced.

OUTPUT XLR (3)

A transformer balanced, male XLR output provides line-balancing to other pieces of audio equipment (power amps, etc.) Balanced output is recommended for rejection of hum, noise and outside interference (pin 2 positive, pin 3 negative).

OUTPUT 1/4" (4)

1/4" phone jack is provided for unbalanced output termination.

LINE CORD (120V Products only) (5)

We have incorporated a 2-wire line (mains) cable for power on the EQ 31FX.

Power requirements:

Domestic: 120VAC / 60 Hz / 20 W.

Export: 230VAC / 50/60 Hz / 20 W.

NOTE: CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT,

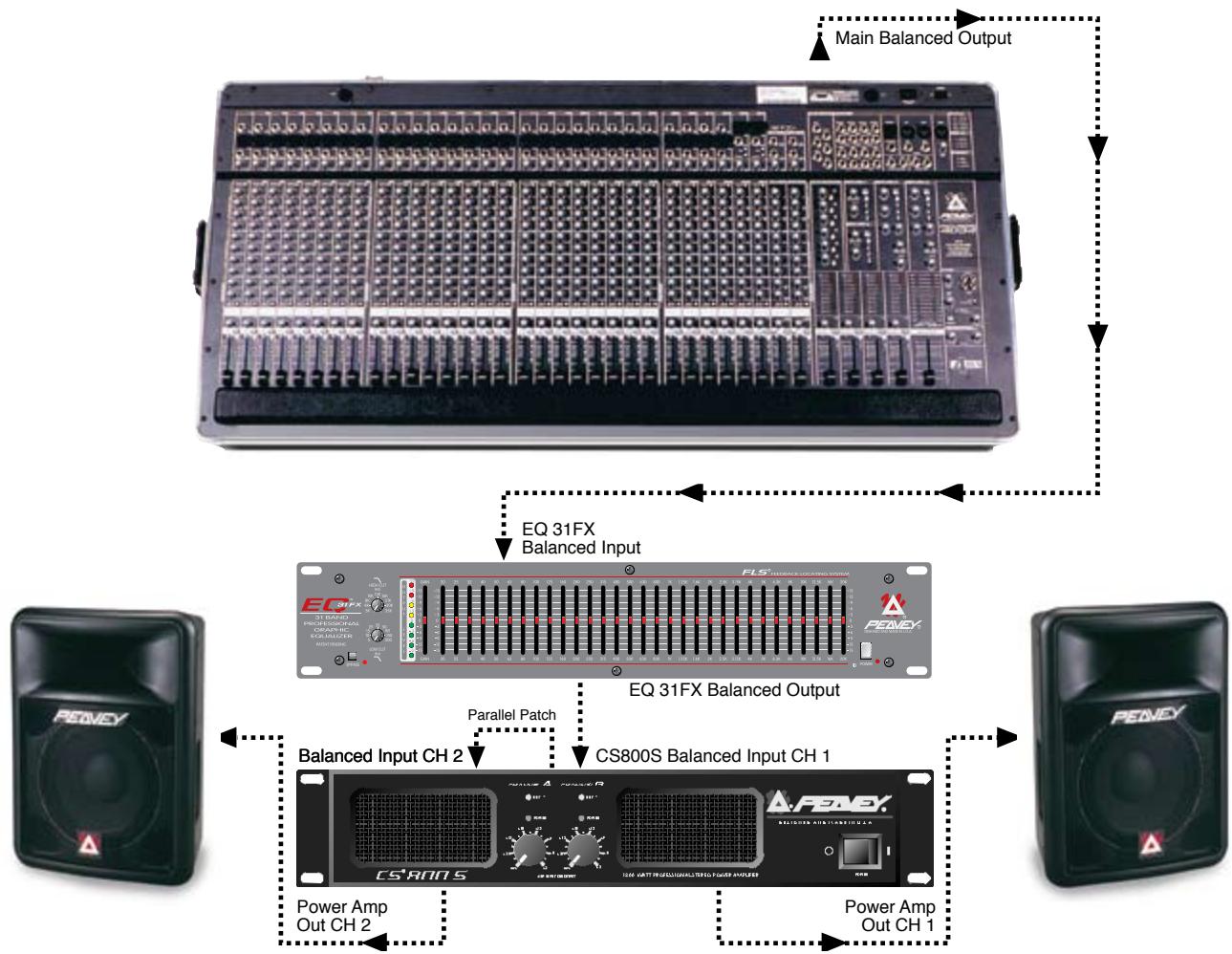

EQ 31FX Application:

Mono send from Mixer to external

EQ/Power Amp combination.

SPECIFICATIONS

Frequency Response:

+/- 1 dB 20 Hz to 20 kHz

Distortion:

.005% 20 Hz-20 kHz

Input Impedance:

Balanced 20k Ohms (Equal impedance to ground)

Output Impedance:

330 Ohms

Maximum Input Level:

+21 dBu (8.6 V RMS)

Maximum Output Level:

+27 dBu (17 V RMS)

Nominal Input Level:

0 dBV (1 V RMS)

Nominal Output Level:

0 dBV (1 V RMS)

Input Headroom:

Nominal 21 dBu

Output Headroom:

27 dBu

Output Noise:

EQ in bypass: -101 dBV

EQ in, all flat: -95 dBV

Filter Frequencies:

20, 25, 32, 40, 50, 63, 80, 100, 125, 160,

200, 250, 315, 400, 500, 630, 800, 1 k,

1.25 k, 1.6 k, 2 k, 2.5 k, 3.15 k, 4 k, 5 k,

6.3 k, 8 k, 10 k, 12.5 k, 16 k, and 20 kHz

Filter Q:

4.77

Maximum Boost and Cut Filter:

+/- 15 dB

Maximum Boost and Cut Gain (WideBand Gain):

+/- 15 dB

Low Cut Filter:

12 dB Per Octave

Frequency:

Min: 5 Hz

Max: 200 Hz

High Cut Filter:

12 dB Per Octave

Frequency:

Min: 5 kHz

Max: 35 kHz

All specifications are typical unless otherwise noted. 0 dBV=1 Volt. All specifications are referenced to nominal output level (0 dBV) unless otherwise stated. All measurements are wideband 20 Hz to 20 kHz unless otherwise stated. NOTE: All specs measured at 1V RMS input and unbalanced output. All sliders at mid position, all switches out unless otherwise noted. Due to our efforts for constant improvement, features and specifications listed herein are subject to change without notice.
